Bticino 37500 User manual
375000
04/21-01 PC
LE12691AA
BTicino SpA – Viale Borri, 231 – 21100 Varese – Italy – www.bticino.com
Installation
308 mm
211 mm
165 mm
170 mm
Dimensional data
To ensure correct operation, the guard station must be installed indoors, in a position protected from rain and away from heat sources.
Place the guard station on a flat surface, making sure not to
damage the display.
2
1
3
2

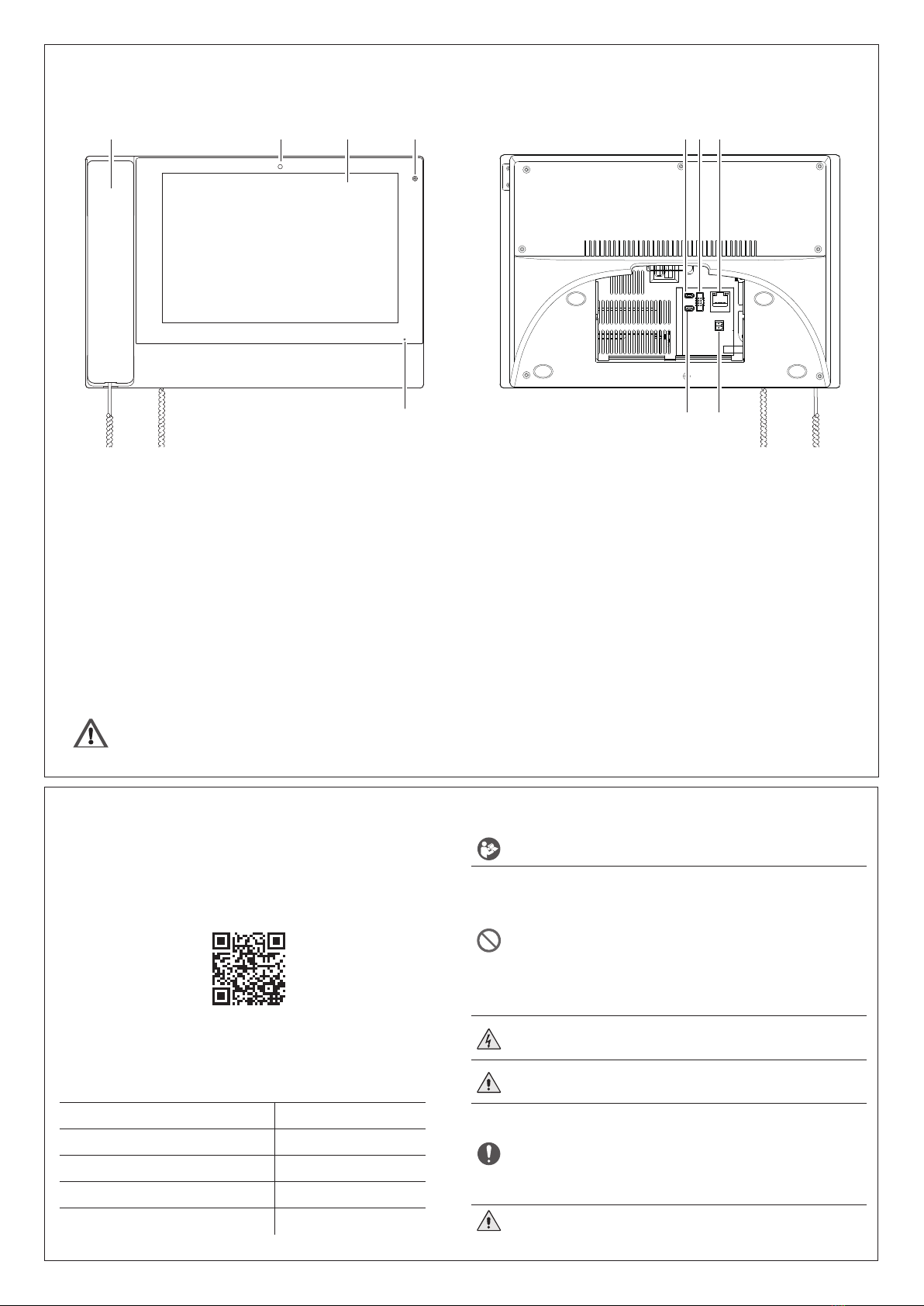

Front and rear view
Read carefully before use and keep for future reference
Touching the units with wet hands is forbidden
Using liquid cleaners or aerosols is forbidden
Blocking the ventilation openings is forbidden
Modifying the devices is forbidden
Removing protective parts from the devices is forbidden
Installing the units near liquids and powders is forbidden
Installing the units near heat sources is forbidden
Installing the units near harmful gases, metal dusts or similar is forbidden
Fastening the units on unsuitable surfaces is forbidden
Danger of electrical shock
Risk of devices falling because the surface on which they are installed collapses or inappropriate installation
Switch the power supply OFF before any work on the system
Caution: Installation, conguration, starting-up and maintenance must be performed exclusively by
qualied personnel.
Check that the wall installation has been carried out correctly
Lay out the wires respecting the standards in force
Connect the power supply wires as indicated
Use only the items indicated in the technical specications for any system expansions
Remote operation may cause damage to people or property.
Warnings and consumer rights
Configuration
The device must be congured by software. For software download, installation device documentation and for
any other information, refer to the website.
www.homesystems-legrandgroup.com
1. Handset
2. Camera
3. Display 10" (touch screen)
4. Microphone
5. Notication LED
Red led: alarm not processed
Blue led: missed call
Purple LED: unprocessed alarm +
missed call
6. USB 1 connector (not used)
7. Not used
8. RJ45 * connector
9. Additional power supply clamps
(not polarized)
10. USB 2 connector (not used)
1 2 43
5
6
9
7 8
10
Technical data
Voltage 24 Vdc
Max. cable section 1.3 mm²
Operating temperature (- 10) – (+ 55) °C
IP degree of protection IP30
Maximum relative humidity 93%
*This device does not support standard POE power supplies, but only POE power supplies identied with item no. 375002.
Connect the cat5/5e/6 FTP or cat5/5e/6 UTP cable with ferrite supplied to the connector.
