BTL 1500 User manual

v100z2TN24/02/2003EN
User Manual

BTL - 1500 User Manual
Page 2 of 10
CONTENTS
1BASIC FEATURES ..................................................................................................................................................3
2USER MANUAL .......................................................................................................................................................4
2.1 Appearance (Three-motor Configuration) ........................................................................................................4
2.2 Chair Assembly and Initiation...........................................................................................................................5
2.3 Control Units ....................................................................................................................................................5
2.3.1 Hand Switch (standard)....................................................................................................................................5
2.3.2 Foot Switch (optional) ......................................................................................................................................5
3ACCESSORIES .......................................................................................................................................................6
3.1 One-motor Configuration .................................................................................................................................6
3.2 Two-motor Configuration..................................................................................................................................6
3.3 Three-motor Configuration / with Memory........................................................................................................6
4MAINTENANCE AND SAFETY ...............................................................................................................................7
4.1 Safety Procedures ...........................................................................................................................................7
4.2 Warranty ..........................................................................................................................................................7
5TECHNICAL PARAMETERS...................................................................................................................................8

BTL - 1500 User Manual
Page 3 of 10
1 BASIC FEATURES
The BTL-1500 gynaecological chair is manufactured in four configurations: one-motor, two-motor, three-motor, and a
three-motor chair with memory. The one-motor chair comes with electrically adjustable height while the positions of the
seat and the back-rest are fixed. The two-motor configuration has electrically adjustable height and back-rest. The
three-motor configuration offers electrical adjustment of all three parts - height, back-rest, and seat. The three-motor
chair with memory also offers electrical adjustment of all three parts and in addition, it enables the user to pre-set the
most commonly used positions of the chair.
All chair configurations are supplied with the following standard accessories: leg supports, handgrips, a hand switch,
holder for sanitary paper, and stainless steel trash bin.
The chair can be additionally supplied with retractable castors, a foot switch, underhead pillow, step (integrated or
detachable), colposcope holder, and lamp.

BTL - 1500 User Manual
Page 4 of 10
2 USER MANUAL

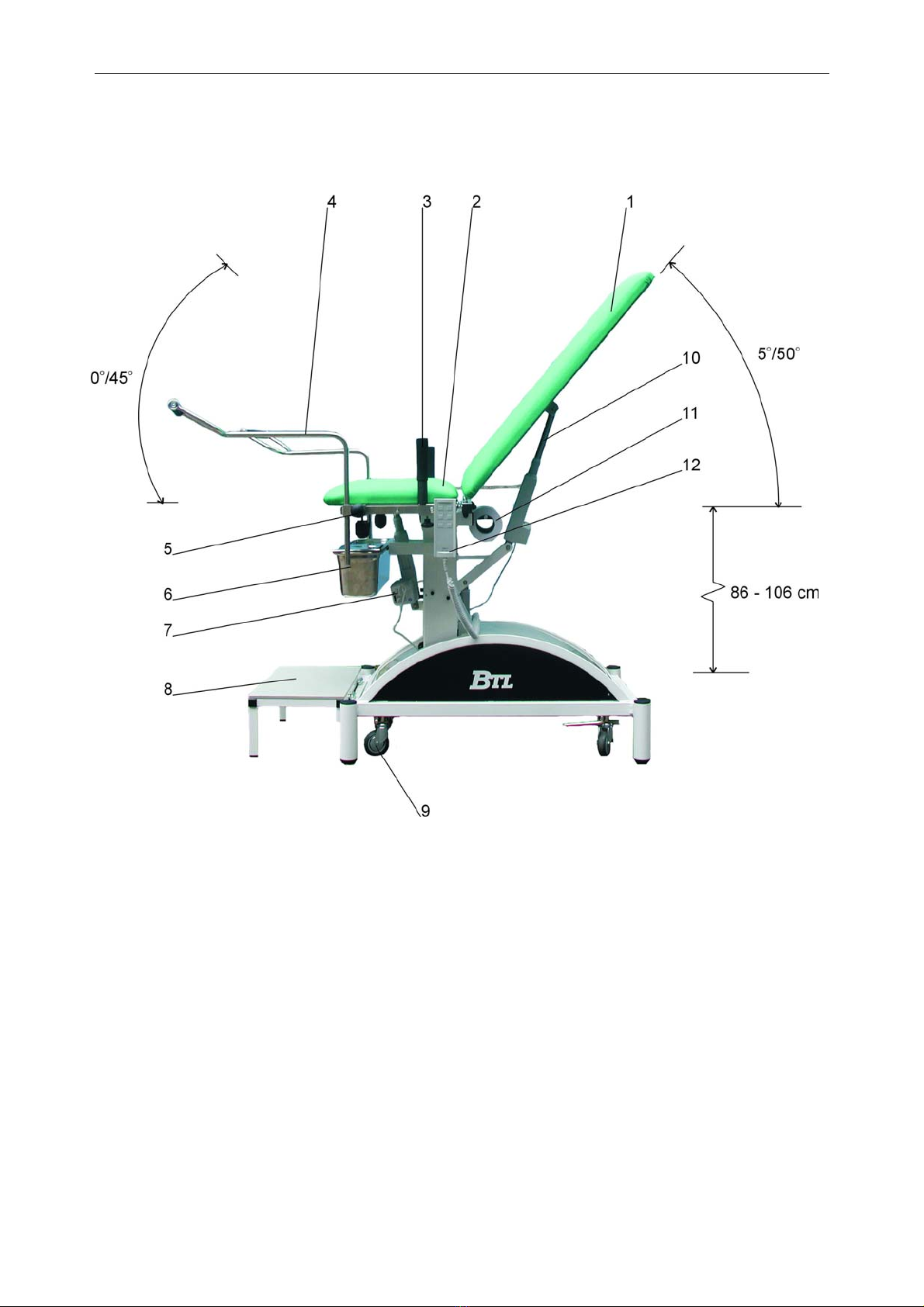

2.1 Appearance (Three-motor Configuration)
The seat and back-rest leatherette upholstery is available in a wide range of colours. The frame is metal and
varnished.
1. back-rest
2. seat
3. handgrips
4. leg supports (under heels)
5. fixing screw
6. stainless steel trash bin
7. motor for seat adjustment
8. integrated folding step
9. retractable castors
10. motor for back-rest adjustment
11. holder for sanitary paper
12. hand switch

BTL - 1500 User Manual
Page 5 of 10
2.2 Chair Assembly and Initiation
Place the chair on a firm and even floor dimensioned for the chair weight. Minor surface unevenness can be
eliminated by height-adjustable screws located at the feet of the chair. In case of any questions, please contact your
BTL service technician or BTL Service Department.
Connect the chair directly to the power source and check its functions by using the control unit.
2.3 Control Units
2.3.1 Hand Switch (standard)
Operation:
A desired position of the chair can be set according to arrows indicated on the hand switch. It is pre-
set by the manufacturer that the A and B buttons are used to adjust height of the chair, the C and D
buttons are used to adjust the position of the back-rest and the E and F buttons are used to adjust the
position of the seat.
Programming (available only in three-motor modification with memory)
1) Keep the S button pressed during the whole programming time.
2) Set the desired position of the chair using buttons for adjustment of individual parts - height, back-
rest, and seat.
3) Press the number of the programme (1-3).
4) Release the S button.
To adjust the position of the chair according to a pre-set programme, press the number of the
corresponding programme.
The number of control units depends on the selected chair configuration.
2.3.2 Foot Switch (optional)
Operation:
The foot switch can be used to adjust one part of the chair instead of the hand switch
(available only in one or two-motor configuration).

BTL - 1500 User Manual
Page 6 of 10
3 ACCESSORIES
3.1 One-motor Configuration
Standard:
Hand switch for one motor
Holder for sanitary paper (seat cover)
Leg supports (under heels)
Handgrips
Stainless steel trash bin (50 x 15 x 15)
Additional:
Retractable castors with a lifting mechanism
Foot switch
Underhead pillow
Leg supports with a special joint (under knees)
Detachable step
Integrated folding step
Additional lamp
Colposcope holder
Holder for sanitary paper (backrest and seat cover)
Extra width (70 cm)
3.2 Two-motor Configuration
Standard:
Hand switch for two motors
Holder for sanitary paper (seat cover)
Leg supports (under heels)
Handgrips
Stainless steel trash bin (50 x 15 x 15)
Additional:
Retractable castors with a lifting mechanism
Foot switch
Underhead pillow
Leg supports with a special joint (under knees)
Detachable step
Integrated folding step
Additional lamp
Colposcope holder
Holder for sanitary paper (backrest and seat cover)
Extra width (70 cm)
3.3 Three-motor Configuration / with Memory
Standard:
Hand switch for three motors / Hand switch for three motors with the function to pre-set chair positions
Holder for sanitary paper (seat cover)
Leg supports (under heels)
Handgrips
Stainless steel trash bin (50 x 15 x 15)
Additional:
Retractable castors with a lifting mechanism
Underhead pillow
Leg supports with a special joint (under knees)
Detachable step
Integrated folding step
Additional lamp
Colposcope holder
Holder for sanitary paper (backrest and seat cover)
Extra width (70 cm)

BTL - 1500 User Manual
Page 7 of 10
4 MAINTENANCE AND SAFETY
•Wash the upholstery with detergent. For disinfection use for example 10% Persteril. Do not use acetone-based
substances!
•It is recommended to check the chair thoroughly once a month in order to detect loose cables, damaged cable
insulation, etc. In case of any mechanical or other damage, do not use the chair and contact your service
technician.
4.1 Safety Measures
•Read the manual carefully before using the chair.
•All the chair users have to be instructed in operation, maintenance and safe use of the chair by the manufacturer
or supplier.
•The power source, to which the chair is to be connected, has to comply with the electrical specifications of the
chair. In case of any discrepancies, have it inspected by an electrician.
•Use the chair in a proper work environment described in Chapter 5 under Technical Parameters.
•Do not dismantle the chair. Removing the chair cover might result in an electric shock!
•Move the chair with castors only on an even surface! Otherwise, it is necessary to lift the table.
•The maximum chair load is 180 kg.
4.2 Warranty
The product is warranted against defects in materials and workmanship for a period of one year from the date of
shipment. The manufacturer will at its option repair or replace components which prove to be defective during the
warranty period provided that the product is used in accordance with the manual. Should the product be returned to
the manufacturer for repair or replacement, it must be sent carriage paid.

BTL - 1500 User Manual
Page 8 of 10
5 TECHNICAL PARAMETERS
1. Identification manufacturing commercial
1.1.Product type BTL-65 BTL-1500
1.2.Product name gynaecological chair gynaecological chair
1.3.Configurations 1-motor 1-motor
2-motor 2-motor
3-motor 3-motor
3-motor with memory 3-motor with memory
1.4.Field of use medical equipment
2. Operating conditions
2.1.Temperature +10°C to +40°C
2.2.Relative humidity 30% to 75%
2.3.Atmospheric pressure 700 to 1060hPa
2.4.Position horizontal
2.5.Mode of operation continuous
3. Storage conditions
3.1.Temperature -10°C to +55°C
3.2.Relative humidity 25% to 85%
3.3.Atmospheric pressure 650 to 1100hPa
3.4.Position horizontal
3.5.Maximum duration 1 year
4. Transport conditions
4.1.Temperature -10°C to +55°C
4.2.Relative air humidity 25% to 85%
4.3.Atmospheric pressure 650 to 1100hPa
4.4.Position horizontal
4.5.Maximum duration 1 year
5. Power supply 220 V, 50 Hz
6. Voltage insulation
6.1.Mains - Patient 4 kV
7. Specifications
9.1.Weight 68 kg
9.2.Dimensions
Height 86 - 106 cm
Width 60 or 70 cm
Back-rest length 90 cm
Seat length 40 cm
Standard back-rest tilt 30°
(other adjustment available upon
request)
Standard seat tilt 0°
(other adjustment available upon
request)
9.3.Cover according to EN 60529 IP20
9.4.Control unit switch with 2, 4, 6, or 10 buttons

BTL - 1500 User Manual
Page 9 of 10
8. Electrically adjustable features
Feature Range Step
Seat tilt 0 - 45° continuous
Back-rest tilt 5° - 50° continuous
Height adjustment 86 - 106 cm continuous
9. Classification
Class according to 60601-1 II
Applied part B type
Class according to NV 180 (93/42/EEC) I
10. Applicable standards
1 Medical electrical equipment EN 60601-1
2
A
mendment to EN 60601-1 A2
3
A
mendment to EN 60601-1 A12
4
A
mendment to EN 60825-1 A11
5 Medical electrical equipment EN 60601-1-2
Electric compatibility. Requirements and tests.
6 Medical devices EN 1441
Risk analysis
7 Biological evaluation of medical devices EN ISO 10993-1
11. Certificates
Type Standards
Testing
laboratory
Protocol 4 TestCom
