Buffalo CP821 User manual

Model:
CP821
Spiral Dough
Mixer
Instruction manual
CP821_UK_A5_v2_20191029.indb 1 2019/10/29 14:39

SPARE PARTS LIST OF CP821
CP821_UK_A5_v2_20191029.indb 2 2019/10/29 14:39

NO. Description QTY. NO. Description QTY.
1. Small chain wheel of main
shaft
1 29. Chain 06B-1-70L 2
2. Big chain wheel 3 30. Control panel 1
3. Spindle Sprocket Flange 4 31. Motor belt wheel 1
4. Bearing 6205-Z 2 32. Belt A630 2
5. Main shaft 1 33. Motor seat 1
6. Hook 1 34. Motor 1
7. Bowl 1 35. Plate 1
8. Bowl shaft 1 36. Chain wheel 1
9. Bearing 6205-Z 2 37. Chain wheel lining ring 1
10. Shaft ring 25 1 38. Chain wheel shaft 1
11. Flanges of bowl shaft 1 39. Frame 1
12. Chain 06B-1-92L 1 40. Switch seting board 1
13. Flanges of drive shaft 1 41. Fixed block 1
14. Shaft ring 30 1 42. Down bearing seat 1
15. Shaft Sleeve 2 1 43. Housing 1
16. Bearing 6204-Z 2 44. Cover 1
17. Bearing Spacer 1 45. Brand 1
18. Shaft Sleeve 1 1 46. Up bearing seat 1
19. Ring 20 1 47. Back cover 1
20. Shaft ring 20 1 48. Lateral board 2
21. Bearing 1204-Z 2 49. Grounding mark 1
22. Drive shaft 1 50. Protect sets 4
23. Small chain wheel of drive
shaft
1 51. Anchor rubber pad 4
24. Clamp plate 34 1 52. Screw M8 4
25. Cover of fixed shaft 2 53. Bottom cover board 1
26. Protect cover 1 54. Small chain wheel of drive
shaft
1
27. Left fixed shaft 1 55. Drive pulley 1
28. Right fixed shaft 1
CP821_UK_A5_v2_20191029.indb 3 2019/10/29 14:39

4
UK Telephone Helpline: 0845 146 2887
Safety Tips
THE MIXER IS A DANGEROUS APPLIANCE AND
MUST ONLY BE USED BY TRAINED PERSONNEL
IN ACCORDANCE WITH THESE INSTRUCTIONS.
• Position on a flat, stable surface.
• A service agent/qualified technician should carry out
installation and any repairs if required. Do not remove any
components on this product.
• Consult Local and National Standards to comply with the
following:
- Health and Safety at Work Legislation
- BS EN Codes of Practice
- Fire Precautions
- IEE Wiring Regulations
- Building Regulations
• Always stand BEHIND the safety guard when operating the
appliance.
• DO NOT place hands near the rotating attachments when in
use. This can result in severe injury.
• DO NOT remove food from the appliance until the mixing
attachments have come to a complete stop.
• DO NOT immerse the appliance in water.
• DO NOT attempt to mix items that this machine is not
designed for. This can damage the mixing attachments.
• DO NOT use with a damaged mixing attachment.
• DO NOT bypass the safety interlocks.
• Always switch off and disconnect the power supply to the
appliance when not in use.
• NEVER leave the appliance unattended when in use.
• The appliance is heavy. Take care when moving.
• This appliance must only be used in accordance with these
instructions and by persons competent to do so.
CP821_UK_A5_v2_20191029.indb 4 2019/10/29 14:39

5
UK
Telephone Helpline: 0845 146 2887
• This appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental capabilities,
or lack of experience and knowledge, unless they have
been given supervision or instruction concerning use of the
appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play
with the appliance.
• Keep all packaging away from children. Dispose of the
packaging in accordance to the regulations of local authorities.
• If the power cord is damaged, it must be replaced by an
BUFFALO agent or a recommended qualified technician in
order to avoid a hazard.
• Never use accessories which are not recommended by the
manufacturer. They could pose a safety risk to the user and
might damage the appliance. Only use original parts and
accessories.
• DO NOT use jet/pressure washers to clean the appliance.
• BUFFALO recommends that this appliance should be
periodically tested (at least annually) by a Competent Person.
Testing should include, but not be limited to: Visual Inspection,
Polarity Test, Earth Continuity, Insulation Continuity and
Functional Testing.
Introduction

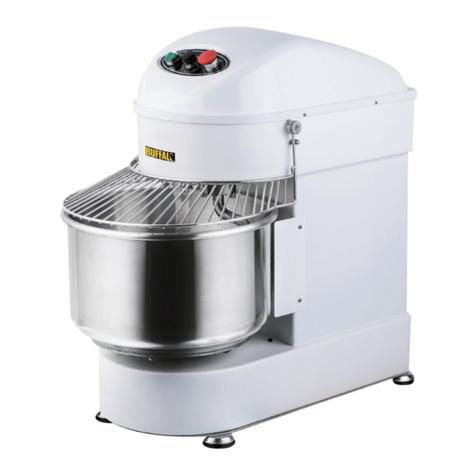

This BUFFALO Spiral Dough Mixer is intended mainly to mix doughs. With the spiral hook and bowl, it
is capable of versatile actions of pushing, pulling, kneading and pressing to make fast dough in hotels,
restaurants and other catering units for making bread and cakes.
Please take a few moments to carefully read through this manual. Correct maintenance and operation of
this machine will provide the best possible performance from your BUFFALO product.
Pack Contents
The following is included:
• BUFFALO Spiral Dough Mixer • Instruction Manual
BUFFALO prides itself on quality and service, ensuring that at the time of packaging the contents are
supplied fully functional and free of damage.
Should you find any damage as a result of transit, please contact your BUFFALO dealer immediately.
CP821_UK_A5_v2_20191029.indb 5 2019/10/29 14:39

6
UK Telephone Helpline: 0845 146 2887
Installation
• Ensure the location of the spiral mixer is capable of supporting its weight.
• WARNING: The mixer is very heavy, care must be taken when moving it.
• If the appliance is intended to be positioned on a worktop, please ensure it is secured in position.
Operation
Mixing
WARNING: Always
ensure the appliance
is turned off before
placing hands in the
mixing bowl.
1. Lift the safety guard.
2. Fill the bowl.
3. Close the guard.
Note: Ensure the
safety guard is fully
closed or the mixer
will not work.
4. Select the desired mixing time with
the Timer knob.
5. Press the Start button to begin
mixing.
Mixing bowl
Safety guard
Control panel
Top cover
Overload
switch
If the appliance is straining to mix:
1. Turn the appliance Off by pressing down the Stop button;
2. Remove some of the contents from the bowl and close the guard;
3. Rotate the Stop button clockwise to release it;
4. Press the Start button to resume working.
Overload Switch
The Overload switch is situated at the back of the machine. If the appliance becomes too hot the
Overload switch will stop the machine automatically. If this happens:
1. Turn Off the mixer.
2. Reduce the load in the mixing bowl.
3. Push the Overload switch back in to reset it.
4. Allow the appliance to cool for 30 minutes.
Note:
• In the event of a power cut the Overload switch will cut in to prevent the
appliance from restarting automatically when power is restored.
• Always disconnect the Mixer from the mains powers supply when not in use.
CP821_UK_A5_v2_20191029.indb 6 2019/10/29 14:39

7
UK
Telephone Helpline: 0845 146 2887
Cleaning, Care & Maintenance
• Always turn off the mixer and disconnect from the power supply before cleaning.
• Use warm soapy water to clean the bowl and mixing attachments. Do not use abrasive cleaning
chemicals as these can leave harmful residues.
• Clean the exterior of the appliance with a damp cloth.
• Dry all parts thoroughly after cleaning.
• Do not use jet/pressure washers to clean the appliance.
• Clean the appliance regularly.
Troubleshooting
If your BUFFALO appliance develops a fault, please check the following table before making a call to the
Helpline or your BUFFALO dealer.
Fault Probable Cause Solution
The appliance is
not working
The unit is not switched on Check the unit is plugged in correctly and
switched on
Plug and lead are damaged Call BUFFALO agent or qualified Technician
Fuse in the plug has blown Replace the fuse
Power supply Check power supply
Internal wiring fault Call BUFFALO agent or qualified Technician
The Stop button not released Turn Stop button clockwise to release
The overload switch has activated See overload switch information in the
Operation section of this manual
Safety Guard not closed Close Safety Guard fully
The appliance is
overheating
The mixing bowl is overloaded Turn off the appliance and empty some of the
contents
The appliance has been operating
for too long
Turn off the appliance and allow to cool down
for 30 minutes
The appliance is
noisy
Poor lubrication Call BUFFALO agent or qualified Technician
Loose chain Call BUFFALO agent or qualified Technician
Spiral hook hitting
bowl
Hook or bowl deformation Call BUFFALO agent or qualified Technician
Technical Specifications
Model Voltage Power Current Dimensions
H x W x D mm
Rotating speed
(RPM) Max flour
for each
kneading
Weight Bowl
Volume
Bowl Hook
CP821 220-240V
50/60Hz
1100W 7.2A 695 x 380 x 690 20 185 ≤ 8kg 78kg 20L
CP821_UK_A5_v2_20191029.indb 7 2019/10/29 14:39

8
UK Telephone Helpline: 0845 146 2887
Electrical Wiring
This appliance is supplied with a 3 pin, moulded, BS1363 plug and lead, with a 13 amp fuse as standard.
The plug is to be connected to a suitable mains socket.
This appliance is wired as follows:
• Live wire (coloured brown) to terminal marked L
• Neutral wire (coloured blue) to terminal marked N
• Earth wire (coloured green/yellow) to terminal marked E
This appliance must be earthed.
If in doubt consult a qualified electrician.
Electrical isolation points must be kept clear of any obstructions. In the event of any emergency
disconnection being required they must be readily accessible.
Compliance
The WEEE logo on this product or its documentation indicates that the product must
not be disposed of as household waste. To help prevent possible harm to human
health and/or the environment, the product must be disposed of in an approved and
environmentally safe recycling process. For further information on how to dispose of
this product correctly, contact the product supplier, or the local authority responsible for
waste disposal in your area.
BUFFALO parts have undergone strict product testing in order to comply with regulatory
standards and specifications set by international, independent, and federal authorities.
BUFFALO products have been approved to carry the following symbol:
All rights reserved. No part of these instructions may be produced or transmitted in any form or by any means, electronic,
mechanical, photocopying, recording or otherwise, without the prior written permission of BUFFALO.
Every effort is made to ensure all details are correct at the time of going to press, however, BUFFALO reserve the right to
change specifications without notice.
CP821_UK_A5_v2_20191029.indb 8 2019/10/29 14:39

DECLARATION OF CONFORMITY
• Conformiteitsverklaring • Déclaration de conformité • Konformitätserklärung • Dichiarazione di conformità •
• Declaración de conformidad • Declaração de conformidade
Equipment Type • Uitrustingstype • Type d'équipement • Gerätetyp •
Tipo di apparecchiatura • Tipo de equipo • Tipo de equipamento
Spiral Dough Mixer -20Ltr
Model • Modèle • Modell • Modello • Modelo • Malli
CP821
Application of Council Directives(s)
Toepassing van Europese Richtlijn(en) • Application de la/des
directive(s) du Conseil • Anwendbare EU-Richtlinie(n) • Applicazione
delle Direttive • Aplicación de la(s) directiva(s) del consejo • Aplicação
de directiva(s) do Conselho
Machinery Directive 2006/42/EC
EN 60335-1:2012 +A11:2014 +A13:2017
EN 60335-2-64:2000 +A1:2002
EN 453:2014
EN 1672-2:2005 +A1:2009
EN ISO 12100:2010
EN 62233:2008
Electro-Magnetic Compatibility (EMC) Directive
2014/30/EU
EN 55014-1:2006 + A1:2009 + A2:2011
EN 55014-2:2015
EN 61000-3-2:2014
EN 61000-3-3:2013
Restriction of Hazardous Substances Directive (RoHS)
2015/863 amending Annex II to Directive 2011/65/EU
Producer Name • Naam fabrikant • Nom du producteur • Name des
Herstellers • Nome del produttore • Nombre del fabricante • Nome do
fabricante
Buffalo
Producer Address • Adres fabrikant • Adresse du producteur •
Anschrift des Herstellers • Indirizzo del produttore • Dirección del
fabricante • Morada do fabricante
Fourth Way,
Avonmouth,
Bristol,
BS11 8TB
United Kingdom
42 North Point Business
Park
New Mallow Road
Cork
Ireland
I, the undersigned, hereby declare that the equipment specified above conforms to the above Directive(s) and
Standard(s).
Ik, de ondergetekende, verklaar hierbij dat de hierboven gespecificeerde uitrusting goedgekeurd is volgens de bovenstaande
Richtlijn(en) en Standaard(en).
Je soussigné, confirme la conformité de l'équipement cité dans la présente à la / aux Directive(s) et Norme(s) ci-dessus
Ich, der/die Unterzeichnende, erkläre hiermit, dass das oben angegebene Gerät der/den oben angeführten Richtlinie(n) und
Norm(en) entspricht.
Il sottoscritto dichiara che l'apparecchiatura di sopra specificata è conforme alle Direttive e agli Standard sopra riportati.
El abajo firmante declara por la presente que el equipo arriba especificado está en conformidad con la(s) directiva(s) y
estándar(es) arriba mencionadas.
Eu, o abaixo-assinado, declaro que o equipamento anteriormente especificado está em conformidade com a(s) anterior(es)
Directiva(s) e Norma(s)
Date • Data • Date • Datum • Data • Fecha • Data
24th October 2019
Signature • Handtekening • Signature • Unterschrift
Firma • Firma • Assinatura
Full Name • Volledige naam • Nom et prénom • Vollständiger Name •
Nome completo • Nombre completo • Nome por extenso
Ashley Hooper
Position • Functie • Fonction • Position • Qualifica • Posición • Função
Technical & Quality Manager
CP821_UK_A5_v2_20191029.indb 9 2019/10/29 14:39

UK 0845 146 2887
NL 0800 – 29 1 29
040 – 2628080
FR 0800 - 29 2 29
01 60 34 28 80
DE 0800 – 1860806
IT N/A
ES 901-100 133
PT [email protected]
CP821_UK_A5_v2_20191029.indb 10 2019/10/29 14:39

CP821_UK_A5_v2_20191029.indb 11 2019/10/29 14:39

CP821_UK_A5_v2_20191029
http://www.buffalo-appliances.com/
CP821_UK_A5_v2_20191029.indb 12 2019/10/29 14:39
