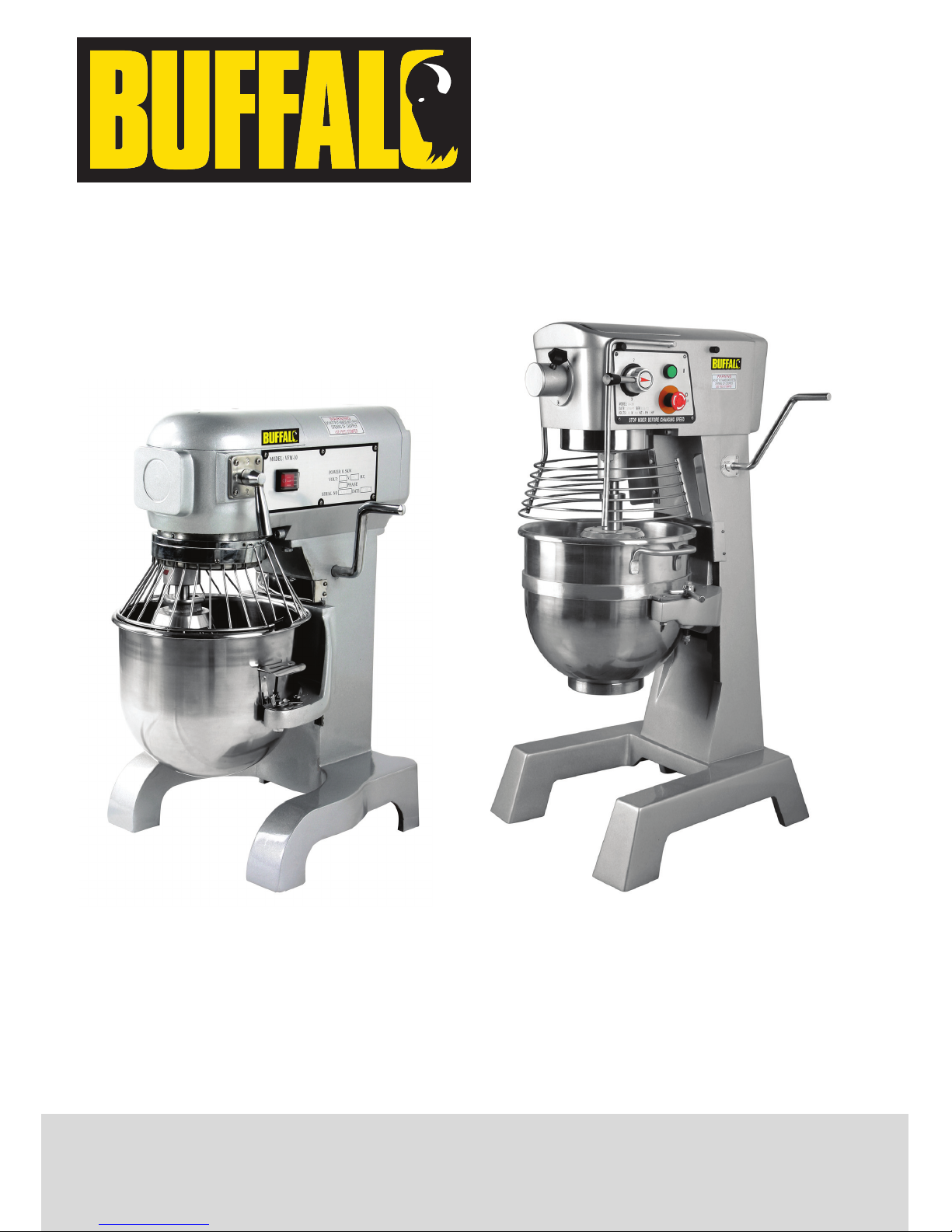

Buffalo CD605 User manual

Planetary Mixer
Instruction manual
Models:
CD605 / CD606 / CD607

1
UK
Safety Tips
Position on a flat, stable surface.
• A service agent/qualified technician should carry out installation and any repairs if required. Do not
remove any components on this product.
• Consult Local and National Standards to comply with the following:
• Health and Safety at Work Legislation
• BS EN Codes of Practice
• Fire Precautions
• IEE Wiring Regulations
• Building Regulations
• Always stand BEHIND the safety guard when operating the appliance.
• DO NOT place hands near the rotating attachments when in use. This can result in severe injury.
• DO NOT remove food from the appliance until the mixing attachments have come to a complete stop.
• DO NOT immerse the appliance in water.
• DO NOT attempt to mix items that this machine is not designed for. This can damage the mixing
attachments.
• DO NOT use with a damaged mixing attachment.
• DO NOT bypass the safety interlocks.
• Always switch off and disconnect the power supply to the appliance when not in use.
• NEVER leave the appliance unattended when in use.
• The appliance is heavy. Take care when moving.
• This appliance must only be used in accordance with these instructions and by persons competent to do so.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or
mental capabilities, or lack of experience and knowledge, unless they have been given supervision or
instruction concerning use of the appliance by a person responsible for their safety.
• Keep all packaging away from children. Dispose of the packaging in accordance to the regulations of
local authorities.
• If the power cord is damaged, it must be replaced by an BUFFALO agent or a recommended qualified
technician in order to avoid a hazard.
Product Description
CD605 - 10 litre planetary mixer
CD606 - 20 litre planetary mixer
CD607 - 30 litre planetary mixer
The BUFFALO Planetary Mixer is a freestanding machine that consists of a large bowl mounted below a
motor and gearbox arrangement to which a mixing tool can be attached.
THE PLANETARY MIXER IS ADANGEROUS APPLIANCE AND MUST ONLY BE
USED BY TRAINED PERSONNEL IN ACCORDANCE WITH THESE INSTRUCTIONS

2
UK
Telephone Helpline: 0845 146 2887 (United Kingdom)
Introduction
The BUFFALO Planetary Mixer has been designed to mix a range of foodstuffs, varying from cream to
dough.
Please take a few moments to carefully read through this manual. Correct maintenance and operation of
this machine will provide the best possible performance from your BUFFALO product.
Pack Contents
The following is included:
BUFFALO prides itself on quality and service, ensuring that at the time of packaging the contents are
supplied fully functional and free of damage. Should you find any damage as a result of transit, please
contact your BUFFALO dealer immediately.
Installation
Ensure the location of the Planetary Mixer is capable of supporting its weight.
Assembly
BUFFALO accept no responsibility for any injury caused by incorrect assembly of this appliance.
WARNING: The Planetary Mixer is very heavy, care must be taken when moving it.
WARNING: The bowl must be attached and raised into position prior to starting the
Planetary Mixer.
Note: Ensure the feet are level to reduce vibration during operation.
• BUFFALO Planetary Mixer
• Mixing Bowl
• Spiral Dough Hook
•Beater
•Whisk
• Instruction Manual

3
UK
Remove the appliance from all packaging.
Fitting/Removing the Bowl
1. Turn Off the appliance.
2. Open the safety guard by turning it to the left
(CD605 & CD606) or lifting it above the mixer
(CD607).
3. Lower the bowl with the bowl handle.
4. Release the locking catches either side of the
bowl.
5. Lift the bowl. The bowl is held in place by two pins
securing the handles to the cradle and a hole at
the back of the appliance which houses the lug on
the bowl lip.
6. Reverse the procedure to fit the bowl.
Changing the Mixer Attachment
1. Turn Off the appliance.
2. Open the safety guard by turning it to the left (CD605 & CD606) or lifting it above the mixer (CD607).
3. Lower the bowl with the bowl handle.
4. Push the mixer attachment up and to the left to release it.
5. Insert the desired attachment. Push up and to the right to lock it into place.
6. Raise the bowl.
BUFFALO recommend the following uses for each attachment:.
Note: Ensure the handle is fully pushed
back and the bowl is completely raised or
the mixer will not work.
Spiral Dough hook Heavy mixes
dough, pie pastry etc.
Suitable Gears: 1
Slow
Beater
Firm mixes
light pastry, cake/biscuit mix, icings,
fillings and mashed vegetables
Suitable Gears: 1, 2
Medium
Securing pins
Locking catch
Bowl handle

4
UK
Telephone Helpline: 0845 146 2887 (United Kingdom)
Layout of Controls
ON button - Press to start the mixer.
OFF button - Press to stop the mixer. Twist clockwise to release and reset (CD607 only).
GEAR LEVER - Use to adjust the speed of the mixer.
Operation
All personnel must be fully trained on the operation and safety precautions of the Planetary Mixer.
Mixing
1. Open the safety guard.
2. Fill the bowl.
Whisk
Light mixes
whipped cream, mayonnaise, egg
whites, pancakes and soufflés
Suitable Gears: 1, 2, 3
Fast
Note: Ensure that these instructions have been read thoroughly and the operation of the
appliance is fully understood before use.
WARNING: Always ensure the appliance is turned off before placing hands in the mixing
bowl.
Gear lever
ON switch
OFF switch

5
UK
3. Select the desired speed and close the guard.
4. Press the START button to begin mixing.
Changing Mixing Speed
With the appliance turned Off:
1. Select the required gear using the gear change lever.
2. Restart the appliance.
Overload Switch
The Overload switch is situated at the back of the machine
beside the cable entry. If the appliance becomes too hot the
Overload switch will stop the machine automatically. If this
happens:
1. Turn Off the mixer.
2. Reduce the load in the mixing bowl.
3. Push the Overload switch back in to reset it.
4. Allow the appliance to cool for 20 minutes.
Cleaning, Care & Maintenance
• Always turn off the mixer and disconnect from the power supply before cleaning.
• Use warm soapy water to clean the bowl and mixing attachments. Do not use abrasive cleaning
chemicals as these can leave harmful residues.
• Clean the exterior of the appliance with a damp cloth.
• Dry all parts thoroughly after cleaning.
• Do not use jet/pressure washers to clean the appliance.
• Clean the appliance regularly.
Note: BUFFALO recommend that you start with the slowest speed and increase the
speed gradually as necessary.
Ensure the safety guard is fully closed or the mixer will not work.
Note: If the appliance is straining to mix then turn the appliance Off and remove some
of the contents of the bowl before restarting.
Note: ALWAYS stop the mixer before attempting to change the mixing speed.
Note: In the event of a power cut the Overload switch will cut in to prevent the
appliance from restarting automatically when power is restored.
Note: Always disconnect the Planetary Mixer from the mains powers supply when not
in use.
Overload
switch

6
UK
Telephone Helpline: 0845 146 2887 (United Kingdom)
Tro u b l e s h o o ti n g
If your BUFFALO appliance develops a fault, please check the following table before making a call to the
Helpline.
Technical Specifications
Fault Probable Cause Action
The appliance is not
working
The unit is not switched on Check the unit is plugged in
correctly and switched on
The Stop button not released (CD607) Turn button clockwise to release
Plug and lead are damaged Call BUFFALO agent or qualified
Technician
Fuse in the plug has blown Replace the fuse
Power supply Check power supply
The overload switch has activated See overload switch information in
the Operation section of this
manual
Safety Guard not closed Close Safety Guard fully
Appliance not in gear Put in gear
Bowl not fully raised Ensure the Bowl lever is pushed
back fully
Bowl will not fit back in to
place
Bowl pins or surrounding area clogged
with mix
Clean the appliance
The appliance is
overheating
The mixing bowl is overloaded Turn off the appliance and empty
some of the contents
The appliance has been operating for
too long
Turn off the appliance and allow to
cool down for 30 minutes
The appliance is noisy Bowl or mixing attachment not
correctly fitted
Remove and refit bowl/mixing
attachment
Worn bearings/damaged gears Call BUFFALO agent or qualified
Technician
The mixing attachment
fails to rotate properly
The belt has become loose Call BUFFALO agent or qualified
Technician
Cannot select gear Gearing cogs misaligned Turn Off appliance and manually
turn the whisk attachment slightly.
Select the gear again.
Model Voltage Power Current Dimensions
w x d x h mm Weight Bowl Volume
CD605 230V 50Hz 500W 2A 485 x 410 x 635 76kg 10l
CD606 230V 50Hz 1100W 4.7A 560 x 540 x 765 107kg 20l
CD607 230V 50Hz 1500W 6.5A 700 x 620 x 1200 208kg 30l

7
UK
Telephone Helpline: 0845 146 2887 (United Kingdom)
Electrical Wiring
This appliance is supplied with a 3 pin, moulded, BS1363 plug
and lead, with a 3 amp fuse as standard.
The plug is to be connected to a suitable mains socket.
This appliance is wired as follows:
• Live wire (coloured brown) to terminal marked L
• Neutral wire (coloured blue) to terminal marked N
• Earth wire (coloured green/yellow) to terminal marked E
This appliance must be earthed, using a dedicated earthing
circuit.
If in doubt consult a qualified electrician.
Electrical isolation points must be kept clear of any obstructions. In the event of any emergency
disconnection being required they must be readily accessible.
Compliance
The WEEE logo on this product or its documentation indicates that the product must
not be disposed of as household waste. To help prevent possible harm to human
health and/or the environment, the product must be disposed of in an approved and
environmentally safe recycling process. For further information on how to dispose of
this product correctly, contact the product supplier, or the local authority responsible
for waste disposal in your area.
BUFFALO parts have undergone strict product testing in order to comply with
regulatory standards and specifications set by international, independent, and federal
authorities.
BUFFALO products have been approved to carry the following symbol:
All rights reserved. No part of these instructions may be produced or transmitted in any form or by any means,
electronic, mechanical, photocopying, recording or otherwise, without the prior written permission of BUFFALO.
Every effort is made to ensure all details are correct at the time of going to press, however, BUFFALO reserve the
right to change specifications without notice.

DECLARATION OF CONFORMITY
• Conformiteitsverklaring • Déclaration de conformité • Konformitätserklärung • Dichiarazione di conformità •
• Declaración de conformidad • Declaração de conformidade • Överensstämmelseförsäkran •
• Overensstemmelseserklæring • Konformitetserklæring • Selvitys vaatimustenmukaisuudesta •
Equipment Type • Uitrustingstype • Type d'équipement • Gerätetyp •
Tipo di apparecchiatura • Tipo de equipo • Tipo de equipamento • Planetary Mixer
Enhetstyp • Udstyrstype • Type utstyr • Laitteen tyyppi:
Model • Modèle • Modell • Modello • Modelo: CD605 / CD606 / CD607
Serial Number • Serienummer • Numéro de série • Seriennummer •
Numero di serie • Número de serie • Número serial • Sarjanumero:
Year of Manufacture • Fabricagejaar • Date de fabrication • Herstellungsjahr •
Anno di produzione • Año de fabricación • Ano de fabricação • Tillverkningsår •
Produktionsår • Produksjonsår • Valmistusvuosi:
Application of Council Directives(s) • Toepassing van Europese Richtlijn(en) • EMC Directive 2004/108/EC
Application de la / des directive(s) du Conseil: • Anwendbare EU-Richtlinie(n) •
Applicazione delle Direttive: • Aplicación de la(s) directiva(s) del consejo • LVD Directive 2006/95/EC
Aplicação de directiva(s) do Conselho • Tillämpning av rådets direktiv •
Gennemførelse af Rådets Direktiv(er) af • Applisering av kommuneforskrift(er) • Machinery Directive 2006/42/EC
Neuvoston direktiivi(e)n soveltaminen:
Standards • Standaarden • Normes • Normen • Standard • Estándares •
Normas • Normer • Standarder • Standardit :
Producers Name • Naam fabrikant • Nom du prodocteur • Name des Herstellers •
Nome del produttore • Nombre del fabricante • Nome do fabricante • BUFFALO
Tillverkarens namn • Fabrikantens navn • Produsentens navn • Valmistajan nimi:
Producers Address • Adres fabrikant • Adresse du prodocteur •
Anschrift des Herstellers • Indirizzo del produttore • Dirección del fabricante •
Endereço do fabricante • Tillverkarens adress • Fabrikantens adresse •
Produsentens adresse • Valmistajan osoite:
I, the undersigned, hereby declare that the equipment specified above conforms to the above Directive(s) and Standard(s).
Ik, de ondergetekende, verklaar hierbij dat de hierboven gespecificeerde uitrusting goedgekeurd is volgens de bovenstaande Richtlijn(en) en
Standaard(en).
Je soussigné, confirme la conformité de l'équipement cité dans la présente à la / aux Directive(s) et Norme(s) ci-dessus
Ich, der/die Unterzeichnende, erkläre hiermit, dass das oben angegebene Gerät der/den oben angeführten Richtlinie(n) und Norm(en)
entspricht.
Il sottoscritto dichiara che l'apparecchiatura di sopra specificata è conforme alle Direttive e agli Standard sopra riportati.
El abajo firmante declara por la presente que el equipo arriba especificado está en conformidad con la(s) directiva(s) y estándar(es) arriba
mencionadas.
Eu, o abaixo-assinado, declaro que o equipamento anteriormente especificado está em conformidade com a(s) anterior(es) Directiva(s) e
Norma(s).
Jag, den undertecknande, betygar härmed att ovan specificerade enhet överrensstämmer med ovan direktiv och norm(er).
Jeg, undertegnede, erklærer hermed at udstyret, der er specificeret ovenfor opfylder de ovenstående direktive(r) og standard(er).
Jeg, undertegnede, erklærer herved at utstyret som er spesifisert ovenfor er i overensstemmelse med ovennevnte forskrift(er) og standard(er).
Minä allekirjoittanut vakuutan täten, että yllä mainittu laite noudattaa yllä olevaa(olevia) direktiiviä(direktiivejä) ja standardia(standardeja).
Date • Data • Date • Datum • Data • Fecha • Data • Dato • Päivämäärä: 27/01/2009
Signature • Handtekening • Signature • Unterschrift •
Firma • Firma • Assinatura • Underskrift • Allekirjoitus:
Full Name • Volledige naam • Nom et prénom • Vollständiger Name •
Nome completo • Nombre completo • Nome por extenso • Richard Cromwell
Fullständigt namn • Fulde navn • Fullstendig navn • Täydellinen nimi:
Position • Functie • Fonction • Position • Qualifica • Posición • Função • Marketing Director
Befattning • Stilling • Asema:
Fourth Way
Avonmouth
Bristol
BS11 8TB
United Kingdom
EN55014-1:2000+A2:2002, EN61000-32:2000,
EN61000-3-3:1995+A1:2001, EN60335-2-64:2002
EN60335-1:2002, EN55014-2:1997+A1:2001,
BS EN 454:2000

• Notes •Remarques •Notas •Opmerkingen •Anmerkungen •Notas •
•Note •Noteringar •Merknader •Bemærkninger •Huomautukset •

• Notes •Remarques •Notas •Opmerkingen •Anmerkungen •Notas •
•Note •Noteringar •Merknader •Bemærkninger •Huomautukset •

CD605-7_UK_A5_v1
