BULK SEED SYSTEMS PRO-CHUTE 1 Manual

________________________________________________________________________________
Page 1
PRO-CHUTE 1 SETUP
BY BULK SEED SYSTEMS, INC.
Photo 1
Photo 1 shows contents of plastic
wrapped metal brackets and hardware
Parts needed during pre-setup
4 - metal plates with square holes
8 – retaining washers
8 - bolts
Photo 2
Photo 3
Photo 4
Step 1: Place bolt
through square hole
(Photo 2)
Step 2: Turn bracket
with bolt over and
place retaining
washer over end of
bolt
(Photo 3)
Step 3: Move retaining washer up tightly to
bracket using a deep well socket
(Photo 4)
Step 4: Repeat steps 1-3 for the remaining
brackets/bolts/retaining washers
Step 5: Begin Setup Instructions for Pro-
Chute
CONTACT US FOR MORE INFORMATION
20561 Justice Ave., Wabasso, MN 56293 Phone: [phone] Fax: [phone]
Email: [email protected] Website: www.bulkseedsystems.com

________________________________________________________________________________
Page 2
PRO-CHUTE 1 SETUP
BY BULK SEED SYSTEMS, INC.
Step 1: Install Fork Bracket
Place the Fork Bracket over plastic chute as shown (Photo 1).
Place bracket with attached bolts on the inside of the chute (photo 2). Stick these bolts out through
the pre-drilled holes in the plastic and fork bracket. Install lock nuts and tighten.
Step 2: Install Cam Lever / Upper Handle
Place bracket with attached bolts on the inside of the chute (Photo 2). Stick these bolts out through
the pre-drilled holes in the plastic. Then install 5” flat iron on the outside of the chute. Install lock nuts on
top bolt (Photo 3) and tighten. Do this for both sides.
Install 10 3/4” flat irons onto the bottom bolt (Photo 3). Place the lock nuts on these bolts and tighten
so iron can move freely. Put the cam lever handle on the other end of the 10 3/4” long flat irons. Install the
3/4” long 5/16” bolt and lock nuts so that cam-lever and upper handle moves freely.
Inside of Chute
Photo 3
5” Flat Irons with Bolts, install two on
each side of the inside of the chute
Locking Cam Lever
/ Upper Handle
Top Bolt
Bottom Bolt
Photo 2
Photo 1
Cut-out for slide gate on the box. This
side must go where the box slide gate is.
Locking Cam Lever
/ Upper Handle
(Step 2)
Slide Gate /
Lower Handle
(Step 3)
Fork Bracket
(Step 1)
5” Flat Iron

________________________________________________________________________________
Page 3
PRO-CHUTE 1 SETUP
BY BULK SEED SYSTEMS, INC.

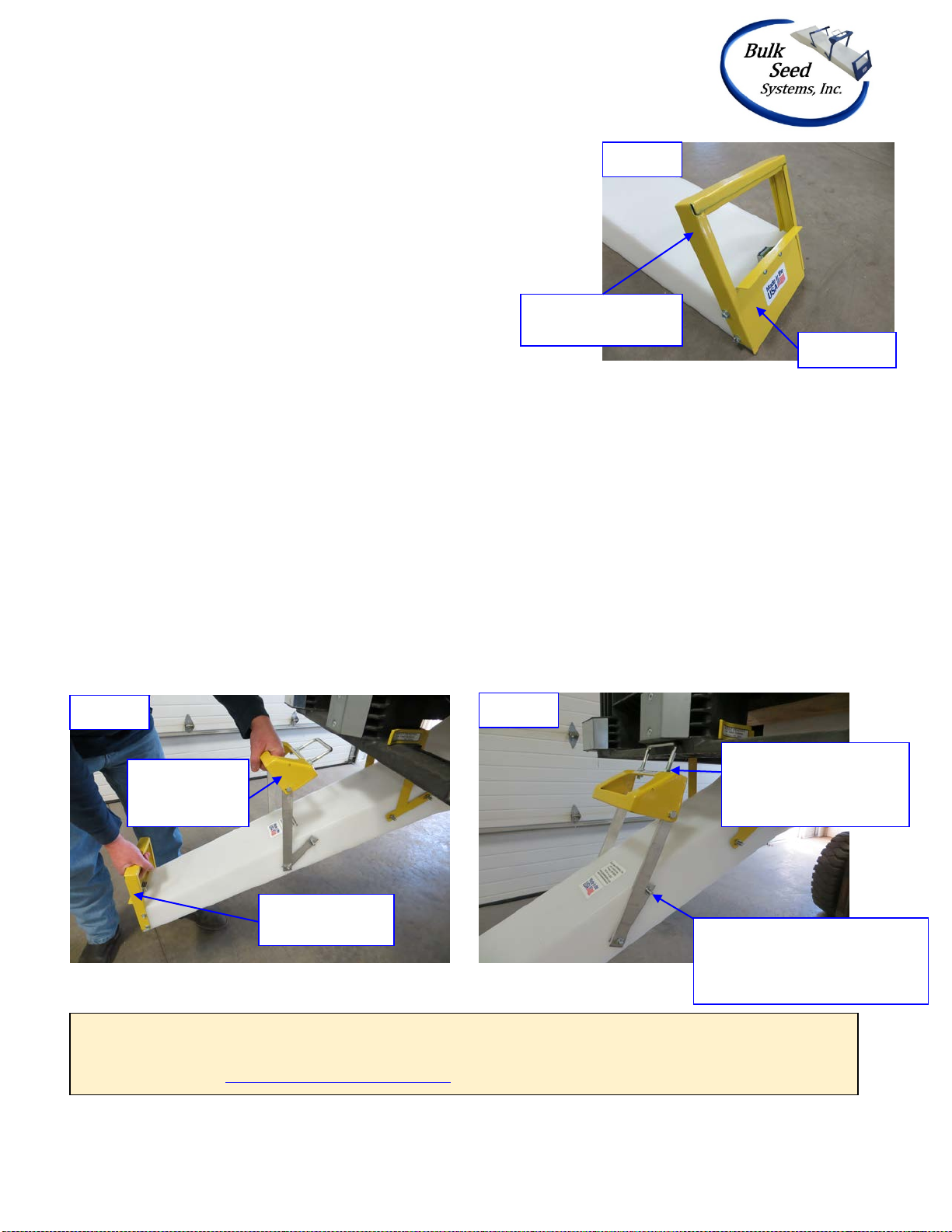

Slide Gate Guide
/ Bottom Handle
Step 3: Install Slide Gate
Install slide gate as shown in (Photo 4). Push slide gate guide
tight against the end of the chute with slide gate in the guide. Then
align the slide gate with the pre-drilled holes. Install screws from the
outside. Repeat instructions for the other side. Do not over tighten
screws.
Step 4: Prepare Pro-box for Pro-chute
With a forklift, pick the box up from the narrow end
of the box so the slide gate of box is to your left when
sitting on the forklift seat. Raise the box about 3 feet above the
ground. Then install the Pro-chute on the front side of the box. The cut-out in the chute allows the box’s
slide gate to move freely (See Photo 1). This is the only way the Pro-chute will fit properly on the box.
Step 5: Attach Assembled Pro-chute onto Pro-box
Lift assembled Pro-chute by placing one hand on the slide gate bottom handle and the other hand on
the cam lever handle (Photo 5).
After placing the fork bracket onto the bottom rail of the box, pull gently away from the box and down.
Snap the U-bolt on the cam-lever handle against the seed box under the galvanized plate. The U-bolt on
the handle must be adjusted (tighter or looser) so the chute fits firmly on the box (Photo 6).
To test to make sure the Pro-chute is properly attached, hang onto the slide-gate handle at the end of
the chute and wiggle left-to-right and the end of the chute under the box should not move around freely.
The Pro-chute is properly attached when the end of the chute will not move left-to-right.
Keep box slide gate closed while transporting box. Only open box slide gate before raising the
box to be dumped. Bulk Seed Systems is not responsible for any loss of seed or contents in box.
Slide gate
Locking Cam
Lever / Upper
Handle
Adjust nuts downward
to tighten cam lever.
Then re-tighten bottom
two nuts.
Turn this nut so flat iron rests
squarely on one of the flat
sides of the nut when locked
onto the seed box.
Photo 4
Photo 5
Slide Gate /
Bottom Handle
Photo 6
