Bull ESCALA Power7 5796 G30 Service manual

ESCALA Power7
Installing the 5796 and 7314 G30
expansion units
REFERENCE
86 A1 25FF 05

ESCALA Power7
Installing the 5796 and 7314 G30 expansion units
The ESCALA Power7 publications concern the following models:
- Bull Escala E5-700 (Power 750 / 8233-E8B)
- Bull Escala M6-700 (Power 770 / 9117-MMB)
- Bull Escala M6-705 (Power 770 / 9117-MMC)
- Bull Escala M7-700 (Power 780 / 9179-MHB)
- Bull Escala M7-705 (Power 780 / 9179-MHC)
- Bull Escala E1-700 (Power 710 / 8231-E2B)
- Bull Escala E1-705 (Power 710 / 8231-E1C)
- Bull Escala E2-700 / E2-700T (Power 720 / 8202-E4B)
- Bull Escala E2-705 / E2-705T (Power 720 / 8202-E4C)
- Bull Escala E3-700 (Power 730 / 8231-E2B)
- Bull Escala E3-705 (Power 730 / 8231-E2C)
- Bull Escala E4-700 / E4-700T (Power 740 / 8205-E6B)
- Bull Escala E4-705 (Power 740 / 8205-E6C)
References to Power 755 / 8236-E8C models are irrelevant.
Hardware
May 2012
BULL CEDOC
357 AVENUE PATTON
B.P.20845
49008 ANGERS CEDEX 01
FRANCE
REFERENCE
86 A1 25FF 05

The following copyright notice protects this book under Copyright laws which prohibit such actions as, but not limited to, copying,
distributing, modifying, and making derivative works.
Bull SAS 2012
Copyright
Printed in France
Suggestions and criticisms concerning the form, content, and presentation of this book are
invited. A form is provided at the end of this book for this purpose.
To order additional copies of this book or other Bull Technical Publications, you are invited
to use the Ordering Form also provided at the end of this book.
Trademarks and Acknowledgements
We acknowledge the right of proprietors of trademarks mentioned in this book.
The information in this document is subject to change without notice. Bull will not be liable for errors contained herein, or
r incidental or consequential damages in connection with the use of this material.
fo

Contents
Safety notices .................................v
Installing the 57/96 and 14G/30 expansion units ..................1
Installing the 57/96 and 14G/30 expansion units: Details ...............3
Reference information .............................23
Connector locations.................................23
Server connectors ................................23
Model 02E/4B connector locations..........................23
Model 02E/4C connector locations .........................24
Model 05F/6B connector locations ..........................25
Model 05E/6C connector locations .........................26
Model 33E/8B connector locations..........................27
Model 17M/MB or 79M/HB connector locations .....................28
Model 17M/MC or 79M/HC connector locations .....................28
Enclosure connectors ...............................28
Model 57/96 or 14G/30 connector locations ......................29
Notices ...................................31
Trademarks ...................................32
Electronic emission notices ..............................32
Class A Notices .................................32
Class B Notices .................................36
Terms and conditions ................................38
iii

iv Power Systems: Installing the 57/96 and 14G/30 expansion units

Safety notices
Safety notices may be printed throughout this guide.
vDANGER notices call attention to a situation that is potentially lethal or extremely hazardous to
people.
vCAUTION notices call attention to a situation that is potentially hazardous to people because of some
existing condition.
vAttention notices call attention to the possibility of damage to a program, device, system, or data.
World Trade safety information
Several countries require the safety information contained in product publications to be presented in their
national languages. If this requirement applies to your country, a safety information booklet is included
in the publications package shipped with the product. The booklet contains the safety information in
your national language with references to the U.S. English source. Before using a U.S. English publication
to install, operate, or service this product, you must first become familiar with the related safety
information in the booklet. You should also refer to the booklet any time you do not clearly understand
any safety information in the U.S. English publications.
Laser safety information
The servers can use I/O cards or features that are fiber-optic based and that utilize lasers or LEDs.
Laser compliance
The servers may be installed inside or outside of an IT equipment rack.
v

DANGER
When working on or around the system, observe the following precautions:
Electrical voltage and current from power, telephone, and communication cables are hazardous. To
avoid a shock hazard:
vConnect power to this unit only with the provided power cord. Do not use the provided power
cord for any other product.
vDo not open or service any power supply assembly.
vDo not connect or disconnect any cables or perform installation, maintenance, or reconfiguration
of this product during an electrical storm.
vThe product might be equipped with multiple power cords. To remove all hazardous voltages,
disconnect all power cords.
vConnect all power cords to a properly wired and grounded electrical outlet. Ensure that the outlet
supplies proper voltage and phase rotation according to the system rating plate.
vConnect any equipment that will be attached to this product to properly wired outlets.
vWhen possible, use one hand only to connect or disconnect signal cables.
vNever turn on any equipment when there is evidence of fire, water, or structural damage.
vDisconnect the attached power cords, telecommunications systems, networks, and modems before
you open the device covers, unless instructed otherwise in the installation and configuration
procedures.
vConnect and disconnect cables as described in the following procedures when installing, moving,
or opening covers on this product or attached devices.
To Disconnect:
1. Turn off everything (unless instructed otherwise).
2. Remove the power cords from the outlets.
3. Remove the signal cables from the connectors.
4. Remove all cables from the devices
To Connect:
1. Turn off everything (unless instructed otherwise).
2. Attach all cables to the devices.
3. Attach the signal cables to the connectors.
4. Attach the power cords to the outlets.
5. Turn on the devices.
(D005a)
DANGER
vi Power Systems: Installing the 57/96 and 14G/30 expansion units

Observe the following precautions when working on or around your IT rack system:
vHeavy equipment–personal injury or equipment damage might result if mishandled.
vAlways lower the leveling pads on the rack cabinet.
vAlways install stabilizer brackets on the rack cabinet.
vTo avoid hazardous conditions due to uneven mechanical loading, always install the heaviest
devices in the bottom of the rack cabinet. Always install servers and optional devices starting
from the bottom of the rack cabinet.
vRack-mounted devices are not to be used as shelves or work spaces. Do not place objects on top
of rack-mounted devices.
vEach rack cabinet might have more than one power cord. Be sure to disconnect all power cords in
the rack cabinet when directed to disconnect power during servicing.
vConnect all devices installed in a rack cabinet to power devices installed in the same rack
cabinet. Do not plug a power cord from a device installed in one rack cabinet into a power
device installed in a different rack cabinet.
vAn electrical outlet that is not correctly wired could place hazardous voltage on the metal parts of
the system or the devices that attach to the system. It is the responsibility of the customer to
ensure that the outlet is correctly wired and grounded to prevent an electrical shock.
CAUTION
vDo not install a unit in a rack where the internal rack ambient temperatures will exceed the
manufacturer's recommended ambient temperature for all your rack-mounted devices.
vDo not install a unit in a rack where the air flow is compromised. Ensure that air flow is not
blocked or reduced on any side, front, or back of a unit used for air flow through the unit.
vConsideration should be given to the connection of the equipment to the supply circuit so that
overloading of the circuits does not compromise the supply wiring or overcurrent protection. To
provide the correct power connection to a rack, refer to the rating labels located on the
equipment in the rack to determine the total power requirement of the supply circuit.
v(For sliding drawers.) Do not pull out or install any drawer or feature if the rack stabilizer brackets
are not attached to the rack. Do not pull out more than one drawer at a time. The rack might
become unstable if you pull out more than one drawer at a time.
v(For fixed drawers.) This drawer is a fixed drawer and must not be moved for servicing unless
specified by the manufacturer. Attempting to move the drawer partially or completely out of the
rack might cause the rack to become unstable or cause the drawer to fall out of the rack.
(R001)
Safety notices vii

CAUTION:
Removing components from the upper positions in the rack cabinet improves rack stability during
relocation. Follow these general guidelines whenever you relocate a populated rack cabinet within a
room or building:
vReduce the weight of the rack cabinet by removing equipment starting at the top of the rack
cabinet. When possible, restore the rack cabinet to the configuration of the rack cabinet as you
received it. If this configuration is not known, you must observe the following precautions:
– Remove all devices in the 32U position and above.
– Ensure that the heaviest devices are installed in the bottom of the rack cabinet.
– Ensure that there are no empty U-levels between devices installed in the rack cabinet below the
32U level.
vIf the rack cabinet you are relocating is part of a suite of rack cabinets, detach the rack cabinet from
the suite.
vInspect the route that you plan to take to eliminate potential hazards.
vVerify that the route that you choose can support the weight of the loaded rack cabinet. Refer to the
documentation that comes with your rack cabinet for the weight of a loaded rack cabinet.
vVerify that all door openings are at least 760 x 230 mm (30 x 80 in.).
vEnsure that all devices, shelves, drawers, doors, and cables are secure.
vEnsure that the four leveling pads are raised to their highest position.
vEnsure that there is no stabilizer bracket installed on the rack cabinet during movement.
vDo not use a ramp inclined at more than 10 degrees.
vWhen the rack cabinet is in the new location, complete the following steps:
– Lower the four leveling pads.
– Install stabilizer brackets on the rack cabinet.
– If you removed any devices from the rack cabinet, repopulate the rack cabinet from the lowest
position to the highest position.
vIf a long-distance relocation is required, restore the rack cabinet to the configuration of the rack
cabinet as you received it. Pack the rack cabinet in the original packaging material, or equivalent.
Also lower the leveling pads to raise the casters off of the pallet and bolt the rack cabinet to the
pallet.
(R002)
(L001)
(L002)
viii Power Systems: Installing the 57/96 and 14G/30 expansion units

(L003)
or
All lasers are certified in the U.S. to conform to the requirements of DHHS 21 CFR Subchapter J for class
1 laser products. Outside the U.S., they are certified to be in compliance with IEC 60825 as a class 1 laser
product. Consult the label on each part for laser certification numbers and approval information.
CAUTION:
This product might contain one or more of the following devices: CD-ROM drive, DVD-ROM drive,
DVD-RAM drive, or laser module, which are Class 1 laser products. Note the following information:
vDo not remove the covers. Removing the covers of the laser product could result in exposure to
hazardous laser radiation. There are no serviceable parts inside the device.
vUse of the controls or adjustments or performance of procedures other than those specified herein
might result in hazardous radiation exposure.
(C026)
Safety notices ix

CAUTION:
Data processing environments can contain equipment transmitting on system links with laser modules
that operate at greater than Class 1 power levels. For this reason, never look into the end of an optical
fiber cable or open receptacle. (C027)
CAUTION:
This product contains a Class 1M laser. Do not view directly with optical instruments. (C028)
CAUTION:
Some laser products contain an embedded Class 3A or Class 3B laser diode. Note the following
information: laser radiation when open. Do not stare into the beam, do not view directly with optical
instruments, and avoid direct exposure to the beam. (C030)
CAUTION:
The battery contains lithium. To avoid possible explosion, do not burn or charge the battery.
Do Not:
v___ Throw or immerse into water
v___ Heat to more than 100°C (212°F)
v___ Repair or disassemble
Exchange only with the approved part. Recycle or discard the battery as instructed by local
regulations. (C003a)
Power and cabling information for NEBS (Network Equipment-Building System)
GR-1089-CORE
The following comments apply to the servers that have been designated as conforming to NEBS
(Network Equipment-Building System) GR-1089-CORE:
The equipment is suitable for installation in the following:
vNetwork telecommunications facilities
vLocations where the NEC (National Electrical Code) applies
The intrabuilding ports of this equipment are suitable for connection to intrabuilding or unexposed
wiring or cabling only. The intrabuilding ports of this equipment must not be metallically connected to the
interfaces that connect to the OSP (outside plant) or its wiring. These interfaces are designed for use as
intrabuilding interfaces only (Type 2 or Type 4 ports as described in GR-1089-CORE) and require isolation
from the exposed OSP cabling. The addition of primary protectors is not sufficient protection to connect
these interfaces metallically to OSP wiring.
Note: All Ethernet cables must be shielded and grounded at both ends.
The ac-powered system does not require the use of an external surge protection device (SPD).
The dc-powered system employs an isolated DC return (DC-I) design. The DC battery return terminal
shall not be connected to the chassis or frame ground.
xPower Systems: Installing the 57/96 and 14G/30 expansion units

Installing the 57/96 and 14G/30 expansion units
Use this overview as a guide to the tasks required for installing the 57/96 and 14G/30 expansion units
(PCI-DDR 12X Expansion Drawer) into a rack and cabling it to a server.
Procedure
You can use the following table to read about and complete the high-level tasks for installing the 57/96
and 14G/30 expansion units.
Table 1. Tasks to install the expansion unit into a rack
Task Where to find associated information
Perform inventory.
Ensure that you have the rails.
Ensure that you have both a Philips-head and flat-head
screwdriver.
Locate the inventory list for your expansion unit, and
verify that you received all of the parts that you ordered.
Each order contains, at a minimum, the following items:
vLeft and right rack-mounting rails
vMounting screws
vPower supply cables
If your shipment contains parts that are not required to
complete the installation procedure, store those parts
until they are required to be used.
You can also obtain order information from your
marketing representative or IBM®Business Partner.
Verify that you have a rack. You must have a rack installed. If you do not have a rack
installed, see Installing the rack (http://
publib.boulder.ibm.com/infocenter/systems/scope/hw/
topic/p7hbf/installrack.htm).
Prepare to install the expansion unit. To ensure that you have taken all preparatory steps to
install this expansion unit, see Installing the 5796 in a
rack (http://publib.boulder.ibm.com/infocenter/
systems/scope/hw/topic/p7ham/
p7ham_5796_prepare.htm).
Power off the system, if required, to install the expansion
unit.
For requirements and procedures related to shutting
down and powering off the system, see Overview for
I/O expansion units (http://publib.boulder.ibm.com/
infocenter/systems/scope/hw/topic/p7ham/
p7hamconcepts.htm).
Determine where to install the expansion unit in the rack
and mark the location.
Note: Skip this task if you are installing the system unit
into an existing shell.
The expansion unit is installed in a shell that is mounted
to the rack.
If you have a rack-mounting template for the expansion
unit, use it to mark the location.
If you do not have a rack-mounting template, see step 2c
on page 3.
Install the rail assembly in the rack.
Note: Skip this task if you are installing the system unit
into an existing shell.
To install the mounting hardware in the rack, see step 3
on page 4.
1

Table 1. Tasks to install the expansion unit into a rack (continued)
Task Where to find associated information
Install the shell on the rail assembly.
Note: Skip this task if you are installing the system unit
into an existing shell.
To install the shell on the rail assembly, see Installing the
shellstep 4 on page 7.
Install the expansion unit into the shell. To install the expansion unit into the shell, see step 5 on
page 8.
Cable the expansion unit to the server. To connect the expansion unit to the system, see step 6
on page 11.
Verify that the system power control network (SPCN) is
functioning correctly.
To verify that the SPCN is functioning correctly, see step
7 on page 16.
Verify that the new expansion unit configuration is
functioning correctly.
To verify that your configuration is functioning correctly,
see step 8 on page 20.
2Power Systems: Installing the 57/96 and 14G/30 expansion units

Installing the 57/96 and 14G/30 expansion units: Details
The detailed installation procedure includes information from online references that are specified in the
overview. You can use the expanded instructions in this procedure to install your expansion unit into a
rack and to cable it to a server.
Before you begin
vThis information is provided in printed form as a list of basic tasks for installing the 57/96 and 14G/30
expansion units. For the most current version, use the online information: Installing the 5796 and
7314-G30 expansion units.
vThis procedure assumes that you are installing the 57/96 or 14G/30 expansion unit into an existing
rack. If the rack is not yet installed, you must first complete the procedure for Installing the rack.
vBefore installing the expansion unit into a rack, read the Rack safety notices.
About this task
To install the 57/96 or 14G/30 expansion unit, complete the following tasks:
1. Unpack the expansion unit as follows:
a. Refer to the kitting list provided with the rack installation kit, and complete a parts inventory.
b. Locate the rack-mounting hardware kit and the system rail assemblies that were included with
your expansion unit.
2. Determine where to install the expansion unit in the rack. Choose one of the following options:
a. If you are installing the system unit into an existing shell, skip this step and continue with step 5
on page 8
b. If you have a rack-mounting template, use it to mark the location.
c. If you do not have a rack-mounting template, perform the following steps to mark the location:
1) Determine where in the rack to place the expansion unit in relation to other system hardware.
As you plan, keep the following steps in mind:
a) Organize larger and heavier units into the lower part of the rack.
b) Plan to install units into the lower part of the rack first.
c) Record the EIA locations in your plan.
Note: The expansion unit is four Electronic Industries Alliance (EIA) units high. An EIA unit is
44.50 mm (1.75 in.) in height. The rack contains three mounting holes for each EIA unit of
height. This enclosure, therefore, is 177.8 mm (7 in.) high and covers 12 mounting holes in the
rack.
The following illustration shows a 1-EIA unit and a 4-EIA unit. Depending on the rack
manufacturer, the EIA units might be separated either by color or by a line. The holes along
the EIA strip are not evenly spaced. If your rack has no color or line separation between EIAs,
assume that each EIA section begins where the hole spacing is closest together.
3

2) Face the front of the rack and working from the left side. Make a note of the lowest EIA unit to
be used for the expansion unit. Use tape, a marker, or a pencil to mark the top mounting hole
(A) of the lowest EIA unit. Count up two holes and place another mark beside that mounting
hole (B). Mark the rack so that these marks can also be seen from the rear of the rack
3) Begin with the hole identified by your mark for B. Count up two holes and place a nut clip (C)
in that mounting hole. Count up two holes and place a nut clip (D) in that mounting hole.
4) Repeat the last two steps to place two marks and place two nut clips on the corresponding
mounting holes on the front-right side of the rack.
5) Go to the back of the rack. On the left side, find the EIA unit that corresponds to the lowest
EIA unit marked on the front of the rack.
6) Mark the top mounting hole (E) of this EIA unit. Count up two holes and place another mark
beside that mounting hole (F). Count up four holes and place another mark beside that
mounting hole (G).
7) Repeat the last step to place three marks on the corresponding mounting holes on the
rear-right side of the rack.
3. Install the rail assembly into the rack as follows:
Important: To complete this procedure, it is suggested that you use two people to attach the rail
assembly to the rack. Position one person in front of the rack and one person at the rear of the rack.
CAUTION:
Installing the rails in the rack is a complex procedure. To install the rails correctly, you must
perform each task in the following order. Failure to do so might cause rail failure and potential
danger to yourself and the system unit.
a. Loosen the two screws (B) in the middle of both rails (A) to allow each rail to extend.

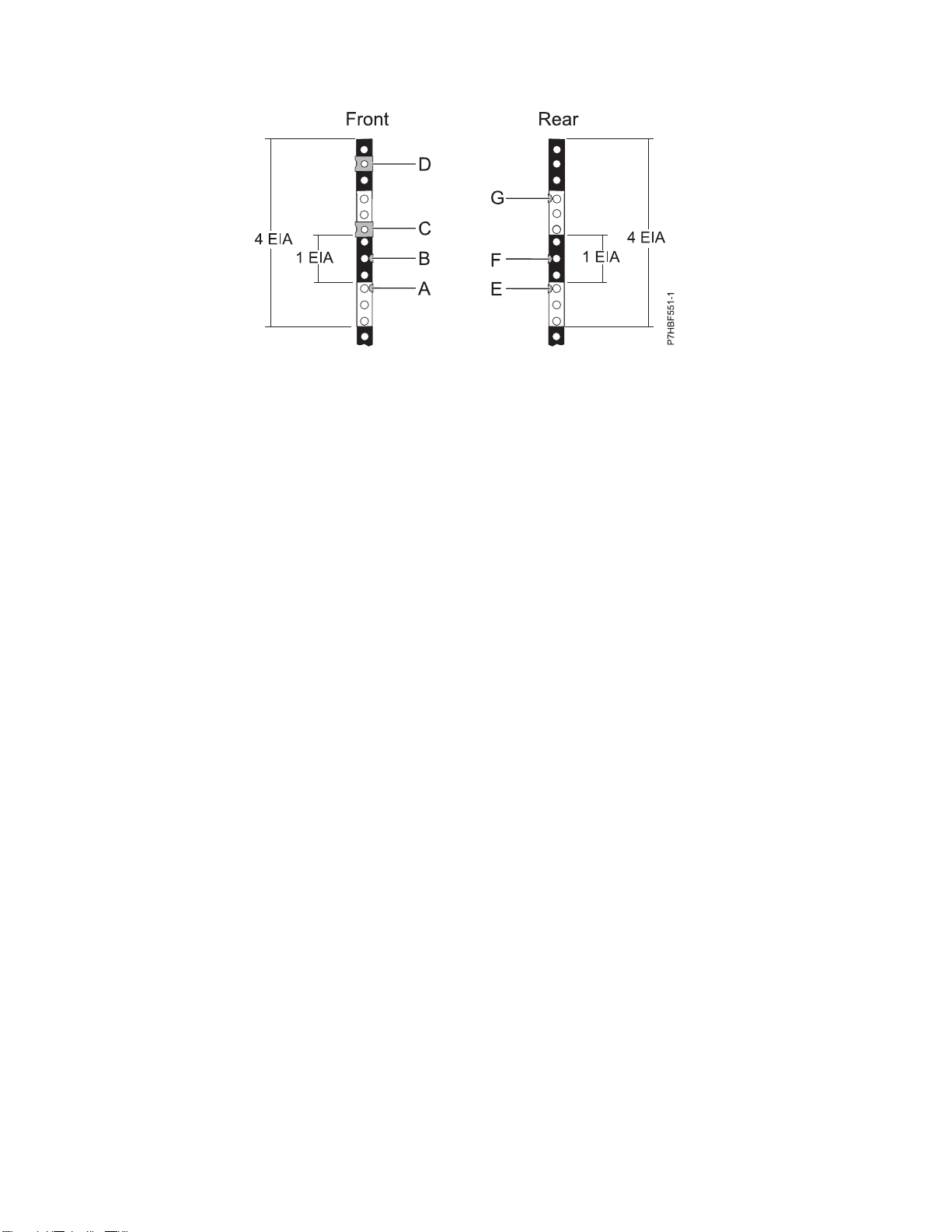

Figure 1. EIA units with expandable rails for the 5796 expansion unit
4Power Systems: Installing the 57/96 and 14G/30 expansion units

b. Starting at the rear of the rack, extend the left rail. Insert the rail pins (C) into the marked
locations on the rack so that it is facing upward (L shape).
c. From the rear of the rack, extend the right rail and insert the rail pins (C) into the marked
locations.
d. Move to the front of the rack, extend the left rail and insert the rail pins (C) into the marked
locations.
e. Extend the right rail and insert the rail pins (C) into the marked locations.
f. Using one M5 screw (D), secure the left rail to the front of the rack into the lower location (E).
Important: Do not install a screw in the top location at this time. It will secure the shell to the
assembly.
Figure 2. Extending the rails
Installing the 57/96 and 14G/30 expansion units: Details 5

g. Using one M5 screw (D), secure the right rail to the front of the rack into the lower location (E).
h. Move to the rear of the rack and locate the marks that were previously made on the back-left rail.
Using two M5 screws (G), secure the rail arm to the rack at the location of the two lowest marks.
Figure 3. Attaching the rails to the front of the rack
6Power Systems: Installing the 57/96 and 14G/30 expansion units

i. Align the top alignment pin of the bracket (F) with the highest mark, and use one M5 screw (G) to
secure the bracket to the rack at this location.
Note: The bracket will face inward.
j. Locate the marks that were previously made on the back-right rail of the rack. Using two M5
screws (G), secure the rail arm to the rack at the location of the two lowest marks.
k. Align the top alignment pin of the bracket (F) with the highest mark, and use one M5 screw (G) to
secure the bracket to the rack at this location.
l. Tighten the two screws (B) in the middle of the left rail and the two screws (B) in the middle of the
right rail. See Figure 2 on page 5.
4. Install the shell as follows:
a. From the front of the rack, place the shell (A) on the rails and slide it into the rack.
Figure 4. Attaching the rails to the back of the rack
Installing the 57/96 and 14G/30 expansion units: Details 7

A Shell
B Retaining screws (four)
b. Secure the shell (A) to the rack by installing and tightening retaining screws (B) into the top and
bottom holes on each side of the front of the shell.
5. Install the expansion unit into the shell as follows:
a. Remove the front and back shipping covers of the 57/96 or 14G/30. These shipping covers are
secured by four thumb screws each. Two screws are located on the top of the cover and two are
located on the sides of the cover.
b. If you are installing an expansion unit (H) into an existing shell (G) that has a filler plate (F),
remove the filler plate by pressing down on the top tabs and pulling it out.
Figure 5. Installing the shell into the rack on the expandable rails
8Power Systems: Installing the 57/96 and 14G/30 expansion units
