Burg BSL Master 4.2 User manual

www.burg.de
Operating manual
B-Smart-Lock Master
GB
BSL Master 4.2
< 15 cm
> 5 cm
> 1,5 N
Metal
-SMART- LOCK
-SMART-LOCK
MASTER

B-Smart-Lock Master | March 2015
English | 2
B-Smart-Lock Master
-SMART- LOCK
-SMART-LOCK
MASTER
Ascrew holes
Bprogramming button
Introduction
Dear Customer
Thank you for choosing the B-Smart-Lock Master
electronic furniture lock. This lock was designed to
meet the unique requirements of the furniture
industry. It enables organisations to secure cabinets,
display cases, lockers and drawers. The B-Smart-Lock
is particularly well-suited to installations in which the
appearance of high-class finishes is not disrupted
by the presence of a lock.
Important: Please read and observe all warnings and
instructions before you begin programming.
We hope you will enjoy your new locking system.
Yours faithfully,
BURG F. W. Lüling KG
Important details
Please take heed of the following notes for secure
operation of the B-Smart-Lock Master:
The antennae inside the locks must be installed at
most 5 cm from each other at the side face and at
most 15 cm from each other at the back panel.
Back
Side
The fixing screws must not be tightened to more
than 1.5 N.
Other systems in the vicinity may lead to
malfunctioning of the B-Smart-Lock Master.
The radio waves of the transponder will not
penetrate metal.
General
This guide has been prepared according to the current
state of our knowledge. Legal claims to correctness do
not obtain. Technical changes reserved.
BURG F. W. Lüling KG assumes no liability for incorrectly
installed parts and resulting damage to property or
persons.
Technical Data
Dimensions 60 x 60 x 22 mm
Power Supply Converter 3,6 V DC
Battery Lithium Battery 3 V, CR123A
Service Life:
10.000 close cycles
Permissible Temp. 0°– 40°C
(no water condensation)
RFID Working
Frequency
125 kHz (EM4200, T 5577)
Lock Casing
Material
Plastic
Locking Direction R, L and DRA
Lock Fixing Screw
Lock Bolt
Capacity Up to 32
transponders / lock
A
B

B-Smart-Lock Master | March 2015
English | 3
The Beginner’s Set
Factory settings remain in place. The transponder can
be programmed and deprogrammed. For this you need
the following:
B-Smart-Lock Master Transponder

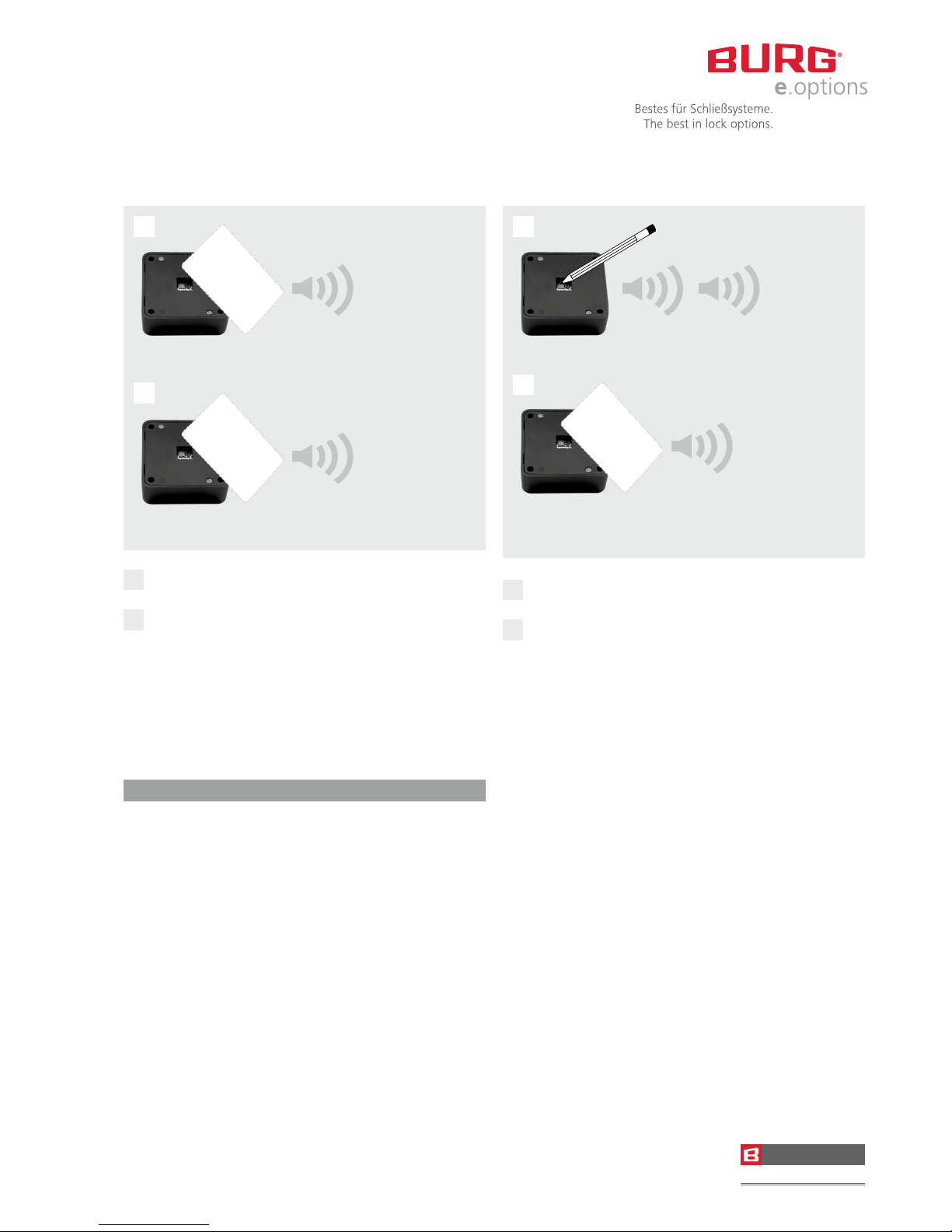

Programming the Transponder
1.
3.
2.
BING
Tick
Tick
Tick
Press button
Hold the transponder against
the B-Smart-Lock Master.
Release
User
Card
Two rising notes
will confirm
successful
programming.
The descending
scale ends the
programming.
1. Press the button on the back until a “bing” sounds.
2. When the “bing” sounds release the button.
You will now hear a ticking sound coming from the
B-Smart-Lock Master.
3. Hold the transponder against the B-Smart-Lock
Master. Two rising notes will sound to confirm
successful programming. Wait a moment. The
descending scale concludes the process.
Important
You can program several transponders one after the
other. The ticking will lengthen by 4 seconds after each
transponder.
Deprogramming the Transponder
Follow the same steps as under “Programming the
Transponder”. Four loud beeps will confirm successful
deprogramming.
The Expert Set
With the expert set you can individually adjust the factory
settings and program and deprogram the transponder.
Programming and Deprogramming by Remote Control
For this you need the following:
B-Smart-Lock Master
Remote Control
Transponder
Remote Control Card
Programming and Deprogramming Transponder
by Remote Control
1. Program remote control card (onetime).
The remote control card is needed to put the lock in
remote control mode. Only in this mode can the lock
react to the remote control.
1.
2.
BING
BING
Tick
Tick
Keep pressed
During the double ticking hold
the remote control card against
the B-Smart-Lock Master.
Two rising notes
will confirm
successful
programming.
The descending
scale ends the
programming of
the remote control.
-SMART- LOCK
-SMART-LOCK
MASTER

B-Smart-Lock Master | March 2015
English | 4
1. Press the button on the back continuously until
two successive “bings” are heard. You will now
hear a double ticking sound coming from the
B-Smart-Lock Master.
2.
During the double ticking hold the remote control
card against the B-Smart-Lock Master. Two rising
notes will sound to confirm successful programming.
Wait a moment. The descending scale concludes
the process.
2. Enter storage space in the remote control
The remote control can contact specific storage spaces
and program and deprogram transponders there. This
allows easy management of the transponders. There
are 32 storage spaces in total. The storage spaces are
actuated by start numbers 53XX and 54XX.
Actuation of storage spaces:
Storage Actuation
via
Storage Actuation
via
1 5311 17 5411
2 5312 18 5412
3 5313 19 5413
4 5314 20 5414
5 5321 21 5421
6 5322 22 5422
7 5323 23 5423
8 5324 24 5424
9 5331 25 5431
10 5332 26 5432
11 5333 27 5433
12 5334 28 5434
13 5341 29 5441
14 5342 30 5442
15 5343 31 5443
16 5344 32 5444
Management example:
Storage Actua-
tion
Name Trans-
ponder
Dept.
1 5311 Meier 232923401 Marketing
2 5312 Schäfer 623489723 Vertrieb
3 5313 Wirth 234561123 FuE
4 … … … …
Important
As you are actuating a specific storage space here, you
can only program one transponder. An entry will stay
stored in the remote control for about 4 minutes. An
entry is ended after 5 seconds or by pressing the OK
key. If you enter a number sequence that is too short or
not in the table, a warning signal will sound on transfer
to the lock.
For the next steps store a user position (e.g. 5311).
Put the B-Smart-Lock Master in remote con-
trol mode.
Transfer the storage space entered in the
remote control to the lock.
Program the transponder.
Carry out all the steps in rapid sequence, otherwise the
lock will end the remote control mode and you will
have to start again.
1.
2.
Hold the remote control
card against the B-Smart-
Lock Master.
Hold transponder against
B-Smart-Lock Master during ticking.
An ascending
scale will sound.
Quickly aim the
remote control
at the B-Smart-Lock
Master and press
“OK“ before the
descending scale
comes. A ticking
will sound.
Remote
Control
Card
User
Card
Tick
Tick
Tick
Tick
Two rising notes
confirm successful
programming.
-SMART- LOCK
-SMART-LOCK
MASTER

B-Smart-Lock Master | March 2015
English | 5
1. Hold the remote control card against the B-Smart-
Lock Master. A rising scale will sound. Hold the
remote control quickly on the B-Smart-Lock Master
and press the “OK” key. This must be done before
the descending scale.
2. While the ticking is sounding, the transponder
must be held against the B-Smart-Lock Master.
Two rising notes confirm successful programming
of the remote control card.
Deprogramming the Transponder
Enter the position to be deleted (e.g. 5311).
1.
2.
Hold remote control card
against B-Smart-Lock Master.
An ascending
scale will sound.
Hold the remote
control against the
B-Smart-Lock Master
and press “OK“
before the descen-
ding scale comes.
A ticking will sound.
Tick
Tick
Now simply wait until the ticking
stops. The transponder is deleted.
A descending scale will sound.
1. Hold the remote control card against the B-Smart-
Lock Master. A rising scale will sound. Hold the
remote control on the B-Smart-Lock Master and
press the “OK” key. This must be done before the
descending scale.
2. Now simply wait until the ticking stops. The
transponder is now deleted. A descending scale
will sound.
Programming and Deprogramming
with the Programming Card
For this you need the following:
B-Smart-Lock Master Transponder
Programming Card
Programming the Programming Card (onetime)
1.
3.
2.
BING
BING
BING
Press button
Hold the programming card
quickly against the B-Smart-
Lock Master.
Release
Programming
Card
Two rising notes
will confirm
successful
programming.
The descending
scale ends the
programming.
1. Press the button on the back continuously until
three successive “bings” are heard. Release the
button.
2. Hold the programming card quickly against the
B-Smart-Lock Master. Two rising notes will sound to
confirm successful programming. The descending
scale ends the programming.
-SMART- LOCK
-SMART-LOCK
MASTER

B-Smart-Lock Master | March 2015
English | 6
Programming the Transponder
1.
2.
Hold the programming card against
the B-Smart-Lock. Master.
Hold the transponder against
the B-Smart-Lock Master.
Tick
Tick
Tick
Tick
Two rising notes
will confirm
successful
programming.
The descending
scale ends the
programming.
1. Hold the programming card against the B-Smart-
Lock Master. A ticking noise will sound.
2. Hold the transponder against the B-Smart-Lock
Master. Two rising notes will confirm successful
programming. The descending scale ends the
programming.
Important
You can program several transponders one after the
other. The ticking will lengthen by 4 seconds after each
transponder.
Configuring Settings
1. Program remote control card (onetime).
Explanation: The remote control card is needed to put
the lock in remote control mode. Only in this mode can
the lock react to the remote control. You need only
carry out this step if you have not yet programmed
a remote control card.
Programming the Remote Control Card (onetime)
1.
2.
BING
BING
Tick
Tick
Keep pressed
During the double ticking hold
the remote control card against
the B-Smart-Lock Master.
Two rising notes
will confirm
successful
programming.
The descending
scale ends the
programming of
the remote
control.
1. Press the button on the back continuously until
two successive “bings” are heard
2. During the double ticking hold the remote control
card against the B-Smart-Lock Master. Two rising
notes will confirm successful programming. The
descending scale ends the programming.
You need only carry out this step if you have not yet
programmed a remote control card.
-SMART- LOCK
-SMART-LOCK
MASTER

B-Smart-Lock Master | March 2015
English | 7

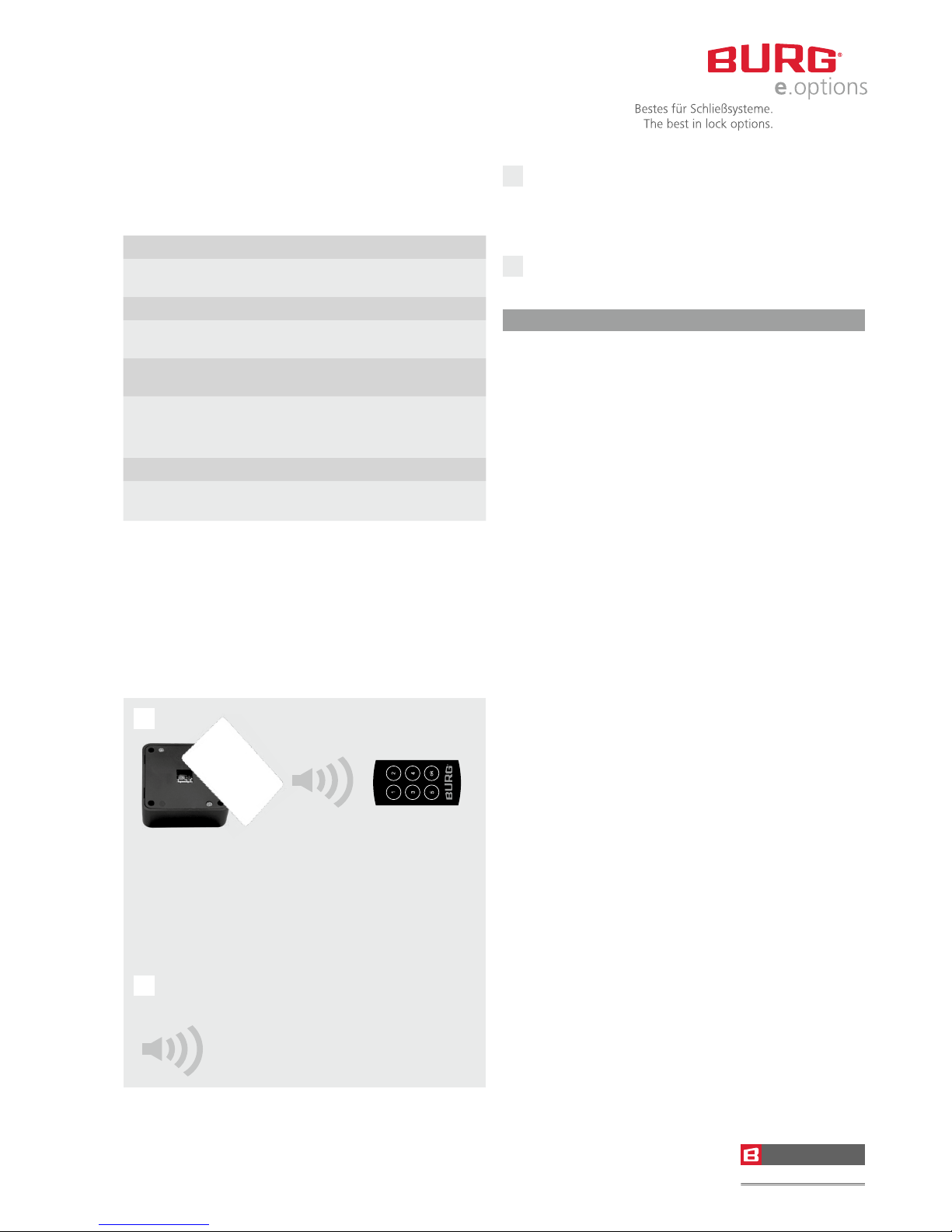

2. Enter command in remote control.
Actuate function, e.g. acoustic signal on opening ON
via 5111
Function ON OFF
Acoustic signals on
opening / Unknown card 5111 5211
Manual closing* 5112 5212
Double automatic
closing time** 5113 5213
Quadruple automatic
closing time** 5114 5214
Door open alarm
after approx. 20 sec. 5122 5222
Onetime manual closing 5142 5242
Suppress interf. alarm 5144 5244
Group function:
Only programmable by BURG
** Only works when Onetime Manual Closing is OFF.
Also both Automatic Closing functions must be OFF.
**Only works when Manual Closing is OFF. The
standard time for automatic locking is 3 seconds.
3. Put the B-Smart-Lock Master in remote control mode
4. Transfer the remote control command to the
B-Smart-Lock Master
1.
2.
Hold the remote
control card against the
B-Smart-Lock Master.
A rising scale will
sound. Hold the
remote control
against the B-Smart-
Lock Master and
press “OK” before
the descending
scale comes.
Tick
Tick
Two rising notes will confirm
successful programming.
1. Hold the remote control card against the B-Smart-
Lock Master. A rising scale will sound. Hold the
remote control on the B-Smart-Lock Master and
press the “OK” key. This must be done before the
descending scale.
2. Two rising notes will confirm successful
programming.
General Notes
Acoustic Signals on Opening / Unknown Card
Two confirmation notes will sound on opening and
closing. Three loud notes will also sound when an
unauthorised card is held out.
Manual Closing
If the function is ON, a lock will not close automatically
but only when the transponder is again held against
the lock.
Double Automatic Closing Time*
Doubles the automatic closing time stored in the lock.
This is 3 seconds as standard. If this function is used that
would make it 6 seconds. If the 3 seconds had already
been quadrupled it would make it 24 seconds
(3 x 4 x 2).
Quadruple Automatic Closing Time*
See explanation for doubling automatic closing time.
Extra High Card Recognition Sensitivity
If there is no interfering element in the vicinity, this
function can be switched ON. This increases the
specifications on the minimum ranges of transponders
although precise specifications cannot be given. But
the minimum gap that must be maintained between
two locks also increases.
Door Open Alarm after Approx. 20 Seconds
If the lock is separated from the closing part for 20
seconds, a warning signal will sound. If the alarm is
set, the lock and closing part should only be brought
together in the installed position.
Break-in Alarm
If the door to which the lock is attached is shaken to
and fro, this is registered via the magnets on the
closing part and the lock will give off a warning signal.
Onetime Manual Closing
If a user normally wants a lock to close automatically
but still occasionally wants to close the lock manually
if necessary, this function can be switched ON. If this
has been done it will be activated by holding the
transponder against the lock for 3 seconds on opening.
-SMART- LOCK
-SMART-LOCK
MASTER

B-Smart-Lock Master | March 2015
English | 8
Suppress Interference Alarm
If there is an interfering element (another lock, another
system, a moving metal part) in the immediate vicinity
of the lock, the lock will give off warning sounds at
regular intervals. After 30 warning sounds a warning
tune will sound. This alarm can also be suppressed. The
interference alarm is active on delivery.
Disposal of the B-Smart-Lock Master
Electronic devices must not be disposed of in
domestic refuse. At the end of its useful life
take the device to a designated collection
point.
BURG F. W. Lüling KG
Hegestraße 6 – 16
D-58300 Wetter (Germany)
Fon + 49 (0) 23 35 / 63 08-0
Fax + 49 (0) 23 35 / 63 08-999
[e-mail]
www.burg.de
-SMART- LOCK
-SMART-LOCK
MASTER
