BushMaster SL501 User manual

Warranty, Safety & Operating Instructions for:
• BM style hydraulic cutters (gear box)
• SL , MX & TAZ style hydraulic cutters (direct drive)
• TS direct drive tree cutters
• RG series root grapples
• LM & SM forks and hay spears
• HH & TAZ post auger drive & bits
Owner’s
Manual
ACE Manufacturing & distributing, Inc.
Gadsden, Al.., 35901*1-800-538-1780

Phone*800-538-1780
Fax*256-549-5502
Page 2
LIMITED WARRANTY
FREIGHT TERMS & CLAIMS:
Title to the product and risk of loss transfers to the customer upon shipment
from our dock, F.O.B. Gadsden, Al. BUSHMASTER is not responsible for prod-
uct damage or lost in transit. Claims for product damage or lost in transit are
the responsibility of the buyer and should be filed with the carrier
immedediately.
WARRANTY
BUSHMASTER warrants each new product to be free from defects in material
and workmanship.
For 90 days from the date of purchase, when the attachment has been main-
tained and lubricated in accordance with the operating and maintenance
instructions in the Owner’s Manual, BUSHMASTER will repair or replace free
of charge, any defect in material or workmanship in this product.
This warranty does not cover:
This warranty excludes wear items such as, but not limited to, blades, blade
bolts, spears, forks, etc. These items are expendable and may become worn
during normal use.
Repairs on the motor, gearbox , bearing assemblies or couplers because of
alteration, an accident, or operator abuse or negligence, including the failure
to maintain and operate the equipment according to the instructions con-
tained in the Owner’s Manual, or if repairs have been made with parts other
than those obtained through BUSHMASTER, Inc.
Disassembly of motor will void motor warranty.
Our obligation under this warranty shall be limited to repairing and replacing,
free of charge to the original purchaser, any part that in our judgment shows
evidence of a defect, provided the part is routed through the dealer and the
distributor from whom the purchase was made, transportation charges
prepaid.
This warranty shall not be interpreted to render us liable for injury or damages
of any kind. This warranty does not extend to any expense or loss incurred for
labor, supplies, substitute machine rental, or any other reason.
This warranty is subject to any existing condition of supply which may directly
affect our ability to obtain materials or manufactured replacement parts.

BUSHMASTER, Inc. reserves the rights to make improvements in designs or
changes in specifications at any time, without incurring any obligations to
owners of units previously sold.
No one is authorized to alter, modify, or enlarge this warranty nor the exclu-
sions, limitations and reservations.
Every BUSHMASTER product is the highest quality available. If you wish to
contact us regarding this product, please call toll free between 8:30 a.m. and
4:30 p.m. CST, Monday through Friday, 1-800-538-1780.
Thank You for purchasing a
BUSHMASTER skid steer
Attachment!
Please read this instruction manual and pay
particular attention to the safety rules provided
for your protection, and for the safety of others.
The information in this manual will enable you
to achieve the maximum performance from
your BUSHMASTER product. All BUSHMASTER
products are
engineered and built with high quality stan-
dards and will provide you with years of
dependable, trouble free service.
If you have any questions or experience any
problems, please contact BUSHMASTER at
1-800-538-1780 or E-mail:
[e-mail]
ACE Manufacturing & distributing, Inc. Page 3

2-3
5-6
7-8
9
10-11
12-13
14-15
16-17
18-19
20-21
22-23
Phone*800-538-1780
Fax*256-549-5502
Page 4
Table of Contents
Warranty
Safety Instructions
Operating instructions (cutters)
Maintenance for Cutters
Parts breakdown-BM Models
Parts breakdowns-SL Models

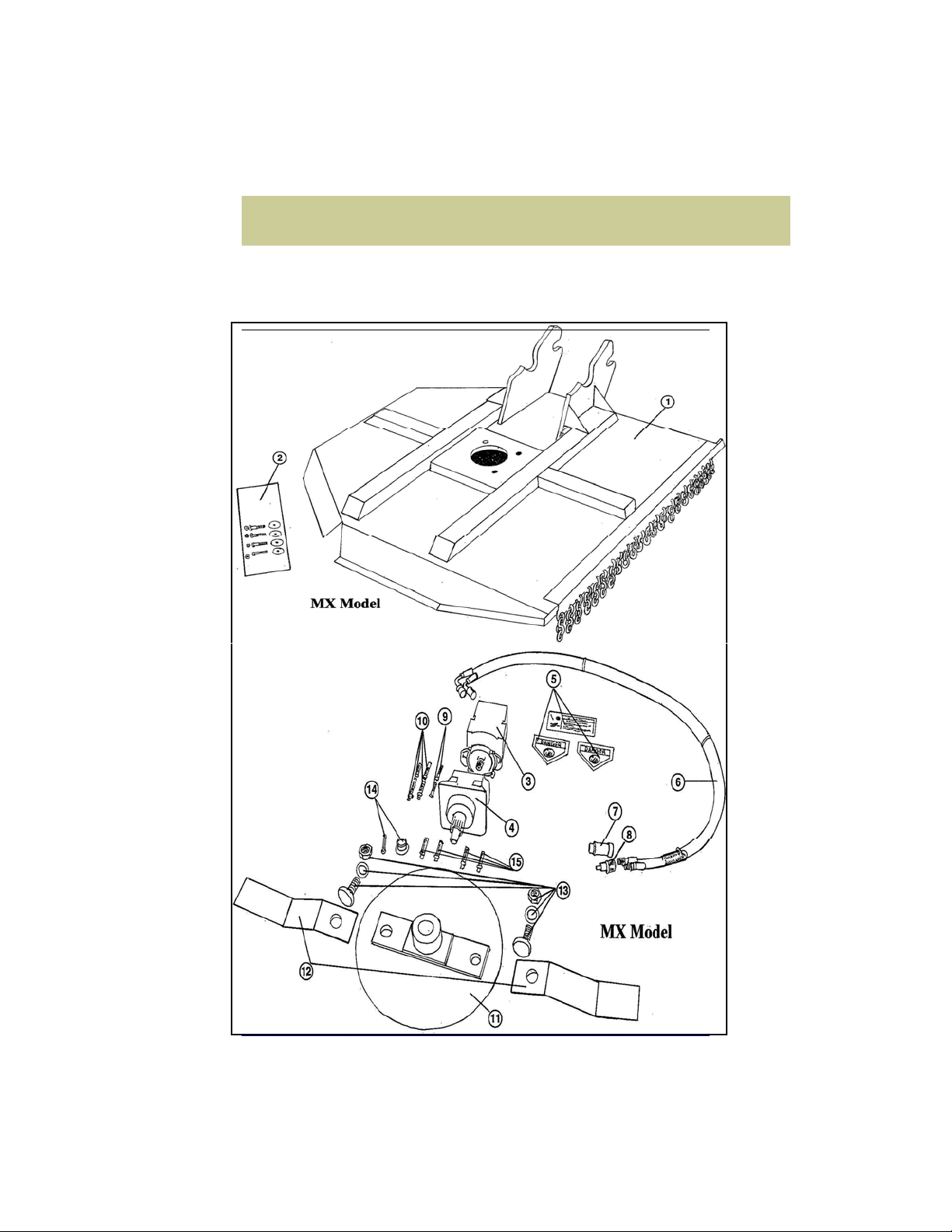

Parts breakdowns-MX Models
Parts breakdowns-TS Models
Parts breakdowns-RG602 Grapple
Parts breakdowns-HH100 Auger
Replacement parts-LM & SM Models

Safety instructions for all rotary cutters.
3. DANGER LABEL
A. Disengage power to the BUSHMASTER and stop the engine before leaving the
Operators cab.
B. NEVER place hands or feet under the cutter or
near any moving parts when the unit is running.
always keep clear of the front discharge area
when operating the cutter.
C. Shut the cutter down and the engine off before
performing any inspection or maintenance to
4. DANGER LABEL
A. There are rotating parts under the cover
of all BM (gear box) style cutters. NEVER
operate the cutter with the cover removed.
B. Disengage power to the cutter and stop
the skid steer engine before removing the
cover to perform maintenance or
inspection.
C. Do not put hands or foreign objects under
The cover when unit is running.
ACE Manufacturing & distributing, Inc. Page 5
Look for this symbol to point out important safety precautions.
Your safety or the safety of others is involved.
1. DANGER LABEL
A. Skid steer cutters discharges materials
out the front. You should never operate
the cutter in a manner that will discharge
material toward bystanders or allow
anyone near the machine while in operation.
B. When cutting near bystanders is unavoidable, never cut in the direction of
the bystander.
C. Clear the work area of objects (rocks, fencing, bottles, wire, etc.) which may
be picked up and thrown.
2. DANGER LABEL
A. Always use the safety door supplied with your BUSHMASTER skid steer
hydraulic rotary cutter. This will not only protect you from thrown objects,
but primarily prevents overhanging or
protruding objects such as tree limbs,
rebar or other objects from entering the
cab and causing operator injury.

DO NOT OPERATE ON A
LOADER WITH HI-FLOW
HYDRAULICS
CAUTION 5. CAUTION LABEL
If this label is on your machine,
it means your machine was not
equipped to operate with high-
flow loaders. Use on high-flow
loaders will cause motor failure.
Bushmaster is NOT RESPONSIBLE for damage incurred to the
hydraulic motor due to high-flow usage.
6. LIFT LIMIT WARNING LABEL
Insure that the LIFT LIMIT chain is
fastened before operating the rotary
cutter.
7. Do not carry passengers on any Bushmaster skid steer
attachment!
8. Never leave any Bushmaster skid steer attachment unattended in a
raised position.
9. The loader and the cutter should be stopped and inspected for damage
after striking a foreign object. the damage should be repaired before
restarting and continuing cutting.
10. Cut only in daylight or good artificial light.
11. Keep all nuts, bolts, and screws tight and be sure the equipment is in
safe working condition.
12. Check the blade mounting bolts for proper tightness at frequent
intervals.
13. When working under any Bushmaster skid steer attachment, ALWAYS
securely block it up. If attached to your loader, visually inspect your
lock-on pins to make sure the attachment is locked onto your loader.
Remember: many of our skid steer attachments weigh in excess of
800 lbs.
14. Reduce speed on slopes and make gradual turns to prevent tipping or
loss of control. Exercise caution when changing direction on slopes.
15. Stay alert for drop-offs or holes in the terrain.
16. Use caution when walking on cutter deck. The may be slick
when wet.
17. Never drive your skid steer loader with the cutter raised more
than 2 feet off the ground. Children are small. Be aware of
their presence and ALWAYS make sure you can see what you
are cutting.
Phone*800-538-1780
Fax*256-549-5502
Page 6

ACE Manufacturing & distributing, Inc. Page 7
OPERATING INSTRUCTIONS
FOR SKID STEER CUTTERS
1. HOOKUP
The hookup procedure is the same as other attachments for your skid
steer loader.
A. Install safety door on hinge pins. See separate instruction
sheet “Safety Door Installation” supplied with your door for
proper procedure of the initial installation.
B. Pull up and connect the cutter to your loader.
C. Secure lock down levers.
D. Connect (2) hydraulic hoses to flat face couplers.
E. Connect lift limit chain to your skid steer loader. The back of
the cutter (nearest to the operator) should never be raised
more than 24 inches off the ground for proper and safe
cutting operation.
2. CUTTING OPERATION
The BUSHMASTER rotary cutter is capable of mulching trees and
vegetation of varying height and depending on model, up to 8” trees.
Designed to make your loader more versatile, the BUSHMASTER
rotary cutter is intended to perform these functions without the deck
being raised more than a vertical height greater than 3 feet.
As an additional safety feature, all BUSHMASTER rotary cutters have
a cross-port relief valve, that not only protects your cutter, but also
acts as a cushioning valve to provide a fast blade shut down. BM and
MX models have a front edge chain curtain to reduce the likelihood of
harm to bystanders from the discharge of materials. ALWAYS use the
safety door to provide an additional level of protection to the operator.
A. Raise the back of the cutter (nearest the operator) 4-5” off the
ground. This is necessary for material to clear from under the
cutting deck. Rotate the cutter up or down so that the skid rails
are 2-3” off the ground. if unit is equipped with a gauge wheel,
place it on the ground. The cutter will then be sloping front down
(away) from the operator. This is the optimum method for
cutting close to the ground.
B. NEVER drive your loader with the cutting deck raised more
than 2 feet or tilted to the point your view is obstructed.
ALWAYS make sure you can see what you are cutting.
C. NEVER operate the cutter in populated areas, or where thrown
objects could injure persons or damage property.

Phone*800-538-1780
Fax*256-549-5502
Page 8
OPERATING INSTRUCTIONS
FOR SKID STEER LOADERS
D. NEVER raise the back of the cutter more than 2 feet off the
ground. NEVER expose yourself or anyone else to the rotating
blades. If you can see the rotating blades of the cutter when
operating the unit, the back of the cutter is raised too high.
E. When cutting large brush with BM, MX and TAZ models,
operate the cutter in the following manner: Roll the front of
the cutter up 1 or 2 feet. Do not lift the back of the cutter, just
use the roll function to rotate the front up. Slowly drive into the
tree, and use the hydraulic tilt (roll) hydraulics to bend or push
the tree over. As you bend the tree, the blades will cut the tree
off. The tree can now be mulched by rotating the front up,
driving forward several feet, roll the front down onto the tree
and back drag.
F. When cutting large brush with a TS or SL models, simply cut
the tree at the base with the front of the cutter slightly lower
than the back, then drive over the brush to mulch.

MAINTENACE FOR
SKID STEER AND EXCAVATOR
CUTTERS
A. General
1.
Always block up mower and remove key before servicing.
B. Daily maintenance
1.
Check Gearboxes and overhead load bearings for proper
lube levels.
2. Thoroughly check cutter for loose bolts and nuts and check for
damage before operation.
3. Check all safety devices for damage and wear, make sure they
are in good working condition.
4. Make sure all safety decals are undamaged and legible.
5. Check blades for proper sharpness and for damage or excessive
wear.
C. Periodic maintenance
1.
Check cutter deck for cracks or other damage and fix as
needed.
2. Check hydraulic motor for signs of fatigue or excessive wear.
3. Check hydraulic lines, fittings and couplers for leaks and/or
excessive wear.
4. Check blade carrier for damage or excessive wear, and repair or
replace as needed.
D. Blade maintenance
1.
Sharpen blades as required.
2. Never sharpen severely worn or damaged blades.
3. Always use a grinder to sharpen blades.
4. Weigh blades separately to maintain proper balance.
5. Always follow original pattern of cutting kerfs.
6. Never straighten, heat bend or weld cutter blades.
7. Never hard surface cutter blades, this could cause failure.
E. Blade replacement
1.
Use only original equipment blades on all cutters.
2. Always replace all blades at one time to ensure balance of blade
carrier.
ACE Manufacturing & distributing, Inc. Page 9

Phone*800-538-1780
Fax*256-549-5502
Page 10
BM Models

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
BM501
BM601
RC51
HM
CVM
MC
BM-DECAL
CN
GBB
SC
Gr. 5
Gr. 5
6400-10-10
HH-BM
FF 08-12N
FF 08-12C
DBA-5BM
DBA-6BM
BBN
BL
60” Galv. Deck
72” Galv. Deck
Right Angle Gear Box
Char-Lynn Hyd. Motor
Cross Port Relief Valve
Motor Cover, Painted
Decal Kit For BM Models
Castle nut & Cotter pin
Gear Box/Motor Bracket
Straight Coupler 1 1/4” x 1 3/8”
1/2 X 2 1/4” Hex bolts (2)
3/8” x 3” Hex bolts (3)
5/8 JIC x 5/8” STO Male/Male
80” Hyd. Hose Set W/Sheath
1/2” FF Coupler body x 3/4” NPT
1/2” FF Nipple x 3/4” NPT
60” Devastator Blade Assembly
72”Devastator Blade Assembly
Blade Bolt & Nut (1 set of 2 ea.)
Set Of 2 Blades (5’ & 6’)
ACE Manufacturing & distributing, Inc. Page 11
BM Part Numbers Description

Phone*800-538-1780
Fax*256-549-5502
Page 12
SL Models

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
SL501
SL601
SBR-5SL
SBR-6SL
SP-SL
Gr. 5
Gr. 5
Gr. 5
FF 08-12C
FF 08-12N
HH-SL
HH-SL-100
SL-Decal
GT8321
GT8093
GT8263
SPL-ADPT
MDH-65
CN-65
BL
BBN
DBA-5SL
DBA-6SL
60” Galv. Deck
72” Galv. Deck
1/2 x 6” Rubber for 60” Deck
1/2 x 6” Rubber for 72” Deck
Round Spacer plate
3/4” x 2 3/4” Hex Bolt (6) W/nuts
5/8” x 2 1/4” Hex Bolts Bolt (2)
1/2” x 2 1/4” Hex Bolt (4) W/Nuts
1/2” FF Coupler body x 3/4” NPT
1/2” FF Nipple x 3/4” NPT
80” Hyd. Hose Set W/Sheath
100”Hyd. Hose Set W/Sheath
Decal Kit For SL Models
Direct Drive Motor (10-15 GPM)
Direct Drive Motor (14-19 GPM)
Direct Drive Motor (18-24 GPM)
Spline adapter for MDH-65
Overhead Load Bearing/Spindle
Castle Nut & Cotter pin (MDH-65)
Set Of 2 Blades (4’,5’ & 6’)
Blade Bolt & Nut (1 set of 2 ea.)
60” Devastator Blade Assembly
72”Devastator Blade Assembly
ACE Manufacturing & distributing, Inc. Page 13
SL Part Numbers Description

Phone*800-538-1780
Fax*256-549-5502
Page 14
MX Models

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
MX401-42
MX401
MX501
SBR-MX42
SBR-MX60
GT8321
GT8093
GT8263
MDH-40B
MDH-40C
MX-Decal
HH-TAZ
HH-TAZ-100
HH-TAZ-120
FF08-08C
FF08-08N
Gr. 5
Gr. 5
BC-4
DBA-5SL
BL-TAZ
BL
BBN
CN
Gr. 5
42” Galvanized Deck
48” Galvanized Deck
60” Galvanized Deck
1/2 x 6” Rubber for 42” Deck
1/2 x 6” Rubber for 60” Deck
Direct Drive Motor (10-15 GPM)
Direct Drive Motor (14-19 GPM)
Direct Drive Motor (18-24 GPM)
Overhead Load Bearing-42”
Overhead Load Bearing-48” & 60”
Decal kit for MX Models
80” Hyd. Hose Set W/Sheath
100”Hyd. Hose Set W/Sheath
120”Hyd. Hose Set w/Sheath
1/2” FF Coupler body x 1/2” NPT
1/2” FF Nipple x 1/2” NPT
1/2” x 1 1/2” Hex Bolts (2)
1/2” x 1 1/2” Hex Bolts (4)
Blade carrier for 42” & 48”
60” Devastator Blade Assembly
Set Of 2 Blades –42”
Set Of 2 Blades (4’,5’ & 6’)
Blade Bolt & Nut (1 set of 2 ea.)
Castle nut & Cotter pin
5/8” x 2 1/4” Hex Bolts (4)
ACE Manufacturing & distributing, Inc. Page 15
MX Part Numbers Description

Phone*800-538-1780
Fax*256-549-5502
Page 16
TS601 Tree Slasher

1
2
3
4
5
6
7
8
9
10
11
12
13
TS601
GT8190
MDH-100
CN-100
Gr. 5
BBN-TC
BL-TC
HH-SL
HH-SL-100
FF-12-12-N
FF-12-12-C
BC-TC
Gr. 5
Gr.5
72”Galvanized Deck W/Guard
Direct Drive Motor (23-32 GPM)
Overhead Load Bearing
Castle Nut & Cotter Pin-TC
7/8” X 3” Hex Bolts (6) w/nuts
Blade Bolts & Nut (1 set of 4 ea.)
Set of 4 Blades-TC
80” Hyd. Hose Set W/Sheath
100”Hyd. Hose Set W/Sheath
3/4” FF Nipple x 1/2” NPT
3/4” FF Coupler body x 1/2” NPT
50” Blade carrier W/Hub & Star
3/4” x 2 3/4” Hex Bolts w/nuts(2)
1/2” x 2 1/4” Hex Bolts w/nuts (4)
ACE Manufacturing & distributing, Inc. Page 17
TS Parts Numbers Description

Phone*800-538-1780
Fax*256-549-5502
Page 18
RG602 Root Grapple Parts

1
2
3
4
5
6
7
8
9
10
11
12
13
14
HH-RG
FF08-08N
FF08-08C
RG-Decal
CYLCV
Gr. 5
Gr. 5
RGCYL
6801-8-8
Gr. 5
HH-RG-4
2703-8-8-8
RG602-Bottom
RG-Top
80” Hyd. Hose Set W/Sheath
1/2” FF Nipple x 1/2” NPT
1/2” FF Coupler body x 1/2” NPT
Decal Kit For Root Grapple
Cylinder Cover For RG602
5/16” x3 1/2” Hex Bolts W/ Nuts(4)
1 1/4” x 5 1/2” Hex Bolt W/ Nuts (6)
4000 PSI Hydraulic Cylinder (2)
1/2” Male JIC x 1/2” STO 90% Elbow
1 1/4” x 6 1/2” Hex Bolt W/ Nuts (2)
Hydraulic Hoses For cylinders (4)
1/2” Male JIC “T” (2)
72” Galvanized Grapple Bottom
Galvanized Grapple Tops (2)
ACE Manufacturing & distributing, Inc. Page 19
HH Parts Numbers Description

Phone*800-538-1780
Fax*256-549-5502
Page 20
HH100 Hole Hawg Auger
