Installation Instructions
1 3004464 1 Rack, STIHL® Blower
2 0204300 1 Plug, Plastic Finish, 1" Square Tube
3 3004488 1 Lanyard, 1/16" dia. x 6" w/.190 Eyelets
4 3003080 1 Rivet, Pop, 3/16 x 3/16 Steel
5 3004485 1 Pin, Detent, 1/4" Formed
6 - 6 Washer, Flat 3/8 USS Zn
7 - 2 Screw, HHC 3/8-16 x 2-1/2 Gr 5 Zp
8 - 1 Screw, HHC 3/8-16 x 2 Gr 5 Zp
9 - 3 Nut, Nylock 3/8-16 x 7/16 Zn
ITEM PART NO. QTY. DESCRIPTION
Bill of Materials
LT22 Backpack Blower Rack
for Landscape Trailers
Fits: STIHL
®
BR-340 and BR-420 backpack blowers.
Important!
Before you begin installing:
1. Read and understand these instructions
completely.
2. Verify that you have received all the parts
listed in the bill of materials.
CAUTION:
Always wear safety glasses when using power tools.
Utility Trailer Installation Instructions
Tools Required:
•Two 9/16" Wrenches and/or Sockets
•Electric Drill
•13/32" Drill Bit
•Carpenters Square
1. Clamp the blower rack to the trailer side rail
with the base of the upright on the trailer floor.
Verify the rack is square to the trailer deck in
both directions with a carpenter’s square.
2. After determining the position of the rack,
mark center of the two holes in the base on the
trailer floor.
WARNING! Check for locations of brake lines
and electrical wiring etc., before drilling any
holes. Any damage to trailer during installation
is the installer’s sole responsibility.
3. Remove the rack from the trailer and use a
13/32" drill bit to drill two holes in your trailer
deck as marked.
4. Assemble the rack to the trailer with two
3/8-16 x 2-1/2" cap screws, four 3/8" flat washers
and two 3/8-16 nylock nuts. Do not tighten screws
at this time!
5. Clamp the blower rack to the rail of the trailer.
Make sure the rack is square to the rail and the
deck of the trailer with a square.
—continued on other side

Quality since 1946
7700 Tyler Blvd. • Mentor, Ohio 44060
Phone [phone] • Fax [phone]
Toll-Free Fax [phone] • buyersproducts.com
3004484 Rev. A
Warranty Information
Buyers Products Co. warrants all truck/trailer hard-
ware manufactured or distributed by it, to be free
from defects in material and workmanship for a
period of one year from date of shipment. Parts must
be pro-perly installed and used under normal condi-
tions. Any product which has been altered, including
modification, misuse, accident or lack of maintenance
will not be considered under warranty. Normal wear is
excluded. The sole responsibility of Buyers Products
Co. under this warranty is limited to repairing or
replacing any part or parts which are returned,
prepaid, and are found to be defective by Buyers
Products Co. Authorization from Buyers Products
Co. must be obtained before returning any part. No
charges for transportation or labor performed on
Buyers’ products will be allowed under this warranty.
6. With the rack clamped into position, drill a
13/32" hole through the center of 1" tube and the
trailer rail.
7. Fasten rack to the trailer rail with a 3/8-16 x
2" cap screw, two 3/8" flat washers, and a 3/8-16
nylock nut. Tighten all three screws at this time.

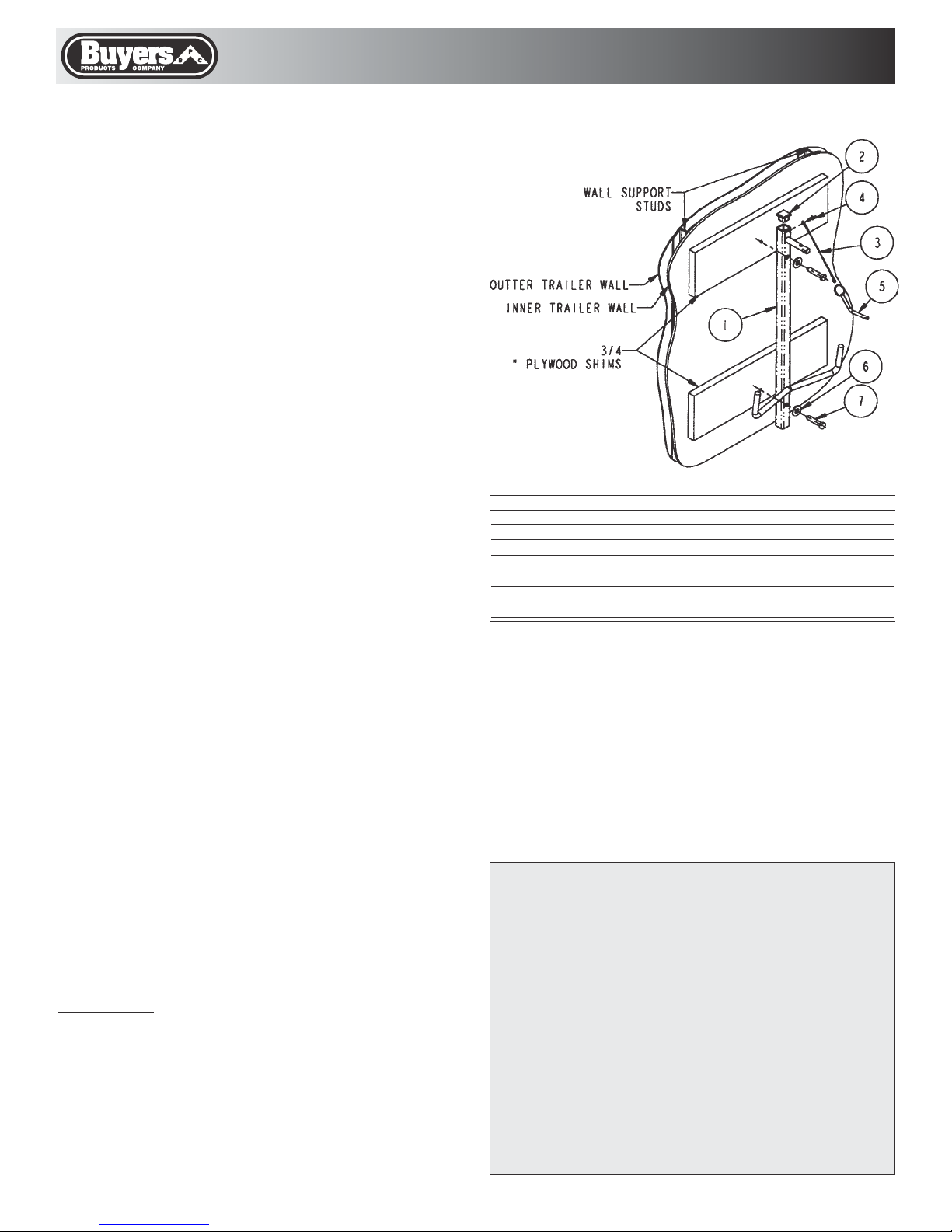

Enclosed Trailer Installation Instructions
