Installation Instructions
LT30 Gas Can Rack
for Utility Landscape Trailers
—continued on other side
Holds one 5 gal. gas can or two 2-1/2 gal. gas cans.
Important!
Before you begin installing:
1. Read and understand these instructions
completely.
2. Verify that you have received all the parts
listed in the bill of materials.
CAUTION:
Always wear safety glasses when using power tools.
Utility Trailer Installation Instructions
Tools Required:
•9/16" Wrench or Socket
•7/32" Hexagon Allen Wrench
•Electric Drill
•13/32" Drill Bit
1. Place the gas can rack on the rail of your util-
ity trailer where you would like it mounted. Make
sure the rack does not extend past the widest
part of the trailer. Align the holes in the bottom
of the gas can rack with the center of the rail.
You may need to adjust the position of the rack
so the four slots in the bottom are clear of any
obstruction.
2. Mark the position of the two holes on the
trailer rail.
WARNING! Check for locations of brake lines
and electrical wiring etc., before drilling any
holes. Any damage to trailer during installation
is the installer’s sole responsibility.
3. Drill 13/32" holes in the positions marked.
4. Bolt the rack to the trailer with two 3/8-16
x 1-1/4 socket head cap screws, four 3/8" flat
washers, and two 3/8-16 nylock nuts supplied
and tighten.
5. Thread the free end of the strap through the
rack as shown for holding two 2-1/2 gal. cans or
thread the strap into the other slots for holding
one 5 gal. can. Then thread the buckle onto the
end of the strap as shown.
1 3004328 1 Rack, Gas Can, Rack Only
2 3004710 1 Strap, 60" Lashing w/Cam Buckle
3 - 4 Washer, Flat 3/8 USS Zn
4 - 2 Screw, Button Socket Head Cap, 3/8-16 x 1-1/4
5 - 2 Nut, Nylock 3/8-16 x 7/16 Zn
ITEM PART NO. QTY. DESCRIPTION
Bill of Materials

Quality since 1946
9049 Tyler Blvd. • Mentor, Ohio 44060
Phone [phone] • Fax [phone]
Toll-Free Fax [phone] • buyersproducts.com
3004397 Rev. B
Warranty Information
Buyers Products warrants all truck/trailer hardware
manufactured or distributed by it, to be free from
defects in material and workmanship for a period of
one year from date of shipment. Parts must be pro-
perly installed and used under normal conditions.
Any product which has been altered, including modi-
fication, misuse, accident or lack of maintenance will
not be considered under warranty. Normal wear is
excluded. The sole responsibility of Buyers Products
under this warranty is limited to repairing or replac-
ing any part or parts which are returned, prepaid, and
are found to be defective by Buyers Products.
Authorization from Buyers Products must be obtained
before returning any part. No charges for transporta-
tion or labor performed on Buyers’ products will be
allowed under this warranty.
Enclosed Trailer Installation Instructions
Tools and Materials Required:
•9/16" Wrench or Socket
•7/32" Hexagon Allen Wrench
•Electric Drill
•1/4" Drill Bit
•3/4" Plywood Shim Strips
•Shim Screws

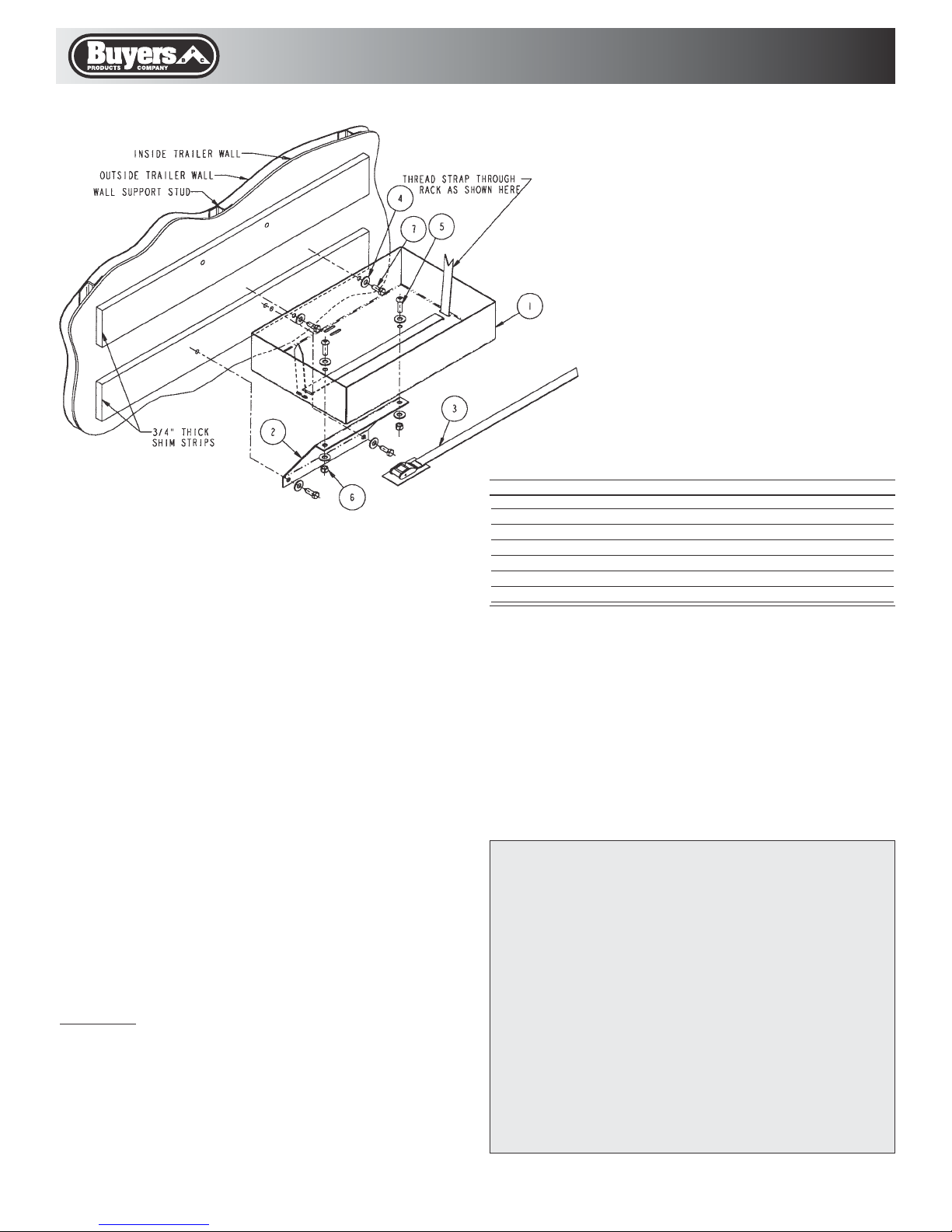

1. Assemble the gusset bracket to the gas can rack with
two 3/8-16 x 1-1/4 socket head cap screws, four 3/8" flat
washers and two 3/8-16 nylock nuts supplied.
2. In order to mount this rack to an enclosed trailer, you
must first add 3/4" plywood shim strips to the walls.
These shim strips must be attached to at least two wall
support studs with suitable fasteners. If you don’t know
what kind or length of fastener to use contact your trailer
dealer or manufacturer for their recommendation.
3. Place the place the gas can rack with gusset against
the shims, hold level, and mark the position of the two
3/8" holes in rack and the two 3/8" gusset holes.
WARNING! Check for locations of brake lines and
electrical wiring etc., before drilling any holes. Any
damage to trailer during installation is the installer’s
sole responsibility.
4. Drill four 1/4" pilot holes in the positions just marked
for the 3/8" lag screws. Be extremely careful not to drill
through the outside trailer wall.
1 3004328 1 Rack, Gas Can, Rack Only
2 3004501 1 Bracket, Gusset, LT15 & LT30
3 3004710 1 Strap, 60" Lashing w/Cam Buckle
4 - 8 Washer, Flat 3/8 USS Zn
5 - 2 Screw, Button Socket Head Cap, 3/8-16 x 1-1/4
6 - 2 Nut, Nylock 3/8-16 x 7/16 Zn
7 - 4 Screw, Hex Head Lag, 3/8 x 1-1/4, Zn
ITEM PART NO. QTY. DESCRIPTION
Bill of Materials
5. Fasten the rack to the trailer wall with the four 3/8"
x 1-1/4" lag screws and four 3/8" flat washers supplied.
6. Thread the free end of the strap through the rack as
shown for holding two 2-1/2 gal. cans or thread the strap
into the other slots for holding one 5 gal. can. Then thread
the buckle onto the end of the strap as shown.
