5. Drill two 11/32" holes through the marked locations.
6. Fasten each upright to the trailer with two 5/16-18 x
1-1/2" cap screws, four 5/16" flat washers, and two 5/16-
18" nylock nuts. Tighten all four screws.
MAINTENANCE
Examine the general condition of the Lockable Trimmer
Rack for any damage or worn parts before installation and
monthly after mounted to your trailer. Check all nuts and
bolts to make sure they are secure and tight monthly. Have
necessary repairs made by qualified service personnel.

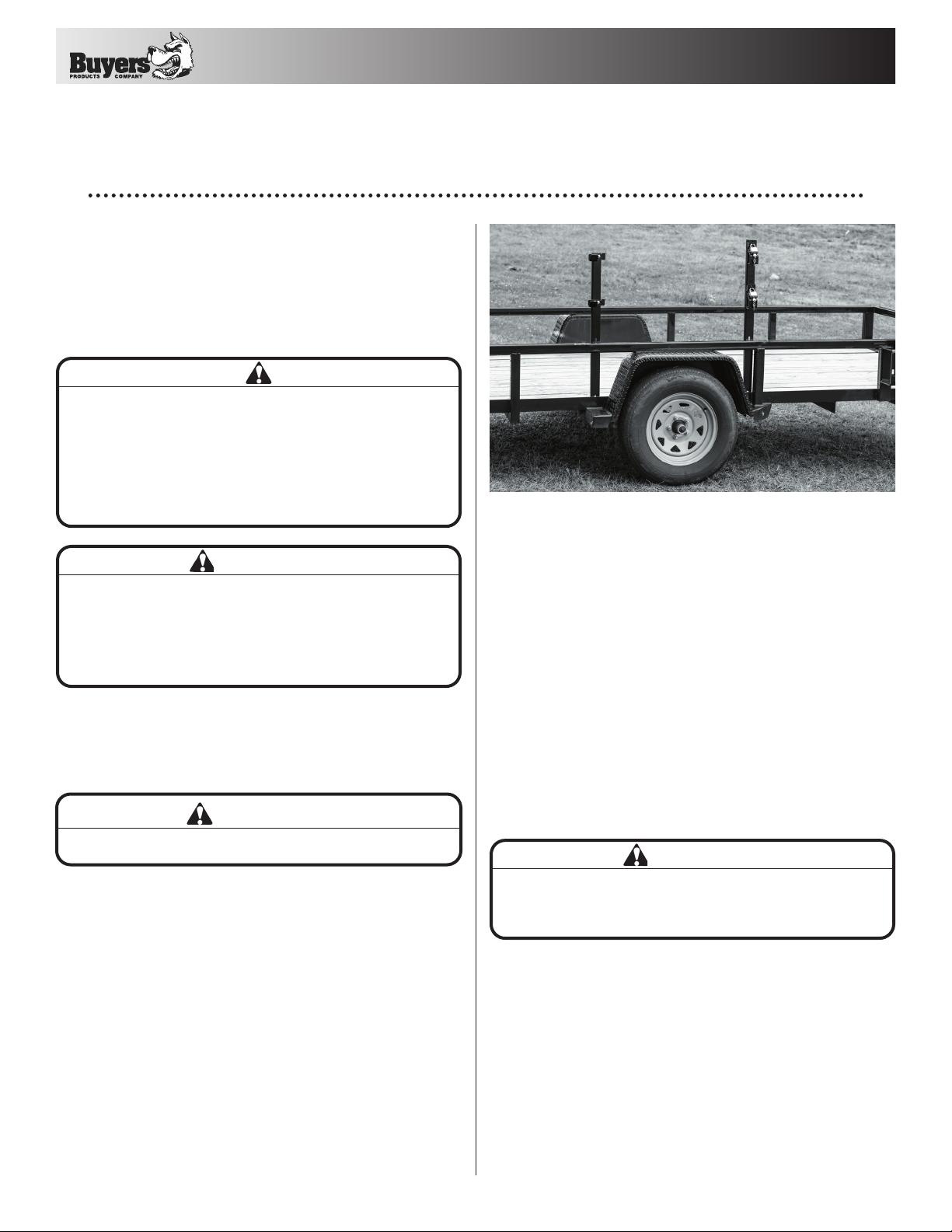

LT19 (2 Position) & LT21 (3 Position)
Lockable Trimmer Racks
for Utility Landscape Trailers
BEFORE YOU BEGIN INSTALLING:
1. Read and understand these instructions completely.
2. Verify that you have received all the parts listed in the
bill of materials.
WARNING
Always wear safety glasses when using power tools.
—continued
Tools Required:
• 1/2" Wrench and/or sockets
• 7/16" Wrench and/or sockets
• Electric Drill
• 11/32" Drill Bit
• Carpenter’s Square
• Tape Measure
• (2) C-clamps
1. Clamp the locking and nonlocking uprights to the trailer
side rail approximately 28" to 34" apart with the base of
the upright on the trailer floor. The locking upright may be
assembled on the left or right of the nonlocking upright.
Verify the uprights are square to the trailer deck in both
directions with a carpenter’s square. Note: If bent shaft
Installation and Operator's Manual
This symbol points out important safety instructions which,
if not followed, could endanger the personal safety and/or
property of yourself and others. Read and follow all instructions
in this manual before attempting to install or operate this
Lockable Trimmer Rack. Failure to comply with these
instructions may result in personal injury. When you see this
symbol. HEED ITS WARNING!
WARNING
Improper installation and operation could cause personal
injury, and/or property damage. Observe the following Safety
Precautions before, during and after operating this spare tire
carrier. By following these precautions and common sense,
possible injury to persons and potential damage to this accessory
may be avoided.
WARNING
Check for locations of brake lines and electrical wiring
etc., before drilling any holes. Any damage to trailer during
installation is the installer’s sole responsibility.
trimmers are used, the uprights need to be mounted
closer together than if straight shaft trimmers are used.
2. Assemble a line trimmer to the rack to verify the
distance between the uprights is correct for the model
of trimmer you wish to hold. Note: The large hook on
the locking upright should engage the trimmer’s grip
and the smaller hook on the nonlocking upright should
engage the shaft of the trimmer. Do not clamp on or
near the throttle trigger of the trimmer. With the trimmer
assembled in position, verify that the lock assembly
hook can rotate freely over the trimmer grip.
3. Clamp the two uprights to the rail of the trailer. Make
sure the uprights are square to the rail and the deck of the
trailer with a square.
4. Mark the center of the two holes on each rail.
GENERAL SAFETY PRECAUTIONS

2
www.buyersproducts.com
Phone [phone]
Fax [phone]
3055951_C
LT19 (2 Position)
Bill of Materials
LT19 (3 Position)
Bill of Materials
ITEM PART NO. QTY. DESCRIPTION
13054057 1 RACK, TRIMMER (2), REAR STANSION
23054056 1 RACK, TRIMMER (2), FRONT STANSION
3FWF031075006 8 WASHER, 5/16 SAE TYPE A ZINC
4FCS031018150 4 SCREW, HHC 5/16-18 X 1.5 GR 5 ZN
53053883 2 BRACKET, HINGELESS
63053819 2CLAMP, TRIMMER RACK
73026934 4 BOLT, CARRIAGE, 5/16-18 X 1 SST
83003777 8 NUT, SERRATED FLANGE 5/16-18 ZINC
9FCB025020050SS 2 BOLT, RHSQN,.25-20X.5 SST
10 FNE025020031SS 2 NUT, NYLOCK, 1/4-20, GR A, SST
11 3056047 6CUSHION, FOAM, TRIMMER RACK
12 3043332 2PAD,FOAM,W/PSA,CROSSBOX, 0.25 FT
PIECE CUT
13 3045148 1LOCK KIT,(2) 1-1/2" LOCKS W/BUMPER
KEYED ALIKE
ITEM PART NO. QTY. DESCRIPTION
13056128 1 RACK, TRIMMER (3), REAR STANSION
23056129 1 RACK, TRIMMER (3), FRONT STANSION
3FWF031075006 8 WASHER, 5/16 SAE TYPE A ZINC
4FCS031018150 4 SCREW, HHC 5/16-18 X 1.5 GR 5 ZN
53053883 3 BRACKET, HINGELESS
63053819 3CLAMP, TRIMMER RACK
73026934 6 BOLT, CARRIAGE, 5/16-18 X 1 SST
83003777 10 NUT, SERRATED FLANGE 5/16-18 ZINC
9FCB025020050SS 3 BOLT, RHSQN,.25-20X.5 SST
10 FNE025020031SS 3 NUT, NYLOCK, 1/4-20, GR A, SST
11 3056047 9CUSHION, FOAM, TRIMMER RACK
12 3043332 3PAD,FOAM,W/PSA,CROSSBOX, 0.25 FT
PIECE CUT
13 3006320 1LOCK KIT,(3) 1-1/2" LOCKS W/BUMPER
KEYED ALIKE
TOP TRAILER
FRAME RAIL
TRAILER
FLOOR
BOTTOM TRAILER
FRAME RAIL
1
2
3
4
5
6
7
8
9
10
13
11
12
BOTTOM TRAILER
FRAME RAIL TRAILER
FLOOR
TOP TRAILER
FRAME RAIL
1
2
3 4
5
6
7
8
9
10
13
11
12
Warranty
Buyers Products Co. warrants all truck/trailer hardware manufactured or distributed by it, to be free from defects in material and workmanship for a period of
one year from date of shipment. Parts must be properly installed and used under normal conditions. Any product which has been altered, including modification,
misuse, accident or lack of maintenance will not be considered under warranty. Normal wear is excluded. The sole responsibility of Buyers Products Co. under
this warranty is limited to repairing or replacing any part or parts which are returned, prepaid, and are found to be defective by Buyers Products Co. Authorization
from Buyers Products Co. must be obtained before returning any part. No charges for transportation or labor performed on Buyers’ products will be allowed
under this warranty.
