8883200 Wireless Rear Observation
System With Night Vision Camera
1

2
Table of Contents
What's in the Box?....................................................................................3
Introduction ...............................................................................................4
Safety Information ...............................................................................5-6
Before Beginning Installation ..........................................................7-8
Installation Guide .............................................................................. 9-10
Installing Monitor.................................................................................. 11
Installation Diagram............................................................................. 12
Remote Control Diagram.................................................................... 12
Monitor Specications......................................................................... 13
Camera Specications ......................................................................... 14
Positioning............................................................................................... 15
Troubleshooting .................................................................................... 16
Warranty ................................................................................................... 17
Disclaimer ............................................................................................... 18

3
What’s in the Box?
• (1) Color CCD Infrared Weather Resistant Wireless Camera
• (1) 7" TFT LCD Color Wireless Monitor with Standard
U-Bracket Mount, Suction Cup Pedestal Mount, Built In
Power Harness
• (1) Sun Shade
• (2) Wireless Antennas
• (1) Remote Control

4
Congratulations on purchasing a Rear Observation
System With Night Vision Camera. With this manual you
will be able to properly install and operate the unit.
The Rear Observation System is intended to be
installed as a supplement aid to your standard rear
view mirror that already exists in your vehicle. The Rear
Observation System should not be used as a substitute
for the standard rear view mirror or for any other mirror
that exists in your vehicle.
In some jurisdictions, it is unlawful for a person to drive
a motor vehicle equipped with a TV viewer or screen
located in any location that is visible, directly or indirectly,
to the driver while operating the vehicle.
Introduction
Please read all of the installation instructions carefully
before installing the product. Improper installation will
void manufacturer’s warranty.

5
USAGE
• The Rear Observation System is designed to help the
driver safely detect people and/or objects helping to
avoid damage or injury. However, you the driver, must
use it properly. Use of this system is not a substitute for
safe, proper or legal driving.
• Never back up while looking at the monitor alone. You
should always check behind and around the vehicle
when backing up, in the same way as you would if the
vehicle did not have the Rear Observation System. If
you back up while looking only at the monitor, you may
cause damage or injury. Always back up slowly.
• The Rear Observation System is not intended for use
during extensive back-up maneuvers or backing into
cross trac or pedestrian walkways.
• Please, always remember, the area displayed by the
Rear Observation System is limited. It does not display
the entire panorama that is behind you.
Safety Information
Please read the entire manual and follow the
instructions and warnings carefully. Failure to do so
can cause serious damage and/or injury, including loss
of life. Be sure to obey all applicable local trac and
motor vehicle regulations as it pertains to this product.
Improper installation will void manufacturer’s warranty.

6
• Electric shock or product malfunction may occur if this
product is installed incorrectly.
• Use this product within the voltage range specied.
Failure to do so can cause electric shock or product
malfunction.
• Take special care when cleaning the monitor.
• Make sure to rmly ax the product before use.
• If smoke or a burning smell is detected, disconnect the
system immediately.
• Where the power cable may touch a metal case,
cover the cable with a friction tape. A short circuit or
disconnected wire may cause a re.
• While installing the Rear View System be careful with
the wire positioning in order to avoid wire damage.
• The Rear View System should only be used when the
vehicle is in reverse.
• Do not install the monitor where it may obstruct drivers
view or obstruct an air bag device.
• Dropping the unit may cause possible mechanical/
electrical failure.
Safety Information

7
Before drilling please check that no cable or wiring is on
the other side of the wall. Please clamp all wires securely
to reduce the possibility of them being damaged
while vehicle is in use. Keep all cables away from hot
or moving parts and components causing electrical
interference.
We recommend doing a bench test before installation to
insure that all components are working properly (pg 12).
Step 1: Choose the monitor and camera locations.
Step 2: Install all cables in vehicle, when necessary a
0.8" (20mm) hole should be drilled for passing camera
cable through vehicles walls. Install split grommets
where applicable.
Step 3: Once all cables and wiring have been properly
routed, perform a system function test by temporarily
connecting the system. If the system seems to not be
operating properly see troubleshooting (pg 16).
Before Beginning Installation

Before Beginning Installation
8
Camera
The camera and monitor will require their own power
sources routed individually to each component. They do
not have a cable that interconnects. Do not run power
wires over sharp edges. Keep power wires away from
HOT and/or rotating parts such as, but not limited to,
exhaust systems and drive shafts.
Monitor
1. The monitor will require being wired to power source
such as keyed on ignition or switched power.
2. If needed, a minimum of a 7/8" hole will be required to
pass the monitor wire junction through.
3. Connect the monitor trigger wire according to the
camera location to the appropriate trigger source such
as a reverse or turn signal circuit.
4. Mount the monitor using the provided U-bracket or
suction cup pedestal.
Once all cables have been properly routed, power on the
system and check that the system is paired. If the system
is paired, meaning the camera can be manually selected,
but the trigger wire does not activate the camera - see
page 10 on how to change which channel the camera is
paired to.

Installation Guide
9
The Power Harness
• Both the monitor and camera require their own individual
power sources. Connect the (RED) +12VDC wire to
ignition/switched on power and the ground (BLACK) wire
to chassis ground. If interference occurs or camera has
diculty connecting to the monitor, try tying the ground
wire into an existing ground wire or run a ground directly
to battery.
• These are the only wires needed to power the entire
system and all the cameras. Each camera can be seen at
any time by simply pressing the power button and using
the V1/2 button to toggle. Any additional camera can be
accessed by toggling the MODE button.
• The four positive trigger wires (CH1, CH2, CH3, CH4) each
represent one channel and will turn on their channel when
the trigger wire is energized with +12VDC.
• Camera 2 is the designated backup channel. To have the
the backup camera come on when you go into reverse,
connect the CH2 wire to reverse power (or any power
source that comes on only in reverse).
• The other channels can similarly be triggered (i.e. side
cameras can be triggered by the turn signals etc.)
• To automatically have the monitor monitor turn ON when
the vehicle turns on, tie the power wire into any key on
ignition source.
• To have a specic camera come on with the monitor, tie
the camera trigger wire into the keyed ON ignition source.
Note: When the channel wire is active it will have precedence over the
other triggers. Therefore, if you wish to use multiple triggers, do not
attach the trigger to constant power.

Pairing
10
1. Power ON the monitor and be sure that power is
available to the camera.
2. Toggle the "MENU" button on the monitor.
3. Make sure that "Pairing" is selected in the menu and
toggle the "MODE" button. This allows you to now
select which camera channel the included camera links
too.
4. There are four (4) slots available. Each slot is
associated with a trigger wire. Top slot is CH1, then
CH2, CH3, and bottom slot is CH4. Choose a slot with
the UP/DOWN arrows and then select by toggling the
MODE button.
5. Finish pairing by toggling the push button attached to
the camera. When pairing is complete, the monitor will
display "Pair OK" in the chosen slot
Note: Paired camera's can be moved to dierent slots. If the included
camera is paired to slot 1 (CH1) and needs to be moved to slot 2 (CH2)
- follow the above instructions after selecting the new slot and the
camera will pair to the new slot/channel.

Standard U-Bracket Monitor Installation
11
1. Remove the thumb and allen screw from the monitor
then remove monitor. Place bracket in desired location
and fasten down with 3 screws. (See below pictures)
2. Using the thumb and allen screws put the monitor into the
bracket, adjust angle, and lock it. (See below pictures)
3. Finish installation. The adjustable angle is 30° forward or
backward. (See below pictures)

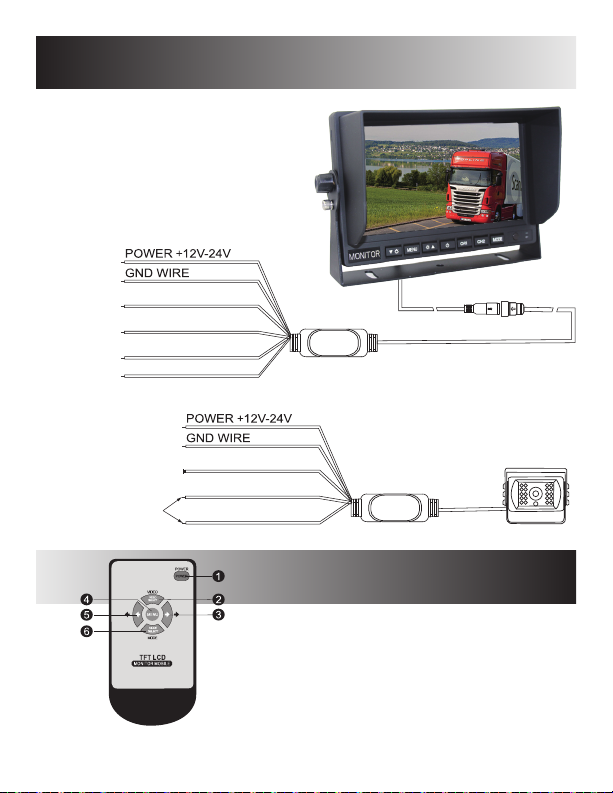

Installation Diagram
Remote Control
1. Power 2. Switch over 3. “+”
4. Menu 5. “-” 6. Mode select
12
4 Pin Connection
CH1
CH2
CH3
CH4
PAIRING SWITCH
MIRROR (MALE)
MIRROR (FEMALE)
CONNECT
TO MIRROR
NOTE:Diagramsareforinstallationreferenceonly,
monitorandcameraarearepresentativeimage

13
Monitor Specications
7" monitor
1. Menu
2. Left Arrow
3. Right Arrow
4. Power
5. Menu Down/Volume Down
6. Menu Up/Volume Up
7. Mode
Screen size 7 inch
Aspect ratio 16:9
Resolution 800x480
Brightness 500cdm
Audio & Video 4 Ways video input
Video System PAL & NTSC automatically
Voltage 12V-24V
PowerComsumption 5W
Impact Rating 5G
Language Multi-language
OSD Menu Pairing,VisionControl,TimeSetting,Language,
System Reset
Wireless Range up to 100M
Bracket accessories U Type Bracket, Pedestal Bracket
Sunshade Removable
OperationTemperature
14°F – 140°F

Camera Specications
Sensor 1/4 Sharp Color CCD
Resolution (PAL) 582(H)×510(V) pixels
TV Line 420 TV Line
Lens 2.8mm
View angle 150°
Power 12-24V
Wireless Range 100M @ 2.4Ghz
Min illumination 0.1 Lux, infrared night vision
Power Consumption 3W
Water Resistant IP68
Operation Temperature 14°F – 140°F
14

15
Positioning

16
Troubleshooting
Monitor Displays Blue Screen & Displays "No Signal"
• Do a hard reset, disconnect monitor and camera(s) from
power for 1 minute. Reconnect.
• Check that the camera is receiving +12VDC and that it has
a clean and tight ground connection.
• Verify that the camera is paired to the monitor by following
the procedure on page 10.
• Verify that the trigger on power harness is put to power
+12VDC .
• Verify that vehicle voltage is above 12VDC at all spliced
locations.
Monitor Will Not Power-Up (no backlight on power)
• Check fuse
• Check +12VDC connection
• Check ground connection
• Try power and ground direct to battery
No Image On Screen
• Verify camera is on correct camera input
• Verify monitor power cable is connected.
• Verify camera power cable is connected.
• Connect known working camera and cable to monitor.
• Verify trigger source is supplying power
• Verify power at all connections
• Verify camera pairing

17
Warranty
Two Year Warranty
Buyers Products Company, Inc. warrants this product against material de-
fects for a period of two years from date of purchase. We reserve the right
to repair or replace any such defective unit at our sole discretion. Buyers
Products Company, Inc. is not responsible for a defect in the system as
a result of mis-use, improper installation, damage or mishandling of the
electronic components. Buyers Products Company, Inc. is not responsible
for consequential damages of any kind.
This warranty is void if: defects in materials or workmanship or damages
result from repairs or alterations which have been made or attempted by
others or the unauthorized use of nonconforming parts; the damage is due
to normal wear and tear, this damage is due to abuse, improper mainte-
nance, neglect or accident; or the damage is due to use of the Buyers
Products Company, Inc. system after partial failure or use with improper
accessories.
Warranty Performance
DURING THE ABOVE WARRANTY PERIOD, SHOULD YOUR Buyers Prod-
ucts Company PRODUCT EXHIBIT A DEFECT IN MATERIAL OR WORK-
MANSHIP, SUCH DEFECT WILL BE REPAIRED WHEN THE COMPLETE
Buyers Products Company, INC. PRODUCT IS RE-TURNED, POSTAGE
PREPAID AND INSURED, TO Buyers Products Company, INC. OTHER
THAN THE POSTAGE AND INSURANCE REQUIREMENT, NO CHARGE
WILL BE MADE FOR REPAIRS COVERED BY THIS WARRANTY.
Warranty Disclaimers
NO WARRANTY, ORAL OR WRITTEN, EXPRESSED OR IMPLIED, OTH-
ER THE ABOVE. WARRANTY IS MADE WITH REGARD TO THIS Buyers
Products Company, INC. Buyers Products Company, INC. DISCLAIMS
ANY IMPLIED WARRANTY OR MERCHANT-ABILITY OR FITNESS FOR A
PARTICULAR USE OR PURPOSE AND ALL OTHER WARRANTIES IN NO
EVENT SHALL Buyers Products Company. INC. LIABLE FOR ANY INCI-
DENTAL, SPECIAL, CONSEQUENTIAL, OR PUNITIVE DAMAGES OR FOR
ANY COSTS, ATTORNEY FEES, EXPENSES, LOSSES OR DELAYS AL-
LEGED TO BE AS A CONSEQUENCE OF ANY DAMAGE TO, FAILURE OF,
OR DEFECT IN ANY PRODUCT INCLUDING, BUT NOT LIMITED TO, ANY
CLAIMS FOR LOSS OF PROFITS.

18
Disclaimer
Buyers Products Company and/or its aliates does not guarantee
or promise that the user of our systems will not be in/part of an
accident or other-wise not collide with an object and/or person. Our
systems are not a substitute for careful and cautious driving or for
the consistent adherence to all applicable trac laws and motor
vehicle safety regulations. The Buyers Products Company products
are not a substitute for rear view mirrors or for any other motor vehi-
cle equipment mandated by law. Our camera systems have a limited
eld of vision and do not provide a comprehensive view of the rear
or side area of the vehicle. Always make sure to look around your
vehicle and use your mirrors to conrm rearward clearance and that
your vehicle can maneuver safely. Buyers Products Company and/
or its aliates shall have no responsibility or liability for damage
and/or injury resulting from accidents occurring with vehicles having
some of Buyers Products Company products installed and Buyers
Products Company and/or its aliates, the manufacturer, distrib-
utor and seller shall not be liable for any in-jury, loss or damage,
incidental or consequential, arising out of the use or intended use of
the product. In no event shall Buyers Products Company and/or its
aliates have any liability for any losses (whether direct or indirect,
in contract, tort or otherwise) incurred in connection with the sys-
tems, including but not limited to damaged property, personal injury
and/or loss of life. Neither shall Buyers Products Company and/or
its aliates have any responsibility for any decision, action or inac-
tion taken by any person in reliance on Buyers Products Company
systems, or for any delays, inaccuracies and/or errors in connection
with our systems functions.

19
If you have questions about this product, contact:
9049 Tyler Blvd. • Mentor, Ohio 44060
Phone [phone] • Fax [phone]
Email: [email protected]
www.buyersproducts.com
IN NO EVENT SHALL SELLER OR MANUFACTURER
BE LIABLE FOR ANY DIRECT OR CONSEQUENTIAL
DAMAGES OF ANY NATURE, OR LOSSES OR
EXPENSES RESULTING FROM ANY DEFECTIVE
PRODUCT OR THE USE OF ANY PRODUCT.

20 8883200INST_A
