BuzziSpace BuzziNest Booth User manual
BuzziNest
Booth Owner
Manual US
3 | BuzziSpace General
Materials
Structure: Poplar plywood
Frame: laminated plywood with oiled trim
Glass: safety glass with acoustic lm
Inside nish: Felt, Felt Printed or 3D pattern in Fabric or Trevira CS+
Outside nish: fabric-covered thermoxed felt in Fabric or Trevira CS+
Power
Mains supply: 120V AC 50-60Hz, max 15A
Stand-by consumption: 0,9W
Consumption when in use: 12,5W
Output
Table socket: 120V AC 50-60Hz, max 14A
Twin USB charger: type A, max 4A at 5VDC combined
Lighting unit
Power usage: 14W
Input: 120V AC 50-60Hz
Lumen output: 1260 lumen
Color Temperature: 4000K
Color Rendering Index: >80
Ventilation unit
Min. power usage: 1,73W
Max. power usage: 4,32W
Input: 12V dc
Airow rates:
1 - 13 l/s - 13,2W
2 - 21 l/s - 13,9W
3 - 26 l/s - 15,2W
4 - 34 l/s - 17,3W
Airow rate when occupied: 21 l/sec - 13,9W
Airow rate after 5 min without occupancy: 10.5 l/sec
Airow rate stand-by mode, after 15 min without occupancy: 3.5 l/sec - 1W
Dimensions and weight
Width: 110 cm | 43.3”
Depth: 107 cm | 42.1”
Height: 218 cm | 85.8”
310 kg | 683 lbs (excluding shelf, table, seating elements, electrication)
Congratulations on purchasing your BuzziNest Booth. In this manual, you will nd
some guidelines on how to take care and get the best use out of the product, so you
can enjoy BuzziNest to its full capacity.
Please read this booklet carefully before using or attempting to x the
product, and be sure to keep it for future reference.
Remember to always check www.buzzi.space/buzzinest for the latest information.
Congratulations!
General.
5 | BuzziSpace Safety Instructions4 | BuzziSpace Safety Instructions
Safety Instructions.
Important safety and product instructions
Preface
This instruction manual shows the necessary information for the installation of the product. Make sure that
everyone involved in the installation has read and understands the contents of the installation and the safety
instructions.
Review the assembly instructions to conrm that the appropriate critical components and accessories are being
used with the furnishing.
These prefabricated modules and assemblies are intended for installation rearrangement and inspection in
accessible locations in accordance with Article 604 of the NEC. AHJs should be consulted prior to installation.
SAVE THESE INSTRUCTIONS
Product Information
The information in this manual is valid at the time of publication and corresponds to the product at the time of
delivery.
Intended use
BuzziNest Booth is intended for short term indoor commercial and household use by one (1) person at a time.
WARNING: To reduce the risk of burns, re, electric shock or injury to persons: Use this product only
for its intended use as described in the user instructions. Do not use attachments not recommended by the
manufacturer.
Fire Safety
WARNING!
To reduce the risk of burns, re, electric shock or injury to persons, obey the following:
In case of a re inside the booth, disconnect the power cord when it’s safe to do so.
The power cable serves as a power cut device for pluggable equipment.
The power outlet must be near the equipment and easily accessible.
Fire and safety devices like sprinklers or alarms can be installed in the booth (separate instructions on demand).
The need for re and safety devices in the booth shall always be determined by the applicable local authorities.
Electrical Safety
Input for the electrical system: 120V AC 15 A 50-60Hz
The maximum load for the electrical system is 15 A.
DANGER!
To reduce the risk electric shock, obey the following:
In non-hardwired products:
Always unplug this furnishing from the electrical outlet before cleaning or servicing.
Unplug from outlet before putting on or taking off parts
Never operate this furnishing if it has a damaged cord or plug, if it is not working properly, if it has
been dropped or damaged.
Connect this furnishing to a properly grounded outlet only
In case of a re inside the booth, disconnect the power cord when it’s safe to do so.
In hardwired products:
Always disconnect this furnishing from the electricity network before disassembly, cleaning or
servicing.
7 | BuzziSpace Safety Instructions6 | BuzziSpace Safety Instructions
WARNING!
To reduce the risk of burns, re, electric shock or injury to persons, obey the following:
Connect the power cord to a properly grounded outlet only.
Keep the power cord of the product away from the heated surfaces.
Do not use the BuzziNest Booth if you notice any defects or damage to the electrical equipment.
Do not connect any extension cords to the power outlet(s) of the product.
Installation, maintenance and disassembly
WARNING!
To reduce the risk of burns, re, electric shock or injury to persons, obey the following:
Use cut resistant safety gloves during the installation, maintenance os disassembly of the product.
Use Steel toed safety boots during the installation, maintenance or disassembly of the product.
Wear safety goggles when installing, maintaining or disassembling the product.
Read and follow closely the instructions. Plan your work and work your plan.
Local rules and regulations with regards to workplace safety must be respected.
Keep the work area clear of debris during installation, maintenance or disassembly.
No load allowed on top of the product, do not climb onto the product.
Do not move or push the product without disconnecting the power cord and activating the wheels.
9 | BuzziSpace Safety Instructions8 | BuzziSpace Safety Instructions
Use
The maximum load for the BuzziNest Booth Shelf is 66 lbs (30 kg)
WARNING!
To reduce the risk of burns, re, electric shock or injury to persons, obey the following:
Read and follow closely the instructions before using the product.
Close supervision is necessary when this furnishing is used by, or near children, invalids, or disabled
persons.
Keep children away from extended foor support (or other simular parts).
The air inside the product is extracted from the surrounding area, if this surrounding area is in
anyway hazardous, do not use the product.
Do not use the product in case of a non-working ventilation.
Do not use the product in case of blocked ventilation channels, make sure the ventilations channels
are kept open and free from any dust uff, hair and such.
Never operate this furnishing if it has any defects in the electrical equipment, if it is not working
properly, if it has been dropped or damaged. disconnect this furnishing from the electricity network
and contact your dealer.
Do not insert any objects or drop anything into any of the unit’s openings unless it’s instructed in the
manual.
Do not use outdoors
Do not use where aerosol (spray) products are being used or where oxygen is being administered.
No load allowed on top of the product, do not climb onto the product.
Do not lean against the product
No smoking allowed inside the product.
11 | BuzziSpace Markings10 | BuzziSpace Markings
Markings.
BuzziNest Booth
Label Label Text
1.
Product/ Produit: BuzziNest Booth
Input/Entrée: 120V AC 15A 50-60Hz
Manufacturer/Fabricant: BuzziSpace
Web: www.buzzi.space
Made in Lithuania / Fabriqué en Lituanie
Evaluated to ASTM E84, smoke developed
index over 450.
/ Évalué selon ASTM E84, indice de
fumée développé supérieur à 450.
E519115
Powered
Furniture
Product/ Produit: BuzziNest Booth
Input/Entrée: 120V AC 15A 50-60Hz
Manufacturer/Fabricant: BuzziSpace
Web: www.buzzi.space
Email: [email protected]
Made in Lithuania / Fabriqué en Lituanie
Evaluated to ASTM E84, smoke developed index over 450. / Évalué selon ASTM E84,
indice de fumée développé supérieur à 450.
2. SN/N° de série: .
MANUFACTURE DATE / DATE DE FABRICATION: MM/YYYY
SN/N° de série: .
MANUFACTURE DATE / DATE DE FABRICATION: MM/YYYY
3. WARNING
Risk of re and shock!
Use Only SJT type 14 AWG cord.
See installation manual for instruction on
how to hard wire to mains supply.
Kit Code: 881
WARNING
Risk of re and shock! Use Only SJT type 14 AWG cord. See installation manual for
instruction on how to hard wire to mains supply. Kit Code: 881
AVERTISSEMENT
Risque d’incendie et d’électrocution !
Utilisez uniquement un cordon de type
SJT 14 AWG.
Consultez le manuel d’installation pour savoir
comment se connecter au réseau électrique.
Code du kit : 881
AVERTISSEMENT
Risque d’incendie et d’électrocution ! Utilisez uniquement un cordon de
type SJT 14 AWG.Consultez le manuel d’installation pour savoir comment se connecter
au réseau électrique. Code du kit : 881
4.
This furnishing has not been evaluated for
ammability or cigarette ignition resistance.
L’inammabilité ou la résistance à l’allumage
d’une cigarette n’a pas été évaluée pour cette
garniture.
This furnishing has not been evaluated for ammability or cigarette ignition resistance.
L’inammabilité ou la résistance à l’allumage d’une cigarette n’a pas été évaluée pour
cette garniture.
1
23
4

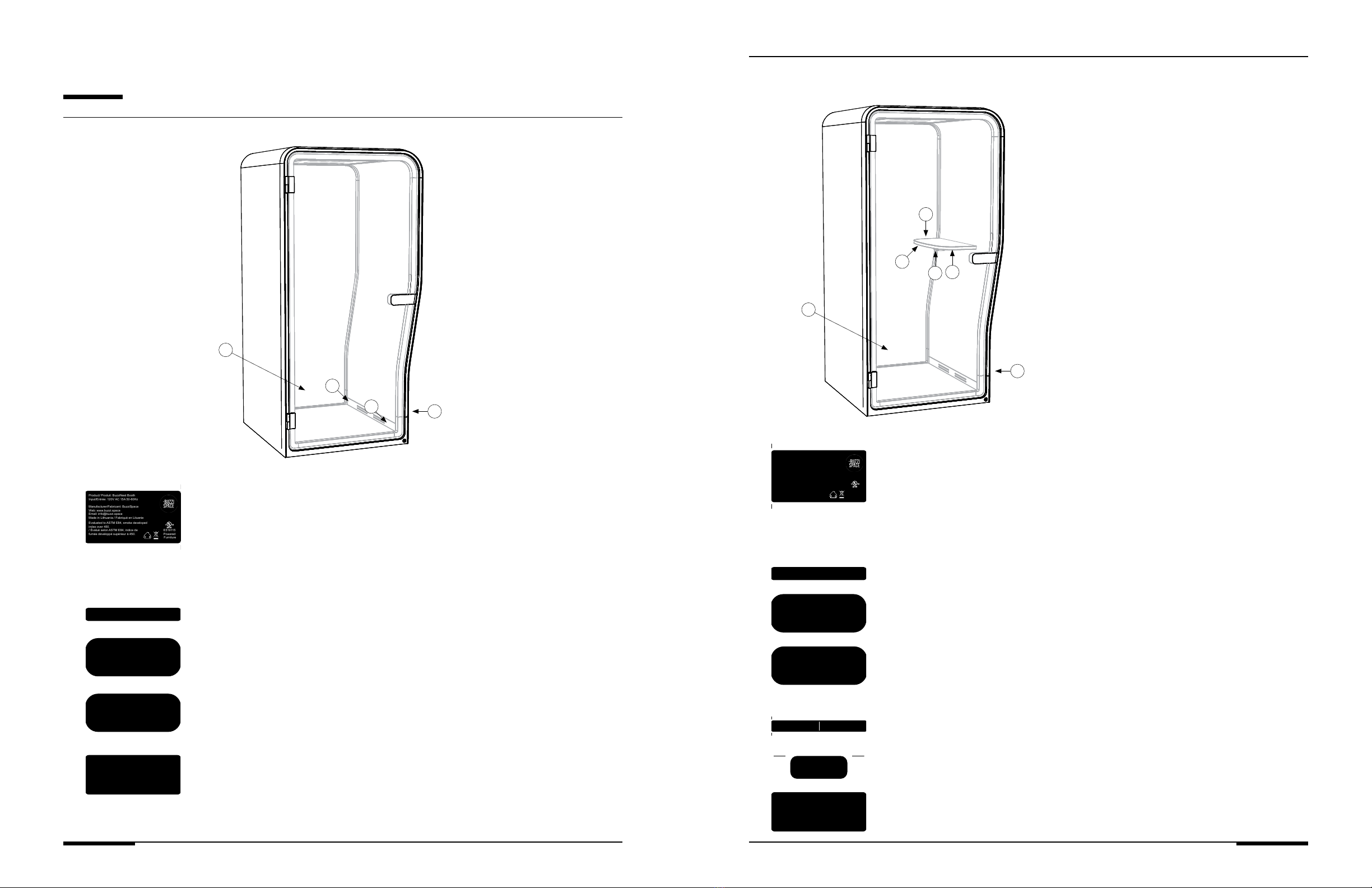

BuzziNest Booth with optional shelf
4
5
12
3
6
Label Label Text
1. Product/ Produit: BuzziNest Booth
Input/Entrée: 120V AC 15A 50-60Hz
Manufacturer/Fabricant: BuzziSpace
Web: www.buzzi.space
Email: [email protected]
Made in Lithuania / Fabriqué en Lituanie
Evaluated to ASTM E84, smoke developed
index over 450.
/ Évalué selon ASTM E84, indice de
fumée développé supérieur à 450.
E519115
Powered
Furniture
Product/ Produit: BuzziNest Booth
Input/Entrée: 120V AC 15A 50-60Hz
Manufacturer/Fabricant: BuzziSpace
Web: www.buzzi.space
Email: [email protected]
Made in Lithuania / Fabriqué en Lituanie
Evaluated to ASTM E84, smoke developed index over 450. / Évalué selon ASTM E84,
indice de fumée développé supérieur à 450.
2. SN/N° de série: .
MANUFACTURE DATE / DATE DE FABRICATION: MM/YYYY
SN/N° de série: .
MANUFACTURE DATE / DATE DE FABRICATION: MM/YYYY
3. WARNING
Risk of re and shock!
Use Only SJT type 14 AWG cord.
See installation manual for instruction on
how to hard wire to mains supply.
Kit Code: 881
WARNING
Risk of re and shock! Use Only SJT type 14 AWG cord. See installation manual for
instruction on how to hard wire to mains supply. Kit Code: 881
AVERTISSEMENT
Risque d’incendie et d’électrocution !
Utilisez uniquement un cordon de type
SJT 14 AWG.
Consultez le manuel d’installation pour savoir
comment se connecter au réseau électrique.
Code du kit : 881
AVERTISSEMENT
Risque d’incendie et d’électrocution !
Utilisez uniquement un cordon de type SJT 14 AWG.Consultez le manuel d’installation
pour savoir comment se connecter au réseau électrique. Code du kit : 881
4.
WARNING Risk of injury
The maximum load for the BuzziNest Booth Shelf
is 66 lbs (30kg)
L’ AVERTISSEMENT Risque de blessure
Poids maximal pour BuzziNest Booth Shelf
est de 66 lbs (30 kg)
WARNING Risk of injury
The maximum load for the BuzziNest Booth Shelf is 66 lbs (30kg)
L’ AVERTISSEMENT Risque de blessure
Poids maximal pour BuzziNest Booth Shelf est de 66 lbs (30 kg)
5. Max. 14A Max. 14A
6.
This furnishing has not been evaluated for
ammability or cigarette ignition resistance.
L’inammabilité ou la résistance à l’allumage
d’une cigarette n’a pas été évaluée pour cette
garniture.
This furnishing has not been evaluated for ammability or cigarette ignition resistance.
L’inammabilité ou la résistance à l’allumage d’une cigarette n’a pas été évaluée pour
cette garniture.
13 | BuzziSpace Move
12 | BuzziSpace Functionalities
Lighting unit
The lighting unit is triggered by a motion detector and illuminates the moment someone
enters BuzziNest Booth. When the motion detector no longer detects a presence, it
switches off the light after ve minutes to save energy.
Ventilation Unit
The ventilation unit assures good air quality within the Booth.
The ventilation is triggered by a motion detector. The moment someone enters the Booth,
fresh air is blown in from above, pushing the air outside through the vent holes at the
bottom of the Booth.
When the motion detector no longer detects a presence, the ventilation remains on for
another ve minutes. The fan speed will then decrease to 50% for the next 10 minutes to
ush out the interior air whilst the Booth is unoccupied. Following ush mode, the fan will
once again reduce its speed to about 10% of its full capacity until the motion sensor is
triggered by another user.
Functionalities.
STEP 1
STEP 4 STEP 5
STEP 2 STEP 3
8 mm
8 mm
STEP 6 STEP 7

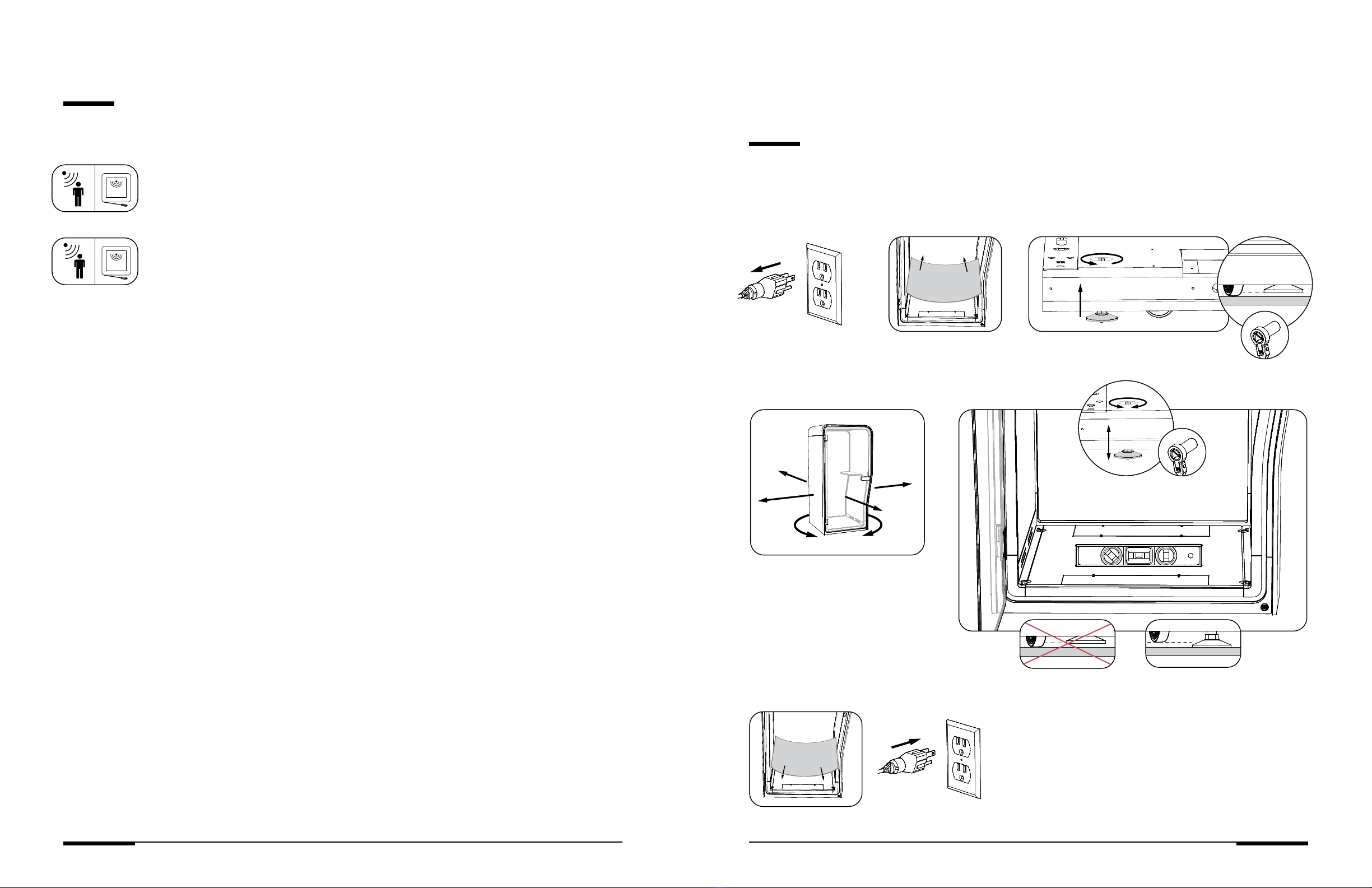

Move
BuzziNest Booth.
Disconnect from the
mains power.
Move BuzziNest.
Put the carpet back in
place.
Remove the carpet.
Twist the feet out to
secure in its new position.
Connect to the mains.
Unscrew the feet in the 4 corners so they no longer
touch the ground. BuzziNest now rests on its wheels.
15 | BuzziSpace Move
14 | BuzziSpace Changing the fuse
Regular care
& maintenance.
Vacuum regularly to remove dust and dirt in
addition to maintaining re-retardant properties.
Alcohol-based disinfectants can be used
without damaging the textiles or changing
their color.
Concentration: between 70 - 85%.
Apply with a sprayer.
Do not steam the 3D fabric pattern; use a non-
abrasive sponge or cloth.
Fabric, Felt & Carpet
Clean all surfaces with a soft, damp cloth.
Wipe in the direction of the grain.
Immediately remove all liquids on wood
surfaces by blotting them dry. Use coasters for
drinks.
Expose to humidity levels between 50% and
60% to avoid wood shrinks, small cracks, and
splits.
Do not use abrasive sponges or cloths, furniture
polishes, harsh solvents, glass cleaners, or
waxes. Do not wipe against the grain or expose
the wood to extreme temperatures or humidity.
Wood & Laminate
(frame, shelf, table, door handle)
Use a standard glass cleaning
solution.
Glass
STEP 1
STEP 4 STEP 5
STEP 2 STEP 3
STEP 8 STEP 9
Disconnect from the
mains power.
Lift internal liners.
Put the carpet back in
place.
Remove the carpet.

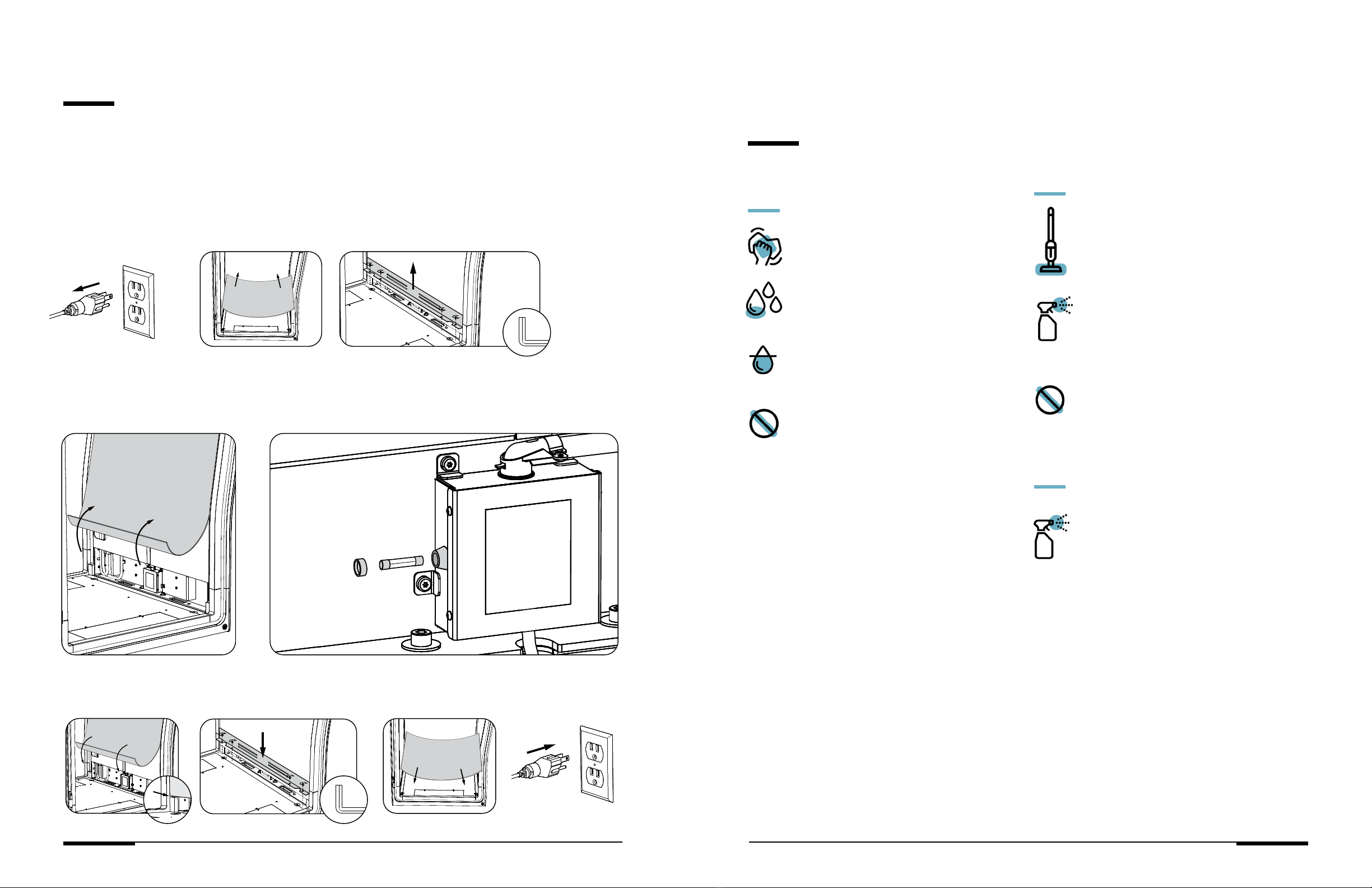

Unscrew fuse cap on the left and replace the fuse.
Only replace with 15A ceramic 6.3 x 32 mm, Speed T.
Connect to the mains.
Unscrew metal vents
Changing the fuse
STEP 6
Place the internal liners
back.
STEP 7
Place the metal vents
back in.
5 mm
5 mm
15 | BuzziSpace Regular care & maintenance
17 | BuzziSpace General16 | BuzziSpace General16 | BuzziSpace Stain removal
Stain
removal.
Light stains
Carefully dab with pH-neutral soap and a
clean damp cloth or sponge. Edge marks
can be avoided by dabbing gently in circular
motions towards the center of the stain with a
clean, lint-free cloth.
Spilled drinks
Soak up, rub with a damp cloth, and wipe
dry.
Glue and nail varnish
Contact a professional cleaner.
Dried up liquids
Remove with a damp sponge and dry with
a blow dryer.
Grease
Use an appropriate detergent or solvent.
Test rst on an inconspicuous area to avoid
damage.
Large stains
Dry clean professionally.
Dried-in stains
Gently remove with a soft edge. Vacuum and
then clean with a soft dampened cloth. Dry
before use.
Ink and permanent marker
Remove immediately with methylated
spirits or lemon juice.
Wood & Laminate
Grease
Wipe with a wet sponge and dishwashing
detergent, rinse, and dry.
Fabric, Felt & Carpet
17 | BuzziSpace Cleaning ventilation
Cleaning
the ventilation.
At least once a year, the ventilation fans and grids should be cleaned to ensure a healthy environment
inside BuzziNest.
STEP 1
Disconnect from the mains power.
STEP 2
Use a vacuum cleaner with a
brushed head to remove dust
from:
a. the ventilator
on top of the Booth
b. the ventilation holes
at the lighting unit
c. the ventilation holes
at the frame nearby the carpet
STEP 3
Connect BuzziNest to the mains power.
Note: Once every 5 years the ventilation ducts
located behind the lighting plate and beside the
carpet should be cleaned.
Contact a professional installer for partial
disassembly and cleaning of BuzziNest Booth.
18 | BuzziSpace Markings
FAQ.
Troubleshooting.
Please check our website for the latest version.
www.buzzi.space/buzzinest
Fire safety
Although no regulations are known where placing
sprinkler heads are mandatory, you can reach out to your
dealer or BuzziSpace for more information.
No light, no ventilation, no power from the socket
• Check the power cord inlet.
• Check if the socket outlet to which the BuzziNest is connected is powered.
The following troubleshooting steps should be done by a professional installer:
• Check the connection of the internal power cords.
If one of the above functions is working and the others are not, there might be a defect.
• Please contact your dealer/agent for technical assistance.
The BuzziNest is unstable
• Level the BuzziNest by screwing the feet located underneath the booth either up or down.
The leveling feet are accessible underneath the carpet.
The door does not close properly
• The hinges are equipped with a leveling mechanism. They can be adjusted using an Allen key.
Name
Contact person
Address
Phone
Email
Remarks
Contact
information.
This BuzziNest Booth was sold and installed by:
BuzziSpace
Groeningenlei 141, 2550 Antwerp (Kontich), Belgium
+32 (0)3 846 10 00 | [email protected]
www.buzzi.space
Doc nr.: A-0000007392/03
Last update: 10/08/2022
18 | BuzziSpace FAQ
Other manuals for BuzziNest Booth
1
Table of contents
Other BuzziSpace Office Equipment manuals
