BW Technologies GasAlertMicroClip User manual

Limited Warranty & Limitation of Liability
BW Technologies LP (BW) warrants this product to be free from defects in material and workmanship under normal use and service for a
period of two years, beginning on the date of shipment to the buyer. This warranty extends only to the sale of new and unused products to
the original buyer. BW’s warranty obligation is limited, at BW’s option, to refund of the purchase price, repair, or replacement of a defective
product that is returned to a BW authorized service center within the warranty period. In no event shall BW’s liability hereunder exceed the
purchase price actually paid by the buyer for the Product. This warranty does not include:
a) fuses, disposable batteries or the routine replacement of parts due to the normal wear and tear of the product arising from
use;
b) any product which in BW’s opinion, has been misused, altered, neglected or damaged by accident or abnormal conditions of
operation, handling or use;
c) any damage or defects attributable to repair of the product by any person other than an authorized dealer, or the installation
of unapproved parts on the product; or
The obligations set forth in this warranty are conditional on:
a) proper storage, installation, calibration, use, maintenance and compliance with the product manual instructions and any other
applicable recommendations of BW;
b) the buyer promptly notifying BW of any defect and, if required, promptly making the product available for correction. No
goods shall be returned to BW until receipt by the buyer of shipping instructions from BW; and
c) the right of BW to require that the buyer provide proof of purchase such as the original invoice, bill of sale or packing slip to
establish that the product is within the warranty period.
THE BUYER AGREES THAT THIS WARRANTY IS THE BUYER’S SOLE AND EXCLUSIVE REMEDY AND IS IN LIEU OF ALL OTHER
WARRANTIES, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO ANY IMPLIED WARRANTY OF MERCHANTABILITY OR
FITNESS FOR A PARTICULAR PURPOSE. BW SHALL NOT BE LIABLE FOR ANY SPECIAL, INDIRECT, INCIDENTAL OR
CONSEQUENTIAL DAMAGES OR LOSSES, INCLUDING LOSS OF DATA, WHETHER ARISING FROM BREACH OF WARRANTY OR
BASED ON CONTRACT, TORT OR RELIANCE OR ANY OTHER THEORY.
Since some countries or states do not allow limitation of the term of an implied warranty, or exclusion or limitation of incidental or
consequential damages, the limitations and exclusions of this warranty may not apply to every buyer. If any provision of this warranty is
held invalid or unenforceable by a court of competent jurisdiction, such holding will not affect the validity or enforceability of any other
provision.
Contacting BW Technologies by Honeywell
USA: 1-888-749-8878 Canada: 1-800-663-4164
Europe: [phone] Other countries: [phone]
Email us at: [email protected]
Visit BW Technologies by Honeywell’s web site at: www.gasmonitors.com

1
GasAlertMicroClip
Introduction
This quick reference guide provides basic information for the
GasAlertMicroClip. Refer to the user manual on the
accompanying CD-ROM for complete operating instructions.
The GasAlertMicroClip gas detector (“the detector”) warns of
hazardous gas at levels above user-selectable alarm setpoints.
The detector is a personal safety device. It is your responsibility
to respond properly to the alarm.
Note
The detector is shipped with English as the default displayed
language. Additional languages provided are Portuguese,
Spanish, German, and French. The screens for the additional
languages are displayed on the detector and in the
corresponding Quick Reference Guide.
Safety Information - Read First
Use the detector only as specified in this guide, otherwise
the protection provided by the detector may be impaired.
Read the following Cautions before using the detector.
aCautions
⇒Warning: Substitution of components may impair
Intrinsic Safety.
⇒Caution: For safety reasons, this equipment
must be operated and serviced by qualified
personnel only. Read and understand the user
manual completely before operating or servicing.
⇒Charge the detector before first-time use. BW
recommends the detector be charged after every
workday.
⇒Calibrate the detector before first-time use and
then on a regular schedule, depending on use
and sensor exposure to poisons and
contaminants. BW recommends at least once

GasAlertMicroClip
Quick Reference Guide
2
every 180 days (6 months).
⇒The combustible sensor is factory calibrated to
50% LEL methane. If monitoring a different
combustible gas in the % LEL range, calibrate
the sensor using the appropriate gas.
⇒Only the combustible gas detection portion of
this instrument has been assessed for
performance by CSA International.
⇒Calibrate only in a safe area that is free of
hazardous gas.
⇒It is recommended that the combustible sensor
be checked with a known concentration of
calibration gas after any known exposure to
contaminants/poisons (sulfur compounds,
silicon vapors, halogenated compounds, etc.).
⇒BW recommends to “bump test” the sensors,
before each day’s use, to confirm their ability to
respond to gas by exposing the detector to a gas
concentration that exceeds the alarm setpoints.
Manually verify that the audible and visual
alarms are activated. Calibrate if the readings are
not within the specified limits.
⇒Caution: High off-scale readings may indicate an
explosive concentration.
⇒Any rapid up-scaling reading followed by a
declining or erratic reading may indicate a gas
concentration beyond upper scale limit, which
may be hazardous.
⇒Extended exposure of the GasAlertMicroClip to
certain concentrations of combustible gases and
air may stress a detector element, which can
seriously affect its performance. If an alarm
occurs due to high concentration of combustible
gases, recalibration should be performed, or if
needed, the sensor replaced.
⇒Protect the combustible sensor from exposure to
lead compounds, silicones, and chlorinated
hydrocarbons. Although certain organic vapors
(such as leaded gasoline and halogenated
hydrocarbons) may temporarily inhibit sensor
performance, in most cases, the sensor will
recover after calibration.
⇒For use only in potentially explosive
atmospheres where oxygen concentrations do
not exceed 20.9% (v/v).

GasAlertMicroClip
Parts of the GasAlertMicroClip
Parts of the GasAlertMicroClip
Item Description
1 Visual alarm bars (LED)
2 Liquid crystal display (LCD)
3 Audible alarm
4 Sensors
5 Pushbutton
6 Charging connector / IR interface
7 Alligator clip
3

GasAlertMicroClip
Quick Reference Guide

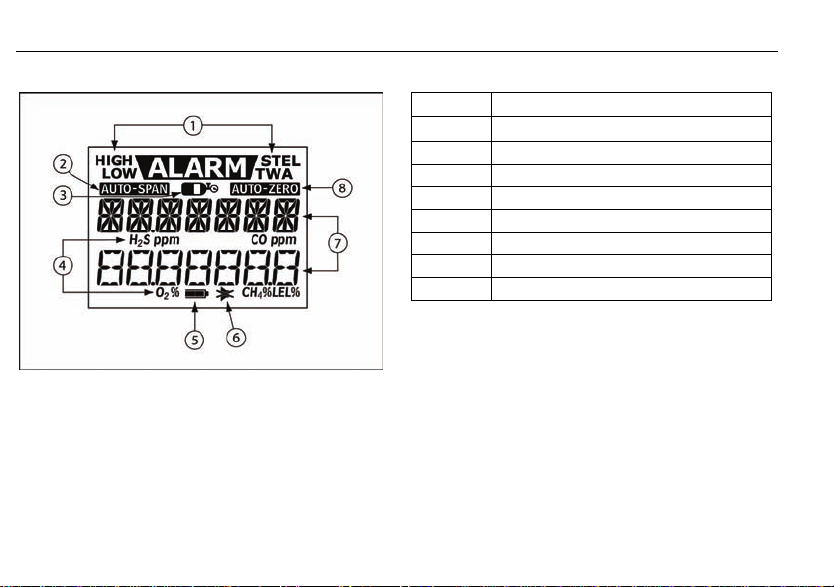

Display Elements
Item Description
1 Alarm condition
2 Automatically span sensor
3 Gas cylinder
4 Gas identifier bars
5 Battery life indicator
6 Stealth mode
7 Numeric value
8 Automatically zero sensor
4

GasAlertMicroClip
Pushbuttons
5
Pushbuttons
Pushbutton Description
C
•To activate the detector press C.
•To deactivate the detector, press and hold Cuntil the OFF countdown is complete and the
LCD deactivates.
•To view the TWA, STEL, and maximum (MAX) hold readings, press Ctwice. To clear the
TWA, STEL, and MAX readings, press Cwhen the LCD displays RESET.
•To initiate calibration, press and hold Cas the detector executes the OFF countdown and
continue to hold Cas the LCD briefly deactivates and then executes the CAL countdown.
Release Cwhen the CAL countdown is complete.
•To activate the backlight, press C.
•To acknowledge latched alarms, press C.
•To acknowledge a low alarm and disable the beeper, press C(if Low Alarm Acknowledge user
option is enabled).

GasAlertMicroClip
Quick Reference Guide

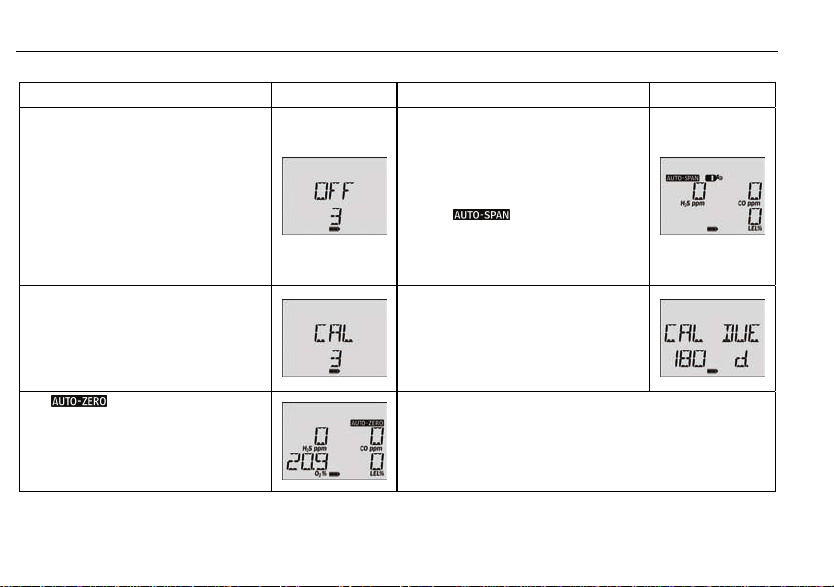

Calibration
Procedure Display Procedure Display
aCaution
Calibrate only in a safe area and in
an area that is free of hazardous gas.
Do not calibrate the detector during
or immediately after charging is
complete.
1. In a clean atmosphere, press and hold
Cas the detector performs the OFF
countdown. Continue to hold Cwhen
the detector briefly deactivates.
4. Kflashes when you connect the gas
cylinder and apply gas at a flow rate of
250-500 ml/min.
After a sufficient amount of gas has
been detected (approximately 30
seconds) the detector emits a beep
and flashes while the
detector completes the span.
2. The detector then activates again and
performs the CAL countdown.
Continue to hold Cuntil the
countdown is complete to enter
calibration.
5. The LCD then displays CAL DUE. It
then displays the number of days
remaining before the next calibration is
due above each gas. Then the LCD
displays the days until the next
calibration due date before completing
the calibration.
3. flashes while the detector
zeroes all of the sensors and
calibrates the oxygen sensor. If a
sensor failed to auto zero, it cannot be
spanned. Once auto zero is complete,
the LCD displays APPLY GAS.
Note
The calibration cap should only be used during the calibration
span process.
Wind currents may cause false readings and poor calibrations.
Do not calibrate the detector during or immediately after charging
is complete.
6

GasAlertMicroClip
Attach the Gas Cylinder to the Detector
Attach the Gas Cylinder to the Detector
7

GasAlertMicroClip
Quick Reference Guide
Alarms
The following table lists the numerous alarms of the detector.
Alarm Display Alarm Display
Low Alarm:
•Slow siren
•Slow alternating flash
•Land target gas bar flash
•Vibrator alarm activates
TWA Alarm:
•Slow siren
•Slow alternating flash
•Land target gas bar flash
•Vibrator alarm activates
High Alarm:
•Fast siren
•Fast alternating flash
•Land target gas bar flash
•Vibrator alarm activates
STEL Alarm:
•Fast siren
•Fast alternating flash
•Land target gas bar flash
•Vibrator alarm activates
Multi-Gas Alarm:
•Alternating low and high alarm
siren and flash
•Land target gas bars flash
•Vibrator alarm activates
Over Range (OL) Alarm:
•Fast siren and alternating flash
•Land target gas bar flash
•Vibrator alarm activates
8

GasAlertMicroClip
Alarms
9
Alarm Display Alarm Display
Sensor Alarm:
•Displays Err
Automatic Shutdown Alarm:
•Eight beeps and eight flashes
•LOW BAT and Ldisplay
•Vibrator alarm temporarily activates
•Displays OFF before turning off
Low Battery Alarm:
(Confidence beep disabled)
•One beep and one flash every 5
seconds
•and Lflashes
Confidence Beep:
•One beep every 10 seconds
Note
Alarms can be set to be latching or non-latching. To confirm this setting, access the latching alarms option in the GasAlertMicroClip
Soft Tools software. Local regulations may require a latching alarm.
If the detector is in stealth mode, it only vibrates in alarm mode (the audible and visual alarms are disabled). If the detector is in IR
stealth mode, the IR LEDs and vibrator activate in alarm mode (the audible alarm is disabled).
If the Low Alarm Acknowledge option is enabled, the beeper can be disabled only during a low alarm by pressing C. The vibrator
and LEDs will function normally. If the alarm escalates to a high, STEL, or TWA alarm, the beeper reactivates.
The backlight activates during any alarm condition.

GasAlertMicroClip
Quick Reference Guide
10
Options
To access the user options, connect the detector to the IR Link
adapter and use the GasAlertMicroClip Soft Tools software.
Refer to the GasAlertMicroClip Soft Tools manual for complete
instructions.
The following are the available user options:
1. Sensors (H2S, CO, O2, and LEL)
•Disabled: Disables the sensor.
•Cal Gas: Changes the span gas concentration for
each sensor.
•Cal Interval: Number of days remaining before the
next calibration.
•Bump Interval: Number of days remaining before the
next bump check.
•Low Alarm: The low alarm setpoint (all sensors).
•High Alarm: The high alarm setpoint (all sensors).
•TWA Alarm: The time-weighted average (TWA)
alarm setpoint (toxic sensors only).
•STEL Alarm: The short-term exposure limit (STEL)
alarm setpoint (toxic sensors only).
•STEL Interval: Changes the short-term exposure
limit (5-15 minutes; applicable to toxic sensors only).
•Auto-Zero on Startup: Auto zeroes the chosen
sensor during activation (H2S, CO, and LEL sensors
only).
•O2 Auto-Calibration on Startup: Enables automatic
oxygen calibration upon start-up.
•LEL By Vol CH4: Shows the LEL reading in % vol.
assuming a methane environment.
2. User Options
•Confidence Beep: Enables the confidence beep.
•Latching Alarms: This option allows an alarm to
remain active until the user acknowledges the alarm.
•Safe Mode: Enables the LCD to display Safe if the
detector does not enter an alarm.
•Stealth Mode: When enabled, the beeper, backlight,
and alarm LEDs are disabled. Only the vibrator
activates.
•IR Stealth Mode: When enabled, the beeper and
backlight are disabled. Only the vibrator and IR LEDs
activate.

GasAlertMicroClip
Charging the Detector
•Low Alarm Acknowledge: When enabled, the
beeper can be disabled during low alarm if Cis
pressed. The vibrator and alarm LEDs will function
normally (H2S, CO, and LEL sensors only);
The battery should be charged after each workday. To charge
the battery, deactivate the detector and insert the
GasAlertMicroClip charging adapter (as shown in the following
figure). Allow it to charge for 2-3 hours.
•Force Calibration When Overdue: Forces the
detector into mandatory calibration if a sensor is
overdue for calibration upon start-up;
The detector must be charged in a non-hazardous atmosphere
of 0°C-45°C (32°F-113°F).
To reach full battery capacity, allow the battery to fully charge
and fully discharge three times.
•Cal Lock: It allows the detector to auto zero, but span
needs to be conducted with an IR device;
•Force Bump When Overdue: Forces a bump check
if the sensor has exceeded its bump check interval;
•Bump Due Lock: Forces the detector to search for
an IR device to execute a bump check.
3. Language
Enables the LCD’s language in English, French
(Français), German (Deutsch), Spanish (Español), or
Portuguese (Português).
Charging the Detector
aWarning
The battery can only be replaced by the manufacturer.
Not complying with this might cause explosion danger.
11

GasAlertMicroClip
Quick Reference Guide
Maintenance
To keep the detector in good operating condition, perform
the following basic maintenance as required:
•Calibrate, bump check, and inspect the detector at
regular intervals.
•Keep an operations log of all maintenance, bump
checks, calibrations, and alarm events.
•Clean the exterior with a soft damp cloth. Do not use
solvents, soaps, or polishes.
Replacing a Sensor or Sensor Filter
a Warning
To avoid personal injury, use only sensors specifically
designed for the detector.

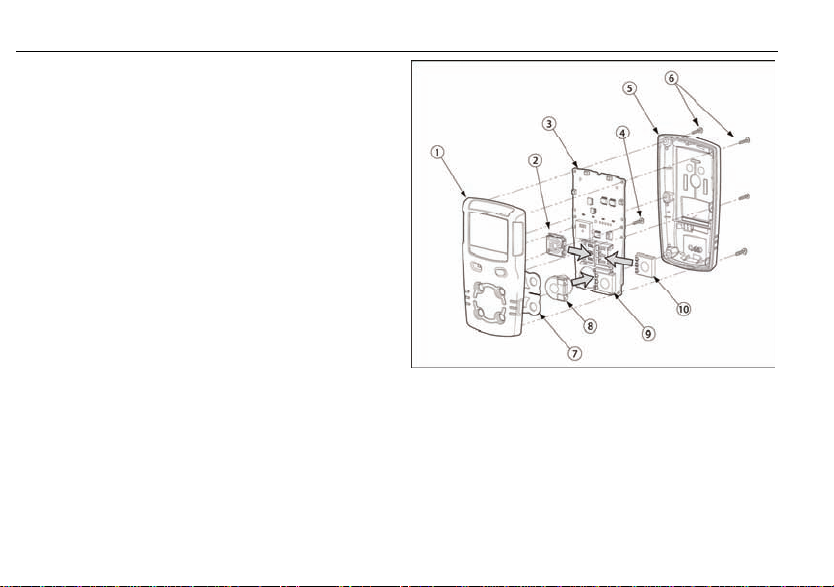

To replace a sensor or sensor filter, refer to the following figure,
table, and set of instructions.
12

GasAlertMicroClip
Maintenance
13
Item Description
1 Front shell
2 LEL sensor
3 PCB
4 PCB screws (2)
5 Rear shell
6 Machine screws (6)
7 Sensor filter
8 O2sensor
9 H2S sensor
10 CO sensor
1. If the detector is activated, deactivate it.
2. Remove the six machine screws on the rear shell and
remove the back cover.
Note
Note the orientation of the battery PCB (bent up or laid flat).
3. Remove the two screws on the PCB and remove the
PCB.
Note
Ensure the battery does not get damaged once the PCB is
removed.
4. Remove the old sensor filter or slide/pull out the old
sensor(s).
5. Insert a new sensor filter or sensor(s).
Note
Detectors that are configured for 1, 2, or 3 gases may contain a
dummy sensor in one of the four sensor locations.
6. Re-assemble the detector. When assembling the
detector, be aware of the following:
•Ensure the charging contact pins inside the rear
shell are aligned with the corresponding hole
before inserting the rear shell in place. If the
contact pins are bent, the battery will not charge
properly.

GasAlertMicroClip
Quick Reference Guide
Specifications
•Verify that the battery PCB is in the same position
as when the rear shell was removed (refer back to
step #2). Instrument dimensions: 10.75 x 6.00 x 2.73 cm
(4.2 x 2.4 x 1.1 in.)
Weight: 160 g (5.7 oz.)
•Visually inspect the battery to ensure that it has
not been damaged before replacing the rear shell. Operating temperature: -20°C to +58°C (-4°F to +136°F)
+50°C to +58°C is certified by CSA-International on the
combustible sensor with ±5% accuracy
•Ensure the rib on the interior of the rear shell fits
between the battery pack and the PCB (as shown
in the following figure). Storage temperature: -40°C to +50°C (-40°F to +122°F)
Operating humidity: 0% to 95% relative humidity
(non-condensing)
Alarm setpoints: May vary by region and are user-settable
Detection range:
H2S: 0 – 100 ppm (1 / 0.1 ppm increments)
H2S: 0 – 200 ppm (1 ppm increments)
CO: 0 – 500 ppm (1 ppm increments)
CO: 0 – 1000 ppm (1 ppm increments)
O2: 0 – 30.0% vol. (0.1% vol. increments)
Combustible (LEL): 0 – 100% (1% LEL increments) or
0 – 5.0% v/v methane
Sensor type:
H2S, CO, O2: Single plug-in electrochemical cell
Combustibles: Plug-in catalytic bead
14

GasAlertMicroClip
Specifications
15
O2measuring principle: Capillary controlled concentration
sensor
Alarm conditions: TWA alarm, STEL alarm, low alarm, high
alarm, multi-gas alarm, over range (OL) alarm, low battery
alarm, confidence beep, automatic shutdown alarm
Audible alarm: 95 dB+ at 30 cm (100 dB typical) variable
pulsed beeper
Visual alarm: Red light-emitting diodes (LED)
Display: Alphanumeric liquid crystal display (LCD)
Backlight: Activates when the pushbutton is pressed and
deactivates after 5 seconds. Also activates during an alarm
condition.
Self-test: Initiated at activation
Calibration: Automatic zero and automatic span
Oxygen sensor: Automatic span on activation (selectable)
User field options: Confidence beep, latching alarms,
enable/disable safe display mode, oxygen measurement,
combustible sensor measurement, sensor disable, set
calibration interval, force calibration, calibration lock, force
bump, bump interval, bump due lock, stealth mode, IR stealth
mode, language selection, enable/disable automatic oxygen
calibration, enable/disable auto zero at start-up, set alarm
setpoints, set span concentration values, and set STEL
calculation period.
Battery operating time:
1 rechargeable lithium polymer: 10-12 hours (typical)
Year of manufacture: The detector’s year of manufacture is
determined from the serial number. The second and third
number after the first letter determines the year of manufacture.
E.g., H304-Y000001 = 2004 year of manufacture
Approved batteries:
North America
Approved batteries for product (standards EN50020, UL913,
C22.2 No. 157)
Rechargeable battery Temperature code
Lithium polymer T4
Battery charger: GasAlertMicroClip charging adapter
First-time charge: 2-3 hours
Normal charge: 2-3 hours
Warranty: 2 years including sensors
Approvals:
Approved by CSA to both U.S. and Canadian Standards
CAN/CSA C22.2 No. 157 and C22.2 152
ANS/UL – 913 and ANSI/ISA – S12.13 Part 1
CSA Class I, Division 1, Group A, B, C, and D
ATEX CE 0539 gII 1 G EEx ia IIC T4
KEMA 06ATEX0056
IECEx Ex ia IIC T4

GasAlertMicroClip
Quick Reference Guide
16
This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to Part 15 of the
FCC Rules and ICES-003 Canadian EMI requirements. These
limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if
not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of
the following measures:
•Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and
receiver.
•Connect the equipment into an outlet on a circuit
different from that to which the receiver is connected.
•Consult the dealer or an experienced radio/TV technician
for help.

D5867/2 English
iERP: 124030
© BW Technologies 2006, all rights reserved. Printed in Canada.
All product names are trademarks of their respective companies.
Quick Reference Guide
GasAlertMicroClip
H2S, CO, O2, Combustibles
1, 2, 3, and 4-Gas Detector
Non Printing line
11.500"
4.000"

DAILY BUMP TEST
iERP: 125538
BW recommends to “bump test” the
sensor(s), before each day’s use to confirm
their ability to respond to gas by expos-
ing the detector to a gas concentration that
exceeds the alarm setpoints. Manually verify
that the audible and visual alarms are
activated.
If any sensor fails the bump test, contact
your local BW service department immedi-
ately.
aIMPORTANT NOTE
