ByoPlanet MS-715 Series User manual

CS-2000 Cart Series
MS-700 Compact Series
For Indoor and Outdoor
Commercial Use
Operator’s
Manual
2–13
For service and support,
contact Service Tech Team
www.servicetechteam.com
EN
ByoPlanet®Compact & Cart
Electrostatic Spray Systems
Electrostatic Sprayer MS-715 & CS-2015 Series
Electrostatic Sprayer MS-740 & CS-2040 Series

3
4
5
5
5
5
6
6
6
7
9
9
9
SAFETY NOTICES
IMPORTANT SAFETY PRECAUTIONS
SYSTEM COMPONENTS
SPECIFICATIONS
TROUBLESHOOTING
EQUIPMENT WARRANTY
Table of Contents
Warnings
Safety Decal
Protective Gear
Power Connection
Grounding Instructions
Extension Cord
Shock/Electrical Hazard
General Safety
Chemicals
ByoPlanet® MS-715 & MS- 740 Compact Series
Base Unit ByoPlanet® ES-150 Electrostatic
Sprayer Nozzle

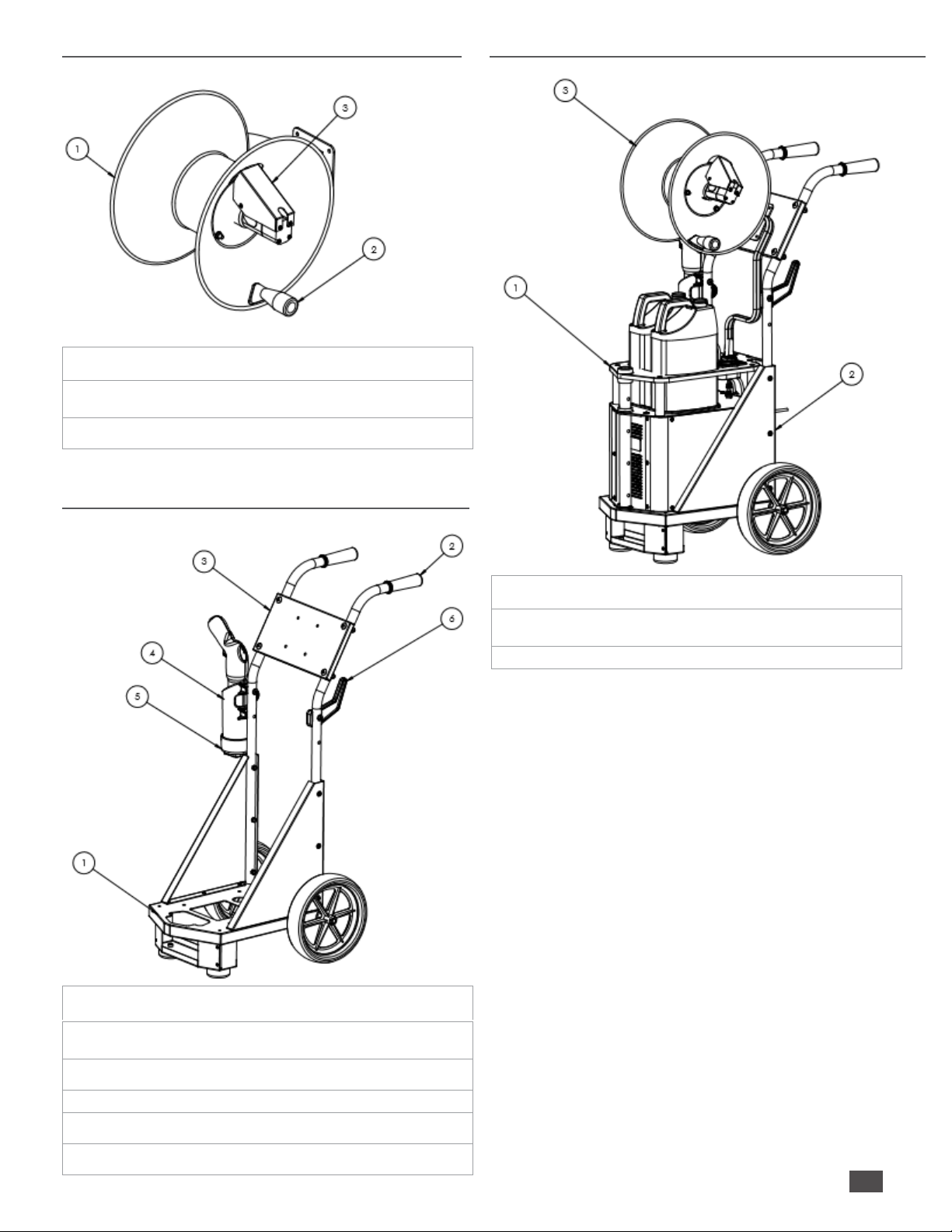

ByoPlanet® CS-2015 & CS-2040 Cart Series
OPERATING INSTRUCTIONS
Preparing the Spray Area
Unit Preparation/Setup
Sprayer Operation During Use
Changing ByoPlanet-Approved Products
After Use and Storage

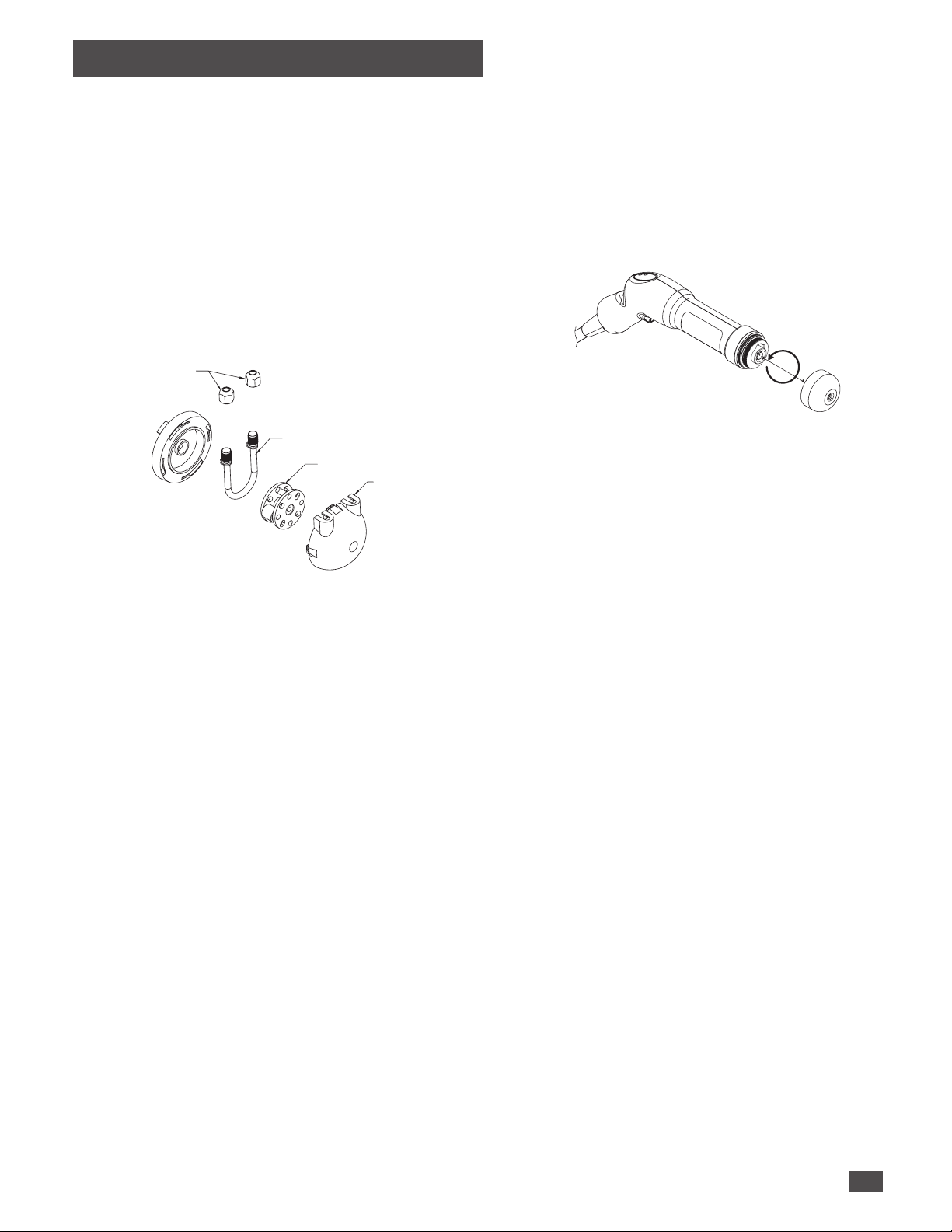

MAINTENANCE
Sprayer Body
Peristaltic Pump
Nozzle
8
9
10
12
13
7
7
10
10
9
11
EN | 2

SAFETY NOTICES
This manual contains information that is important for you to know and understand
before operating the ByoPlanet® Electrostatic Spray System. This information
relates to protecting your safety and ensures product reliability and performance. It
is the owner’s responsibility to ensure that all who operate this equipment read this
manual.
Warnings
To help you recognize this information we use the warning symbols below. Please
read the manual carefully, and pay special attention to the symbols and warning
labels. Warning labels indicate a potentially hazardous situation which, if not
avoided, could result in death or serious injury.
WARNINGS
•
•
Read and fully understand the ByoPlanet® Electrostatic Spray System
Operator’s Manual prior to using the electrostatic sprayer.
Read and fully understand ByoPlanet-approved product labels prior to
using any liquid product with the ByoPlanet® Electrostatic Spray
System.
•
•
•
ByoPlanet® Electrostatic Spray Systems are for both indoor and
outdoor commercial use.
ByoPlanet® Electrostatic Spray Systems should never be used in a
hazardous environment.
ByoPlanet® Electrostatic Spray Systems should never be used in an
area containing volatile chemicals. Nor should they be used in any area
containing volatile or explosive levels of gas, vapor or particulates.
•ByoPlanet® Electrostatic Spray Systems should never be used by
untrained personnel.
WARNINGS
PRESSURIZED EQUIPMENT HAZARD
Fluid from equipment that leaks or ruptures from a component can splash in the
eyes or on skin, causing serious injury. In order to help prevent a leak or rupture:
•Check hoses, tubes and couplings daily.
Replace worn or damaged parts
immediately.
WARNINGS
PLASTIC PARTS CLEANING SOLVENT HAZARD
Many solvents can degrade plastic parts and cause them to fail, which can lead to
serious injury or property damage. In order to help prevent against degradation:
•
•
Use only compatible water-based solvents to clean
plastic structural pressure containing parts.
See technical data in this and all other equipment
instruction manuals. Read fluid and solvent
manufacturer’s Safety Data Sheets (SDS) and
recommendations prior to use.
WARNINGS
FIRE, EXPLOSION AND ELECTRIC SHOCK HAZARD
Flammable fumes, such as solvent and paint fumes, in work areas can ignite
or explode. To help prevent fire, explosion and electric shock:
•Electrostatic equipment must be used
only by trained, qualified personnel who understand
the requirements of this manual.
•Stop operation immediately if static sparking occurs
or you feel shock. Do not use equipment until you
identify and correct the problem.
•
•
Use and clean equipment only in well- ventilated
area.
Never spray a flammable chemical
(with a flashpoint less than 140°F [60°C]).
•Do not plug or unplug power cords or
turn lights on or off when flammable
fumes are present.
•Keep spray area free of debris, including solvents,
rags, gasoline or any flammable chemicals.
•Keep a working fire extinguisher in the work area.
EN | 3

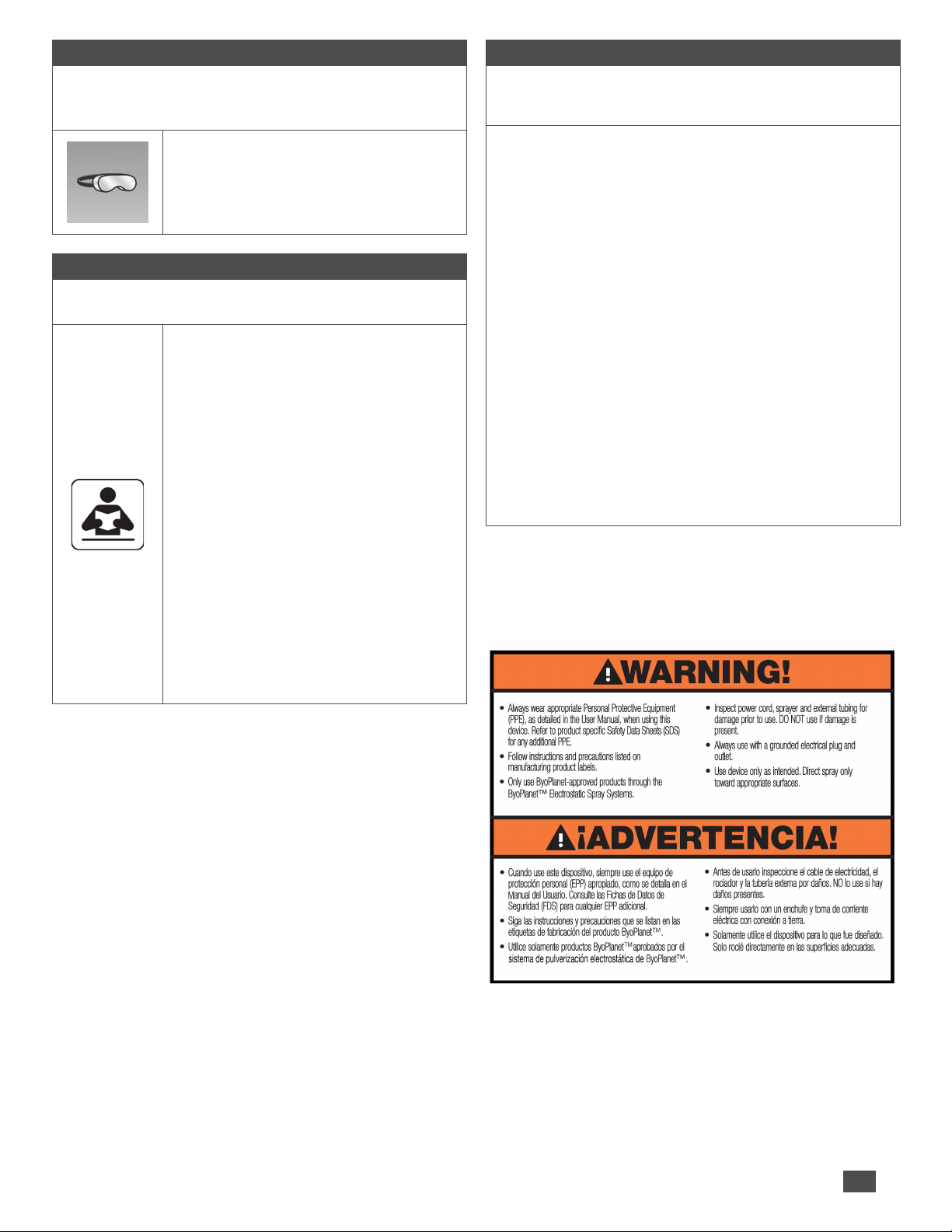

Safety Decal
This decal is located on the top-most deck surface forward of the
bottle storage location.
WARNINGS
EQUIPMENT MISUSE HAZARD
Misuse can cause death or serious injury
•Do not operate the unit when fatigued or under the
influence of drugs or alcohol.
•
•
Use fluids and solvents that are compatible with
equipment wetted parts. See technical data in all
equipment manuals. Read fluid and solvent
manufacturer’s warnings. For complete information
about your material, request SDS from distributor or
retailer.
Do not leave the work area while equipment is
energized.
•Turn off all equipment when not in use.
•Check equipment daily. Repair or replace worn or
damaged parts immediately with genuine replacement
parts from trusted ByoPlanet partners only.
•Do not alter or modify equipment. Alterations or
modifications void your ByoPlanet® Electrostatic Spray
Systems warranty and agency approvals, and create
safety hazards.
•Route hoses and power cords away from traffic areas,
sharp edges, moving parts and hot surfaces.
WARNINGS
CHEMICAL USE HAZARD
Each chemical, such as a disinfectant, has a unique set of hazards and needs to be
handled properly to ensure worker safety.
•
•
The ByoPlanet® Electrostatic Spray Systems can only be used with products
that have been approved by ByoPlanet. Never spray any liquid product that is
not a ByoPlanet-approved product. The ByoPlanet® Electrostatic Spray
Systems warranty is voided if the ByoPlanet® Electrostatic Spray Systems are
used with products that are not approved by ByoPlanet. Be aware that many
chemical liquids can be harmful if they are not used properly.
Read and understand the ByoPlanet-approved product’s SDS and label prior
to use.
•Be aware of first-aid procedures related to the product in use.
•It is a violation of Federal law to use a chemical in a manner inconsistent
with its label.
•Use personal protective equipment as detailed by the ByoPlanet-approved
product’s SDS.
•For use with non-flammable, non-combustible and non-volatile fluids only.
Never spray a flammable chemical (flash point less than 140°F [60°C]) .
•Ensure the area being sprayed has proper ventilation.
•Store all chemicals in original containers in a cool, dry place, away from heat
and open flames.
•To dispose of ByoPlanet-approved products refer to product labels.
WARNINGS
PERSONAL PROTECTIVE EQUIPMENT
Wear appropriate protective equipment when in the work area to help prevent
serious injury.
•Recommend use of fully enclosed eyewear
protections, such as goggles, when using this device.
•Refer to product specific Safety Data Sheets (SDS)
for any additional Personal Protective Equipment
(PPE).
EN |4

Protective Gear
Personal Protective Equipment (PPE) must comply with the American National
Standards Institute’s ANSI Z87.1-1989 standard if purchased after July 5, 1994,
or ANSI Z87.1-1968 or with the standard of the country in use.
•Eye and face PPE shall be distinctly marked to facilitate identification of the
manufacturer. (1910.133[a][4]).
•The following minimum requirements must be met by all protective devices.
Protectors shall:
-Provide adequate protection against the particular hazards for which they
are designed
-Be of safe design and construction for the work to be performed
-Be reasonably comfortable when worn under the designated conditions
-Fit snugly and not unduly interfere with the movements
of the wearer
-Be durable
-Be capable of being disinfected
-Be easily cleanable
-Be distinctly marked to facilitate identification only of the manufacturer
RECOMMEND USE OF FULLY ENCLOSED EYEWEAR
PROTECTIONS, SUCH AS GOGGLES, WHEN USING THIS DEVICE.
ALWAYS USE APPROPRIATE PPE.
IMPORTANT SAFETY PRECAUTIONS
When using an electrical appliance, it is important to understand that some circuits
are electrically live, even when the power switch is in the off position. Basic safety
precautions should always be followed to reduce the risk of burns, fire, electrical
shock, injury and/or death.

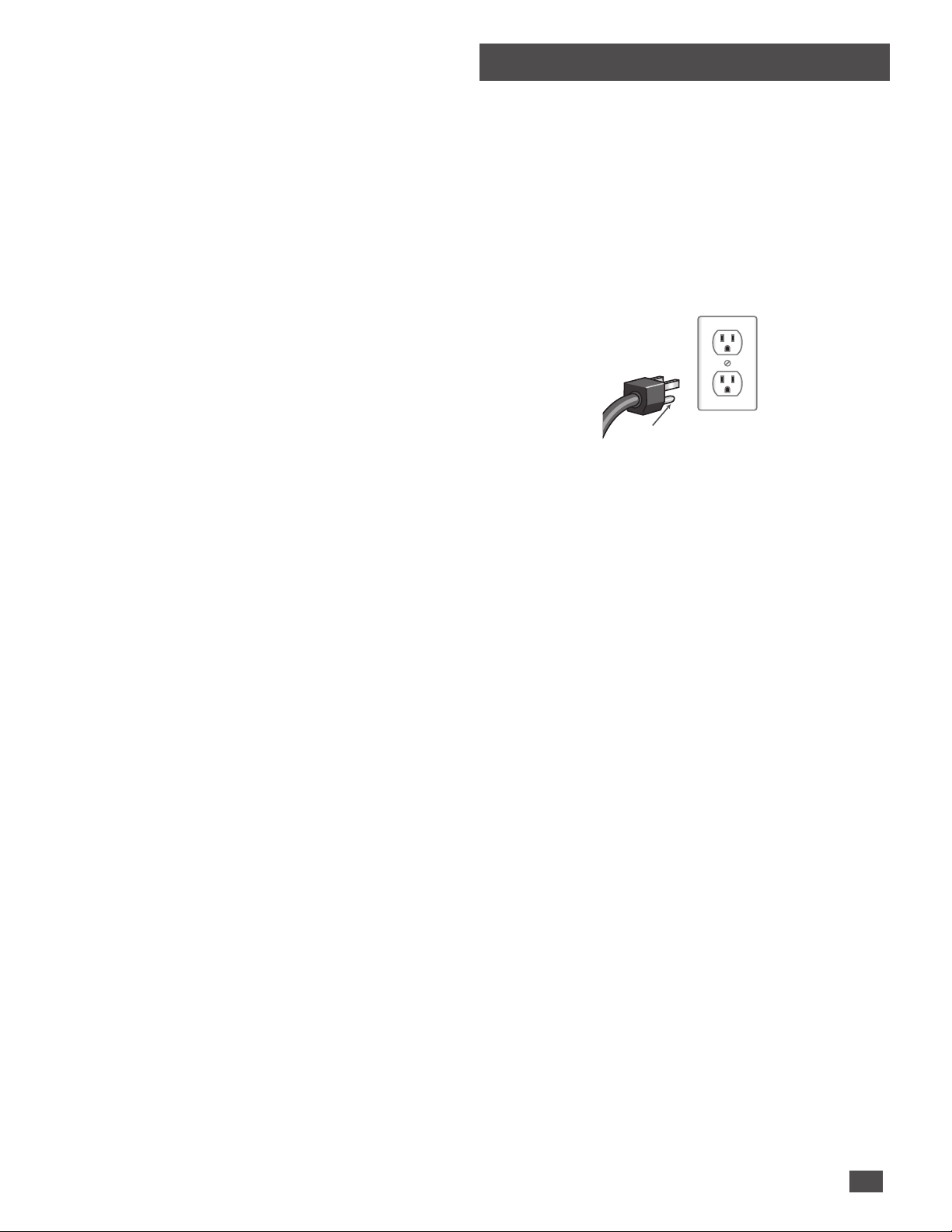

Power Connection
Our power plug must be used with a three-pronged, grounded outlet, rated for no
less than 15A service. Always verify before product use. This appliance is for use
on a nominal 120V/60Hz circuit with a verified ground plug. Check with a qualified
electrician to ensure you have the correct electrical service and grounding.
COVER OF
GROUNDING OUTLET BO
GROUNDED
X*
PIN
*120-volt grounded connectors shown. 220/240-volt grounded connectors will differ in shape.
Grounding Instructions
This appliance must be grounded. In the event of malfunction
or breakdown, grounding provides a path of least resistance for an electric current
to reduce the risk of electric shock. This appliance is equipped with a cord having
an equipment-grounding conductor and a grounding plug. The plug must be
plugged into an appropriate outlet that is properly installed and grounded in
accordance with all local codes and ordinances. Never use an adapter with this
product.
DANGER: Improper connection of the equipment-grounding conductor can result in
a risk of electric shock. The conductor with insulation having an outer surface that is
green, with or without yellow stripes, is the equipment-grounding conductor. If repair or
replacement of the cord or plug is necessary, do not connect the equipment-grounding
conductor to a live terminal. Check with a qualified electrician or serviceman if the
grounding instructions are not completely understood or if in doubt as to whether the
appliance is properly grounded. Do not modify the plug provided with the appliance —
if it will not fit the outlet, have a proper outlet installed by a qualified electrician. Never
use an adapter with this product.
Extension Cord
ByoPlanet provides a 25-foot (7.6m) extension cord with each Electrostatic Spray
System and strongly recommends that you use this approved extension cord.
Make sure your extension cord is in good condition. Inspect cords periodically and
replace if damaged. If an alternate extension cord is used, be aware that an
undersized extension cord will cause a drop of in-line voltage, which
could result in a loss of power, damage to the product and/or overheating. Always
use a sufficiently rated extension cord.
IMPORTANT: ByoPlanet recommends using a 12/3 gauge extension cord, no
longer than 100 feet (30.5m). Additionally, ByoPlanet also recommends the use of
a GFCI (ground fault circuit interrupter) power outlet or extension cord. When
equipped on the extension cord, always position the GFCI toward the power outlet.
EN | 5

17. Do not pull or carry the sprayer by the power cord.
Shock/Electrical Hazard
As with most electrical appliances, electrical parts are electrically live
even when the switch is off. To reduce the risk of burns, fire, electric
shock or injury:
1. Use this unit only for its intended use, as described in this manual.
2. Do not use while bathing.
3. Do not place or store unit where it can fall or be pulled into water or other
liquid.
4. If unit falls into water, unplug immediately. Do not reach into water to
retrieve.
5. Never operate this unit if it has been dropped, damaged or is working
improperly. Contact an authorized ByoPlanet technician.
6. Keep the cord away from heated surfaces.
7. Never block the air openings of the unit or place it on a soft surface (bed or
couch), where the air openings may become blocked.
8. Never drop or insert any object into any opening.
9. Do not use with a damaged or broken power cord.
10. Never store at a temperature above 140°F (60°C).
11. This unit may be warm when in use. Do not let heated surface touch bare
skin.
General Safety
Lack of attention to safety can result in reduced efficiency, accidents,
personal injury or death. Watch for safety hazards and correct
deficiencies promptly. Use the following safety precautions as a guide
when using this machine.
1. Read the operator’s manual. Failure to do so is considered misuse of the
equipment.
2. Use the ByoPlanet® Electrostatic Spray System unit only for its intended use,
as described in this manual.
3. Before operating equipment, become familiar with all caution and warning
decals affixed to the equipment.
4. Do not use the ByoPlanet® Electrostatic Spray Systems in a hazardous
location.
5. Only trained personnel familiar with the ByoPlanet® Electrostatic Spray
System and ByoPlanet-approved products should be allowed to operate.
6. Do not allow personnel to operate the sprayer without proper instruction or
under the influence of alcohol or drugs.
7. Use an extension cord meeting or exceeding the specification detailed in the
Extension Cord section.
8. Store sprayer in a cool, dry place. Do not expose to extreme temperatures.
9. Purge liquid line before storing the unit.
10. Be aware, even when the sprayer is off, power is still supplied to the unit
when plugged into an electrical outlet.
11. Never hang unit from cord.
12.
13.
A sprayer should never be left unattended when plugged in.
A resettable breaker is provided on the rear of the unit.
It will trip if the unit experiences an electrical short.
14. Always turn off sprayer after each application
and before unplugging.
15.
16.
Always unplug unit from outlet when not in use or when leaving it unattended.
Never unplug by pulling the cord or with wet hands.
Always unplug by grasping the plug.
18. Do not crimp the cord or strain it around sharp edges, as doing so
might damage the cord.
19. Do not use the ByoPlanet® Electrostatic Spray System with a
damaged power cord.
20. Always thoroughly inspect product before usage.
21. For questions or concerns about the ByoPlanet® Electrostatic Spray
Systems, contact Service Tech Team at www.servicetechteam.com.
Chemicals
The ByoPlanet® Electrostatic Spray Systems can only be used with products
that have been approved by ByoPlanet. The ByoPlanet® Electrostatic Spray
Systems warranty is voided if the ByoPlanet® Electrostatic Spray System is
used with products that are not approved by ByoPlanet. Be aware that many
chemical liquids can be harmful if they are not used properly.
1. Always use appropriate personal protective equipment (PPE) when operating
the ByoPlanet® Electrostatic Spray System. Refer to product SDS for proper
PPE.
2.
3.
Follow the liquid product label and SDS for proper storing, handling and
disposing of any liquid products used in the ByoPlanet® Electrostatic Spray
Systems.
Know the length of time required by each liquid product application before
allowing people and pets to return to the sprayed area.
4. Tampering with ByoPlanet-approved products, product containers and the
ByoPlanet® Electrostatic Spray Systems in any form will void the customer
warranty.
5. To dispose of ByoPlanet-approved products refer to product labels.
6. If liquid products come into contact with your skin or eyes, please refer to
product label and SDS.
7. Never aim the sprayer at yourself or another person.
IMPORTANT: Safety data sheets (SDS) are available for all liquid products that
have been approved for use in the ByoPlanet® Electrostatic Spray Systems.
These SDSs will inform you of any hazards and precautions of which you should
be aware. All employees that use the product must be aware of and have access
to the SDS. They should also be trained for and aware of their safety while
working with liquid products. It is the responsibility of the owner of the equipment
to obtain an SDS for each chemical used.
EN | 6

EN | 7
Nozzle
The nozzle assembly is located at the end of the sprayer. It is composed of a
spring-loaded contact, external O-ring, nozzle cover, liquid tip and electrode.
These are the only user-serviceable components. To access the nozzle
components, unscrew the nozzle cover counterclockwise by hand. It is very
important to follow all maintenance and cleaning procedures to ensure that the
sprayer will function optimally. After servicing the nozzle, it is extremely important
to return the nozzle to its seat position and avoid over-tightening.
NOTE: As the sprayer becomes dirty from typical use, a 70% isopropyl alcohol
cleaner that is manually applied is recommended on the outside surfaces. This
discourages dripping from the nozzle.
1Air Compressor Atomizes and propels the liquid.
Includes built-in auto-resetting
thermal safeguard against
compressor overheating.
2Non-Marking Wheels Large wheels, for easy transport and
maneuverability, will not leave scu
marks. Do not require inflation.
3Sprayer Connect Line Connect line consists of three
components: electrical line, liquid line
and air line. The connect line connects
the sprayer to the base unit.
4Sprayer Holster Holds the sprayer.
5Handle Adjust
Buttons
Adjusts handle height.
(Squeeze to adjust.)
6Removable Drip Cup Collects any dripping from the
sprayer.
7Adjustable Handle Handle position is raised, lowered
and rotated by the two button snaps.
8Peristaltic Pump Provides liquid up to sprayer.
9Circuit Breaker User resettable circuit breaker and
will only trip if a short occurs in the
base unit.
10 Main Power
Switch Powers system to a ready state.
11 1-Gallon Chemical
Containers
Chemical containers
(not included with equipment).
12 Extension Cord
Holder
Located at the rear of the unit for
extension cord storage.
13 Cord Management
Hook Stores or hangs the extension cord.
14 Frame ABS and glass-filled nylon frame
and hardware design for long-term
durability.
15 Pump Purge
Switch
Purges product from liquid line.
(Press to purge.)
16 Sprayer Electrical
Disconnect Electrical connection for sprayer.
17 Reservoir A reservoir to ensure a consistent
liquid flow.
ByoPlanet® ES-150 Electrostatic Sprayer
1
5
2
4
3
1Trigger Button 1-click functionality /
operates the sprayer/device.
2Instrument Panel Indicates the power, sprayer
and electrostatics are on.
3Nozzle Cover Located on the front of the sprayer.
4Sprayer Grip Handle positioned for ambidextrous
use.
5Sprayer Connect Connect line consists of three
components: electrical line, liquid line
and air line.
SYSTEM COMPONENTS
The patented ByoPlanet® Electrostatic Spray Systems were engineered with
the end-user in mind. It is durable, highly mobile and incredibly effective for
electrostatic delivery.
ByoPlanet® MS-715 & MS-740 Compact Series Base Unit

ByoPlanet® CS-2015 & CS-2040 Cart Series Reel
1
Reel Body
Used for hose
management .
2
Reel Handle Used to easily collect the
hose onto the reel.
3
Connection Cover
Protects liquid, air and electrical
connections.
ByoPlanet® CS-2015 & CS-2040 Cart Assembly
1
Cart Base
Base unit is mounted to this
plate
.
2
Grip
Two handle grips.
3
Reel Mounting
Plate
Reel is mounted to this plate.
4
Sprayer Holster
Holds the sprayer.
5
Removable Drip
Cup
Collects any dripping from the
sprayer.
6
Extension
Cord Hook
Holds the extension cord when not in
use.
ByoPlanet® CS-2015 & CS-2040 Cart Series Base Unit
1
Base Unit
Contains pump, controls,
etc.
2
Cart Provides unit mobility.
3
Reel
Retracts and stores hose.
**CS-2015 Base Unit Comprised of MS-715 & ES-150 Series Equipment (115V)
**CS-2040 Base Unit Comprised of MS-740 & ES-150 Series Equipment (240V)
EN | 8

Changing ByoPlanet-Approved Products
1. Stop spraying the ByoPlanet® Electrostatic Spray System.
2.
3.
4.
5.
6.
7.
Disconnect the bottle connection from the ByoPlanet-approved product that is
to be changed and remove from the sprayer. Cap the removed product if it is
being stored.
Purging the ByoPlanet® Electrostatic Spray System: Depress the purge button
to spray. Spray into an inconspicuous corner, container or drain. Spray the
ByoPlanet® Electrostatic Spray System for about 20 seconds to purge the
system.
Choose the appropriate ByoPlanet-approved product for cleaning, sanitizing
or disinfecting.
Mount desired ByoPlanet-approved product on ByoPlanet® Electrostatic
Spray System base. Ensure that the bottles are positioned with the opening
facing up and the opening facing the dispensing tubes.
Unscrew the lid on the ByoPlanet-approved products of your choice and
connect the ByoPlanet® Electrostatic Spray System dispensing cap to the
bottle. Be sure the cap is screwed all the way down; do not over-tighten.
Priming the ByoPlanet® Electrostatic Spray System: Depress the trigger
button. Spray into an inconspicuous corner, container or drain. Spray the
ByoPlanet® Electrostatic Spray System for about 20 seconds to generate a
steady flow of solution.
After Use and Storage
1.
2.
Stop spraying the ByoPlanet® Electrostatic Spray System
Disconnect the bottle connection from the ByoPlanet-approved product that
is to be changed and remove from the sprayer. Cap the removed product if
it is being stored.
3. Emptying drip cup holster (if necessary): Rotate the drip cup 90 degrees,
making sure to hold it level to prevent spillage. Remove and empty the drip
cup. Reinstall the empty drip cup by rotating it 90 degrees in the opposite
direction until it is snug.
4. Purging the ByoPlanet® Electrostatic Spray System: Depress the purge
button to spray. Spray into an inconspicuous corner, container or drain.
Spray the ByoPlanet® Electrostatic Spray System for about 20 seconds to
purge the system.
5.
6.
Locate the On/Off switch on the base unit. Push the base unit power button
to the “Off” position. Blue indicator light on the instrument panel and base
of the unit should no longer be illuminated.
Unplug the ByoPlanet® Electrostatic Spray System from the grounded wall
socket.
7. Wrap the extension cord on the cord holder on the ByoPlanet® Electrostatic
Spray System base unit.
8. Store in a safe, dry place.
1. Clean gross filth by using standard manual cleaning protocols.
2. Close the room to the general public for cleaning. Place signs or warning
indicators on doors that indicate no one should enter the room.
3. Power off any sensitive electrical devices but do not unplug them.
Unit Preparation/Setup
1. Choose the appropriate Byoplanet-approved product for cleaning, sanitizing
or disinfecting.
2.
3.
Mount desired ByoPlanet-approved product on the ByoPlanet® Electrostatic
Spray System base. Ensure that the bottles are positioned with the opening
facing up and the opening facing the dispensing tubes.
Unscrew the lid on the ByoPlanet-approved product of your choice and
connect the ByoPlanet® Electrostatic Spray System's dispensing cap to the
bottle. Be sure the cap is screwed all the way down; do not over-tighten.
4. Unwrap electrical cord completely and plug the ByoPlanet® Electrostatic
Spray System into a grounded socket.
5. Put on appropriate personal protective equipment. See section on personal
protective equipment on page 5.
6. Locate the On/Off switch on the base unit. Push the base unit power button to
the “On” position. A blue light will illuminate on both the sprayer instrument
panel and unit power switch.
7. Remove the sprayer from the holster. A blue power indicator light should be
illuminated on the sprayer.
8. The system is now ready for use.
9. Priming the ByoPlanet® Electrostatic Spray System: Depress the trigger
button to spray. Spray into an inconspicuous corner, container or drain. Spray
the ByoPlanet® Electrostatic Spray System for about 20 seconds to generate
a steady flow of solution.
10. When spraying, a second blue indicator light will illuminate on the sprayer
instrument panel when the trigger is depressed.
NOTE: Sprayer will automatically stay on until trigger is
depressed an additional time.
NOTE: Unit will not operate properly at 40°F (4.5°C) or less.
Sprayer Operation During Use
1. Position ByoPlanet® Electrostatic Spray System in a rear corner of the
area.
2. Direct the nozzle at the desired surface.
3. Begin to spray. Press the sprayer trigger button once to initiate spraying.
Press once to stop flow of the sprayer.
4.
5.
Follow a continuous path around the area working from high to low
areas, moving the sprayer in a sweeping motion until surfaces are
thoroughly wet.
After spraying, keep the area closed to the public,
based on product SDSs.
6. Remove the closed sign from the door once the reentry time has expired.
OPERATING INSTRUCTIONS
Preparing the Spray Area
EN | 9

Nozzle
To ensure trouble-free operation of your unit, it is recommended that the
operator rinse the nozzle out with clean water before final storage at the end of
each day. By cleaning your sprayer’s nozzle after each usage, you will avoid the
long-term chemical buildup that eventually causes clogs, poor spray patterns
and a shortened life of the nozzle components. In addition to rinsing with clean
water after each use, the nozzle should periodically be disassembled and
cleaned. Regular maintenance should be performed. Nozzle maintenance
schedule will vary, depending on how often the sprayer is used and adherence
to pre- and post-spray maintenance guidelines.
It is recommended that you thoroughly read the service outline below before
performing any regular nozzle maintenance.
To Clean/Inspect the Nozzle Assembly
1. Unscrew the cap from the nozzle base. Clean any debris from or around any
of the interior surfaces with warm soapy water.
2. Inspect for any damage to the liquid tip. If the spray pattern was noted to be
inconsistent or nontypical of a healthy symmetrical spray, remove/replace the
liquid tip with an appropriate 7/16” (12 mm) socket wrench.
3. Inspect the nozzle electrode for any signs of electrical arching, burn and/or
corrosion. Gently push down on the spring-loaded contact to verify a smooth
spring return. If any issues are noted, remove/replace immediately. This is
done by gently pulling
on the spring-loaded contact with a pair of pliers. Otherwise, service the
spring-loaded contact by applying a generous amount of dielectric grease,
available at any local automotive/hardware store.
4. Be sure to also thoroughly clean all interior surfaces of the nozzle cover,
including the main orifice. Never use a wire brush, file or sandpaper to clean
any surface or orifice.
Important: The nozzle cover should be hand-tightened. Never use
pliers or other tools to tighten it, as this may cause damage. Removal of
the nozzle electrode is not necessary for cleaning.
Tube Leader Assembly
Carriage Assembly
Cover
Tube Nuts
1. Disconnect the clear tubing inlet and outlet by twisting the Tube Nuts
counterclockwise until both tubes have separated.
2. Rotate the Cover counterclockwise and pull it free from the unit.
3. Remove the Carriage Assembly from the Cover.
4. Remove and discard the old Tube Leader Assembly.
5. Grease the new Tube Leader Assembly with the supplied grease.
6. Replace the Tube Leader Assembly with a new one and reinstall the Carriage
and Cover in reverse order being careful not to damage the Tube Leader
Assembly.
MAINTENANCE
In order for the ByoPlanet® Electrostatic Spray Systems to remain functional,
the equipment should be cleaned on a regular basis. In addition to general
cleaning of the unit, two user-serviceable areas — peristaltic pump and sprayer
nozzle — should be maintained and serviced regularly.
Sprayer Body
The sprayer body has no serviceable parts inside. Do not open the unit shell, as
doing so will void the warranty on the sprayer. If you need to have your sprayer
serviced, contact Service Tech Team at www.servicetechteam.com.
Peristaltic Pump
EN | 10

Volts ~115V
Running AMPS 6.0
Startup AMPS 14.6
Frequency 60 Hz
Standard Hose Length 7 ft. (2.13 m)
Dimensions 25 3/8 in. (64 cm) H x 10 1/16 in.
(26 cm) W x 17 1/8 in. (43 cm) L
Air Line Pressure 35 psi (2.4 Bar)
Weight – Empty 43 lbs (20 kg)
Weight – Full 59 lbs (27 kg)
Shipping Weight 52 lbs (24 kg)
Flow Rate 4.3 oz./min (130ml/min)
SPECIFICATIONS - MS-715 (115V) Model
Volts ~115V
Running AMPS 6.0
Startup AMPS 14.6
Frequency 60 Hz
Standard Hose Length 30 ft. (9.14 m)
Dimensions 45 3/4 in. (117 cm) H x 19 1/4 in.
(49 cm) W x 32 1/2in. (83 cm) L
Air Line Pressure 35 psi (2.4 Bar)
Weight – Empty 93 lbs (43 kg)
Weight – Full 109 lbs (50 kg)
Shipping Weight 144 lbs (66 kg)
Flow Rate 4.3 oz./min (130ml/min)
SPECIFICATIONS - CS-2015 (115V) Model
Volts ~240V
Running AMPS 3.0
Startup AMPS 7.0
Frequency 50 Hz
Standard Hose Length 7 ft. (2.13 m)
Dimensions 29.25 in. (0.74m) H x 10.00 in.
(0.25m) W x 16.00 in. (0.40m) L
Air Line Pressure 35 psi (2.4 Bar)
Weight – Empty 43 lbs (20 kg)
Weight – Full 59 lbs (27 kg)
Shipping Weight 52 lbs (24 kg)
Flow Rate 4.3 oz./min (130ml/min)
Volts ~240V
Running AMPS 3.0
Startup AMPS 7.0
Frequency 50 Hz
Standard Hose Length 30 ft. (9.14m)
Dimensions 45.75 in. (1.16 m) H x 19.25 in. (0.49m)
W x 32.50 in. (0.82m) L
Air Line Pressure 35 psi (2.4 Bar)
Weight – Empty 93 lbs (43 kg)
Weight – Full 109 lbs (50 kg)
Shipping Weight 144 lbs (66 kg)
Flow Rate 4.3 oz./min (130ml/min)
SPECIFICATIONS - MS-740 (240V) Model SPECIFICATIONS - CS-2040 (240V) Model
ByoPlanet® CS-2000 Cart Series
CS-2015 Cart Series (115V Model)
CS-2040 Cart Series (240V Model)
ByoPlanet® MS-700 Compact Series
MS-715 Compact Series (115V Model)
MS-740 Compact Series (240V Model)
EN | 11

Excessive nozzle dripping
Potential Issue Corrective Action
Damage to nozzle assembly
Inspect for damage and faulty parts. If
present, contact the ByoPlanet®
Electrostatic Spray System support
center service department.
Damage to peristaltic pump
tubing
Replace pump tubing.
Dirty exterior sprayer surfaces
Clean exterior surfaces with
solvent (70–90% alcohol).
System will not turn on or has shut o suddenly
Potential Issue Corrective Action
No power
Verify the unit is plugged in and
on a known working power
outlet.
System is not switched on
Depress power switch to
illuminate.
Compressor shuts off suddenly or
won’t run while depressing the
sprayer trigger
This is a sign that the unit’s circuit
breaker has tripped
or that the compressor has
overheated. The user should look to
see if the white button (within its clear
moisture cover) has popped out. If it
has, the user should power off the
machine, look for any physical objects
that could be loose or stuck in any of
the ventilation openings and clear/
dislodge. Press the button in and then
attempt to power the unit back on. If
the problem persists,
the user should let the unit sit for 30
minutes to see if it’s an overheating
issue. If the unit still refuses to restart
after a cool down, then the user should
contact technical service.
Compressor has overheated
Allow the unit to sit for a
minimum of 30 minutes with
the power off.
Unit stalls at initial trigger
This may be a sign of a cold start.
Warm unit up by pressing the trigger
and letting unit run for up to two
minutes. Trigger off, then on. Unit
should run normally.
TROUBLESHOOTING
NOTE: Do NOT use a chemical in the unit that is not a ByoPlanet-approved
product. If you encounter the issues listed below, use the suggested
troubleshooting methods. If you encounter an issue that is not addressed in this
manual, contact Service Tech Team at www.servicetechteam.com.
No spray, erratic spray or weak spray
Potential Issue Corrective Action
Out of liquid solution
Inspect product container for
solution level and replace if empty.
Blockage in the nozzle or
liquid tip
Remove the nozzle cover and/or
liquid tip to inspect for blockages.
Spray appears weak
The user should power the unit off,
unplug from the wall and seek out a
different electrical outlet to try. If
unavailable, they should look to see if
other devices are running on the same
electrical circuit. Power those off if
necessary.
This could be a result of an underrated
extension cord. If an extension cord is
being used, remove and test the unit
while using only the connected power
cord. See the extension cord section for
more information.
Damage to liquid hose or
peristaltic pump tubing
Inspect the liquid line for kinks and/or
damage.
Air pressure seems low or weak
Potential Issue Corrective Action
Damage to the air hose
Inspect hose for knicks, damage
or areas where air is escaping.
Blockage in the nozzle Remove the nozzle cover and
inspect for blockages.
Clogged air filter Replace air filter.
EN | 12

EQUIPMENT WARRANTY
ByoPlanet warrants the original purchaser of any ByoPlanet®
Electrostatic Spray System that the equipment shall be free from
defects, material and workmanship, for a period of one year after
the date of delivery.
Disclaimer of Implied Warranties and Consequential Damages
The ByoPlanet obligation under this warranty, to the extent allowed by
law, is in lieu of all warranties, implied or expressed, including implied
warranties of merchantability and fitness for a particular purpose and
any liability for incidental and consequential damages with respect to
the sale or use of the items warranted.
Such incidental or consequential damages shall include, but are not
limited to: transportation, charges other than normal freight charges,
cost of installation other than cost approved by ByoPlanet, duty, taxes,
charges for normal service or adjustments, loss of income, expenses
due to loss, damage, detention or delay in the delivery of equipment or
parts resulting from acts beyond the control of ByoPlanet.
THIS WARRANTY SHALL NOT APPLY TO:
1. Defects, failures, damages or performance limitations caused in whole or
in part by:
a.
b.
Power failures, surges, accidents, actions of third parties, weather or
other acts of God, or
The product being subjected to abuse, mishandling, misuse,
negligence, improper storage, service or operation, or unauthorized
attempts to repair or alter the equipment in any way.
2. Any product in which any chemical other than chemical sold by or on
behalf of ByoPlanet and expressly identified by ByoPlanet for use in such
product.
3. Normal wear and tear.
NO EMPLOYEE OR REPRESENTATIVE OF BYOPLANET IS
AUTHORIZED TO CHANGE THIS WARRANTY IN ANY WAY OR
GRANT ANY OTHER WARRANTY UNLESS SUCH CHANGE IS
MADE IN WRITING AND IS SIGNED BY A CORPORATE
OFFICER OF BYOPLANET.
EN | 13

ByoPlanet International, LLC
1305 Shotgun Road
Sunrise, FL 33326
1-855-211-1518
www.byoplanet.com
ByoPlanet International, LLC
1002 Winterville Road
Athens, GA 30605
1-855-211-1518
www.byoplanet.com
Electrostatic Sprayer MS-715 & CS-2015 Series
Electrostatic Sprayer MS-740 & CS-2040 Series
