CAMBRIONIX ModIT-Boss User manual

User Manual
ModIT-Boss
2022/05
© 2021 Cambrionix Ltd. Todos los derechos reservados.
ES

ModIT-Boss Página 2 de 21
1. Table of Contents
1. Table of Contents 2
2. Safety 3
2.1. Signal word panel 3
2.2. Safety alert symbol 4
2.3. Pictograms 4
2.4. Product modification 4
2.5. Power supply 5
2.6. Storage and Installation 6
3. Getting Started 7
3.1. Opening your product 7
3.2. What's Included 7
3.3. Connecting to the mains 7
3.4. Registration 8
3.5. Cleaning your ModIT-Boss 9
4. Installing Host System 10
5. Product Specifications 13
5.1. Requisitos de la alimentación entrante 13
5.2. Especificaciones físicas 13
5.3. Información empaquetada 13
5.4. Consumibles y realización de pedidos 13
6. Disposal 16
7. Returns and Damaged Products 17
7.1. What do I do if my order arrives and something the product is faulty
or is physically damaged? 17
7.2. What happens after I have requested a Return? 17
8. Compliance and Standards 19

ModIT-Boss Página 3 de 21
2. Safety
This user manual is for informational purposes only, it contains information for start-up and
operation of this product. Note: the contents and the product described are subject to change
without notice. To avoid injuries and damage observe the safety instructions of the user
manual.
This manual has been arranged to follow IEC/ICEE 82079-1 standards. This is to facilitate the
easier understanding and location of information relating to the ModIT-Boss. Any errors or
omissions can be reported back using our support ticket system (see"Help and Support") this
way any issues can be collected and fixed.
Understanding and observing the instructions in this user manual are prerequisites for
hazard-free use and safety during operation. This user manual cannot cover all conceivable
applications. If you would like additional information or if problems arise that are not
sufficiently addressed in this manual please ask your distributor or contact us directly using the
means preferred which are located on the back cover of this manual.
PRECAUCIÓN
Personal Injury and Damage to the product
lObserve the safety instructions in this user manual
2.1. Signal word panel
Depending on the probability of serious consequences, potential dangers are identified with a
signal word, the corresponding safety colour, and if appropriate, the safety alert symbol.
PRECAUCIÓN
Indicates a potentially hazardous situation which, if not avoided, may result in moderate or
minor (reversible) injury.
PRECAUCIÓN
Indicates a potentially hazardous situation which, if not avoided, may result in damage to the
product and/ or its functions or of a property in its proximity.

ModIT-Boss Página 4 de 21
2.2. Safety alert symbol
Use of the safety alert symbol indicates a risk of injury.
Observe all measures that are marked with the safety alert symbol in order to
avoid injury
2.3. Pictograms
Warning Signs
Electrical hazard Fire Hazard
Mandatory action signs
Read operating instructions Mandatory regulation
2.4. Product modification
Cambrionix products are designed and manufactured to meet the requirements of UK and
International safety regulations. Modifications to the product could affect safety and render the
product non-compliant to relevant safety standards, which could result in injury or damage to
the product.
PRECAUCIÓN
Electric shock or personal injury may occur

ModIT-Boss Página 5 de 21
PRECAUCIÓN
lDo not modify the product in any way
lDo not dismantle the product
PRECAUCIÓN
Fire or personal injury may occur
lDo not obstruct air vents on the product
lDo not cover the product in combustible material
PRECAUCIÓN
Damage to your product may occur
lDo not bend or compress any part of the product
2.5. Power supply
This section describes safety precautions you must follow when using the power supply.
PRECAUCIÓN
Electric shock or personal injury may occur
lDo not use a damaged power cord or plug, or a loose power socket
lDo not touch the power plug with wet hands
lDo not allow liquids to come into contact with the unit or power supply
PRECAUCIÓN
Damage to your product may occur
lDo not short circuit the Power Supply Unit (PSU) supplied with your
product

ModIT-Boss Página 6 de 21
PRECAUCIÓN
lDo not disconnect the power cord while the product is being used
lDo not bend or pull the power cord with excessive force
2.6. Storage and Installation
This section describes safety precautions you must follow when installing and storing your
ModIT-Boss.
PRECAUCIÓN
Electric shock or personal injury may occur
lDo not place the power cord near heat sources
lConnect the plug to an earthed socket
PRECAUCIÓN
Damage to your Cambrionix product may occur
lOperate the product only in an environment where the ambient
temperature is inside the operating temperature range
lOperate the product only in an environment where the relative humidity is
inside the operating range
lBe careful not to leave the power cord underneath a heavy object
PRECAUCIÓN
Overheated power sockets may cause a fire
lDo not overload the power socket that your hub is connected to
lInsert the power plug all the way into the socket so that it is not loose

ModIT-Boss Página 7 de 21
3. Getting Started
This manual provides a reference for end-users who are installing for the first time and using
their hub thereafter. As well as a guide for product safety-related information.
The ModIT-Boss is intended to be used in an indoor static environment in which the
environment falls within the tested specifications to provide charge, sync and management
functionality. For information on the environment specifications please see the physical
specifications section of this manual.
3.1. Opening your product
When you have received your product please check the packing slip to ensure all products and
quantities of them are correct before opening. This is to avoid retesting and repackaging any
items which are not required.
When opening the packaging use a suitable method to open the box i.e. do not use a knife. This
is to ensure the product is not damaged.
3.2. What's Included
lModIT-Boss Hub
l2m Mains power cable (Country specified on order including fuse for UKplugs)
Parte Descripción número de pieza
Reino Unido cable de alimentación 200144
Cable de alimentación de EE. UU. 200327
Cable de alimentación de la UE 200329
Cable de alimentación australiano 200337
Cable de alimentación IND 200341
3.3. Connecting to the mains
Siempre cumpliendo las normas de seguridad locales, conecte el cable de alimentación a la
toma y encienda la fuente de alimentación. El hub ya está listo para cargar los dispositivos
conectados.

ModIT-Boss Página 8 de 21
Periodic inspection should be made to power supply cables and any USB cables for any signs of
damage. If any damage is found then replace damaged cord before further use.
Please note that USB specifications require a minimum 100 mA charge current to be delivered
during data transfer. As indicated in above, if the attached device has a BC1.2 compliant CDP
port, the device can draw up to while transferring data.
3.4. Registration
You may register your product at www.cambrionix.com/product-registration

ModIT-Boss Página 9 de 21
3.5. Cleaning your ModIT-Boss
Cleaning the product is generally not required, although in some instances it may be necessary
if excess dirt/ dust/ hair has accumulated, or if minor liquid spillages have occurred on the
module during operation or storage.
PRECAUCIÓN
Electric shock or personal injury may occur
lIf there is a dirt/ spillage over a ventilation slot, external data/ power
connector or product aperture, please remove power from the unit without
touching the liquid and contact Cambrionix immediately
lAsegúrese de que el producto esté apagado y de que el cable de alimentación se haya
desconectado del producto. Sostenga el cable de alimentación junto al enchufe y no
toque el enchufe ni el cable de alimentación con las manos mojadas o húmedas, ya que
podría provocar una descarga eléctrica.
lLimpie el producto con un paño limpio, seco y suave. No utilice detergentes que
contengan alcohol, disolvente ni agentes tensoactivos. No rocíe agua ni detergente
directamente sobre el producto.
lHumedezca un paño suave y seco en agua y escurra bien para limpiar el producto según
sea necesario
lSeque bien el producto una vez finalizada la limpieza
lVuelva a conectar el cable de alimentación y utilice el producto como se recomienda una
vez que se haya completado la limpieza y el secado.
Aditivo antimicrobiano
Nuestra tecnología antimicrobiana integrada dentro de ModIT (fabricada por Clariant) trabaja
para minimizar continuamente la presencia de microorganismos (tales como bacterias, algas y
hongos) durante todo el ciclo de vida del producto. Actúa creando una superficie en la cual los
microorganismos no pueden crecer, lo que a su vez reduce la propagación de los
microorganismos; de esta forma, se minimizan los puntos de contacto y se reduce el riesgo de
transmitir infecciones / enfermedades en todo su entorno de trabajo.

ModIT-Boss Página 10 de 21
4. Installing Host System
One of the features of the Boss Module is the ability to install a Mac mini inside. This provides
different levels of sophistication to the ability of your device.

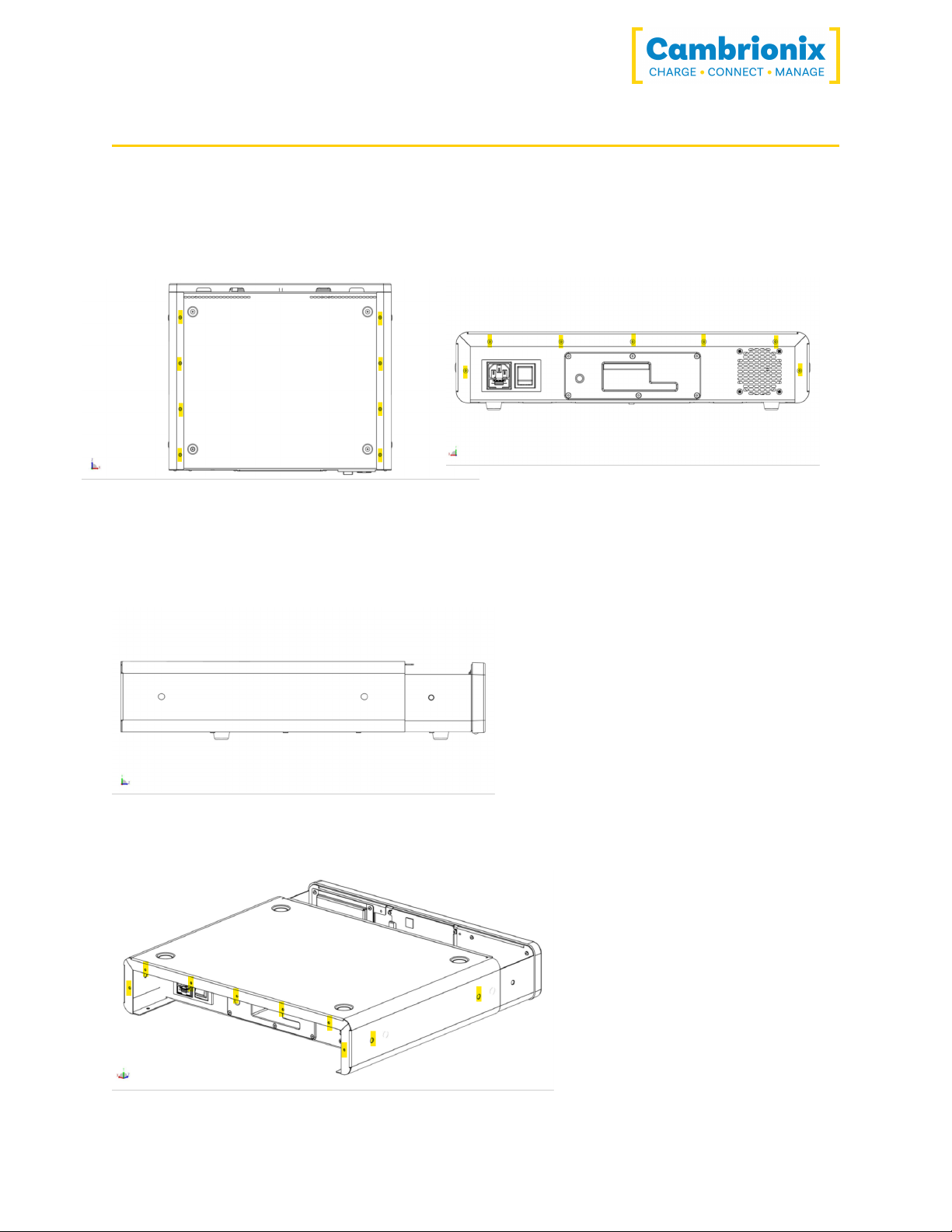

There are 8 screws on the underside of the case and 7 on the rear that need to be removed
there are also two pins on each side of the boss unit that will need to be removed.
Remove these using a screwdriver and slide the top of the Boss Module 4 inches, as
demonstrated in the in the graphic below.
The graphic below demonstrates how the product should look at this stage. Notice the
highlighted yellow screws, which should all have been removed at this point

ModIT-Boss Página 11 de 21
With a spanner, undo the highlighted nut below. Once removed, it will allow you to slide the
lid off fully.
Once the lid is completely removed, it will reveal the inside of the product. Next, remove
the screws (highlighted in yellow) in order to remove the Mac mini chassis.

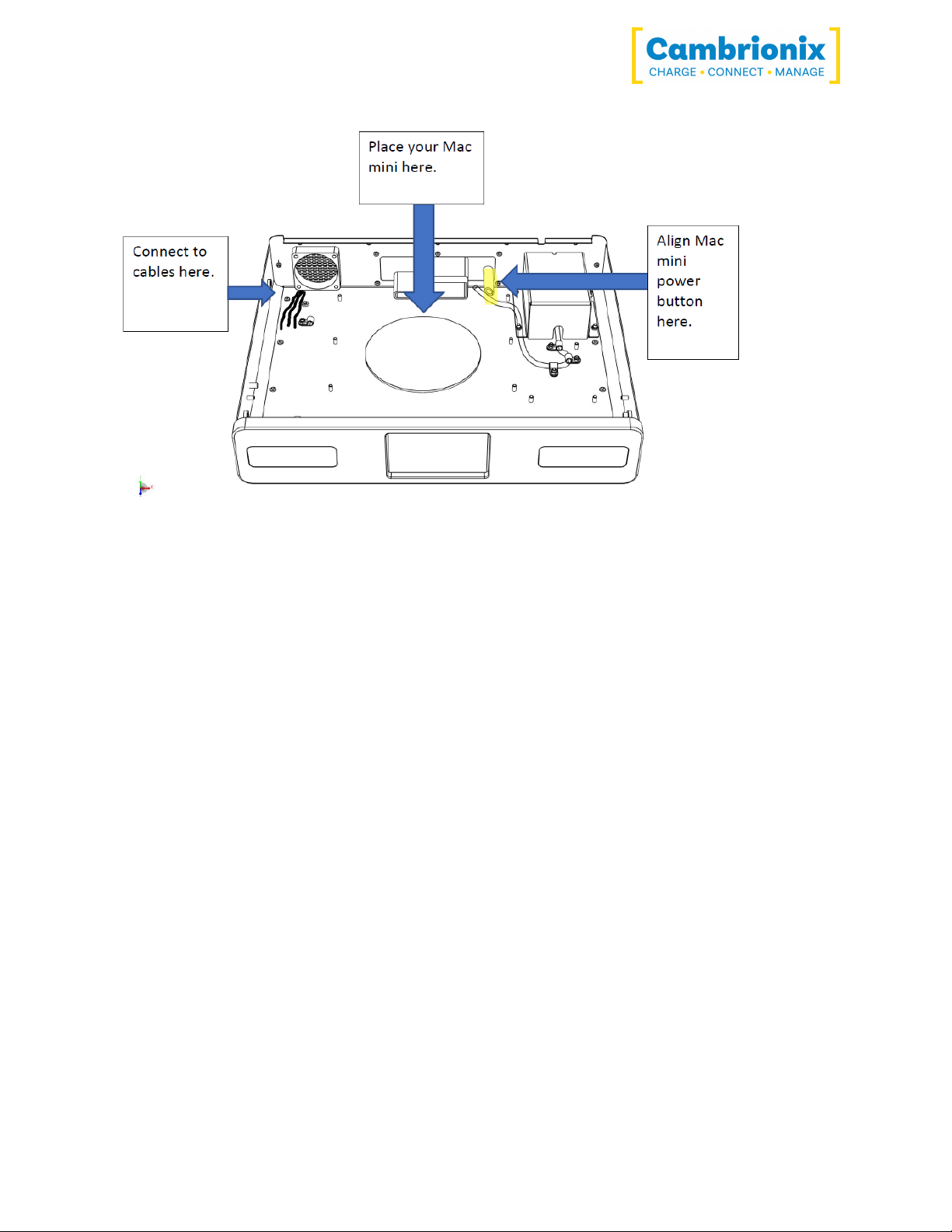

Once you have removed the Mac mini chassis place your Mac mini on the circular mat
(outsides highlighted below). You can then attach the mini Mac® to the three wires on the
left.

ModIT-Boss Página 12 de 21
Once the Mac mini is securely, reattach the Mac mini chassis. and the side panels in the
same order that they were removed.
You have now successfully installed your Mac mini into the Boss Module.

ModIT-Boss Página 13 de 21
5. Product Specifications
The ModIT-Boss is manufactured in the Reino Unido
5.1. Requisitos de la alimentación entrante
Voltaje de entrada 100-240VCA
Corriente de entrada 1,5A
Conexión de entrada C14
5.2. Especificaciones físicas
Rango de temperatura ambiente de fun-
cionamiento 0-35°C
Humedad relativa Del 5% al 95% sin condensación
Dimensiones 445x367x97mm
Peso 5,8kg
Frecuencia de funcionamiento Rfid 125/132kHz y 13,56MHz
Espacio para sistema host Mac®Mini, Intel NUC, Raspberry Pi
5.3. Información empaquetada
Dimensiones en caja 0,57 x 0,19 x 0,57 m
5.4. Consumibles y realización de pedidos
A continuación, se muestra una lista de los productos consumibles que puede necesitar para su
ModIT-Boss, incluidos los cables que necesitará para conectar los dispositivos al hub.
Fusibles T3.15A 250V
Cables

ModIT-Boss Página 14 de 21
Si necesita alguna pieza de repuesto, como los cables de alimentación o cable, estos se pueden
pedir citando el número de pieza del producto y el número de pieza de repuesto (disponible en
la sección de lo que se incluye)
Estos se pueden pedir al distribuidor o socio de soluciones que compró su ModIT-Boss desde, o
desde Cambrionix directamente.
Para encontrar uno de nuestros socios locales, visite www.cambrionix.com/partners donde
puede obtener información sobre los proveedores y distribuidores locales que pueden ayudarlo
y encontrar su información de contacto.

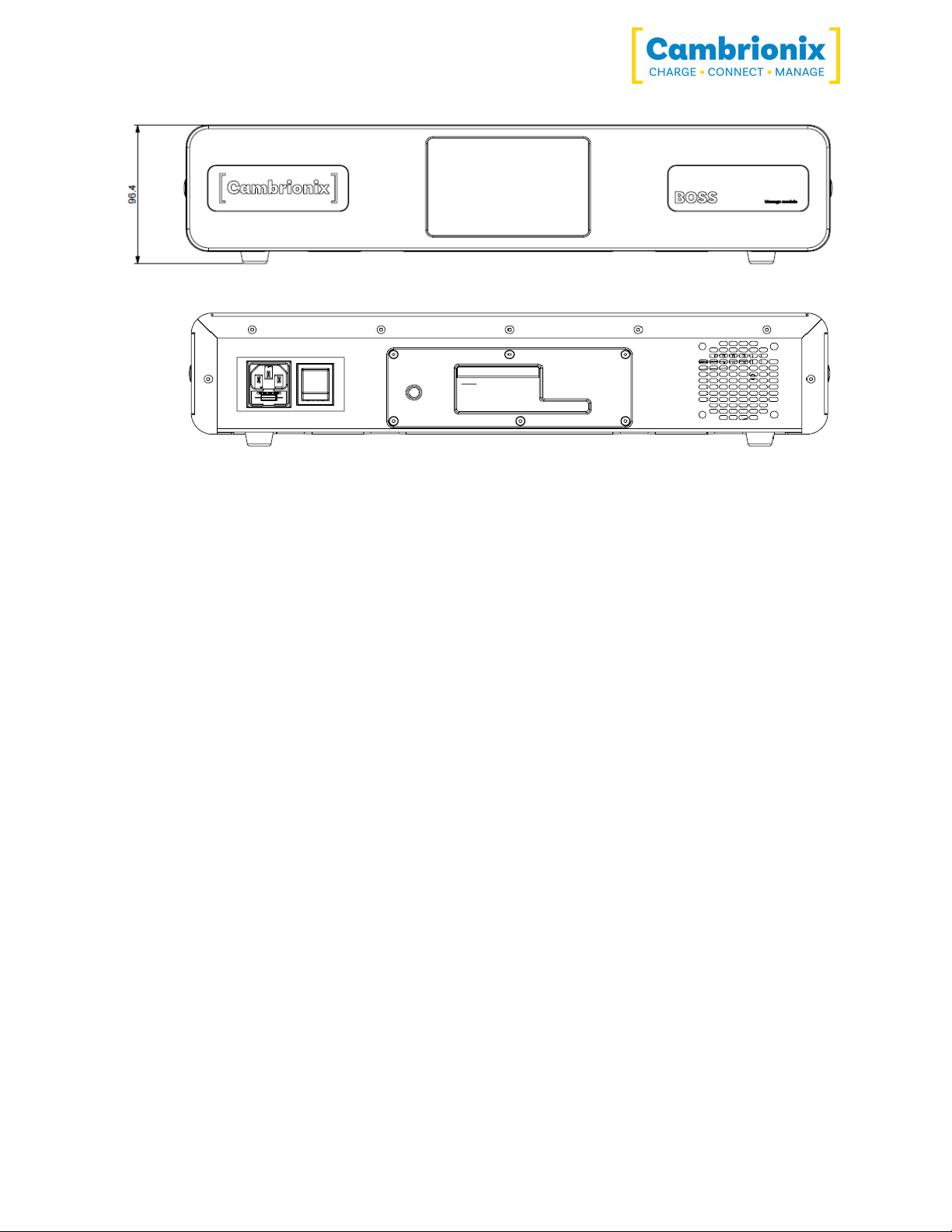

ModIT-Boss Página 15 de 21

ModIT-Boss Página 16 de 21

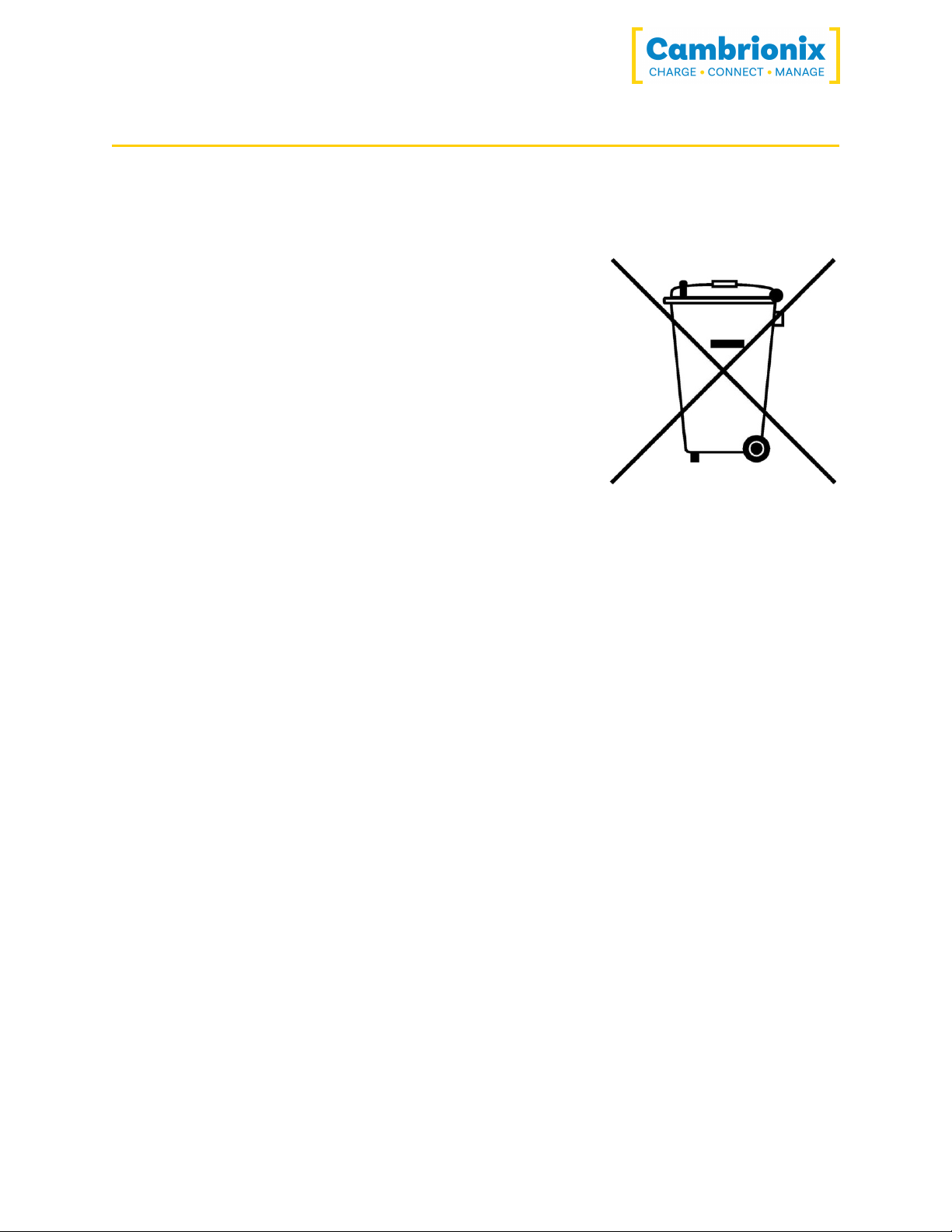

6. Disposal
Disposal of Old Electrical & Electrical Equipment (Applicable in the European Union and other
European countries with separate collection systems)
This product is subject to Directive 2012/19/EU of the European
Parliament and the Council of the European Union on the waste
electrical and electronic equipment (WEEE), and in jurisdictions
adopting that Directive, is marked as being put on the market
after August 12, 2005, and should not be disposed of as unsorted
municipal waste. Please utilize your local WEEEcollection
facilities in the disposition of this product and otherwise observe
all applicable requirements.
Cambrionix PRN (Producer Registration Number) For the UK is "WEE/BH191TT".

ModIT-Boss Página 17 de 21
7. Returns and Damaged Products
If you wish to return or fix a damaged product first look at the terms on our website
www.cambrionix.com/terms-conditions
Before a product is returned please contact support using the methods detailed in the "Help
and Support" section.
7.1. What do I do if my order arrives and something the pro-
duct is faulty or is physically damaged?
lIf you have received your order in a damaged box and/or the product has physical
damage please contact Cambrionix Customer Support. Please provide photos of the
damaged box and/or product when contacting Customer support.
lIf an item in your order does not have physical damage but is not functioning properly or
will not power on, please contact Customer Support and provide as much information as
possible and including any steps followed to troubleshoot internally.
lPlease include photos of the damaged box and/or product when contacting Customer
Support.
Note: If you have received your order in a damaged box and the damage was indicated to the
courier please provide us with a copy of the delivery note detailing this.
7.2. What happens after I have requested a Return?
lIf you have not purchased the Product(s)direct from Cambrionix please contact the
vendor the item was originally purchased from for their returns process.
lOnce you have notified Cambrionix of your return, Cambrionix will arrange for collection
of the Product(s) or provide instructions and details for you to return the Product direct.
lWhen returning your Product(s)please only send back the items that were advised
through the support process.
lReturn your Product(s) in original packaging where you can. Where the original packaging
is not available then use suitable packing methods, which will ensure that the product
cannot be subject to impact damage. i.e. double walled cardboard box with 50mm of soft
material.
lProduct(s) not returned in their original condition may result in additional costs, please
refer to the warranty and terms section on our website.

ModIT-Boss Página 18 de 21
lWhere Cambrionix arranges collection, return shipping will be free, unless Cambrionix
notified you otherwise.
lWhen contacting us about returning a product please provide the following information.
- Collection Address
- Weights and dimensions of shipment
- Preferred collection date and time.

ModIT-Boss Página 19 de 21
8. Compliance and Standards
lProbado y marcado CE
lCertificado CB
lCumple los requisitos de seguridad de la norma EN60950 para equipos informáticos
lProbado y marcado según la Parte 15 de la FCC
lAlojado en una envolvente a prueba de incendios de la especificación UL94-VO
lCumplimiento de RoHS
lProbado independientemente por Underwriters Laboratory (UL) con el número de
expediente #E346549

ModIT-Boss Página 20 de 21
Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols
This manual may make reference to trademarks, registered trademarks, and other protected
names and /or symbols of third-party companies not related in any way to Cambrionix. Where
they occur these references are for illustrative purposes only and do not represent an
endorsement of a product or service by Cambrionix, or an endorsement of the product(s) to
which this manual applies by the third-party company in question.
Cambrionix hereby acknowledges that all trademarks, registered trademarks, service marks,
and other protected names and /or symbols contained in this manual and related documents
are the property of their respective holders
"Mac® and macOS® are trademarks of Apple Inc., registered in the U.S. and other countries and
regions."
"Intel® and the Intel logo are trademarks of Intel Corporation or its subsidiaries."
"Android™ is a trademark of Google LLC"
"Chromebook™ is a trademark of Google LLC."
"iOS™ is a trademark or registered trademark of Cisco in the US and other countries and is
used under license."
"Linux® is the registered trademark of Linus Torvalds in the U.S. and other countries"
“Microsoft™ and Microsoft Windows™ are trademarks of the Microsoft group of companies.”
