English
2.1 Intended use
2 Intended use and use limits
The ZCX10 electric board has been designed for the CBX E automation control of sectional-, sliding- and industrial swing gate
movement.
Any use other than the above, and installations with procedures different to those in the
following technical manual, are forbidden.
2.2 Use limits
1 Legend symbols
This symbol indicates sections to read carefully.
This symbol indicates sections regarding safety.
3.2 Dimensions and interaxes of fixing holes
3 Product description
215 mmĐ
295 mmĐ
240 mmĐ 145 mmĐ
120 mmĐ
320 mmĐ

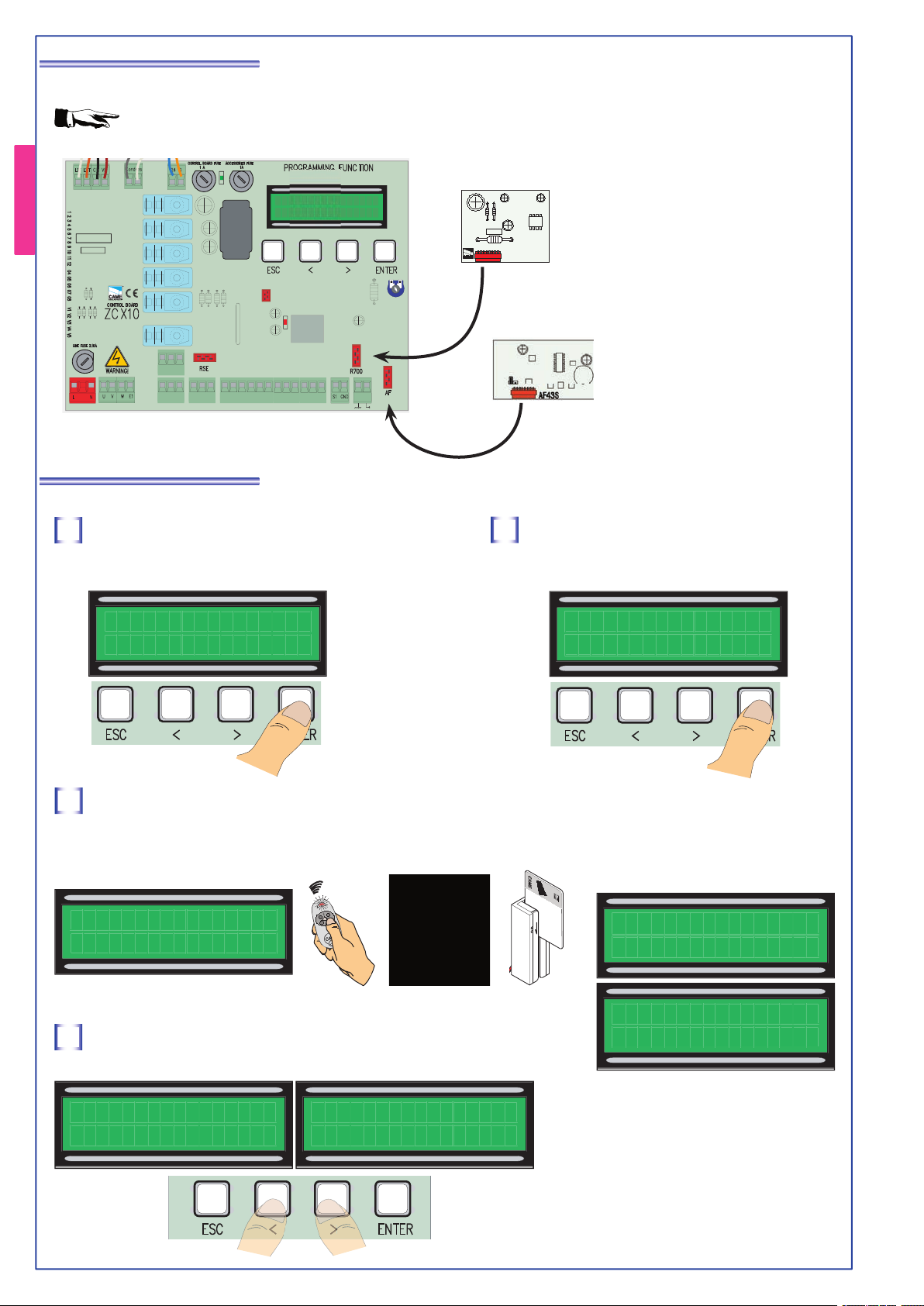

3.1 Board description
The ZCX10 electric board has been designed for controlling the CBX automation, for moving sectional-, sliding- and swing
gates, 230V-powered with power up to 600W, and 50−60 Hz frequency.
Designed and built entirely by CAME S.p.A., it meets the UNI EN 12453 standards.
ABS casing with IP54 protection level, equipped with intake for air circulation and complete with transformer.
The circuit should be powered at 230V in the L-N terminals and protected by a 5A fuse, while
the low voltage command devices are protected with a 1A fuse.
The total power of the (24V) acessories must not exceed 20W.
The board includes the manoeuvre pick-up function, which is activated at the start of the gate’s opening and closing phases
- Class of isolation II;
- Earth’s connection for the electric safety of the parts non functional day-pupils to the container with electronic card of
command are to perform on the suitable points.
Attention: before intervening inside the equipment to remove the tension of line
This manual is intended only for the technical personnel qualified for the installation.
