Cameo STUDIO PAR TW User manual

STUDIO PAR TW
LED PAR SPOTLIGHT WITH 12 X 3-IN-1 TUNABLE WHITE LED
CLPSTTWG2
USER´S MANUAL
BEDIENUNGSANLEITUNG
MANUEL D`UTILISATION
MANUAL DE USUARIO
INSTRUKCJA OBSŁUGI
MANUALE D‘ USO

CONTENTS / INHALTSVERZEICHNIS / CONTENU / CONTENIDO / TREŚĆ /
CONTENUTO
ENGLISH
INFORMATION ON THIS USER MANUAL 6
INTENDED USE 6
DEFINITIONS AND SYMBOL EXPLANATIONS 6
SAFETY INSTRUCTIONS 7
NOTES FOR MOBILE INDOOR DEVICES 10
INCLUDED 10
INTRODUCTION 10

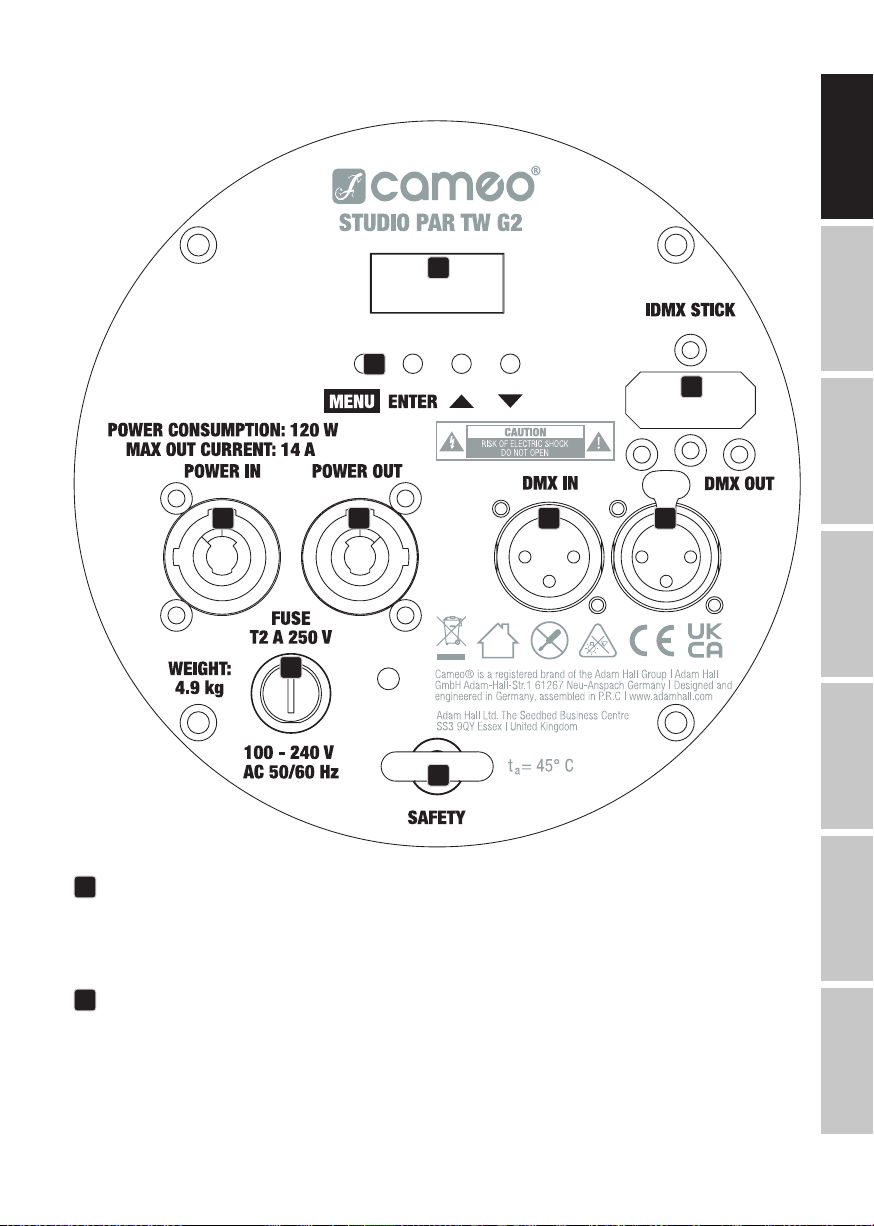

CONNECTIONS, OPERATING AND DISPLAY ELEMENTS 11
OPERATION 13
SETUP AND INSTALLATION 21
MOUNTING THE FILTER FRAME 23
CARE, MAINTENANCE AND REPAIR 23
TECHNICAL DATA 25
MINIMUM DISTANCE TO ILLUMINATED SURFACE 26
MINIMUM DISTANCE TO NORMALLY FLAMMABLE MATERIALS 26
DISPOSAL 27
MANUFACTURER’S DECLARATIONS 27
DEUTSCH
INFORMATIONEN ZU DIESER BEDIENUNGSANLEITUNG 29
BESTIMMUNGSGEMÄSSER GEBRAUCH 29
BEGRIFFS- UND SYMBOLERKLÄRUNGEN 29
SICHERHEITSHINWEISE 30
HINWEISE FÜR ORTSVERÄNDERLICHE INDOOR-GERÄTE 33
LIEFERUMFANG 33
EINFÜHRUNG 34
ANSCHLÜSSE, BEDIEN- UND ANZEIGEELEMENTE 35
BEDIENUNG 37
AUFSTELLUNG UND MONTAGE 46
FILTERRAHMEN MONTIEREN 47
PFLEGE, WARTUNG UND REPARATUR 48
TECHNISCHE DATEN 49
MINDESTABSTAND ZUR BELEUCHTETEN FLÄCHE 50
MINDESTABSTAND ZU NORMAL ENTFLAMMBAREN MATERIALIEN 50
ENTSORGUNG 51
HERSTELLERERKLÄRUNGEN 52

FRANÇAIS
INFORMATIONS CONCERNANT CE MANUEL D’UTILISATION 53
UTILISATION CONFORME 53
EXPLICATIONS DES TERMES ET DES SYMBOLES 53
CONSIGNES DE SÉCURITÉ 54
REMARQUES CONCERNANT LES APPAREILS D’INTÉRIEUR MOBILES 58
CONTENU DE LA LIVRAISON 58
INTRODUCTION 58
RACCORDEMENTS, ÉLÉMENTS DE COMMANDE ET D’AFFICHAGE 59
UTILISATION 61
INSTALLATION ET MONTAGE 70
MONTAGE DU CADRE DE FILTRE 71
ENTRETIEN, MAINTENANCE ET RÉPARATION 72
CARACTÉRISTIQUES TECHNIQUES 73
DISTANCE MINIMALE PAR RAPPORT À LA SURFACE ÉCLAIRÉE 74
DISTANCE MINIMALE PAR RAPPORT AUX MATÉRIAUX NORMALEMENT
INFLAMMABLES 74
ÉLIMINATION 75
DÉCLARATIONS DU FABRICANT 76
ESPAÑOL
INFORMACIÓN SOBRE ESTE MANUAL DE INSTRUCCIONES 77
USO PREVISTO 77
TÉRMINOS Y SÍMBOLOS 77
INSTRUCCIONES DE SEGURIDAD 78
INDICACIONES PARA EQUIPOS PORTÁTILES DE INTERIOR 82
VOLUMEN DE SUMINISTRO 82
INTRODUCCIÓN 82
CONEXIONES, ELEMENTOS DE MANEJO Y ELEMENTOS DE VISUALIZACIÓN 83
MANEJO 85
INSTALACIÓN Y MONTAJE 94
MONTAJE DEL PORTAFILTROS 95
CUIDADO, MANTENIMIENTO Y REPARACIÓN 96
DATOS TÉCNICOS 97
ELIMINACIÓN 98
DISTANCIA MÍNIMA CON RESPECTO A LA SUPERFICIE ILUMINADA 98
DISTANCIA MÍNIMA CON RESPECTO A MATERIALES NORMALMENTE INFLAMABLES 98
DECLARACIONES DEL FABRICANTE 99

POLSKI
INFORMACJE DOTYCZĄCE NINIEJSZEJ INSTRUKCJI OBSŁUGI 100
UŻYTKOWANIE ZGODNE Z PRZEZNACZENIEM 100
OBJAŚNIENIA TERMINÓW I SYMBOLI 100
ZASADY BEZPIECZEŃSTWA 101
UWAGI DOTYCZĄCE PRZENOŚNEGO SPRZĘTU DO STOSOWANIA W
POMIESZCZENIACH 104
ZAKRES DOSTAWY 104
WPROWADZENIE 105
PRZYŁĄCZA, ELEMENTY OBSŁUGI I WSKAŹNIKI 106
OBSŁUGA 108
USTAWIANIE I MONTAŻ 117
MONTAŻ RAMY FILTRA 118
CZYSZCZENIE, KONSERWACJA I NAPRAWY 119
DANE TECHNICZNE 120
MINIMALNA ODLEGŁOŚĆ OD POWIERZCHNI OŚWIETLANEJ 121
MINIMALNA ODLEGŁOŚĆ OD NORMALNIE ŁATWOPALNYCH MATERIAŁÓW 121
UTYLIZACJA 121
OŚWIADCZENIA PRODUCENTA 122
ITALIANO
INFORMAZIONI SUL PRESENTE MANUALE D'USO 123
UTILIZZO CONFORME 123
SPIEGAZIONE DI CONCETTI E SIMBOLI 123
INDICAZIONI SULLA SICUREZZA 124
AVVERTENZE PER DISPOSITIVI INDUSTRIALI PORTATILI 127
FORNITURA 127
INTRODUZIONE 127
CONNETTORI, ELEMENTI DI COMANDO E VISUALIZZAZIONE 128
UTILIZZO 130
INSTALLAZIONE E MONTAGGIO 139
INSTALLAZIONE DEL PORTAFILTRO 140
PULIZIA, MANUTENZIONE E RIPARAZIONE 141
DATI TECNICI 142
DISTANZA MINIMA DALLA SUPERFICIE ILLUMINATA 143
DISTANZA MINIMA DAI MATERIALI NORMALMENTE INFIAMMABILI 143
SMALTIMENTO 143
DICHIARAZIONI DEL PRODUTTORE 144

DMX
DMX CONTROL / DMX STEUERUNG / PILOTAGE DMX / CONTROL DMX /
STEROWANIE DMX / CONTROLLO DMX 146

6
DMX
ITALIANO
POLSKI
ESPAÑOL
FRANCAIS
DEUTSCHENGLISH
ENGLISH
YOU HAVE MADE THE RIGHT CHOICE!
This device has been developed and manufactured to the highest quality standards to ensure
many years of problem-free operation. Please read this user manual carefully to be able to use
your new Cameo product quickly and optimally. Further information about Cameo Light is avail-
able on our website CAMEOLIGHT.COM.
INFORMATION ON THIS USER MANUAL
• Carefully read the safety instructions and the entire manual before operating the device.
• Observe the warnings on the device and in the user manual.
• Always keep the user manual within reach.
• If you sell or pass on the device, it is important that you also include this user manual, as it is an
integral part of the product.
INTENDED USE
The product is a device for event technology!
This product has been developed for professional use in the field of event technology and is not
suitable for use as domestic lighting!
Furthermore, this product is only intended for qualified users with specialist knowledge of event
technology!
Use of the product outside the specified technical data and operating conditions is considered
inappropriate!
Liability for damage and third-party damage to persons and property due to inappropriate use is
excluded!
The product is not suitable for:
• Use by persons (including children) with limited physical, sensory or mental abilities or lack of
experience and knowledge.
• Children (children must be instructed not to play with the device).
DEFINITIONS AND SYMBOL EXPLANATIONS
1. HAZARD: The word HAZARD, possibly in combination with a symbol, indicates situations in
which there is an immediate danger or risk of potentially fatal injury.
2. WARNING: The word WARNING, possibly in combination with a symbol, indicates situations in
which there is an immediate danger or risk of potentially fatal injury.
3. CAUTION: The word CAUTION, possibly in combination with a symbol, indicates situations or
conditions that could result in injury.
4. ATTENTION: The word ATTENTION, possibly in combination with a symbol, indicates situations
or conditions that could result in damage to property and/or the environment.

7
DMX DEUTSCHFRANCAIS
ESPAÑOL ENGLISH
ITALIANO POLSKI
This symbol identifies hazards that can cause electric shock.
This symbol identifies hazardous areas or hazardous situations.
This symbol indicates hazards caused by hot surfaces.
This symbol indicates hazards caused by intense light sources.
This symbol indicates a device in which there are no user-replaceable parts.
This symbol indicates additional information on the operation of the product.
SAFETY INSTRUCTIONS
HAZARD:
1. Do not open the device and do not perform any modifications.
2. If your device no longer functions properly, if liquids or objects get inside it or if it
has been damaged in any other way, switch it off immediately and unplug it from
the power source. The device may be repaired only by authorised repair techni-
cians.
3. For devices of protection class 1, the protective conductor must be connected
correctly. Never disconnect the protective conductor. Devices of protection class 2
do not have a protective conductor.
4. Ensure that live cables are not kinked or otherwise mechanically damaged.
5. Never bypass the device fuse.
WARNING:
1. The device may not be operated if it shows obvious signs of damage.
2. The device may only be installed in a voltage-free state.
3. If the device's power cable is damaged, the device may not be used.
4. Permanently connected power cables may only be replaced by a qualified person.

8
DMX
ITALIANO
POLSKI
ESPAÑOL
FRANCAIS
DEUTSCHENGLISH
ATTENTION:
1. Do not switch on the device if it has been exposed to extreme temperature fluctu-
ations (for example, following transport). Moisture and condensation can damage
the device. Switch on the device only when it has reached room temperature.
2. Ensure that the voltage and frequency of the mains supply match the values spec-
ified on the device. If the device has a voltage selector switch, do not connect the
device until it has been set correctly. Use only suitable power cables.
3. To disconnect the device from the mains on all poles, it is not sufficient to press the
on/off switch on the device.
4. Make sure that the fuse used corresponds to the type printed on the device.
5. Ensure that suitable measures have been taken against overvoltage (e.g. lightning
strikes).
6. Observe the specified maximum output current on devices with a Power Out con-
nection. Ensure that the total current consumption of all connected devices does
not exceed the specified value.
7. Replace plug-in power cables with original cables only.
HAZARD:
1. Choking hazard! Plastic bags and small parts must be kept out of reach of persons
(including children) with reduced physical, sensory or mental capabilities.
2. Risk of falling! Make sure that the device is securely installed and will not fall
down. Only use suitable stands or mounts (particularly for fixed installations).
Ensure that accessories are properly installed and secured. Ensure that applicable
safety regulations are observed.
WARNING:
1. Use the device in the prescribed manner only.
2. Operate the device using only accessories of the type recommended and supplied
by the manufacturer.
3. Observe safety regulations applicable in your country during installation.
4. After connecting the device, ensure that all cables are routed so as to avoid dam-
age or accidents, such as from tripping.
5. Always observe the specified minimum distance to normally flammable materials!
Unless explicitly stated, the minimum distance is 0.3m.

9
DMX DEUTSCHFRANCAIS
ESPAÑOL ENGLISH
ITALIANO POLSKI
CAUTION:
1. Moving components such as mounting brackets may become jammed.
2. In the case of devices with motor-driven components, there is a risk of injury due
to the movement of the device. Sudden movement of the device can cause shock
reactions.
ATTENTION:
1. Do not install or use the device in the vicinity of radiators, accumulators, stoves, or
other heat sources. Ensure that the device is always installed in such a way that it
is sufficiently cooled and cannot overheat.
2. Do not place any ignition sources, such as burning candles, near the device.
3. Ventilation openings must not be covered and fans must not be blocked.
4. For transport, use the original packaging or packaging provided by the manufactur-
er.
5. Avoid any impacts to or shaking of the device.
6. Observe the IP rating and the ambient conditions such as temperature and humidi-
ty according to the specifications.
7. Devices can be continuously further developed. In the event of deviating informa-
tion on operating conditions, performance or other device properties between the
user manual and the device labelling, the information on the device always has
priority.
8. The device is not suitable for tropical climate zones or for operation over 2,000m
above sea level.
9. Unless explicitly stated, the device is not suitable for operation under marine
conditions.
PLEASE NOTE:
For conversion or retrofit sets or accessories provided by the manufacturer, it is
essential to observe the instructions included.
CAUTION! IMPORTANT INFORMATION REGARDING LIGHTING PRODUCTS!
1. Never look directly into the beam of light, not even for a short period of time.
2. Never look into the beam of light using optical devices such as a magnifying glass.
3. Stroboscopic effects may cause epileptic seizures in susceptible individuals!

10
DMX
ITALIANO
POLSKI
ESPAÑOL
FRANCAIS
DEUTSCHENGLISH
NOTES FOR MOBILE INDOOR DEVICES
1. Temporary operation! Event equipment is generally only designed for temporary
operation.
2. Continuous operation or permanent installation can impair the functioning of the
device and cause premature ageing.
INCLUDED
Remove the product from the packaging and remove all packaging material.
Please check the completeness and integrity of the delivery and notify your distribution partner
immediately after purchase if the delivery is not complete or if it is damaged.
Product includes:
X1x STUDIO PAR TW G2 spotlight
X1x power cable
XUser manual
INTRODUCTION
12 X 10 W WARM WHITE / COLD WHITE / AMBER LED STUDIO PAR G2 SPOTLIGHT
CLPSTTWG2
CONTROL FUNCTIONS:
1-channel DIM, D5-channel 8 bit, 2-channel CCT, 3-channel 8 bit, D4-channel strobe CCT,
8-channel 16 bit and 11-channel full access DMX control
Master / slave operation
Standalone functions
W-DMX connection via optional iDMX stick
FEATURES:
3-pin DMX connections. Power Twist mains connections IN and OUT. OLED display.
PWM frequency adjustable. Connection for iDMX stick. Installation double bracket included. Oper-
ating voltage 100-240 V AC.
The spotlight features the RDM standard (Remote Device Management). Remote device manage-
ment allows the user to view the status and configuration of RDM terminals via an RDM-capable
controller.

11
DMX DEUTSCHFRANCAIS
ESPAÑOL ENGLISH
ITALIANO POLSKI
CONNECTIONS, OPERATING AND DISPLAY ELEMENTS
1
3
4 5
6
7
8
9
2
1POWER IN
Blue Power Twist mains input socket. Operating voltage 100–240 V AC/50–60 Hz.
A suitable power cable with Power Twist plug is included.
2POWER OUT
White Power Twist mains output socket. Facilitates power supply to other CAMEO spotlights. Ensure
that the total power consumption of all devices connected to the device does not exceed the given
ampere (A) value.

12
DMX
ITALIANO
POLSKI
ESPAÑOL
FRANCAIS
DEUTSCHENGLISH
3FUSE
for 5 x 20mm fuses. IMPORTANT: Replace the fuse only with a fuse of the same type and value.
In the event of repeated fuse failure, please contact an authorised service centre.
4DMX IN
Male 3-pin XLR socket for connection to a DMX control device (e.g. DMX console).
5DMX OUT
Female 3-pin XLR socket for sending the DMX control signal.
6IDMX STICK
Connection for the optional iDMX stick for W-DMX™ connection
(plug in the iDMX stick with the antenna facing upwards).
7OLED DISPLAY
The OLED display shows the currently activated mode (main display), the menu items in the menu
and the numerical value or operational status in certain menu items. If there is no input for ap-
prox. 30 seconds, the display automatically returns to the main display. Note regarding the main
display in operating modes with external control: As soon as the control signal is interrupted, the
characters in the display begin to flash. When there is a control signalagain, the flashing stops.
Briefly pressing the button when in the main display rotates the display by 180°.
8CONTROL KEYS
MENU – Press MENU to access the main menu. Press again or repeatedly to return to the main
display. Pressing MENU without confirming a value or status change with ENTER restores the
previously confirmed value or status.
ENTER – press ENTER to access the menu levels, to make value changes, and to access the
submenus. Confirm value or status changes by pressing ENTER.
and – Select individual menu items in the main menu (DMX address, DMX mode etc.) and
in the submenus. Allows you to change the value of a menu option, such as the DMX address, as
desired.
9SAFETY
Securing lug for attaching the spotlight.

13
DMX DEUTSCHFRANCAIS
ESPAÑOL ENGLISH
ITALIANO POLSKI
OPERATION
NOTES
• As soon as the spotlight is correctly connected to the power supply, the following are displayed
in succession: "Software Update Please Wait" (for service purposes only), "Welcome to Cameo,"
the model name and the software version. After this process, the spotlight is operational and the
previously activated operating mode is launched.
• The main display is activated automatically if no input is made within approximately 30 sec-
onds. To navigate one level up in the submenus, briefly press MENU.
• Briefly pressing UP when in the main display rotates the display by 180°.
• To quickly change a value (e.g. DMX start address), press and hold or .
MAIN DISPLAY DMX OPERATING MODE
The display shows the DMX address and current DMX start address
(in the example 001).
DMX Address
001
MAIN DISPLAY STANDALONE MODE
The display shows the currently activated standalone mode
(Mode Static, Mode CCT Preset, Mode Playback Loop).
Mode
Static
Mode
CCT Preset
Mode
Playback Loop
MAIN DISPLAY SLAVE MODE
The display shows Mode Slave.
Mode
Slave

14
DMX
ITALIANO
POLSKI
ESPAÑOL
FRANCAIS
DEUTSCHENGLISH
CONFIGURE DMX START ADDRESS
Starting from the main display, press MENU to enter the main menu. Nowuse or to select
the menu item DMX address and confirm with ENTER. Now use the and buttons to config-
ure the desired DMX start address and press ENTER to confirm (highest value dependent upon
activated DMX mode).
Menu
DMX Address
DMX Mode
DMX Delay
Stand Alone
Slave
Settings
System Info
DMX Address
001 - 512
CONFIGURE DMX MODE
Starting from the main display, press MENU to enter the main menu. Nowuse or to select
the menu item DMX Mode and confirm with ENTER. Again use or to select the desired DMX
mode and confirm with ENTER (DMX modes with DMX delay channel are identified with "D"). Ta-
bles with the channel assignment of the different DMX modes can be found in these instructions
under DMX CONTROL.
Menu
DMX Address
DMX Mode
DMX Delay
Stand Alone
Slave
Settings
System Info
DMX Mode
1CH DIM
D5CH 8Bit
2CH CCT
3CH 8Bit
D4CH Strobe CCT
8CH 16Bit
11CH Full Access
DMX DELAY
The DMX Delay function is a simple way to create a running light effect with a large number of
spotlights that are all the same model and that are all running the same software version. This
is otherwise only achievable with a suitable DMX controller and time-consuming programming.
All the spotlights used (same models, same software version) are set to the same DMX operating
mode with DMX delay channel and controlled via the same DMX start address.
Setting the DMX delay:
Starting from the main display, press MENU to enter the main menu. Now use or to select
the menu item DMX Delay and confirm 2x with ENTER.

15
DMX DEUTSCHFRANCAIS
ESPAÑOL ENGLISH
ITALIANO POLSKI
Assign the spotlights to one of up to 24 groups (plus Group 0) according to preference, whereby
several spotlights can be assigned to one group. The group number is also the factor by which the
set delay time set in the DMX controller is multiplied. Confirm each entry by pressing ENTER.
Menu
DMX Address
DMX Mode
DMX Delay
Stand Alone
Slave
Settings
System Info
DMX Delay
Group
Group
00 - 24
The delay time (delay time of the DMX signal) is set by means of a DMX controller in the separate
DMX delay channel of the corresponding DMX mode (0.0s to 2.0s in 0.1s increments).
Setup example:
DMX Delay
Group 0
DMX Delay
Delay Group 0
no Delay
Delay Group 1
0,5s Delay
Delay Group 2
1s Delay
Delay Group 3
1,5s Delay
Delay Group 4
2s Delay
Delay Group 5
2,5s Delay
DMX
Controller
DMX Delay 0.5s Group 1
DMX Delay
Group 2
DMX Delay
Group 3
DMX Delay
Group 3
DMX Delay
Group 3
DMX Delay
Group 4
DMX Delay
Group 5
STATIC STANDALONE MODE
The Static standalone mode allows the Dimmer, Strobe, CW, WW and Amber values to be set di-
rectly on the device with values in a similar way to with a DMX controller. In this way, an individual
scene can be created without an additional DMX controller.
Starting from the main display, press MENU to enter the main menu. Using and , select the
menu item Stand Alone and confirm with ENTER, then select Static and confirm once again with
ENTER. Using and , now select the menu item that you wish to edit and confirm with ENTER.
Use and to set the desired value. Confirm all entries with ENTER. The strobe effect values
correspond to those in channel 2 of the DMX table D4CH Strobe CCT.
Menu
DMX Address
DMX Mode
DMX Delay
Stand Alone
Slave
Settings
System Info
Static
Dimmer
Strobe
WW
CW
Amber
000 - 100
000 - 255
000 - 100
000 - 100
000 - 100
Stand Alone
Static
CCT Preset
Playback Loop
Edit User Color
Edit Loop

16
DMX
ITALIANO
POLSKI
ESPAÑOL
FRANCAIS
DEUTSCHENGLISH
STANDALONE MODE CCT PRESET
Starting from the main display, press MENU to enter the main menu. Using and , select the
menu item Stand Alone and confirm with ENTER, then select CCT Preset and confirm once
again with ENTER. Now use and to select the currently activated preset and confirm with
ENTER. The desired Preset (Warm White – Cold Daylight, User Color 1 – User Color 4) can only be
selected with and . Confirm your selection with ENTER. Set the desired brightness (Dimmer)
and strobe (Strobe) using and . Confirm all entries with ENTER. The strobe effect values
correspond to those in channel 2 of the DMX table D4CH Strobe CCT.
Stand Alone
Static
CCT Preset
Playback Loop
Edit User Color
Edit Loop
CCT Preset
Warm White
Dimmer
Strobe
Menu
DMX Address
DMX Mode
DMX Delay
Stand Alone
Slave
Settings
System Info
PLAYBACK LOOP STANDALONE MODE
Starting from the main display, press MENU to enter the main menu. Using and , select the
menu item Stand Alone, confirm with ENTER, then select Playback Loop and confirm again
with ENTER. Now use and to select Loop, confirm, then select one of the four available loops
for playback and confirm again. All four loops can be edited individually (Main Menu -> Stand
Alone -> Edit Loop). A delay time for slave units can also be set (Loop Delay).
Stand Alone
Static
CCT Preset
Playback Loop
Edit User Color
Edit Loop
Menu
DMX Address
DMX Mode
DMX Delay
Stand Alone
Slave
Settings
System Info
Playback Loop
Loop
Loop Delay
Loop Selection of the
loops
Loop 1
|
Loop 4
Loop
Delay
Sets the delay
time for slave
units
0.0-2.0 s
EDITING USER PRESETS (Edit User Colour)
The four user presets available in the standalone mode CCT Preset can be edited individually.
Starting from the main display, press MENU to enter the main menu. Using and , select the
menu item Stand Alone, confirm with ENTER, then select Static and confirm once again. Now
use and to select the desired preset and confirm with ENTER. You can now create an individ-
ual colour mix of CW, WW and Amber with values ranging from 0 to 100 each (select colour with
and , confirm with ENTER, change value with and , confirm with ENTER).

17
DMX DEUTSCHFRANCAIS
ESPAÑOL ENGLISH
ITALIANO POLSKI
1
2
3
4
Edit User Color
WW
CW
Amber
000 - 100
000 - 100
000 - 100
User Color x
Stand Alone
Static
CCT Preset
Playback Loop
Edit User Color
Edit Loop
Menu
DMX Address
DMX Mode
DMX Delay
Stand Alone
Slave
Settings
System Info
EDIT LOOP (Edit Loop)
Brightness, step duration and fade time can be set separately for all four loops. Starting from the
main display, press MENU to enter the main menu. Using and , select the menu item Stand
Alone, confirm with ENTER, then select Edit Loop and confirm once again. Using and , now
select the desired loop for editing and confirm with ENTER.
Loop x
Dimmer
t-Step
t-Fade
Step 1
|
Step 8
0 - 100
0 - 255
0 - 255
Stand Alone
Static
CCT Preset
Playback Loop
Edit User Color
Edit Loop
1
2
3
4
Edit Loop
Menu
DMX Address
DMX Mode
DMX Delay
Stand Alone
Slave
Settings
System Info
This will take you to the submenu for setting the submenu items (see table, select with and
, confirm with ENTER, change value or status with and , confirm with ENTER). The settings for
each loop are made separately and are retained even after restarting the device.
Edit Loop (Loop 1 - Loop 4)
Dimmer Sets brightness 0-100
t-step Sets step time 0-255
t-fade Sets fade time 0-255
Step 1 CCT Preset Warm White – Cold Daylight
User Color User Color 1 – User Color 4
Blackout Black
Step 2 “ “
Step 3 CCT Preset Warm White – Cold Daylight
User Color User Color 1 – User Color 4
Blackout Black
Skip step Skip Step
Step 4 “ “
Step 5 “ “
Step 6 “ “
Step 7 “ “
Step 8 “ “

18
DMX
ITALIANO
POLSKI
ESPAÑOL
FRANCAIS
DEUTSCHENGLISH
SLAVE MODE
Standard Slave mode: Starting from the main display, press MENU to enter the main menu.
Now use and to select the menu item Slave, confirm with ENTER, select Slave Group 0
and again confirm with ENTER. Connect the slave and master unit (same model, same software
version) using a DMX cable, and activate one of the stand-alone modes on the master unit (Static,
CCT Preset, Playback Loop). The slave unit will now follow the master unit.
Menu
DMX Address
DMX Mode
DMX Delay
Stand Alone
Slave
Settings
System Info
Slave Group
00
Advanced slave mode: If you wish to control the slave units in master / slave mode using the
standalone mode Playback Loop, the control signal can be reproduced with a time delay of up
to 24 steps. The delay is set in the submenu item Delay in the relevant standalone mode; the
delay factor is set in the slave menu of the corresponding spotlight. This is a simple way to create
a running light effect with a large number of spotlights that are all the same model and have
the same software version. This is otherwise only possible using a suitable DMX controller and
time-consuming programming.
Menu
DMX Address
DMX Mode
DMX Delay
Stand Alone
Slave
Settings
System Info
Slave Group
00 - 24
Assign the spotlights to one of up to 24 groups (plus Group 0) according to preference, whereby
several spotlights can be assigned to one group. The group number is also the factor by which the
delay time set in the master unit is multiplied.
Setup example:
Mode
Slave
Mode
Slave
Delay Group 0
no Delay
Master Unit
Loop Delay 0.5s
Delay Group 1
0,5s Delay
Mode
Slave
Delay Group 2
1s Delay
Mode
Slave
Mode
Slave
Mode
Slave
Delay Group 3
1,5s Delay
Mode
Slave
Delay Group 4
2s Delay
Mode
Slave
Delay Group 5
2,5s Delay
Group 1 Group 2
Group 3
Group 3
Group 3
Group 4 Group 5
Group 0

19
DMX DEUTSCHFRANCAIS
ESPAÑOL ENGLISH
ITALIANO POLSKI
SYSTEM SETTINGS (Settings)
Starting from the main display, press MENU to enter the main menu. Using and , select the
menu item Settings and confirm with ENTER.
Menu
DMX Address
DMX Mode
DMX Delay
Stand Alone
Slave
Settings
System Info
This will take you to the submenu for setting the submenu items (see table, select with and ,
confirm with ENTER, change value or status with and , confirm with ENTER).
Settings
Disp Rev = Rotate display Off No display rotation
On Display is rotated by 180° (e.g. for over-
head installation)
Display
Off Timer
= Display lighting Off after
20s
Deactivates after approximately 20 sec-
onds of inactivity
Always On On permanently
Signal
Fail
= Operational status
with DMX signal fault
Hold Last command is retained
Blackout Activates blackout
Fade 10s fade to blackout
User Colour
1
User Colour 1 is activated
PWM = LED PWM frequency 650Hz,
1530Hz,
3600Hz,
12000Hz,
18900Hz,
25000Hz
Select LED PWM frequency
Dimmer
Curve
= Dimmer curve Linear Light intensity increases linearly with DMX
value
Exp (Expo-
nential)
Light intensity can be finely adjusted at
lower DMX values and broadly adjusted at
higher DMX values
Logarithmic Light intensity can be broadly adjusted at
lower DMX values and finely adjusted at
higher DMX values
S-curve Light intensity can be finely adjusted at
lower and higher DMX values and broadly
adjusted at medium DMX values

20
DMX
ITALIANO
POLSKI
ESPAÑOL
FRANCAIS
DEUTSCHENGLISH
Dimmer
Response
= Dimmer response LED Lamp responds abruptly to changes in
DMX value
Halogen Light behaves like a halogen spotlight with
slight brightness changes
Red Shift = accurately mimics the
colour drift of dimming
a halogen spotlight.
When dimming the
spotlight, the colour
temperature changes
automatically to in-
creasingly warm white
tones and amber (and
vice versa).
None Colour drift is disabled
Dim to
Warm
Colour drift is enabled
Calibra-
tion
= Colour calibration User Cali-
bration
Individual colour calibration. Cross-mode
brightness setting of CW, WW and Amber
with values from 0-255
RAW CW, WW and Amber with maximum value
255
Fan Mode = Fan control Auto Fan Automatic fan speed control
Fan Off Deactivated fan with greatly reduced
brightness
Silent Fan Constantly low fan speed with reduced
brightness, if necessary
Load
Default
= Reset settings Factory Reset to factory settings: Perform reset
with ENTER, cancel with MENU
Preset A Reset to Preset A: Perform reset with
ENTER, cancel with MENU
Preset B Reset to Preset B: Perform reset with
ENTER, cancel with MENU
Preset C Reset to Preset C: Perform reset with
ENTER, cancel with MENU
Edit
Default
= Store all system
settings in 3 individual
presets
Preset A Store with ENTER
Preset B Store with ENTER
Preset C Store with ENTER
