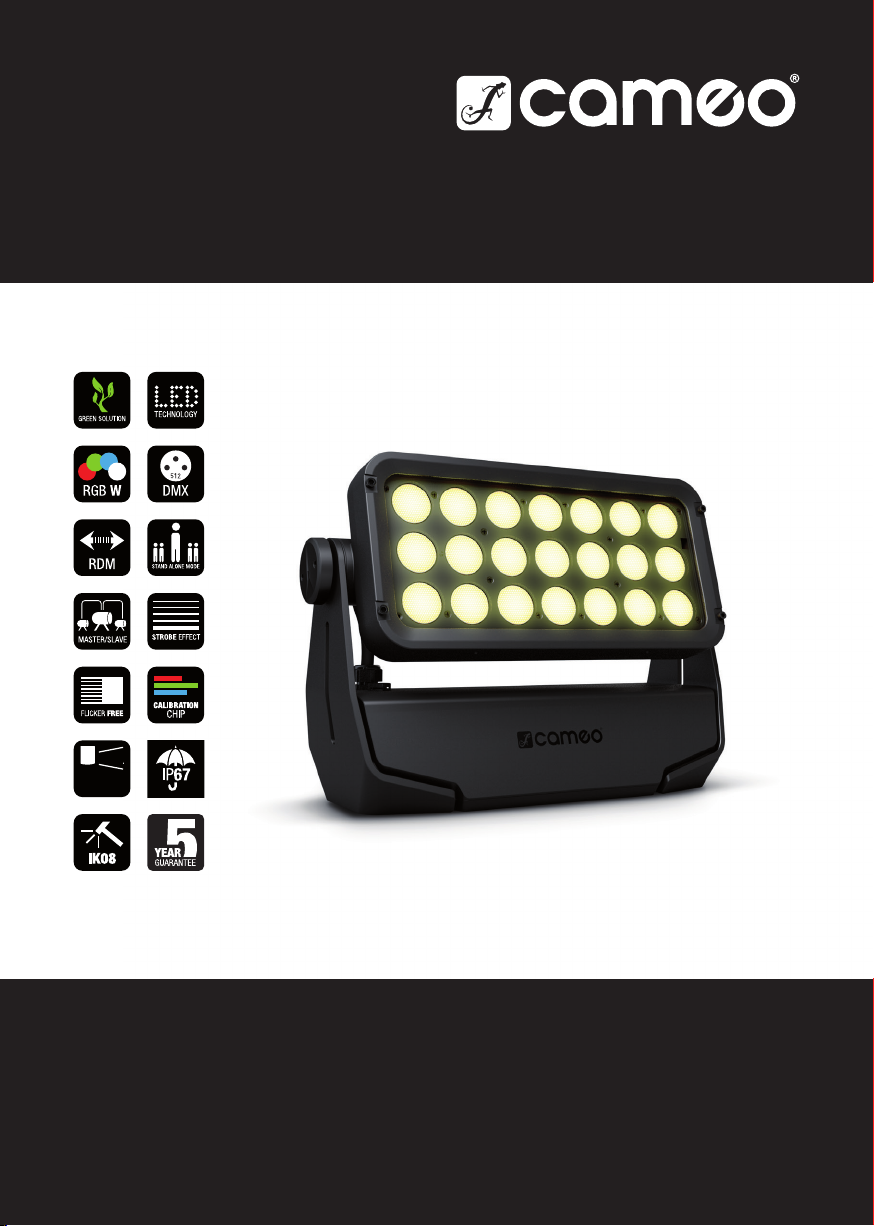

Cameo ZENIT W300i User manual

ZENIT®W300i
OUTDOOR LED WASH LIGHT FOR FIXED INSTALLATION
CLZW300i
USER´S MANUAL
BEDIENUNGSANLEITUNG
MANUEL D´UTILISATION
MANUAL DE USUARIO
INSTRUKCJA OBSŁUGI
MANUALE D´USO
MULTIPLE
ANGLES

CONTENTS / INHALTSVERZEICHNIS / TABLE DES MATIÈRES / CONTENIDO /
SPIS TREŚCI / CONTENUTO
ENGLISH
INFORMATION ON THIS USER MANUAL 8
INTENDED USE 8
DEFINITIONS AND SYMBOL EXPLANATIONS 8
SAFETY INSTRUCTIONS 9
INSTRUCTIONS FOR OUTDOOR INSTALLATION EQUIPMENT 12
FEATURES 13

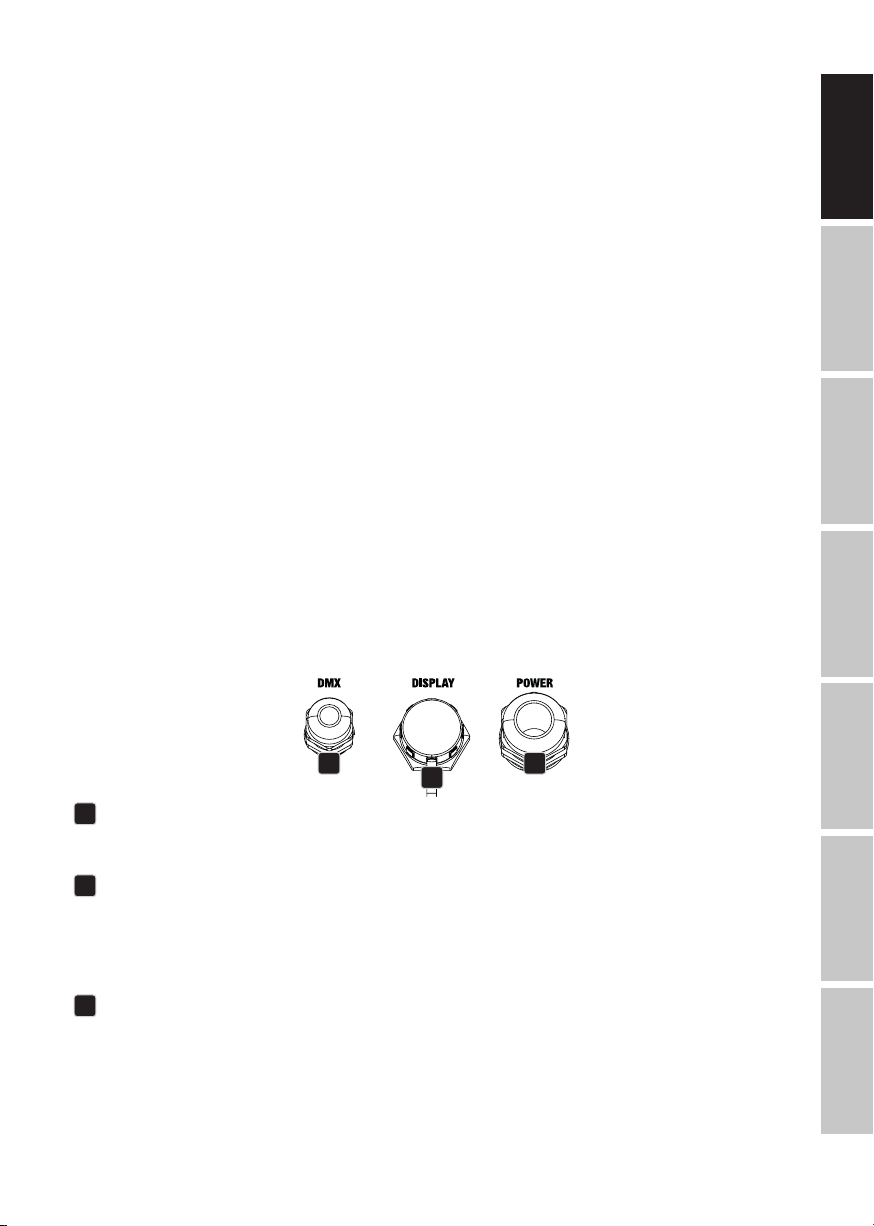

CONNECTIONS, OPERATING AND DISPLAY ELEMENTS 13

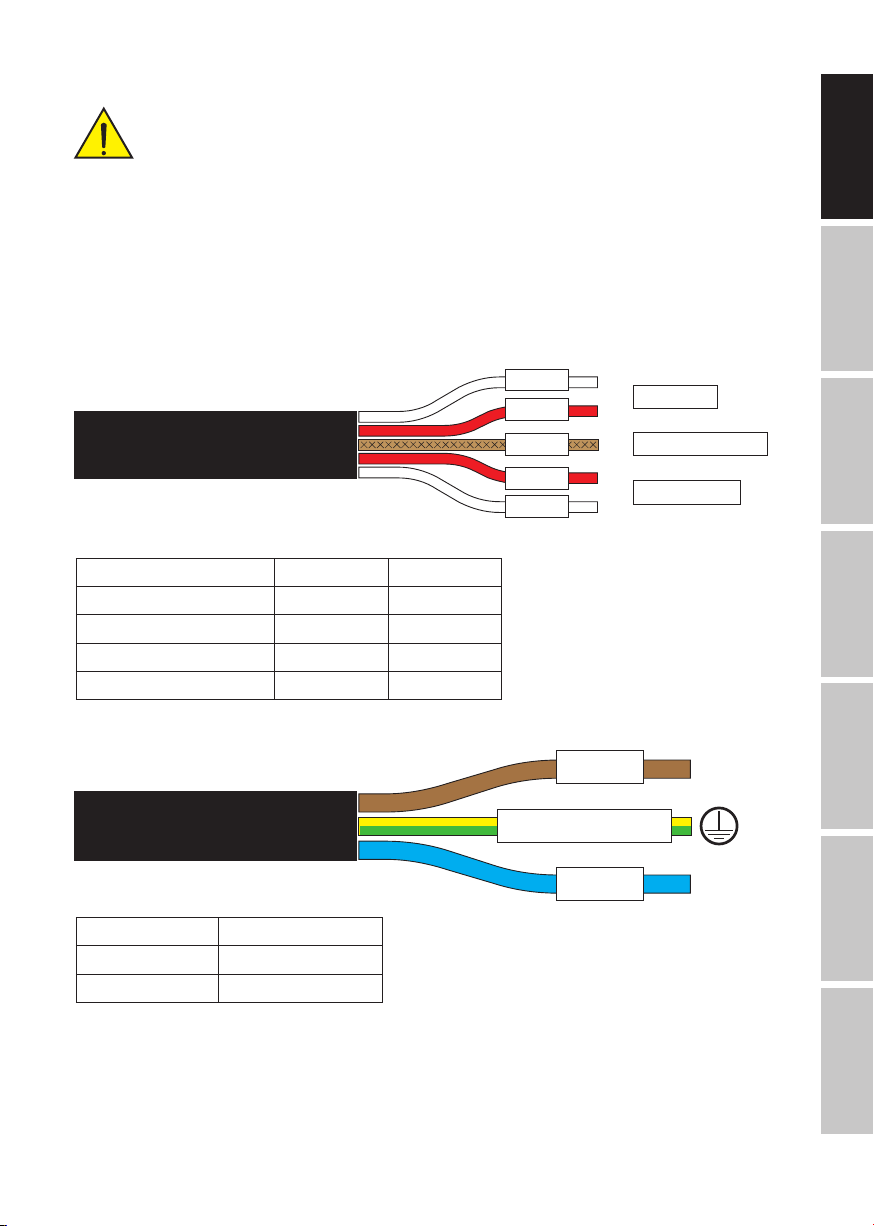

SIGNAL AND POWER CABLE 15
OPERATION 17
ADJUSTING LIGHT HEAD TILT 25
INSTALLATION AND TRUSS MOUNTNG 26
INSTALLATION OF OPTIONAL ACCESSORIES 27
INSTALL SPOTLIGHT WITH OPTIONAL MOUNTING PLATE 29
CARE, MAINTENANCE AND REPAIR 30
OPTIONAL ACCESSORIES 32
TECHNICAL DATA 33
EXPLANATION OF IP PROTECTION CLASS 35
EXPLANATORY NOTES ON IK IMPACT RESISTANCE RATING 36
MINIMUM DISTANCE TO ILLUMINATED SURFACE 36
MINIMUM DISTANCE TO NORMALLY FLAMMABLE MATERIALS 36
DISPOSAL 37
MANUFACTURER’S DECLARATIONS 38

DEUTSCH
INFORMATIONEN ZU DIESER BEDIENUNGSANLEITUNG 39
BESTIMMUNGSGEMÄSSER GEBRAUCH 39
BEGRIFFS- UND SYMBOLERKLÄRUNGEN 39
SICHERHEITSHINWEISE 40
HINWEISE FÜR OUTDOOR-INSTALLATIONSGERÄTE 44
EIGENSCHAFTEN 45
ANSCHLÜSSE, BEDIEN- UND ANZEIGEELEMENTE 45
SIGNAL- UND NETZKABEL 47
BEDIENUNG 49
EINSTELLEN DER LEUCHTKÖRPERNEIGUNG 57
AUFSTELLUNG UND TRAVERSENMONTAGE 58
OPTIONALES ZUBEHÖR MONTIEREN 59
SCHEINWERFER MITTELS OPTIONALER MONTAGEPLATTE INSTALLIEREN 61
PFLEGE, WARTUNG UND REPARATUR 62
OPTIONALES ZUBEHÖR 64
TECHNISCHE DATEN 65
ERLÄUTERUNGEN ZUR IP SCHUTZART 67
ERLÄUTERUNGEN ZUM IK STOSSFESTIGKEITSGRAD 68
MINDESTABSTAND ZUR BELEUCHTETEN FLÄCHE 68
MINDESTABSTAND ZU NORMAL ENTFLAMMBAREN MATERIALIEN 68
ENTSORGUNG 69
HERSTELLERERKLÄRUNGEN 70
CONTENTS / INHALTSVERZEICHNIS / TABLE DES MATIÈRES / CONTENIDO /
SPIS TREŚCI / CONTENUTO

FRANÇAIS
INFORMATIONS CONCERNANT CE MANUEL D’UTILISATION 71
UTILISATION CONFORME 71
EXPLICATIONS DES TERMES ET DES SYMBOLES 71
CONSIGNES DE SÉCURITÉ 72
CONSIGNES POUR LES APPAREILS D’INSTALLATION EXTÉRIEURE 76
CARACTÉRISTIQUES 77
RACCORDEMENTS, ÉLÉMENTS DE COMMANDE ET D’AFFICHAGE 77
CÂBLES DE SIGNAL ET RÉSEAU 79
UTILISATION 81
RÉGLAGE DE L’INCLINAISON DU CORPS LUMINEUX 90
INSTALLATION ET MONTAGE SUR TRAVERSE 91
MONTAGE DES ACCESSOIRES EN OPTION 92
INSTALLATION DU PROJECTEUR À L’AIDE DE LA PLAQUE DE MONTAGE EN OPTION 94
ENTRETIEN, MAINTENANCE ET RÉPARATION 95
ACCESSOIRES EN OPTION 97
CARACTÉRISTIQUES TECHNIQUES 98
EXPLICATIONS RELATIVES À L’INDICE DE PROTECTION IP 100
EXPLICATIONS RELATIVES À L’INDICE DE RÉSISTANCE AUX CHOCS IK 101
DISTANCE MINIMALE PAR RAPPORT À LA SURFACE ÉCLAIRÉE 101
DISTANCE MINIMALE PAR RAPPORT AUX MATÉRIAUX NORMALEMENT INFLAMMABLES 101
ÉLIMINATION 102
DÉCLARATIONS DU FABRICANT 103
CONTENTS / INHALTSVERZEICHNIS / TABLE DES MATIÈRES / CONTENIDO /
SPIS TREŚCI / CONTENUTO

ESPAÑOL
INFORMACIÓN SOBRE ESTE MANUAL DE INSTRUCCIONES 104
USO PREVISTO 104
TÉRMINOS Y SÍMBOLOS 104
INSTRUCCIONES DE SEGURIDAD 105
INSTRUCCIONES PARA LOS EQUIPOS DE INSTALACIÓN FIJA EN EXTERIORES 109
CARACTERÍSTICAS 110
CONEXIONES, ELEMENTOS DE MANEJO Y ELEMENTOS DE VISUALIZACIÓN 110
CABLE DE SEÑAL Y DE ALIMENTACIÓN 112
FUNCIONAMIENTO 114
AJUSTE DE LA INCLINACIÓN DE LA LÁMPARA 122
INSTALACIÓN Y MONTAJE EN TRAVESAÑO 123
MONTAJE DE LOS ACCESORIOS OPCIONALES 124
INSTALACIÓN DEL FOCO CON PLACA DE MONTAJE OPCIONAL 126
CUIDADO, MANTENIMIENTO Y REPARACIÓN 127
ACCESORIOS OPCIONALES 129
DATOS TÉCNICOS 130
EXPLICACIÓN SOBRE LA CLASE DE PROTECCIÓN IP 132
EXPLICACIÓN SOBRE EL GRADO DE RESISTENCIA A LOS IMPACTOS IK 133
DISTANCIA MÍNIMA CON RESPECTO A LA SUPERFICIE ILUMINADA 133
DISTANCIA MÍNIMA CON RESPECTO A MATERIALES NORMALMENTE INFLAMABLES 133
ELIMINACIÓN 134
DECLARACIONES DEL FABRICANTE 135
CONTENTS / INHALTSVERZEICHNIS / TABLE DES MATIÈRES / CONTENIDO /
SPIS TREŚCI / CONTENUTO

POLSKI
INFORMACJE DOTYCZĄCE NINIEJSZEJ INSTRUKCJI OBSŁUGI 136
UŻYTKOWANIE ZGODNE Z PRZEZNACZENIEM 136
OBJAŚNIENIA TERMINÓW I SYMBOLI 136
ZASADY BEZPIECZEŃSTWA 137
UWAGI DOTYCZĄCE URZĄDZEŃ SŁUŻĄCYCH DO MONTAŻU NA ZEWNĄTRZ 141
CHARAKTERYSTYKA 142
PRZYŁĄCZA, ELEMENTY OBSŁUGI I WSKAŹNIKI 142
PRZEWODY SYGNAŁOWY I SIECIOWY 144
OBSŁUGA 146
REGULACJA ODCHYLENIA ŚWIATŁA 154
USTAWIANIE I MONTAŻ NA KRATOWNICY 155
MONTAŻ OPCJONALNYCH AKCESORIÓW 156
INSTALACJA REFLEKTORA PRZY UŻYCIU OPCJONALNEJ PŁYTY MONTAŻOWEJ 158
CZYSZCZENIE, KONSERWACJA I NAPRAWY 159
AKCESORIA DODATKOWE 161
DANE TECHNICZNE 162
OBJAŚNIENIA DOTYCZĄCE STOPNIA OCHRONY IP 164
UWAGI DOTYCZĄCE POZIOMU ODPORNOŚCI NA WSTRZĄSY IK 165
MINIMALNA ODLEGŁOŚĆ OD POWIERZCHNI OŚWIETLONEJ 165
MINIMALNA ODLEGŁOŚĆ OD NORMALNIE ŁATWOPALNYCH MATERIAŁÓW 165
UTYLIZACJA 166
DEKLARACJE PRODUCENTA 167
CONTENTS / INHALTSVERZEICHNIS / TABLE DES MATIÈRES / CONTENIDO /
SPIS TREŚCI / CONTENUTO

ITALIANO
INFORMAZIONI SUL PRESENTE MANUALE D'USO 168
UTILIZZO CONFORME 168
SPIEGAZIONE DI CONCETTI E SIMBOLI 168
INDICAZIONI SULLA SICUREZZA 169
NOTE PER I DISPOSITIVI DA INSTALLAZIONE ESTERNA 173
CARATTERISTICHE 174
CONNETTORI, ELEMENTI DI COMANDO E DI VISUALIZZAZIONE 174
CAVI DI SEGNALE E DI ALIMENTAZIONE 176
UTILIZZO 178
REGOLAZIONE DELL'INCLINAZIONE DELLA LAMPADA 186
INSTALLAZIONE E MONTAGGIO SU TRAVERSA 187
MONTAGGIO DEGLI ACCESSORI OPZIONALI 188
INSTALLAZIONE DEL PROIETTORE CON LA PIASTRA DI MONTAGGIO OPZIONALE 190
PULIZIA, MANUTENZIONE E RIPARAZIONE 191
ACCESSORI OPZIONALI 193
DATI TECNICI 194
SPIEGAZIONI SUL GRADO DI PROTEZIONE IP 196
SPIEGAZIONI SUL LIVELLO DI RESISTENZA AGLI URTI IK 197
DISTANZA MINIMA DALLA SUPERFICIE ILLUMINATA 197
DISTANZA MINIMA DAI MATERIALI NORMALMENTE INFIAMMABILI 197
SMALTIMENTO 198
DICHIARAZIONI DEL PRODUTTORE 199
DMX
DMX CONTROL / DMX STEUERUNG / PILOTAGE DMX / CONTROL DMX /
STEROWANIE DMX / CONTROLLO DMX 200
CONTENTS / INHALTSVERZEICHNIS / TABLE DES MATIÈRES / CONTENIDO /
SPIS TREŚCI / CONTENUTO

8
DEUTSCHENGLISH DMX
ITALIANO
POLSKI
ESPAÑOL
FRANCAIS
ENGLISH
YOU HAVE MADE THE RIGHT CHOICE!
This device has been developed and manufactured to the highest quality standards to ensure
many years of problem-free operation. Please read this user manual carefully to be able to use
your new Cameo product quickly and optimally. Further information about Cameo Light is avail-
able on our website CAMEOLIGHT.com.
INFORMATION ON THIS USER MANUAL
•Carefully read the safety instructions and the entire manual before operating the device.
•Observe the warnings on the device and in the user manual.
•Always keep the user manual within reach.
•If you sell or pass on the device, it is important that you also include this user manual, as it is an
integral part of the product.
INTENDED USE
This product is an outdoor spotlight for permanent installation! This spotlight is intended exclu-
sively for professional users and is not suitable for private households or third parties! Use of
the product outside the specified technical data and operating conditions, as well as incorrect
installation, is considered inappropriate! Liability for damage and third-party damage to persons
and property due to inappropriate use is excluded!
The product is not suitable for:
• Use by persons (including children) with limited physical, sensory
or mental abilities or lack of experience and knowledge.
• Children (children must be instructed not to play with the device).
DEFINITIONS AND SYMBOL EXPLANATIONS
1. HAZARD: The word HAZARD, possibly in combination with a symbol, indicates situations in
which there is an immediate danger or risk of potentially fatal injury.
2. WARNING: The word WARNING, possibly in combination with a symbol, indicates situations in
which there is an immediate danger or risk of potentially fatal injury.
3. CAUTION: The word CAUTION, possibly in combination with a symbol, indicates situations or
conditions that could result in injury.
4. ATTENTION: The word ATTENTION, possibly in combination with a symbol,
indicates situations or states that may lead to property damage and/or environmental damage
.

9
DEUTSCH ENGLISH
DMX FRANCAIS
ESPAÑOLITALIANO POLSKI
This symbol identifies hazards that can cause electric shock.
This symbol identifies hazardous areas or hazardous situations.
This symbol indicates hazards caused by hot surfaces.
This symbol indicates hazards caused by intense light sources.
This symbol indicates a device in which there are no user-replaceable parts.
This symbol indicates additional information on the operation of the product.
SAFETY INSTRUCTIONS
HAZARD:
1. Do not open the device and do not perform any modifications.
2. If your device no longer functions properly, if liquids or objects get inside it or if it
has been damaged in any other way, switch it off immediately and unplug it from
the power source. The device may be repaired only by authorised repair techni-
cians.
3. For devices of protection class 1, the protective conductor must be connected
correctly. Never disconnect the protective conductor. Devices of protection class 2
do not have a protective conductor.
4. Ensure that live cables are not kinked or otherwise mechanically damaged.
5. Never bypass the device fuse.
WARNING:
1. The device may not be operated if it shows obvious signs of damage.
2. The device may only be installed in a voltage-free state.
3. If the device's power cable is damaged, the device may not be used.
4. Permanently connected power cables may only be replaced by a qualified person.

10
DEUTSCHENGLISH DMX
ITALIANO
POLSKI
ESPAÑOL
FRANCAIS
CAUTION:
1. Do not switch on the device if it has been exposed to extreme temperature fluctu-
ations (for example, following transport). Moisture and condensation can damage
the device. Switch on the device only when it has reached room temperature.
2. Ensure that the voltage and frequency of the mains supply match the values
specified on the device. If the device has a voltage selector switch, do not connect
the device until it has been set correctly. Use only suitable power cables.
3. To disconnect the device from the mains on all poles, it is not sufficient to press
the on/off switch on the device.
4. Make sure that the fuse used corresponds to the type printed on the device.
5. Ensure that suitable measures have been taken against overvoltage (e.g. lightning
strikes).
6. Observe the specified maximum output current on devices with a Power Out con-
nection. Ensure that the total current consumption of all connected devices does
not exceed the specified value.
7. Replace plug-in power cables with original cables only.
HAZARD:
1. Choking hazard! Plastic bags and small parts must be kept out of reach of per-
sons (including children) with reduced physical, sensory or mental capabilities.
2. Risk of falling! Make sure that the device is securely installed and will not fall
down. Only use suitable stands or mounts (particularly for fixed installations).
Ensure that accessories are properly installed and secured. Ensure that applicable
safety regulations are observed.
WARNING:
1. Use the device in the prescribed manner only.
2. Operate the device using only accessories of the type recommended and supplied
by the manufacturer.
3. Observe safety regulations applicable in your country during installation.
4. After connecting the device, ensure that all cables are routed so as to avoid dam-
age or accidents, such as from tripping.
5. Always observe the specified minimum distance to normally flammable materials!
Unless explicitly stated, the minimum distance is 0.3 m.
6. Always observe the minimum distance to the illuminated surface, which can be
read on the device!

11
DEUTSCH ENGLISH
DMX FRANCAIS
ESPAÑOLITALIANO POLSKI
CAUTION:
1. Moving components such as mounting brackets may become jammed.
2. In the case of devices with motor-driven components, there is a risk of injury due
to the movement of the device. Sudden movement of the device can cause shock
reactions.
3. The housing surface of the device can become very hot during regular operation.
Ensure that accidental touching of the housing is not possible. Always allow the
device to cool sufficiently before removal, maintenance work and charging etc.
CAUTION:
1. Do not install or use the device in the vicinity of radiators, accumulators, stoves,
or other heat sources. Ensure that the device is always installed in such a way
that it is sufficiently cooled and cannot overheat.
2. Do not place any ignition sources, such as burning candles, near the device.
3. Ventilation openings must not be covered and fans must not be blocked.
4. For transport, use the original packaging or packaging provided by the manufac-
turer.
5. Avoid any impacts to or shaking of the device.
6. Observe the IP rating and the ambient conditions such as temperature and hu-
midity according to the specifications.
7. Devices can be continuously further developed. In the event of deviating informa-
tion on operating conditions, performance or other device properties between the
user manual and the device labelling, the information on the device always has
priority.
8. The device is not suitable for tropical climate zones or for operation over 2,000 m
above sea level.
9. Unless explicitly stated, the device is not suitable for operation under marine
conditions.
PLEASE NOTE:
For conversion or retrofit sets or accessories provided by the manufacturer, it is
essential to observe the instructions included.
CAUTION! IMPORTANT INFORMATION REGARDING LIGHTING PRODUCTS!
1. Never look directly into the beam of light, not even for a short period of time.
2. Never look into the beam of light using optical devices such as a magnifying
glass.

12
DEUTSCHENGLISH DMX
ITALIANO
POLSKI
ESPAÑOL
FRANCAIS
3. Stroboscopic effects may cause epileptic seizures in susceptible individuals!
4. Permanently installed lamps are built into these lighting units. These may not be
replaced by the user. The lamps contained in this lighting unit may only be replaced
by the manufacturer, its service partner, or a similarly qualified person.
INSTRUCTIONS FOR OUTDOOR INSTALLATION EQUIPMENT
1. Equipment for installation applications is designed for continuous operation.
2. Equipment for outdoor installation is largely weather-resistant. Depending on the
design, however, installed seals may be made of materials that deteriorate over
time. These must be checked regularly and replaced if necessary.
3. The correct condition of the housing parts and connections must be checked
regularly.
4. Surfaces and plastic parts can also weather in installation equipment, e.g. due to
UV irradiation. This generally does not impair functionality.
5. Damage to the surface coating can impair the device's corrosion protection.
Damaged surface coating (e.g. scratches) must be promptly repaired by suitable
measures.
6. Screw connections can be impaired in their freedom of movement (e.g. due
to oxidation or impurities). Here, appropriate measures for loosening are to be
implemented.
7. Unless explicitly stated otherwise on the device or in the technical data, the
devices are intended for installation heights of less than 5 m.
INCLUDED
Remove the product from the packaging and remove all packaging material.
Please check the completeness and integrity of the delivery and notify your distribution partner
immediately after purchase if the delivery is not complete or if it is damaged.
Product includes:
XW300i
XOmega mounting bracket incl. 2 fastening screws and washers
XUser manual

13
DEUTSCH ENGLISH
DMX FRANCAIS
ESPAÑOLITALIANO POLSKI
FEATURES
IP67 protection rating. Impact resistance rating IK08. 21 x 15 W high-power RGBW LEDs. DMX-
512. Strobe. 16-bit dimmer. 4 dimmer curves. Colour temperature correction. Adjustable LED
PWM frequency. Fast Access Feature. Plastic feet. 1 x Omega mounting bracket included. Operat-
ing voltage 100-240 V AC. Power consumption 312 W. Diffusers, glare shield and mounting plate
optionally available.
The spotlight features the RDM standard (Remote Device Management). Remote device manage-
ment allows the user to view the status and configuration of RDM terminals via an RDM-capable
controller.
CONTROL FUNCTIONS
2-channel CCT, 3-channel colour macros, 3-channel RGB 8-bit, 4-channel RGBW 8-bit, 6-channel
RGB 16-bit, 8-channel RGBW 8-bit, 8-channel RGBW 16-bit, 10-channel full access 8-bit and
15-channel full access 16-bit DMX control
Master/slave operation
Standalone functions
DELIVERY CONDITION
15-channel full access DMX mode, DMX start address 001
CONNECTIONS, OPERATING AND DISPLAY ELEMENTS
123
1DMX
Cable gland with a fixed 5-pin signal cable for DMX input and output.
2CONNECTION FOR DISPLAY MODULE
Connection socket for an external module with display and touch-sensitive controls (optional). The
socket has a cover cap with seal. Ensure that the socket is securely closed with the cover cap
when the module is not connected.
3POWER
Cable gland with a fixed power cable for power supply.

14
DEUTSCHENGLISH DMX
ITALIANO
POLSKI
ESPAÑOL
FRANCAIS
5 54
DISPLAY MODULE
A special external module with display and touch-sensitive controls is optionally available for
configuring the spotlight (product number CLZIEXDISP). The module is connected to the spotlight
using a special connecting cable. Ensure that the connections are tightly sealed and that moisture
cannot penetrate into the spotlight housing and the housing of the display module. Once the spot-
light configuration is complete, the module must be disconnected from the spotlight again and the
connection on the spotlight must be securely sealed using the cover cap. The module can now be
used to configure additional spotlights.
4OLED DISPLAY
The OLED display shows the currently activated mode (main display), the menu items in the edit
menu and the numerical value or operating mode in certain menu items.
5TOUCH-SENSITIVE CONTROLS
MODE
Press MODE to access the main menu. Press repeatedly to return to the main display.
ENTER
Press ENTER to access the menu levels to make value changes, and to access the sub-menus.
Confirm value changes by pressing ENTER.
UP and DOWN
Select individual menu items in the selection menu (DMX address, operating mode etc.) and in
the sub-menus. Allow changes to be made to a menu item setting such as the DMX address as
required.
PRESSURE EQUALISATION ELEMENT
The pressure equalisation element to prevent condensation forming inside the housing is located
in the base of the device. In order to ensure its proper function, the element must be protected
from contamination by regular cleaning.
HOUSING FAN
The three IP67-rated housing fans and heat sink are located on the rear of the LED unit. In order to
ensure good air circulation, do not cover the device and clean it regularly.

15
DEUTSCH ENGLISH
DMX FRANCAIS
ESPAÑOLITALIANO POLSKI
SIGNAL AND POWER CABLE
There are no plugs or sockets at the cable ends of the DMX signal cable and the cable
for the spotlight’s power supply. Therefore, the spotlight may only be wired by trained
specialist personnel. Extensive knowledge of handling data and power cables, as well
as the creation of waterproof connections and junctions according to protection class
IP67, is required.
If you do not have these qualifications, do not attempt to install cables yourself. Refer
instead to a qualified professional. Liability is excluded for damage resulting from
improper handling in all work steps necessary for safe operation.
Ensure that no mains voltage is present in cables and spotlights during all work steps
that are necessary for cabling.
DMX SIGNAL CABLE
DMX input and output
white DMX IN minus (-)
red DMX IN plus (+)
shield DMX IN/OUT
red DMX OUT plus (+)
white DMX OUT minus (-)
-
-
+
+
white
red
red
white
DMX IN
DMX IN/OUT
DMX OUT
shield
POWER CABLE
Power cable
brown Phase (L)
yellow/green Grounding conductor
blue Neutral (N)
L
N
brown
yellow/green
blue

16
DEUTSCHENGLISH DMX
ITALIANO
POLSKI
ESPAÑOL
FRANCAIS
PLEASE NOTE
No display module connected to the spotlight:
• When the spotlight is supplied with mains voltage, the start-up process begins. During the start-
up process, the previously selected operating mode is activated and the spotlight is operational
after a short time.
Display module connected to the spotlight:
• When the spotlight is supplied with mains voltage, the start-up process begins and the following
are displayed in succession: "Welcome to Cameo", the model name and the software version.
During the start-up process, the previously selected operating mode is activated and the spot-
light is operational after a short time.
• Before changing device settings, ensure that the control panel is dry and free of dust in order
not to impair its functionality.
• If one of the DMX operating modes is activated and there is no DMX signal to the DMX input, the
currently programmed DMX address is displayed and the characters on the display will begin to
flash.
• The main display is activated automatically if there is no input for a period of approximately one
minute.
Fast Access Feature: In order to simplify the menu guide, the device has an intelligent menu struc-
ture that allows direct access to previously selected menu items and submenu items.
1. Press MODE and ENTER simultaneously for direct access to the last-edited submenu item,
where you can make changes instantly as required (DMX starting address and all modes).
2. Press MODE to go directly to the last selected and edited menu item. If you now repeatedly
press ENTER, you can access the submenu items to make individual settings (DMX start
address and all operating modes).
• The display can be rotated through 180° by pressing UP when the main display is visible.
• To quickly change a value (e.g. DMX start address), press and hold the UP or DOWN controls.

17
DEUTSCH ENGLISH
DMX FRANCAIS
ESPAÑOLITALIANO POLSKI
OPERATION
MAIN DISPLAY
The main display shows the currently activated operating mode (in the example: DMX operating
mode with start address 001).
DMX Address
001
CONFIGURING DMX START ADDRESS (DMX Address)
Press MODE to access the main menu (--- Menu ---). Using the UP and DOWN controls, select the
menu item DMX address (observe arrow) and confirm with ENTER. A three-digit number field is
now shown on the display.
You can use UP and DOWN to configure the desired DMX start address. Confirm the entry with
ENTER and press MODE to return to the main display (in the example, "DMX address 001").
---------------- Menu ----------------
DMX Address
DMX Mode
Stand Alone
Slave
Settings
System Info
DMX Address
001
001
5xx
-
CONFIGURING DMX MODE (DMX Mode)
Press MODE to access the main menu (--- Menu ---). Using the UP and DOWN controls, select the
menu item DMX Mode (observe arrow) and confirm with ENTER. In the submenu, you can now
select the different DMX modes
using UP and DOWN. Confirm your selection with ENTER. Tables with the channel assignments
can be found in these instructions under DMX CONTROL.
---------------- Menu ----------------
DMX Address
DMX Mode
Stand Alone
Slave
Settings
System Info
------------ DMX MODE ------------
15CH Full Access
10CH Full Access
8CH 8-bit
8CH User-Calibrated
6CH Factory-Calibrated
4CH User-Calibrated
3CH Factory-Calibrated
3CH Color Macro
2CH CCT Factory-Calib

18
DEUTSCHENGLISH DMX
ITALIANO
POLSKI
ESPAÑOL
FRANCAIS
CONFIGURE STANDALONE MODE
Press MODE to access the main menu (--- Menu ---). Use UP and DOWN to select the menu item
Stand Alone (observe arrow) and confirm with ENTER. In the sub-menu you can now use UP and
DOWN to select from the standalone modes Auto, Color Macro, Static, Tunable White, and
User Color and the timer feature Timer. Confirm your selection with ENTER.
---------------- Menu ----------------
DMX Address
DMX Mode
Stand Alone
Slave
Settings
System Info
------------ Stand Alone -----------
Auto
Color Macro
Static
Tunable White
User Color
Timer
AUTO MODE (Program 1 to Program 6)
The 6 different auto programs each comprise non-editable colour-change sequences. Brightness
and speed are independently adjustable. Select auto mode as described above under "CONFIGURE
STANDALONE MODE" and confirm with ENTER. Now use UP and DOWN to select one of the 6 auto
programs (observe arrow) and confirm with ENTER. To adjust brightness, use UP and DOWN to
select the menu item Dim and confirm with ENTER, then use UP and DOWN to select the desired
value between 000 and 255. Confirm with ENTER. Set the run speed by selecting the menu item
Speed, confirm with ENTER, and then select the desired value between 001 and 100. Confirm
with ENTER. Press MODE four times to return to the main display (Mode Auto).
000
255
-
Dim
001
100
-
Speed
------------ Stand Alone ------------
Auto
Color Macro
Static
Tunable White
User Color
Timer
Mode
Auto
---------------- Auto ----------------
Program 1
Program 2
Program 3
Program 4
Program 5
Program 6
------------- Program x -------------
Dim <255>
Speed <100>
001
100
-

19
DEUTSCH ENGLISH
DMX FRANCAIS
ESPAÑOLITALIANO POLSKI
COLOUR MACROS (Color Macro)
15 different preset colour macros are available. Select Color Macro as described above under
CONFIGURE STANDALONE MODE and confirm with ENTER. Using the UP and DOWN controls, now
select the desired colour preset (observe arrow) and confirm with ENTER (Color Off = blackout). A
three-digit figure is shown on the display, and you can set the desired brightness on a scale from
000 to 100 using UP and DOWN. Confirm with ENTER. Press MODE three times to return to the
main display (Color Macro Mode).
Mode
Color Macro
------------ Color Macro ------------
Color O󰀨
Red <100>
Amber <100>
Yellow Warm <100>
Yellow <100>
Green <100>
Turquoise <100>
Cyan <100>
Blue <100>
Lavender <100>
Mauve <100>
Magenta <100>
Pink <100>
Warm White <100>
White <100>
Cold White <100>
------------ Stand Alone ------------
Auto
Color Macro
Static
Tunable White
User Color
Timer
000
100
-
STATIC MODE (Static)
Static mode allows the functions Dimmer, Strobe and R, G, B, W to be adjusted directly on the
device with values between 000 and 255, in a similar way to with a DMX controller. In this way,
an individual scene can be created without an additional DMX controller. Select the static mode as
per the procedure previously described in SETTING STAND ALONE MODE and confirm with ENTER.
Now use UP and DOWN to select the menu item you wish to edit (observe arrow) and confirm with
ENTER. The display will now show a three-digit number field, and you can use UP and DOWN to
configure the desired value between 000 and 255. Confirm with ENTER. Press MODE three times
to return to the main display (Static Mode).
Mode
Static
---------------- Static ----------------
Dimmer <255>
Strobe <255>
Red <255>
Green <255>
Blue <255>
White <255>
000
255
-
------------ Stand Alone ------------
Auto
Color Macro
Static
Tunable White
User Color
Timer

20
DEUTSCHENGLISH DMX
ITALIANO
POLSKI
ESPAÑOL
FRANCAIS
COLOUR TEMPERATURE (Tunable White)
The colour temperature mode enables you to configure the colour temperature from cold white
to warm white (CCT) and the brightness (Dim) of the light directly on the device. Select the colour
temperature mode as per the procedure previously described in SETTING STAND ALONE MODE
and confirm with ENTER. Now use UP and DOWN to select the menu item you wish to edit (ob-
serve arrow) and confirm with ENTER. The display will now show a three-digit number field and
you can use UP and DOWN to configure the desired value. Confirm with ENTER. Press MODE three
times to return to the main display (Mode Tunable White).
------------ Stand Alone ------------
Auto
Color Macro
Static
Tunable White
User Color
Timer
Mode
Tunable White
000
100
-
Dim
000
255
-
CCT
------------- Program x -------------
Dim <100>
CCT <255>
USER PRESETS (User Color)
The operating mode "User Presets" allows the overall brightness and a colour mixture of R, G, B
and W to be saved directly in the device in five individual colour presets. Select the User Color
mode as per the procedure previously described in SETTING STAND ALONE MODE and confirm
with ENTER. Use UP AND DOWN to select one of the stored presets Color1 to Color5 and confirm
with ENTER and select the submenu item you want to edit (see arrows). Confirm with ENTER. The
display will show a three-digit number field and you can use the UP and DOWN controls to set the
value as required between 000 and 255. Confirm by pressing ENTER again. When all settings are
configured as required, press MODE four times to return to the main display (Mode User Colour).
Mode
User Color
------------ User Color ------------
Color1
Color2
Color3
Color4
Color5
------------ Stand Alone ------------
Auto
Color Macro
Static
Tunable White
User Color
Timer
000
255
-
------------ Color1 ------------
Dimmer <255>
Strobe <255>
Red <255>
Green <255>
Blue <255>
White <255>
