Camrivox Flexor 500 User manual

500
Quick install guide
Version 1.0
1Check package contents
Flexor 500 Body Handset Handset Cable
ABC
Ethernet Cable Power Supply VoiceConnect CD
DEF

2Connectinghandsetto Flexor500
ab
2a Connect one end of the handset cable to the socket
on the left side of the Flexor 500 base as shown above.
2b Connect the other end of the headset cable to the
socket in the handset as shown above.
3ConnectingFlexor 500
cab
3a Using the supplied Ethernet cable connect your local area network (LAN) to the LAN port of the
Flexor 500 base.
3b Optional. If your PC has an Ethernet connection to your local area network (LAN), unplug the end of
the cable connected to your switch, router or hub and connect this to the PC port of the Flexor 500 base.
3c Connect the power connector to the Flexor 500 base and plug in the power adaptor to a suitable wall
socket and turn the power on at the wall socket. Only use the supplied power adaptor.

4Getting started
5Optional installation of VoiceConnect
(Windows XP/2000 only)
5a Insert the VoiceConnect CD into your CD-ROM drive,
this should start the installation automatically. If the
the installation does not start automatically:
• Browse to My Computer
• Right click on the CD-ROM containing the VoiceConnect CD
• Select Open from the menu
• Double-click on the file setup.bat in the window that has just opened.
5b Once the installation is complete the VoiceConnect application
will start for the first time*. You may see a Windows Security Alert
from Windows Firewall, similar to that in Fig 1. Click Unblock to
allow VoiceConnect to access your network.
5c Once the application has started you should see the
VoiceConnect Interact icon in your task bar, as shown in Fig 2.
* If for some reason the application does not start automatically once the
installation is complete you can start the applciation manually by clicking
on Start > All programs > VoiceConnect > VoiceConnect.
Fig 1
Fig 2
a
Show main menu Show address book
Show IP address

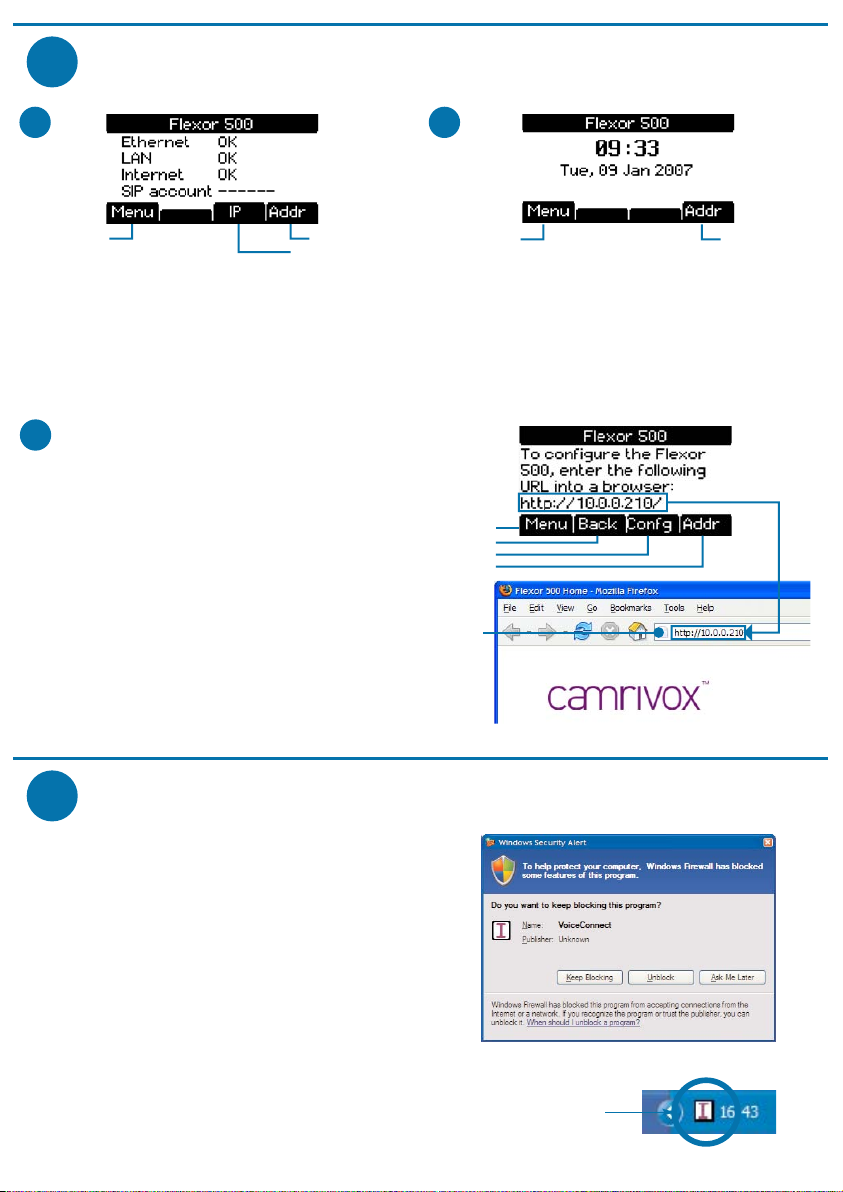

4a When the Flexor 500 starts up it carries out a series
of checks for networking and finally that there is a
SIP (VoIP) account configured. You can press the Menu
or Addr soft keys to access those menus or press the
IP button for additional diagnotic information (see 4c
below).
b
Show main menu Show address book
4b The Flexor 500 is likely supplied by your vendor
pre-configured for a VoIP service. Once the Flexor 500
has completed the startup checks you will see a screen
similar to that shown above. The call lights will also
light up solid green to show that it is ready to make
and recieve calls.
c
Show main menu
Back to startup screen
Show network config menu
Show address book
Access the web pages of
the Flexor 500 by entering
the URL from the Flexor
500 screen direclty into
your favourite web browser
and press Enter.
4c If the Flexor 500 does not have a SIP
(VoIP) account configured or you have
pressed the soft IP button shown in 4a
then you will see the screen shown
opposite.
In order to configure the Flexor 500,
or to further diagnose any problems
you are having, access the Flexor 500
web pages using the URL shown.
VoiceConnect Interact icon

6OverviewofFlexor500keysandLEDs
Soft keys, function changes depending on current menu
Show current soft key function
LCD Screen
Headset Socket
Menu selection (up / down)
Received/Made Calls (idle screen)
Volume (During call)
Toggle Do Not Disturb
Lit when Do Not Disturb active
Cancel / Backspace / Delete
Toggle mute, lit when active
Toggle headset, lit when active
Toggle handsfree, lit when active
Hold current call Lit when voicemail waiting
Call Status Green - Available Red - Active Red Flash - Call held Green Flash - Incoming Call Red / Green Flash - Problem
Keypad for alphanumeric input.
For more information please see the Flexor 500 User Manual at http://www.camrivox.com/pdf/Flexor_500_User_Manual.pdf
