CANAVIS CA-672-4H1M User manual

- 1 -
Wireless Camera System
Friendly Reminder:
Please make sure you have a monitor, smart mobile phone of Android / iOS to work with this
system.

- 2 -
Directory
* Statement ---------------------------------------------------------------- Page 1
* Attention ---------------------------------------------------------------Page 1
* Packing List -----------------------------------------------------------Page 1
* How to install this system? --------------------------------------------Page 2
* How to set up recording? ---------------------------------------------Page 8
* How to playback recorded video?------------------------------------Page 10
* How to backup recorded video?------------------------------------Page 11
* How to set up internet connection of NVR?------------------------Page 12
* How to remote view from cellphone?--------------------------------Page 14
* How to remote view from computer application?-----------------Page 29
* How to view from IE browser?----------------------------------------Page 31
* Frequently Asked Questions ------------------------------------------Page 34
* Warranty ------------------------------------------------------------------Page 57

3
Statement
Thank you for using our product, please contact us via email
after[email protected] if you have any questions.
This guide is for Wireless Camera System.
Contents of this manual may be modified and updated based on new function.
The function of the actual products maybe a little different from the guide, please
operate it based on the actual products.
Attention
1. Do not install the wireless NVR in humid and dusty environment.
2. Put the wireless NVR in drafty environment in case of ventilation port being
blocked.
3. Check the power supply to avoid damage because of voltage mismatch.
4. Make sure the wireless NVR working within suitable temperature and humidity
environment.
5. Please install the wireless NVR horizontally, and avoid vibration.
6. Short circuit may occur when dust become wet on circuit board. Please clean the
dust on circuit board, connectors, and NVR case.
7. Explosion may happen because of improper replacement of battery, do not replace
it by yourself; If you need, make sure it is the same type of battery. And do not open
or repair it.
8. We recommend you to use a professional 3.5” (＜4TB) hard disk (for example
Seagate or Western Digital) to ensure continual and stable recording.
9. Lightning protection is needed when device connect to communication cables.
Packing List
Open the package when received, put the products in suitable place, please check the
products based on packing list. If there is anything broken or missing, please contact
with us as soon as possible.
No.
Name
Quantity
No.
Name
Quan
tity
1
Wireless NVR
1
7
User Manual
1
2
Wireless camera
4/8
8
Screws for hard disk
4
3
Network Cable(1M)
1
9
Screw bags for camera
4/8
4
USB Mouse
1
10
Power supply for NVR
1
5
Antenna for NVR (black)
2
11
Power supply for camera
4/8
6
Antenna for camera (white)
4/8
12
camera installation
sticker
4/8

4
How to install this system?
1. How to connect each port of NVR?
1Antenna
2Audio output
3VGA output
4HD output
5Network port
6USB port×2
7Power supply port : DC12V

5
2. How to install wireless camera
Attention: The camera should install on the wall with suitable thickness, which
can sustain 4 times weight of camera.
2.1 Interface of wireless camera
No.
Name
Description
1
Bracket
Support 2 axis adjustment
2
Antenna
Transfer and receive wireless signal

6
3
Rear cover
Rear cover of the case
4
Front cover
Front cover of the case
5
Double loop glass
Prevent inside light-leaking of lens
6
Power supply
DC 12V
7
Ethernet port
connect to Ethernet IP cable, 10/100M
auto-adjustable
8
Antenna connector
Connect to camera antenna
2.2 Installation step
1Hole location sticker: put the sticker on the wall, punch with 5mm drill in
the marked areas, make sure the deep of hole is over 30mm at least.Then punch
expansion screws in hole. As Picture 2-1 shows.
2Fixing camera: The structure of wireless camera is integrated, please use 3
pcs PA4 screw to fix camera on the wall. As picture 2-2 shows.
3Bracket adjustment:loosen the screw on camera, the range of angle for
adjusting is showed on picture below,adjust the camera to suitable direction, then
tighten the screws. As picture 2-3shows.
3. Setting up
3.1 Camera

7
Note: This wireless camera needs wired power input connection
3.2 NVR
Please make sure the power supply is matched with wireless NVR, and ground
connection work well in socket. When power supply connected, indication lamp
【PWR】turn on continuously, it means system runs smoothly.
Indication lamp 【HDD】turn on means system is installed hard disk and running.
Indication lamp 【REC】turn on means system is recording video.
Camera video will show automatically when NVR and cameras are power on. 【If
nothing show on monitor, please check the FAQ NO.3 on page 39】

8
How to set up recording?
Reminder:
The default log-in user name of NVR menu is “admin”, and the default password is
blank, you don’t need to enter anything to log in at the first time. After logging in
NVR menu, please modify it to be your private password as soon as possible to keep
your privacy safe. 【About how to modify NVR password, please check Page 42of
this user manual】
1. Check the hard disk.
Click right button on main interface shows main menu, and choose 【System Setup】
→ Record Setting → Disk. Make sure the hard disk is connected and runs normally.
2. Timing Record
Main Menu →【System Setup】→ Record Setting→ Record →choose Channel and
record type → Apply. Users can click 【Copy】, copy to other channels with the same
mode.

9
3. Manual Record
Main Menu →【Manual Record】→ choose recording channel → 【Save】
4. Motion Detection Record
Main menu →【System Setup】→ Alarm Setting→ Alarm Type → Channel → Click
Enable Switch → Set Sensitivity & Area & Time → Open Screen Linkage → Choose
Channels for recording when Motion Detection Alarm triggered.

10
In record setting, choose period for recording → click 【Motion】→【Apply】.Users
can click 【Copy】, copy to other channels with the same mode.
How to playback recorded video?
Main Menu →【Playback】→ choose channel and date →【Query】

11
Click the play icon in 1in the following picture, then the recorded video will come
out. And then choose the period you wanna view in 2.
How to backup recorded video?
Main menu →
【System Setup】
→ Recording Setting →
【Backup】
→ choose channel
and time → choose target file →【Backup】→ insert U Disk or Mobile hard disk into
NVR’s USB port in 20S.

12
Attention: If target file can not be searched out, please click 【Clean】and then click
【Add 】. Please remove the files which no need before backup. Ensure insert
device( like U Disk) in 20 seconds, as system reserved searching time for only 20
seconds.
How to set up internet connection of NVR?
1. Please make sure you already connect NVR with router via a network cable.
.

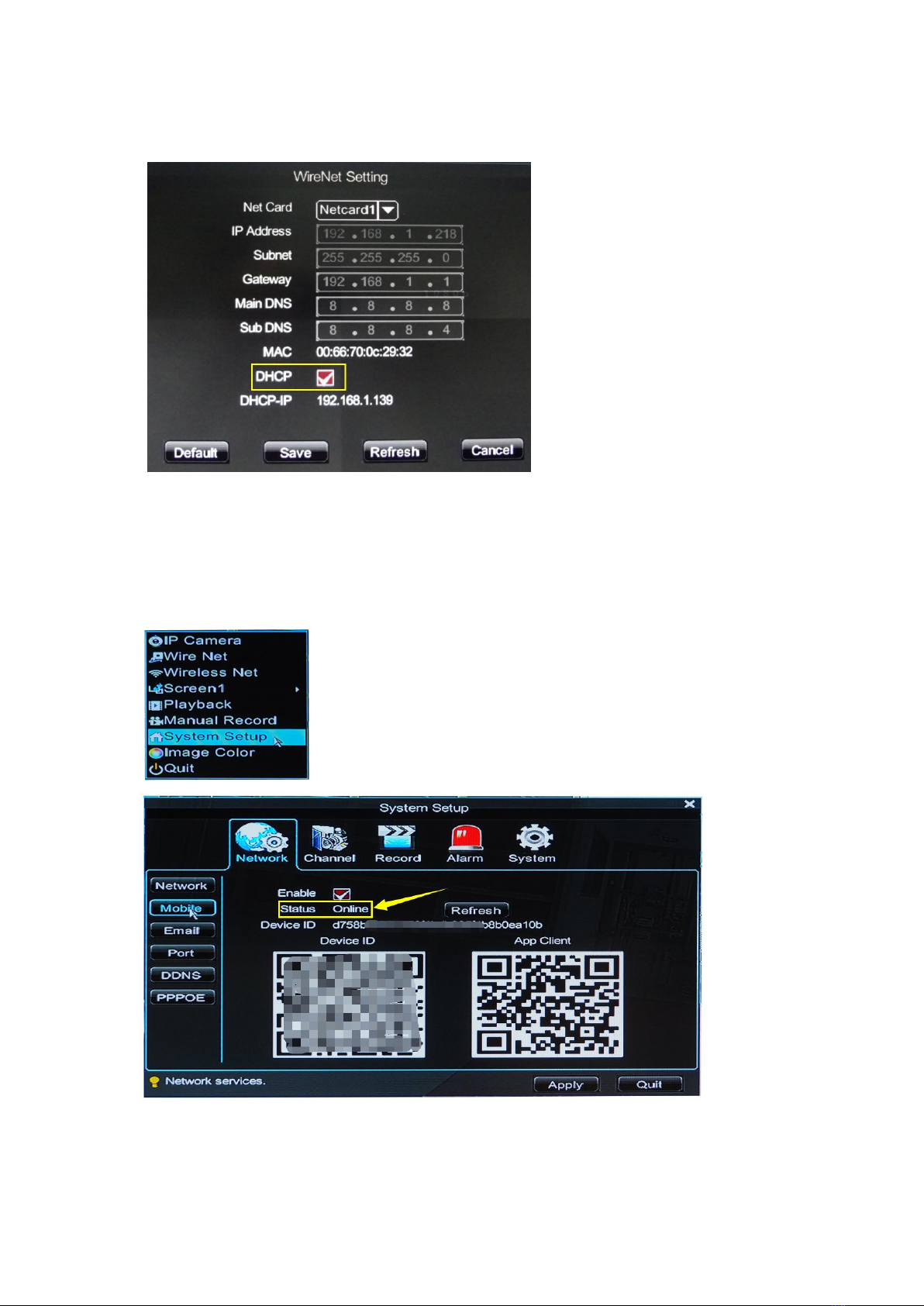

2. Right click mouse→【Wire Net】
There are 2 types for Internet connecting.

13
①DHCP: open DHCP, device will connect to Internet automatically, no need data
setting. This is the most common and easy way.
②Manual setting: Fill in IP address, DNS data, and click【Save】.
How to check NVR connects with internet successfully or not?
Right click mouse → System Setup → Network → Mobile.
You’ll see the “Status” is “Online” or “Not Online”.
If “Not Online”, please click 【Enable】→ press 【Refresh】until Status shows
“online”.

14
If Status shows “ Not Online” more than 5 minutes, there is mistake for data setting,
NVR is disconnected with Internet. Please check step 1 & 2 and make sure NVR is
connected to Internet.
How to remote view from cellphone?

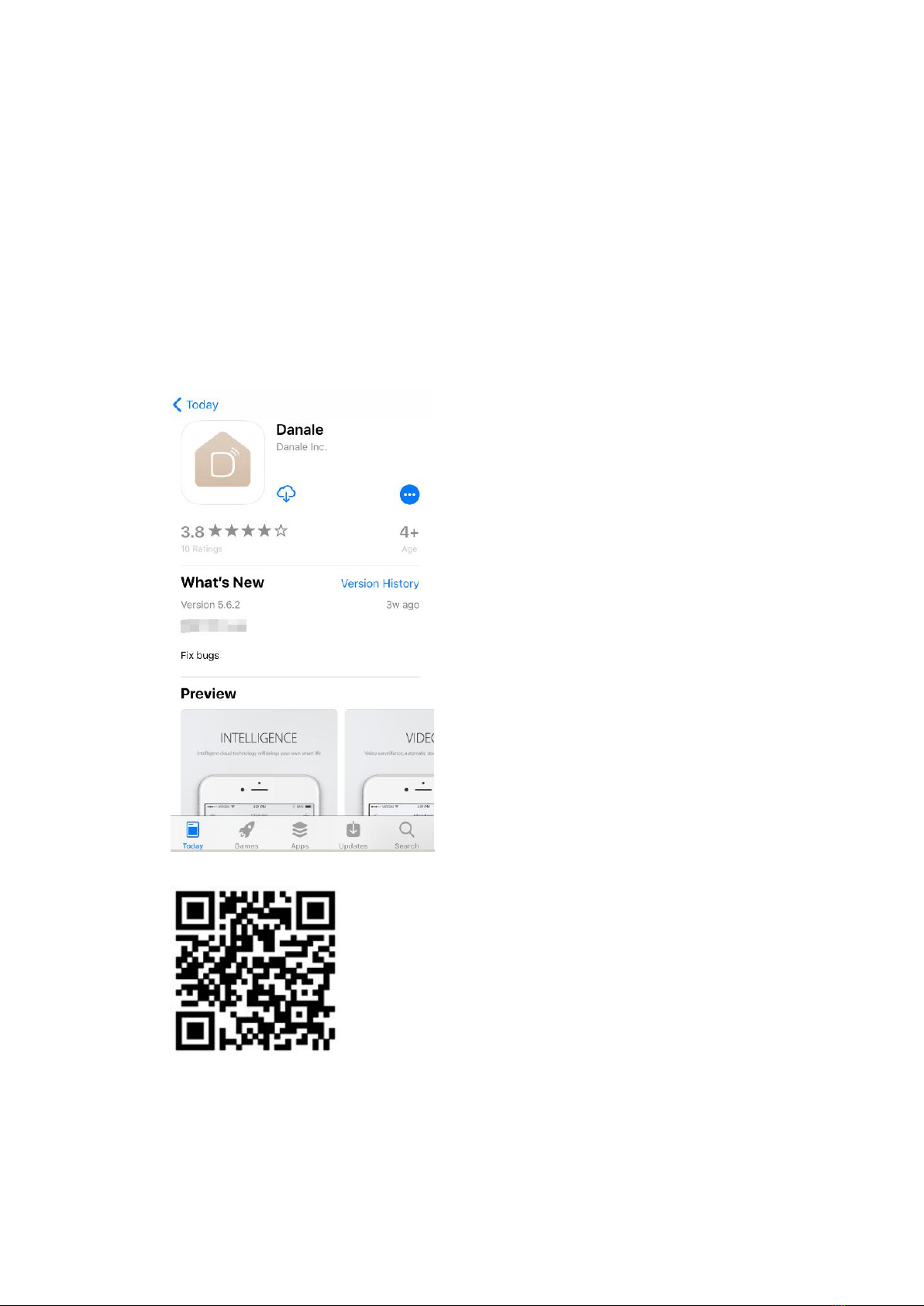

1. Application download
“Danale” app is available for Android and IOS system. You can download in the
following 4 ways:
①Search “Danale” in App Store, and then download it;
②Download by scanning the code below:
③Download by scanning the QR code inside NVR menu:
Right click mouse → System Setup → Network → Mobile

15
④Download from the following website: http://www.danale.com/app_dl/
2. Register a Danale account：
You can use your phone number(Please remember to choose your phone number’s
country) or email address as a user name, and set your own Danale account’s
password.

16

17
3. Make sure internet connection of NVR is succeed.
4. Log in your Danale account and then add device:
①Click , and then click

18
②Right click mouse of NVR → System Setup → Network → Mobile. And then scan
the QR code of “Device ID”, you’ll be able to add device into your
cellphone App successfully.

19
You can also manual input the Device ID number for adding device into your Danale
account.

20
