Cannon DIGI-TROLL 10 User manual

DIGI-TROLL 10
DIGI-TROLL 10 TS
ELECTRIC DOWNRIGGERS
USER MANUAL

To receive all the benefits for your product warranty, please fill out and mail the enclosed registration card.
Please thoroughly read this user manual. Follow all instructions and heed all safety and cautionary notices below. Use of this downrigger is only
permitted for persons that have read and understood these user instructions. Minors may use this product only under adult supervision.
ATTENTION: Your Cannon downnrigger should only be used for its intended purpose. Improper use will void the warranty and may be a safety risk.
CAUTION: Persons whose ability to run the downrigger or whose reactions are impaired by alcohol, drugs, medication, or other substances are not
permitted to use this product.
THANK YOU
Thank you for purchasing a Cannon downrigger. We have designed your new downrigger to be an accurate and reliable
tool that will enhance fishing control and improve your ability to catch fish. We hope that you enjoy the use of your
new downrigger and enjoy the benefit of controlled depth fishing for years to come by always following safe boating
practices and laws wherever you are fishing.
This manual covers installation and the operation of your downrigger. Read this manual carefully before operating your
new Cannon downrigger. Retain this manual for future reference.
REMEMBER TO KEEP YOUR RECEIPT AND IMMEDIATELY REGISTER YOUR DOWNRIGGER.
LOCATING YOUR SERIAL NUMBER
Your Cannon 11-character serial number is very important. It helps to determine the specific model and year of manufacture. When contacting
Consumer Service or registering your product, you will need to know your product’s serial number. We recommend that you write the serial number
down in the space provided below so that you have it available for future reference.
CE MASTER USER MANUAL (FOR CE CERTIFIED MODELS)
The serial number on your Cannon
DigiTroll 10 downrigger is located on the
bottom of the downrigger frame.
DIGI-TROLL ELECTRICAL DOWNRIGGER
MODEL 1902315
SER NO K365 CN12345
EXAMPLE

CANNON LIMITED WARRANTY
Johnson Outdoors Marine Electronics, Inc. (“JOME”) extends the following limited warranty to the original retail purchaser only. Warranty coverage is not
transferable.
CANNON® LIMITED LIFETIME WARRANTY
JOME warrants to the original purchaser that if the accompanying product (see exclusions below) proves to be defective in material or workmanship within the
following warranty periods, JOME will, at its option, either repair or replace same without charge (but no cash refunds will be made):
The boom, motor (if applicable), and reels, plus all plastic parts, including but not limited to frames and bases, will be free from defects in materials and
workmanship, subject to normal wear and tear, for the original purchaser’s lifetime.
LIMITATION AND EXCLUSION OF IMPLIED WARRANTIES AND CERTAIN DAMAGES
THERE ARE NO EXPRESS WARRANTIES OTHER THAN THESE LIMITED WARRANTIES. JOME DISCLAIMS LIABILITY FOR INCIDENTAL AND
CONSEQUENTIAL DAMAGES, AND IN NO EVENT SHALL ANY IMPLIED WARRANTIES (EXCEPT ON THE BOOM, MOTOR, REELS, AND ALL PLASTIC
PARTS), INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR PARTICULAR PURPOSE, EXTEND BEYOND ONE YEAR FROM
THE DATE OF PURCHASE (AND IN THE CASE OF THE SWIVEL LOCK PIN, WEIGHTS, AND WIRE CABLE, JOME DISCLAIMS ALL IMPLIED WARRANTIES).
THIS WRITING CONSTITUTES THE ENTIRE AGREEMENT OF THE PARTIES WITH RESPECT TO THE SUBJECT MATTER HEREOF; NO WAIVER OR
AMENDMENT SHALL BE VALID UNLESS IN WRITING SIGNED BY JOME.
Some states do not allow limitations on how long an implied warranty lasts or the exclusion or limitation of consequential damages, so the above limitation
or exclusion may not apply to you. This warranty gives you specific legal rights, and you may also have other rights that vary from state to state.
CANNON® SERVICE POLICY
AFTER THE APPLICABLE WARRANTY PERIOD
After the applicable warranty period, or, if one of the above exclusions applies, Cannon® products will be repaired for a charge of parts plus labor.
TO ENFORCE WARRANTY OR TO OBTAIN REPAIRS AFTER WARRANTY
To obtain warranty service in the U.S., the downrigger believed to be defective and the proof of original purchase (including the date of purchase) must be
presented to a Cannon® Authorized Service Center or to Cannon®’s factory service center in Mankato, MN. Except as noted below, any charges incurred for
service calls, transportation or shipping/freight to/from the Cannon® Authorized Service Center or Cannon®’s factory, labor to haul out, remove, re-install
or re-rig products for warranty service, or any similar items are the sole and exclusive responsibility of the purchaser. If the necessary repairs are covered by
the warranty, we will pay the return shipping charges to any destination within the United States. Downriggers purchased outside of the U.S. (or parts of
such downriggers) must be returned prepaid with proof of purchase (including the date of purchase and serial number) to any Authorized Cannon® Service
Center in the country of purchase.
NOTE: Do not return your Cannon® downrigger or parts to your retailer. Your retailer is not authorized to repair or replace them.
Major parts, such as the motor and main frame, must be returned to JOME in Mankato, Minnesota, or a Cannon® Authorized Service Center, for repair or
replacement. To reduce shipping costs, we suggest removal of loose parts such as the boom and rod holders. Small parts that can be easily removed such as
the handle and/or the counter, may be removed from the downrigger and returned for repair or replacement. Retain your sales receipt. Proof of purchase
must accompany product when returned.
LIMITED WARRANTY

CANNON LIMITED WARRANTY
Johnson Outdoors Marine Electronics, Inc. (“JOME”) extends the following limited warranty to the original retail purchaser only. Warranty coverage is not
transferable.
CANNON® LIMITED LIFETIME WARRANTY
JOME warrants to the original purchaser that if the accompanying product (see exclusions below) proves to be defective in material or workmanship within the
following warranty periods, JOME will, at its option, either repair or replace same without charge (but no cash refunds will be made):
The boom, motor (if applicable), and reels, plus all plastic parts, including but not limited to frames and bases, will be free from defects in materials and
workmanship, subject to normal wear and tear, for the original purchaser’s lifetime.
All other items will have 1-year limited warranties from the date of original retail purchase, except THE FOLLOWING ITEMS THAT HAVE NO WARRANTY:
swivel lock pin, weights, and wire cable.
LIMITATION AND EXCLUSION OF IMPLIED WARRANTIES AND CERTAIN DAMAGES
THERE ARE NO EXPRESS WARRANTIES OTHER THAN THESE LIMITED WARRANTIES. JOME DISCLAIMS LIABILITY FOR INCIDENTAL AND CONSEQUENTIAL
DAMAGES, AND IN NO EVENT SHALL ANY IMPLIED WARRANTIES (EXCEPT ON THE BOOM, MOTOR, REELS, AND ALL PLASTIC PARTS), INCLUDING ANY
IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR PARTICULAR PURPOSE, EXTEND BEYOND ONE YEAR FROM THE DATE OF PURCHASE
(AND IN THE CASE OF THE SWIVEL LOCK PIN, WEIGHTS, AND WIRE CABLE, JOME DISCLAIMS ALL IMPLIED WARRANTIES). THIS WRITING CONSTITUTES
THE ENTIRE AGREEMENT OF THE PARTIES WITH RESPECT TO THE SUBJECT MATTER HEREOF; NO WAIVER OR AMENDMENT SHALL BE VALID UNLESS
IN WRITING SIGNED BY JOME.
Some states do not allow limitations on how long an implied warranty lasts or the exclusion or limitation of consequential damages, so the above limitation or
exclusion may not apply to you. This warranty gives you specific legal rights, and you may also have other rights that vary from state to state.
CANNON® SERVICE POLICY
AFTER THE APPLICABLE WARRANTY PERIOD
After the applicable warranty period, or, if one of the above exclusions applies, Cannon® products will be repaired for a charge of parts plus labor. All factory
repairs, after the applicable warranty period, carry a 90-Day Limited Warranty, subject to the exclusions and limitations stated above.
TO ENFORCE WARRANTY OR TO OBTAIN REPAIRS AFTER WARRANTY
To obtain warranty service in the U.S., the downrigger believed to be defective and the proof of original purchase (including the date of purchase) must be
presented to a Cannon® Authorized Service Center or to Cannon®’s factory service center in Mankato, MN. Except as noted below, any charges incurred for
service calls, transportation or shipping/freight to/from the Cannon® Authorized Service Center or Cannon®’s factory, labor to haul out, remove, re-install
or re-rig products for warranty service, or any similar items are the sole and exclusive responsibility of the purchaser. Warranty service can be arranged by
contacting a Cannon® Authorized Service Center or by contacting the factory at 1-800-227-6433 or by email to [email protected]. If the
necessary repairs are covered by the warranty, we will pay the return shipping charges to any destination within the United States. Downriggers purchased
outside of the U.S. (or parts of such downriggers) must be returned prepaid with proof of purchase (including the date of purchase and serial number) to any
Authorized Cannon® Service Center in the country of purchase.
NOTE: Do not return your Cannon® downrigger or parts to your retailer. Your retailer is not authorized to repair or replace them.
Major parts, such as the motor and main frame, must be returned to JOME in Mankato, Minnesota, or a Cannon® Authorized Service Center, for repair or
replacement. To reduce shipping costs, we suggest removal of loose parts such as the boom and rod holders. Small parts that can be easily removed such as
the handle and/or the counter, may be removed from the downrigger and returned for repair or replacement. Retain your sales receipt. Proof of purchase
must accompany product when returned.
Return Address:
Johnson Outdoors Marine Electronics, Inc.
Attn: Cannon Service Dept.
121 Power Drive
Mankato, MN 56001
ASSEMBLY & INSTALLATION
1
2
3
4
7
5

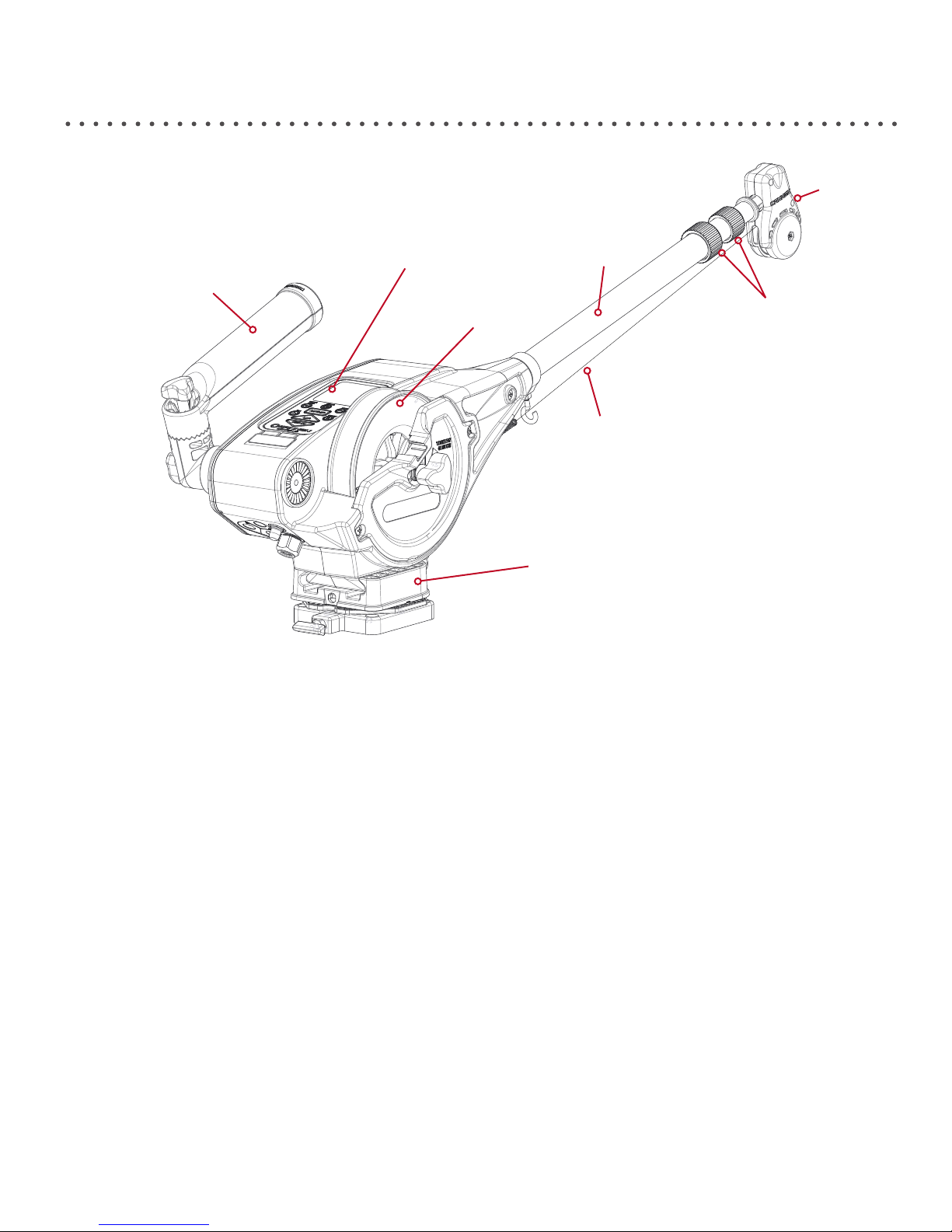

DOWNRIGGER PARTS DESCRIPTION
1. Reel: This is used to spool the cable, available in lengths ranging from 150 to 400 feet.
2. Boom: This is used to extend the weight out from the body of the downrigger and has a pulley fixed to its end. Boom
lengths range from 24 to 53 inches.
3. Swivel Head: This relays the cable at the end of the boom to lower the weight.
4. Cable: This connects to the weight.

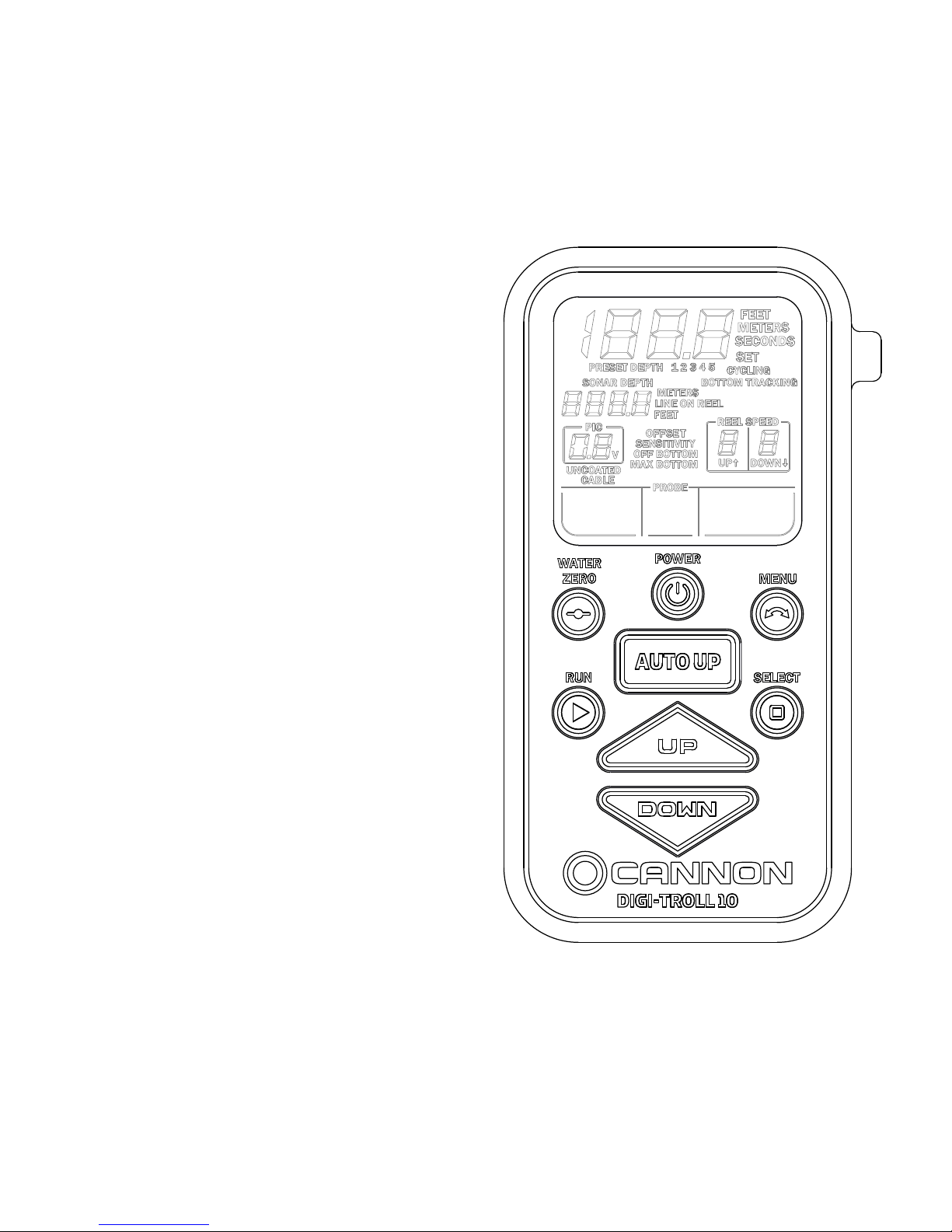

5. Keypad/LCD: Keypad is used to control the functions of the downrigger. The LCD display provides feedback of the
downrigger functions.
6. Mounting Base: This attaches to the boat, enabling you to place the downrigger where you choose.
7. Rod Holder: This holds your fishing rods while trolling and may also be used for storing rods.
8. Boom Clamps: These lock the boom sections together after the boom has been extended or retracted.
9. Clutch Knob: This loosens and tightens the tension on the spool and holds the side plate in place.
This diagram is for reference only and may differ from your actual downrigger.
6
8

might be used in your application.
DOWNRIGGER MOUNTING
Choosing a good location to mount your downrigger on your boat is
very important. A downrigger should be mounted in a location where
it is easy to observe your fishing rod and react quickly to operate the
downrigger once there is a fish on the line.

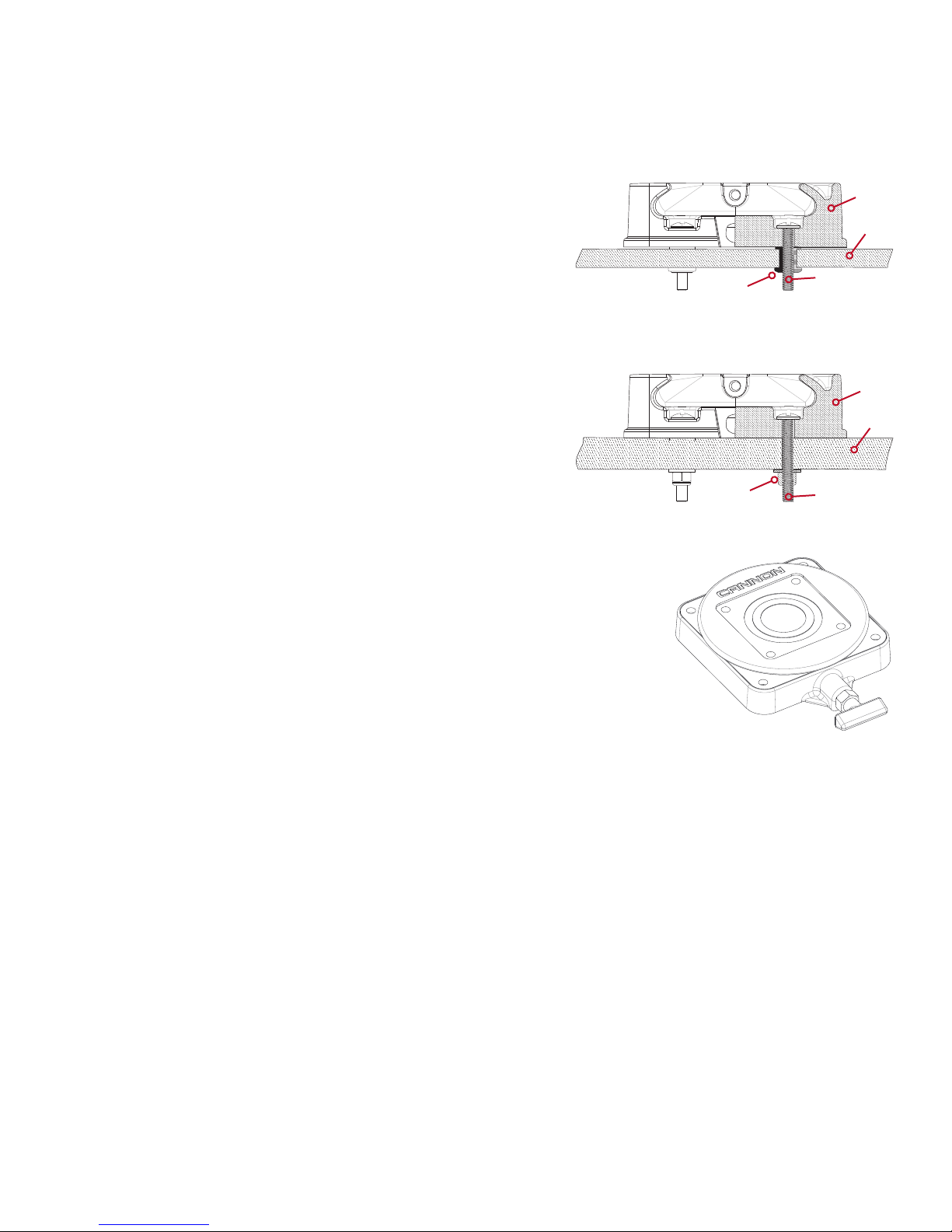

INSTALLING THE INCLUDED MOUNTING BASE
Decks thinner than 1/4”
Use a Cannon deck plate (sold separately - PN 2200693) to prevent deflection and add
stability to decks thinner than 1/4”. Use the deck plate as a template to mark the hole locations.
If access to the underside of the deck is not available, the deck plate can be mounted using screws
and wellnuts (not included). Use the deck plate as a template to mark locations and drill 4
wellnut clearance holes. Use four 1/4-20 x 1-1/2” flat head screws and four wellnuts to
mount deck plate. Tighten the screws so the wellnuts are firmly compressed.
Where the underside is accessible, the deck plate can be mounted using
screws, nuts, and washers. Drill 9/32” holes. Use four 1/4-20 x 1-1/2” flat head
screws, nuts and washers (flat and lock). Fasten plate to deck. To secure the
mounting base to the deckplate use four 1/4-20 x 1” truss head screws.

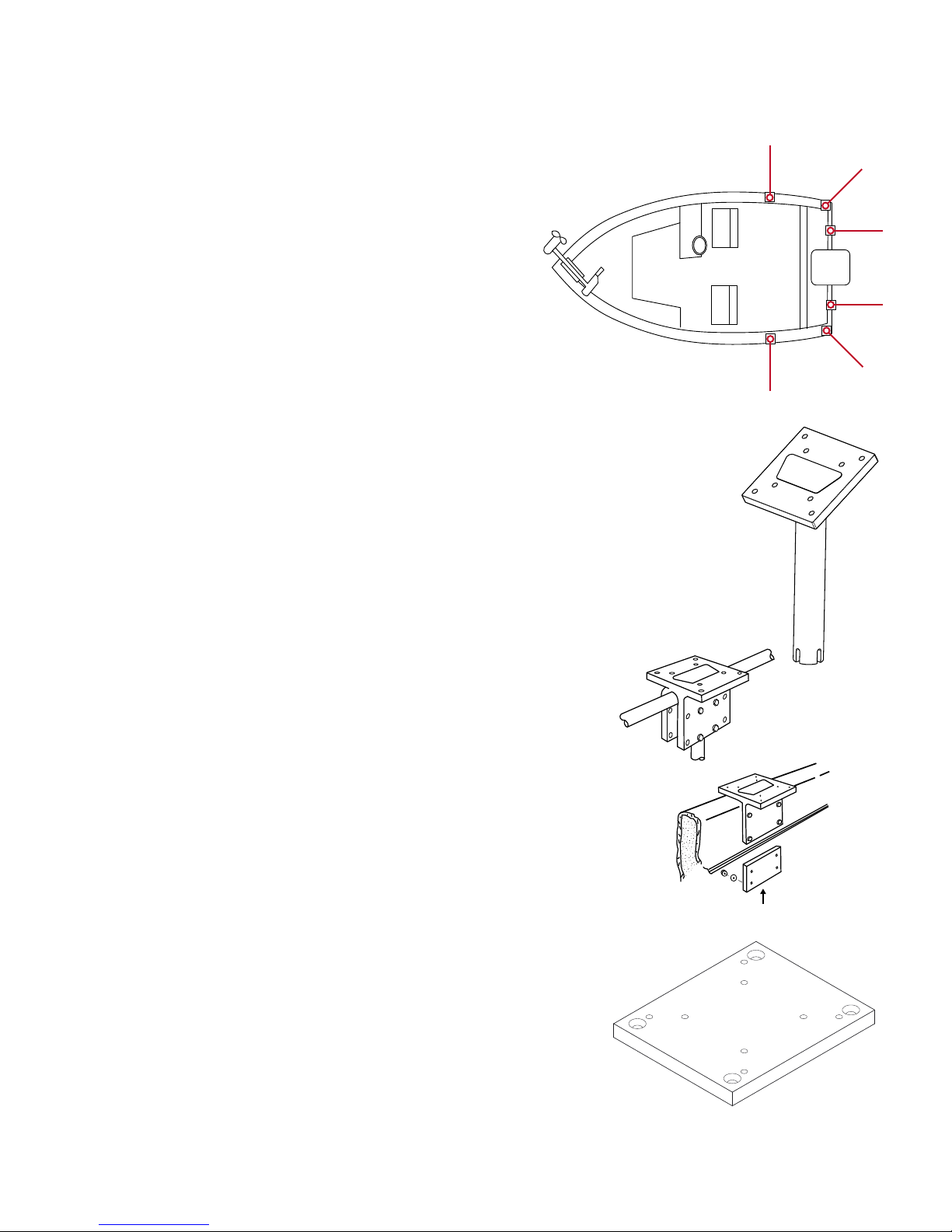

Typical Mounting Positions
MOUNTING ACCESSORIES
Cannon offers a complete line of mounting accessories that allow
you to optimize your spread to fit the way you fish. Before making
any permanent changes to your boat, consider what accessories
Deck Plates are necessary when extra strength must be added to the base
material of the boat and for attaching the downrigger to other mounting
accessories.
Gimbal Mounts are designed to fit medium-sized flush mounted rod
holders built into the gunwale of many larger fishing boats and cruisers.
Only sturdy, high quality rod holders should be used for this temporary
mounting system. Gimbal mounts are available in 9” or 12” post lengths.
Clamp Mounts can be mounted at the junction of two rail sections with
the aid of two ¼” pieces of plywood. They will protect your rail from any
marks from the clamp and provide a non-slip surface.
Side/Rail mounts can be mounted to a welded T-section. It can also be used
at the two rail section butt joint. In both installations it is recommended to
use a non-slip material, such as rubber or a thin wood sheet, between metal
surfaces.
You can also use these for mounting to a very narrow side gunwale. There
is a plate provided for back-up with bolts and washers. If the gunwale
compartment is foamed in, then wellnuts should be used. It is also
recommended to install two additional flat head screws through the top plate
for stabilization (you will need to drill and countersink).
Deckplate
Gimbal Mount
Clamp Mount
Side Rail Mount
on T-Section
Side Rail Mount
on Gunwhale
DOWNRIGGER MOUNTING
Choosing a good location to mount your downrigger on your boat is
very important. A downrigger should be mounted in a location where
it is easy to observe your fishing rod and react quickly to operate the
downrigger once there is a fish on the line.
INSTALLING THE INCLUDED MOUNTING BASE
Decks thinner than 1/4”
Use a Cannon deck plate (sold separately - PN 2200693) to prevent deflection and add
stability to decks thinner than 1/4”. Use the deck plate as a template to mark the hole locations.
If access to the underside of the deck is not available, the deck plate can be mounted using screws
and wellnuts (not included). Use the deck plate as a template to mark locations and drill 4
wellnut clearance holes. Use four 1/4-20 x 1-1/2” flat head screws and four wellnuts to
mount deck plate. Tighten the screws so the wellnuts are firmly compressed.
Where the underside is accessible, the deck plate can be mounted using
screws, nuts, and washers. Drill 9/32” holes. Use four 1/4-20 x 1-1/2” flat head
screws, nuts and washers (flat and lock). Fasten plate to deck. To secure the
Typical Mounting Positions
MOUNTING ACCESSORIES
Cannon offers a complete line of mounting accessories that allow
you to optimize your spread to fit the way you fish. Before making
any permanent changes to your boat, consider what accessories
might be used in your application. To see the complete line of
mounting accessories available, visit cannondownriggers.com.
Deck Plates are necessary when extra strength must be added to the base
accessories.
Gimbal Mounts are designed to fit medium-sized flush mounted rod
holders built into the gunwale of many larger fishing boats and cruisers.
Only sturdy, high quality rod holders should be used for this temporary
mounting system. Gimbal mounts are available in 9” or 12” post lengths.
Clamp Mounts can be mounted at the junction of two rail sections with
the aid of two ¼” pieces of plywood. They will protect your rail from any
marks from the clamp and provide a non-slip surface.
Side/Rail mounts can be mounted to a welded T-section. It can also be used
at the two rail section butt joint. In both installations it is recommended to
use a non-slip material, such as rubber or a thin wood sheet, between metal
surfaces.
You can also use these for mounting to a very narrow side gunwale. There
is a plate provided for back-up with bolts and washers. If the gunwale
compartment is foamed in, then wellnuts should be used. It is also
recommended to install two additional flat head screws through the top plate
for stabilization (you will need to drill and countersink).
Deckplate
Gimbal Mount
Clamp Mount
Side Rail Mount
on T-Section
Side Rail Mount
on Gunwhale
mounting base to the deckplate use four 1/4-20 x 1” truss head screws.
ASSEMBLY & INSTALLATION

Decks from 1/4” to 7/16” thick
Where access to the underside of the deck is not available, the mounting
base can be attached to the deck using wellnuts. Use the base as a
template to mark locations and drill four wellnut clearance holes. Mount
the base using four 1/4-20 x 1-1/2” truss head screws and four wellnuts.
Tighten the screws so the wellnuts are firmly compressed as pictured.
Decks thicker than 7/16”
For decks thicker than 7/16”, or where the underside of the deck is
accessible, mount the base with screws, nuts, and washers. Use the
base as a template to mark the locations and drill four 9/32” holes. Use
four 1/4-20 x 2” truss head screws and four each flat washers and nuts.
Fasten the base to the deck as pictured.
NOTE: Wellnuts SHOULD NOT be used on decks thicker than 7/16”.
NOTE: When using the telescopic boom, we strongly recommend the
use of a deck plate on all boats to provide adequate stability for the
downrigger.
Low-Profile Swivel Base
To mount the Low-Profile Swivel Base, follow the same procedure as for the deck
plate with this exception: use four 1/4”-20 x 1-1/2” truss head screws to fasten the
mounting base and four additional 1/4”-20” x 2-1/2” truss head screws to attach the
swivel base tothe boat deck.
INSTALLING THE BOOM
1. Insert boom into frame (Figure 1) and line up holes in boom with holes in frame.
NOTE: Easi-Troll units require the included boom adapter.
2. Remove 1/4-20 x 2” bolt and 1/4-20 nylon locknut from included hardware bag assembly and insert the locknut into the
hex pocket on the nose of the frame. Insert 1/4-20 x 2” bolt into reel side of frame nose. (Figure 2)
3. With a Phillips head screw driver, thread bolt into nylon locknut from step 2 (Figure 2). Tighten bolt until the end of the
bolt is flush with the top of the nut. (Figure 3)
Decks from 1/4” to 7/16” Thick
Decks Thicker Than 7/16”
Figure 2 Figure 3Figure 1
Low-Profile Swivel Base
ASSEMBLY & INSTALLATION
Wellnut
Base
Deck
1/4-20” screw
Washer & Nut
Base
Deck
1/4-20” screw

INSTALLING THE BOOM AND BALL HOOK
1. Remove the ball hook collar, ball hook, and 1/4-20 nut from the included hardware bag assembly. Thread the nut onto
the ball hook, then thread the ball hook into the ball hook collar. Do not tighten yet. (Figure 1)
2. Slide ball hook collar onto the end of the boom and leave it loose. (Figure 2)
3. Insert boom with ball hook collar assembly into frame (Figure 3) and line up holes in boom with holes in frame
(Figure 4).
4. Remove 1/4-20 x 2” bolt and 1/4-20 nylon locknut from included hardware bag assembly. Insert the 1/4-20 nylon
locknut into the hex pocket on the nose of the frame (motor side of frame) then insert 1/4-20 x 2” bolt into reel side of
frame nose. (Figure 5)
5. With a Phillips head screw driver, thread bolt into the nylon locknut from step 4. Tighten bolt until the end of the bolt is
flush with the top of the nut. (Figure 6)
6. Slide ball hook collar to your preferred location. Hand tighten the ball hook into boom tube. Tighten enough so that
there is no movement on the boom. (Figure 7) Once ball hook is secure, with a 7/16” wrench, tighten the 1/4-20 nut until
secure with ball hook collar. (Figure 8)
NOTE: Do not overtighten ball hook or permanent deformation of the boom is possible.
Figure 2
Figure 3
Figure 1
Figure 4 Figure 5
Figure 6 Figure 7 Figure 8
ASSEMBLY & INSTALLATION

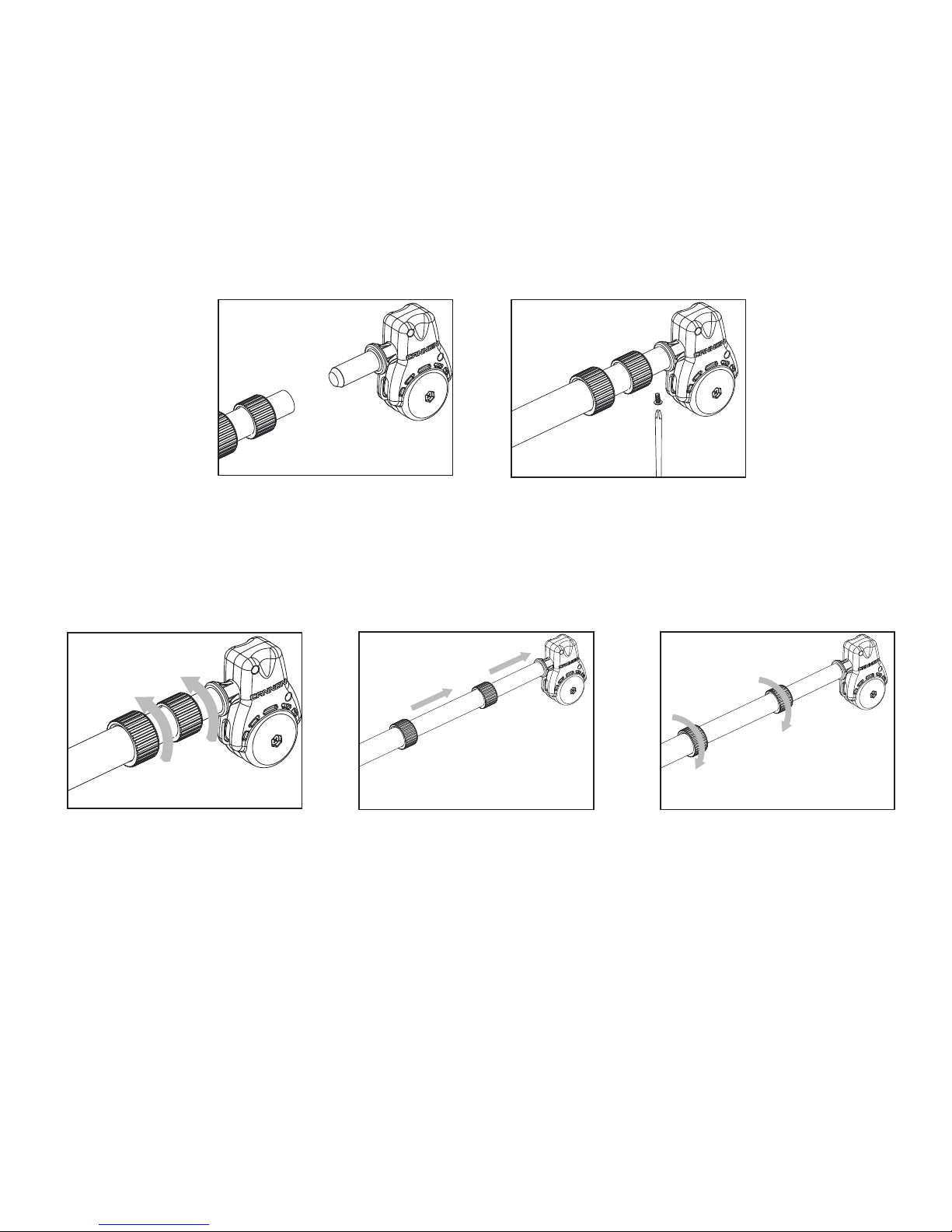

INSTALLING THE SWIVEL HEAD
1. Locate swivel head assembly and then insert boom end post into end of the small tube of the boom assembly. (Figure 9)
2. Align hole in boom post with hole in small end tube.
3. Secure boom end with #8 screw as shown. Tighten with Phillips head screw driver by turning screw clockwise until tight.
(Figure 10)
ADJUSTING THE BOOM LENGTH
To adjust the boom length (with the boom extending away from you) rotate the boom clamps (See item # 8 on page 5)
approximately ¼ turn counter-clockwise to unlock (Figure 11) and slide the boom section to the desired position. (Figure 12)
Once in place, lock the boom clamps by rotating clockwise until tight. (Figure 13)
Figure 9 Figure 10
Figure 11 Figure 12 Figure 13
ASSEMBLY & INSTALLATION

ATTACHING THE ROD HOLDER
The locking rod holder(s) incorporate a locking tooth design which can be easily adjusted every 15° with the soft grip knob.
The symmetrical design will allow mounting of the rod holder on either side of the downrigger or two rod holders at the same
time. The unique two-piece design allows independent adjustment of the rod holder and the rod holder arm in two axes.
(Figure 14)
CAUTION: This rod holder is intended for use of up to 30 lb. test line only and is not
recommended for use with any tackle IGFA (International Game Fish Association)
rated higher than 30 lb. A safety strap (not included) is recommended for all
applications.
NOTE: The rod holder assembly is not covered under warranty when used with
tackle above 30 lbs. Equipment placed in the rod holders and the loss thereof is
the responsibility of the user and is in no way warranted by Johnson Outdoors, Inc.
Mounting must be in accordance with the above instructions to comply with the
product warranty.
To install the rod holder:
1. Attach the rod holder elbow to the downrigger on either side using the supplied spring and knob. (Figure 15)
2. Fasten rod holder to rod holder elbow using supplied spring and knob. (Figure 16)
3. Repeat the above steps for the other side if (2) rod holders are to be mounted.
The rod holder can be adjusted by loosening either knob until the locking teeth are free from each other. Rotate the rod
holder or arm to the desired position and re-tighten knob.
Figure 14
Figure 16
Figure 15
ASSEMBLY & INSTALLATION

TERMINATING THE DOWNRIGGER CABLE
NOTE: Use only straight cable when routing through the terminator. Worn or kinked cable can be stressed and may
break prematurely when retrieving trolling weights.
NOTE: A set of pliers with wire cutters is recommended for this part of setup.
1. Unwind about 2 feet of cable and
thread through the rubber cushion.
Attach Swivel Snap to terminator.
2. Examine the top of the terminator
and note the order shown in the
detail to run cable.
3. Lead and pull six inches of cable
through HOLE A. Thread cable
through swivel, then up into bottom
of the terminator. Lead cable out of
HOLE B and into HOLE C. Push the
cable until its end touches the inside
of the terminator hook. Tighten cable
by squeezing terminator until it snaps
shut. Then pull at top and bottom
until drawn tight. Make sure that the
cable threads the hook.
NOTE: Use only straight cable, not kinked cable.
4. Slide the cushion over the top of the terminator and give it a test pull. The cable is now set to attach a Cannon Flash Weight™.
Close
Open
Open
Tension Adjust
Fishing Line
Gripper Pads
ATTACHING THE LINE RELEASE (UNI-RELEASE)
The Cannon Uni-Release attaches directly to the downrigger weight. Attach
fishing line to the clip at the end of the release, and then click through a
series of increasing tension settings. The release can be used with any test
line on salt or fresh water and may be adjusted from 2 to 22 pounds of grip
tension on the line.
To change line release tension, turn tension knob to (+) to increase or (-)
to decrease. Tension also may vary according to where the line is placed in
the grips. Higher tension is on the line if it is set back toward the hinge, and
lower if set closer to the opening. To open the release, spread the release
arms with thumb and forefinger applying pressure to the sides.
Step 2.
Rubber
Cushion
Step 1.
Step 3. Step 4.
A. CABLE
IN C. CABLE
IN
B. CABLE
OUT
HOLE A
Swivel
HOLE B
HOLE C
Cable
Snap
&
Swivel
ASSEMBLY & INSTALLATION

WIRING YOUR DOWNRIGGER
In order for the Positive Ion Control (PIC) on your downrigger to work correctly, it is important to make sure your boat
is properly set up before installing your downrigger. Whenever a boat is in water, various submerged parts interact to
create weak electrical currents. These weak electrical currents should be controlled to extend the life of the boat’s metal
parts and ensure a good fish catching environment. For full details on how the Positive Ion Control system works, see
the “Positive Ion Control System” section of this manual under the Operation section.
CHECKING YOUR BOAT’S ELECTRICAL CONDITION
1. If the zinc sacrificial anodes on your boat and on the outboard/outdrive are more than half dissolved, it is recommended
that they be replaced. This ensures that the boat will run with a neutral or slightly positive charge. Clean zincs on a
regular basis with a non-corrosive brush.
2. Any coating of slime or growth should be cleaned off.
3. All metal parts including the hull (if metal) should be interconnected by a grounding wire. This includes motor shafts,
outdrives, and through hull fittings.
4. If your boat and zinc anodes are set up correctly, the voltage on the downrigger wire should be positive when in contact
with the water.
5. With your boat in the water and the downrigger cable deployed in the water, measure the DC voltage from the cable to a
grounded metal surface of the boat touching the water. If properly wired, the reading should be 0.6-0.8VDC (fix PIC) or
match your Digi-Troll setting.
6. The cable on your downrigger should be replaced every 2 years. Etching of the cable can weaken it physically and
electrically.
7. Always make sure the boat is properly grounded to the water. This will help ensure proper PIC voltage on the cable and
that the Short Stop will function properly.
8. The use of Cannon vinyl coated lead weights is recommended.
9. Use the trolling weight insulators supplied with your downrigger. This insulates your weight from the positive charge on
the cable. This will also ensure that the trolling weight will stop at water level when retrieved.
NOTE: To ensure proper operation of your downrigger, ground the battery to your boat’s electrical system’s ground.
Malfunctions with the PIC, communication between units, or loss of operation result from faulty grounding. Always
check to see if your boat is properly grounded fi rst.
ELECTRICAL SPECIFICATIONS & WIRING INSTRUCTIONS
The downrigger is rated at 30 amps (full load), 12 volts DC and is protected by a 25 amp manual reset circuit breaker
(located under motor housing). Be sure to measure the battery voltage of your boat.
WARNING: DO NOT RUN THIS DOWNRIGGER ON A 24 VOLT BATTERY SYSTEM. THIS WILL DAMAGE THE UNIT AND
VOID YOUR WARRANTY.

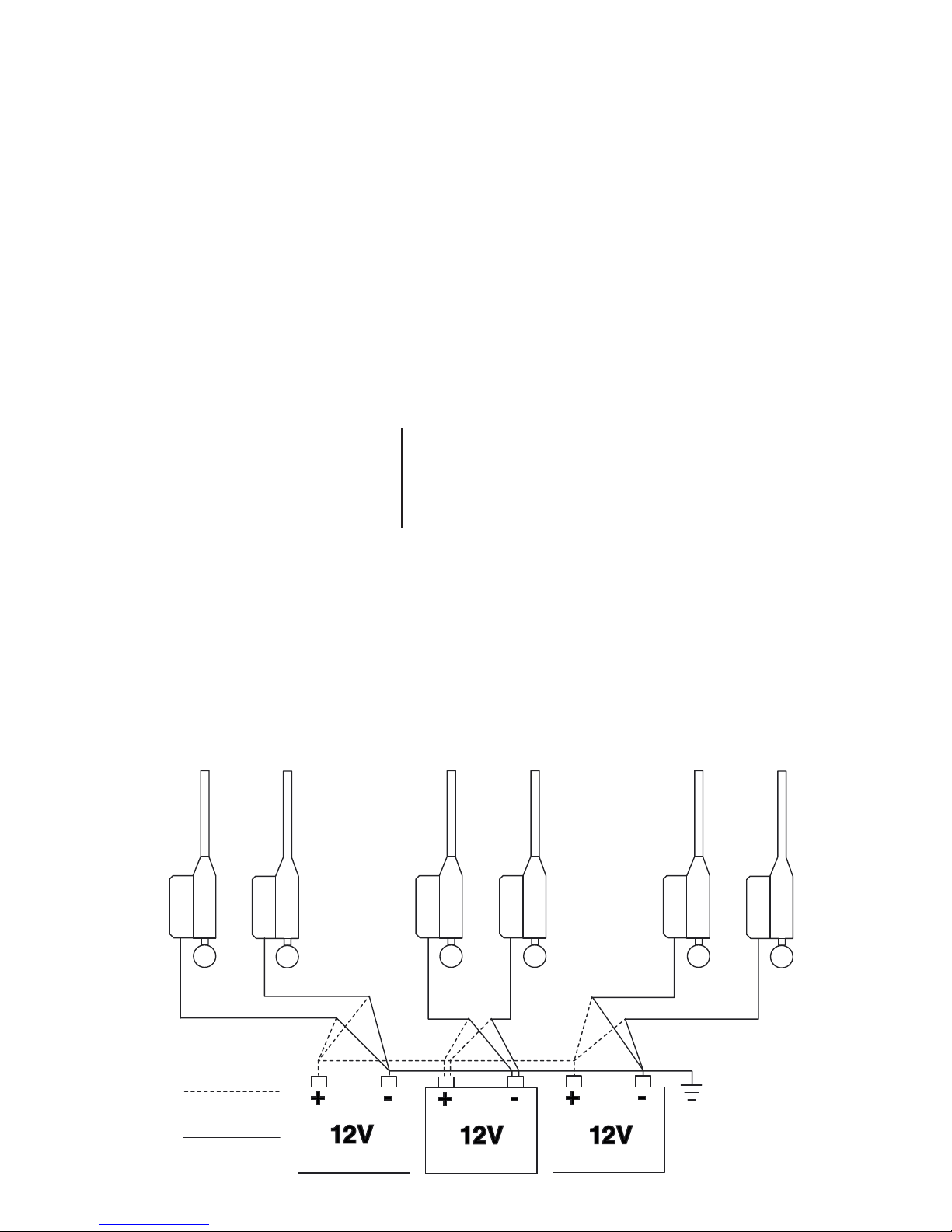

CONNECTING TO THE BATTERY:
It is strongly recommended that a fuse or manual reset circuit breaker be installed at the battery on the positive lead
of the power cable or that you connect the downrigger to a battery selector switch. (See Fuse and Wire Specifications)
Connect the positive lead (RED) to the (+) post on your battery and the negative lead (BLACK) to the (-) post on your
battery or the downrigger will not operate. Use the quick disconnect plug to remove the downrigger without touching
the battery.
WIRING THE DOWNRIGGER

WIRING YOUR DOWNRIGGER
In order for the Positive Ion Control (PIC) on your downrigger to work correctly, it is important to make sure your boat
is properly set up before installing your downrigger. Whenever a boat is in water, various submerged parts interact to
create weak electrical currents. These weak electrical currents should be controlled to extend the life of the boat’s metal
parts and ensure a good fish catching environment. For full details on how the Positive Ion Control system works, see
the “Positive Ion Control System” section of this manual under the Operation section.
CHECKING YOUR BOAT’S ELECTRICAL CONDITION
1. If the zinc sacrificial anodes on your boat and on the outboard/outdrive are more than half dissolved, it is recommended
that they be replaced. This ensures that the boat will run with a neutral or slightly positive charge. Clean zincs on a
regular basis with a non-corrosive brush.
2. Any coating of slime or growth should be cleaned off.
3. All metal parts including the hull (if metal) should be interconnected by a grounding wire. This includes motor shafts,
outdrives, and through hull fittings.
4. If your boat and zinc anodes are set up correctly, the voltage on the downrigger wire should be positive when in contact
with the water.
5. With your boat in the water and the downrigger cable deployed in the water, measure the DC voltage from the cable to a
grounded metal surface of the boat touching the water. If properly wired, the reading should be 0.6-0.8VDC (fix PIC) or
match your Digi-Troll setting.
6. The cable on your downrigger should be replaced every 2 years. Etching of the cable can weaken it physically and
electrically.
7. Always make sure the boat is properly grounded to the water. This will help ensure proper PIC voltage on the cable and
that the Short Stop will function properly.
8. The use of Cannon vinyl coated lead weights is recommended.
9. Use the trolling weight insulators supplied with your downrigger. This insulates your weight from the positive charge on
the cable. This will also ensure that the trolling weight will stop at water level when retrieved.
NOTE: To ensure proper operation of your downrigger, ground the battery to your boat’s electrical system’s ground.
Malfunctions with the PIC, communication between units, or loss of operation result from faulty grounding. Always
check to see if your boat is properly grounded first.
ELECTRICAL SPECIFICATIONS & WIRING INSTRUCTIONS
The downrigger is rated at 30 amps (full load), 12 volts DC and is protected by a 25 amp manual reset circuit breaker
(located under motor housing). Be sure to measure the battery voltage of your boat.
WARNING: DO NOT RUN THIS DOWNRIGGER ON A 24 VOLT BATTERY SYSTEM. THIS WILL DAMAGE THE UNIT AND
VOID YOUR WARRANTY.
CONNECTING TO THE BATTERY:
It is strongly recommended that a fuse or manual reset circuit breaker be installed at the battery on the positive lead
of the power cable or that you connect the downrigger to a battery selector switch. (See Fuse and Wire Specifications)
Connect the positive lead (RED) to the (+) post on your battery and the negative lead (BLACK) to the (-) post on your
battery or the downrigger will not operate. Use the quick disconnect plug to remove the downrigger without touching
the battery.
NOTE: It is strongly recommended to power your downrigger with a Deep-Cycle marine battery. Only run a Digi-Troll
from a Starter battery if it is recharged by an alternator while trolling.
NOTE: Control degradation of the power cables and limit corrosion by using anti-oxidant gel on all connections.
RIGGING AND INSTALLATION GUIDELINES:
For safety and compliance reasons, we recommend that you follow American Boat and Yacht Council (ABYC) standards
when rigging your boat. Altering boat wiring should be completed by a qualified technician. The following specifications
are for general guidelines only:
CAUTION: These guidelines apply to general rigging to support your Cannon Downrigger. Powering multiple
Downriggers or additional electrical devices from the same power circuit may impact the recommended wire gauge. If
you are using wire longer than that provided with your unit, follow the chart below. If you are running more than 30 feet
from the battery, we recommend that you contact a qualified marine technician.
WIRE SPECIFICATIONS:
0-15 ft. (0-5 meters) 10 gauge
15-25 ft. (5-8 meters) 8 gauge
25-30 ft. (8-9 meters) 6 gauge
POWERING MULTIPLE DOWNRIGGERS
When operating multiple downriggers, run a maximum of 2 downriggers per dedicated battery. The advanced features
of the downriggers can keep the unit working virtually all the time. (See below for the recommended wiring setup.)
TYPICAL OPERATING TIME*:
1 Digi-Troll per battery – 24 hours.
2 Digi-Trolls per battery –10 hours.
*Time based on lab results using a 15lb weight and Deep-Cycle batteries. Actual run time will vary.
FUSE/BREAKER SPECIFICATIONS:
30 Amp, 32 Volt, waterproof, fast blow
Red (+)
Black (-)
WIRING THE DOWNRIGGER

COMMUNICATION HARNESS
SONAR HARNESS KEYPAD
CIRCUIT
BREAKER
POWER CABLE
MOTOR
RED WIRE (M+)
BLACK WIRE (M-)
GREEN WIRE
(PIC)
RED WIRE
RED WIRE
BLACK WIRE
WIRING DIAGRAM
WIRING THE DOWNRIGGER

USING A DIGI-TROLL TRANSDUCER
USING AN OPTIONAL DIGI-TROLL TRANSDUCER
By installing an optional Digi-Troll transducer accessory (1491072), the Digi-Troll 10 is able to display water depth and
independently bottom track.
INSTALLING THE OPTIONAL TRANSDUCER
Proper transducer installation is critical to the performance of your Digi-Troll’s depth tracking features. For best results,
follow all mounting instructions carefully.
WHERE TO MOUNT THE TRANSDUCER
Any location along the bottom edge of the transom is acceptable. The preferred mounting position is within the center
1/3 of the transom excluding the area directly in line with the boat’s propeller. The transducer must be mounted where
the water is smooth and free of bubbles. It may be helpful to drive your boat at a variety of speeds and observe where
the water flows most smoothly off the transom before deciding on a mounting location. The sonar signals cannot
travel through either open air or turbulent water, therefore, you must make sure that the transducer is in contact with
undisturbed water at all times.
If you have an aluminum boat, avoid placing the transducer behind a row of rivets. The rivets will cause turbulence and
air bubbles. Water turbulence is minimized when the transducer face is mounted below the bottom of your boat.
In certain applications for non-metallic hulled boats, the transducer can be positioned in the bilge with the bottom
surface of the transducer as level as possible. Make sure that the transducer is submerged at least 2 inches at all times.
HOW TO MOUNT THE TRANSDUCER
To mount the transducer, you will need:
•A slotted screwdriver
•A phillips screwdriver
•Drill with a No. 28 or 9/64” bit
•3/8” wrench
•Silicone caulk
Follow the mounting instructions supplied with your transducer mounting hardware.
1. Attach the transducer to the brackets and tighten the bolts just enough to hold it in place.
2. Using the brackets as a guide, mark and drill the four mounting screw holes 1/2” to 5/8” deep, using the No. 28 or 9/64”
drill.
3. Loosely attach the transducer to the transom of your boat with the four #8 self tapping screws supplied. Adjust the
brackets until the desired height is achieved and snug up the screws.
4. The flat surface on the transducer should be as parallel with the water surface as possible, but tipped forward just
enough to keep water pressure on the flat surface when the boat is moving and should be 1/16” to 1/8” below the hull of
the boat. Tighten up the bolts.
5. Remove the #8 self tapping screws one at a time and fill the hole with silicone caulk. Failure to do so may seriously
damage your boat! Reinsert each screw and tighten.
NOTE: On aluminum boats it may be necessary to use a wooden backing plate between the transom and the brackets.
Attach a 7” piece of 1 x 6 hardwood flush with the bottom of the hull, and attach the transducer per the above
instructions. Be sure to varnish the wood and silicone the screw holes thoroughly to prevent leakage and damage to
your boat.

TRANSDUCER
TRANSDUCER CABLE ROUTING
After mounting the transducer, route the transducer cable to your Digi-Troll. Connect the transducer cable to the
transducer plug at the back of the downrigger (Figure 17).
Keep in mind the following when routing the cable:
•Do not damage the cable jacket.
•Keep the cable away from ignition, tachometer, alternator and other electrical wiring to prevent interference.
•Do not cut, splice or shorten the cable. Coil the excess and secure it in place.
NOTE: The transducer cable MUST be connected before turning the unit on.
WARNING: Connector removal or cable splicing voids the product warranty.
Once the transducer is mounted and connected to your Digi-Troll 10, the display will show the bottom depth under
SONAR DEPTH on the display (Figure 18).

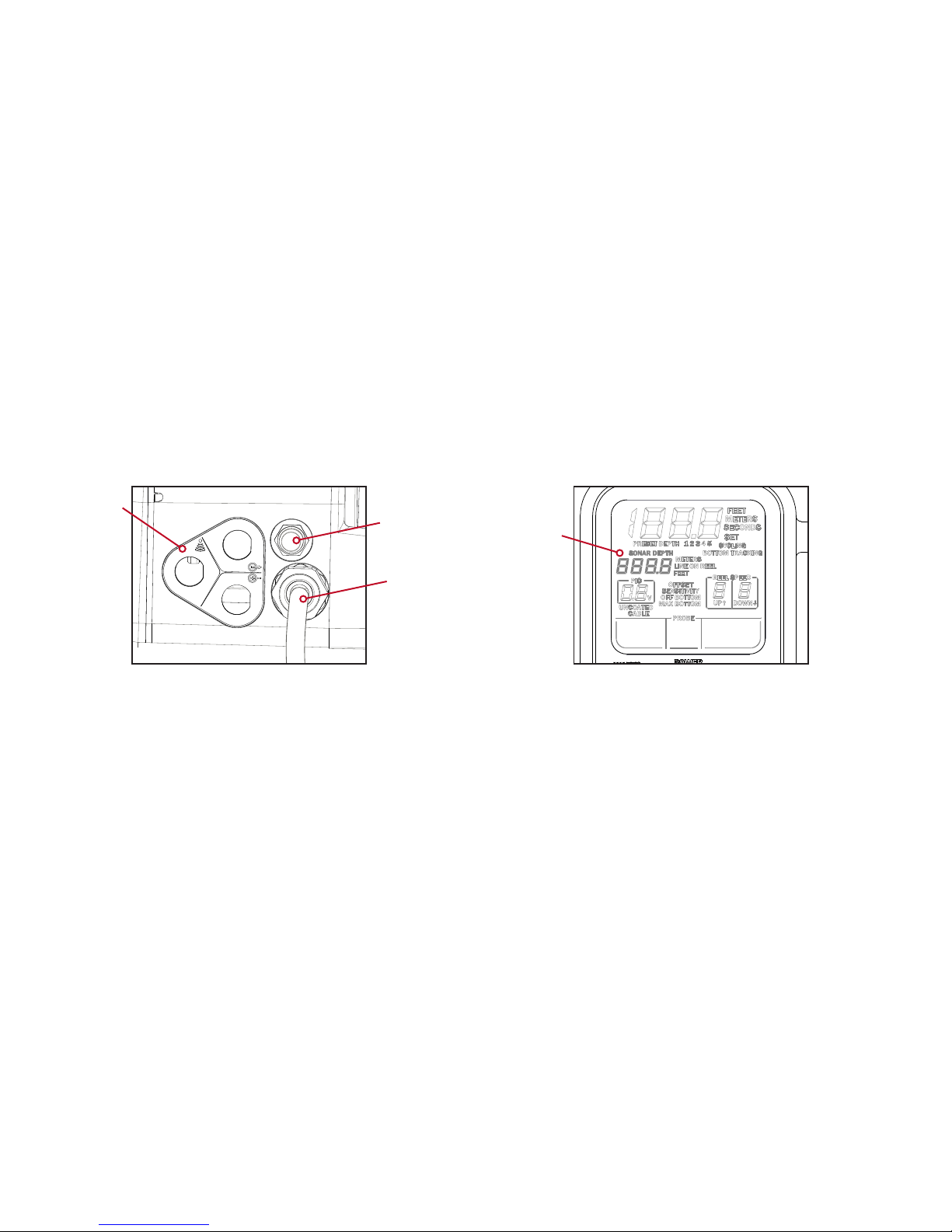

Figure 17 Figure 18
Circuit
Breaker
Power
Cable
Transducer
Input
Displayed
Sonar Depth

The Digi-troll 10 offers you the most advanced features available in a downrigger.
•Variable Positive Ion Control.
•Large LCD digital display for weight depth and easy programming.
•Networking operation allowing you to chain several Digi-Troll 10s together for bottom following with only one transducer.
(Optional transducer and interfacing cable required)
•Cycling mode allows the weight to be cycled between two programmable depths.
•Store five pre-programmed weight depths that can be selected at the touch of a key.
•Auto-Up key to quickly raise the weight to water surface.
•Bottom depth monitor mode allows your downrigger to be used as a depth finder (optional transducer required).
•A permanent storage memory to retain all the settings.
•Variable speed operation
•High efficiency motor
DIGI-TROLL 10 DISPLAY
When the power cord is plugged in, press the power button on the keypad to turn on the downrigger. In normal usage, the
display will indicate the depth of the weight in feet.
NOTE: A negative depth indicates distance above the water surface.
During programming of special features, the display is used to indicate various settings. The icons for the Digi-Troll 10
display are illustrated below. Icons will illuminate as they become applicable to function settings.
DOWNRIGGER
LINE OUT
PRESET DEPTH
SETTING
SONAR DEPTH
SETTING OPTIONS
POSITIVE ION
CONTROL SETTING
CABLE SETTING
SET MENU
DOWNRIGGER
MODE
DOWN SPEED
UP SPEED
OPERATING THE DOWNRIGGER

DIGI-TROLL 10 KEYPAD
The Digi-Troll 10’s keypad has eight keys located below the
display:
POWER
The ON/OFF key functions:
•Turn the Digi-Troll ON - Simply press and release.
•Turn the Digi-Troll OFF - Press and hold power button
for three seconds.
MENU
The MENU moves the display through up to eight screens
for programming (see section on programming for details).
After 7 seconds of inactivity on the key pad, the screen
reverts back to the weight line out display.
UP
During manual operation, this key raises the weight when
pressed. In programming mode, the UP key increases
numeric values.
DOWN
During manual operation, this key lowers the weight when
pressed. In programming mode, the DOWN key decreases
numeric values.
WATER ZERO
The WATER ZERO key provides a reset option for depth.
When pressed and held, the line out count will reset
to zero.
RUN
This key is typically used to execute a function after
selected using the menu system.
SELECT
Use the SELECT key to set or display the pre-programmed
weight depths when in the Depth screen. To move the
weight to any of the depths indicated, press the RUN key.
Another function of the Select is to step through sub-menus
when you are setting certain programmable parameters.
AUTO UP
Press AUTO UP to raise the weight to the water zero set point at
any time. AUTO UP uses the speed 5 regardless of your setting
and cancels any other mode of operation (bottom following,
cycling, etc.) when used.
OPERATING THE DOWNRIGGER

PROGRAMMING THE DIGI-TROLL 10
The Digi-troll 10 contains up to eight menus that enable you to program and customize its operation. Any changes made
using the menu system are automatically saved in permanent memory when the downrigger is turned off.
NOTE: The downrigger must be turned off with the power button for the settings to be saved.
The MENU key is used to enter each of the menus starting from the default screen (referred to as the depth screen). Sub
levels, if any, are entered using the Select key. Additionally, pressing the Select key when in the depth screen allows you to
display, change and activate up to five programmable weight depths.
While programming, the UP key is used to increase the value and the DOWN key is used to decrease the value. Remember
during programming, if there is no activity on the keypad for 7 seconds, the menu reverts back to the default depth screen.
The chart below summarizes the Digi-troll 10’s menu system in the order of occurrence.
BACKLIGHT FEATURE
Both the keypad and LCD use electroluminescence
technology for backlighting the LCD icons and the keypad
buttons. This feature makes it easier to fish in low light
conditions with your Digi-Troll 10.
The backlighting will automatically illuminate upon power
up of the downrigger. It will time-out after 3 hours of
continuous use. To restart another 3 hour lighting cycle,
press the power button briefly without turning off the
downrigger.
Main Screen
Bottom Track
Menu
(if transducer
is connected)
Sonar Offset
Menu
(if transducer
is connected)
Cycle
Mode
Menu
PIC
Voltage
Menu
Up/Down
Speed
Menu
Menu Menu Menu Menu Menu Menu Menu
Run Run Run
Line On
Reel
Menu
Units
Menu
Un/
Coated
Menu
Set Options Set Options Set Options
Select Select Select Run Run Run Run
Daytime Use Night/Low-Light Use
OPERATING THE DOWNRIGGER

BOTTOM TRACK MENU
The Bottom Track mode is designed to help you fish consistently near the bottom. This mode of operation requires an
optional sonar transducer attached to your downrigger and mounted according to the instructions in this manual
In the bottom track mode, the Digi-troll 10 maintains the weight at a fixed distance above the bottom. In order to avoid
continuous weight adjustments due to minor changes in bottom depth and boat motion caused by wave action, you have
the ability to adjust the responsiveness of the weight. You can also define the maximum depth that you wish the weight to
go to, regardless of the bottom depth.
CAUTION: In order to keep the weight from touching the bottom, make sure that the bottom is well below the band that
you have selected.
From the depth screen, press the menu key once. The screen shows the user-set depth limit that the weight will travel to
regardless of the bottom depth. Press the UP key to increase and DOWN key to decrease.
CAUTION: This limit must not exceed the bottom depth and/or the length of the cable. Running out the cable completely
will result in back spooling or loss of cable.
Now press the RUN key to activate the Bottom Following feature or press Select key to adjust the distance that the weight
is to remain off the bottom. The range is from +50 to -50 feet. Use the negative range to compensate for the Blowback
of the weight at high trolling speeds. Press the UP or DOWN key to increase or decrease the value and press RUN key to
activate the Bottom Track or press Select key once more to adjust the sensitivity of the weight depth adjustment to minor
variations in depth and/or motion of the boat due to wave action. Use UP or DOWN key to adjust. The range is 1 to 16 feet.
For relatively calm water, start with a setting of 4 feet. The weight will now adjust its depth only when the bottom depth
increases by 4 feet or more. However, it will always adjust for any decrease in bottom depth regardless of this setting.
Bottom Track
Menu
Off Bottom
Value
Sensitivity
Value
Max Bottom
Value
Press Up or Down
Button to change
the value
Press Up or Down
Button to change
the value
Press Run Button
to activate mode
Press Up or Down
Button to change
the value
Starts function
and returns to
main screen
Press Select to
change setting
option
OPERATING THE DOWNRIGGER

CYCLING MENU
From the depth screen, press the MENU key once (or once from the Bottom Track screen if the transducer is connected) to
enter this menu. The first screen allows you to adjust the pause time of the weight between cycling movements. Press UP
or DOWN to adjust. You can adjust the cycle time in steps of 1 second increments from 5 to 60 seconds. Press the “RUN”
button to activate.
Press Select to adjust the cycle depth. Down (dn) will be displayed for the down boundary. Press the UP or DOWN key
to increase or decrease the down boundary. Press Select again to adjust the UP boundary. Press the UP or DOWN key to
increase or decrease the up boundary.
Cycle Mode Menu
Down Setting
Value
Up Setting
Value
Delay Time
Value
Press Up or Down
Button to change
the value
Press Up or Down
Button to change
the value
Press Run Button
to activate mode
Press Up or Down
Button to change
the value
Starts function
and returns to
main screen
Press Select to
change setting
option
OPERATING THE DOWNRIGGER
