MiniAV-LT Quick Start Guide
Introduction:
Thank you for purchasing the miniAV-LT low temperature automated viscometer – part of
the popular CANNON minAV family which includes the miniAV, the miniAV-HT and the
miniAV-X. This quick reference is intended to provide the operator with key information on
setting up and operating the miniAV-LT instrument.
•Function
•Specifications/Installation
•Calibrating
•Running a Sample
Function
miniAV-LT Function
The miniAV-LT is a fully automated kinematic viscometer specially designed to handle the unique needs of low
temperature (sub-zero) kinematic viscosity determination of jet fuels, turbine lubricants, and hydraulic fluids. The
miniAV-LT offers ASTM D445 and D2532 precision. At the core of the instrument resides the miniAV instrument –
providing a familiar system and software user interface.
miniAV-LT Apparatus
The miniAV-LT test apparatus consists of the same three major units as the miniAV; the Bath Unit, the Power Supply,
and the Waste Receiver. The Air-Water Heat Exchanger is unique to the miniAV-LT. Refer to Figure 1 for a miniAV
assembled.
Air/Water Heat Exchanger
The Air/Water Heat Exchanger contains a radiator, fan(s), and water pump to circulate and cool a mixture of water and
ethylene glycol flowing through the hot side heat sinks surrounding the bath in the Control Unit. Circulation of the
mixture helps remove heat from the Control Unit bath.
Filling the Air/Water Heat Exchanger
Obtain a supply of quality automotive antifreeze (ethylene glycol) and mix it with water in a ratio of 30 percent
antifreeze to 70 percent water. Do not mix antifreeze types in the Air/Water Heat Exchanger. After the Exchanger
tubing connections are secured, pour this antifreeze/water mixture into the reservoir opening on the top of the
Air/Water Heat Exchanger until it is full (< 2 liters).
Warning: Ethylene glycol is a toxic substance. Use proper safety precautions
when handling and follow appropriate (M)SDS instructions.
miniAV-LT Quick Start Guide

2
Cannon Instrument Company | 2139 High Tech Road | State College | PA | 16803 | USA | 814-353-8000 | 800-676-6232
Depending on the amount of fluid displacement in the coolant lines, it may be necessary to add additional
antifreeze/water mixture to the Exchanger when the unit commences operation. You are able to observe the liquid
circulating inside the reservoir from the opening at the top of the Exchanger during normal operation. If air bubbles
are consistently visible in the coolant lines, add additional mixture until the Exchanger is full.
Caution: The water/antifreeze mixture should be replaced annually for reliable
performance and to prevent corrosion of internal components.

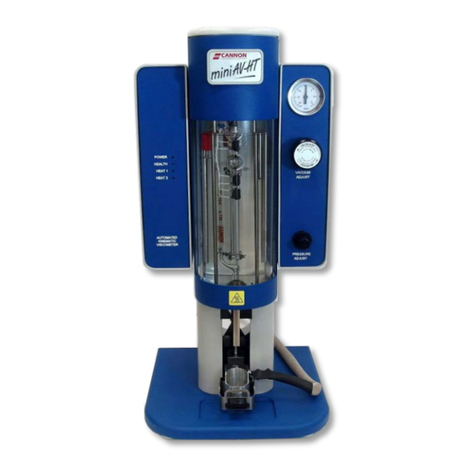

Figure 1: miniAV Series Components, assembled
miniAV-LT Specifications:
Instrument Specifications
Dimensions
(W x D x H)
Unit: 25.4 cm x 30.5 x 59.8 cm (10 in x 12.0 in x 23.5 in)
Power Supply: 33 cm x 39.6 cm x 17.2 cm (13 in x 15.6 in x 6.8 in)
Waste Receiver: 33 cm x 39.6 cm x 17.2 cm (13 in x 15.6 in x 6.8 in)
Air/Water Heat Exchanger: 38.6 cm x 51.1 cm x 34.9 cm (15.2 in x 20.1 in x
13.7 in)
Weight
Unit: 12.5 kg (27.5 lb)
Power Supply: 11 kg (24 lb)
Waste Receiver: 6 kg (13 lb)
Air/Water Heat Exchanger: 14 kg (30 lb)
Shipping Weight
98.9 kg (218 lb)
Data Output
RS-232 and RS-485
Temperature Range and Accuracy
-20 °C to 30 °C ± 0.02 °C*
Viscosity Range
Up to 20,000 mm2/s (cSt) in 100-fold increments (depends on viscometer
selection)
Power Supply
Bath Unit
Waste Receiver
Solvent Vessel

Cannon Instrument Company® | miniAV-LT Quick Start Guide
3
Instrument Specifications
Maximum Throughput
1 test per hour
Automated sample capacity
1
Minimum Sample/solvent volume
5 mL sample*/15 mL solvent per test
*as little as 3 mL with fast run tubes
Operating Conditions
15 °C to 30 °C, 10% to 75% relative humidity (non-condensing), Installation
Category II, Pollution Degree 2
Electrical Specifications
100 VAC; 50/60 Hz; 115 VAC, 50/60 Hz; 230 VAC, 50/60 Hz; 1,000 watt power
consumption
Compliance
CE Mark; EMC Directive 2004/108/EC); Low voltage directive (2006/95/EC);
HI-POT (1900 VDC, 60 sec.); ROHS
Installation
The miniAV-LT setup can be accomplished in just a few minutes by following the instructions in the installation guide
provided with the instrument. Please refer to your instrument instruction manual.
Note: Once the instrument and VISCPRO II are successfully installed, a calibration
must be performed at the wash temperature and each temperature at which the
user wishes to run samples.
Preparing the miniAV-LT for Testing
Calibrate the miniAV Instrument
Temperature calibration is essential for the proper operation of the miniAV-LT after installation. The calibration
process consists of sending a temperature and its offset to the instrument, then waiting for the temperature to
equilibrate. Equilibration is complete when the instrument stays within 0.02 °C for 150 seconds. To calibrate
temperature on the miniAV-LT, follow the instructions below.
Note: It is necessary to log in as a manager to complete the calibration.
1. Click Configure from the primary display and select Instrument Settings from the Configure options for the
desired instrument.
2. Click Tray Settings: Tube and Bath option.
3. Enter the temperature you wish to calibrate in the Bath Temp input box and then press OK to save new target
temperature.
4. Click Service from the primary display and select your desired instrument.
5. Click Temperature Calibration option. The Temperature Calibration Data window will open.
Note: The value in the Calibration Temperature box should display the
temperature the user selected in the tray settings.
6. Click Go to Calibration Temperature button to set the target temperature of the instrument to the desired
temperature to calibrate (if not the wash temperature).
7. Place your reference thermometer inside the bath.
8. Wait for the machine to equilibrate at the desired temperature.
9. Enter the current temperature reading to the nearest 0.01 °C from the reference thermometer into the Reference
Temperature display window as shown in Figure 2.

4
Cannon Instrument Company | 2139 High Tech Road | State College | PA | 16803 | USA | 814-353-8000 | 800-676-6232
Figure 2: Reference Temperature Window
10. Click the Apply as Current Offset option button (always click the radio button for the Apply as Current Offset
unless directed otherwise by a CANNON service engineer).
11. Click the Calibrate button and wait for the machine equilibrate using the offset.
12. Repeat this entire process for each temperature at which the user wishes to run samples.
Occasionally a temperature may require several calibrations in order to get an accurate calibration. The General Bath
Offset is a factory-preset value affecting temperature control at all temperatures and should not be changed.
Once all desired running temperatures have been calibrated, the user must train the tube sensors at each of these
temperatures.
Train the Tube Sensors
The miniAV-LT tube sensors must be trained in order for the instrument to properly perform test functions. To train
the miniAV-LT series sensors, follow the instructions below.
Note: Depending on the security level settings, it may be necessary for you to log
in as a manager to complete the calibration.
1. To train tube sensors, click Service from the primary display and select the Train Tube Sensors option for the
desired instrument. This opens the Train Tube Sensors window as shown in Figure 3.
Figure 3: Train Tube Sensors Window
2. Wait for the machine to equilibrate at the desired temperature.
3. Click the Train at Wash Temperature checkbox if wash temperature training is desired.
Select the desired training parameters as follows:

Cannon Instrument Company® | miniAV-LT Quick Start Guide
5
•Prewash: Click the Prewash option if the tube is not clean and dry. VISCPRO will initiate a cleaning cycle using
current wash configuration settings prior to initiating the sensor training procedure.
•Temperature to Train: Input all desired temperatures to be trained in the Temperatures To Train list
•Thermal Soak Time: Set our desired Thermal Soak Time using the scroll box
Note: The instruction panel will instruct you to insert an empty vial in order to
perform the prewash.
4. Raise the empty vial to enable the Start button.
5. Click the Start button.
After the prewash is complete, the instrument will then obtain the voltages for each sensor at each of the specified
temperatures.
The instruction panel will then instruct you to insert a vial containing an oil with a viscosity three times the lower limit
of the tube and raise it into the ready position for determining trip points.
Once all voltages and trip points have been obtained for all desired temperatures, the tube sensors have been trained.
Figure 4: Train Tube Sensors Window
Bath Fluid Safety Features:
If the bath fluid drops to an unacceptable level, the light in the bath unit will go out, alerting the user that the level
may be too low. Bath operations should be aborted until the level is checked and if needed, restored to an acceptable
bath fluid level.
Checking the Bath Fluid Level
1. Open the left side panel (left ear) to view the LED light and to check the bath fluid level, as shown in Figure 5.
Figure 5: Open miniAV-LT Panels
2. If the LED light is off as shown in Figure 6, more bath fluid needs to be added. Follow the instructions the miniAV-
LT Instruction & Operation manual for filling the bath.
Left ear

6
Cannon Instrument Company | 2139 High Tech Road | State College | PA | 16803 | USA | 814-353-8000 | 800-676-6232
Figure 6: LED Light and Bath Fluid Level
Running a Sample
1. If the miniAV instrument is powered off, ensure MAINS power cable is plugged in and turn the instrument on by
switching the power switch on the front of the power supply to the ON position.
2. Turn on the computer and load the VISCPRO software by clicking the desktop icon.
a. If the software is already open, click Main from the menu bar and click Poll for Instruments from the Main
Menu bar. This establishes connection between the computer and instrument.
b. Permit the bath to stabilize at test temperature before testing samples.
3. Pour sample material into the glass vial(s). For 20 mL vials, fill only half full, as the viscometer tube will displace
sample in the vial. Approximately 10 mL of sample should be sufficient for testing in either bulb of the viscometer.
Caution: Do not overfill the sample vials as sample overflow may create
problems for the tube cleaning cycle.
4. Place the sample vial in the holder underneath the viscometer tube.
5. Raise the holder until the magnetic coupling engages. The viscometer tube tip will be touching the bottom of the
sample vial. Refer to Figure 7.
Figure 7: Raised Sample Vial
6. Check the thermometer in the temperature bath to make sure the bath is holding the proper temperature. If
necessary, calibrate the miniAV temperature control probe using the temperature calibration procedure in
Chapter 3 of the Operator’s Manual.
7. Open the View Instrument Group window (if it is not already open) by clicking View Instrument from the Main
menu and selecting the desired instrument group from the list box. Refer to Figure 8.

Cannon Instrument Company® | miniAV-LT Quick Start Guide
7
Figure 8: View Instrument Group Window
8. Select the desired Group Id and Click OK to display the Sample Input View as shown in Figure 9. Then click the
tray corresponding to the desired miniAV.
Figure 9: Sample Input Window
9. Double-click on Sample ID (1) with the left mouse button to access the sample ID data entry field (or press 2).
10. Enter sample ID information in the sample list box using your computer keyboard. After you have typed the
sample ID, press the Tab key to complete the entry and move the cursor to the next Sample ID field. Or press Enter
to complete the entry.
Once sample information is entered, the software automatically assigns a sample action, Measure Sample Viscosity,
for the sample. If you do not enter a sample ID, the sample is automatically labeled Unknown.
To select or change a sample action, highlight the appropriate Sample ID(s) using the mouse or arrow keys, then click
the RIGHT mouse button to access sample action options as shown in Figure 10.
Figure 10: Sample Actions
Select the desired action by highlighting it with the mouse and clicking the left mouse button.
If Verify Known KV is selected as the test option for a sample, the Viscosity Action window will open automatically.
Enter the necessary check standard data, including the Check Standard viscosity from the standard bottle, and click
OK to complete data entry. To revise or confirm standard data, right-click on the desired sample ID from the list box
and select Configure from the popup menu choices.
11. Continue entering sample information for all desired trays. When sample ID data entry is complete, check the Tray
Status window to verify all trays are ready for testing.
12. Click on the Run button at the bottom of the Sample Input window. The Select Trays window will open if more
than one miniAV instrument is online.
13. If necessary, click on the check box(es) to select the desired prepared “tray” (sample sequence) for automatic
testing. For the miniAV, a tray corresponds to the miniAV instrument. Then click OK to begin the miniAV test(s).

8
Cannon Instrument Company | 2139 High Tech Road | State College | PA | 16803 | USA | 814-353-8000 | 800-676-6232
Pause a Test
To temporarily halt testing for a given tube/sample, click the Pause button from the Sample Input window. Then
select the desired tray (miniAV instrument) and pause action(s) from the Select Trays window (Pause Now will
immediately pause test actions; Pause after current sample will pause testing after the current test is complete). Click
OK to pause testing for the selected tray(s).
Note: If the test was paused prior to the initiation of the Wash cycle, drop time
data for that sample will be discarded.
Resume a Test
To resume test actions for paused trays, click the Resume button from the Sample Input window. Then select the
desired trays from the Select Trays window. Click OK to resume sample testing.
Abort a Test
To permanently halt testing for a given tube/tray, click the Abort button from the Sample Input window. Then select
the desired trays from the Select Trays window. Click OK to abort testing for the selected tray.
Note: Aborting a test clears all sample test information for that tray. If test
actions are aborted, it is the responsibility of the user to restore the instrument
to a safe state before running tests.
Conclude a Test
After the automatic testing has completed, make certain that:
1. The sample vial carrier is in the lowered position.
Warning: Use appropriate caution when handling warm sample vials to avoid the
possibility of injuries and burns.
2. The Machine Status (as indicated in the VISCPRO Sample Input Machine Status window), is Ready.
3. The Tray Status for the tube, as indicated in the VISCPRO Sample Input Tray Status window, is Idle. Kinematic
viscosity for any tested samples will be displayed in the Sample Action column in the action list for the selected
tube.
4. Press Resume to clear data and begin testing the next sample as shown in Figure 11.
Figure 11: Next Sample
