Canon Color imageCLASS MF8050Cn Safety guide

Read This Manual First.
Be sure to read the manual before using the
machine.
The remarks for important safety
instructions are described in "Basic
Operation Guide." Read the manual also.
Keep the manual for future reference.
Starter Guide
1Preface
Next Page
2Installing the Machine
P. 4
3Configuring and
Connecting the Fax
P. 11
4
Appendix
P. A-1
Connecting to a Computer
and Installing the Drivers
P. 15

2
Setting Up the Machine to Suit Your Purposes
Available Features
: available : not available
Copy Print 2-sided
Printing
Fax
(PC Fax) USB Scan Network Scan Remote UI ADF (1-sided) ADF (2-sided)
MF8050Cn
Determine which machine functions (Copy, Print, Fax, PC Fax, Scan, Remote UI) you intend to use, and make the settings
according to the flowchart below.
Copy Fax
Settings from
a Computer
Print
Scan
PC Fax
Print
Scan
PC Fax
Required Operations
Preparing the Toner Cartridges P. 5
Loading Paper P. 6
Connecting the Power Cord P. 8
Registering the Sender Information P. 11
Fax Settings
The settings are now complete.
Carrying the Machine to the Installation Site and Removing the Packing Materials P. 4
Selecting the Receive Mode P. 12
Connecting a Telephone Line P. 13
Turning the Power ON and
Specifying the Initial Settings Language Settings Date and Time
Settings Color Correction P. 8
The settings for paper sizes and paper types are required after turning the power ON.
P. 10
Remote
UI
Network
Connection
USB
Connection
Installing the Software P. 16
Connecting a USB Cable P. 19
Connecting to a Network P. 15
Installing the Software P. 18
Settings in a Computer

1
Confirming the Supplied Accessories
1. Confirm that all the supplied
accessories are contained in the box.
If an item is missing or damaged, please contact our Canon
Authorized Service Facilities or the Canon Customer Care
Center.
The machine unit
The following parts are already
installed.
Paper cassette
Toner cartridges
•
•
Power cord
User Software CD-ROM
Limited Warranty Notice
Telephone cable
Speed dial label
Starter Guide (This manual) Basic Operation Guide
Legal dust cover
About the Supplied Toner Cartridge
The average yield of the included toner cartridges is as follows.
Average yield of K (Black) toner cartridge 800 sheets
Average yield of Composite C (Cyan), M (Magenta), and Y (Yellow) toner cartridges 800 sheets
The average yield is on the basis of "ISO/IEC 19798"* when printing A4 size paper with the default print density setting.
"ISO/IEC 19798" is the global standard related to "Method for the determination of toner cartridge yield for color printers and multi-function devices that contain printer
components" issued by ISO (International Organization for Standardization).
For purchasing replacement toner cartridges, see "About replacement toner cartridges" in the e-Manual.
*
About the LAN cable
The machine does not come with a LAN cable
or a hub. Have cables or a hub ready as needed.
Use a Category 5 or higher twisted pair cable.
If you want to connect the machine to a 100BASE-TX
Ethernet network, all the devices to be connected to the
LAN must support 100BASE-TX.
•
•
Registration Card
Preface
1
Installing the Machine
2
Configuring and Connecting the Fax
3
Connecting to a Computer and
Installing the Drivers
4
Appendix

2
User Software CD-ROM
About the Drivers and Software
The drivers and software included in the CD-ROM supplied with this machine are as follows.
MF Driver
Printer driver You can print from an application using the machine by installing the printer driver to your
computer. You can process print data at high speed by compressing the print data using the
computer processing ability.
Fax driver If you install the fax driver to your computer, you can select “Print”from an application, select
the Canon fax driver as a printer, and specify the output destination and options. The fax driver
convert the data into an image that conforms to standard fax protocols so that the data can be
printed or saved using the recipient’s fax machine.
Scanner driver You can use the machine as a scanner if you install the scanner driver to your computer.
Network Scan Utility This software is required for using the scan functions via a network. The software is installed
with the scanner driver.
MF Toolbox
MF Toolbox The MF Toolbox is a program which can easily open an image scanned by the scanner in an
application, attach the scanned image to an e-mail, and store the scanned image in a hard disk.
Additional Software Programs
Presto! PageManager This is the software to manage the scanned images.
: available : not available
Windows 2000/XP Windows Vista/7 Windows Server 2003/
Server 2008
Printer driver *
Fax driver 2pt*
Scanner driver
Network Scan Utility
MF Toolbox
Presto! PageManager
Available only in the network connection.*
Supported Operating Systems

3
About the Supplied Manual
Read this manual first.
This manual describes the settings for
the machine and software installation.
Be sure to read the manual before
using the machine.
Starter Guide
Basic Operation Guide
e-Manual
Read this manual next.
This manual describes the basic
machine operations.
Read the desired chapter
to suit your needs.
The e-Manual is categorized for each
subject to find desired information easily.
Determining the Installation Site
Front View
Paper
cassette
Feeder cover Feeder
Rear cover
in. (mm)
48 3/8 (1229)
4
(100)
4
(100)
4
(100)
4
(100)
4
(100)
26 1/2 (674)
31 1/2 (801)
Preface
Installing the Machine
Configuring and Connecting the Fax
Connecting to a Computer and Installing the Drivers
Appendix
•
•
•
•
•
Before Using the Machine
Document and Paper Handling
Copying
Printing from a Computer
Registering a Destination in the
Address Book
Using the Fax Functions
•
•
•
•
•
•
Basic Operation
Copy
Fax
Print
Scan
Network Settings
Security
•
•
•
•
•
•
•
Setting and Managing from
Computer
Troubleshooting
Maintenance
Setting Menu List
Specifications
•
•
•
•
•
Using the Scan Functions
Maintenance
Troubleshooting
Registering/Setting the
Various Functions
Appendix
•
•
•
•
•
The e-Manual is included in the User Software CD-ROM.*
This manual
Preface
1
Installing the Machine
2
Configuring and Connecting the Fax
3
Connecting to a Computer and
Installing the Drivers
4
Appendix

4

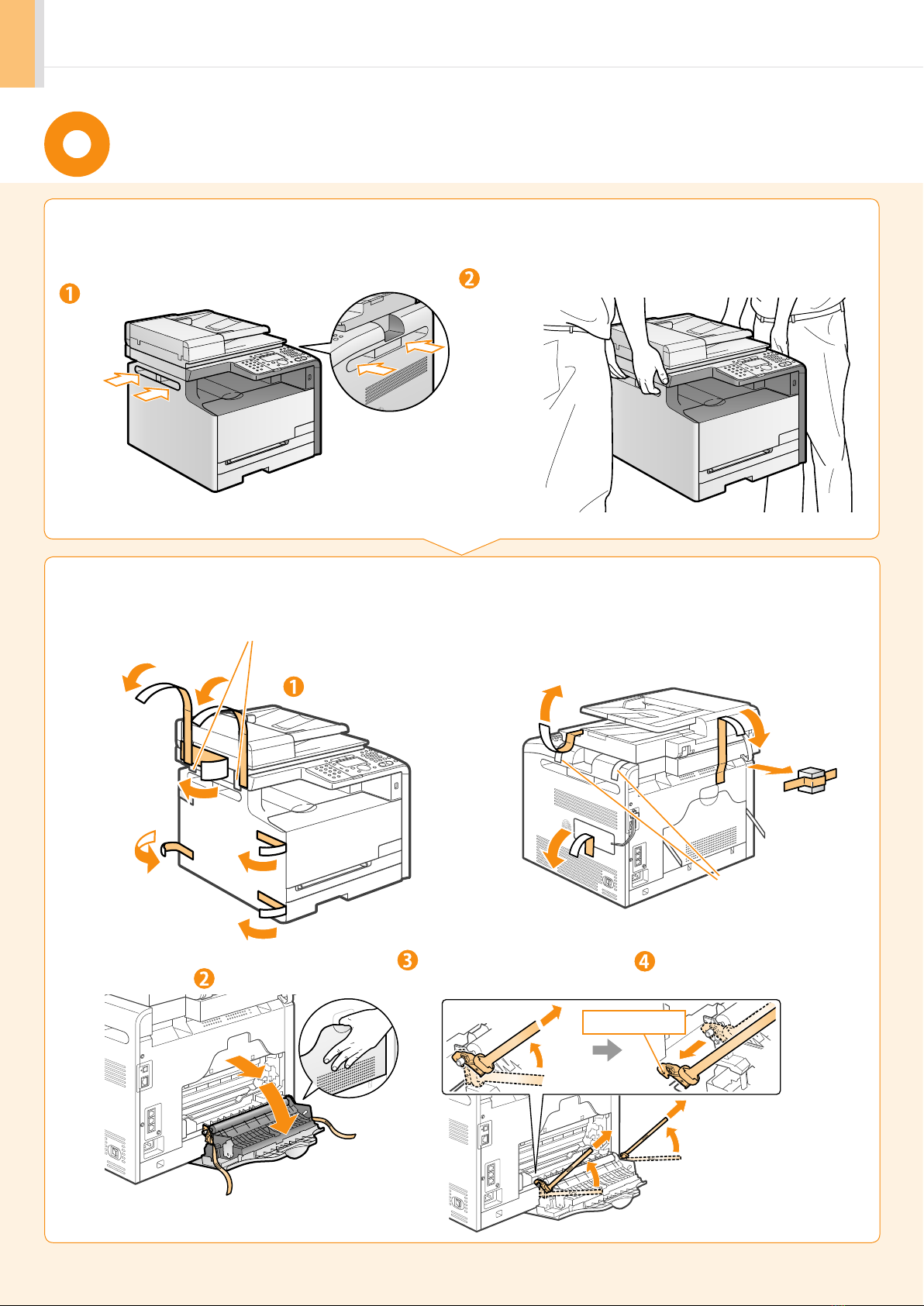

2. Remove the packing materials. The packing materials may be changed in form or placement, or may be added or
removed without notice.
*
1. Carry the machine to the installation site.
Carrying the Machine to the Installation Site
and Removing the Packing Materials
Hold the lift handles. Carry the machine with two or more people.
Open the rear cover.
Pull the packing materials
outward to remove them.
Pull the packing materials a
little upward.
Remove the packing materials later.*
Remove the packing
materials later.
*
Packing material
Remove the packing materials.

5

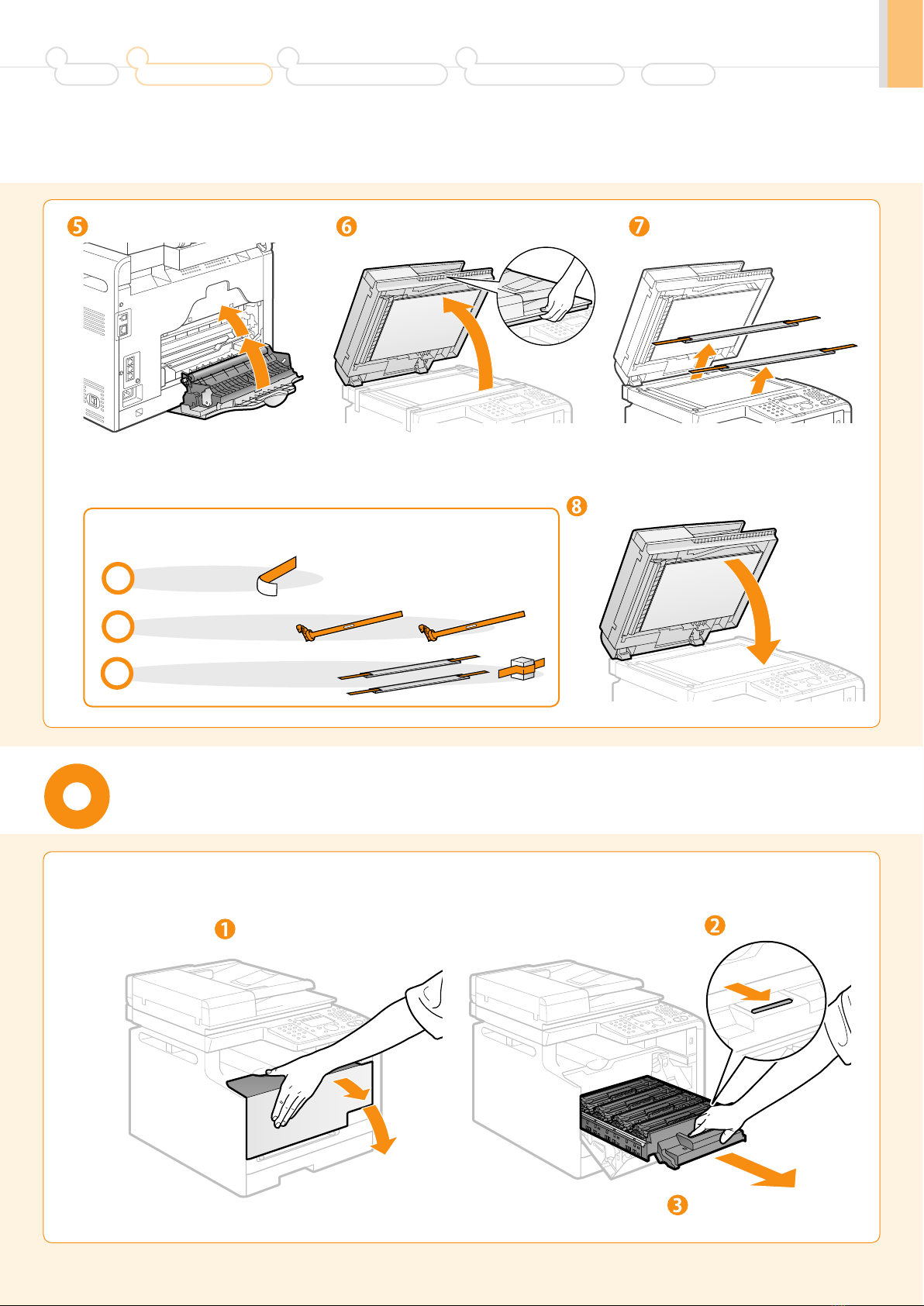

Preparing the Toner Cartridges
Open the front cover.
Pull out the toner
cartridge tray.
Close the rear cover.
Did you remove all the packing materials?
Check!
Tape x9
Packing materials with tape x3
1. Open the front cover to pull out the toner cartridge tray.
Packing materials x2
Open the feeder. Remove the packing
materials with tape.
Close the feeder.
Press the lever.
Preface
1
Installing the Machine
2
Configuring and Connecting the Fax
3
Connecting to a Computer and
Installing the Drivers
4
Appendix

6

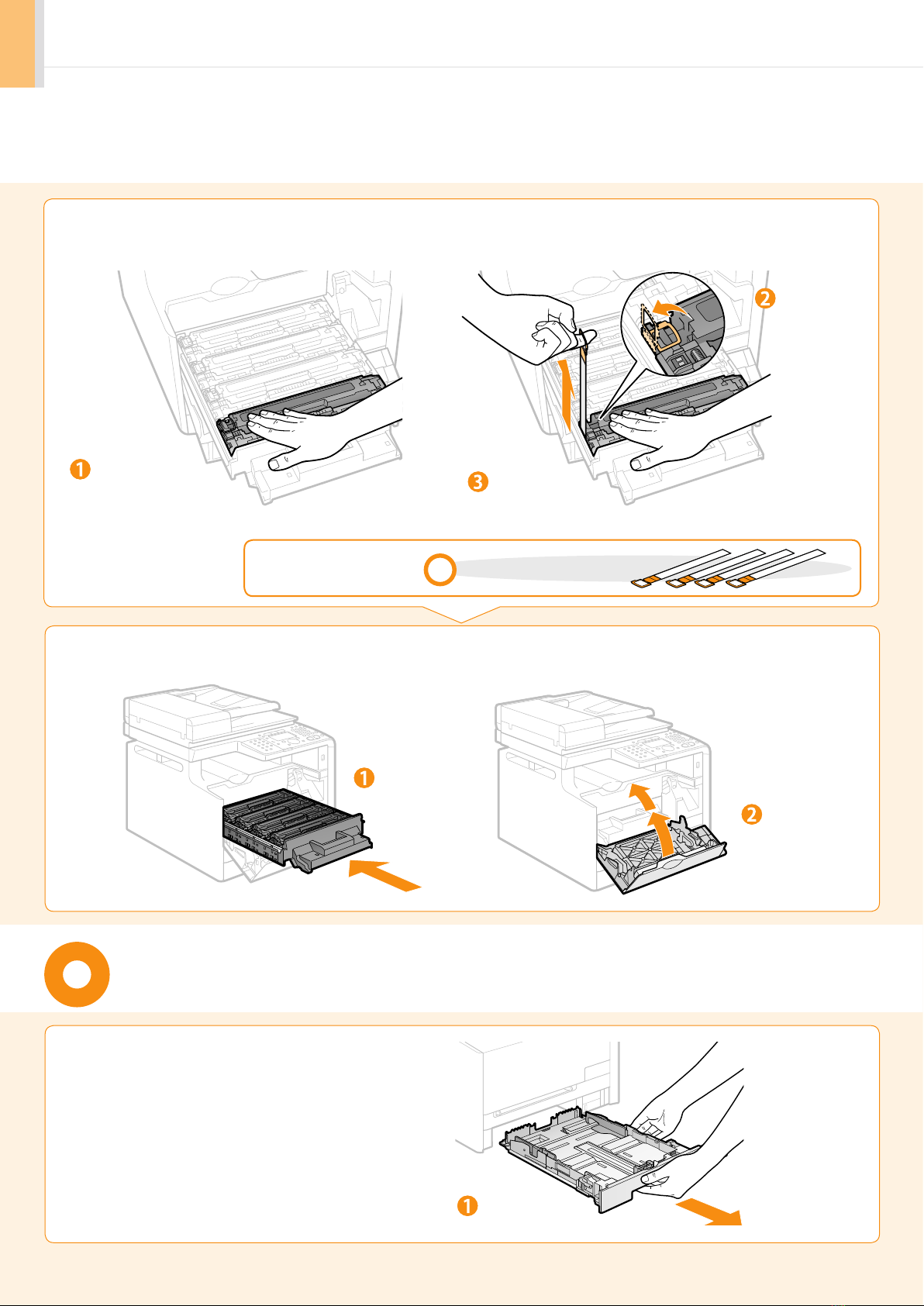

3. Push the toner cartridge tray, and then close the front cover.
2. Pull out the sealing tapes of the four toner cartridges.
Did you remove all the
packing materials?
Check!
Sealing tape x4
Pull out the
paper cassette.
Remove.
Hold down the
toner cartridge. Pull out the
sealing tape.
Close the front
cover.
Push the toner
cartridge tray.

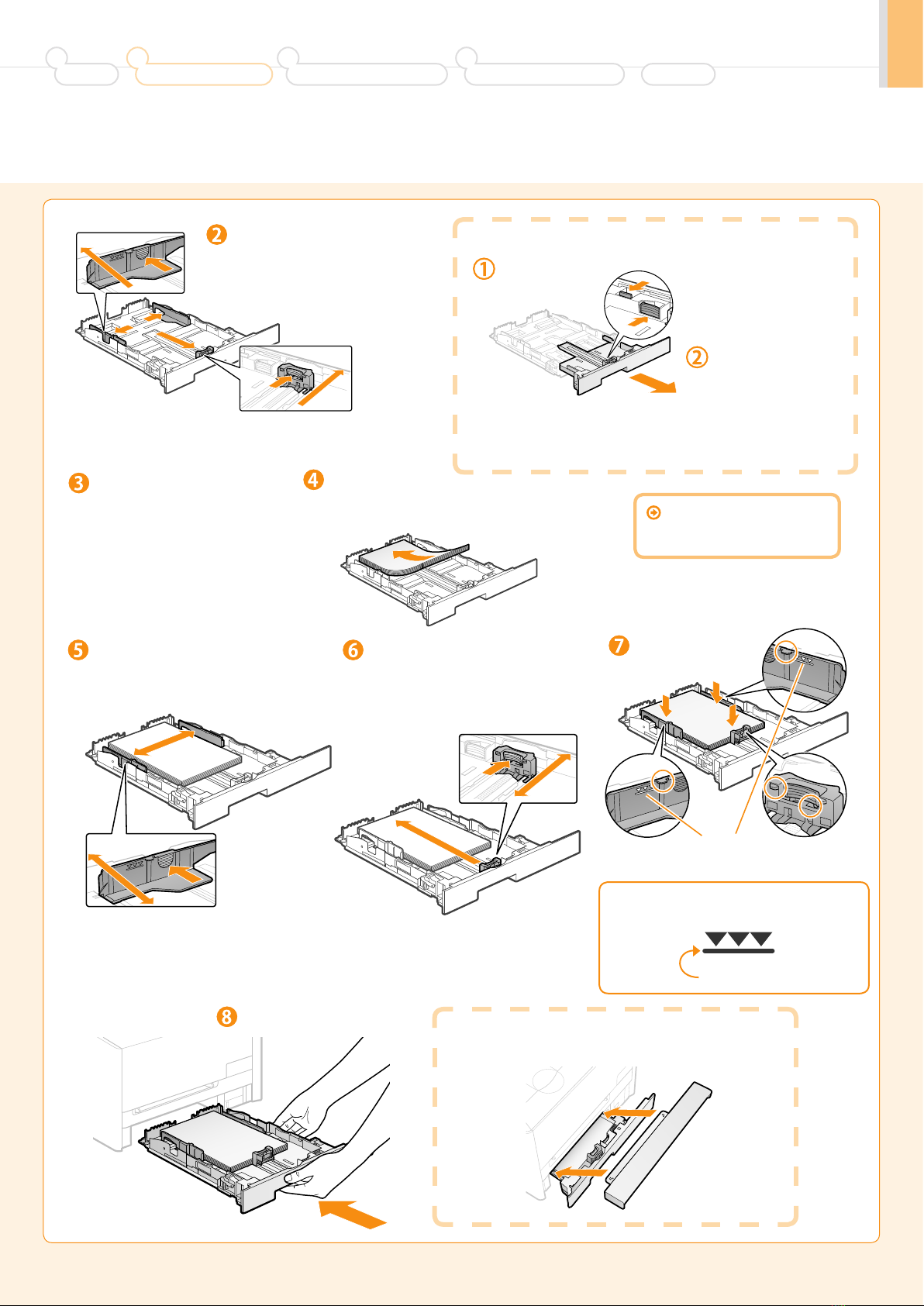

1. Load paper in the paper
cassette.
Loading Paper
Hold the paper cassette with both hands.

7
Load the paper.
When loading Legal size paper•
Hold the lock
release lever.
Adjust the length of
the paper cassette.
Be sure that the paper stack does not
exceed the load limit mark lines.
Check!
Push the paper cassette.
Hold the lock release lever to slide
the paper guides.
Slide the side paper guides.
Slide the paper guides to adjust to
the width of the loaded paper. Slide the paper guides to adjust to
the width of the loaded paper.
Set the paper
under the hooks.
Up to here
Adjust the edges of the paper stack to the
rear side of the paper cassette. When using the envelopes
For details on how to load paper,
see "Basic Operation Guide."
Load limit mark.
Hooks
Hold the lock release
lever to slide the paper
guides.
Spread the paper guides a
little wider than the actual
paper width.
Slide the side paper
guides.
Spread the paper guides a little
wider than the actual paper width.
Hooks Hooks
When loading Legal size paper
Set the legal dust cover on the paper cassette.
•
Preface
1
Installing the Machine
2
Configuring and Connecting the Fax
3
Connecting to a Computer and
Installing the Drivers
4
Appendix

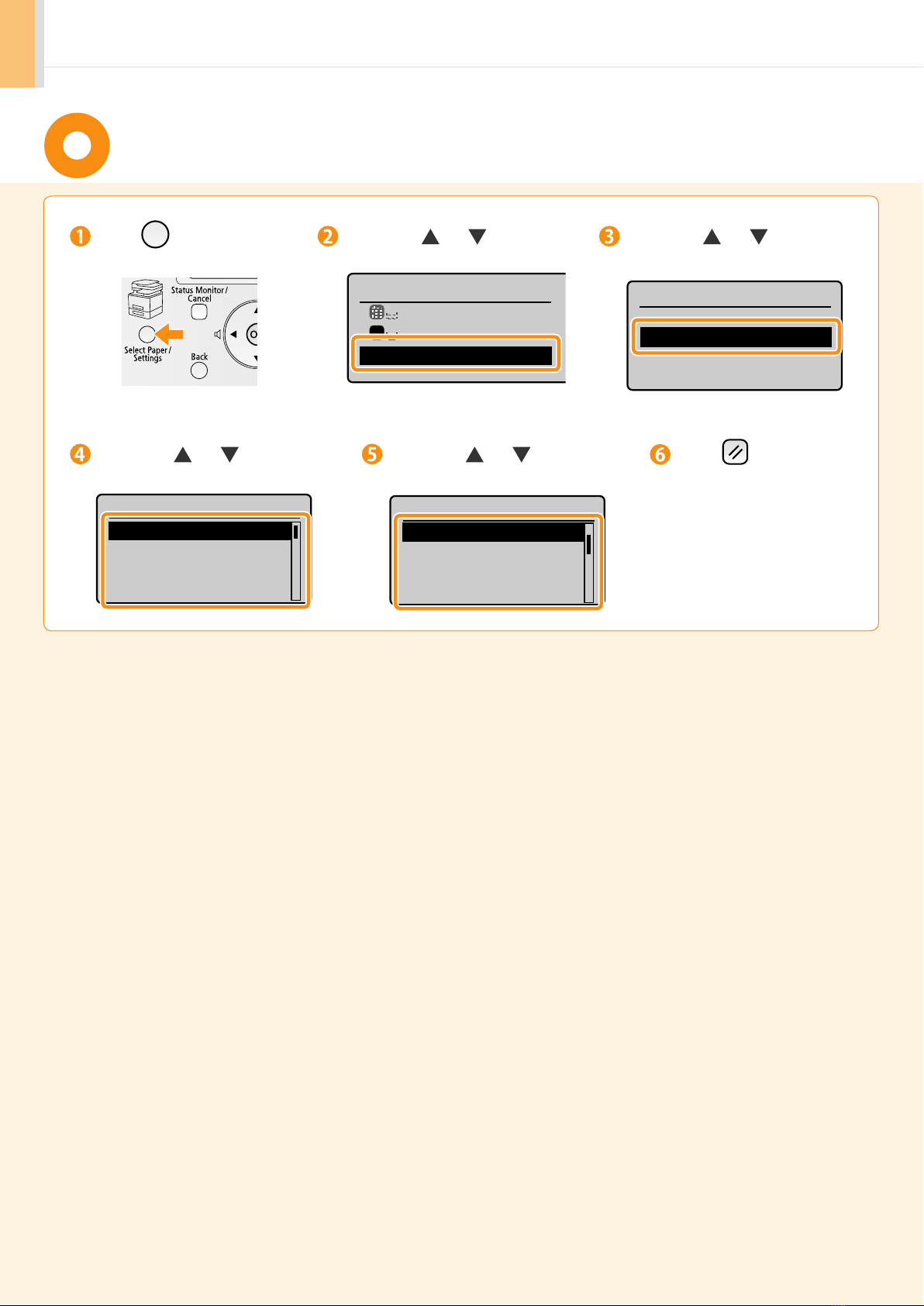

When changing the size of the paper to be loaded
Be sure to register the paper size.
→"Setting a Paper Size and Type" (P. 10)
•

8

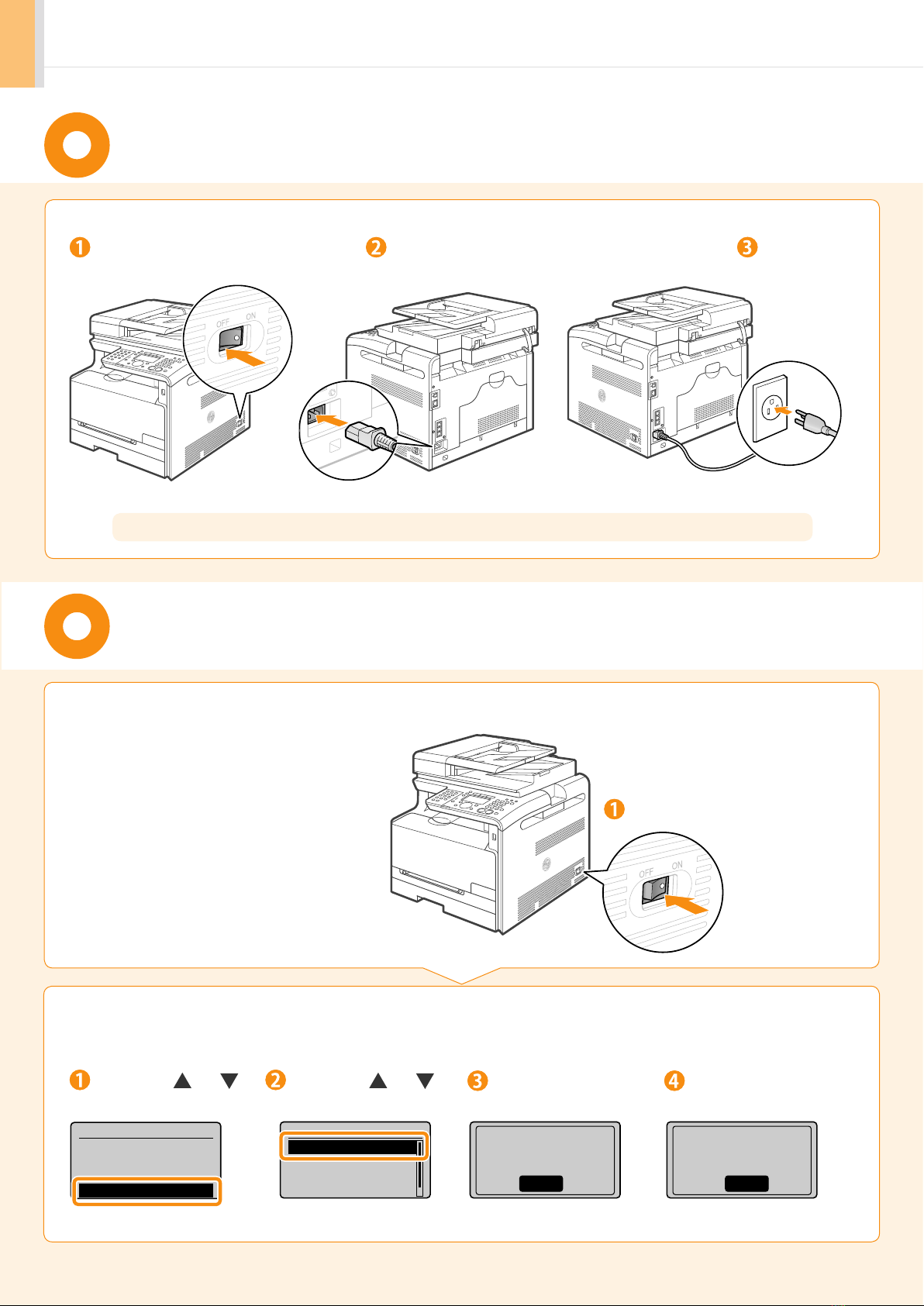

Connecting the Power Cord
1. Turn ON the power of
the machine.
2. Specify the initial settings.
Select with [ ] or [ ],
and then press [OK].
Turning the Power ON and Specifying the Initial
Settings
Press the power switch.
Language
French
Spanish
Portuguese
English
Do not connect the USB cable. Connect the USB cable when installing the software.
Check and press [OK].
Open back cover; see
if orange packing
material is removed.
Next
Select with [ ] or [ ],
and then press [OK].
Check and press [OK].
Check that tabs/tape
are removed from
toner cartridge.
Next
Select Country/Region
United States (US)
Canada (CA)
Brazil (BR)
Mexico (MX)
Make sure that the machine is off. Plug the power plug into the
power socket.
Plug the power
plug into the AC
power outlet.

9
You can perform color
correction by selecting <Yes>
to obtain optimum copy
results or printout results. For
details on the procedure, see
the following "Performing
Color Correction."
•
Adjust image to
reproduce original
color?
NoYes
Press [OK].
Use numeric keys, and then
press [OK].
Move the cursor with [ ] or [ ].
Switch to <AM> or <PM> with [ ]
or [ ].
•
•
Current Time Settings
2010 01/01 12:52AM
Check and press [OK].
Check that paper is
loaded in Drawer 1.
Next
Performing Color Correction.
Make sure that paper is loaded,
and then press [OK].
Confirm the procedures for the color
correction, and then press [OK].
Open the feeder.
Place the test chart with the printing side face down.
Place the paper setting the direction of black streak to the
back side of the platen glass.
Supported paper:
Size: A4, LTR, 16K
Type: Plain 1/2, Rec
OK
Steps (Start:Press OK)
1. Print Adj. Image 1
2. Scan Adj. Image 1
Step 1
Printing adj. image 1.
Close the feeder.
The test chart (adjusted image 1) is printed.
Press [ ] (Start).
Place adj. image 1 on
the glass with black
side toward the back.
Press [Color] start.
Step 2
Scanning adj. image 1.
Copy Image Adjustment
Copy: Press Start
100% LTR
Density: 0
Original Type: Text...
Copy Ratio: 100% Di...
1
+
-
1
Initial screen appears,
and initial setting is
finished.
Remove the test chart (adjusted image 1) placed on the platen glass in Step .
Preface
1
Installing the Machine
2
Configuring and Connecting the Fax
3
Connecting to a Computer and
Installing the Drivers
4
Appendix
Color correction takes approximately 255
seconds.
Check the temperature of the installation site.
If the room temperature is low, correction may not be performed properly.
If <Adjustment failed.> appears
Is the paper loaded correctly?
Load plain paper or recycled paper of A4/Letter size in the paper cassette.
Is the test chart placed on the platen glass correctly?
Place the test chart with the printing side face down and the black streak toward
the back of the machine.
Has a paper jam occurred?
Remove the jammed paper.
•
→
•
→
•
→

10
Setting a Paper Size and Type
Press [ ] (Paper Select/
Settings).
Select with [ ] or [ ], and then
press [OK].
Select with [ ] or [ ], and then
press [OK].
Select with [ ] or [ ], and then
press [OK].
Select with [ ] or [ ], and then
press [OK].
Select Paper
MP Tray
LTR:Plain 2
Paper Settings
1
Paper Settings
Multi-Purpose Tray
Drawer 1
Register Custom Paper
Paper Size
LTR
LGL
STMT
EXEC
Paper Type
Plain 2 (20 lb Bond-
Recycled
Color
Heavy 1 (25 lb Bond...
Press [ ] (Reset) to return
to the standby mode.

11
Specifying the Initial Fax Settings and
Connect the Telephone Cable
1. Register the fax number and username.
Enter information into the machine using the
following key.
OK C#Numeric keys
Entering letters and symbols
Enter with numeric keys or [ ] (Symbols).
Keys to be
used
Entry mode:
<A>
Entry mode:
<a> Entry mode: <12>
@.-_/ @.-_/ 1
ABC abc 2
DEF def 3
GHI ghi 4
JKL jkl 5
MNO mno 6
PQRS pqrs 7
TUV tuv 8
WXYZ wxyz 9
(Nonenterable text) (Nonenterable text) 0
@ . / - _ ! ? & $ % # (
) [ ] { } < > * + = " , ; :
' ^ ` | \
@ . / - _ ! ? & $ % # (
) [ ] { } < > * + = " , ; :
' ^ ` | \
(Nonenterable
text)
Deleting the characters
Delete with [ ] (Clear).
(Pressing and holding the key deletes all the characters.)
Press [ ]. Select with [ ] or [ ],
and then press [OK].
Press [OK]. Enter.
Select <Apply> with [ ],
and then press [OK].
Press [OK]. Enter.
Select <Apply> with [ ],
and then press [OK].
Text Input Method
Changing the entry mode
Select <Entry Mode> with [ ], and then press
[OK]. You can also press [ ] (Tone) to change
entry mode.
Entry mode Available text
<A> Alphabets (capital letter) and symbols
<a> Alphabets (small letter) and symbols
<12> Numbers
Moving the cursor (enter a space)
Move with [ ] or [ ].
Move a cursor to end of the characters and press
[ ], then a space is entered.
Perform fax setup?
Set up Now
Set up Later
Register the fax no.
for this machine.
*Next Screen: Press OK
Fax No.
031234567
<Apply>
+
Register unit name.
(Sender name, or
company name, etc.)
*Next Screen: Press OK
Register Username
ABC
<Apply>
Entry Mode: A
How to use a username
When you send a document, the sender information that
you registered is printed on the recipient's paper.
2010 01/01 02:07 123XXXXXXX CANON #0001 P.001/006
Sending Time/Date
Fax/Telephone Number
(FAX No.)
Page Number/
Total Number of Pages
Job Number
Sender Name
(Username)
Operate the machine following the screen and perform the following settings and the connection.
Registering the fax number and username
Setting the fax receive mode
Connecting a telephone line
•
•
•
If you are using a pulse dialing, change the line type after specifying the settings.
Preface
1
Installing the Machine
2
Configuring and Connecting the Fax
3
Connecting to a Computer and
Installing the Drivers
4
Appendix

12

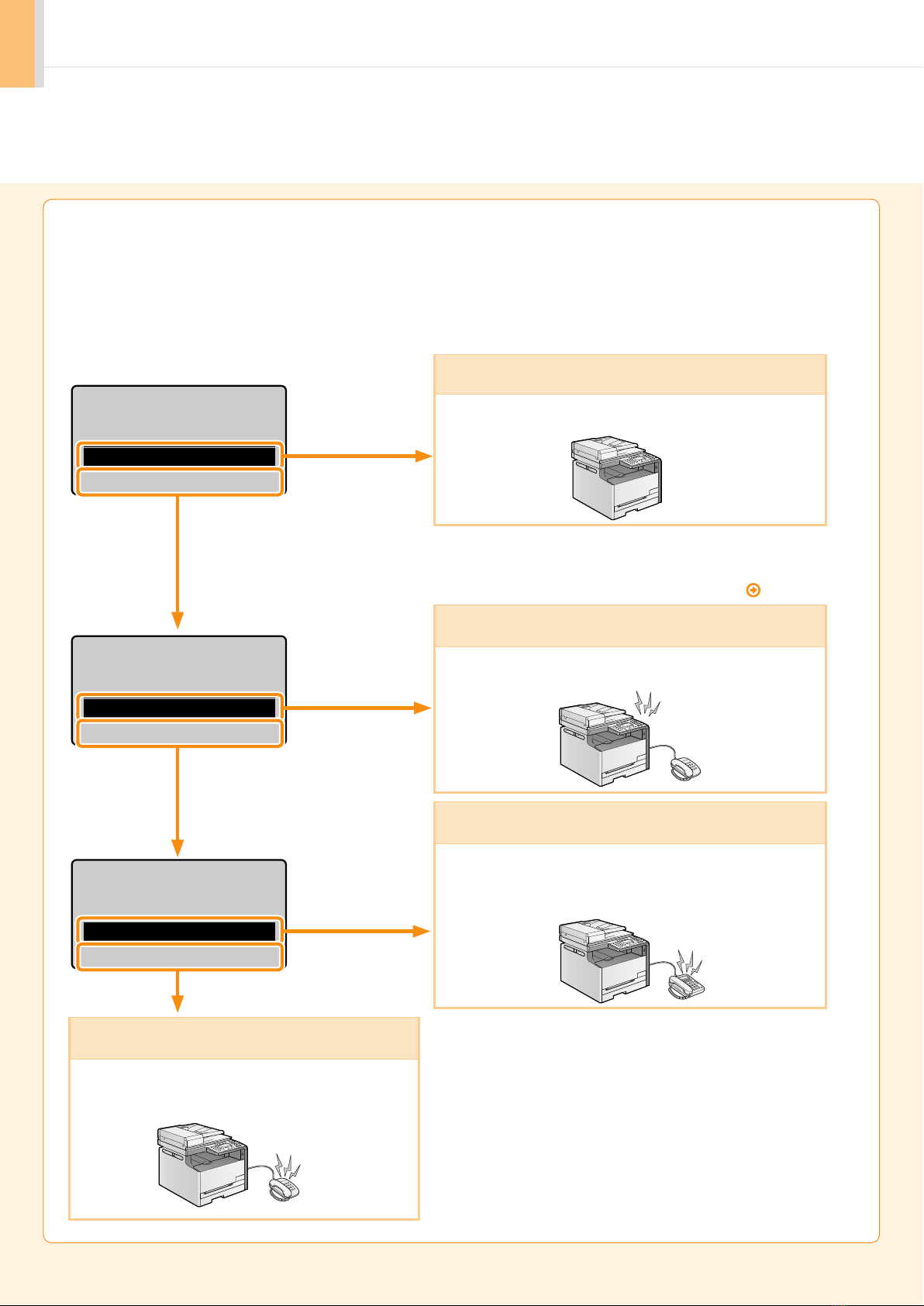

2. Set the fax receive mode.
The <Auto> mode is set.
→Proceed to Step 3.
Receives a fax automatically.
Does not use the telephone.*
•
•
If connecting with the telephone in the auto receive mode, the
telephone rings when receiving a fax or telephone call. You can answer
the telephone while the telephone is ringing. To configure so that the
telephone does not ring, see“Incoming Ring” in the e-Manual.
*
Do you want to use
this machine for fax
only (no telephone)?
<Yes>
<No>
Do you want to auto-
receive faxes and
answer phone manually?
<Yes>
<No>
Do you want to use
an answering machine
to answer the phone?
<Yes>
<No>
The <Fax/Tel> mode is set.
→Proceed to Step 3.
Receives a fax automatically.
Responds a telephone call by picking up the handset.
•
•
The <Answer> mode is set.
→Proceed to Step 3.
Receives a fax automatically.
Responds a telephone call by built-in answering machine.
Rings when receiving a call or fax.
•
•
•
The <Manual> mode is set.
→Proceed to Step 3.
Responds both a telephone call and fax by
picking up the handset.
Rings when receiving a call or fax.
•
•
You can specify how the machine should operate for a fax call or telephone call.
By answering the questions that appear on the display, the machine is set to any one of the following four* operation
modes.
<Auto><Fax/Tel><Answer><Manual>
You can set a receive mode other than the above manually depending on your country or region. For details on the setting procedure, see "Receiving Faxes" in the e-Manual.*

13
3. Connect a telephone line.
Press [OK].
Connect phone line.
Follow instructions
on the next screen.
Connect line to A.
*Next: Press OK
Connect phone line.
Follow instructions
on the next screen
to make connections:
1. Phone line to A
Displayed screen varies depending on the specified receive mode.
Connect telephone cables to the machine as needed.
Telephone line
connector
Telephone
(B)
(A)
Preface
1
Installing the Machine
2
Configuring and Connecting the Fax
3
Connecting to a Computer and
Installing the Drivers
4
Appendix
Select with [ ], and then press [OK].
When the connection is
finished, press [OK].
Fax settings and connections have been completed.
End the Fax Setup
Guide?
NoYes
Restart the machine to activate the settings.
Turn OFF the machine and wait for at least 10 seconds before turning it ON again.
Press [OK].
Setting is complete.
Turn the main power
OFF and ON.
OK

14
4. Change the line type.
By default, the telephone line type on the machine is set to tone dialing. If you use tone dialing, skip the following procedure.
If you use pulse dialing, follow the procedure below and change the telephone line type setting on the machine to pulse
dialing.
If you do not know the type of telephone line you use, contact your local telephone company.
Press [ ] (Menu).
Select <Timer Settings> with [ ] or [ ], and then press [OK].
Select <Fax Settings> with [ ] or [ ], and then press [OK].
Select <Basic Settings> with [ ] or [ ], and then press [OK].
Select <Select Line Type> with [ ] or [ ], and then press [OK].
Select the line type you are using with [ ] or [ ], and then press [OK].
<Tone>: Tone dialing (Default)
<Dial 10 PPS>: Pulse dialing
Press [ ] (Menu), then close the menu screen.

15
Selecting a Method for Connecting the
Machine To a Computer

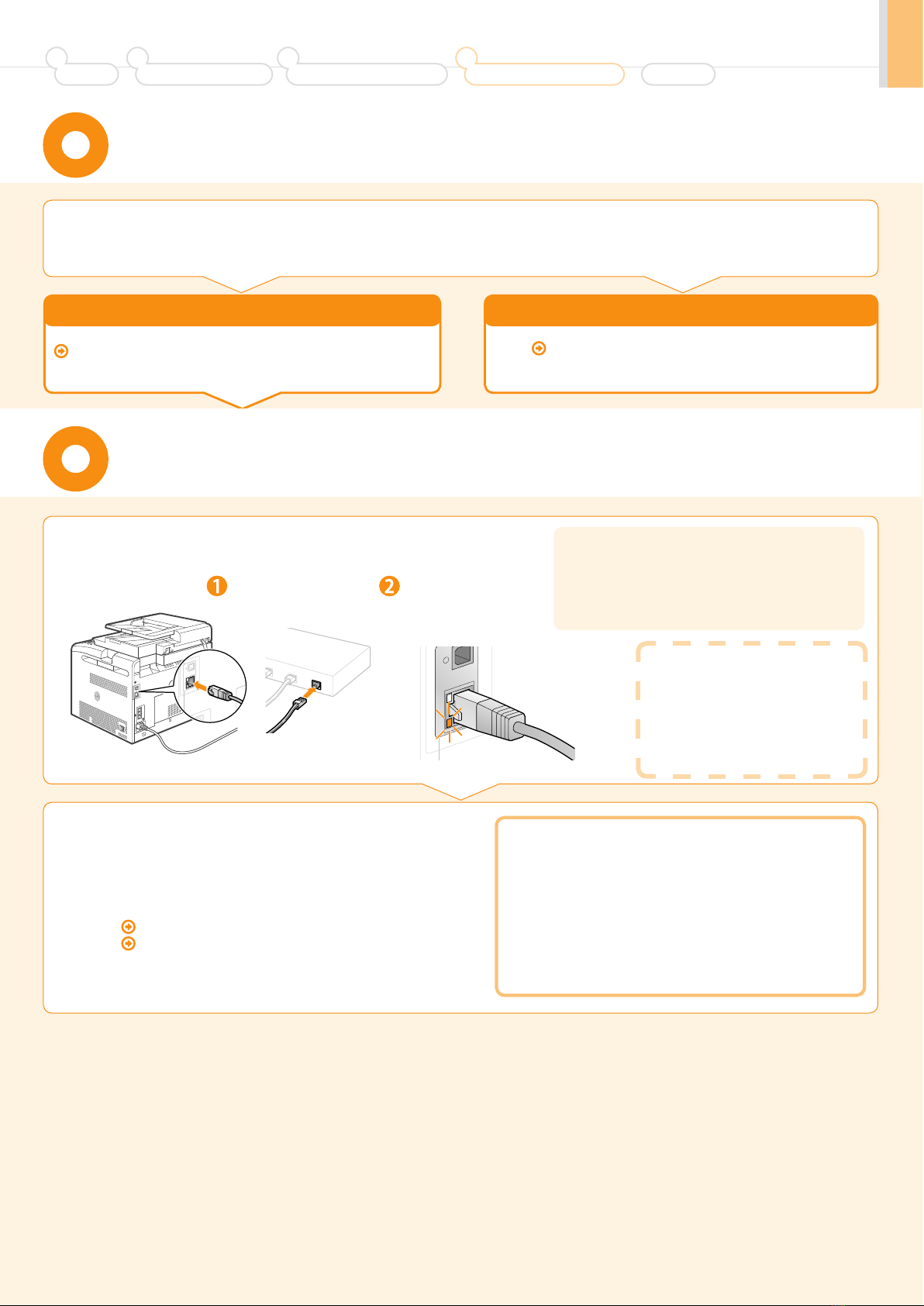

1. Connect the LAN cable.
Network Connection and Configuration
For Network Connection• For USB Connection•
Network Connection and Configuration
P. 15
Installing with USB Connection
P. 18
Connect the cable. Make sure that the
green indicator of
the LAN port is on.
If the indicator is not turned on
Check the following.
Whether the machine and hub are
connected using a USB cable
Whether the power of the machine is
turned ON
•
•
There are two ways to connect the machine to a computer: Network connection and USB connection, so select the
connection type according to your environment or function.
The functions of USB connection and network connection can be used simultaneously.*
About the LAN cable
The machine does not come with a LAN cable or a hub.
Have cables or a hub ready as needed.
Use a Category 5 or higher twisted pair cable for the
LAN.
•
•
2. The machine sets the IP address
automatically.
Wait approximately 2 minutes.
If you want to set the IP address manually, see the following.
e-Manual "Setting IPv4 Address"
e-Manual "Setting IPv6 Address"
About obtaining IP address automatically
<DHCP> or <Auto IP> (Bonjour) is enabled in the default setting.
So, the IP address can be obtained automatically when not setting IP address
manually.
<DHCP> setting is prioritized over <Auto IP>.
If using the machine in Bonjour environment, the IP address can be obtained automatically
without the dedicated device (such as a DHCP server) necessary for the auto settings of IP
address.
If the IP address of the machine is changed
When the machine and computer are on the same subnet, the
connection is maintained.
•
•
Preface
1
Installing the Machine
2
Configuring and Connecting the Fax
3
Connecting to a Computer and
Installing the Drivers
4
Appendix

16
Installing via Network Connection
2. Turn on the computer, and then log on as a user with
administrative rights.
3. Install the MF Driver and MF Toolbox.
If you have already logged on, exit all the applications which are running.
Insert the CD-ROM. Click.
Click.
Read the contents of License
Agreement.
Click.
If the top screen does not appear
Windows 2000, XP, and Server 2003
1. From the [Start] menu, select [Run].
2. Enter "D:\MInst.exe", and then click [OK].
Windows Vista, 7, and Server 2008
1. Enter "D:\MInst.exe" in [Start Search] or [Search programs
and files] under the [Start] menu.
2. Press the [ENTER] key on the keyboard.
The CD-ROM drive name is indicated as "D:" in this manual. The CD-ROM
drive name may differ depending on the computer you are using.
•
•
*
Click.
If the following dialog box appears
1. Check the following
points.
The computer and machine are connected via the network.
The power of the machine is turned ON.
IP addresses are properly set up.
•
•
•
Click.
[Easy Installation] performs the installation of
the following software.
Printer driver
Scanner driver
MF Toolbox
To install the other software such as the fax
driver, select [Custom installation].
e-Manual
•
•
•
Click.

17
If no devices are displayed in [Device List]
Perform the following procedure.
1. Check the following.
The computer and device are connected via the
network.
The device is turned on.
IP address is set correctly.
The computer and device are on the same subnet.
2. Click [Update Device List].
If any devices are not displayed by performing the
above procedure, perform the following procedure.
1. Click [Search by IP Address].
2. Enter the IP address of the device to be
installed.
"Checking the IP Address" (P.A-2)
3. Click [OK].
•
•
•
•
The installation starts.
Preface
1
Installing the Machine
2
Configuring and Connecting the Fax
3
Connecting to a Computer and
Installing the Drivers
4
Appendix
Select.
Next, installation of the MF Toolbox
starts.
In Windows 2000 Server/ Server 2003/2008, MF
Toolbox is not installed. Proceed to Step .
*
Select the check box.
Click.
Checking the Installation Results
P. 20
Click.
Make sure that [ ] is added.
Click.
Click.
Click.
Click. Click.

18
Installing with USB Connection
1. Turn on the computer, and then log on as a user with
administrative rights.
2. Install the MF Driver and MF Toolbox.
If you have already logged on, exit all the applications which are running.
Connect the USB cable after the installation of software.
Make sure that the power of the machine is turned ON when connecting the USB cable.
•
•
Insert the CD-ROM. Click.
[Easy Installation] performs the installation of the
following software.
Printer driver
Scanner driver
MF Toolbox
To install the other software such as the fax driver,
select [Custom installation].
e-Manual
•
•
•
Click.
If the top screen does not appear
Windows 2000, XP, and Server 2003
1. From the [Start] menu, select [Run].
2. Enter "D:\MInst.exe", and then click [OK].
Windows Vista, 7, and Server 2008
1. Enter "D:\MInst.exe" in [Start Search] or [Search programs
and files] under the [Start] menu.
2. Press the [ENTER] key on the keyboard.
The CD-ROM drive name is indicated as "D:" in this manual. The CD-ROM
drive name may differ depending on the computer you are using.
•
•
*
Click.
Read the contents of License
Agreement.
Click.
If the following dialog box appears
Click.
Click.
