Starter Guide
Please read this guide before operating this equipment.
After you finish reading this guide, store it in a safe place for future reference.
Series

Set Up the Machine
Unless otherwise mentioned, illustrations used in this manual are those taken from the imageCLASS MF3240,
and also the menus described in this manual are based on the model MF3240.
Depending on the model of your machine, some settings may not be available and the number on the top of each
menu may vary.
Unpacking the Machine Before Setting Up the Machine
●Remove all shipping tapes
on the machine.
●When moving the machine, grip the handles on
both left and right sides of the machine and lift it
carefully, as shown in the illustration right.
●The machine illustration may differ slightly from
your machine.
1 2

3
Do You Have Everything?
Manuals for the Machine
●Starter Guide (This Document): Machine set-up and software installation
●Basic Guide: Basic features, maintenance, machine settings, and specifications
●Advanced Guide (in User Software CD): Advanced features, system monitor, and reports and lists
●Software Guide (in User Software CD): Printer, scanner, and PC faxing settings from a computer
●Machine ●Cassette Extension ●Extension Cover ●Toner Cartridge ●Output Tray
●Power Cord ●Telephone Cable ●Destination Labels
●Starter Guide (This Document)
●Basic Guide
●User Software CD
●Limited Warranty Notice
●Registration Card
4

5
Install Toner Cartridge
1
Remove the toner cartridge from the bag.
Keep the bag for future use.
2
Gently rock the toner cartridge five or six times to
distribute toner inside.
3
Place the toner cartridge on a flat and stable
surface. Fold the tab (A) on the sealing tape, and
pull it out straight (B) while supporting the toner
cartridge.
NOTE
– Make sure that the tab itself is detached from the toner
cartridge.
– Do not pull out the sealing tape at an angle.
4
Open the front cover.
5
Hold the toner cartridge and align the protrusions
(A) on both sides of the toner cartridge to the
guides (B) in the machine, then gently slide the
toner cartridge into the machine as far as it will go.
Be sure to position the arrow mark (C) on the toner
cartridge toward the inside of the machine.
6
Close the front cover.
CAUTION
Be careful not to get your fingers caught.
B
A
A
B
B
C
6

7

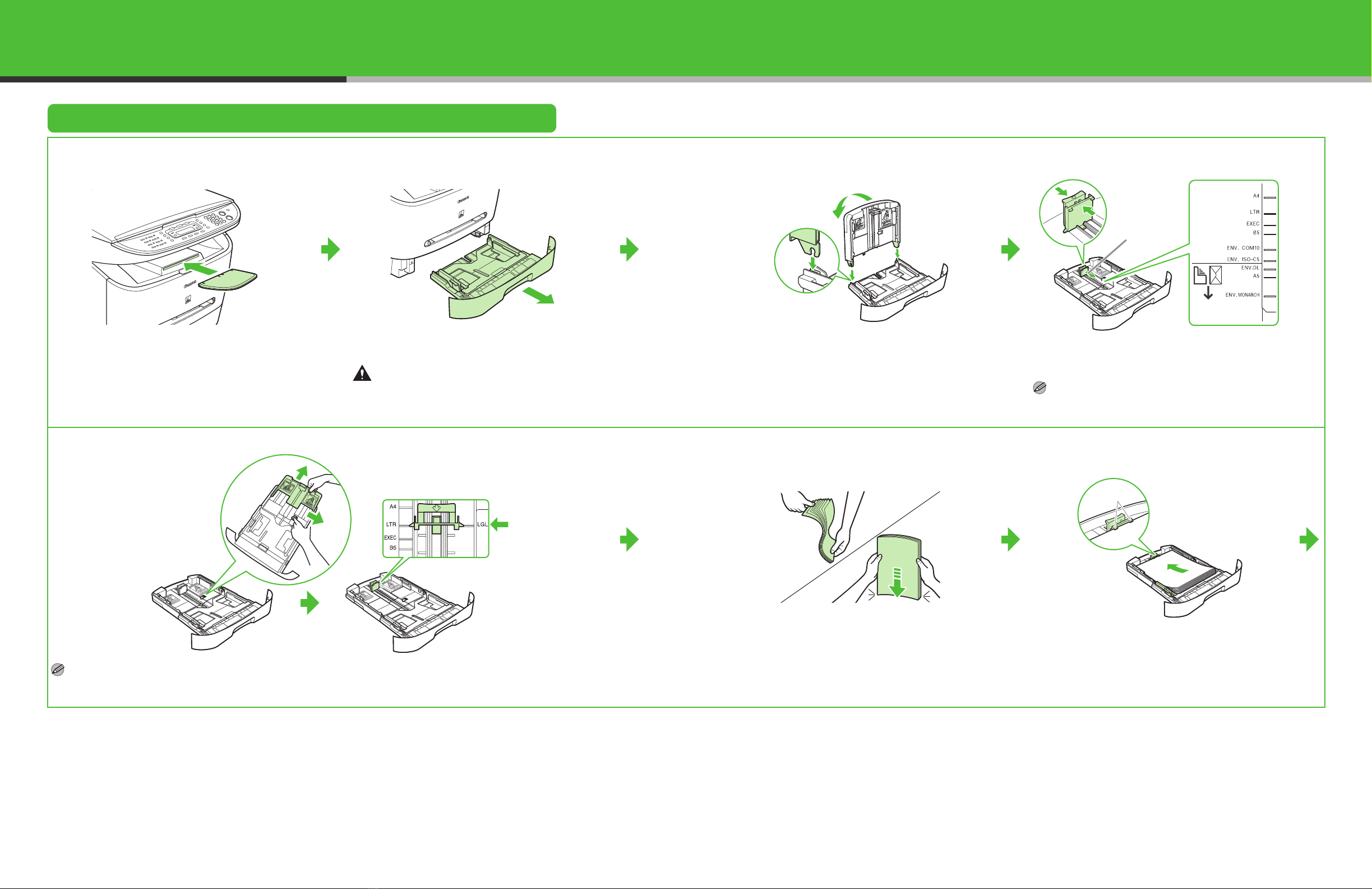

Set Up the Paper Cassette and Load Paper
1
Insert the output tray into the front slot on the
machine.
2
Pull out the paper cassette completely.
CAUTION
Pull the paper cassette straight/forward. Pulling it at an
angle may damage the paper sensing lever inside the
machine.
3
Attach the cassette extension to the paper
cassette. The slots (A) are keyed and must be
inserted at a 90° angle. Once inserted, fold the
extension (B).
4
Pinch and slide the rear paper guide (A) to match
the size of paper (B).
NOTE
Confirm that the rear paper guide is fitted in the paper
size slit correctly.
NOTE
To load Legal-size paper, pull the blue tab (A) and extend the paper cassette (B) as far as it will go. Keep the rear paper guide
to LGL-size mark.
5
Fan the paper stack and even the edges.
6
Load the paper into the paper cassette with the
print side down. Make sure the paper stack sits
below the hooks (A) on the rear paper guide.
A
A
B
A
B
A
B
A
8

9
7
Pinch and slide the lock release lever so that the
side paper guides match the side of paper. NOTE
Make sure the paper stack does not exceed the load limit
mark (A) and it is loaded under the hooks (B) on the side
paper guides.
8
Gently insert the paper cassette as far as it will go.
CAUTION
Do not push in the paper cassette at an angle. Doing so
may damage the paper sensing lever inside the
machine.
NOTE
If you do not completely insert the paper cassette into
the machine, paper jams may occur.
9
Insert the tabs on the extension cover into the slots
(A) on the back of the machine, and carefully lower
the cover (B) until it sits on the cassette extension
beneath it.
CAUTION
Do not load paper from the back of the machine. Doing
so may damage the paper feeding assembly inside the
machine.
NOTE
– The default paper size/type setting is <LTR> and
<PLAIN PAPER>. When you load other size and/or
type of paper, change the paper size/type setting. For
details, see Chapter 3, “Setting Paper Size and Type,”
in the Basic Guide.
– For loading paper in the multi-purpose feeder, see
Chapter 3, “Print Media,” in the Basic Guide.
AA
B
A
A
B
10

11
Connect Telephone Cables
Connect the supplied telephone cable to the line jack (A) and the wall jack.
Connect your external telephone to the external device jack (B) if required.
A
B
12

13
Connect the Power Cord Set the Date and Time
12 ●Entering Information
– Numeric keys: Enters letters and
numbers.
– [ ] or [ ]: Move the cursor
position.
– [Clear]: Deletes the character at
the cursor position, or the entire
entry if held for more than one
second.
Connect the power cord into the rear socket and the wall
outlet.
The machine enters standby mode. 1Press [Additional
Functions].
2 U se [ ] or [ ] to
select <3 TIMER
SETTINGS>, then press
[OK].
3 Use [ ] or [ ] to
select <2 DATE&TIME
SETTING>, then press
[OK].
What if...
●<CLOSE COVER/FRONT COVER> is displayed:
Make sure that the front cover is closed properly.
(See “Install Toner Cartridge,” on p. 5.)
●<TONER IS NOT SET/INSERT THE TONER> is displayed:
Make sure that the toner cartridge is installed properly.
(See “Install Toner Cartridge,” on p. 5.)
●<LOAD PAPER> is displayed:
Make sure that paper is loaded in the machine. (See “Set Up the Paper Cassette and Load Paper,” on p. 7.)
4Use the numeric keys to
enter the time (in 24-hour
format) and date (year/
month/day), then press
[OK].
5Press [Stop/Reset] to
return to standby mode.
TEXT 1
100% LTR
Ex.
[OK] Numeric Keys
[][] [Additional
Functions]
[Clear][FAX]
[Stop/Reset]
NOTE
There is no power switch.
Ex.
DATE&TIME SETTING
11:19 12 31 ´05
14

15
Set the Machine for Sending Faxes

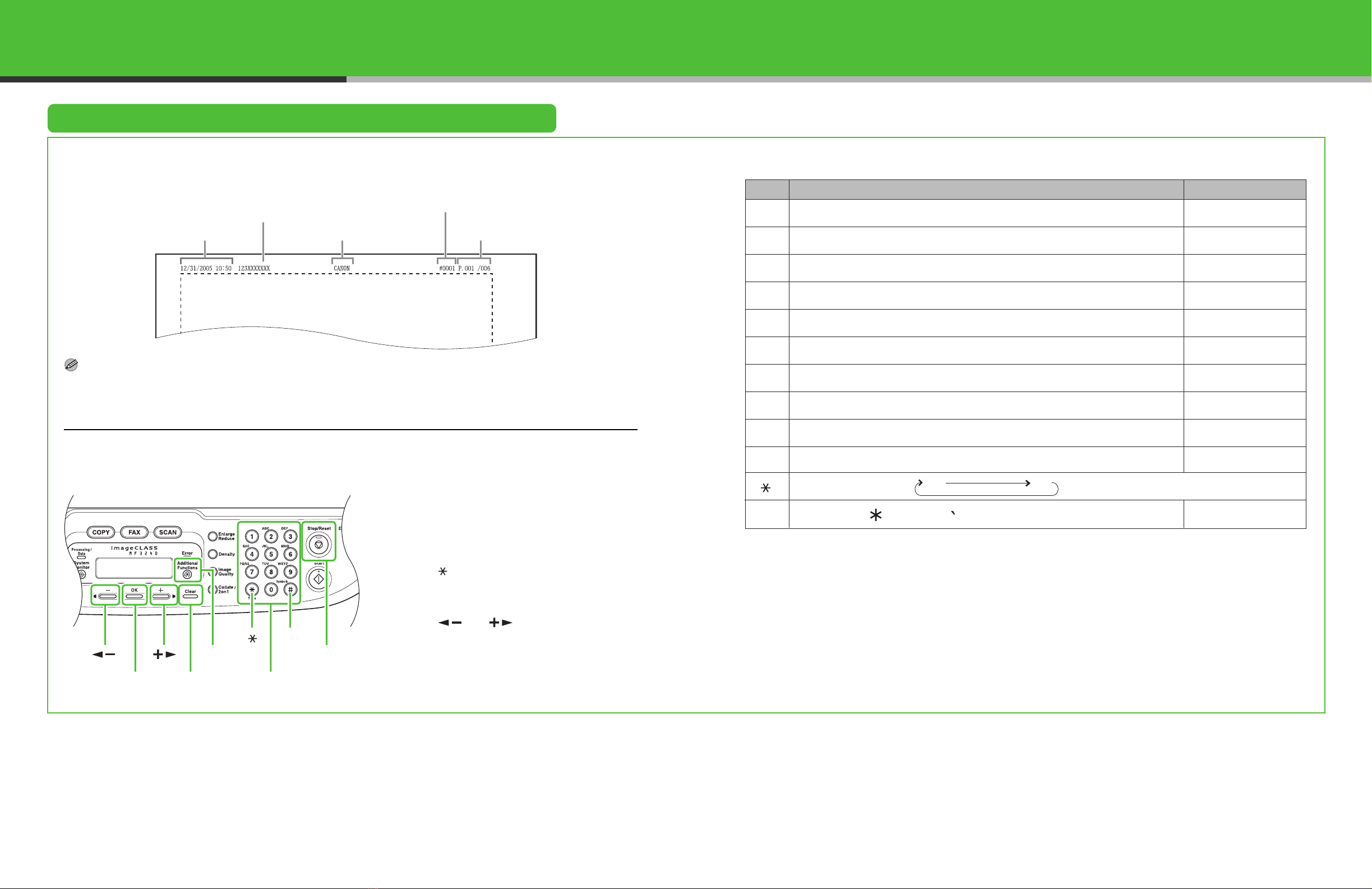

Guidelines for Enterirng Information
The sender information you register in the machine appears in the header of each page received by your
recipient.
NOTE
Before sending a fax, you MUST register your fax number, user name, and the current date and time in the machine.
Entering Information
Use the following keys to enter information in the machine.
You can enter the following characters in each input mode:
●Use the numeric keys to enter characters.
Press the numeric key repeatedly until the
required character appears.
●Press [#] to enter symbols.
●Press [ ] to switch input modes:
– [A]: Letter mode
– [1]: Number mode
●Press [ ] or [ ] to move the cursor.
●Press [Clear] to delete the character at the
cursor position. Hold [Clear] for more than
one second to delete the entire entry.
●Press [OK] to confirm the entry.
Date and time
Fax/telephone
number
Unit name Page number/
Number of pages
Job Number [1]
[A]
[1] 1
[2] ABCabc 2
[3] DEFdef 3
[4] GHIghi 4
[5] JKLjkl 5
[6] MNOmno 6
[7] PQRSpqrs 7
[8] TUVtuv 8
[9] WXYZwxyz 9
[0] 0 0
[ ]
[#] (space) – . # ! " , ; : ^ _ = / | ’ ? $ @ % & + ( ) [ ] { } < > #
[A] [1]
[] [#]
[OK] [Clear] Numeric Keys
[]
[] [Stop/Reset][Additional
Functions]
16

17
Register Sender Information
1Press [Additional
Functions].
2Use [ ] or [ ] to
select <4 FAX
SETTINGS>, then press
[OK].
3Confirm that
<1 COMMON
SETTINGS>
is displayed ,
then press [OK].
4Confirm that <1 UNIT
TELEPHONE #>
is
displayed
, then press
[OK].
5Use the numeric keys to
enter your fax/telephone
number (max. 20 digits,
including spaces), then
press [OK].
6Confirm that
<1 COMMON
SETTINGS>
is displayed ,
then press [OK].
7 Use [ ] or [ ] to
select <2 UNIT NAME>,
then press [OK].
8Use the numeric keys to
enter the unit name (up to
32 characters), then press
[OK].
9Press [Stop/Reset] to
return to standby mode.
Set the Telephone Line Type
1Press [Additional
Functions].
2Use [ ] or [ ] to
select <4 FAX
SETTINGS>, then press
[OK].
3Use [ ] or [ ] to
select
<4 COMMUNICATIONS>,
then press [OK].
4Confirm that <1 TEL LINE
TYPE> is displayed, then
press [OK].
5Use [ ] or [ ] to
select the telephone line
type, then press [OK].
<TOUCH TONE>: Tone dialing
(default)
<ROTARY PULSE>: Pulse dialing
6Press [Stop/Reset] to
return to standby mode.
Ex.
UNIT TELEPHONE #
Ex.
UNIT NAME [A]
