Canon imageRUNNER C6870U Installation guide

Canon
In today’s networked world, corporate departments need the right tools to keep pace
with the speed of business on a global scale. Those tools must go beyond traditional
paper-based document production to encompass the expanding need for managing
and protecting electronic information.
With the imageRUNNER C6870U/C5870U devices, Canon offers two networked digital
imaging systems that incorporate high-quality monochrome output with full color
capabilities to complement the communication needs of corporate environments.
These devices achieve a new level of performance and empower every user with the
ability to capture, create, and communicate critical information at network speed.
From high-speed scanning and local document storage to advanced finishing,
electronic distribution, and Internet-ready capabilities, these next-generation color-
enabled imageRUNNER devices deliver unmatched performance, durability, and
innovation. Plus, you can take advantage of Canon’s MEAP (Multifunctional
Embedded Application Platform) technology to customize system operability around
unique company workflows – all while providing peace of mind for corporate decision-
makers everywhere.
This imageRUNNER C6870U/C5870U Product Overview Guide is intended to provide
a summary of these exciting new systems, with highlights of product positioning and
launch objectives, key areas of new functionality, and product configuration
characteristics. Additional information can be found on Canon’s Product Marketing
Web site at www.isgcentral.cusa.canon.com.
i
im ma ag ge eR RU UN NN NE ER R
®
®
C C6 68 87 70 0U U/ /C C5 58 87 70 0U U
P
Pr ro od du uc ct t O Ov ve er rv vi ie ew w G Gu ui id de e
• C6870U - Up to
68/16 page-per-
minute output
speed letter
(B&W/Color)
• C5870U - Up to
58/16 page-per-
minute output
speed letter
(B&W/Color)
• New generation
color
imagePlatform
architecture
• Enhanced
productivity and
operability
• “Internet-ready”
features
• New device
management
and security
features
• Customization
capability
Two Powerful Color Digital Solutions for Every Mid -
High Volume Corporate Office
The information contained in this Product Overview Guide is Confidential. This document is intended for internal use by Canon U.S.A., Inc. employees,
agents, and subcontractors, and employees of authorized dealers, distributors, and resellers. Transfer of this document to any other parties not specified
above without the written permission of Canon U.S.A., Inc. is prohibited. All specifications, available dates, and prices contained herein are subject to
change without notice. All referenced trademarks and/or product names belong to their respective owners and are hereby acknowledged.
© 2006 Canon U.S.A., Inc.
*Optional accessories required

Product Positioning
Canon’s new imageRUNNER C6870U/C5870U models
introduce completely new and refreshed technology to
the Segment 4 business color market. With robust
document handling and finishing capabilities, efficient
communication capabilities, and a highly reliable
design, the imageRUNNER C6870U/C5870U models
were specifically created for users within large
workgroups and busy corporate departments.
The imageRUNNER C6870U/C5870U models feature Canon’s latest generation
color imagePlatform architecture; with 1GB RAM and an 80GB hard disk drive. This
enables high-speed processing of image data, as well as efficient handling of
multiple tasks.
Product Positioning - At A Glance
Dataquest Segment Segment 4 (41-69 cpm/ppm)
Multi-page Output Speed (LTR) B/W: Up to 68/58 ppm
Color: Up to 16 ppm
Maximum Duty Cycle 280,000 / 230,000 impressions/month
Optimum Performance Zone 30K – 120K / 30K – 80K impressions/month
Warm-up Time (approx.) 9 minutes or less
First-copy Out Time (FCOT)
(approx.) B/W: 5.3 seconds
Color: 12.2 seconds
Connectivity Support Standard: 10/100Base-T, USB 2.0
Memory - Standard 1GB
HDD - Standard 80GB
Printing iR C6870U/C5870U: Optional UFR II, PCL 5c, PostScript 3
emulation with Color UFR II/PCL/PS Printer Kit-L1 or optional
Adobe PostScript 3 with imagePASS-G1
MEAP Standard
Photoconductor Drum Life Est. 3,000,000 Impressions
Toner Yield (approx.) Black: 40,000 sheets @ 6% coverage
Color: 9,500 sheets @ 5% coverage
ENERGY STAR® Qualified Yes
i
im ma a
g
g
e
eR RU UN NN NE ER RC C6 68 87 70 0U U
/
/
C
C5 58 87 70 0U U
FULL INDEX
• Product
Positioning
• Launch
Objectives
• Key Features
and Technology
Highlights
• Key
Configuration
Points
OTHER
RESOURCES
• Product
Reference Guide
• Easy Operation
Guide
• Competitive
Tools
• imageRUNNER
Solution
Scenario Tools
• Interactive
Product
Configurator
• Product Launch
Presentations
• Sales Proposal
Templates
• Canon Links (ISG
Central, Learning
Zone, e-Support)
Solidify Canon’s Leadership Position in Segment 4,
with New Color-Enabled imageRUNNER Devices

The imageRUNNER C6870U/C5870U devices
output at speeds of up to 68/58 ppm,
respectively, for black and white and 16 ppm for
color. They also feature Canon’s advanced
smoothing technology for high-resolution output
of 600 equivalent x 600 dots per inch (dpi)
when copying and up to 2,400 x 600 dpi
equivalent when printing.
Offering advanced digital Copying, Universal Send and Mail Box capabilities (for online
document storage) as standard features, each model can also be outfitted with
optional Printing and Facsimile functions. Each of these features incorporates a
number of enhancements from previous offerings that will clearly differentiate the
imageRUNNER C6870U/C5870U devices as among the most advanced products
within their category.
Through the standard Color Universal Send features, the imageRUNNER
C6870U/C5870U devices perform as powerful central communication hubs for sharing
and managing information in the office. Users can scan and distribute information to
multiple destinations, including individual or groups of e-mail and Internet-Fax
addresses, Super G3 Fax destinations (optional), internal Mail Boxes, network or host
folders, and document management applications such as optional Canon imageWARE
software products. Newly-added Color Universal Send capabilities include URL Send,
and optional PDF (OCR) [Optical Character Recognition] and PDF Encryption.
With the imageRUNNER C6870U/C5870U, Canon offers the new Web Access
function. This permits these devices to act as data-access terminals, allowing users to
call up Internet or intranet sites on the user-interface panel. This function supports
information retrieval from on-site locations without the need for a PC, as well as the
printing out of in-house administrative application forms and documents.
The imageRUNNER C6870U/C5870U models also offer a host of device management
and security features designed to ease administrative burdens, control and monitor
device usage, and protect vital corporate information. Some of these capabilities
include NetSpot Suite and Remote UI utilities, Department ID, Secured Print, Single
Sign-on (SSO) and Simple Device Log-in (SDL), PDF encryption, and Device
Information Delivery Settings.
Both devices leverage Canon’s proprietary MEAP technology, which enables users to
tailor their system functions to specific industry or business needs by installing
dedicated MEAP applications. Because these applications are based on open Java
standards, third-party developers can use the MEAP Software Development Kit (sold
separately) to design customized application software.
SUPPORTED
FEATURES
• Output Speeds – Up
to 68/58 ppm (Letter)
B&W and 16 ppm
(Letter) Color
• Memory Capacity
1GB RAM
• 80GB Hard Disk
• Standard digital
Copy and Mail Box
capabilities on both
devices
• Standard Basic
Color Universal
Send
• Optional Canon
Color UFR II/PCL/PS
Printer Kit-L1 or
imagePASS-G1
• Color Network
ScanGear standard
• Facsimile – Optional
Super G3 Fax
• Network
Connectivity –
Ethernet 10/100
Base-T Standard
• USB 2.0 interface
standard
• Customization –
Canon MEAP
(Multifunctional
Embedded
Application
Platform) Standard
• ENERGY STAR
qualified
i
im ma a
g
g
e
eR RU UN NN NE ER R C C6 68 87 70 0U U
/
/
C
C5 58 87 70 0U U

Launch Objectives
The imageRUNNER C6870U/C5870U devices are perfectly positioned to take
advantage of the multitude of upgrade and replacements situations expected as a
function of the natural progression of technology. As a result of these market
conditions and the unique capabilities offered by these new units, Canon’s objectives
for this product launch are to:
• Refresh Canon’s Color-enabled product offerings with models featuring the latest
color imagePlatform technology and customization capabilities.
• Introduce mid- to high-volume customers to new “Internet-ready” functions and
the concept of device customization through MEAP.
• Sell in conjunction with the imageRUNNER C3170 Series for expanded customer
choice and a complete color-enabled product portfolio.
• Provide a compelling competitive alternative to color-enabled solutions from
Ricoh, Konica Minolta, Xerox, Sharp, and others.
• Target and transition existing high volume black-and-white only Canon
customers to color-enabled imageRUNNER models.
• Increase market share and unit placements by delivering on your customers’ call
for increased security-related features.
• Protect your current install base and promote long term account retention by
offering your customers refreshed technology that becomes integrated into
company workflows.
• Expand you customer base to capture new accounts by offering secure, cost-
efficient communication capabilities others cannot match.
Canon is confident that these goals can be achieved to further cement your
dealership name and the imageRUNNER brand as a team synonymous with quality,
performance, and innovation.
i
im ma a
g
g
e
eR RU UN NN NE ER RC C6 68 87 70 0U U
/
/
C
C5 58 87 70 0U U
“Canon is the Overall
Brand Leader in the
Color Copier Market
for the 18th
Consecutive Year.”
Source: Gartner Dataquest
"Printer Quarterly Statistics
United States- Database,"
Camille Iorns, February 2005
Increasing the integration between network and
p
eripheral, bet
w
een the device and the end-user

Technology Highlights
i
im ma a
g
g
e
eR RU UN NN NE ER R C C6 68 87 70 0U U
/
/
C
C5 58 87 70 0U U
The Ideal Blend of Productivity and Efficiency For Virtually Every
Document Creation and Communication Need in the Mid-Large Sized
Offic
e
New-generation Color iP Controller
The imageRUNNER C6870U/C5870U
models feature Canon’s second-
generation color imagePlatform
architecture and deliver unique
advantages over the competition. The
system is able to process copy and
print data, as well as manage scanning
and network communication tasks.
Together with a standard complemen
t
of 1 GB and an 80GB Hard Disk Drive,
this design raises the speed and
efficiency of data processing and
enables simultaneous multitas
k
processing.
Updated Connectivity
With a new controller come several
improvements to network connectivity
and performance.
The
imageRUNNER
C6870U/C5870U
models offer a
standard 10/100
Base-T Ethernet
interface.
In addition, a standard USB 2.0 high
speed interface is available for direct
connection to a host PC. This is a
great solution for centralized
environments that wish to drive all
j
obs through a single PC for maximum
workflow control.
Robust Input, Throughput, and Output
The imageRUNNER C6870U/C5870U devices have been engineered to deliver
total document efficiency for busy corporate environments. Each model offers a
standard 100-sheet Duplexing Automatic Document Feeder and supports many
digital-enabled input features such as Scan-Once-Print-Many, Job Build, and
Copy Reservation. Working with standard automatic Duplexing, the devices offer
a standard paper capacity of 4,200 sheets that can be upgraded to support a
maximum of capacity of 7,700 sheets through six sources.
These devices can support a wide variety of
media, including heavy paper, labels, and
transparencies. Customers have a choice
of two finishers, plus a puncher unit, so they
can select the one that best fits their needs,
such as stapling, saddle-stitched booklet
output, and 2- 3 hole punching.
Enhanced Mail Box Functionality
The imageRUNNER C6870U/C5870U devices offer value-added Mail Bo
x
capabilities for information sharing, secure document storage, and print-on-
demand needs. Users can register up to 100 User Inboxes, into which
documents may be scanned directly, sent to as a destination from Colo
r
Universal Send, or printed from a connected PC. From this location, the
stored documents can be previewed, managed, and manipulated through
the color display panel or remotely through a Web browser. Documents
can then be merged and printed as a single compound document with the
desired settings, or forward it to other destinations with the standard Colo
r
Universal Send function.
The imageRUNNER C6870U/C5870U can store up to 1,500 documents or
6,000 pages in all Mail Boxes. This is improved from the imageRUNNER
C6800/C5800 Series.

New Shortcut Keys
Language Switch
This shortcut key, located to the left o
f
the System Monitor button, allows
users to quickly change the language
on the touch panel display. It’s ne
w
for the iR C6870U/C5870U devices
and great for multi-lingual offices!
B/W Color Mode
This shortcut key, located to the righ
t
of the color mode select drop-down,
allows users to quickly change the
color mode to Black. Ideal for offices
that frequently need to switch between
color and B/W copying.
Strong Copy Feature Set
As a robust digital copier, the
imageRUNNER C6870U/C5870U
models offer a host of basic and
advanced features to meet the demands
of virtually any office environment. The
systems’ copying versatility is derived
from the modes and features accessed
through the control panel hard keys and
the color touch screen display. Its
inherent digital technology provides
support for features such as Scan-
Once-Print-Many, 5-Job Copy
Reservation, traditional capabilities such
as Document Layout settings, Image
Editing/Adjustment Modes, and a host of
memory-enabled functions.
Express Copy
The new Express Copy screen enables
users to set basic copying modes from
one screen. This short-layered UI will
provide fewer screens to click through to
select various copying functions. The
device can be configured so that only
the traditional Copy screen appears,
only the Express Copy screen appears,
or both appear so that uses can select
between both screens. Users can store
up to 10 standard (shortcut) keys.
Bates Stamping: Page/Copy Set Numbering, Watermark/Print Date
Canon’s embedded Bates Stamping
function allows you to quickly and easily
apply page numbers, copy set numbers,
watermarks or the date to documents
from the imageRUNNER device, without
any expensive add-on software. You
can even have the Bates Stamps
printed in color! You can pre-select up
to five digits (with leading zeros) and
choose to apply the Page Number in a
header or footer. You can also
customize and register a watermark,
such as “Confidential.” All types of
companies can take advantage of the
benefits that Bates Stamping offers.
Other new Copy features include:
• B/W copying and printing without Dept. ID (when Dept. ID is turned on)
• Scan Image Check
• New Color Mode: Two Colors
• Job Separator Sheet Insertion
Technology Highlights – Copy Functionality
i
im ma a
g
g
e
eR RU UN NN NE ER R C C6 68 87 70 0U U
/
/
C
C5 58 87 70 0U U
Productive Output Speeds
The imageRUNNER C6870U/C5870U
deliver copy/print output at speeds o
f
up to 68/58 ppm, respectively, fo
r
black and white and up to 16 ppm fo
r
color. Combined with a quick, 5.3
second first-copy out time (approx.) fo
r
B/W, the system is designed to keep
busy corporate departments moving.
Copy Basic Features Screen
Superior Image Quality
Like all imageRUNNER devices, the
imageRUNNER C6870U/C5870U
models deliver on Canon’s reputation
for superior image quality. Each model
supports scanning at true 600 x 600
dpi resolution, and delivers output a
t
600 x 600 dpi for copy and up to 2,400
x 600 dpi equivalent for print jobs,
ensuring the most faithful reproduction
of text and images. And, Canon’s
third-generation oil-free S-Toners
produce eye-catching color with just a
touch of gloss, perfect for office
applications.
Special Features Screens
Express Copy Screen

Technology Highlights – Printing (Optional)
i
im ma a
g
g
e
eR RU UN NN NE ER R C C6 68 87 70 0U U
/
/
C
C5 58 87 70 0U U
Choose from the Canon Color UFR II/PCL/PS Printer Kit
-
L1 or imagePASS-G1
A
choice of two print controllers ensures that the iR
C6870U/C5870U devices are ready to tackle any printing
task. The Color UFR II/PCL/PS Printer Kit-L1 offers UFR II,
PCL5c, and PostScript emulation printing. And, the
imagePASS-G1, supports genuine Adobe® PostScript 3 and
PCL 5c.
UFR II leverages the vast power
found in today’s workstation
CPUs to share the processing
with the print controller. This
page description language
supports Windows 2000, XP,
Server 2003 environments.
Macintosh drivers are also
available. (Mac OS X 10.1.5 or
later.)
Functions are equivalent to those of PCL 5c. Unique for
UFR II are two shortcut buttons on the Page Setup tab.
One allows you to quickly toggle back and forth between
Auto Detect and Black & White Color mode, and the
other allows you to toggle between 1-sided and 2-sided
mode.
Intuitively Designed Print Drivers
Intuitively designed drivers provide users with access to
imageRUNNER document manipulation features, and
paper supply and finishing features, including the ability to
track and control output through the system’s Departmen
t
ID mode. In addition, users have access to several value-
added features that are typically not available with
standalone devices.
These include:
• Secured Print – Saves a print
job inside the printer and
outputs it only when the
correct password is entered.
• Store – Sends data to a Mail
Box inside the printer’s
memory.
• Edit and Preview – Starts
Canon Page Composer utility
and allows you to edit and
print two or more documents
created using different
applications as a single
document.
Page Setup
Edit and Preview –
Page Composer
FTP Print and Direct Print Modes
The imageRUNNER C6870U/C5870U models suppor
t
printing of PDF, PostScript, or image files (TIFF, JPEG)
through the Remote UI, without launching the authoring
software application. Please note that on the i
R
C6870U/C5870U, PDF and PostScript direct printing are
only available with the Color UFR II/PCL/PS Printer Kit-L1.
You can also print files by uploading them to the printe
r
using FTP client software. This is useful for processing a
large amount of business data (plain text or binary data).
New Web Access Software
When configured with the optional Web Access Software-D1, the
imageRUNNER C6870U/C5870U devices offer Canon’s new Web
browsing function. The feature permits the devices to act as data access
terminals, allowing users to call up Internet or intranet data on the full-
size user-interface panel. This supports information retrieval from on-site
locations without the need for a PC, as well as and the printing out of in-
house administrative application forms and documents. The Web
browser offers many user-friendly capabilities, including a number of
navigation and page viewing options, the ability to store frequently
accessed destinations as “Favorites,” print setting adjustments, and the
ability to set security restrictions. The Web browser feature will be great
for use in kiosk applications, printing information from the Internet such
as newspaper articles, e-mail, maps; downloading PDF files and printing
them directly from the control panel. Printing PDFs on the iR
C6870U/C5870U through the Web Access Software is only available
when the Canon Color UFR II/PCL/PS Printer Kit-L1 is installed. Web Access capability enables Web pages to be displayed
on the imageRUNNER C6870U/C5870U control panel.

Technology Highlights – Document Distribution Features
i
im ma a
g
g
e
eR RU UN NN NE ER R C C6 68 87 70 0U U
/
/
C
C5 58 87 70 0U U
PDF High Compression Kit-A1 (optional)
This optional feature processes scanned color data to be
send via Universal Send at a high compression rate. This
allows even complex or detailed color pages to be
efficiently handled over networks without affecting image o
r
text legibility, so that recipients can see documents exactl
y
as intended – in color.
Universal Send PDF Enhancement Kit-C1 (optional)
The imageRUNNER C6870U/C5870U devices offer two
exciting features that are available as optional add-ons when
the Universal Send PDF Enhancement Kit-C1 is installed:
Encrypted PDF and Searchable PDF (OCR) modes.
Using 40-bit or 128-bit encryption, the
Encrypted PDF function makes it
possible to set a password to a scanned
file to limit file editing, opening, or
printing when received by a user for
enhanced security. With the PDF
(OCR) mode, users can scan a
document and create a PDF file with
searchable text using Optical Character
Recognition, making it possible to
quickly find information contained within
documents.
Super G3 Fax (optional)
When equipped with the optional Super G3
Fax Board-U1 the imageRUNNER
C6870U/C5870U models can be
transformed into powerful fax machines, not
normally found in the Segment 4 market.
Users can take advantage of the system’s robust documen
t
handling capabilities for scanning and sending large volumes o
f
pages as fax transmissions. With the Canon Fax driver, users
can send documents as “paperless” fax transmissions from
their desktops. In addition, incoming transmissions can be
automatically routed to other destinations using the systems’
advanced Job Forwarding features.
Network TWAIN Scanning (Pull Scan) (standard)
Through Canon’s Color Network
ScanGear utility, the imageRUNNER
C6870U/C5870U devices can be used as
a shared network scanner. Color Network
ScanGear is a great tool for small
businesses and workgroups with light
scanning requirements, allowing users to
scan and capture images from device for
transmission back to their desktop or a file
server location. Scanned images can then
be manipulated as needed at the user’s
workstation with any TWAIN-compliant
software application.
Color Universal Send (standard)
This feature enables documents to be scanned and converted to digital data and “pushed” to other destinations including
individual or groups of e-mail addresses or Internet faxes, local Mail Boxes, network folders, and document managemen
t
systems – all in one time-saving operation. A new URL Send feature enables scanned documents to be stored on the device
while sending only the URL of the document to a recipient with the LAN for retrieval, thus reducing electronic jams and clogged
e-mail inboxes. Sending destinations can be entered ad-hoc, selected from the imageRUNNER C6870U/C5870U devices
high-capacity Address Book, or searched on corporate networked servers using the systems’ LDAP support for accurate,
authorized recipient selection.
Color Universal Send – Main Menu
Scan and convert documents to digital
information for distribution to multiple
destinations.

A
ccessibilit
y
Improvements
The imageRUNNER C6870U/C5870U models support a number o
f
standard and optional accessibility features that aid those with physical
disabilities. New options include:
• Remote Operator's Software Kit-A1
(optional) - Enables the device control
panel screens to be emulated on a
networked computer so a user can access
the control panel from a remote location.
• Voice Guidance Kit-A2 (optional) -
Provides audible confirmation of the basic
Copy menu settings through voice
synthesis technology for easier job
programming by visually impaired users.

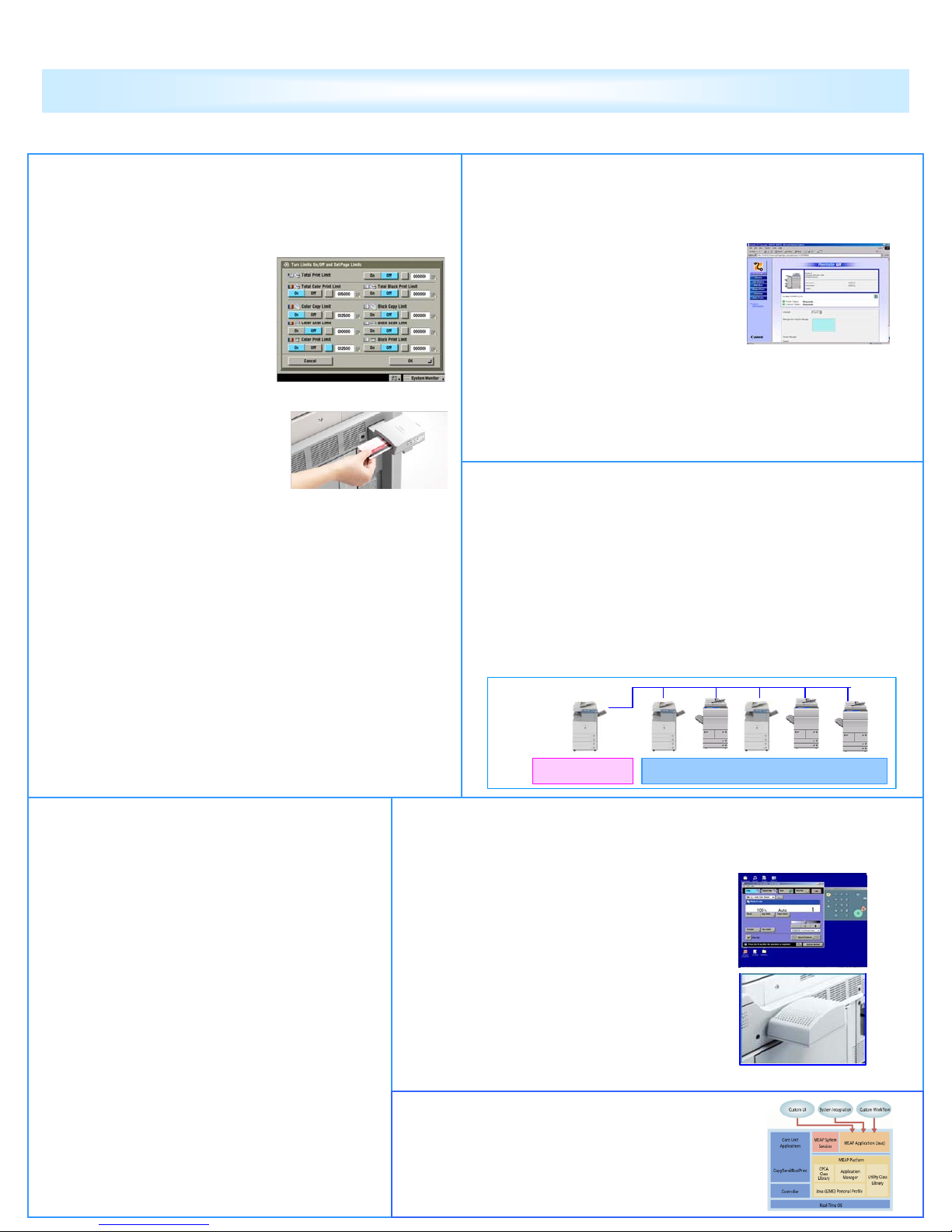

Technology Highlights – Device Management and Security
i
im ma a
g
g
e
eR RU UN NN NE ER R C C6 68 87 70 0U U
/
/
C
C5 58 87 70 0U U
User Authentication Modes
Canon provides peace of mind in every imageRUNNER
C6870U/C5870U device through a number of features
designed to ensure that the system can only be accessed
by authorized users.
• Department ID Mode: When
turned on, limits access to users
assigned valid IDs and
passwords. Administrators can
set page limits for color and
black-and-white scans, prints,
and copies for up to 1,000
departments or users. An
optional Card Reader manages
usage of up to 200 users or
departments through the use of
intelligent cards that must be
inserted before granting access
to functions.
• SDL (Simple Device Log-in): An enhanced form o
f
Department ID Management, whereby the end-user enters a
personal ID and password as well as the option for a Dept. ID.
to access the device. SDL will need to be activated at each
imageRUNNER device, a process that is done via a Web
browser. This eliminates the need for the administrator to
physical set up SDL and appropriate end-user limitations at
each device. Output/machine usage is tracked only at the
department level.
• SSO (Single Sign-on): Single Sign-on provides the end-use
r
with the ability to access any imageRUNNER device using the
same ID and password as they do at their PC for tasks that
require connection to the network. All the SSO log-in
information is stored in one server, and each imageRUNNER
device will ping that server when user authentication is
requested from the unit.
Remote UI (User Interface) and NetSpot Suite
Canon’s device management software eases
administrator/user burdens associated with installing,
monitoring, and managing Canon and third-party print devices
on corporate networks.
The Remote UI enables users to
access system functions such as
Mail Boxes, Address Books, job
queues, and communicate status
information to the desktop via a
standard Web browser.
NetSpot Suite includes NetSpot Device Installer, NetSpo
t
Resource Downloader, NetSpot Console, and NetSpo
t
Accountant (option). Canon also supplies plug-in modules fo
r
several industry-popular enterprise management software
(EMS) applications.
Security Enhancements
The imageRUNNER C6870U/C5870U models
offer a number of enhancements in the area of
device security.
• imageRUNNER Security Kit-A2 (optional) -
Allows customers to protect hard disk contents
through Complete Erase and Data Encryption
functions, and also to conceal Job Logs.
• SSL Server Function (standard) - Encrypts data
communications between a client PC and a device
for Remote UI, e-mail/I-fax, IPP printing and Device
Information Delivery Settings.
• MAC Address Filter (standard) - Allows
administrators to specify which user can access the
device.
• Hard Drive Format (standard) - Allows
administrators to erase all data on the HD (image
data, logs, Address Books and user-mode settings)
to address concerns about leaks or theft of data
when a device is moved or returned through a
lease or other arrangements.
• IP Address Filtering (standard) - A function to
permit or reject packets from specified IP
addresses or ran
g
e of IP addresses.
Device Information Delivery Settings
The imageRUNNER C6870U/C5870U models support the ne
w
Device Information Delivery Settings feature that allows an
administrator to set one device as a reference machine, from
which management data can be automatically broadcasted to
other specified machines on a network. Settings that can be
managed are the Address Book, Dept. ID, Network Settings,
and some settings of Additional Functions including,
Forwarding Settings and Favorite Keys. Settings can be sen
t
to any other 70 Series device, B/W or Color/Color enabled, as
long as the setting is common to both devices.
Customization (MEAP)
Canon MEAP (Multifunctional Embedded
Application Platform) architecture allows the
system to incorporate unique applications that
run embedded within the device for total
integration with customer workflows.
Distribute data from reference device to other devicesReference Device

Product Configuration
i
im ma a
g
g
e
eR RU UN NN NE ER R C C6 68 87 70 0U U
/
/
C
C5 58 87 70 0U U
Main Unit – standard items
• MEAP
• 100-sheet DADF
• 2 x 550-sheet Paper Cassettes
• 2 x 1,500-sheet Paper Cassettes
• Drum Unit
• 1GB RAM
• 80GB HDD
• Network Connectivity (Ethernet, USB 2.0)
• USB Host Interface (for MEAP)
• Color Network ScanGear
• Document Tray-K1 (C6870U only)
imageRUNNER C6870U/C5870U
Main Unit
Paper Deck-U1
System Connectivity Accessories
Color UFR II/PCL/PS Printer Kit-L1
imagePASS-G1
256MB RAM DIMM Kit (for imagePASS-G1)
Secure Erase V1.0 (for imagePASS-G1)
Impose V2.6 (for imagePASS-G1)
PDF High Compression Kit-A1
Universal Send PDF Enhancement Kit-C1
Super G3 Fax Board-U1
Voice Guidance Kit-A2
Security Expansion Board-E1
imageRUNNER Security Kit-A2
Web Access Software-D1
Remote Operator’s Software Kit-A1
Barcode Printin
g
Kit-
A
1
Refer to the imageRUNNER C6870U/C5870U Product Reference Information for complete configuration details.
Finisher-R1Saddle Finisher-R2
Puncher
Unit-M1
Engine Accessories
Cassette-AA1
Paper Deck-U1
Copy Tray-K1
Additional Finisher Tray-A1 (option for Finisher-R1/R2)
Finisher-R1
Saddle Finisher-R2
Puncher Unit-M1 (option for Finisher-R1/R2)
Stamp Unit-A1
Accessibility Handle-A1
Key Switch Unit-A2
Braille Label Kit-A1
Voice Guidance Kit-A2
Supplies
GPR-14 Black Toner
GPR-14 Cyan Toner
GPR-14 Magenta Toner
GPR-14 Yellow Toner
GPR-14 Drum Unit
Stamp Ink Cartridge-B1
Staple Cartridge-J1
Staple Cartridge-D2
Card Reader-C1
Card Reader Kit Attachment Kit-C1
Basic Card Set
Copy Card Set 1
Copy Card Set 2
Copy Card Set 3
