iR1210/1230/1270F/1510/
1530/1570F
INSTALLATION PROCEDURE
iR1210/1230/1270F/1510/
1530/1570F
PROCÉDURE D’INSTALLATION
iR1210/1230/1270F/1510/
1530/1570F
INSTALLATIONSVERFAHREN
iR1210/1230/1270F/1510/
1530/1570F
PROCEDURE DI INSTALLAZIONE
Go through the steps herein when installing the machine.
Suivre les étapes contenues dans ce manuel lors de l’installation de la machine.
Gehen Sie die hier angegebenen Schritte durch, wenn Sie die Maschine installieren.
Per l’installazione della macchina, seguire attentamente le procedure indicate in
queste istruzioni.
ENGLISH
FRANÇAIS
DEUTSCH
ITALIANO
F-IM-6267-000Cover.p65 04/02/25, 13:47Page 1 AdobePageMaker6.5J/Win

– 2 –
iR1210/1230/1270F/1510/
1530/1570F
INSTALLATION PROCEDURE
Go through the steps herein when installing the machine.
1 Checking the Contents
Open the shipping box, and take out the machine and accessories. Check to make sure that none of the following
is missing:
• Power cord
• Modular cable*1
• Documenation (Quick Start Guide, Reference Guide, Fax Guide*1, Installation Procedure)
• Destination label*1
• CD-ROM
*1: Only for the iR1270F/1570F model
F1-1
Memo
The machine shown in this guide is the iR1270F/1570F model.
The toner bottle is not part of the shipment, but must be purchased separately.
MACHINE
CASSETTE
(installed in the machine at the factory)
DELIVERY TRAY
CARTRIDGE
(drum unit and developing unit)
F-IM-6267-000e.p65 04/02/25, 11:19Page 2 AdobePageMaker6.5J/Win

– 3 –
2 Names of Parts
2.1 External View
F2-1
[8] Cassette
[9] Delivery tray
[10] Power cord connector assembly
[11] Modular cable connector assembly*1
[12] USB cable connector assembly
[13] Parallel interface cable connector assembly
[1] Reader unit slide lever
[2] Reader unit
[3] ADF/Copyboard cover
[4] White roller
[5] Copyboard glass
[6] Toner supply cover
[7] Control panel
*1: Only for the iR1270F/1570F model.
[1]
[2]
[5]
[6]
[8]
[9]
[10]
[11]
[12]
[13]
[3]
[4]
[7]
F-IM-6267-000e.p65 04/02/25, 11:19Page 3 AdobePageMaker6.5J/Win

– 4 –
2.2 Inside View
F2-2
[1] Drum shutter stopper
[2] Cartridge cover
[3] Cartridge
[4] Manual feed tray
[5] Right door
[6] Shipping screw slot
2.3 External View of the ADF*1
F2-3
[1] Original placement area
[2] Open/close cover
*1: Only for the iR1230/1270F/1530/1570F model.
[3] Delivery slot
[4] Slide guide
[5][6]
[2]
[3]
[4]
[1]
[4]
[3]
[2][1]
F-IM-6267-000e.p65 04/02/25, 11:19Page 4 AdobePageMaker6.5J/Win

–5 –
2.4 Control Panel
F2-4
[1] Additional Functions Key
[2] LCD
[3] Collate Key
[4] 2 on 1 Key
[5] Copy Key*1
[6] Fax Key*1
[7] In Use/Memory Lamp*1
[8] Alarm Lamp
[9] Energy Saver Key
[10] Stop/Reset Key
[11] Start Key
[12] # Key
*1: Only for the iR1270F/1570F model.
[13] Keypad
[14] * Key
[15] Right Arrow/+ Key
[16] Image Quality Key
[17] Paper Select Key
[18] OK Key
[19] Exposure Key
[20] Enlarge/Reduce Key
[21] Left Arrow/- Key
[22] One-Touch/Fax Function Key (after a press on
the Function key)*1
ABC DEF
GHI JKL MNO
PQRS TUV WXYZ
Report
Memory
Reference
Fax Monitor
Delayed
Transmission
Book Sending
Clear
Delete
Space
Tone/+
Function
Redial / Pause
Coded Dial
Directory
Receive Mode
Fax Resolution
D.T.
R
[1] [2] [3] [4] [5] [6] [7] [8] [9]
[10][11]
[13]
[14][21] [15][16]
[19][20]
[22] [17]
[18]
[12]
OK
F-IM-6267-000e.p65 04/02/25, 11:19Page 5 AdobePageMaker6.5J/Win

–6 –
F2-5
[1] Tone/+ Key*1
[2] D.T. Key*1
[3] R Key*1
[4] Function Key*1
[5] Redial/Pause Key*2
[6] Coded Dial Key*2
[7] Directly Key*2
[8] Receive Mode Key*2
[9] FAX Resolution Key*2
[10] Clear Key*1
[11] Delete Key*1
[12] Space Key*1
[13] Book Send Key*1
[14] Delayed Transmission Key*1
[15] Report Key*1
[16] Memory Reference Key*1
[17] Fax Monitor Key*1
*1: Enabled only if the machine is equipped with fax functions. Also, it is enabled only while the Function key
is lit.
*2: If equipped with fax functions.
[1] [2] [3]
[17]
[16]
[15]
[14]
[13]
[4]
[5]
[6]
[7]
[8]
[9]
[12] [11] [10]
Report
Memory
Reference
Fax Monitor
Delayed
Transmission
Book Sending
Clear
Delete
Space
Tone/+
Function
Redial / Pause
Coded Dial
Directory
Receive Mode
Fax Resolution
D.T.
R
F-IM-6267-000e.p65 04/02/25, 11:19Page 6 AdobePageMaker6.5J/Win

–7 –
3 Point to Note Before Starting
the Work
Go through the following before starting to install
the machine:
If the machine is moved from a cold to a
warm place for installation, condensation
can develop in its pickup/feeding
assembly, causing image faults. To avoid
the condensation, leave the machine
unpacked for 1 hr or more so that it will
be fully used to the room temperature.
(The term condensation refers to the
development of drops of water on a
mental surface when it is brought from a
cold to warm place. This occurs as a
result of rapid cooling of vapor in the
air.)
4 Unpacking
1) Holding the grips on the left and right of the
machine, lift it out of the box.
F4-1
2) Remove the packing material: plastic sheets,
securing members, and tape.
3) Remove the shipping screw.
F4-2
4) While pulling on the reader unit slide lever,
slide out the reader unit to the left.
F4-3
F-IM-6267-000e.p65 04/02/25, 11:19Page 7 AdobePageMaker6.5J/Win

–8 –
5) Open the cartridge cover.
F4-4
6) Store away the securing member removed in
step 3 in the shipping screw slot.
F4-5
5 Fitting the Cartridge
1) Unpack the cartridge, and take it out without
removing its wrappings.
2) Fully insert the cartridge in the direction of the
arrow as indicated.
F5-1
3) Close the cartridge cover, and put back the
reader unit.
F-IM-6267-000e.p65 04/02/25, 11:19Page 8 AdobePageMaker6.5J/Win

–9 –
5) Holding the toner bottle lever, turn it
counterclockwise so that the mark on the
toner bottle aligns with the mark on the
machine [1]. Close the toner cartridge lever [2].
Memo
If you can't turn the toner bottle, please
push it into slot until stop and turn again.
F6-5
6) Close the toner supply cover.
F6-6
6 Fitting the Toner bottle
1) Open the toner supply cover.
F6-1
2) Rock the new toner bottle five or six times to
distribute the toner evenly.
F6-2
3) Holding the toner bottle lever, insert the toner
bottle slowly into the machine as for as it will
go.
F6-3
4) Holding the toner bottle steady with one hand,
firmly and slowly pull the sealing tape tab with
the other hand to remove the sealing tape
completely. Throw the tape away.
F6-4
∇
∇
Before Complete
[1]
[2]
F-IM-6267-000e.p65 04/02/25, 11:19Page 9 AdobePageMaker6.5J/Win

–10 –
7 Putting Paper in the Cassette
1) Lift the paper cassette slightly, and pull it out
until it stops.
F7-1
2) Put paper in the cassette, under the claw must
indicate what [1] and [2] are.
F7-2

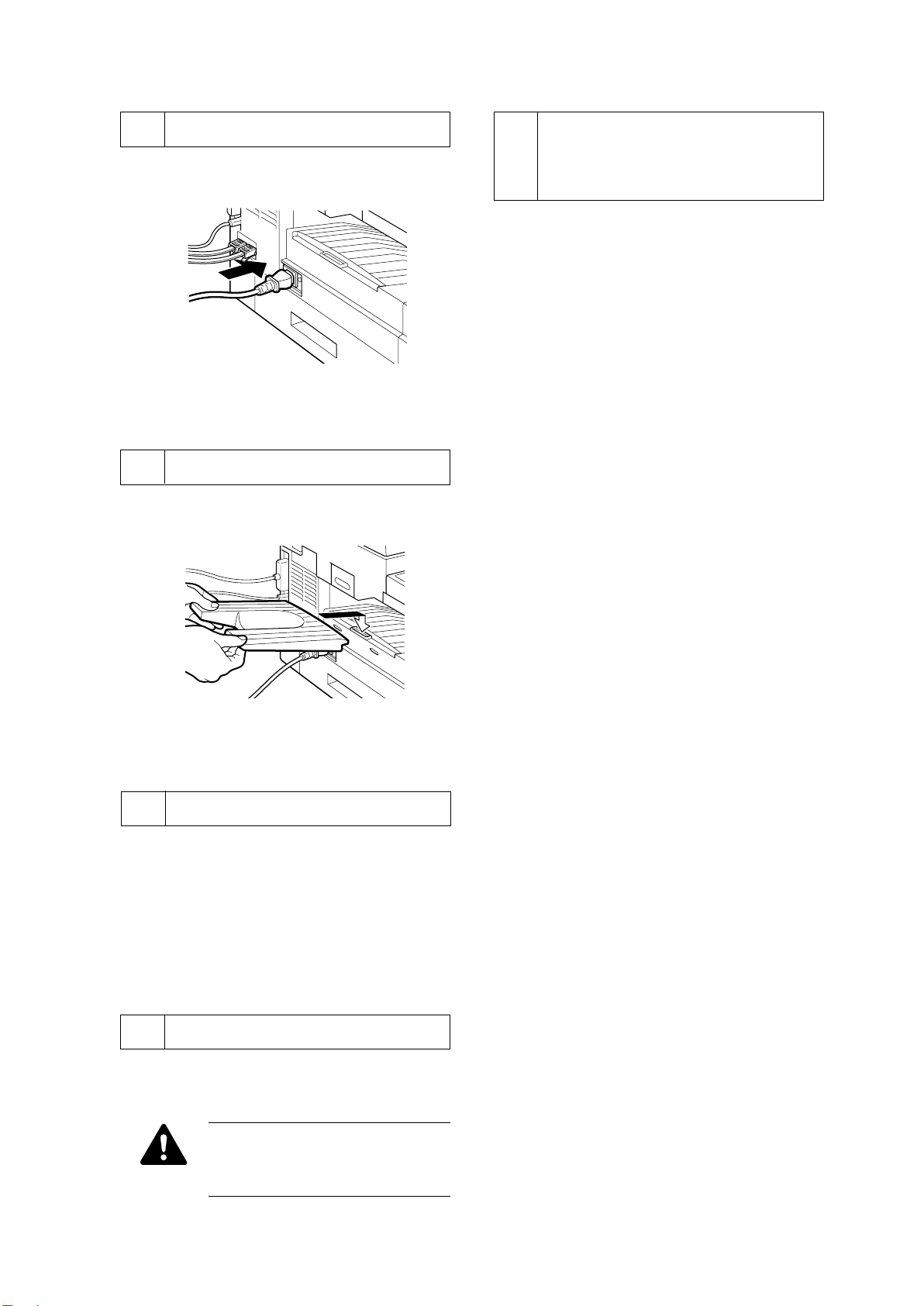

3) Slide in the cassette until it stops.
8 Putting Paper in the Manual
Feed Tray
1) Open the manual feed tray.
F8-1
2) Slid out the auxiliary tray.
F8-2
3) Place the paper (with the side to be copied onto
facing up).
F8-3
4) Adjust the slide guide to suit the width of the
paper.
F8-4
[2]
[2]
[1]
