Canon RF70-200mm F4 L IS USM User manual

ENG
Instructions

ENG-1
Thank you for purchasing a Canon product.
Canon RF70-200mm F4 L IS USM is a telephoto
zoom lens for use with EOS R series cameras.
z“IS” stands for Image Stabilizer.
z“USM” stands for Ultrasonic Motor.
Camera Firmware
Please use the latest version of firmware with the
camera in use. For details on whether the firmware is
the latest version or not, and for details on updating
the firmware, please check the Canon website.
Conventions used in these instructions
Warning to prevent lens or camera malfunction
or damage.
Supplementary notes on using the lens and
taking pictures.

ENG-2
Precautions to ensure that the camera is used
safely. Read these precautions thoroughly. Make
sure all details are observed in order to prevent
risks and injury to the user and other people.
Warning
Details pertaining to risks that may
result in death or serious injury.
zDo not look directly at the sun or other strong
light sources through a lens. This may result in
loss of sight.
zDo not leave a lens in the sun without the lens
cap attached. The lens may concentrate entering
sunlight and cause a malfunction or fire.
Caution
Details pertaining to risks that may
result in injury or damage to other
objects.
zDo not leave the product in places exposed to
extremely high or low temperatures. The product
may cause burns or injury when touched.
zDo not insert your hand or fingers into the
product. This may result in injury.
Safety Precautions

ENG-3
Handling Precautions
zDo not leave the product in excessive heat such as
in a car in direct sunlight. High temperatures can
cause the product to malfunction.
zIf the lens is taken from a cold environment into a
warm one, condensation may develop on the lens
surface and internal parts. To prevent condensation
in this case, first put the lens into an airtight
plastic bag before taking it from a cold to warm
environment. Then take out the lens after it has
warmed gradually. Do the same when taking the
lens from a warm environment into a cold one.
zThe lens interior may appear to waver, but this
does not indicate a defect or failure, and will not
cause any problems in use.
zIn order to optimize aperture control, there are
occasions in which the aperture blades will move
during zooming and focusing, even when the
aperture value is set for aperture-priority AE or
manual exposure, etc.
zPlease also read any lens related handling
precautions listed in your camera’s instruction
manual.
General Precautions

ENG-4
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1) This
device may not cause harmful interference, and (2) this
device must accept any interference received, including
interference that may cause undesired operation.
Do not make any changes or modifications to the equipment
unless otherwise specified in the instructions. If such
changes or modifications should be made, you could be
required to stop operation of the equipment.
This equipment has been tested and found to comply with
the limits for a class B digital device, pursuant to part 15
of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and
can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful
interference to radio communications.
However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference
by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and
receiver.
• Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician
for help.
CAN ICES-3 (B) / NMB-3 (B)

ENG-5
Focusing ring (→ 7)
Control ring (→ 9)
Hood mount (→ 13)
Filter mounting thread
(→ 14)
Focusing distance range selector switch
(→ 9)
Focus mode switch (→ 7)
Image stabilizer switch (→ 10)
Zoom ring (→ 7)
Zoom ring lock lever
(→ 8)
Rubber ring (→ 6)
Contacts (→ 6)
Lens mount (→ 6)
Lens mount index (→ 6)
Image stabilizer mode selector switch (→ 10)
z For detailed information, reference page numbers are provided in parentheses (→ **).
Nomenclature

ENG-6
Lens mount index
Lens release button Dust cap
Attaching the Lens
Align the lens mount indexes of the lens and
camera, and turn the lens clockwise until you
hear a click.
Detaching the Lens
Turn the lens counterclockwise while pressing
the camera’s lens release button. Detach the
lens once it has stopped turning.
Please refer to the camera's instructions for
details.
zSet the camera’s power switch to OFF when
attaching or detaching the lens.
zAttach the lens cap before detaching the lens
from the camera.
zAfter detaching the lens, place the lens with the
rear end up and attach the dust cap to prevent
the lens surface and contacts from getting
scratched. Make sure the lens and dust cap
mount indexes are aligned when attaching the
dust cap.
zContacts that are scratched, soiled, or have
fingerprints on them may result in faulty
connections or corrosion, which may lead to
malfunctions. If the contacts get soiled, clean
them with a soft cloth.
zThe lens mount has a rubber ring to improve
dust-resistance and water-resistance
performance. This rubber ring may cause
friction marks to appear around the camera’s
lens mount, although this will have no effect on
usage.
zRubber rings can be replaced at Canon Service
Center. (chargeable)
1. Attaching and Detaching the Lens

ENG-7
2.

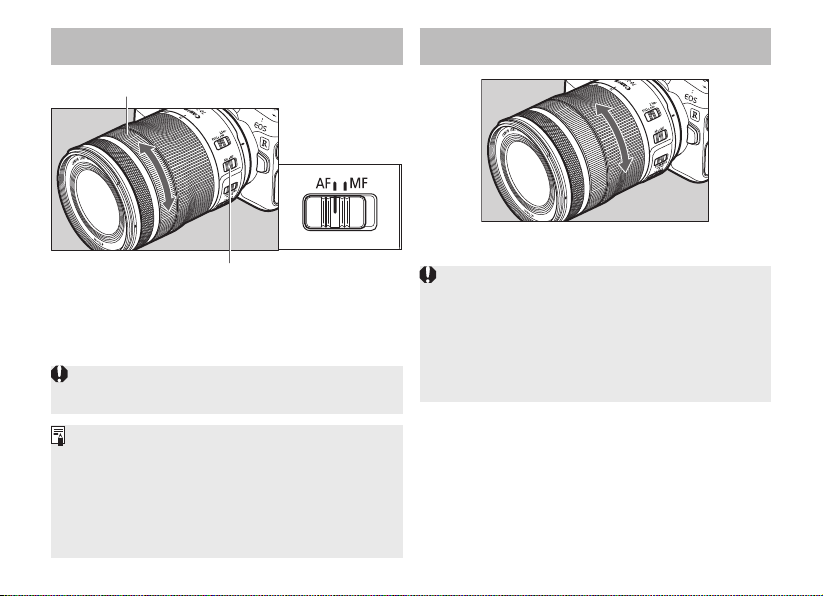

Setting the Focus Mode
3. Zooming
To zoom, turn the lens’ zoom ring.
zBe sure to finish zooming before focusing.
Zooming after focusing can affect the focus.
zBlurring may temporarily occur if the zoom ring is
quickly turned.
zPlease be careful not to let your fingers get
caught in between the lens' front and the control
ring when zooming.
Focusing ring
Focus mode switch
To shoot in autofocus (AF) mode, set the focus
mode switch to AF.
To use only manual focusing (MF), set the focus mode
switch to MF, and focus by turning the focusing ring.
zQuickly turning the focusing ring may result in
delayed focus.
zThe lens’ focusing ring is electronic.
z
When AF operation is set to [ONE SHOT],
manual focus is possible after autofocusing has
been completed by continuing to press the shutter
button halfway. (Full-time manual focus) However,
the camera settings need to be changed. Please
refer to the camera's instructions for details.

ENG-8
4. Fixing the Zoom Ring
The zoom ring can be fixed to keep the lens at the shortest point. This function is convenient for
carrying a camera on a strap because it prevents the lens from extending.
2Slide the zoom ring lock
lever in the direction
indicated by the arrow.
zTo release the zoom ring, slide
the zoom ring lock lever in the
direction opposite to the arrow.
1Turn the zoom ring to
the wide end position
(70 mm).
zThe zoom ring cannot be fixed in place at any position other than the
wide end position.

ENG-9
The control ring can be assigned the functions
that are commonly used with cameras, such as
shutter speed and aperture settings.
Control ring
The click action of the control ring allows you to
have a sense of how much it is being turned.
Please refer to the camera’s instructions for
details on how to use the control ring.
zT
here are cases in which the sound of control ring
operations may be recorded when shooting movies.
zThe clicking sensation of the control ring can
be removed by the Canon Service Center.
(chargeable)
6. Control Ring

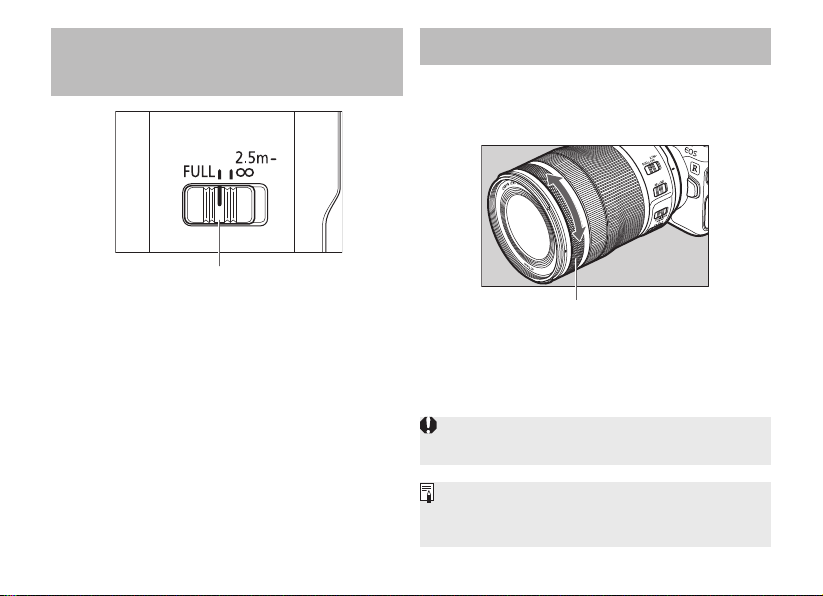

Focusing distance range selector switch
You can set the focusing distance range with
a switch. Setting the focusing distance range
prevents the lens from focusing on unintentional
subjects at different distances.
Focusing distance range
1. FULL (0.6m/1.97 ft. - ∞)
2. 2.5m/8.20 ft. - ∞
5. Setting the Focusing
Distance Range

ENG-10
Image stabilization corrects vibrations that occurs with hand-held shots.

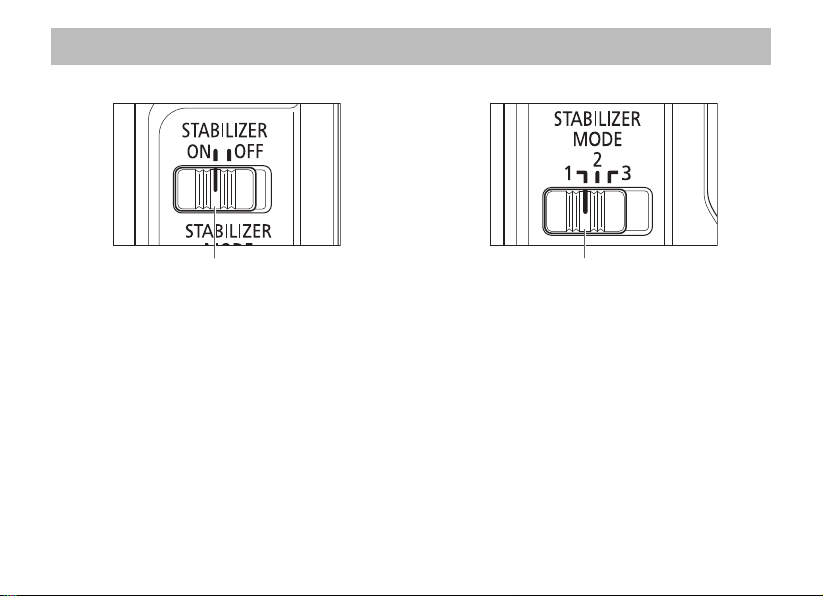

7. Image Stabilizer
Image stabilizer switch
1Set the STABILIZER switch to ON.
zIf you are not going to use image stabilization, set
the image stabilizer switch to OFF.
Image stabilizer mode selector switch
2Select an Image Stabilizer mode
according to the application and shooting
conditions.
Image Stabilizer modes
zMODE 1: Corrects vibrations in all directions.
It is suited to shooting still subjects.
zMODE 2: When you take a panning shot either horizontally or vertically, corrects vibrations at right
angles to the direction of panning.
It is suited to shooting moving subjects.
zMODE 3: During exposure, corrects vibrations in the same way as MODE 2.
Since vibration is corrected only during exposure, It is suited to shooting irregularly
moving subjects.

ENG-11

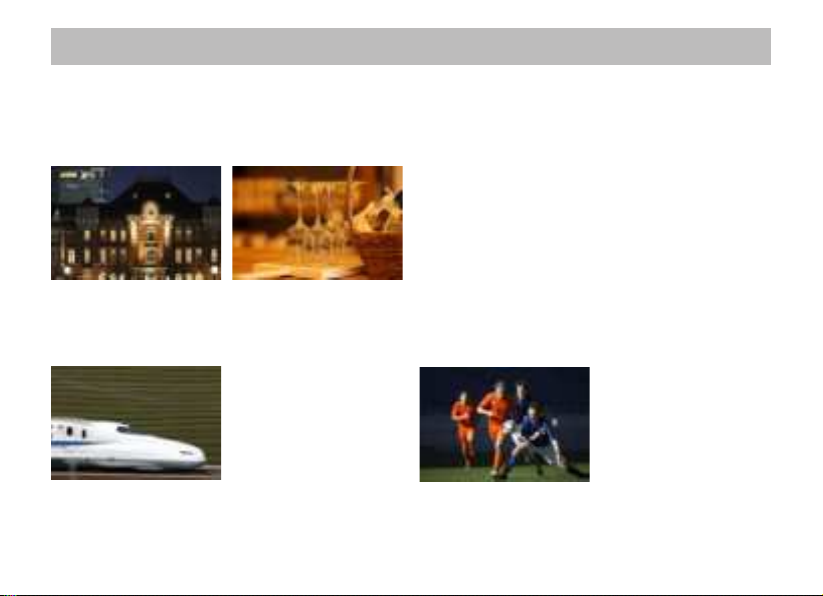

The Image Stabilizer for this lens is suited to hand-held shots in the following conditions.
Image Stabilizer
MODE 1
Shooting still subjects
zIn semi-darkened areas such as indoors or
outdoors at night.
zIn locations where the flash cannot be used,
such as art museums and theater stages.
zIn situations where your footing is uncertain.
zIn situations where fast shutter speed settings
cannot be used.
MODE 3
Shooting irregularly moving subjects
zPanning shots of
vehicles, trains, etc.
MODE 2
Shooting moving subjects
zSports photography
of soccer, basketball,
etc.
zPhotography of
animals

ENG-12
Image Stabilizer
zThe Image Stabilizer cannot compensate for a
blurred shot caused by a subject that moved.
zThe Image Stabilizer might not be fully effective in
the following conditions:
• Large shake or fast vibration
• Panning in MODE 1
zWhen using a tripod, it is recommended that you
set the image stabilizer switch to OFF.
zEven with a monopod, the Image Stabilizer will
be as effective as during hand-held shooting.
However, depending on the shooting conditions,
there are cases in which the Image Stabilizer
effect may be less effective.

ENG-13
The custom lens hood reduces unwanted light that causes flare and ghosting and protects the front
of the lens from rain, snow, and dust.
8. Hood
Attachment position mark
Stop position markAttachment position mark
Red dot
Red dotRed dot
Attaching the Hood
Align the red attachment position mark on the
hood with the red dot on the front of the lens,
and then turn the hood in the direction of the
arrow until you hear a click.
Button
Detaching the Hood
Keep your finger pressed down on the button
located on the side of the hood, and then turn
the hood in the direction of the arrow until the
attachment position mark on the hood is aligned
with the red dot on the front of the lens to detach
it.
The hood can be reverse-mounted on the lens
for storage.
zIf the hood is not attached properly, vignetting (darkening of the perimeter of the picture) may occur.
zGrasp and turn the base of the hood when attaching and detaching it. There are cases in which it may
become deformed if the hood is turned with it grasped near to the rim.

ENG-14
9.
Filters (Sold separately)
You can attach filters to the filter mounting thread
on the front of the lens.
zOnly one filter may be attached.
zIf you need a polarizing filter, use the Canon
Circular Polarizing Filter PL-C B.
zDetach the hood when adjusting the polarizing
filter.
Attaching a 500D (77 mm) Close-up Lens
enables close-up photography.
It provides a magnification of 0.14x to 0.51x.
zClose-up Lens 250D cannot be attached
because there is no size that fits the lens.
zMF mode is recommended for accurate
focusing.
10.
Close-up Lenses
(Sold separately)

ENG-15
Specifications
Focal Length/Aperture 70-200mm f/4
Lens Construction 11 groups, 16 elements
Maximum Aperture f/4
Minimum Aperture f/32
Angle of View Horizontal: 29° - 10°, Vertical: 19° 30ˊ - 7°, Diagonal: 34° - 12°
Min. Focusing Distance 0.6 m/1.97 ft.
Max. Magnification 0.28x (at 200 mm)
Field of View Approx. 279 x 184 - 127 x 84 mm/
10.98 x 7.24 - 5.00 x 3.31 in. (at 0.6 m/1.97 ft.)
Filter Diameter 77 mm
Max. Diameter and Length Approx. 83.5 x 119 mm/3.29 x 4.69 in.
Weight Approx. 695 g/24.5 oz.
Hood ET-83G (WIII)
Lens Cap E-77 II
Case LP1319
zThe lens length is measured from the lens mount surface to the front end of the lens.
Add 24.2 mm/0.95 in. when including the lens cap and dust cap.
zThe size and weight listed are for the lens only.
zYou cannot use extenders.
zAll data listed is measured according to Canon standards.
zProduct specifications and appearance are subject to change without notice.

CT1-D165-A 0420Ni © CANON INC. 2020
