Paper Deck Unit-B1/B2 Installation Procedure
ペーパーデッキユニット・Ｂ１/ Ｂ２ 設置手順書
Follow the instructions herein when installing the equipment to its host machine.
本機を本体に接続する際は、以下の手順に従ってください。
PRINTED IN CHINA PUB No. FT1-0626-000

2
2
Check items when Turning OFF the Main Power
Check items when Turning OFF the Main Power

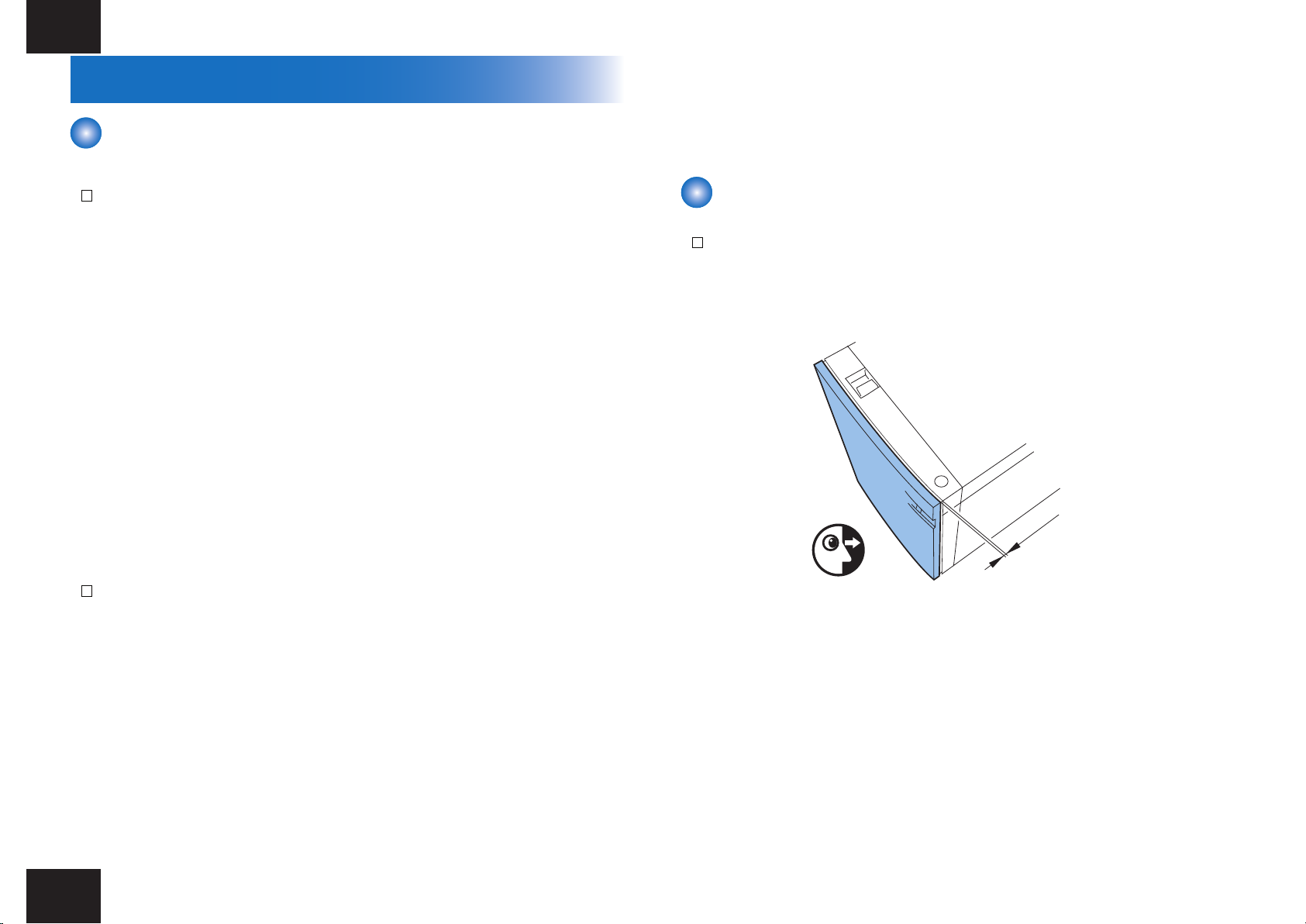

How to Utilize This Installation Procedure
When Using the Contained Parts (Bundled Components
in the Shipping Carton)
A syambole is described on the illustration in the case of using the parts included in the
package of this product.
Packaged Item
Symbols in the Illustration
The frequently-performed operations are described with symbols in this procedure.
Connector
Disconnect
Screw
Tighten Remove Connect Secure Free
Harness
Push
Insert Plug in Turn on
Sound CheckCheck Visual Check
Claw
Remove
Checking instruction
Checks to Make before Installation
The minimum space required for installation and maintenance is shown below.
100 mm or more
500 mm or more
Check items when Turning OFF the Main Power
1. The host machine and the pedestal have properly been installed.
2. Check that the main power switch is OFF.
1) Turn OFF the main power switch of the host machine.
2) Be sure that the control panel display and the main power lamp are both turned OFF,
and then disconnect the power plug.
F-1-2

3
3
Checking the Supplied Parts
Checking the Supplied Parts
Checking the Supplied Parts
Open the container box and check that none of the included parts is missing.
B
C
[5]
[14]
[10]
[17]
[1]
[3]
[4]
[7]
[6]
[2]
[5]
[8]
[5][9]
[18]
C
A
[5]
[13]
[5]
[5]
[15]
[16]
[12]
[13]
[11]
F-1-3
□ [1] Paper deck 1unit
□ [2] Lifter plate sheet 1pc (*1)
□ [3] Open label 1pc
□ [4] Paper deck right cover 1pc
□ [5] Binding screw (M4x8) 12pcs (*2)
□ [6] Bottom stay cover 2pcs
□ [7] Paper size label 1pc
□ [8] Roller support plate 1pc
□ [9] Right cover guide 1pc
□ [10] Deck mounting stay 1pc
□ [11] Binding screw (M4x30)(Black) 5pcs (*3)
□ [12] Binding screw (M4x40)(Silver) 5pcs (*4)
□ [13] Latch catch C 2pcs (*4)
□ [14] Latch front cover 1pc
□ [15] Latch catch A 1pc (*3)
□ [16] Latch catch guide 1pc
□ [17] Latch catch B 1pc (*3)
□ [18] Harness guide 1pc
*1: A4 model only
*2: Use 12 pieces of the screws when this unit is equipped to iR ADVANCE C5051 series.
Use 11 pieces of the screws when this unit is equipped to iR ADVANCE 4045/4051 series.
*3: For iR ADVANCE 4045/4051 series
*4: For iR ADVANCE C5051 series

4
4
Unpacking Procedure
Unpacking Procedure
Unpacking Procedure
CAUTION:
The paper deck is secured with packaging tapes and cushioning materials to protect
it against vibration and shock during transportation. Remove all packaging tapes and
cushioning materials before installing the equipment. Save the removed cushioning
materials in case you need to use them again to transport the equipment for relocation
or repair.
1) Open the plastic packing bag of the paper deck and then take out the paper deck from the
palette.
Caution:
When holding the paper deck at the installation, be ready with the two persons and
surely hold the right and left stays. Fail to do so may result in the deformation of the
paper deck.
(Weight: approximately 30 kg)
F-1-4
2) Remove the roller pressure release part and package tape from the paper deck.
F-1-5

5
5
Installation procedure > Preparing the Host Machine > Preparing the Host Machine for iR ADVANCE 4045/4051 series
Installation procedure > Preparing the Host Machine > Preparing the Host Machine for iR ADVANCE 4045/4051 series
Installation procedure
Preparing the Host Machine
The preparation work depends on the connected host machine. Follow the procedure of each
host machine.
-When the paper deck is connected to iR ADVANCE 4045/4051 series: See P-5 to P-7.
-When the paper deck is connected to iR ADVANCE C5051 series: See P-8 to P-12.
■Preparing the Host Machine for iR ADVANCE 4045/4051 series
1) Cut out the blindfold covers on the right side of the host machine using the nipper.
F-1-6
F-1-7
2) Draw out the upper cassette and install the latch catch A with the 2 binding screws (M4x8).
x2
3) Attach the latch catch guide to the latch catch A with the binding screws (M4x8). Then set
the upper cassette into the machine.
x1
F-1-8
F-1-9

6
6
Installation procedure > Preparing the Host Machine > Preparing the Host Machine for iR ADVANCE 4045/4051 series
Installation procedure > Preparing the Host Machine > Preparing the Host Machine for iR ADVANCE 4045/4051 series
4) Install the latch catch B with the 2 binding screws (M4x8).
B
x2
5) Open the right lower cover of the host machine and remove the 2 screws.
x2
NOTE:
The one of the removed screws is used in later.
F-1-10
F-1-11
6) Close the right lower cover. Then remove the blindfold cover by releasing the 2 hooks.
NOTE:
The removed blindfold cover is no longer used.
F-1-12

7
7
Installation procedure > Preparing the Host Machine > Preparing the Host Machine for iR ADVANCE 4045/4051 series
Installation procedure > Preparing the Host Machine > Preparing the Host Machine for iR ADVANCE 4045/4051 series
7) Temporarily set the right lower cover guide to the position shown in the gure. Holding the
right lower cover guide, open the right lower cover again and release the stopper from the
shaft to open the right lower cover moreover. Then x the right lower cover guide with the
screw removed at step 5). After nishing the work, hook the stopper to the shaft and close
the right lower cover.
x1
NOTE:
When the host machine is equipping with the cassette pedestal, open the
cassette pedestal right cover before opening the right lower cover.
F-1-13
8) Install the deck mounting stay with the 5 binding screws (M4x30).
x5
NOTE:
The 5 binding screws (M4x40) are not used.
9) Attach the latch front cover with the binding screw (M4x8).
x1
x1
F-1-14
F-1-15

8
8
Installation procedure > Preparing the Host Machine > Preparing the Host Machine for iR ADVANCE C5051 series
Installation procedure > Preparing the Host Machine > Preparing the Host Machine for iR ADVANCE C5051 series
■Preparing the Host Machine for iR ADVANCE C5051 series
1) Cut out the blindfold cover on the right rear side of the host machine using the nipper.
F-1-16
2) Open the second and rst cassettes and the front cover, then remove the small right cover
by removing the screw.
x2
PUSH
x1
NOTE:
The removed screw is used later.
F-1-17
F-1-18

9
9
Installation procedure > Preparing the Host Machine > Preparing the Host Machine for iR ADVANCE C5051 series
Installation procedure > Preparing the Host Machine > Preparing the Host Machine for iR ADVANCE C5051 series
3) Cut out the upper part of the small right front cover using the nipper, and then reinstall the
lower part to the original position with the screw removed at step 2).
NOTE:
The removed upper part is no longer used.
F-1-19
4) Open the right door of the host machine and remove the handle cover (front side), and
then close the right door.
F-1-20

10
10
Installation procedure > Preparing the Host Machine > Preparing the Host Machine for iR ADVANCE C5051 series
Installation procedure > Preparing the Host Machine > Preparing the Host Machine for iR ADVANCE C5051 series
5) Open the right lower cover to remove the 2 screws which are retaining the blindfold cover.
x2
NOTE:
The one piece of the removed screws is used later.
F-1-21
6) Close the right lower cover. Then remove the blindfold cover by releasing the 2 hooks.
NOTE:
The removed blindfold cover is no longer used.
