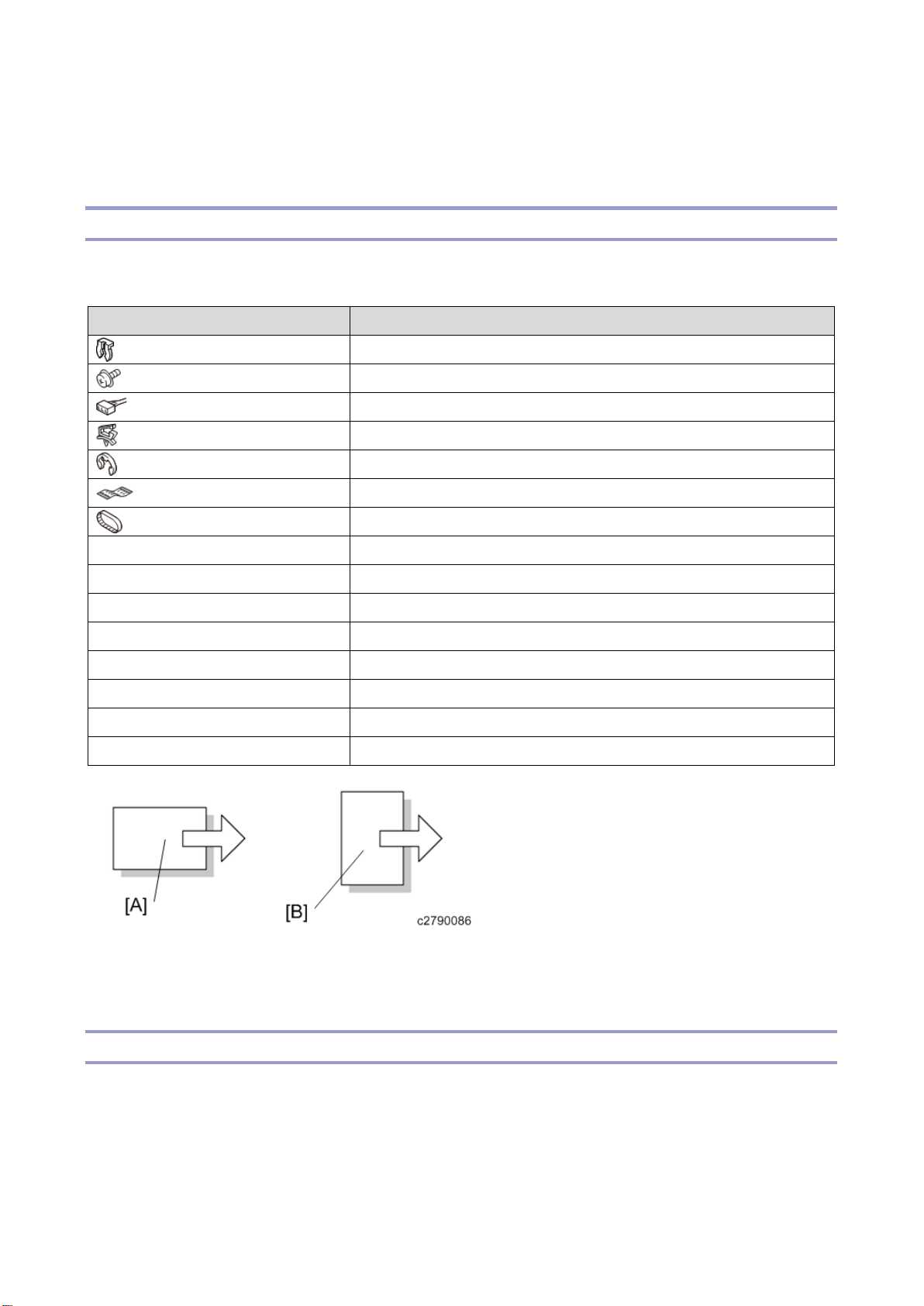

[A] Short Edge Feed (SEF)
[B] Long Edge Feed (LEF)
Trademarks
Adobe, Acrobat, PageMaker, PostScript, and PostScript 3 are either registered trademarks or
trademarks of Adobe Systems Incorporated in the United States and/or other countries.
The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any
use of such marks by Ricoh Company, Ltd. is under license.
Firefox and Thunderbird are registered trademarks of the Mozilla Foundation.

Dropbox is a registered trademark or trademark of Dropbox, Inc.
Google, Android, and Chrome are trademarks of Google Inc.
Java is a registered trademark of Oracle and/or its affiliates.
Macintosh, OS X, Bonjour, Safari, and TrueType are trademarks of Apple Inc., registered in the U.S.
and other countries.
Microsoft, Windows, Windows Server, Windows Vista, Internet Explorer, and Outlook are either
registered trademarks or trademarks of Microsoft Corp. in the United States and/or other countries.
PictBridge is a trademark.
QR Code is a registered trademark of DENSO WAVE INCORPORATED in Japan and in other
countries.
The SD and SD logo are trademarks of SD-3C, LLC.
UNIX is a registered trademark of The Open Group.
UPnP is a trademark of UPnP Implementers Corporation.
This product includes RSA BSAFE® Cryptographic software of EMC Corporation. RSA and BSAFE are
registered trademarks or trademarks of EMC Corporation in the United States and other countries.
The proper names of Internet Explorer 11 is as follows:
•Windows® Internet Explorer® 11
The proper names of the Windows operating systems are as follows:
•The product names of Windows Vista are as follows:
Microsoft® Windows Vista® Ultimate
Microsoft® Windows Vista® Business
Microsoft® Windows Vista® Home Premium
Microsoft® Windows Vista® Home Basic
Microsoft® Windows Vista® Enterprise
•The product names of Windows 7 are as follows:
Microsoft® Windows® 7 Home Premium
Microsoft® Windows® 7 Professional
Microsoft® Windows® 7 Ultimate
Microsoft® Windows® 7 Enterprise
•The product names of Windows 8 are as follows:

Microsoft® Windows® 8
Microsoft® Windows® 8 Pro
Microsoft® Windows® 8 Enterprise
•The product names of Windows 10 are as follows:
Microsoft® Windows® 10 Home Premium
Microsoft® Windows® 10 Pro
Microsoft® Windows® 10 Enterprise
Microsoft® Windows® 10 Education
•The product names of Windows Server 2003 are as follows:
Microsoft® Windows Server® 2003 Standard Edition
Microsoft® Windows Server® 2003 Enterprise Edition
•The product names of Windows Server 2003 R2 are as follows:
Microsoft® Windows Server® 2003 R2 Standard Edition
Microsoft® Windows Server® 2003 R2 Enterprise Edition
•The product names of Windows Server 2008 are as follows:
Microsoft® Windows Server® 2008 Standard
Microsoft® Windows Server® 2008 Enterprise
•The product names of Windows Server 2008 R2 are as follows:
Microsoft® Windows Server® 2008 R2 Standard
Microsoft® Windows Server® 2008 R2 Enterprise
•The product names of Windows Server 2012 are as follows:
Microsoft® Windows Server® 2012 Foundation
Microsoft® Windows Server® 2012 Essentials
Microsoft® Windows Server® 2012 Standard
•The product names of Windows Server 2012 R2 are as follows:
Microsoft® Windows Server® 2012 R2 Foundation
Microsoft® Windows Server® 2012 R2 Essentials
Microsoft® Windows Server® 2012 R2 Standard
•The product names of Windows Server 2016 R2 are as follows:
Microsoft® Windows Server® 2016 R2 Essentials
Microsoft® Windows Server® 2016 R2 Standard
Other product names used herein are for identification purposes only and might be trademarks of their
respective companies. We disclaim any and all rights to those marks.
Microsoft product screen shots reprinted with permission from Microsoft Corporation.

1
Table of Contents
1. Detailed Descriptions.......................................................................................................................... 2
Changes from the Previous Machine..................................................................................................... 2
Specifications.......................................................................................................................................... 3
Parts Layout............................................................................................................................................ 4
Mechanism ............................................................................................................................................. 6
Paper Feed Separating Mechanism................................................................................................... 6
Drive Mechanism................................................................................................................................ 7
Tray Lift/Descent Mechanism............................................................................................................. 7
Remaining Paper / Paper End Detection ........................................................................................... 9
2. Replacement and Adjustment .......................................................................................................... 10
Rear Cover ........................................................................................................................................... 10
Front Cover........................................................................................................................................... 12
Upper Cover ......................................................................................................................................... 13
Right Cover........................................................................................................................................... 14
Pick-up Roller, Feed Roller, Friction Roller.......................................................................................... 15
Paper Feed Motor (M2)........................................................................................................................ 17
Transport Motor (M1)............................................................................................................................ 18
Tray Lift Unit ......................................................................................................................................... 19
Controller Board (PCB1)....................................................................................................................... 20
Tray Set Switch (Front) (SW1)............................................................................................................. 21
Tray Set Switch (Rear) (SW2).............................................................................................................. 22
Paper Feed Sensor (S1), Paper End Sensor (S3), Upper Limit Sensor (S4), Transport Sensor (S2) 23

1.Detailed Descriptions
2
1.Detailed Descriptions
Changes from the Previous Machine
•Antistatic Control
Metal cover [A] for antistatic control has been added to the following sensors:
•Paper Feed Sensor
•Transport Sensor
•Paper End Sensor
When replacing the those sensors, this cover will also be used after replacement, so remove it from the
old sensors. When you do so, be careful not to deform or damage anything.
1: Paper Feed Sensor
2: Upper Limit Sensor
3: Paper End Sensor
4: Transport Sensor
•Dehumidification Heater
An optional dehumidification heater (attached to the side of the tray) is available.

1.Detailed Descriptions
3
Specifications
Item
Specifications
Paper size:
A4 LEF, B5 JIS LEF, 8 1/2 x 11 LEF
Paper weight:
52–300 g/m2 (14 lb. Bond–110 lb. Cover)
Paper capacity (80 g/m2, 20 lb. Bond):
1,500 sheets
Power consumption:
13 W (Power is supplied from the main unit.)
Dimensions (W x D x H):
340 × 544.5 × 290 mm (13.4 × 21.4 × 11.5 inches)
Weight:
Approx. 11 kg (24.3 lb.)

1.Detailed Descriptions
4
Parts Layout
No.
Description
No.
Description
1
Friction roller
6
Feed roller
2
Transport sensor (S2)
7
Paper end sensor (S3)
3
Transport roller
8
Pickup roller
4
Paper feed sensor (S1)
9
Remaining paper sensor (S6) (inside lift unit)
5
Upper limit sensor (S4)
10
Lower limit sensor (S5)
No.
Description
No.
Description
1
Tray set switch (front) (SW1)
9
Paper feed motor (M2)
2
Paper feed sensor (S1)
10
Remaining paper sensor (S6) (inside lift unit)
3
Upper limit sensor (S4)
11
Tray lift motor (M3) (inside tray lift unit)
4
Transport sensor (S2)
12
Interlock switch 1 (SW3)
5
Pick-up roller solenoid (SOL1)
13
Interlock switch 2 (SW4)

1.Detailed Descriptions
5
No.
Description
No.
Description
6
Paper end sensor (S3)
14
Controller board (PCB1)
7
Tray set switch (rear) (SW2)
15
Lower limit sensor (S5)
8
Transport motor (M1)
16
Dehumidification heater (Option) (H1)

1.Detailed Descriptions
6
Mechanism
Paper Feed Separating Mechanism
The tray unit and paper feed transport unit are integrated. The pick-up roller, feed roller and reverse
roller are common with the main frame’s paper feed unit. Both paper feed and paper separation
mechanisms use the same RF paper feed system.
In order to feed the paper at regular intervals, there is a paper feed sensor between the pick-up roller
and the feed roller, and this sensor is used to adjust the paper feed timing.
1. The paper feed motor (M2) turns ON, and feeds the first sheet of paper.
2. To prevent the next sheet from being transported, the pick-up solenoid (SOL1) turns ON just before
the trailing edge of the first sheet passes through the pick-up roller, and the pick-up roller leaves
the paper surface.
3. Just before the trailing edge of the first sheet leaves the paper feed roller, the paper feed motor
(M2) turns OFF.
However, at this time, if the paper feed sensor (S1) does not detect paper (the second sheet is not
transported to the paper feed sensor position), the paper feed motor (M2) does not turn OFF. Pre-
feed is performed as follows:
1. The pick-up solenoid (SOL1) turns OFF, and the second sheet of paper is transported to the
paper feed sensor position.
2. When the trailing edge of the second sheet passes the feed roller, the paper feed motor (M2)
is turned OFF. The pick-up solenoid (SOL1) remains OFF.
4. Just before the trailing edge of the first sheet passes the feed roller, the pick-up solenoid (SOL1)
turns OFF. The pick-up roller is brought into contact with the paper surface.
If paper is pre-fed, the pick-up solenoid (SOL1) will remain OFF, and this operation will not
performed.
5. When the first sheet is transported a specified distance by the downstream transport roller, the
paper feed motor (M2) turns ON to feed the second sheet.

1.Detailed Descriptions
7
No.
Description
No.
Description
1
Friction roller
5
Feed roller
2
Transport sensor (S2)
6
Paper end sensor (S3)
3
Transport roller
7
Pick-up roller
4
Paper feed sensor (S1)
-
-
Drive Mechanism
The pick-up roller and feed roller are driven by the paper feed motor (M2). The transport roller is driven
by the transport motor (M1). The friction roller is not driven.
Tray Lift/Descent Mechanism
The tray lift motor (M3) is coupled with the lift shaft, so that when the shaft rotates, the tray bottom plate
rises.
Conditions for tray lift
•The main power is turned ON.
•During copying, the upper limit sensor (S4) is ON (the sensor is not blocked)
•The top cover is closed and the upper limit sensor (S4) is ON.
•The main machine recovers from low power mode.
•The tray lifts until the upper limit sensor (S4) turns OFF (the sensor is blocked).

1.Detailed Descriptions
8
No.
Description
1
Upper limit sensor (S4)
2
Actuator
Conditions for tray descent
•The right cover is opened.
•Paper end is detected.
•The tray descends until the lower limit sensor (S5) turns OFF (the sensor is blocked).
No.
Description
1
Remaining paper sensor (S6) (inside lift unit)
2
Tray lift motor (M3)
3
Lower limit sensor (S5)
4
Tray

1.Detailed Descriptions
9
Remaining Paper / Paper End Detection
Remaining paper detection
Remaining paper in the paper feed tray is detected using a pulse count by the remaining paper sensor.
The paper remaining is displayed on the control panel.
Remaining paper
Paper end sensor
Control panel display
100%
OFF
4 bars
70%
OFF
3 bars
30%
OFF
2 bars
10%
OFF
1 bar
Paper end
ON
None
Paper end detection

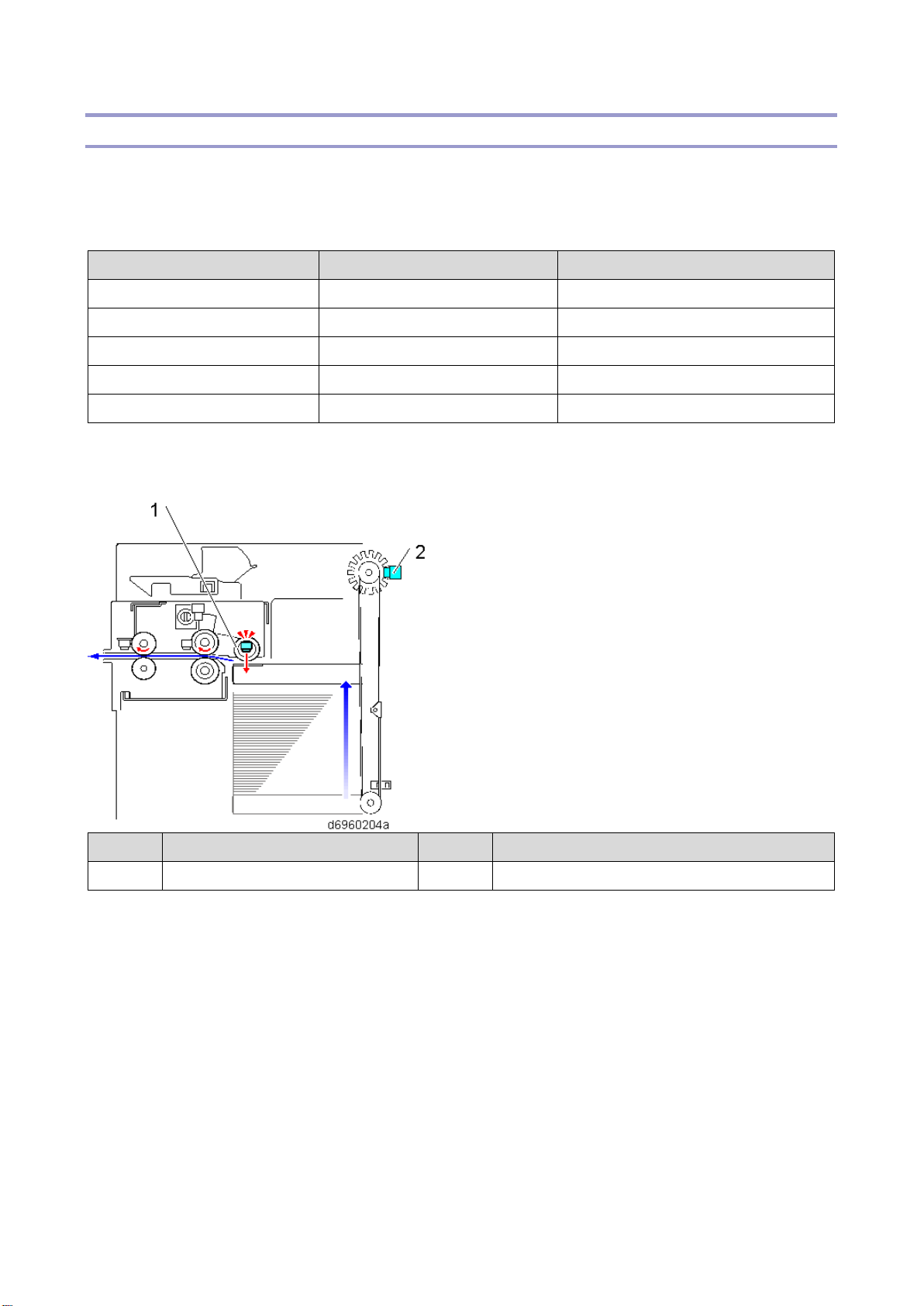

There is a reflector-type sensor in the upper stay that detects the upper surface of the paper in the tray.
No.
Description
No.
Description
1
Paper end sensor
2
Remaining paper sensor

2.Replacement and Adjustment
10
2.Replacement and Adjustment
Rear Cover

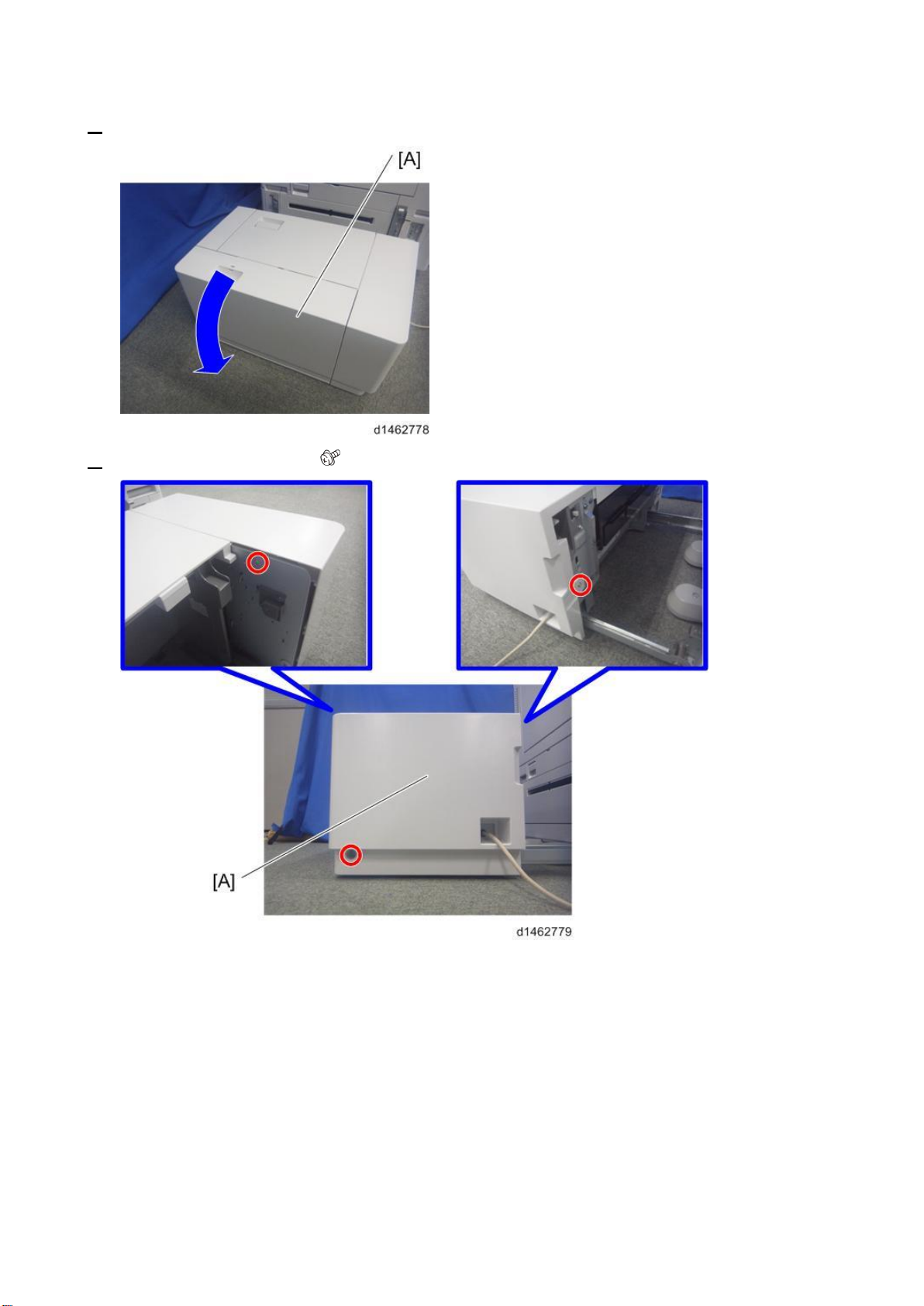

1. Pull out the LCT [A].

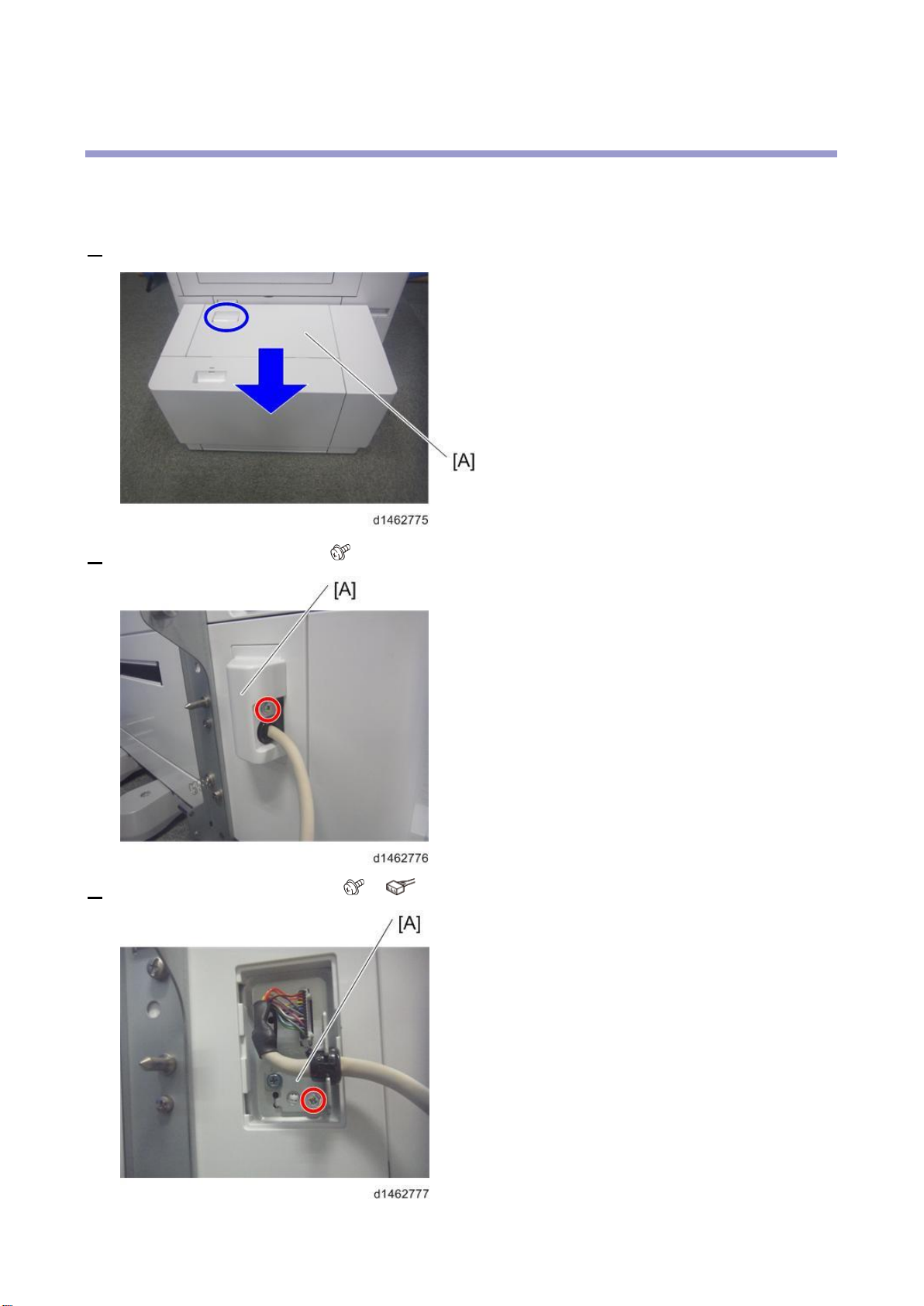

2. Remove the cable cover [A] ( ×1).
3. Remove the cable bracket [A] ( ×1, ×1).

2.Replacement and Adjustment
11
4. Open the right cover [A].
5. Remove the rear cover [A] ( ×3).

2.Replacement and Adjustment
12
Front Cover
1. Open the right cover (Right Cover)
2. Remove the front cover [A] ( ×4).

2.Replacement and Adjustment
13
Upper Cover
1. Remove the front cover. (Front Cover)
2. Remove the rear cover. (Rear Cover)
3. Remove the upper cover [A] ( ×2).

2.Replacement and Adjustment
14
Right Cover
1. Remove the front cover. (Front Cover)
2. Remove the right cover [A] ( ×1, ×1).
