Canon
..... t(
Exil Ptint PictBridge
Photo Printer
PI}{MAi P6700D Series
Quick Start Guide
-
'"
ii·'
-:~'~~;,:~:rili:W'gJ..:<':ZW:,~~;:&'::'::8:;;':~%.~:;::~~4:%t';:;::}}1;X:::~8:~-f8»'::'::

Getting Help from Canon
Help Us Help You Better
Before you contact (anon, please record the following information.
Serial Number (located on the inside of the product): _
Model Number (located on the top of the product): _
Setup
CD-ROM number (located on the CD-ROM): _
Purchase Date:
--------------------------
Customer Technical Support Sequence*
1.Internet-www.canontechsupport.com
For quick and comprehensive self-help in an intuitively guided interactive troubleshooting
environment,
the place to start is our helpful tech support web site. In addition, the latest
driver downloads, answers to frequently asked questions, product information, and
"where to buy" instructions are found here.
2. Email Tech Support -www.canontechsupport.com
For individual attention to aspecial issue, try emailing our friendly technical support
representatives, specially trained to communicate quick, easy, and logical solutions to
your inquiries
within 24 hours.
3. Toll-Free Live Tech Support -(1-800-828-4040)
This option provides live telephone technical support, free of service charges, Monday-
Saturday (excluding holidays), duringyour product's 1year
limited warranty period.
Telephone Device forthe Deaf
(TOO) support is available at (1-866-251-3752).
4. Extended Service and Support -www.canonesp.com
Canon
CarePAK Extended Service Plan is acost-attractive and easy-to-use extended service
program
that provides up to three full years of service and support coverage at avery
attractive price.
CarePAK offers toll-free Canon technical support and includes Canon's
superb InstantExchange product replacement program.
For further information about
extending your Canon service and support, call (1-800-385-2155), orvisit our Web site at
www.canonesp.com.
CarePAK must be purchased duringyour product's warranty period.
For more information and updated program specifics, please visit our web site at
www.canontechsupport.com.
*Support program specifics are subject to change withoutnotice.

Canon
PI}{MA iP6700D
Photo Printer
Quick Start Guide

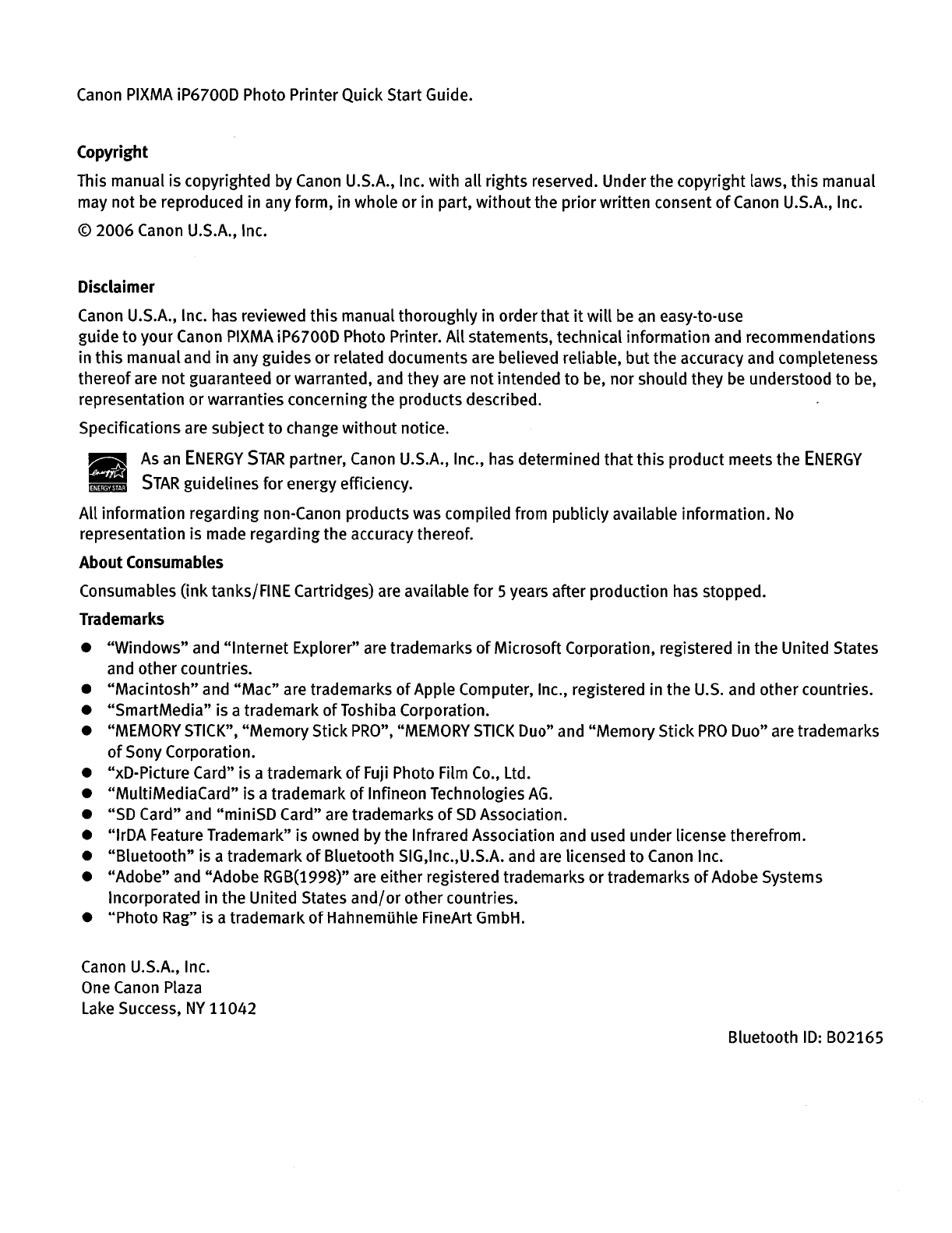

Canon PIXMA iP6700D Photo Printer Quick Start Guide.
Copyright
This manual is copyrighted by Canon U.S.A., Inc. with aU rights reserved. Under the copyright laws, this manual
may not be reproduced in any form, in whole or in part,
without the priorwritten consent of Canon U.S.A., Inc.
©2006 Canon U.S.A., Inc.
Disclaimer
Canon U.S.A., Inc. has reviewed this manual thoroughly in order that it will be an easy-to-use
guide
to your Canon PIXMA iP6700D Photo Printer. AU statements, technical information and recommendations
in
this manual and in any guides or related documents are believed reliable, but the accuracy and completeness
thereofare
not guaranteed or warranted, and they are notintended to be, nor should they be understood to be,
representation orwarranties concerning the products described.
Specifications are subject to change without notice.
•
As an ENERGY STAR partner, Canon U.S.A., Inc., has determined that this product meets the ENERGY
mmmmI STAR guidelines for energy efficiency.
All information regarding non-Canon products was compiled from publicly available information.
No
representation is made regarding the accuracy thereof.
About Consumables
Consumables (inktanks/FINE Cartridges) are available for 5years after production has stopped.
Trademarks
• "Windows" and "Internet Explorer" are trademarks of Microsoft Corporation, registered in the United States
and othercountries.
•
"Macintosh" and "Mac" are trademarks of Apple Computer, Inc., registered in the U.S. and othercountries.
•
"SmartMedia" is atrademark of Toshiba Corporation.
•"MEMORY STICK", "MemoryStick
PRO", "MEMORY STICK Duo" and "MemoryStick PRO Duo" are trademarks
of Sony Corporation.
•"xO-Picture Card" is atrademark
of Fuji Photo Film Co., Ltd.
•"MultiMediaCard" is atrademark
of Infineon Technologies AG.
•"SO Card" and "miniSD Card" are trademarks of SD Association.
•"lrDA Feature Trademark" is owned by the Infrared Association and used under license therefrom.
•
"Bluetooth" is atrademark of Bluetooth SIG,lnc.,U.S.A. and are licensed to Canon Inc.
•
"Adobe" and "Adobe RGB(1998)" are either registered trademarks ortrademarks of Adobe Systems
Incorporated in the United States
and/ or othercountries.
•"Photo Rag" is atrademark
of Hahnemilhle FineArt GmbH.
Canon U.S.A., Inc.
One Canon Plaza
Lake Success, NY 11042
Bluetooth 10: B02165

Contents
Contents
Basic Printing
Turning on the Printer ...•......•••..•.•.•••...••........•••..............•.•.•.••. 2
Turning off the Printer .•....................•.•.....................•..•........... 3
Loading Paper
•..•.•..............•...•......•...•.•.•.........•................. 4
Using Specialty Media
...................•......•...........•.•.•.••.•.•.••.•.••• 18
Printing with Windows ............•..•.......•.........•........•................ 20
Printing with Macintosh .................•.••...•••........................•...... 24
Canceling Printing
•.•......•......•....•.•.••...•.•....•..•...........•.••.•..•.• 27
Accessing the Printer Driver (Windows) .....•......•.........•..•..............••... 29
Usingthe Bundled Software •..•...................•....................•.....•.•.. 30
Printing Maintenance
Replacing an Ink Tank .........•.•.............•.•.•.•.................•.........• 31
When Printing Becomes Faint orColors are Incorrect .........•.......•.•.•••....•..... 32
Troubleshooting
Cannot Install the Printer Driver .•..•....•..............••.•.....•.•.••..••.•...•.•• 34
Cannot Connect
to PC Properly ........•..•..•....•.....•.......................... 35
Print Results Not Satisfactory or Contains Errors •....•......••.......•........•.•..... 36
Troubleshooting Printer Hardware
...•....•.•.••...•••••.•.•......•............•.... 39
Paper Does Not
Feed Properly •............•.•..•.•.•.•.•...•......•............... 41
Paper Jams .••..•.•.•...•••••••.•....•.•.•....•.•.•••.•....•.••..........•...... 41
An Error Message is displayed on the Screen •••.•.••.•......•.•.•....•....•....••.... 42
POWER Lamp and Alarm Lamp Flash Alternately .•.....•••...............•.....•.•.•.. 43
Appendix
Specifications ............•.......••...........•.......•. ~ ................•..... 44
Safety Precautions
........•....••..•.............••.......•....•..........•..... 48
Regulatory Information •.•••..•••..••....•.....•••.•.•.•...•.........•..•......... 50
CANON U.S.A., INC. LIMITED WARRANTY --- (USA Only) .................•...•.......•... 51
Index 53
1

Basic Printing
Basic Printing
W Note Th is Quick Start Guidedescribes some ofthe features ofyour printer and how
to use them. For more information, view the iP6700D User's Guide, Printer
DriverGuide, and Photo Application Guide installed
on your computer, or use
the online help within your printer driver interface:
l¥,lJmrr:m
While in the printer's properties window, press the F1 key, or click II in the
upper right corner.
Then click the feature you want to know more about, or click
the Help button when displayed.
While in the
Page Setup dialogbox or Print dialog box, click in the lower left
corner.
Clicking provides detailed information about
each setting.
When the Help window appears, select your desired topic.
Turning on the Printer
1Press the POWER button.
The POWER lamp flashes while the printer warms up and changes to steady (non-
flashing) when the printer is ready.
~Important
2
e If the Alarm lamp lights, refer to "An Error Message is Displayed on the
LCD" in the Direct Printing Guide.
• If the POWER lamp and the Alarm lamp flash alternately, see "POWER
Lamp and Alarm Lamp Flash Alternately" on page 43.

Basic Printing
Turning off the Printer
1 To turn offthe printer, press the POWER button.
When the POWER lamp stops blinking, the printer is turned off.
~Important About the Power Plug
When removing the power plug after turing
off the printer, be sure to
check
that the POWER lamp is not lit. If the power plug is removed from
the wall outlet with the POWER lamp lit or blinking, the printer cannot
protect its print heads and may
be unable to print.
3

Basic Printing
Loading Paper
This section describes how to load paper in the auto sheet feeder and the cassette.
Auto sheet feeder
~~~~----- Cassette
•Print Media to Avoid
Do not use the following types of paper. Using such paper will not only produce
unsatisfactory results, but can also cause the printer to jam or malfunction.
•Folded, curled or wrinkled paper
•Damp paper
•Excessively
thin paper (less than 64 gsm or 17 lb)
•Excessively
thick paper* (more than 105 gsm or 28 lb)
*non-Canon genuine paper
•Picture postcards
•Postcards affixed with photos or stickers
•Envelopes with double flaps
•Envelopes with sticker flaps
•Envelopes with
an embossed or treated surface
•Any type
of paper with holes
4

Basic Printing
•Usingthe Auto Sheet Feeder and the Cassette
You can load paper in both the auto sheet feeder and cassette.
Loading
paper in the auto sheet feeder is easy, and is convenient if you frequently
switch to and
print on various sizes or types of paper.
Loading paper in
the cassette allows you to print without reloading paper for each job.
This is convenient
for loading acertain type of paper, such as plain paper, you regularly
print onto.
Loading paper in both the auto sheet feeder and cassette makes the
following paper
feed
methods available:
*Legal-sized paper and 2.13" x
3.39"/54.0 x86.0 mm size paper, and Photo Stickers PS-101 are not loadable in the
cassette.
•Changing the paper source to feed different types/sizes of paper
If you load plain paper in the cassette and photo paper in the auto sheet feeder,
changing
the paper source allows you to print on both types of paper without
removing and reloading paper. To change the paper source, use the Feed Switch
button on the printer or printer driver.
You can also specify the type/size of paperto be fed from the cassette for regular use
with the printer driver. For example, you can specify that Letter-sized plain paper is
always fed from
the cassette whenever you print.
W Note For information on the printer driver settings, refer to the PrinterDriver
Guide.
You can switch between paper
loaded in
the auto sheetfeeder
(e.g., 4
11
x6
11
/101.6 x 152.4
mm) and the cassette (e.g., A4/
Letter-sized paper).
5

Basic Printing
•Continuous printing on the same type/size of paper by using both the auto sheet
feeder and cassette together
If the auto sheet feeder or cassette runs out of paper, the paper source automatically
switches to the other one. This is useful for
printing onto alarge volume of paper. To
use this feature, you need to configure the printer driver beforehand.
WNote For information on the printer driver settings, refer to the PrinterDriver
Guide.
If the auto sheet feeder runs
out
of paper, the paper source
automatically changes to the
cassette.
•Choosing the paper source to match the location
of the printer
You can use just the auto sheet feeder or cassette according to the location of the
printer.
For example, if you intend to install the printer in asmall place, such as on a shelf
with minimal space, you can use just the cassette for printing.
WNote Legal-sized paper and 2.13
11
x 3.39
11
/54.0 x86.0 mm size paper, and
Photo Stickers
PS-l0l are not loadable in the cassette.
If you intend to use only the cassette, check any usage restrictions in
advance.
6

Basic Printing
• loading Plain Paper in the Auto Sheet Feeder
W Note e For detailed information on the specialty media Canon provides for use
with its various printers, see "Using Specialty Media" on page 18.
eRefer to "Printing Media" in the User's Guidefor detailed instructions
on how to load specialty media into the printer.
1Flatten the four corners of the paper before loading it.
"Important When paper is curled, gently bend it in the opposite direction of the curl
(without curling the reverse side) and then load the paper. How to flatten
paper curl, refer to "Media is curled" on page 38
2Prepare to load paper.
2
(2) 1Put your fingers in the notches in
either side of the front cover and
pull down to open it.
2Pull out the paper output tray
extension completely.
Open the paper support.
Pullout the paper
support extension to
support the paper.
Auto sheet feeder lamp
(3) Press the Feed Switch
button so that the auto
sheet feeder lamp lights.
W Note You can also select the paper source with the printer driver. For details,
refer to the PrinterDriverGuide.
7

Basic Printing
3load the paper.
Load limit mark
Do not load beyond this load limit mark.
(3) Pinch the paper
guide and slide
it against the
left side
of the
paper stack.
(1)
Load the paper
into the auto
sheet feeder with
the
print side
facing
UP.
(2) Align the paper stack
against the cover
guide
on the right
side
of the paper
support.
~Important Ensure that the
cover guide
stands when
you load paper
in the auto
sheet feeder.
WNote e You can use general copy paper or Canon's Super White Paper.
e You can load up to 150 sheets of plain paper (64 gsm or 17 lb, 13 mm
or 0.52 inches in height) in the auto sheet feeder.
However, the paper may not feed correctly depending on the type of
paper and the environment (temperature, high humidity and low
temperature or low humidity).
If this happens, reduce the number of
sheets of paper by about half (approximately 5 mm/0.2 inches).
e Do nottouch the printed surfaces until the ink dries. For specific drying
times, refer to the instructions packaged with your media.
8

Basic Printing
•Loading Envelopes in the Auto Sheet Feeder
Use either DL Env. or Comm. Env. #10 size envelopes.
The address is rotated automatically
to match the direction of the envelope when
printing.
~Important e Do not use envelopes with embossed or treated surfaces, adouble
flap, pressure seals or sticker flaps.
eSelect either DL Env. or Comm. Env. #10 in the printer driver according
to the envelope size you are using. If you do not, the address will be
printed in the
wrong direction.
WNole Amaximum of
10 envelopes
can be loaded at
once.
~Important Ensure that the
cover guide
stands when
you load paper
in the auto
sheet feeder.
r---- Fold the envelope
flap shut.
(1) Load the envelope
against the cover
guide on the
right side
of the paper support
with the front face UP,
and the rear flaps
DOWN on the left.
Printing direction
(3) Press the
Feed Switch
button so that the auto
sheet feeder lamp lights.
(2) Pinch the
paper guide
and slide
it
against the
left side of
the envelope.
(4) Select Envelope in Media Type, and then select DL Env. or Comm. Env. #10 in
Page Size.
For adetailed description of the printer driver settings, see "Printing with
Windows" on page 20, "Printing with Macintosh" on page 24.
9

Basic Printing
•LoadingOtherSmall-Sized Paper in the Auto Sheet Feeder
~Important Cutting plain paper to 4
11
x6
11
/101.6 mm x 152.4 mm, 5
11
x7
11
/127.0 x
177.8 mm, or 2.13
11
x 3.39
11
/54.0 x 86.0 mm (Credit Card) size for a trial
printing can cause paper jams.
~Important Ensure that the
cover guide stands
when you load
paper in the auto
sheet feeder.
(1) Load the paper into the
auto sheet feeder with
the print side facing UP
and align the cover guide
on the
right side of the
paper support.
WNote
• Load the paper lengthways
regardless
of the direction of
the document.
•
You can load up to 20 sheets
of 4
11
x 6
11
or 2.13
11
x3.39
11
(Credit Card)-sized paper; 10
sheets of 5
11
x 7
11
-sized
paper.
(3) Press the Feed Switch
button so that the auto
sheet feeder lamp lights.
(4) Select 4 x 6 in 101.6 x 152.4 mm, 5 x 7 in 127.0 x 177.8 mm, orCredit Card 2.13
x
3.39 in 54.0 x 86.0 mm from Page Size in the printer driver.
For adetailed description of the printer driver settings, see "Printingwith
Windows" on page 20, or "Printingwith Macintosh" on page 24.
(2) Pinch the paper guide and slide it
against the left side of the paper
stack.
~Important Always load paper in portrait orientation. Loading paper in
landscape orientation can cause
the paper to be jammed.
Portrait Landscape
10

Basic Printing
WNote We recommend using genuine Canon photo media when printing
photographs.
See "UsingSpecialty Media" on page
18.
• loading Plain Paper in the Cassette
Ensure that the paper is loadable in the cassette. Legal-sized paper, 2.13
11
x3.39
11
/
54.0 x 86.0 mm size paper, and Photo Stickers are not loadable in the cassette.
WNote •For detailed information on the specialty media Canon provides for use
with its various printers, see "Using Specialty Media" on page 18.
eRefer to "Printing Media" in the User's Guide for detailed instructions
on
how to load specialty media into the printer.
1Flatten the four corners of the paper before loadingit.
~Important When paper is curled, hold the opposing curled corners and gently bend
them in
the opposite direction until the paper becomes completely flat.
2Prepare to load paper.
(1) Pullout the cassette from
the printer.
(2) Remove the cover on the
cassette.
11

Basic Printing
3Adjust the size of the Cassette.
When loading A5- or larger sized paper (nonstandard-size paper: 203 mm/8 inches
or more in length), extend the cassette.
.,
.... ,.~
s':-
~
When loading 5
11
x 7
11
-or smaller sized paper(nonstandard-size paper: less than 203
mm/8 inches in length), do not extend the cassette.
WNote Legal-sized paper, 2.13
11
x3.39
11
/54.0 x 86.0 mm size paper, and Photo
Stickers are not loadable in the cassette.
12

Basic Printing
4 Load the paper. (Print side facing DOWN)
Load limit mark
Do not load beyond this load limit
mark.
--- (1) Load the paper into the cassette
with the print side facing DOWN.
~~- (2) Align the paperstack againstthe
right side of the cassette.
~~---- (3) Slide the paper guides to fit the
loaded paper stack.
WNote • You can use general copy paper or Canon's SuperWhite Paper.
•
You can load up to 150 sheets of plain paper (64 gsm or 17 lb, 13 mm
or
0.52 inches in height) in the cassette. However, do not stack more
than 50 sheets in the paper
output tray.
13

Basic Printing
5Insertthe Cassette into the printer.
(1) Set the cover on the
cassette.
(2) Insert the cassette into the
printer.
Push the cassette all the way
into the printer.
W Note If the cassette has been extended to accommodate paper sizes larger
than 5
11
x7
11
, the front edge of the cassette will extend beyond the front of
the printer.
6Prepare the Paper Output Tray.
Put your fingers in the notches
in
either side of the front cover
and
pull down to open it.
2 Pullout the paper output tray
extension completely.
Cassette
lamp
(2) Press the Feed Switch button so
that the cassette lamp lights.
W Note • You can also select the paper source with the printer driver. For details,
refer to the PrinterDriverGuide.
• Do not touch the printed surfaces until the ink dries. For specific drying
times, refer to the instructions packaged with your media.
14

Basic Printing
•Loading Envelopes in the Cassette
Use either DL Env. or Comm. Env. #10 size envelopes.
The address is rotated automatically
to match the direction of the envelope when
printing.
~Important e Do not use envelopes with embossed or treated surfaces, adouble
flap, pressure seals or sticker flaps.
eSelect either DL Env. or Comm. Env. #10 in the printer driver according
to the envelope size you are using. If you do not, the address will be
printed in the
wrong direction.
Fold the envelope flap shut.
------....
(1) Align the envelope stack
against the
right side of
the cassette.
The flap
of the envelope
will appear with its flap
facing
UP on the left
side.
WNote Amaximum of 5
envelopes can be
loaded at once.
(2) Slide the paper guide against
the side
of the envelope.
'------- (3) Press the Feed Switch button
so
that the cassette lamp
lights.
(4) Select Envelope in Media Type, and then select DL Env. or Comm. Env. #10 in
Page Size.
For adetailed description of the printer driver settings, see "Printing with
Windows" on page 20, "Printing with Macintosh" on page 24.
15

Basic Printing
• loading 4
11
x 6
11
or 5
11
x 7
11
-Sized Paper in the Cassette
~Important e Do not leave photo paper, such as Photo Paper Pro, in the cassette for a
long time. This may cause paper discoloration due to natural aging.
eCutting plain paperto 4
11
x6
11
/101.6 mm x 152.4 mm or 5
11
x7
11
/127.0 x
177.8 mm size for a trial printing can cause paper jams.
.,,---- (1) Load the paper into the cassette
with the
print side facing DOWN.
WHote
• Do not extend the cassette.
•
Load the paper lengthways regardless of
the direction of the document.
•
You can load up to 20 sheets of 4
11
,X6
11
-
sized paper or 10 sheets of 5
11
x7"-sized
paper.
(2) Align the paper stack against the
right side
of the cassette.
(3) Slide the paper guides to
fit the
loaded paper stack.
~----- (4) Press the Feed Switch button so
that the cassette lamp lights.
16
