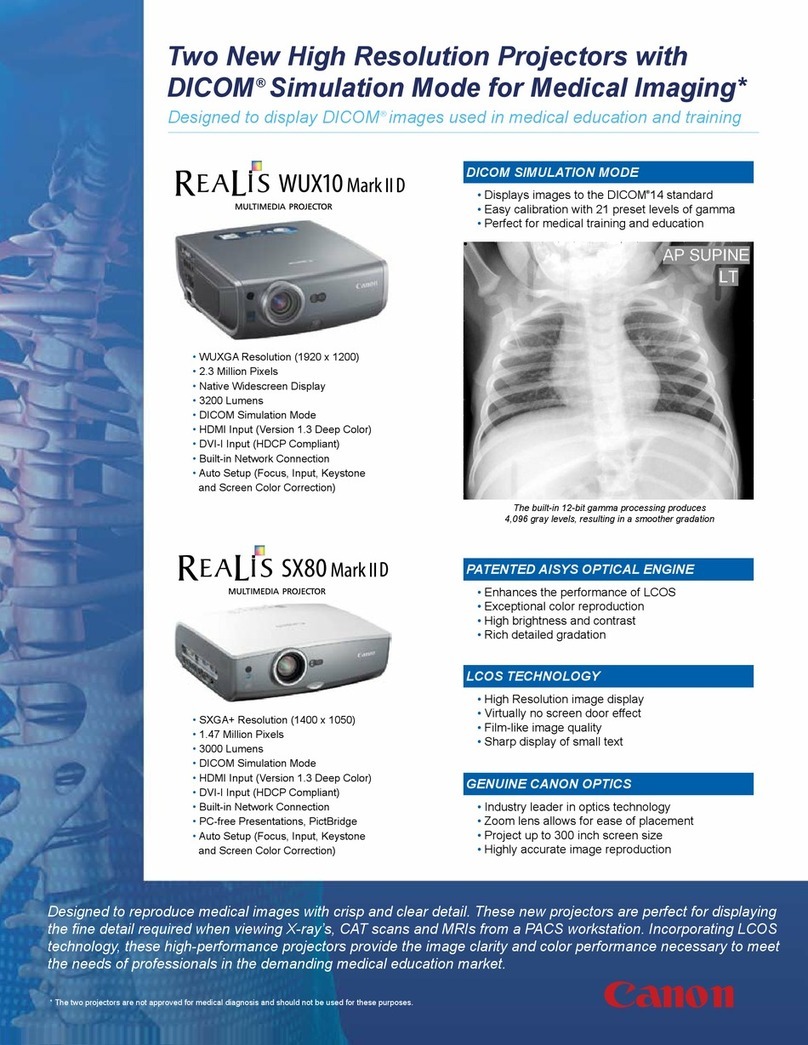

Canon REALiS SX80 Mark II D Installation and operation manual

you can
Multimedia Projector
Unrivalled clarity. Complete connectivity.
The SX80 Mark II produces crystal-clear SXGA+ images from
most sources, including HDMI, DVI and USB ßash drives.
A dedicated ‘Photo’ mode ensures superb colour accuracy
in any lighting environment.
What’s in the box:
XEED SX80 Mark II Multimedia
Projector, Remote Controller,
AAA Batteries, AC Mains Power
Cable, Computer Connection Cable,
Component Video Adaptor Cable,
Lens Cap, Carrying Case,
Warranty Card, Instruction Book,
Quick Operation Guide
Dimensions (W x H x D)
332mm x 121mm x 340mm
Weight
5.2kg
LCOS
TECHNOLOGY
3000 LUMENS
BRIGHTNESS
INTEGRATED
RJ-45
900:1
CONTRAST RATIO
DVI AND HDMI™
TERMINALS
SXGA+
RESOLUTION
PROJECTOR
Key features
•Native SXGA+ resolution (1400 x 1050 pixels) with Canon
LCOS technology
•3000 lumens brightness using Canon AISYS Optical System
•900:1 contrast ratio for vivid colours and deep blacks
•Canon 1.5x powered zoom lens with 10:0 offset
•‘PHOTO’ image mode for colour-accurate still images in any
lighting environment
•Fully automatic setup configures Focus, Keystone Correction,
Input Selection and Screen Colour Correction
•PC-Less presentation: Display images directly from USB flash
drives and digital cameras
•Near-silent operation: just 31dBA in Quiet Mode
•DVI port and HDMI™ Connector for digital image input
•RJ-45 port for control and monitoring via a network

1
5 6 8 9 10 11 12 13 7
2 3 4
Specifications
Connectivity
LCD PANEL
Type LCOS reflective display, TFT Active Matrix
Size and Number 0.55" diagonal (11.2mm x 8.4mm), 3 panels
Aspect Ratio 4:3
Native Resolution 1400 x 1050 (SXGA+), 1470000 pixels
OPTICS
Lamp Type 230W NSHA
Lens F Number and Focal Length F1.95 – F2.6; f=16.6 – 24.8mm
Zoom Magnification and Control 1.5x Motorised
Focus Control Motorised Auto / Manual Focus
Lens Shift 10:0 (fixed)
IMAGE AND AUDIO
Brightness 3000 lumens (2400 lumens in Quiet Mode)
Brightness Uniformity 88%
Contrast Ratio 900:1 (full on / full off)
Projection Distance Coverage 1.2m – 9.1m (3.0m - 4.4m for a 100 inch image)
Screen Size 40" – 300" (81 x 61cm - 610 x 457cm)
Digital Zoom Magnification 1x – 12x
Keystone Correction Range Vertical: +/- 20° (Auto / Manual)
Digital RGB Compatibility SXGA+ / SXGA / WXGA / XGA / SVGA / VGA
Analogue RGB Compatibility UXGA / SXGA+ / SXGA / WXGA / XGA / SVGA / VGA
Digital Video Scan Systems 1080p / 1080i / 720p / 576p / 480p
Component Video Scan Systems 1080p / 1080i / 1035i / 720p / 576p / 576i / 480p / 480i
Video / S-Video Colour Systems PAL / PAL-M / PAL-N / NTSC / NTSC4.43 / SECAM
Scanning Frequency Horizontal: 15-75kHz, Vertical: 50-85Hz,
Clock: 170MHz
Display Modes Standard, Presentation, Movie, sRGB, Photo
Image Enhancement 12-bit Digital Gamma Correction
Built-in Speaker 1.0W RMS, Monaural
PORTS AND CONNECTORS
Digital RGB /
Analogue RGB Input 1 DVI-I 29-pin
Digital Video and Audio Input HDMI V1.3 with Deep Colour
Analogue RGB Input 2 Mini D-Sub 15-pin (Component via supplied adaptor cable)
Analogue RGB Output Mini D-Sub 15-pin
S-Video Input Mini DIN 4-pin
Composite Video Input RCA x 1
Audio Input 1, Input 2, Input 3 3.5mm stereo mini-jack x 3
Audio Output 3.5mm stereo mini-jack x 1 (variable level)
USB Port / PictBridge Input USB Type A
Service Port / Projector Control Mini D-Sub 9-pin
Network Port RJ-45
MECHANISMS
Front Elevation Mechanism One-Touch mechanical foot, 10° maximum image elevation
Rear Adjustment Mechanism Two rotary feet for fine adjustment
RATINGS
Dimensions (W x H x D) 332mm x 121mm x 340mm
Weight 5.2kg
Power Source 100V – 240V AC, 50/60Hz
Power Consumption Normal Mode: 330W / Quiet Mode: 270W / Standby: 15W
Noise Level Normal Mode: 35dBA / Quiet Mode: 31dBA
Operating Environment +5°C to +35°C
Storage Environment -30°C to +60°C
Warranty 3 years
All data is based on Canon’s standard testing methods. This Leaflet and the specifications of the product have been developed
prior to the date of product launch. Specifications are subject to change without notice. ™and ®: All company and/or product
names are trademarks and/or registered trademarks of their respective manufacturers in their markets and/or countries.
Canon Inc.
www.canon.com
Canon Europa
www.canon-europe.com
© Canon Europa N.V., 2009
DVI-I 29-pin: Digital RGB / Digital Video / Analogue RGB Input
HDMI™ v. 1.3 (with Deep Colour): Digital Video and
Digital Audio Input
Mini D-sub 15-pin: Analogue RGB Input 2
(Component input via optional adaptor cable)
Mini D-sub 15-pin: Analogue RGB (monitor) output
Min-DIN 4 Pin: S video input
RCA x 1: Composite Video Input
USB Type A: USB Connection, PictBridge input
3.5mm mini-jack: Stereo Audio Input 1
3.5mm mini-jack: Stereo Audio Input 2
3.5mm mini-jack: Stereo Audio Input 3
3.5mm mini-jack: Stereo Audio Output (Variable level)
Mini D-Sub 9-pin: Control Port (RS-232C)
RJ-45: Network connection
1
2
3
4
5
6
7
8
9
10
11
12
13

you can
Multimedia Projector
Unrivalled clarity. Complete connectivity.
The XEED SX80 Mark II is part of the Canon Projector range
The whole range consists of:
XEED: XEED WUX10 Mark II, XEED WUX10 Mark II
Medical, XEED SX7, XEED SX6,
XEED SX80 Mark II, XEED SX80 Mark II Medical,
XEED SX800, XEED X700
LV: LV-7585, LV-8300, LV-7375, LV-7370, LV-7275
Target Markets and Applications:
Boardrooms, Meeting Rooms, General Business
Applications, Mobile Professionals, Design Applications,
Hotel Conference Facilities, Lecture Rooms, Professional
Photographers and Photo Enthusiasts
Box Dimensions (W x D x H)
497 x 444 x 304 mm
Box Weight (Gross)
6.6kg
Packaging Style Quantity of Item
Pallet 6
Sales Start Date: November 2009
MERCURY CODES
PRODUCT
Name Mercury Code EAN Code
XEED SX80 Mark II 4232B003AA 4960999659534
OPTIONS
Accessories Mercury Code EAN Code
Lamp Assembly RS-LP05 2678B001AA 4960999572567
DVI Cable (2 metres) LV-CA29 7502A001AA 4960999041285
Ceiling Pipe 400 – 600mm RS-CL08 3096B001AA 4960999614144
Ceiling Pipe 600 – 1000mm RS-CL09 3097B001AA 4960999614151
Ceiling Attachment RS-CL10 3098B001AA 4960999616445
300
250
2001801501008060
40
610
510
410370300200160120
80
1.2 m
(3.9")
1.8 m
(5.9")
2.4 m
(7.9")
3.0 m
(9.8")
6.0 m
(19.7")
5.4 m
(17.7")
4.5 m
(14.8")
9.1 m
(29.9")
7.6 m
(24.9")
1.7 m
(5.6")
3.5 m
(11.5v)
4.4 m
(14.4")
8.9 m
(29.2")
8.0 m
(26.3")
6.6 m
(21.7")
2.6 m
(8.5")
460
380
30027023015012090
60
Image Size (inches)
Width (cm)
Height (cm)
Projection Distance
(zoom max)
Projection Distance
(zoom min) —
—
www.canon.com/lcd-sim
Projection Distance (zoom max)
Projection Distance (zoom min)
Screen
PROJECTOR
