Canon CanoScan LiDE 35 User manual

1
English
Quick Start Guide
Quick Start Guide
Setup and Scanning
Try the Additional Features
Check the Package Contents
Install the Software
Windows
Macintosh
Unlock the Scanning Unit
Connect the Scanner
Try Scanning
p. 3
p. 4
p. 5
p. 6
p. 7
p. 8
Using the Scanner Buttons
p. 1
1
Using the USB 2.0 Interface
expansion cards (Windows Only)
p. 1
2
Be sure to install the software programs before connecting the scanner
to the computer!
Please read this guide before operating this scanner. After you finish reading this guide, store it in
a safe place for future reference.

Guide to the Manuals
2
Guide to the Manuals
• CanoScan and ScanGear are trademarks of Canon Inc.
• Adobe® and Acrobat®are trademarks of Adobe Systems Incorporated.
• Microsoft and Windows are registered trademarks of Microsoft Corporation in the U.S. and other countries.
• Macintosh, Power Macintosh and Mac OS are trademarks of Apple Computer, Inc., registered in the U.S. and other countries.
• ScanSoft and OmniPage are trademarks of ScanSoft, Inc.
• Other names and products not mentioned above may be trademarks or registered trademarks of their respective companies.
In this guide, Windows XP screen shots are used to illustrate explanations common to all operating systems.
Open the Package
Quick Start Guide (this guide)
This guide describes a series of processes, from opening the package to using the
scanner.
READ THIS GUIDE FIRST!
Scanning Guide (HTML format manual)
Refer to this guide when you have finished setting up the scanner according to the procedures
in the Quick Start Guide. It describes how to utilize the scanner with the bundled software,
and how to solve problems when they occur. You can install this manual onto the hard disk
together with the software programs. When you install it, the Scanning Guide icon will appear
on the desktop. Double-click the icon to view it with a browser program, such as Internet
Explorer.
User’s Guides for Application Programs (PDF format manuals)
• ArcSoft PhotoStudio
• ScanSoft OmniPage SE
Select the “View the Electronic Manuals” menu on the CanoScan Setup Utility CD-ROM. To
read these manuals, Adobe Acrobat Reader should be installed on your computer.
The socket-outlet shall be installed near the equipment and shall be easily accessible.
Use of a shielded cable with the ferrite core(s) provided with the scanner is necessary to comply with the technical
requirements of the EMC Directive.
Warning
When you use this product, you should pay attention to the following legal issues:
• Scanning of certain documents, such as bank notes (bank bills), government bonds and public certificates, may be
prohibited by law and may result in criminal and/or civil liability.
• You may be required under law to obtain authorization from a person possessing copyrights or other legal rights to
the item being scanned.
If you are uncertain of the legality of scanning any particular item, you should consult your legal adviser in advance.
HTML
PDF

Check the Package Contents
3
English
Check the Package Contents
Scanner and Accessories
Documents and Software Programs
• Quick Start Guide (this guide)
• Additional Documents
• CanoScan Setup Utility CD-ROM
• The two figures in the brackets below indicate the respective sizes of the Windows/
Macintosh versions of the software.
• Approximately 200 MB/ 160 MB (for Windows/Macintosh) of hard disk space on your
computer is required to install all the programs. Additional free hard disk space is
required to operate the programs.
ScanGear CS (25 MB / 10 MB) - Scanner Driver
It allows you to scan and load images from the scanner.
CanoScan Toolbox (15 MB / 10 MB) - Scanning Utility Program
It enables you to scan images and copy (print), attach images to e-mail messages or save images with
simple steps. It also works with the scanner buttons.
ArcSoft PhotoStudio (35 MB / 20 MB) - Image Editing Program
It allows you to load images from the scanner, edit and retouch them, and apply special effects and
enhancements.
ScanSoft OmniPage SE (90 MB / 80 MB) - OCR (Optical Character Recognition) Program
It converts characters scanned from a book, magazine or newspaper into text data for editing or
digital transmission.
Adobe Acrobat Reader (25 MB / 30 MB) - PDF File Reader Program
Electronic manuals for the above software programs (HTML (10 MB) and PDF manuals)
CanoScan LiDE 35 USB Interface Cable Stand (P. 7)

Install the Software (Windows)
4
Install the Software (Windows)

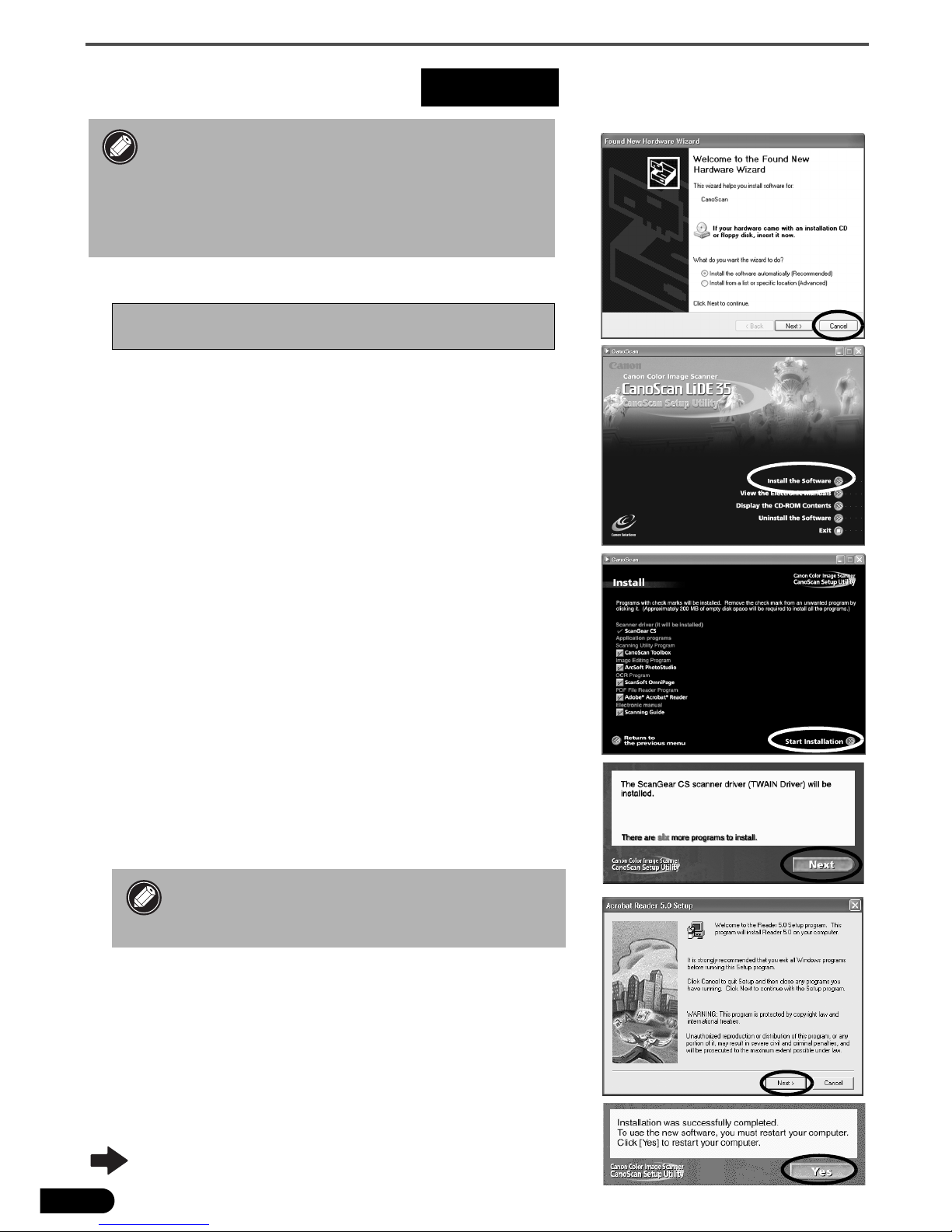

1Turn the computer on.
2Place the CanoScan Setup Utility CD-ROM in the drive.
After you select your language, the CanoScan Setup Utility main
menu will display.
3Click [Install the Software].
Read the SOFTWARE USER LICENSE AGREEMENT. Click [Yes] if
you accept the terms.
The [Install] window will display.
4Click [Start Installation].
You will install five software programs and the Scanning Guide
(HTML format manual).
5The installation procedure will start.
Follow the on-screen message prompts and click [Next] or [Yes]
to continue the installation.
6When the installation is complete, click [Yes].
The computer will restart.
7After Windows restarts, remove the CD-ROM from
the drive and store it in a safe place.
Continue on P. 6.
• With Windows XP/2000, you should log on with
an administrator user name when you install or
uninstall software programs.
• If you are using a computer which does not
equip USB 2.0 interface by standard, refer to
P. 12.
If the "Found New Hardware Wizard" or
"Add New Hardware Wizard" appears, click [Cancel].
• In few cases, your operating system may
require a restart. Follow the on-screen
messages to restart and resume installation.
Windows

Install the Software (Macintosh)
5
English
Install the Software (Macintosh)
1Turn the computer on.
Make sure to log in with the first created administrator to install the software. You cannot install the
software when logged in using added administrator accounts.
2Place the CanoScan Setup Utility CD-ROM in the
drive.
3Double-click the CD-ROM icon.
4Double-click the [SetUp] icon.
After you select your language, the CanoScan Setup Utility
main menu will display.
5Click [Install the Software].
Read the SOFTWARE USER LICENSE AGREEMENT. Click [Yes] if
you accept the terms.
The [Install] window will display.
6Click [Start Installation].
You will install five software programs and the Scanning Guide
(HTML format manual)
7The installation procedure will start.
Follow the on-screen message prompts and click [Next], [Yes]
or [Install] to continue the installation.
If a verification dialog appears, input the Administrator’s name
and password.
8When the installation is complete, click [Yes].
The computer will restart.
9After restarting, remove the CD-ROM from the drive
and store it in a safe place.
Macintosh

Unlock the Scanning Unit
6
Unlock the Scanning Unit
1Peel the seals off the scanner.
2Gently turn the scanner over.
3Push the lock switch toward the unlock mark ( ).
4Return the scanner to a horizontal position.
• Unlock the scanning unit before connecting the scanner to the computer. If it is left
locked, a malfunction or other problem may occur.
• Do not tilt the scanner more than 90 degrees from horizontal when releasing the lock.
• When locking the scanner, do not lift up the back and tilt the front (scanner button
location) downward. You may be unable to set the lock.
• When carrying or transporting the scanner, always lock the scanning unit by pushing the
lock switch toward the lock mark ( ).
Lock Switch
Unlock Mark

Connect the Scanner
7
English
Connect the Scanner
1Peel the caution seal from the back of the scanner.

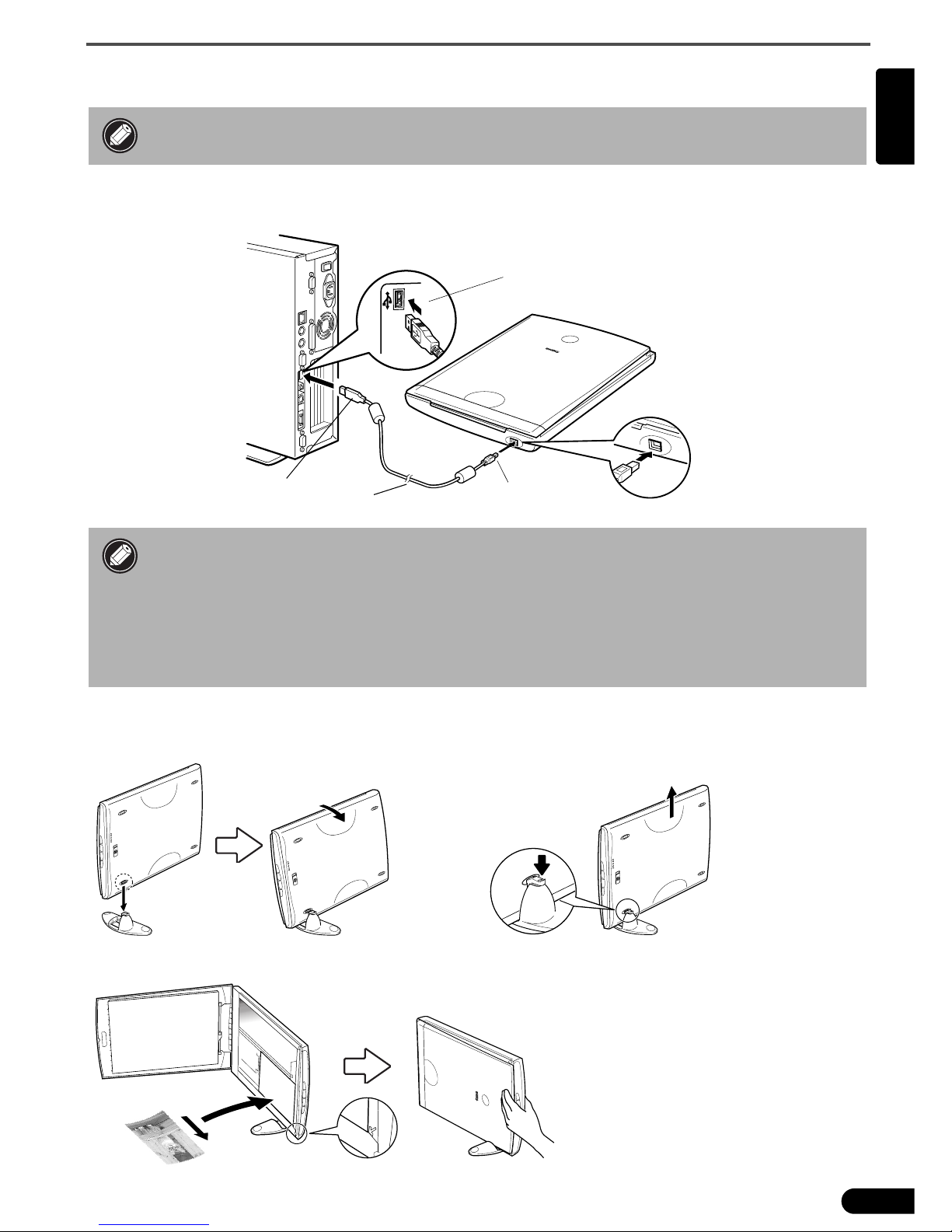

2Connect the scanner to the computer with the supplied USB interface cable.
Using the Scanner in the Upright Position
Installing the Stand Removing the Stand
Positioning an item
• Make sure that the scanning unit is unlocked. (P. 6)
• Only use the USB interface cable provided with the scanner. Use of other cables may
lead to a malfunction.
• The scanner does not have a power switch. The power is activated as soon as the
computer is turned on.
• When the scanner is connected to the USB 1.1 port on Windows XP, do not worry if the
"HI-SPEED USB Device Plugged into non-HI-SPEED USB Hub" message appears. You can
operate the scanner in this condition without problems.
USB Interface Cable
Wide Flat Connector Small Square Connector
USB Connector
Removing the stand.
Press the hook.

Try Scanning
8
Try Scanning
The following steps explain how to scan with ArcSoft PhotoStudio.
1Place a photo or a picture on the glass
by aligning its top edge with the
alignment mark, and close the
document cover.
Alignment
Mark
Bottom
Top
2Select [Start], [Programs] or [All
Programs], [ArcSoft PhotoStudio 5.5]
and [PhotoStudio 5.5].
PhotoStudio will start.
Windows
2Double-click the [Applications] folder
followed by the [PhotoStudio] folder
and the [PhotoStudio] icon.
PhotoStudio will start.
Macintosh

Try Scanning
9
English

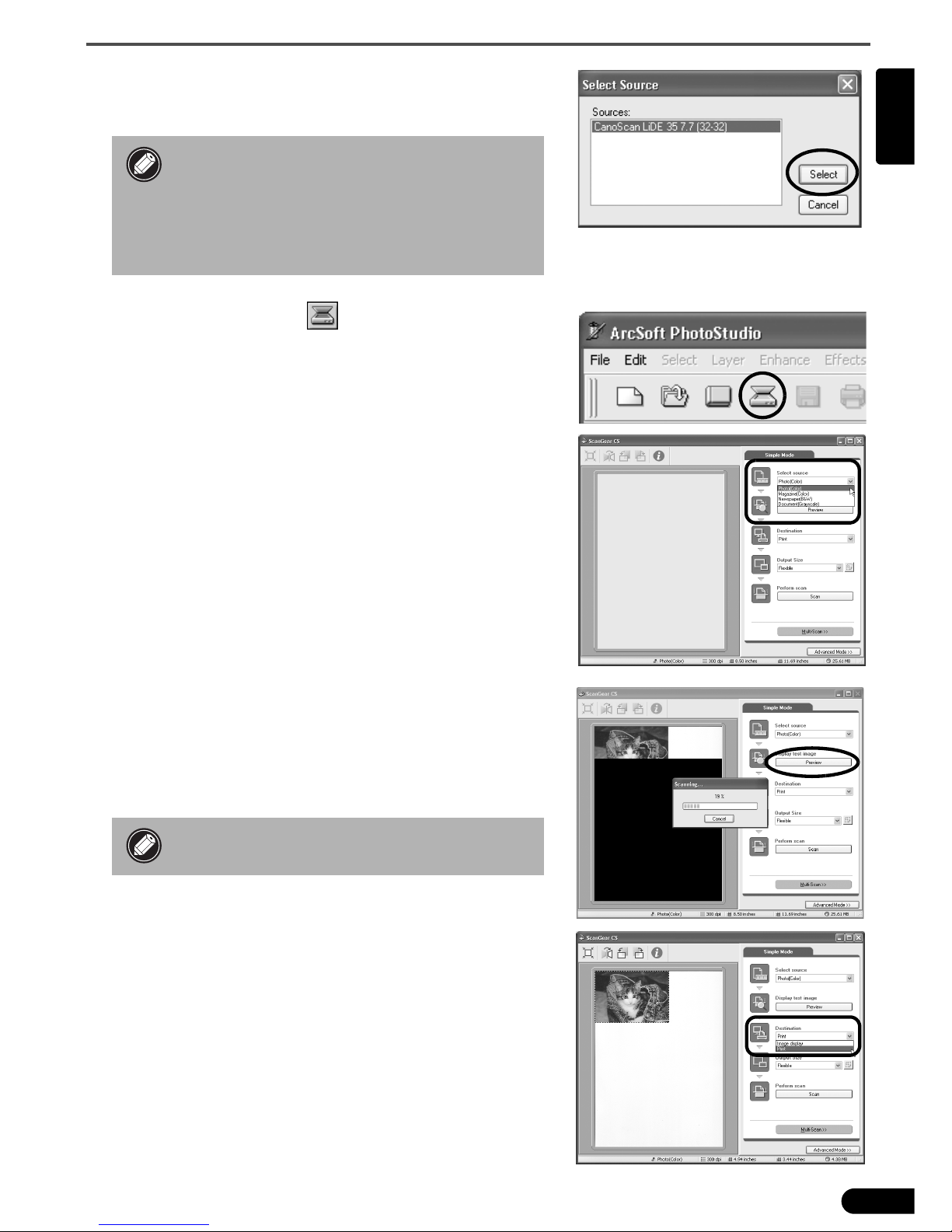

3Click the [File] menu and choose [Select Source].
Select your scanner model name and click the [Select] button
for Windows or the [OK] button for Macintosh.
4Click the Acquire icon or click the [File] menu
and select [Acquire].
ScanGear CS will start.
5Select the [Select Source].
You can select from the following options.
Photo (Color)/Magazine (Color)/Newspaper (B&W)/Document
(Grayscale).
6Click [Preview].
After calibration, the preview scan will start and gradually
display the image.
The image is automatically cropped at its original size.
If you want to trim the image further, drag the mouse
diagonally to select the area.
7Select the [Destination].
You can select [Print] or [Image display].
When [Print] is selected, the output resolution is set to 300 dpi.
When [Image display] is selected, it is set to 150 dpi.
[Print] is selected in this example.
• After you set this setting the first time, you
do not need to set it from the second time
onward with the same scanner.
• You will need to reset this setting if you
select a different scanner or a digital
camera.
• Do not open the document cover while a
scan is in progress.

Try Scanning
10
8Select the [Output Size].
You can select from the following options.
• If you selected [Print] in Step 7:
Flexible / 4"x6" / A4 / Letter / Custom Settings
• If you selected [Image display] in Step 7:
Flexible / 640 x 480 / 800 x 600 / 1024 x 768 / 1600 x 1200 /
2048 x 1536 / Custom Settings
With the [Flexible] option, the scan area enclosed by the
dotted line (cropping frame) will be scanned at the same scale
as the original. You can change the cropping frame.
If you selected [Print] in Step 7, you can select the 4" x 6", A4,
Letter, and Custom Settings options. Expand or decrease the
cropping frame to correspond to the size of the paper for
printing.
If you selected [Image Display] in Step 7, you can select an
output size in pixels to match the sizes used by computer monitors and digital cameras.
9Click [Scan].
The final scan will start.
10Click close box (Windows) or (Macintosh) in
the ScanGear CS window to close it.
The scanned image will appear in the PhotoStudio window.
11Save the scanned image.
Click the [File] menu and select [Save As]. Select the folder
where you wish to store the image file, enter a file name,
select a file type (JPEG format is recommended) and click
[Save].
12Click close box (Windows) or (Macintosh) in
the PhotoStudio window to close it.
• If the scanner does not perform as described above, read the "Troubleshooting" section
of the Scanning Guide (HTML format manual).
• For details about the bundled software programs, read the Scanning Guide or the User’s
Guide (PDF format manual) for each software program on the CanoScan Setup Utility
CD-ROM.

Using the Scanner Buttons
11
English
Using the Scanner Buttons
You can use the four convenient buttons on the front of the scanner to scan and perform related tasks easily
with a single touch of the button. Place an item on the scanner before pressing a button.
• To use these buttons, ScanGear CS, CanoScan Toolbox, ArcSoft PhotoStudio and Acrobat
Reader should be installed from the CanoScan Setup Utility CD-ROM.
COPY Button
To print (copy) the scanned image with a printer:
1Press the [COPY] button.
The scanner will scan the item.
The scanned image will print.
• The printer driver should be installed and the
printer should be on-line to use this function.
FILE Button
To save the scanned image as a PDF file:
1Press the [FILE] button.
The scanner will scan the item.
The scanned image will be saved as a PDF
document and appear in Adobe Acrobat
Reader.
A PDF (Portable Document Format) document is
a file format that can be displayed and printed
with application program such as Adobe
Acrobat Reader/ Adobe Reader. It is easy to
create PDF files for your images by using the
FILE Button on the scanner or the FILE Button in
CanoScan Toolbox. You can also make PDF files
with multiple pages and create text-searchable
PDF files.
• If you press the [Cancel] button while scanning, you can change the default settings for
scanning. For changing settings, refer to the Scanning Guide (HTML format manual).
• To use the E-MAIL Button, one of the following e-mail programs should be installed and
enabled.
For Windows: Microsoft Outlook Express, Microsoft Outlook, Eudora or Netscape
Messenger. (Some mail programs are required to set the MAPI function on.)
For Macintosh : Mail (Mac OS X 10.2 or later), Eudora or MS Entourage.
SCAN Button
To open the scanned image in the PhotoStudio
window:
1Press the [SCAN] button.
The scanner will scan the item.
The scanned image will appear in the
PhotoStudio window.
E-MAIL Button
To attach the scanned image to a new e-mail
message:
1Press the [E-MAIL] button.
2The [E-mail software selection] dialog
will appear. Select an option from the
list and click [OK].
This step is required only for the first scan.
The e-mail software will start and the scanned
image will be attached in a new message
window.
The scanner will scan the item.

Using the USB 2.0 Interface expansion cards (Windows Only)
12
Using the USB 2.0 Interface expansion cards (Windows Only)
To Switch to USB 2.0
If your computer is equipped with USB 1.1, you can switch to the USB 2.0 environment for faster scanning
by purchasing and installing one of the USB 2.0 expansion cards available on the market. Please note that
Macintosh computer with USB 2.0 Hi-Speed interface expansion card is not supported.
Compatible USB Expansion Cards/Hubs
Please use one the following USB expansion cards/hubs that have been verified by Canon for compatibility.
Expansion Cards
• Adaptec USB2connect 5100: PCI bus
• Adaptec USB2connect 3100LP: PCI bus
• Adaptec USB2connect 2000LP: PCI bus
• Adaptec DuoConnect: PCI bus
Hubs
• Adaptec XHUB4
• Adaptec XHUB4PLUS
• Adaptec XHUB7PLUS
For installation procedures, please read the instructions that accompany the USB expansion card/hub.
Confirming the USB Version
Use the following procedures to confirm whether your computer is
equipped with a USB version 1.1 or 2.0 interface.
1Start ScanGear CS.
2Click the information icon in the upper portion of the
ScanGear CS window.
3Read the contents of the Interface category in the displayed
window. USB 1.1 will show as “USB 1.1” and USB 2.0 as “USB 2.0.”
4Click the close box to close the window.
Troubleshooting the USB2.0 Hi-Speed Interface
If the scanner is not operating correctly via the USB2.0 Hi-Speed interface, follow the steps below to
troubleshoot it.
1Ensure that you use the USB cable supplied with the scanner.
2Connect the scanner directly to a USB port on the computer, not through a USB hub.
3With the Microsoft USB 2.0 driver, if the scanner is not recognized by the computer
after installing ScanGear CS:
• Detach the USB cable and attach it again.
4Use the following procedures to confirm that the computer correctly recognizes the
USB expansion card and the scanner.
1. Open the Windows [Device Manager] and confirm that your scanner name appears below the [Imag-
ing Device] category.
2. Confirm that [Adaptec AUA-xxxx], [NEC PCI to USB Enhanced Host Controller] or [Intel PCI to USB
Enhanced Host Controller] appears below the [USB (Universal Serial Bus) Controllers] category.
3. Confirm that the USB expansion card is correctly installed into the computer and that the scanner is
attached to its port.
4. If you use more than two devices via USB2.0 Hi-Speed interface, try to disconnect other devices than
the scanner.

Specifications
13
English
Specifications
*1 USB 2.0 Hi-Speed mode. Transfer time to computer is not included.
*2 Calibration processing time is not included.
*3 Note that Macintosh computer with USB 2.0 Hi-Speed interface expansion card is not supported.
• Specifications are subject to change without notice.
CanoScan LiDE 35
Scanner Type Flatbed
Scanning Element CIS (Contact Image Sensor)
Light Source 3-color (RGB) LED
Optical Resolution 1200 x 2400 dpi
Selectable Resolution 25 - 9600 dpi
Scanning Bit Depth Color 16 bit input / 16 bit or 8 bit output for each color (RGB)
Grayscale 16 bit input / 8 bit output
Scanning Speed*1
(Photo or Document)
Color 6.4 msec./line (600 dpi), 12.7 msec./line (1200 dpi)
Grayscale, B&W 3.1 msec./line (600 dpi), 4.2 msec./line (1200 dpi)
Preview Speed*2 Approximately 9 sec.
Interface USB 2.0 Hi-Speed *3
USB (USB 1.1 equivalent)
Maximum Document Size A4/Letter: 216 x 297 mm
Scanner Buttons 4 buttons: COPY, SCAN, FILE, E-MAIL
Operating Range Tempe ra tu re 5°C to 35°C (41°F to 95°F)
Humidity 10% to 90% RH (without condensation formation)
Power Requirements Supplied via USB port
Power Consumption In operation: 2.5 watts maximum, Stand-by: 1.5 watts
Maximum Exterior Dimensions 258 x 374 x 38 mm
Weight Approximately 1.8 kg
• Before you upgrade to Windows XP from Windows 98/Me/2000, you must uninstall
ScanGear CS and CanoScan Toolbox using the “Uninstall the Software” menu of the
CanoScan Setup Utility CD-ROM. The scanner may not work if you upgrade to Windows
XP with these programs still installed. After upgrading to Windows XP, reinstall
ScanGear CS and CanoScan Toolbox according to the steps on page 4. For details, please
read the “Troubleshooting” section of the Scanning Guide (HTML format manual).

System Information
14
System Information
This form should be used to record the operating environment for the purchased scanner.
If any problems occur with the scanner, you will need this information when you contact our Customer
Support Help Desk. Be sure to record the information and store it in a safe location.
• This information is also required to request a repair under warranty. Make sure you record the information
and store it in a safe location.
• Guaranteed servicing for this equipment will expire five years after production ceases.
• About the Computer Used
Date of Purchase:
Dealer Tel:
Dealer Address:
Scanner Model: CanoScan LiDE 35
Serial Number (on the back of the equipment):
Manufacturer: Model:
CPU: Clock Speed: MHz
Memory Capacity (RAM): MB Space Available: MBHard Disk Capacity: MB
OS: Windows XP Me 2000 98
Macintosh OS X v10.1 OS X v10.2 OS X v10.3
Monitor Type: Monitor Size: inches
Printer: Manufacturer:
Type of Printer: Printer Resolutions:
Installed Virus Protection Program:
Installed Compression Program:
On-Board Expansion Cards:
Attached Peripherals:
Connected Network System:
