Canon WFT-E2 User manual

Wireless File Transmitter
WFT-E2
WFT-E2A
E
INSTRUCTION MANUAL
This product is offered in two versions, WFT-E2 and WFT-E2A. Each version operates on a
different number of wireless LAN channels. The WFT-E2 can transmit on 13 channels, and the
WFT-E2A, on 11 channels. This difference in the number of channels available is due to
varying radio regulations in areas of use.
In other respects, the WFT-E2 and WFT-E2A are identical. They are operated in the same
way. This instruction manual describes operation using the WFT-E2 as an example.
COPY

2
Thank you for purchasing a Canon product.
The Wireless File Transmitter WFT-E2 is an accessory for EOS-1D Mark III and EOS-1Ds Mark
III cameras (supporting wireless and wired LAN functions and equipped with a USB port). It
enables the following operations. The WFT-E2 is compatible with IEEE 802.11b and IEEE
802.11g wireless LANs as well as 100 Base-TX Ethernet wired LANs.
Wireless and Wired LAN Functions
Functions When Connected via USB
FTP
PTP
External Media GPS
HTTP
Transfer images to an FTP server
Use a web browser to capture, view,
and download images remotely
Use EOS Utility to capture, view, and
download images remotely
Record, backup, or copy images onto external
media
Add information regarding the latitude,
longitude, altitude, and date and time of
shooting to images
COPY

3
Introduction
These instructions should be followed only after your wireless or wired LAN and FTP server
settings are complete. For details on configuring these settings, refer to the documentation
provided with the respective equipment.
Camera menu screens depicted in this manual are generally those of the EOS-1D Mark III.
Terms in brackets [ ] indicate button or icon names or other software elements. Brackets
also denote camera menu items.
Page numbers in parentheses indicate where you can find additional information.
Instructions on camera operations should be followed only after you have read the Camera
Instruction Manual and are familiar with operating the camera.
Sections of this manual labeled with the following symbols contain information of the
corresponding nature.
: Warnings to avoid potential problems are labeled with a caution symbol.
: Supplemental information is labeled with a note symbol.
Conventions Used in this Manual
Windows is a trademark or registered trademark of Microsoft Corporation in the United
States and other countries.
Macintosh is a registered trademark of Apple Corporation in the United States and other
countries.
Wi-Fi is a registered trademark of the Wi-Fi Alliance.
Wi-Fi Certified, WPA, WPA2, and the Wi-Fi Certified logo are trademarks of the Wi-Fi
Alliance.
UPnP is a trademark of the UPnP Implementers Corporation.
All other corporate and brand names in this manual are trademarks or registered
trademarks of their respective owners.
Using the transmitter for remote image transfer, capture, or viewing requires adequate knowledge of
configuring your wireless or wired LAN and FTP server.
Canon cannot provide support for configuring wireless or wired LANs or FTP servers.
Note that Canon cannot be held liable for any loss or damage to the transmitter from erroneous network
or FTP server settings. In addition, Canon cannot be held liable for any other loss or damage caused by
use of the transmitter.
COPY

4
Introduction
Conventions Used in this Manual ...................................................................................................... 3
Areas of Use and Restrictions ........................................................................................................... 6
Safety Warnings................................................................................................................................. 7
Nomenclature..................................................................................................................................... 8
Attaching to the Camera .................................................................................................................... 9
Subsequent Organization of This Manual........................................................................................ 10
1Basic Network Settings 11

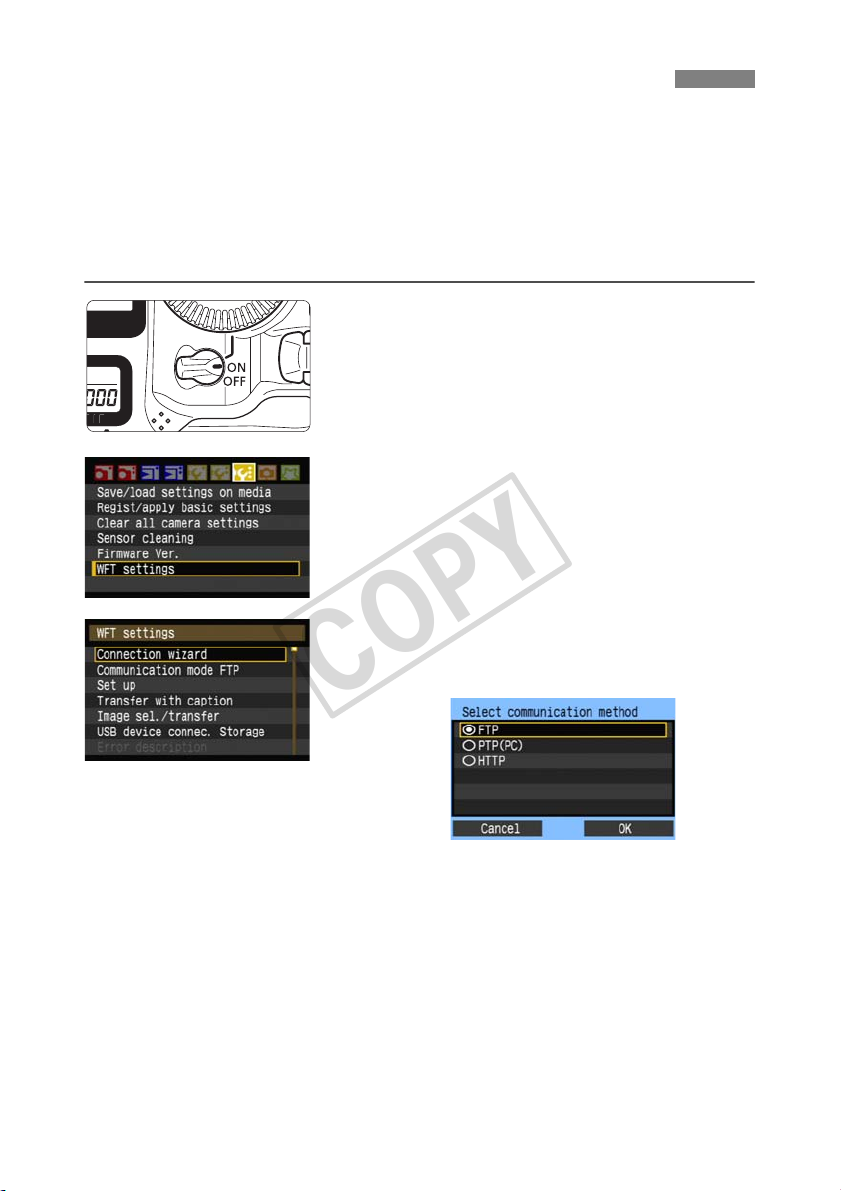

Displaying the Connection Wizard ................................................................................................... 12
Following the Connection Wizard .................................................................................................... 13
2FTP Settings and Image Transfer 19
Configuring FTP Transfer Settings .................................................................................................. 20
Automatic Image Transfer After Each Shot ..................................................................................... 22
Transferring Images Individually ...................................................................................................... 24
Batch Transfer ................................................................................................................................. 26
Checking Image Transfer History .................................................................................................... 31
Viewing Transferred Images ............................................................................................................ 32
3PTP Settings and Remote Capture 33
Configuring PTP Transfer Settings .................................................................................................. 34
Using EOS Utility ............................................................................................................................. 37
4HTTP Settings and Remote Capture 39
Configuring HTTP Transfer Settings................................................................................................ 40
Displaying WFT Server .................................................................................................................... 42
Shooting Remotely........................................................................................................................... 43
Viewing Images................................................................................................................................ 45
5Managing Settings Information 47
Checking Settings ............................................................................................................................ 48
Changing Settings............................................................................................................................ 49
Saving and Loading Settings ........................................................................................................... 51
6Using External Media 53
Connecting External Media.............................................................................................................. 54
Choosing Recording Media When Shooting .................................................................................... 57
Copying Images ............................................................................................................................... 59
Backing Up on External Media......................................................................................................... 60
Contents
COPY

1
2
3
4
5
6
7
8
9
5
7Using GPS Devices 65
Connecting GPS Devices ................................................................................................................ 66
8Troubleshooting 69
Responding to Error Messages ....................................................................................................... 70
Wireless LAN Notes......................................................................................................................... 83
Checking Network Settings.............................................................................................................. 84
9Reference 85
WFT Utility (Software)...................................................................................................................... 86
Creating and Registering Captions .................................................................................................. 88
Specifications................................................................................................................................... 89
Index ................................................................................................................................................ 95
Contents
COPY

6
The WFT-E2 can be used only in the following areas.
Japan, France, Italy, Germany, United Kingdom, Belgium, the Netherlands, Luxembourg,
Ireland, Denmark, Greece, Spain, Portugal, Austria, Finland, Sweden, Poland, Hungary,
Romania, Bulgaria, Czech Republic, Slovakia, Slovenia, Estonia, Latvia, Lithuania, Cyprus,
Malta, Iceland, Norway, Switzerland, Lichtenstein, Australia, New Zealand, Singapore,
Russia and China
The WFT-E2A can be used in the United States and Canada, in addition to the previous
areas.
For information on other areas where the transmitter can be used, contact the Canon
Customer Service Center.
The WFT-E2, which operates on wireless LAN frequencies for 13 channels, cannot be used
in the United States or Canada. Instead, use the WFT-E2A, which operates on wireless LAN
frequencies for 11 channels.
In France, using the transmitter outdoors is prohibited.
In Italy, use outside of one’s own premises requires general authorization.
In Latvia, use outside of one’s own premises requires an individual radio license.
The following actions may be punishable under law. Disassembling or modifying the
transmitter, or removing the certification label on it.
Do not use the transmitter near other devices that emit radio waves, such as medical
equipment or electronic devices. The transmitter may interfere with operation of these
devices.
Use the transmitter only with a compatible EOS DIGITAL camera. Using it with incompatible
cameras may cause malfunction, accidents, and other problems not covered under
warranty.
Use the transmitter as a wireless or wired LAN device as described in this instruction
manual. If you use the transmitter for any other purpose, Canon cannot be held liable for
any loss or damage that may occur.
Areas of Use and Restrictions
COPY

7
Introduction
The following precautions are intended to prevent harm to you and others as well as damage to
equipment. Become familiar with the precautions before using the transmitter to ensure correct
and safe operation.
To prevent fire, excessive heat, chemical leakage, or explosion, follow these safety guidelines.
• Do not insert metallic objects between electrical contacts of the transmitter, accessories, or connecting cables.
Do not use the transmitter where there is flammable gas. There is a risk of explosion or fire.
If the transmitter is dropped and internal parts are exposed, do not touch the exposed parts. There is a risk of
electrical shock.
Do not disassemble or modify the transmitter. High-voltage internal parts may cause electrical shock.
Do not store the transmitter in dusty or humid places. There is a risk of fire or electrical shock.
Before using the transmitter on board airplanes or in hospitals, make sure use is permitted. Electromagnetic
waves emitted by the transmitter may interfere with instrumentation or medical equipment.
Do not leave the transmitter inside a vehicle in hot weather or near a heat source. The transmitter may become
hot and cause burns if touched.
Do not cover or wrap the transmitter with a cloth. This may trap heat inside, posing a risk of case deformation or
fire.
Do not use paint thinner, benzene, or other organic solvents to clean the transmitter. This poses a risk of fire and
may be hazardous to your health.
If the product malfunctions, becomes damaged, or requires repair, contact your dealer
or the nearest Canon Service Center.
The transmitter is a precision instrument. Do not drop it or subject it to shock.
The transmitter is not waterproof. Do not use it underwater.
Wipe off any moisture with a clean, dry cloth. If the transmitter has been exposed to salty air,
wipe it with a clean damp cloth after wringing it out to remove excess water.
Never leave the transmitter near any equipment that generates a strong magnetic field,
such as magnets or electric motors.
Do not leave the transmitter in excessive heat, such as in a vehicle in direct sunlight. High
temperature may damage the transmitter.
Do not wipe the transmitter using cleaners containing organic solvents. If the transmitter
becomes difficult to clean, take it to the nearest Canon Service Center.
To avoid corrosion, do not store the transmitter where there are strong chemicals, such as in
darkrooms or chemical labs.
Safety Warnings
Warning Preventing Serious Injury or Death
Caution Preventing Injury or Equipment Damage
Handling Precautions
COPY

8
Nomenclature
USB port
Ethernet
RJ-45 port
Terminal cap
receptacle
<
USB > USB lamp
<
LAN > Network lamp
Port cover
Locking lever
Attachment pin
Tightening
screw
Terminal
External Media Case*1
Waterproof/Dustproof USB Cap*2 Transmitter Case
*1: For storing portable hard disks or other devices.
*2: Attach this cap before connecting the USB cable in rainy weather or under other adverse conditions.
COPY

9
Introduction

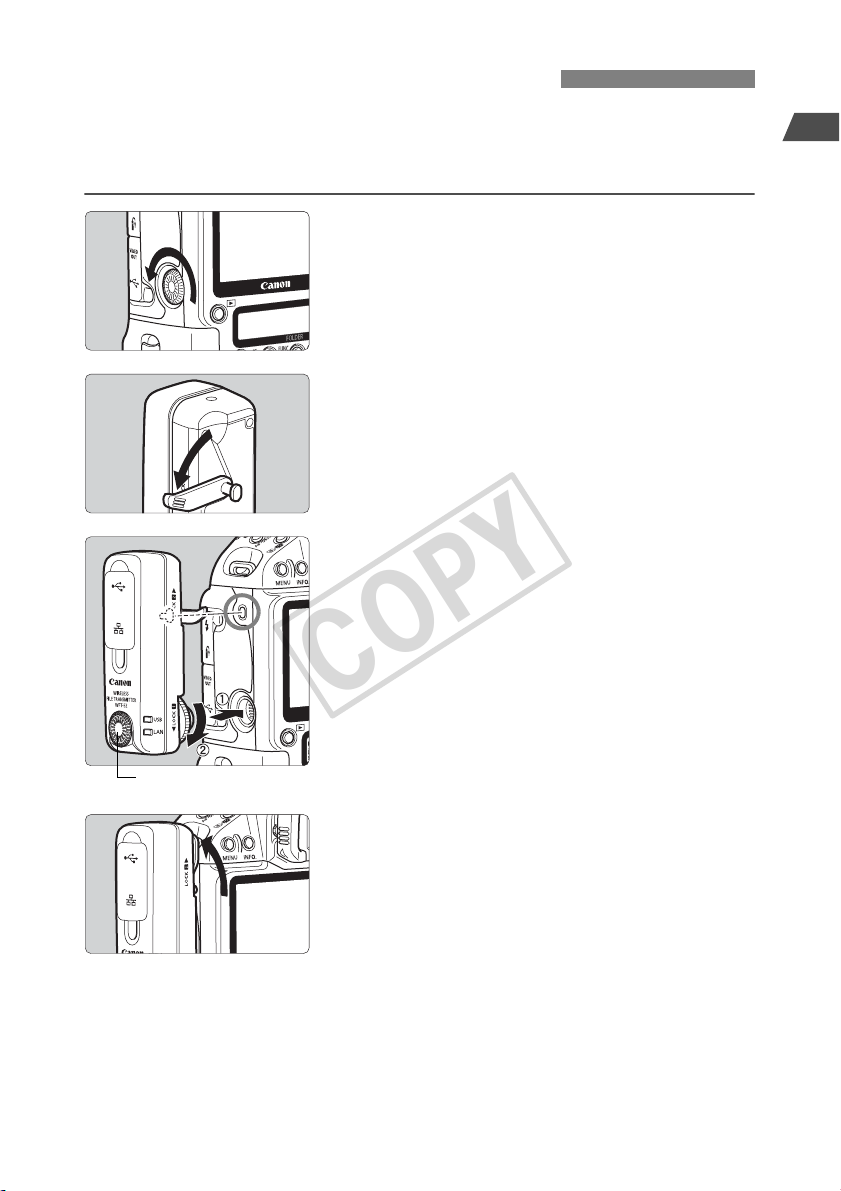

Turn off the camera before attaching the transmitter.
Ensure the camera battery has sufficient charge. If the charge drops below 19%, you
cannot transfer captured images or back them up to external media.
1Remove the terminal cap from the
camera.
Unscrew the extension system terminal cap to
remove it.
Screw the terminal cap into the terminal cap
receptacle of the transmitter.
2Move the lever into the release position.
3Attach the transmitter.
Align the attachment pin with the WFT-E2/E2A
mounting hole on the camera.
Push the terminal firmly into the camera.
Turn the tightening screw until it stops rotating to
attach the transmitter securely.
4Move the lever into the locked position.
The transmitter is now attached to the camera.
The transmitter will be powered by the camera.
Removal
Turn off the camera.
Push the lever down, into the release position.
Loosen the tightening screw until it spins freely.
Pull the terminal out of the camera.
Attaching to the Camera
Camera terminal cap
COPY

10
In addition to wireless and wired LAN functions, the WFT-E2 can communicate with external
media and GPS devices.
For instructions on operations after you have attached the transmitter to the camera, click one
of the following chapter titles to view the corresponding page.
Subsequent Organization of This Manual
Using a Wireless or Wired LAN
(Basic Network Settings)
Chapters 1 to 5
Using External Media
Chapter 6
Using GPS Devices
Chapter 7
COPY

11
1
Basic Network Settings
Complete the basic network settings by following the instructions of the
transmitter connection wizard on the camera menu screen, which provides
guidance.
Getting Ready
The connection wizard helps you follow the steps to connect the transmitter to an
existing wireless or wired LAN.
To connect to a wireless LAN, prepare the wireless LAN device (wireless LAN access
point or wireless LAN adapter) and computer in advance so that they are ready for
you to connect the transmitter to the wireless network. When configuring the basic
network settings, bring the transmitter within 3 m/9.8 ft. of the wireless LAN device.
To connect to a wired LAN, use a LAN cable to connect the transmitter and computer.
Prepare the transmitter for connection to the wired network.
COPY

12
This section describes the process of following the connection wizard instructions. If an error is
displayed, refer to “Troubleshooting” in Chapter 8 (p.69) and check the settings.
Pressing the shutter button or other camera controls during configuration by the connection
wizard will close the connection wizard. Do not press the shutter button or other controls
until configuration is finished.
On the [5] tab, set [Auto power off] to [Off]. If auto power off is activated, the connection
wizard will be closed during the configuration process.
1Turn the camera on.
2Display the transmitter menu.
On the camera, press the <7> button.
On the [7] tab, select [WFT settings] and press
<0>. [WFT settings] is added to the tab after you
attach the transmitter.
3Select [Connection wizard].
XThe [Select communication method] screen is
displayed.
XThe <
LAN > lamp starts blinking.
Displaying the Connection Wizard
COPY

13
1
Basic Network Settings

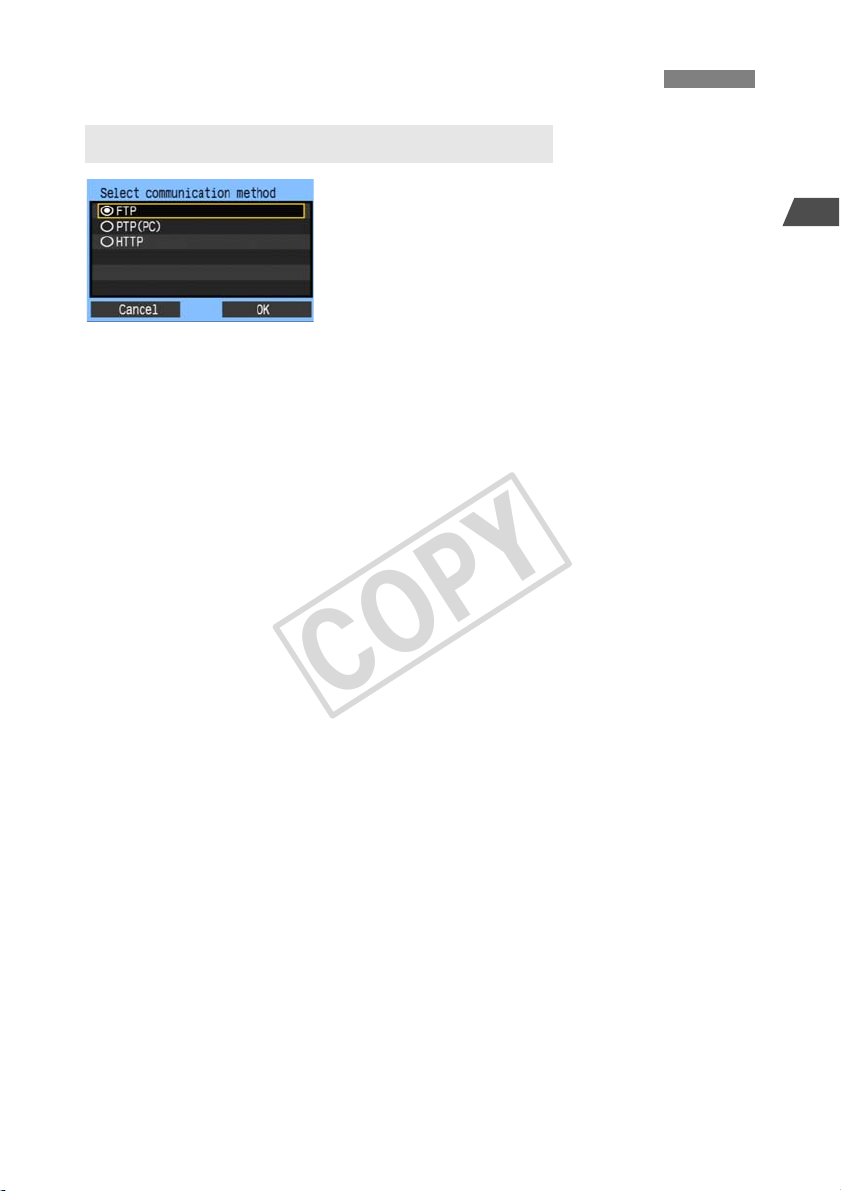

Turn the <5> dial to select the communication
method, and then press <0>.
Select [OK] and press <0> to go to the next
screen.
• FTP
Choose this option to transfer captured images to an FTP server.
Images can be automatically transferred as you shoot them, or you can select images for
transfer later.
Computer Operating Systems
Operation via [FTP] requires that Windows Vista (Business, Enterprise, or Ultimate Edition
for 32- or 64-bit systems), Windows XP Professional, Windows 2000, or Mac OS X 10.4 be
installed on your computer. In addition, the computer must be prepared as an FTP server in
advance.
For instructions on preparing your computer as an FTP server, refer to the computer
documentation.
Windows Vista Home Premium and Home Basic Edition as well as Windows XP Home
Edition cannot be used because FTP server functionality is not supported.
• PTP
Choose this option when using EOS Utility for remote capture over a wireless or wired LAN.
In addition to remote capture, all camera operations in EOS Utility are supported because a
wireless or wired network is used with this option instead of the USB cable.
Computer Operating Systems
Operation via [PTP] requires that any edition of Windows Vista for 32- or 64-bit systems
(except Starter Edition), Windows XP (Home Edition or Professional, with Service Pack 2),
or Mac OS X 10.4 be installed on your computer.
• HTTP
Choose this option for remote capture over a wireless or wired LAN.
In addition, images on a memory card in the camera can be viewed and downloaded to a
computer.
The camera can be accessed like browsing a webpage, by users at up to three computers.
Computer Operating Systems
Any computer with a web browser can be used, regardless of the operating system.
Following the Connection Wizard
Selecting the Communication Method
COPY

14
Following the Connection Wizard
Turn the <5> dial to select the type of LAN, and
then press <0>.
Select [OK] and press <0> to go to the next
screen.
Wireless LAN
Active wireless LAN devices in your area are found and listed.
Wired LAN
The [Network] settings screen is displayed. If you have selected a wired network, refer to page
16, “Configuring Network Settings.”
Use a Category 5 or higher STP LAN cable. (STP: Shielded Twisted Pair)
Wireless LAN devices are listed with identifying information. Select the SSID (or ESS-ID) of
your desired wireless LAN device.
To select the wireless LAN device, press <0>.
Turn the <5> dial to select the wireless LAN
device, and then press <0>.
Select [OK] and press <0> to go to the next
screen.
1Indicates whether the device is in infrastructure or ad hoc mode
2An icon is displayed if the wireless LAN device is encrypting communication
3Indicates the first 9 characters of the SSID
4Indicates the channel used
Encryption by Wireless LAN Devices
If the wireless LAN device is encrypting communication, select the corresponding method in
[Authentication] and [Encryption].
[Authentication]: Open system, Shared key, WPA-PSK, or WPA2-PSK
[Encryption]: WEP, TKIP, or AES
Selecting the LAN Type
Selecting the Wireless Network
123 4
COPY

15
1
Following the Connection Wizard
Basic Network Settings
[Enter connection] and [Search again]
To configure settings for the wireless LAN device manually, select [Enter connection] and
press <0>. Complete the settings for the items displayed, one after another.
To search for wireless LAN devices again, select [Search again] and press <0>.
Next, enter the encryption key of the wireless LAN device. For details on the encryption key,
refer to the device’s instruction manual.
Note that the screens displayed in steps 1 to 3 below vary depending on the authentication and
encryption of the wireless LAN device.
1 The [Key index] screen is displayed only if WEP
encryption is used by the wireless LAN device.
Turn the <5> dial to select the key index number
specified as the access point, and then press
<0>.
Select [OK] and press <0> to go to the next
screen.
2 Turn the <5> dial to select the key format, and
then press <0>.
Select [OK] and press <0> to go to the next
screen.
3 Enter the encryption key.
To switch between input areas, press the <H>
button.
To move the cursor, turn the <5> dial.
In the bottom input area, turn the <5> dial and
press <0> to enter the encryption key.
If you make a mistake, press the <L> button to
erase it.
Press the <7> button to go to the next screen.
To return to the previous screen, press the
<6> button. The entry is erased.
Entering the Wireless LAN Encryption Key
COPY

16
Following the Connection Wizard
Turn the <5> dial to select how to configure the
network settings, and then press <0>.
Select [OK] and press <0> to go to the next
screen.
[Auto setting]
Settings otherwise configured with [Manual setting] can be configured automatically.
However, the IP address and similar settings must be automatically assigned and
configured in environments using DHCP servers or wireless LAN devices or routers
supporting DHCP server functions.
If an error is displayed, select [Manual setting] regardless of whether the IP address and
similar settings are automatically assigned and configured.
[Manual setting]
The [IP address set.] screen is displayed after you select
manual configuration. If [Auto setting] results in an error,
enter the IP address manually. As the IP address, enter the
IP address assigned to the camera.
Enter the [IP address], [Subnet mask], [Gateway], and
[DNS address] on each screen as they are displayed.
If you are not sure what to enter, refer to page 84, “Checking
Network Settings,” or ask the network administrator or
another person knowledgeable about the network.
When entering numbers for the IP address, subnet mask,
and so on, press <0> to move the input position and turn
the <5> dial to enter the number.
Configuring Network Settings
COPY

17
1
Following the Connection Wizard
Basic Network Settings
The following instructions are for settings screens that vary depending on the communication
method (FTP, PTP, or HTTP), as shown below. Read the page that introduces the selected
communication method.
FTP
Chapter 2 (p.19)
PTP
Chapter 3 (p.33)
HTTP
Chapter 4 (p.39)
Completing Settings for the Communication Method
COPY

18
Following the Connection Wizard

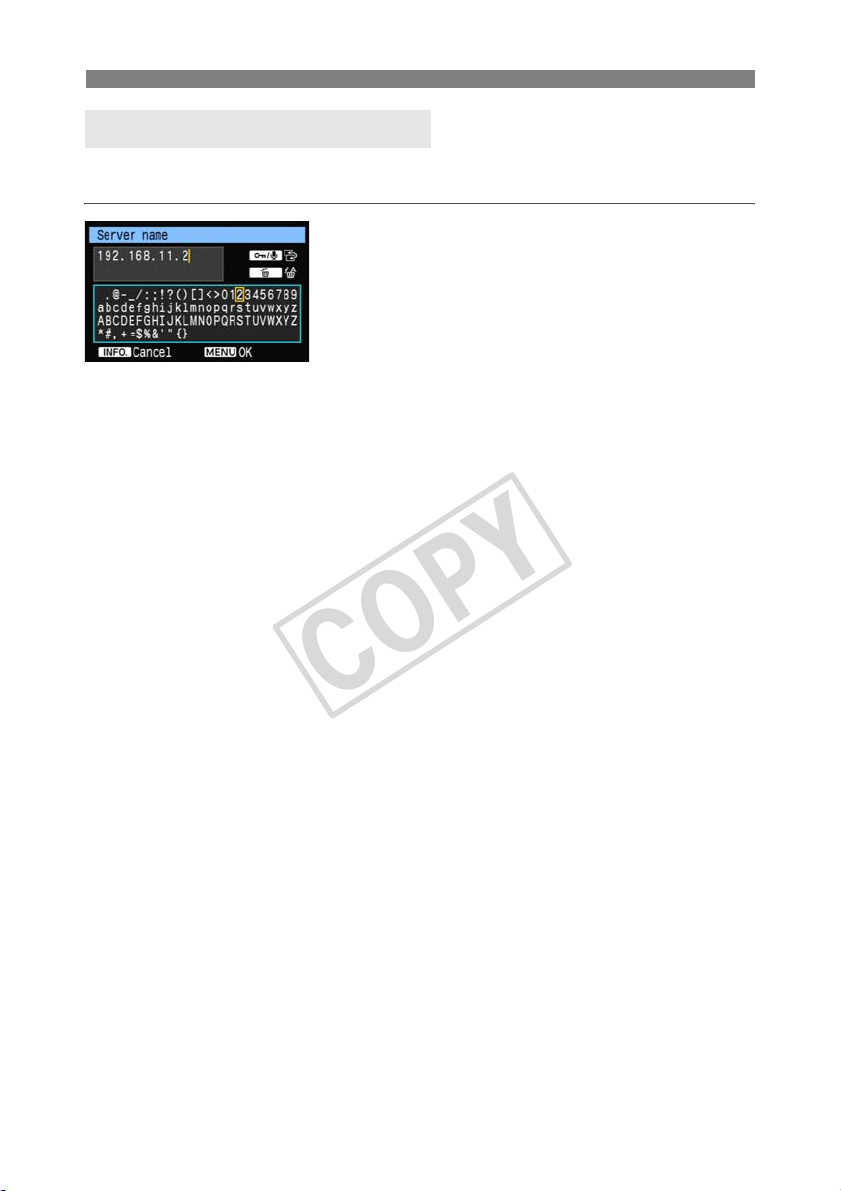

The virtual keyboard is displayed during entry of the encryption key, server name, and other
information.
Switching to other input areas
To switch between input areas, press the <H>
button.
Moving the cursor
To move the cursor, turn the <5> dial.
You can also move the cursor using <9>.
Entering text
In the bottom input area, turn the <5> dial to move
the cursor and press <0> to enter text.
You can also move the cursor using <9>.
Deleting text
If you make a mistake, press the <L> button to erase
it.
Confirming entries
Press the <7> button to confirm what you have
entered and go to the next screen.
Canceling entries
Press the <6> button to erase the entry and
return to the previous screen.
Virtual Keyboard Operation
COPY

19
2
FTP Settings and
Image Transfer
You can configure the FTP settings for automatic transfer of each image as
you shoot or batch transfer after capture.
COPY

20

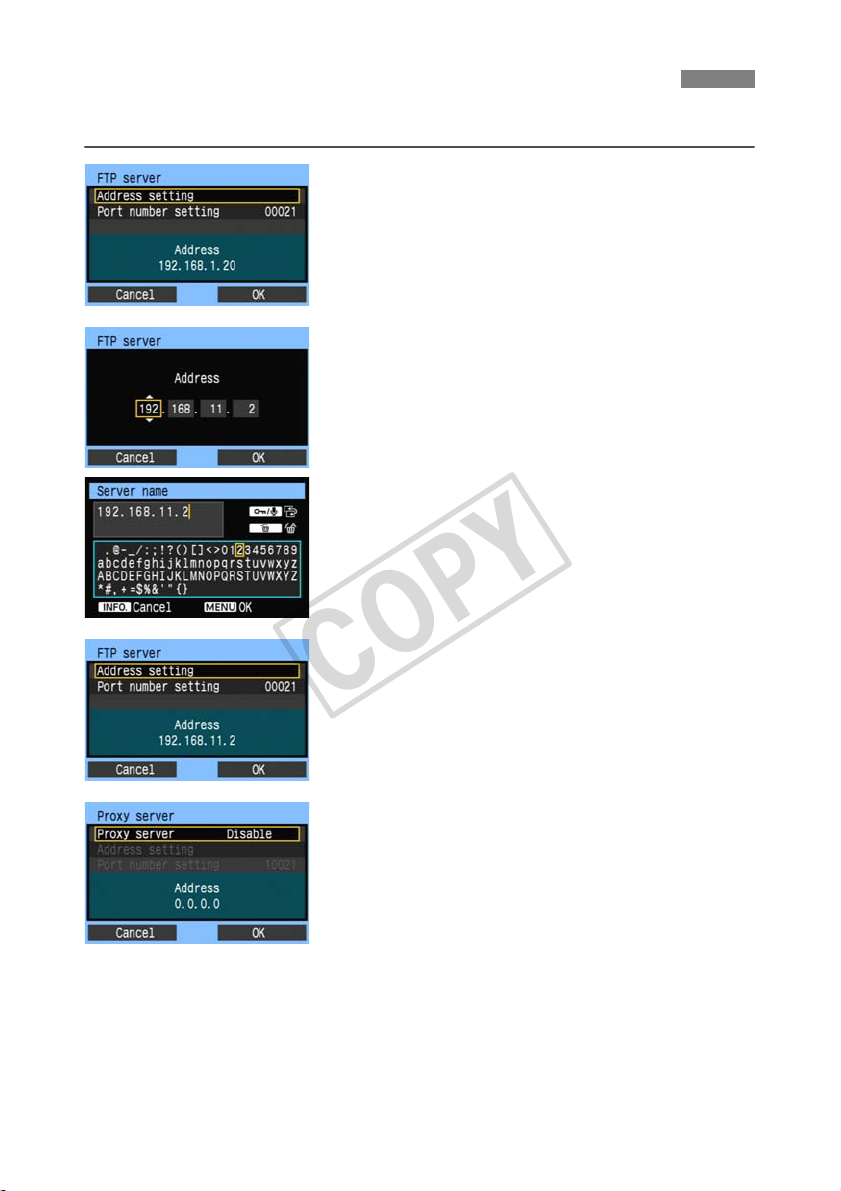

These instructions are continued from Chapter 1.
1 Turn the <5> dial to select [Address setting],
and then press <0>.
2 If you have set the DNS server setting to
[Disable], the screen at left is displayed.
Press <0> to select the input position, and then
turn the <5> dial to enter the IP address of the
FTP server.
If you have set the DNS server IP address setting
to [Auto assign] or [Manual setting], the screen
at left is displayed.
For instructions on screen operations, refer to
“Virtual Keyboard Operation” (p.18).
Enter the FTP server’s server name or IP address.
3 In [Port No.], enter 00021, in most cases.
Turn the <5> dial to select [OK], and then press
<0> to go to the next screen.
4 Complete the [Proxy server] settings.
Turn the <5> dial to select [OK], and then press
<0> to go to the next screen.
Configuring FTP Transfer Settings
COPY
