Canon WFT-E8A User manual

This manual is for the EOS-1D X Mark II installed with firmware version
1.1.0 or later.
INSTRUCTION MANUAL
E
Wireless File Transmitter
WFT-E8
This product also supports certain CINEMA EOS cameras. For compatible
products, contact the nearest Canon Service Center. When using the
transmitter, refer to “Guide for Canon Camcorders”.

2
The transmitter is an accessory for EOS cameras that enables wireless
functions when attached to the camera.
Using the transmitter’s wireless functions enables you to do the
following:
Introduction
What You Can Do with the Transmitter
Use EOS Utility to shoot, view, and
download images remotely
FTP Transfer
WFT Server
Linked Shooting
Transfer images to an FTP server
Wirelessly trigger shooting by slave
cameras linked to a master camera
Synchronize time between the
same camera models
Use a web browser to shoot, view, and
download images remotely
EOS Utility
Smartphone
Sync the Camera Time
Use a smartphone to shoot, view, and
download images remotely

3
To comply with local radio wave regulations, Canon offers five
region-specific versions of the transmitter (A, B, C, D, and E) in
various areas around the world (see separate sheet). For
convenience, the product in this manual is referred to as “WFT-E8”,
without reference to the versions A, B, C, D, or E.
In this manual, the term “access point” indicates wireless LAN
access points, wireless LAN routers, etc. that relay a LAN
connection.
These instructions should be followed only after setting up your LAN
and FTP server environments. For information about setting up the
environments, refer to the documentation provided with each device
or contact the manufacturer.
The EOS-1D X Mark II is used for operation instructions,
illustrations, and sample screens in this manual. Note that the
functions, operations, screens displayed on your camera, etc. may
differ, depending on the camera model used.
Read the Camera Instruction Manual and familiarize yourself with
operating the camera before following the instructions on camera
options.
Icons in this Manual
<6> : Indicates the Main Dial.
<5> : Indicates the Quick Control Dial.
<9> : Indicates the Multi-controller.
<0> : Indicates the Setting button.
* In addition to the above, the icons and symbols used on the camera’s buttons
and displayed on the LCD monitor are also used in this manual when discussing
relevant operations and functionality.
(p.**) : Reference page numbers for more information.
: Warnings to prevent potential problems during operation.
: Supplemental information.
Conventions Used in this Manual

4
Conventions Used in this Manual
Basic Assumptions
All operations explained in this manual assume that the power
switch is set to <1>.
It is assumed that all the menu settings, Custom Functions, etc. are
set to their defaults.
Image transfer, remote shooting, or viewing images requires adequate
knowledge of configuring your wireless LAN and FTP server. Canon cannot
provide support for configuring wireless LANs or FTP servers.
Note that Canon cannot be held liable for any loss or damage to the
transmitter from erroneous network or FTP server settings. In addition,
Canon cannot be held liable for any other loss or damage caused by use of
the transmitter.
When using wireless functions, establish appropriate security at your own
risk and discretion. Canon cannot be held liable for any loss or damage
caused by unauthorized access or other security breaches.

5
Chapter List
Introduction 2
Basic Network Settings 13
Transferring Images to an FTP Server 37
Operating Remotely Using EOS Utility 55
Operating Remotely Using WFT Server 59
Operating Remotely Using a Smartphone 75
Linked Shooting 83
Synchronizing the Camera Time Wirelessly 97
Terminating the Connection and Reconnecting 101
Checking and Operating Connection Settings 105
Troubleshooting Guide 117
Reference 139
1
2
3
4
5
6
7
8
9
10
11

6
2
1
3
4
Introduction 2
Conventions Used in this Manual..................................................... 3
Chapter List ...................................................................................... 5
Safety Precautions ........................................................................... 8
Nomenclature ................................................................................. 10
Attaching to the Camera..................................................................11
Basic Network Settings 13
Preparation..................................................................................... 14
Basic Communication Function Settings........................................ 18
Displaying the Connection Wizard ................................................. 22
Connecting with Easy Connection.................................................. 25
Checking the Type of Access Point................................................ 27
Connecting via WPS (PBC Mode).................................................. 28
Connecting via WPS (PIN Mode) ................................................... 29
Connecting to a Detected Network Manually ................................. 31
Setting the IP Address.................................................................... 34
Transferring Images to an FTP Server 37
Configuring FTP Server Connection Settings ................................ 38
Transferring Images Individually..................................................... 43
Batch Transfer ................................................................................ 48
Viewing Transferred Images........................................................... 53
Operating Remotely Using EOS Utility 55
Configuring EOS Utility Connection Settings ................................. 56
Using EOS Utility............................................................................ 58
Operating Remotely Using WFT Server 59
Configuring WFT Server Connection Settings ............................... 60
Displaying WFT Server .................................................................. 62
Viewing Images .............................................................................. 65
Shooting Remotely [Camera control] ............................................. 67
Shooting Remotely [Simple control] ............................................... 72
Using WFT Server in Linked Shooting ........................................... 74
Contents

7
Contents
10
11
6
9
7
8
5Operating Remotely Using a Smartphone 75
Configuring Smartphone Connection Settings................................76
Operating the Camera Using a Smartphone...................................78
Specifying Viewable Images ...........................................................80
Linked Shooting 83
Basic Linked Shooting ....................................................................84
Positioning the Cameras.................................................................88
Using the Transmitter with WFT Server .......................................... 90
Synchronizing the Camera Time Wirelessly 97
Synchronizing the Time...................................................................98
Terminating the Connection and Reconnecting 101
Terminating the Connection ..........................................................102
Reconnecting ................................................................................ 103
Checking and Operating Connection Settings 105
Displaying the Connection Settings Screen..................................106
Changing Settings.........................................................................108
Saving and Loading Settings ........................................................ 112
Function Settings Screen.............................................................. 114
Troubleshooting Guide 117
Responding to Error Messages .................................................... 118
Troubleshooting Guide.................................................................. 135
Communication Function Setting Notes........................................136
Checking Network Settings...........................................................138
Reference 139
Creating and Registering Captions ...............................................140
Setting Network Manually .............................................................142
Setting IP Address Manually.........................................................144
Specifications ................................................................................ 146
Index .............................................................................................149

8
The following precautions are provided to prevent harm or injury to
yourself and others. Make sure to thoroughly understand and follow
these precautions before using the product.
If you experience any malfunctions, problems, or damage to the
product, contact the nearest Canon Service Center or the dealer
from whom you purchased the product.
Safety Precautions
Warnings: Follow the warnings below. Otherwise, death or
serious injuries may result.
To prevent fire, excessive heat, chemical leakage, explosions, and electrical shock,
follow the safeguards below.
• Do not insert any foreign metallic objects into the electrical contacts of the
equipment, accessories, or connecting cables.
Do not use the equipment where there is flammable gas. There is a risk of explosion
or fire.
If you drop the equipment and the casing breaks open to expose the internal parts,
do not touch the exposed parts. There is a possibility of electrical shock.
Do not disassemble or modify the equipment. High-voltage internal parts may cause
electrical shock.
Do not store the equipment in dusty or humid places. This is to prevent fire or
electrical shock.
Before using the equipment on board airplanes or in hospitals, make sure use is
permitted. Electromagnetic waves emitted by the equipment may interfere with
instrumentation or medical equipment.
Do not hold the camera in the same position for long periods of time. Even if the
camera does not feel too hot, prolonged contact with the same body part may cause
skin redness or blistering due to low-temperature contact burns. Using a tripod is
recommended for people with circulation problems or very sensitive skin, or when
using the camera in very hot places.
Cautions: Follow the cautions below. Otherwise, physical injury
or property damage may result.
Do not leave the equipment in a hot car interior or near high-temperature objects.
The equipment may become hot and cause burns if touched.
Do not leave the product in a low-temperature environment for an extended period of
time. The equipment will become cold and may cause injury when touched.
Do not cover or wrap the transmitter with a cloth. This may trap heat inside, posing a
risk of fire.
Do not use paint thinner, benzene, or other organic solvents to clean the transmitter.
This poses a risk of fire and may be hazardous to your health.

9
Safety Precautions
The transmitter is a precision instrument. Do not drop it or subject it to
physical shock.
The transmitter is not waterproof. Do not use it underwater.
Wipe off any moisture with a dry and clean cloth. If the transmitter has been
exposed to salty air, wipe it with a clean, well-wrung wet cloth.
Never leave the transmitter near any equipment that generates a strong
magnetic field, such as magnets or electric motors.
Do not leave the transmitter in excessive heat, such as in a vehicle in direct
sunlight. High temperatures may damage the transmitter.
Do not wipe the transmitter using cleaners containing organic solvents. For
stubborn dirt, take it to the nearest Canon Service Center.
Avoid storing the transmitter where there are chemicals that result in rust
and corrosion such as in a chemical lab.
Handling Precautions

10
Nomenclature
Attachment pin
Tightening screw
Terminal
<F>Wired LAN connection
Connection icon
<D>Wireless LAN connection
Transmitter Case
EOS-1D X Mark II Rear LCD Panel (Example Display)
Terminal cap

11

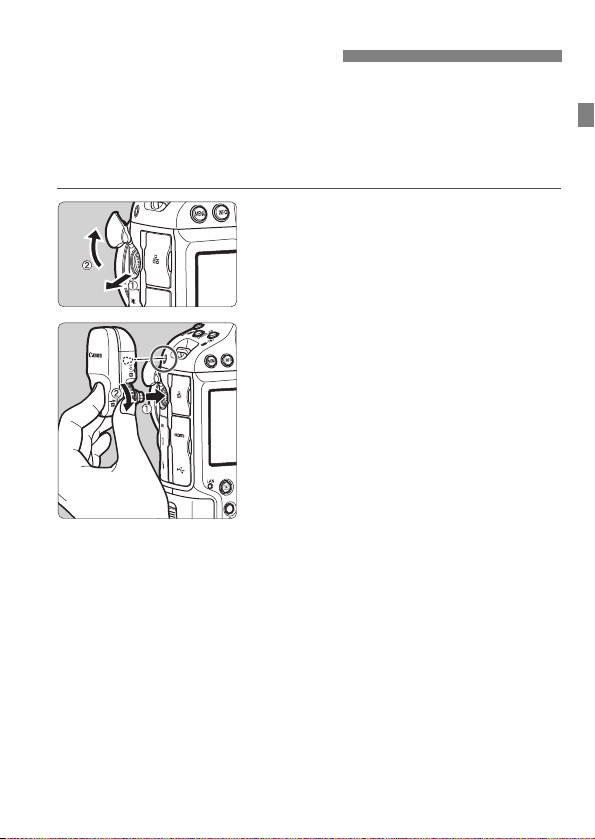

Set the camera’s power switch to <2> before attaching the
transmitter.
The transmitter is powered by the camera. Ensure the camera
battery has sufficient charge. If the battery level drops to 19% or
less, you cannot transfer captured images.
1Open the terminal cover on the
camera.
Pull out the system extension
terminal cover and rotate it toward the
front.
2Attach the transmitter.
Align the transmitter terminal and
attachment pin with the
corresponding camera terminal and
hole.
Push the terminal firmly into the
camera.
As you push the terminal into the
camera with your left index finger,
turn the tightening screw until it stops
rotating to attach the transmitter
securely.
Removing the transmitter
Set the camera’s power switch to <2>.
Loosen the tightening screw until it spins freely.
Pull the terminal out of the camera.
Attaching to the Camera

12
Attaching to the Camera
Use of an External Microphone during Movie Shooting
If wireless functions are in use, noise may be recorded regardless of the use
of the built-in microphone(s) or an external microphone. It is recommended
that you do not use wireless functions when shooting movies.

13
1
Basic Network Settings
Complete the basic network settings by using the menu
screen on the camera’s LCD monitor.

14
[FTP trans.]
You can transfer captured images to an FTP server.
Images can be automatically transferred as you shoot them, or you
can select images to be transferred later.
Computer Operating Systems
Use of [FTP trans.] requires that one of the following operating
systems be installed on a computer. In addition, the computer must
be set up as an FTP server in advance.
• Windows 8, Windows 8 Pro, Windows 8.1, Windows 8.1 Pro
• Windows 7 (Professional, Enterprise, or Ultimate Edition for
32- or 64-bit systems)
• Windows Vista (Business, Enterprise, or Ultimate Edition for
32- or 64-bit systems)
For instructions on setting up a computer as an FTP server, refer to
the documentation provided with each device or contact the
manufacturer.
Note that the following operating systems cannot be used
because FTP server functionality is not provided.
• Windows 7 Home Premium
• Windows Vista Home Premium or Home Basic Edition
Preparation

15
Preparation
[EOSUtility]
You can perform remote shooting over a wireless LAN using EOS
Utility (EOS software).
In addition to remote shooting, almost all EOS Utility camera
operations are supported, because this option utilizes a wireless
LAN instead of an interface cable.
Requires a computer with EOS Utility (EOS software) installed.
[WFTserver]
You can perform advanced remote shooting or view images stored
in the camera by connecting to the transmitter from a web browser
on a computer, smartphone, or other device, as easily as accessing
a Web site.
Browsers
The following operating systems and web browsers have been
confirmed to be compatible with this device. Depending on your
environment, operation may differ.
Windows 8.1, Windows 7: Google Chrome Ver. 44
Windows 8.1, Windows 7: Internet Explorer 11
OS X (operating system version 10.10): Safari Ver. 8.0
iOS (operating system version 8.4): Safari
Android (operating system version 4.4): Google Chrome
* Operation on the above operating systems and web browsers cannot be
guaranteed for all the terminals.
* Not available unless the web browser is set to allow cookies.
* Not available unless the web browser is set to use JavaScript.
* Movies cannot be played back unless the web browser supports HTML 5.

16
Preparation
[Smartphone]
You can perform basic remote shooting or view images stored in the
camera on a smartphone or tablet.
To use this function, a smartphone on which iOS or Android is
installed is necessary. In addition, the dedicated application
Camera Connect (free of charge) must be installed on the
smartphone.
• Camera Connect can be downloaded from the App Store or
Google Play.
• For the operating system versions supported by Camera Connect,
refer to the download site of Camera Connect.
• The interface and functionality of the camera and Camera Connect
are subject to change due to firmware updates for the camera or
application updates for Camera Connect, iOS, Android, etc. In
such a case, features of the camera or Camera Connect may differ
from sample screens or operation instructions in this manual.
In this manual and on the camera’s LCD monitor, “smartphone”
refers to smartphones and tablets.
[LinkedShot]
You can perform linked shooting using multiple compatible cameras
with WFT series transmitters attached. This feature lets you link up
to 10 slave cameras to the master camera on which you will release
the shutter. Note that there will be a slight delay after you release the
master camera shutter before the slave cameras shoot. Movie
shooting is not supported.
[Sync time between cameras]
You can set the master camera time on up to 10 slave cameras.
Note that even after synchronization, there will be a slight margin of
error between master and slave camera time of ±0.05 seconds, at
most.
Set up multiple cameras of the same camera model with the WFT-
E8 or WFT-E6 attached.

17
Preparation
When connecting using an access point, connect the target device to
the access point in advance.
Connecting Using an Access Point
Transmitting Movies
Because of the large size of individual movie files, wireless file transmission
takes some time. Set up an environment where each device can achieve
stable communication with the access point and the transmitter by referring
to the information on page 136.

18
First, configure basic communication function settings.
1Turn the camera on.
2Select [Communication settings].
On the camera, press the <M>
button.
Under the [53] tab, select
[Communication settings], then
press <0>.
3Select [Enable] in
[Communication func].
[Network settings] is now available.
Basic Communication Function Settings
Setting the Communication Function
If [z1: Multiple exposure] is set to any setting other than [Disable], [53:
Communication settings] cannot be selected.

19
Basic Communication Function Settings
Set a nickname (for identification) for the camera.
When the camera is connected to another device over a LAN, the
nickname will be displayed on the device.
1Select [Communication settings].
Under the [53] tab, select
[Communication settings], then
press <0>.
2Select [Network settings].
Set [Communication func] to
[Enable], then select [Network
settings].
3Select [Nickname].
Registering a Nickname

20
Basic Communication Function Settings
4Enter a nickname.
For instructions on entering
characters, see the next page.
Enter any characters between 1 to 10
characters in length.
5Exit the setting.
When you are finished, press the
<M> button.
Select [OK] on the confirmation
dialog and press <0> to return to
the menu screen.
The basic settings for the communication function are now complete.
For further explanation of syncing the camera time and linked
shooting, see the following pages.
Syncing the camera time Bpage 97
Linked shooting Bpage 83
For connection settings other than the above, see the explanation from
page 22.
Since the nickname is mandatory information for a LAN connection, you
cannot delete all the characters.
By default, the camera name will be displayed for the nickname.
