CANTERBURY Z2214-29 User manual

DECK MOUNTED 5-HOLES BATHTUB SET WITH
HAND SPRAY, GOOSE NECK SPOUT
Art: Z2214--29
• Handmade in Italy since 1960
• ¼ Turn valves handmade at
Nicolazzi Factory
• Lead Free Brass Compliant to
AZ/NZS 3718
• Suitable even and uneven
pressure
• Handles are interchangeable
Specifications
WM22315
AS/NZS3662
Canterbury Sink & Tap Co.
Max/Min Operating
Pressure: 100/500kPa
Further information Phone [phone] [e-mail]
Available replacement
handles:
-27 Monte Carlo Handle
-29 Mac Kinley 05 Handle

CAREFULLY READ THROUGH THESE INSTRUCTIONS BEFORE INSTALLATION AND USE OF ALL TAP WARE AND WALL
VALVES
INSTALLATION and WARRANTY INSTRUCTIONS
TECHNICAL INFORMATION
All flexible hoses are designed and manufactured for use with water in exposed locations only. Do not expose to
household cleaners, chlorine, chloride, hydrochloric acid or other corrosive chemicals.
All connections with threads M10x1 male must be hand tighten. Do not over tighten. Over tightening may cause
damage to the hose.
All tap ware washers and o-rings are designed and manufactured for use with water. Do not expose to household
cleaners, chlorine, chloride, hydrochloric acid or other corrosive chemicals.
Our tap ware is designed for use with the temperatures and pressures listed below:
minimum cold water supply 10 °C
maximum hot water supply 62 °C
minimum pressure 100 kPa
maximum pressure 500 kPa
maximum fixing torque value = 13.6 Nm
Please note: The recommended pressure for best performance is between 270 kPa and 420 kPa. More pressure than
420 kPa or less pressure than 270 kPa may affect the diverting action in side spray tap ware.
Do not use any Nicolazzi tap ware with sulphurous water.
The minimum temperature for all tap ware is 10 degrees Celsius . Below 10 degrees Celsius will void the warranty.
When available, filter systems must be placed between hot and cold supply lines and the tap ware. Improper use or
non-use of filters may make diverting tap ware with hand sprays perform poorly.
Don't modify the tap ware and their components.
Use only original spare parts if there are replacements to be ordered. Installation must be made by authorized
plumbers or installers. Improper installation or diagnosis of problems is not covered by the warranty. Yearly
maintenance of cleaning and flushing is recommended.
Operation and use of any tap ware or wall valve that do not conform to these technical instructions will void the
warranty.
Important Notice Model : Z2214
Further information Phone [phone] [e-mail]
2

Installation Instructions Model : Z2214
Further information Phone [phone] [e-mail]
Hand spray
Tap section cut out hole sizes : Maximum 33mm
diameter.
Under side clearance : Maximum 40mm
3
Preparation
Tap body
Tap body cut out hole sizes : Maximum 33mm diameter.
Under side clearance : Maximum 60mm
Continue…….
Tap section
Flush out the pipework to remove any foreign matter.
Tap section cut out hole sizes : Maximum 33mm diameter.
Under side clearance : Maximum 40mm

Installation Instructions Model : Z2214
Further information Phone [phone] [e-mail]
❷
❸
Adjust the Tap Side body to the correct height
and then tighten using a 32mm spanner or
adjustable smooth jawed shifter.
Note: Make sure that the locking nuts are fully
tightened, otherwise the side body may turn
while turning the On Off lever.
Feed the cover plate 6, onto the tap side body,
until it is flush with the counter top surface.
Thread the retaining flange and handle 7, onto
the cartridge, securing it firmly by hand only.
See the “Removing and replacing a handle”, on
page “12” for additional details.
4
❶
Thread the bottom brass lock nut 1, followed by the
bottom rubber washer 2, onto the Side body 3, thread
section.
Repeat for the opposite side.
Insert the Side body 3, through the tap hole cut outs in
the counter top.
Feed the top rubber washer 4over the thread section
followed by the top brass lock nut 5.
Continue…….

Installation Instructions Model : Z2214
Further information Phone [phone] [e-mail]
❺
❻
Feed the cover plate 13, onto the Diverter
body, until it is flush with the counter top
surface.
Thread the retaining flange and handle 14,
onto the Diverter spline, securing it firmly by
hand only. See the “Removing and replacing a
handle”, on page “12” for additional details.
Insert the hand spray escutcheon 15, into the
cut out hole.
Install the rubber gasket 16, onto the
escutcheon thread extension, followed by the
brass lock nut 17. Secure on to the worktop
underside, but do not over tighten.
5
❹
Thread the bottom brass lock nut 9, followed
by the bottom rubber washer 10, onto the
Diverter body 8, thread section.
Insert the Diverter body 8, through the tap
hole cut out in the counter top.
Feed the top rubber washer 11 over the
thread section followed by the top brass lock
nut 12.
Adjust the Diverter body to the correct height
and then tighten using a 32mm spanner or
adjustable smooth jawed shifter.
Note: Make sure that the locking nuts are
fully tightened, otherwise the Diverter body
may turn while turning the Diverter lever.
Continue…….

Installation Instructions Model : Z2214
Further information Phone [phone] [e-mail]
❺
❻
Install the water supply hose 19, into tap
the body spout 18.
- Note: Hand tighten only, DO NOT over
tighten- 19!
Install the supplied mounting stud 20,
into tap the body spout and verify that
they are securely installed.
6
❹
Continue…….
Feed the O-ring 21, over the water
supply hose.
Note: Insert the tap into mounting hole
carefully. Feed the water supply hoses
through the cut out hole ensuring that
they are not bent or kinked, as this could
result in permanent damage or leakage.

Installation Instructions Model : Z2214
Further information Phone [phone] [e-mail]

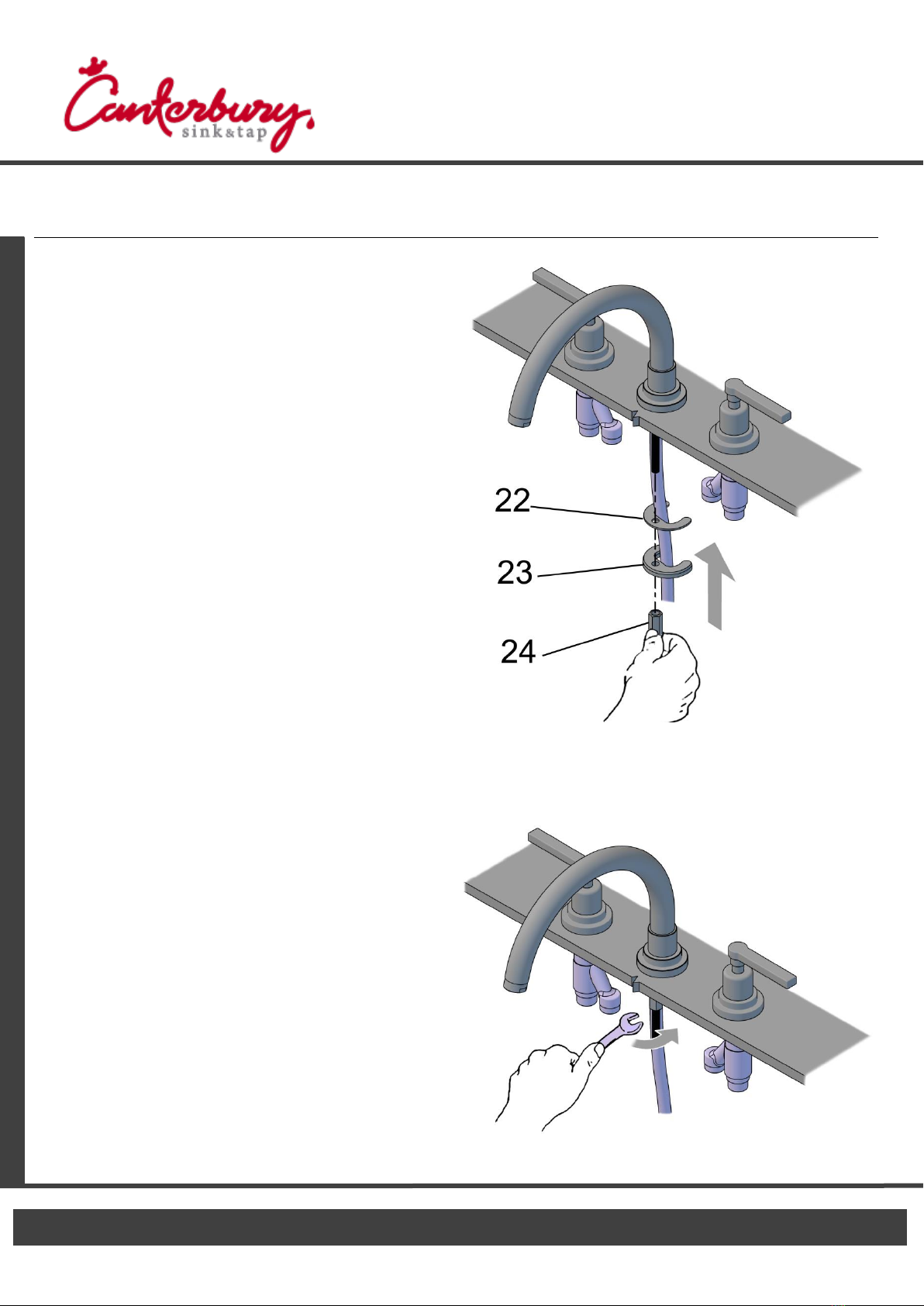

Under the sink, stack the supplied half ring
rubber gasket 22, above the half ring
mounting plate 23, and feed them onto the
stud. Then screw the mounting nut 24, onto
the stud. Screw the mounting stud until the
half ring rubber gasket mates up with the
underside of the sink.
❼
Check the position on the spout body, then
tighten the nut using a 13mm spanner or
smooth jawed shifter.
Note: The surface under mounting deck must be
flat. If the mounting surface is irregular, the nut
may not be secured, and the tap will be loose on
the sink.
7
Continue…….
❽

❾

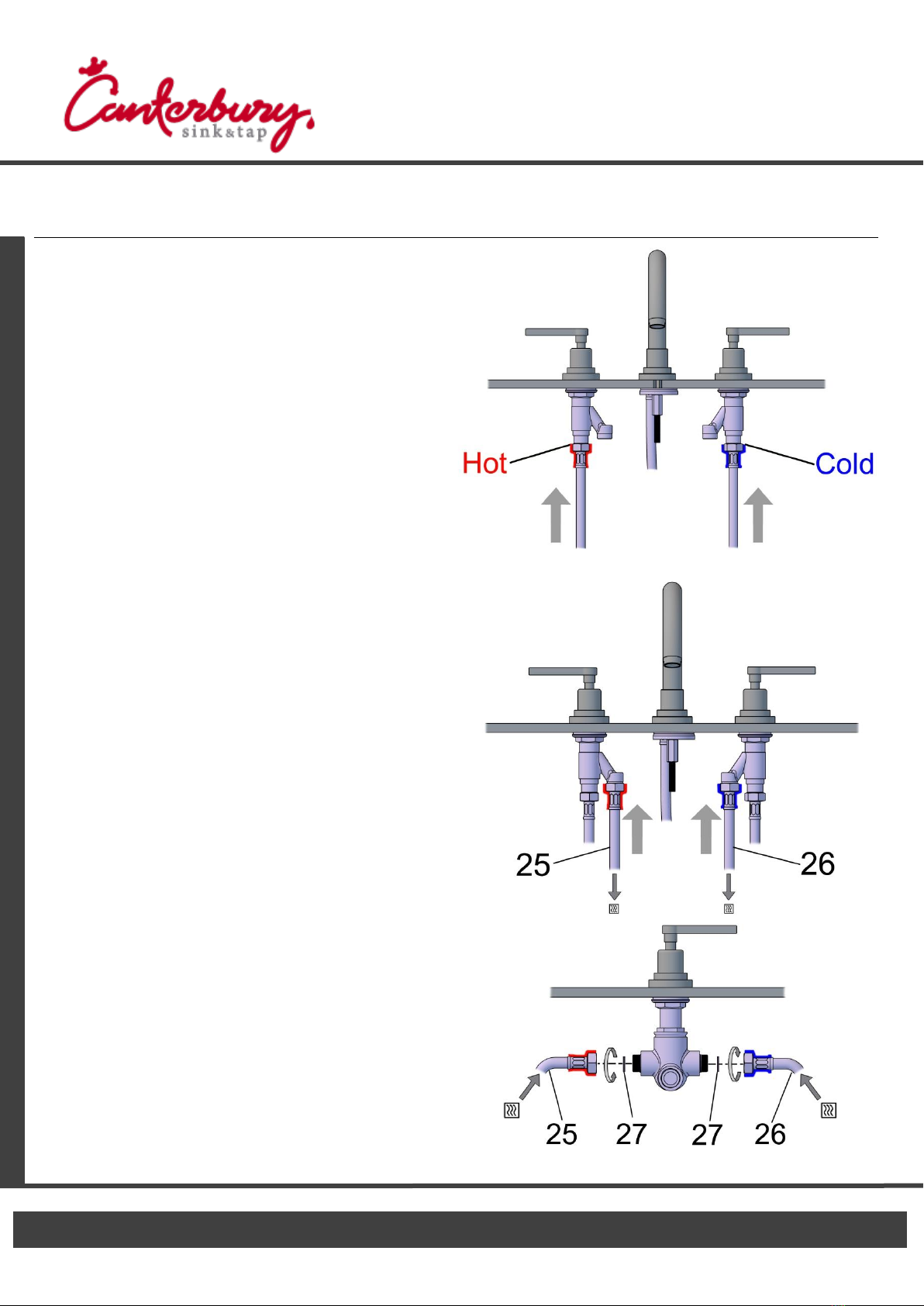

Connect main Hot and Cold water
supplies to the Tap side body thread
sections, using the correct flexi tail hoses.
From the front view, the Cold water
supply is connected on the right hand
side, with the Hot water supply on the
Left hand side
Ensure all connections are firmly
tightened to prevent any water leaks.
Installation Instructions Model : Z2214
Further information Phone [phone] [e-mail]
❿
Connect the Diverter Hot and Cold water
supply flexi hoses 25 and 26, to the
protruding stems of the tap side body units.
Connect the opposite ends of the flexi tale
hoses 25 and 26, to the Diverter.
Ensure that the supplied rubber washers
27, are fitted to both end of each of the
flexi tail hoses.
Ensure all connections are firmly tightened
to prevent any water leaks.
8
⓫
Continue…….

⓬
Install Hand spay hand set 31, to the
curved joint holder 28.
Ensure that the Check valve 30, is inserted
into the end recess of the hand set.
Place the rubber washer 29, between the
hand set 31, and the curved joint holder
hand firmly screw into place.
Installation Instructions Model : Z2214
Further information Phone [phone] [e-mail]
9
Pull the male end of the flexi hose 33,
through from the bottom end of the hand
spray escutcheon.
Connect the flexi hose to the curved joint
holder ensuring that the O-ring 32, is
placed on the male end of the flexi hose.
Insert Check valve 35, into the thread
adapter 34, recess. Screw the adaptor into
the Diverter output together with rubber
washer 36.
Secure the female end of the flexi hose
onto the adapter, together with the rubber
washer 36.
Fix the weight 37, onto the hand spray flexi
hose. Position the weight along the flexi
hose so as to prevent the excessive tension
on the flexi hose connections when fully
extracted.
⓬

⓬

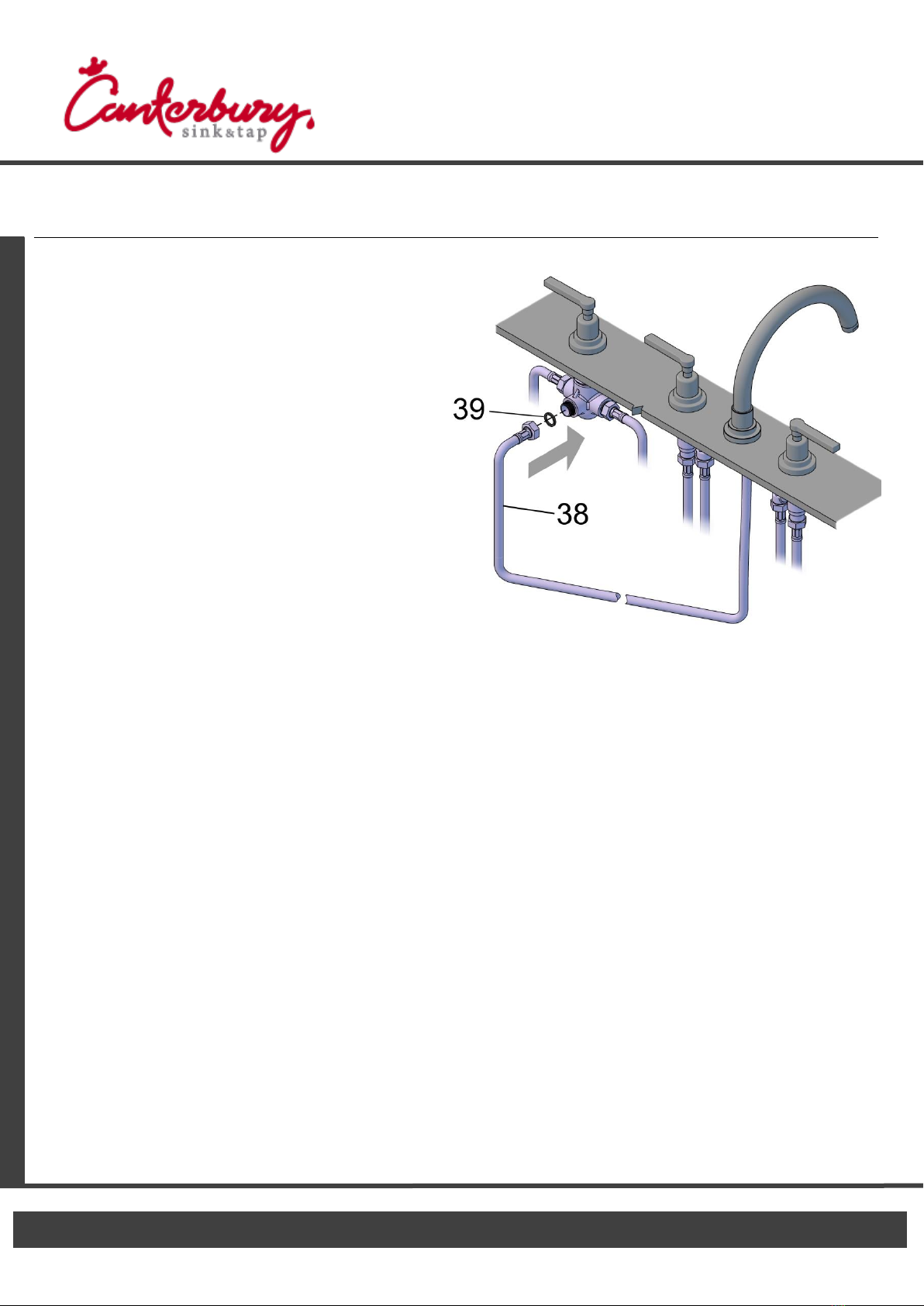

Install the tap spout flexi hose 38, to the
Diverter output.
Place the rubber washer 39, between the
female hose thread connecter, and the
Diverter output.
Installation Instructions Model : Z2214
Further information Phone [phone] [e-mail]
10
Before use
Turn on the Hot and Cold supplies to the tap.
Maximum temperature for Hot water supply to the tapware is 62 °C.
Minimum recommended pressure is 100 kPa —Maximum recommended pressure is 500 kPa.
Check the installation carefully for leaks.
If further building work is to be carried out in the vicinity of the tapware, it should be covered to
prevent paint, adhesive, etc. from damaging the surface.

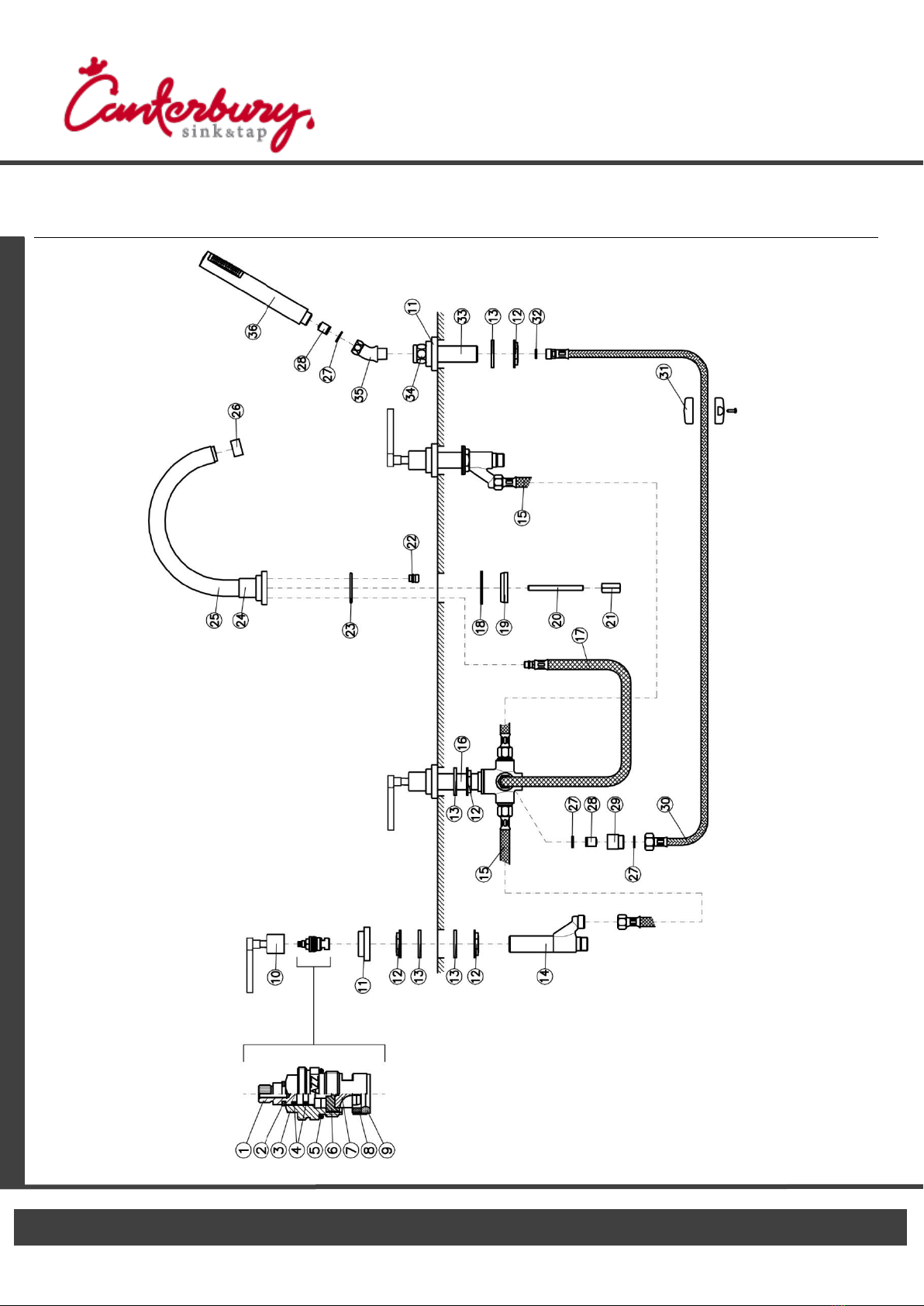

Spare Parts list Model : Z2214
Further information Phone [phone] [e-mail]
11

Spare Parts list Model : Z2214
Further information Phone [phone] [e-mail]
12

Once totally loose, simply remove the
handle from cartridge spline.
Care and Maintenance Instructions Model : Z2214
Further information Phone [phone] [e-mail]
❶
❷
❸
Loosen and unscrew the retaining flange
A, from the tap body.
13
To reassemble, reverse the disassembly
procedure, given above.
The retaining flange only needs to be hand tight.
NOTE: DO NOT USE A SHIFTER TIGHTEN BY
HAND ONLY !
Do not over tighten as this could damage the
ceramic cartridge!
Removing and replacing a handle
MODEL SHOWN :Z2214
Available replacement handles:
-27 Monte Carlo Handle
-29 Mac Kinley 05 Handle
NOTE: At any time, should the handle feel loose,
retighten the retaining flange.
See our video: https://youtu.be/PUbD3GHgg58

Care and Maintenance Instructions Model : Z2214
Further information Phone [phone] [e-mail]
MAINTENANCE FOR FIVE HOLE/THREE LEVER TAPWARE
INSTRUCTIONS FOR REPLACEMENT OF THE HOT OR COLD CARTRIDGE
Do not replace the cartridge if there is low flow or no flow. Low flow or no flow is caused by obstruction or
kinking of supply hoses.
If the hand spray is leaking, do not replace the diverter. Service or replace the hand
spray if there is a continous leak.
❶
Turn off the hot and cold supply lines to the tap set.
(Not shown).
Remove the handle and retaining flange. Refer to
“Removing and replacing a handle” section,
page10.
❷
Remove the cartridge with a smooth jawed 17mm
shifter.
❸
Install new cartridge.
Secure the cartridge with a smooth jawed shifter.
❹
Install lever and retaining flange. DO NOT USE A
SHIFTER TIGHTEN BY HAND ONLY!
Turn on supply lines and test for leaks. (Not shown).
Continue…….
14
Note: Do not over tighten as this could damage the ceramic
cartridge!

LOW FLOW OR NO FLOW TROUBLESHOOTING INSTRUCTIONS
Current bathroom taps have a max flow rate of 7 Litres per minute from the aerator and the hand spray.
If you are experiencing low flow from the spout: Do not change the cartridge
• Unscrew and clean the aerator -1
• Unscrew and clean the filters inside the supply connections- 3
• Check the supply lines for kinks or obstructions-2,3 and 4.
• Ensure that the Check valves are functioning correctly 5.
• Make sure the supply line stops are fully on. (Not shown.)
Care and Maintenance Instructions Model : Z2214
Further information Phone [phone] [e-mail]
15

Care of external finishes
Nicolazzi products are all authentic finishes that have not been coated with any product. After each use, pat the
fixture down to remove any excess water. This will prevent any water spotting or mineral build-up. Use only soft
liquid soap and water to clean the surface. Use a soft brush to clean any gaps. Avoid any products that have
ammonia or alcohol like Windex, Jif or Ajax. These products can damage the finish leaving black or white spots.
Never use on abrasive products on tap ware or this will devoid the warranty.
Live Finishes DO NOT carry a warranty as they are living finishes and will change over time.
Raw Brass, Brush Brass (To make the brass lighter again rub the brass tap with lemon juice, this will lighten the dark
colouring).
Shiny Brass, Polished Nickel has an ageing process and will tarnish over time.
Tuscan Brass is a living finish and also carries NO warranty. It will lighten with use. To extend the life of the finish,
apply Bruno’s Wax by patting it on, letting it dry and patting it off. Never rub or buff this finish.
WARNING: The use of cleaning products not recommended might irreparably harm the surfaces of the tap, which in
such cases are not covered by our warranty.
Lime scale build up
The tap is fitted with an aeration device in the Hot/Cold water outlet.
This may need occasional cleaning especially in hard water areas.
This is accomplished by unscrewing the outlet in a counter clockwise direction, dismantling and
leaving the inner screen mesh immersed over night in vinegar
Care and Maintenance Instructions Model : Z2218
Further information Phone [phone] [e-mail]
16
