CANTERBURY Z3450 User manual

Adore sink mixer pivoting tube
Art: Z3450
• Handmade in Italy since 1960
• ¼ Turn valves handmade at
Nicolazzi Factory
• Lead Free Brass Compliant to
AZ/NZS 3718
• Suitable even and uneven
pressure
• Handles are interchangeable

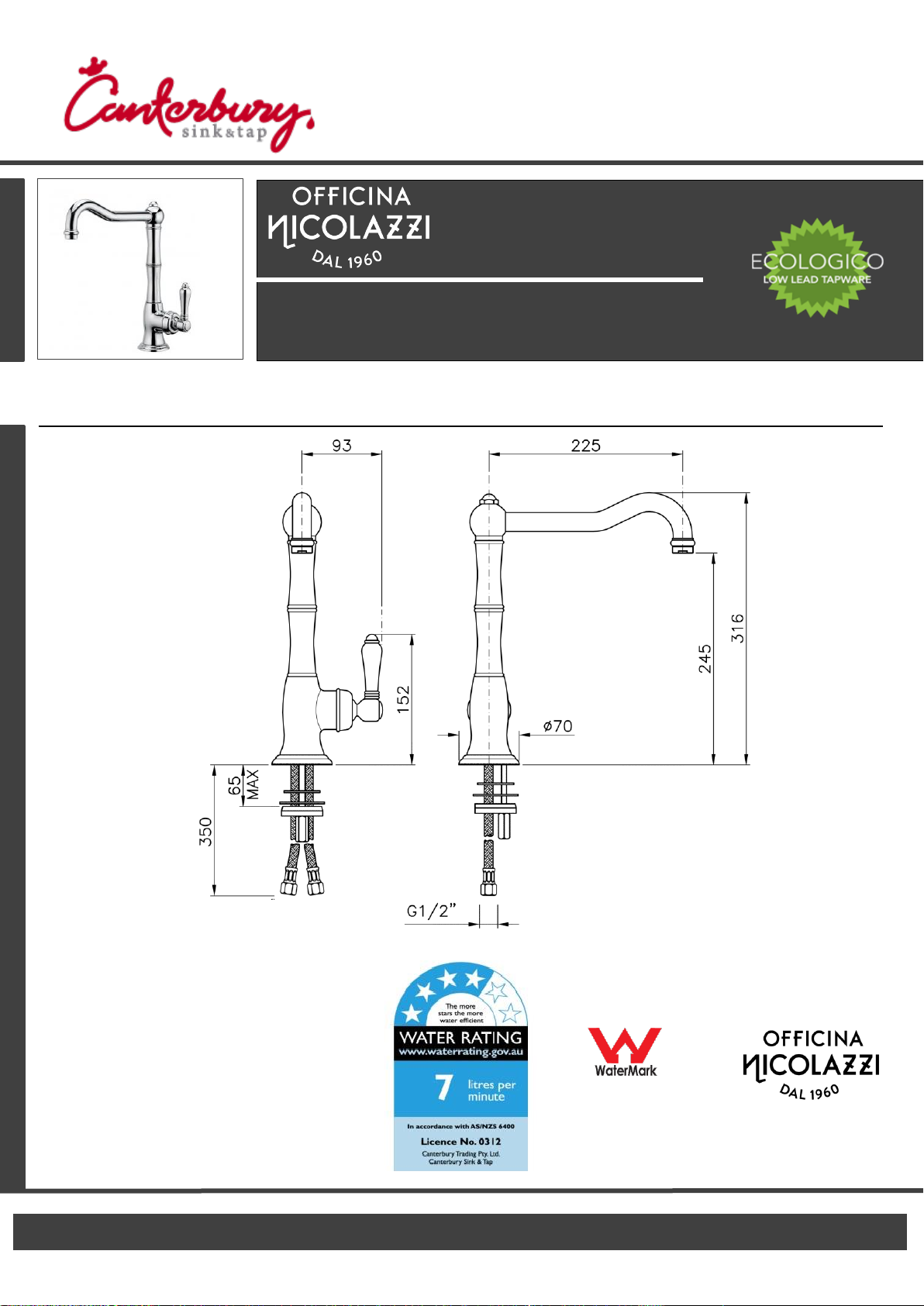

Specifications
WM22315
AS/NZS3662
Canterbury Sink & Tap Co.
Max/Min Operating
Pressure: 100/500kPa
Further information Phone [phone] [e-mail]

CAREFULLY READ THROUGH THESE INSTRUCTIONS BEFORE INSTALLATION AND USE OF ALL TAP WARE AND WALL
VALVES
INSTALLATION and WARRANTY INSTRUCTIONS
TECHNICAL INFORMATION
All flexible hoses are designed and manufactured for use with water in exposed locations only. Do not expose to
household cleaners, chlorine, chloride, hydrochloric acid or other corrosive chemicals.
All connections with threads M10x1 male must be hand tighten. Do not over tighten. Over tightening may cause
damage to the hose.
All tap ware washers and o-rings are designed and manufactured for use with water. Do not expose to household
cleaners, chlorine, chloride, hydrochloric acid or other corrosive chemicals.
Our tap ware is designed for use with the temperatures and pressures listed below:
minimum cold water supply 10 °C
maximum hot water supply 62 °C
minimum pressure 100 kPa
maximum pressure 500 kPa
maximum fixing torque value = 13.6 Nm
Please note: The recommended pressure for best performance is between 270 kPa and 420 kPa. More pressure
than 420 kPa or less pressure than 270 kPa may affect the diverting action in side spray tap ware.
Do not use any Nicolazzi tap ware with sulphurous water.
The minimum temperature for all tap ware is 10 degrees Celcius . Below 10 degrees Celcius will void the warranty.
When available, filter systems must be placed between hot and cold supply lines and the tap ware. Improper use or
non-use of filters may make diverting tap ware with hand sprays perform poorly.
Don't modify the tap ware and their components.
Use only original spare parts if there are replacements to be ordered. Installation must be made by authorized
plumbers or installers. Improper installation or diagnosis of problems is not covered by the warranty. Yearly
maintenance of cleaning and flushing is recommended.
Operation and use of any tap ware or wall valve that do not conform to these technical instructions will void the
warranty.
Important Notice Model : Z3450
Further information Phone [phone] [e-mail]
2

Installation Instructions Model : Z3450
Further information Phone [phone] [e-mail]
❷
❸
Install the water supply hoses 2, into
the tap body -1
Note: Hand tighten only, DO NOT over
tighten- 2
Install the water supply hoses 3, into the
tap body - 1
Note: Hand tighten only, DO NOT over
tighten- 3
3
❶

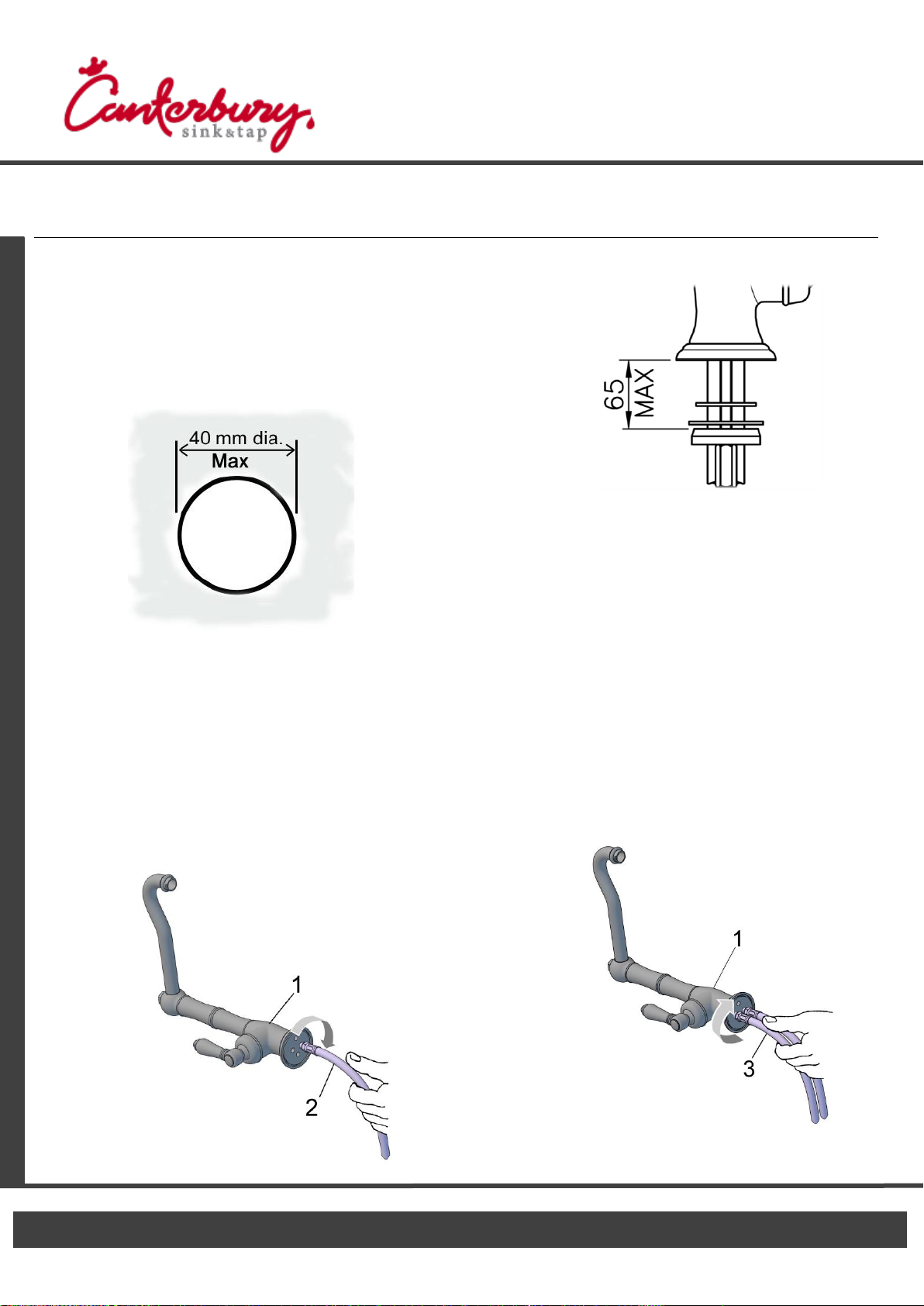

Preparation
Flush out the pipework to remove any foreign matter.
Tap cut out hole sizes : Maximum 40mm diameter.
Under side clearance : Maximum 65mm
Continue…….

❻
❼

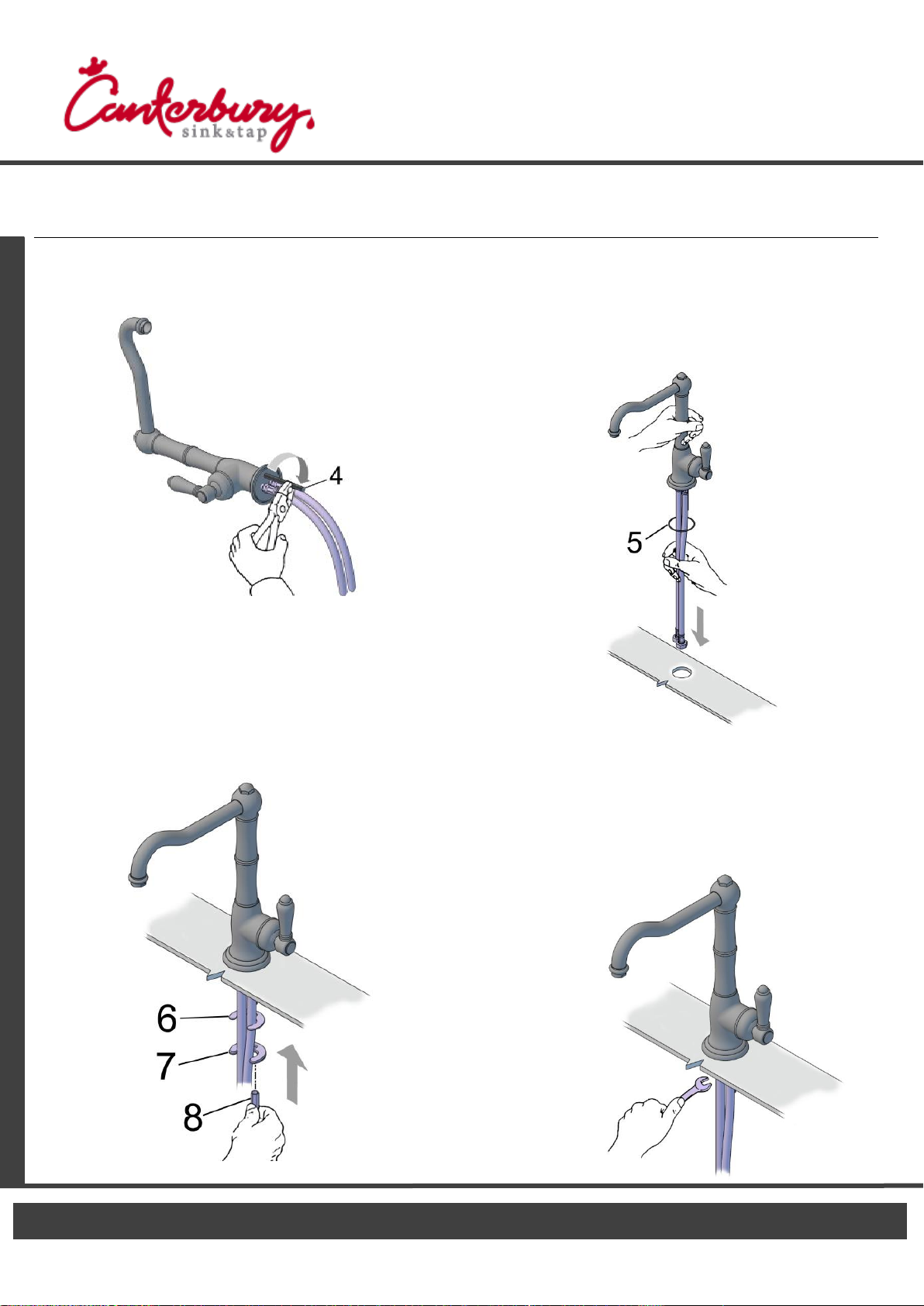

Under the sink, stack the supplied half ring
rubber gasket 6, above the half ring mounting
plate 7, and feed them onto the stud. Then screw
the mounting nut 8, onto the stud. Screw the
mounting stud until the half ring rubber mates
up with the underside of the sink.
Check the position of the tap on the sink, then
tighten the nut using a 13mm wrench.
Note: the under deck mounting surface must be flat.
If the mounting surface is irregular, the nut may not
be secured, and the tap will be loose on the sink.
Installation Instructions Model : Z3450
Further information Phone [phone] [e-mail]
❺
Feed the O-ring 5, over the water supply hoses.
Insert the tap into mounting hole. Feed the
water supply hoses carefully through the hole
ensuring that they are not bent or kinked, as this
could result in permanent damage or leakage.
Install the water supply hoses into the tap body -
1
Note: Hand tighten only, DO NOT over tighten- 2
4
❹
Install the supplied mounting stud 4, and
verify it is securely installed.

Installation Instructions Model : Z3450
Further information Phone [phone] [e-mail]
❽

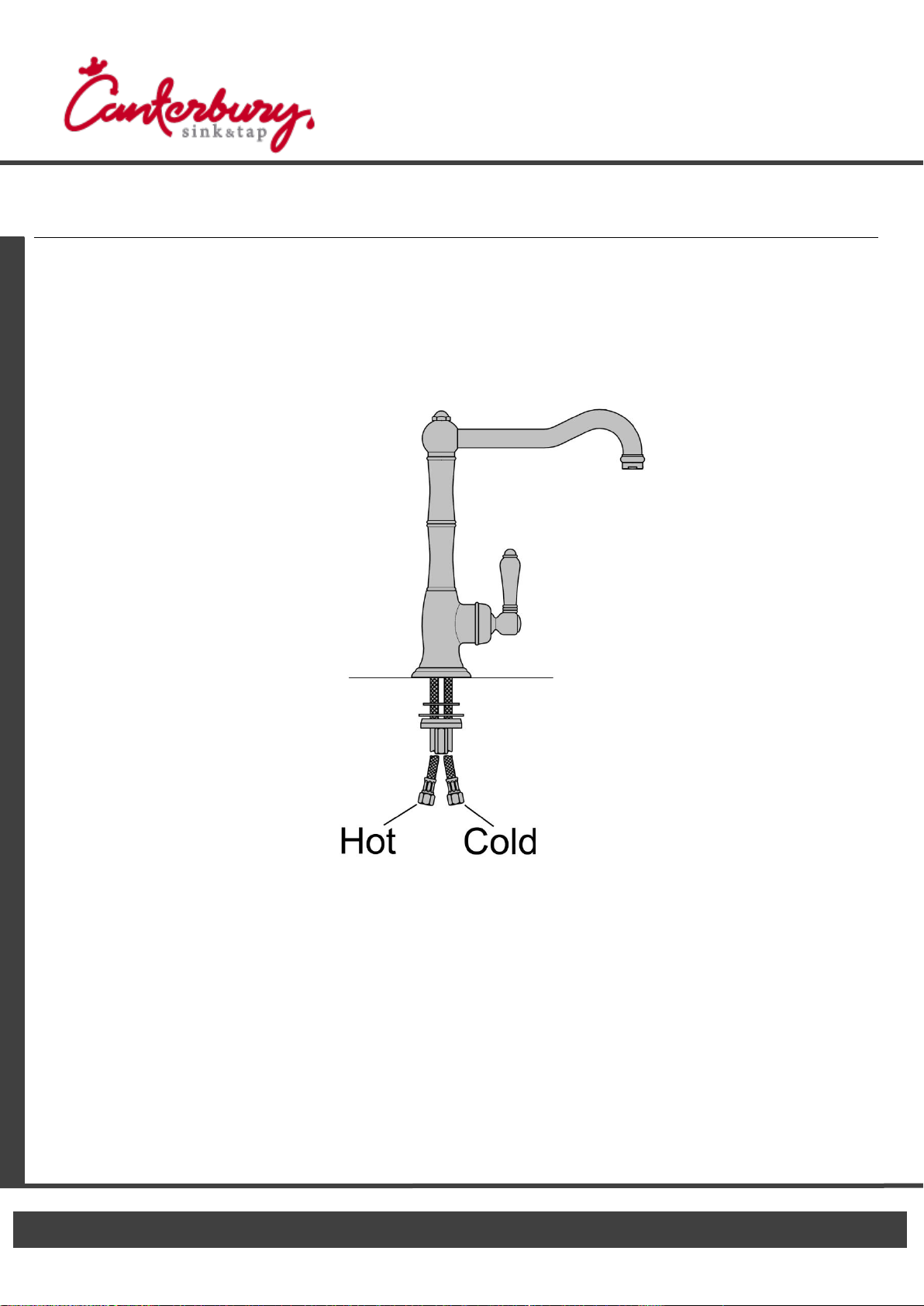

Connect hot and cold water supplies to flexi tail hoses.
Ensure all connections are firmly tightened.
5
Before use
Turn on the Hot and Cold supplies to the tap.
Maximum temperature for Hot water supply to the tapware is 62 °C.
Minimum recommended pressure is 100 kPa —Maximum recommended pressure is 500 kPa.
Check the installation carefully for leaks.
If further building work is to be carried out in the vicinity of the tapware, it should be covered to
prevent paint, adhesive, etc. from damaging the surface.

Spare Parts list Model : Z3450
Further information Phone [phone] [e-mail]
6

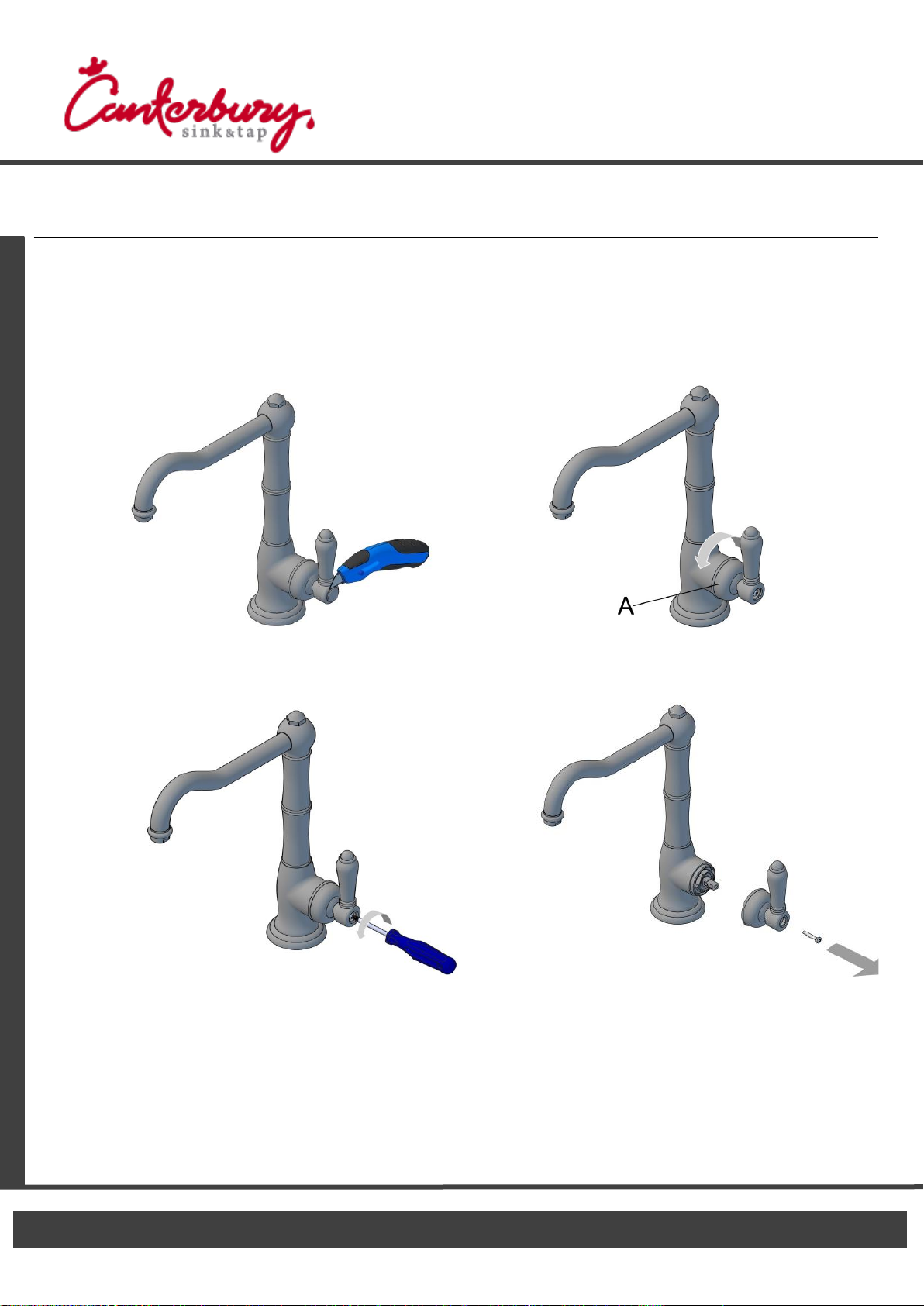

Hand loosen the retaining flange A.
Care and Maintenance Instructions Model : Z3450
Further information Phone [phone] [e-mail]
❶
❷
❸
Using a box cutter or similar sharp edged
tool, carefully remove the indice button.
7
To reassemble, reverse the disassembly procedure,
given above.
The retaining flange only needs to be hand tight.
NOTE:-DO NOT USE A SHIFTER TIGHTEN BY HAND ONLY !
Do not over tighten as this could damage the ceramic
cartridge!
Removing and replacing a handle
MODEL SHOWN : Z3450
NOTE: At any time, should the handle feel loose,
retighten the retaining flange and retaining
screw.
See our video: https://youtu.be/mpdiKSEoznY
Unscrew the retaining screw with a Phillips
head screw driver.
❹
Once the retaining screw is loose, simply
remove the handle and retaining flange.
❺

Care and Maintenance Instructions Model : Z3450
Further information Phone [phone] [e-mail]
MAINTENANCE FOR SINGLE HOLE/ADORE SINGLE LEVER TAP WARE WITH ONE LEVER DESIGN
INSTRUCTIONS FOR REPLACEMENT OF THE C3009 CARTRIDGE
See also:- https://youtu.be/mpdiKSEoznY
Do not replace the cartridge if there is low flow or no flow. Low flow or no flow is caused by obstruction or kinking of
supply hoses.
Turn off the hot and cold supply lines to the tap.
(Not shown).
Remove handle as per Removing/ Replacing
handle directions.
Remove the cartridge nut with a 27mm socket
set or shifter.
Once the cartridge nut is loose; simply remove
the cartridge by pulling it from cartridge seating
position.
Install new cartridge.
Ensure that the cartridge is correctly located
by inserting the alignment tabs A and B, into
the alignment slots.
To reinstall simply revers the above procedure.
Install the handle, retaining flange and retaining screw.
DO NOT USE A SHIFTER TIGHTEN BY HAND ONLY!
Turn on supply line and test for leaks. (Not shown).
8
Note: Do not over tighten as this could damage the
ceramic cartridge!
❶
❷
❸
❹

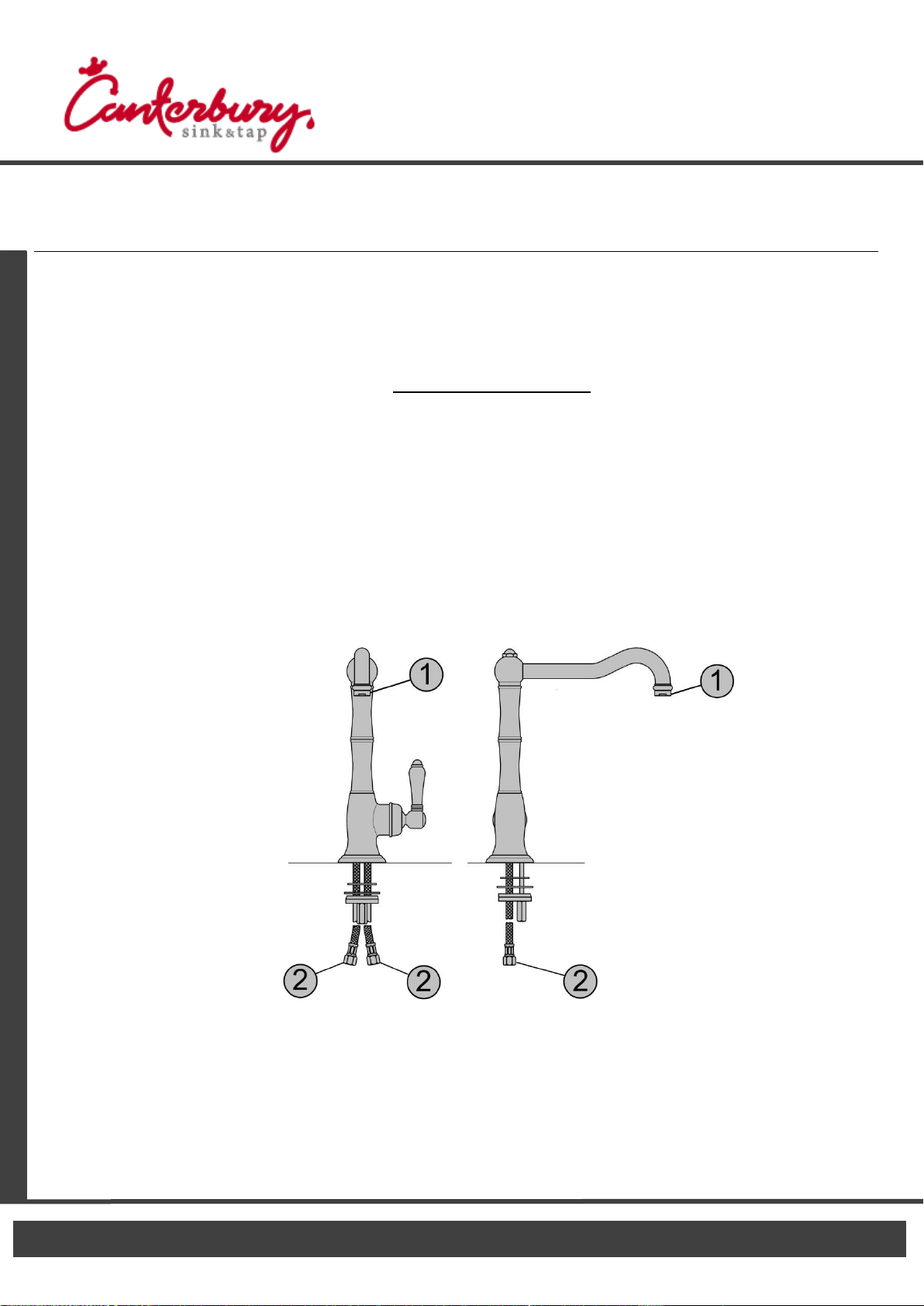

LOW FLOW OR NO FLOW TROUBLESHOOTING INSTRUCTIONS
Current kitchen taps have a max flow rate of 7 Litres per minute from the aerator and the hand spray.
If you are experiencing low flow from the spout: Do not change the cartridge
• Unscrew and clean the aerator -1
• Unscrew and clean the filters inside the supply connections- 2
• Check the supply lines for kinks or obstructions-2
• Make sure the supply line stops are fully on. Not shown
Care and Maintenance Instructions Model : Z3450
Further information Phone [phone] [e-mail]
9

Care of external finishes
Nicolazzi products are all authentic finishes that have not been coated with any product. After each use, pat the
fixture down to remove any excess water. This will prevent any water spotting or mineral build-up. Use only soft
liquid soap and water to clean the surface. Use a soft brush to clean any gaps. Avoid any products that have
ammonia or alcohol like Windex, Jif or Ajax. These products can damage the finish leaving black or white spots.
Never use on abrasive products on tap ware or this will devoid the warranty.
Live Finishes DO NOT carry a warranty as they are living finishes and will change over time.
