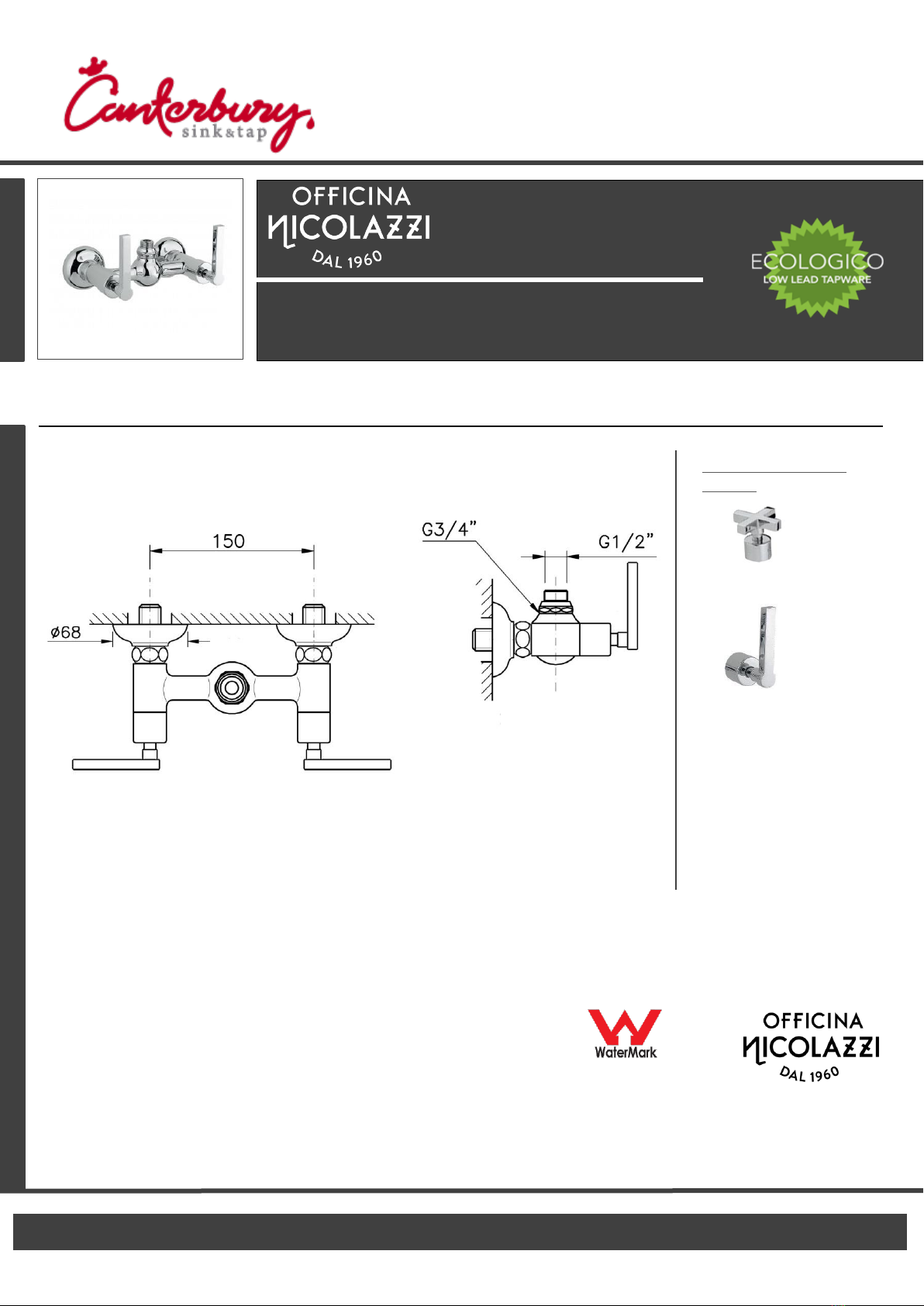

CANTERBURY Z2225-29 User manual

TAP MIXER FOR EXTERNAL COLUMN SHOWER
Art: Z2225--29
• Handmade in Italy since 1960
• ¼ Turn valves handmade at
Nicolazzi Factory
• Lead Free Brass Compliant to
AZ/NZS 3718
• Suitable even and uneven
pressure
• Handles are interchangeable
Specifications
WM22315
AS/NZS3662
Canterbury Sink & Tap Co.
Max/Min Operating
Pressure: 100/500kPa
Further information Phone [phone] [e-mail]
Available replacement
handles:
-27 Monte Carlo Handle
-29 Mac Kinley 05 Handle

CAREFULLY READ THROUGH THESE INSTRUCTIONS BEFORE INSTALLATION AND USE OF ALL TAP WARE AND WALL
VALVES
INSTALLATION and WARRANTY INSTRUCTIONS
TECHNICAL INFORMATION
All flexible hoses are designed and manufactured for use with water in exposed locations only. Do not expose to
household cleaners, chlorine, chloride, hydrochloric acid or other corrosive chemicals.
All connections with threads M10x1 male must be hand tighten. Do not over tighten. Over tightening may cause
damage to the hose.
All tap ware washers and o-rings are designed and manufactured for use with water. Do not expose to household
cleaners, chlorine, chloride, hydrochloric acid or other corrosive chemicals.
Our tap ware is designed for use with the temperatures and pressures listed below:
minimum cold water supply 10 °C
maximum hot water supply 62 °C
minimum pressure 100 kPa
maximum pressure 500 kPa
maximum fixing torque value = 13.6 Nm
Please note: The recommended pressure for best performance is between 270 kPa and 420 kPa. More pressure than
420 kPa or less pressure than 270 kPa may affect the diverting action in side spray tap ware.
Do not use any Nicolazzi tap ware with sulphurous water.
The minimum temperature for all tap ware is 10 degrees Celcius . Below 10 degrees Celcius will void the warranty.
When available, filter systems must be placed between hot and cold supply lines and the tap ware. Improper use or
non-use of filters may make diverting tap ware with hand sprays perform poorly.
Don't modify the tap ware and their components.
Use only original spare parts if there are replacements to be ordered. Installation must be made by authorized
plumbers or installers. Improper installation or diagnosis of problems is not covered by the warranty. Yearly
maintenance of cleaning and flushing is recommended.
Operation and use of any tap ware or wall valve that do not conform to these technical instructions will void the
warranty.
Important Notice Model : Z2225
Further information Phone [phone] [e-mail]
2

Installation Instructions Model : Z2225
Further information Phone [phone] [e-mail]
❶
❷
Preparation
Flush out the pipework to remove any foreign
matter.
The hot supply should be on the left when viewed
from the front of the fitting.
Assembly
Connect the ¾” male to ½” female bush adaptors (A),
to the1/2” (21mm) water supply pipes.
3
Assemble the round cap covers (B), over
the Bush adaptors.
Continue……..

Installation Instructions Model : Z2225
Further information Phone [phone] [e-mail]
Before use
Turn on the Hot and Cold supplies to the tap.
Maximum temperature for Hot water supply to the tapware is 62 °C.
Minimum recommended pressure is 100 kPa —Maximum recommended pressure is 500 kPa.
Check the installation carefully for leaks.
If further building work is to be carried out in the vicinity of the tapware, it should be covered to
prevent paint, adhesive, etc. from damaging the surface.
❸
4
Fix the body of the wall mixer (D), placing
the fibre washer (C), between the nut and
the ¾” male to ½ “ female bush adaptors.
Ensure all connections are firmly
tightened.

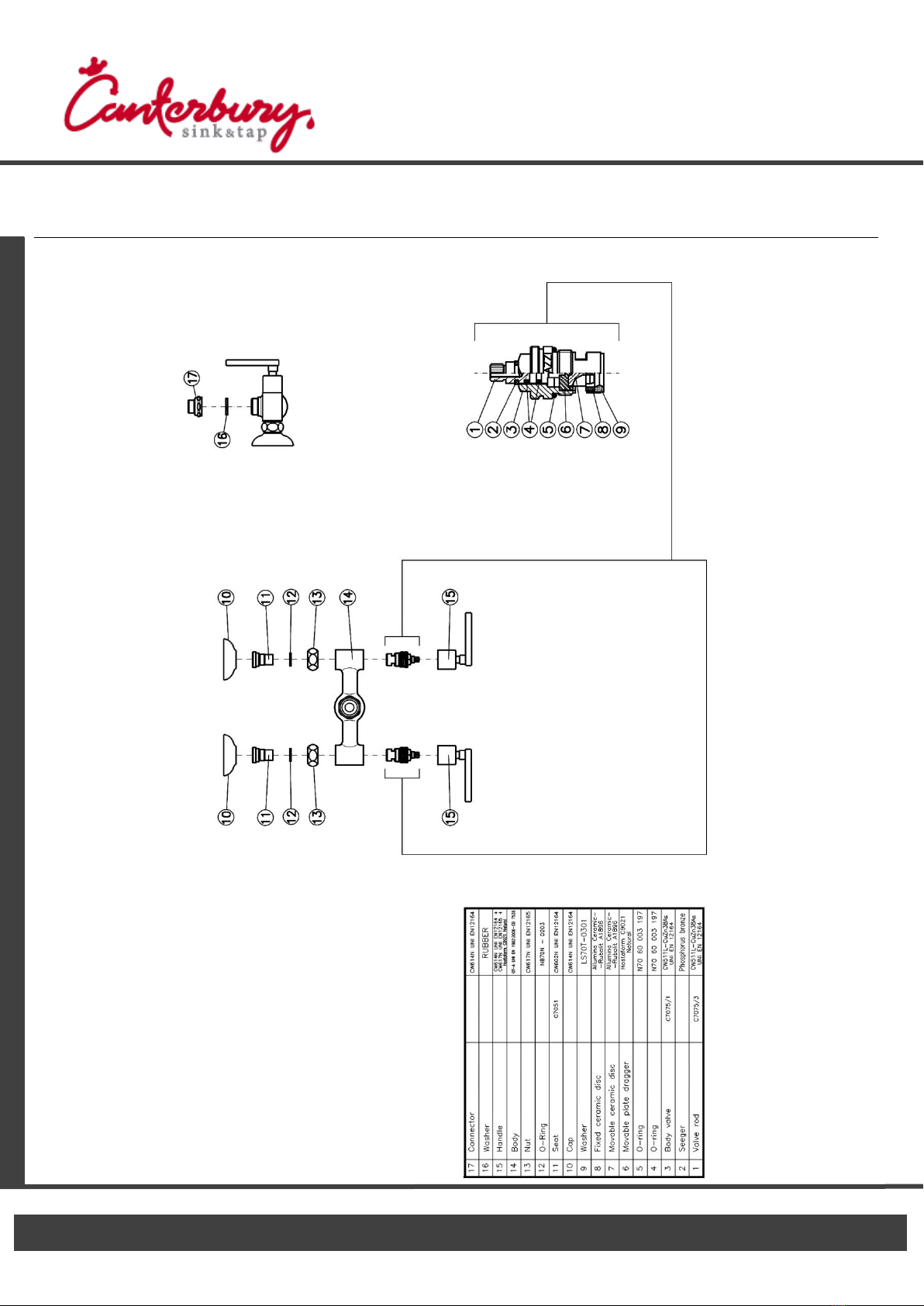

Spare Parts list Model : Z2225
Further information Phone [phone] [e-mail]
5

Care and Maintenance Instructions Model : Z2225
Further information Phone [phone] [e-mail]
6
MAINTENANCE FOR WALL MOUNTED TWO LEVER TAP WARE

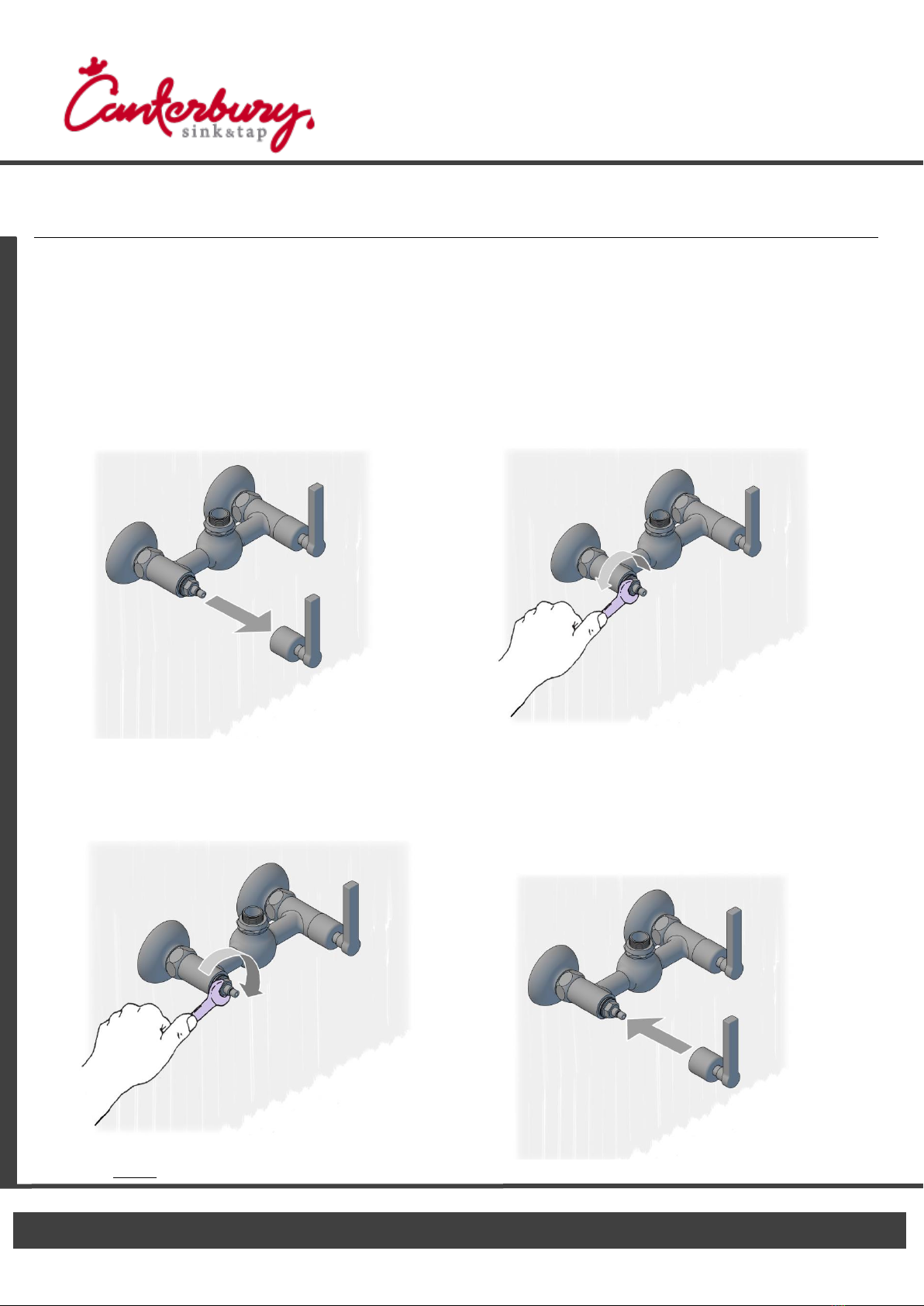

INSTRUCTIONS FOR REPLACEMENT OF THE HOT OR COLD CARTRIDGE
Do not replace the cartridge if there is low flow or no flow. Low flow or no flow is caused by obstruction or
kinking of supply hoses.
If the hand spray is leaking, do not replace the diverter. Service or replace the hand
spray if there is a continous leak.
Install new cartridge.
Secure the cartridge with a 17mm spanner or
smooth jawed shifter.
Install the handle and retaining flange, and hand
tighten only. DO NOT USE A SHIFTER TIGHTEN BY
HAND ONLY!
Turn on supply line and test for leaks. (Not
shown).
Turn off the hot and cold supply lines to the
tap. (Not shown).
Remove the handle and retaining flange.
Remove the cartridge with a 17mm spanner or
smooth jawed shifter.
Note: Do not over tighten as this could damage the ceramic cartridge!
❶
❷
❸
❹

.
Care and Maintenance Instructions Model : Z2225
Further information Phone [phone] [e-mail]
7

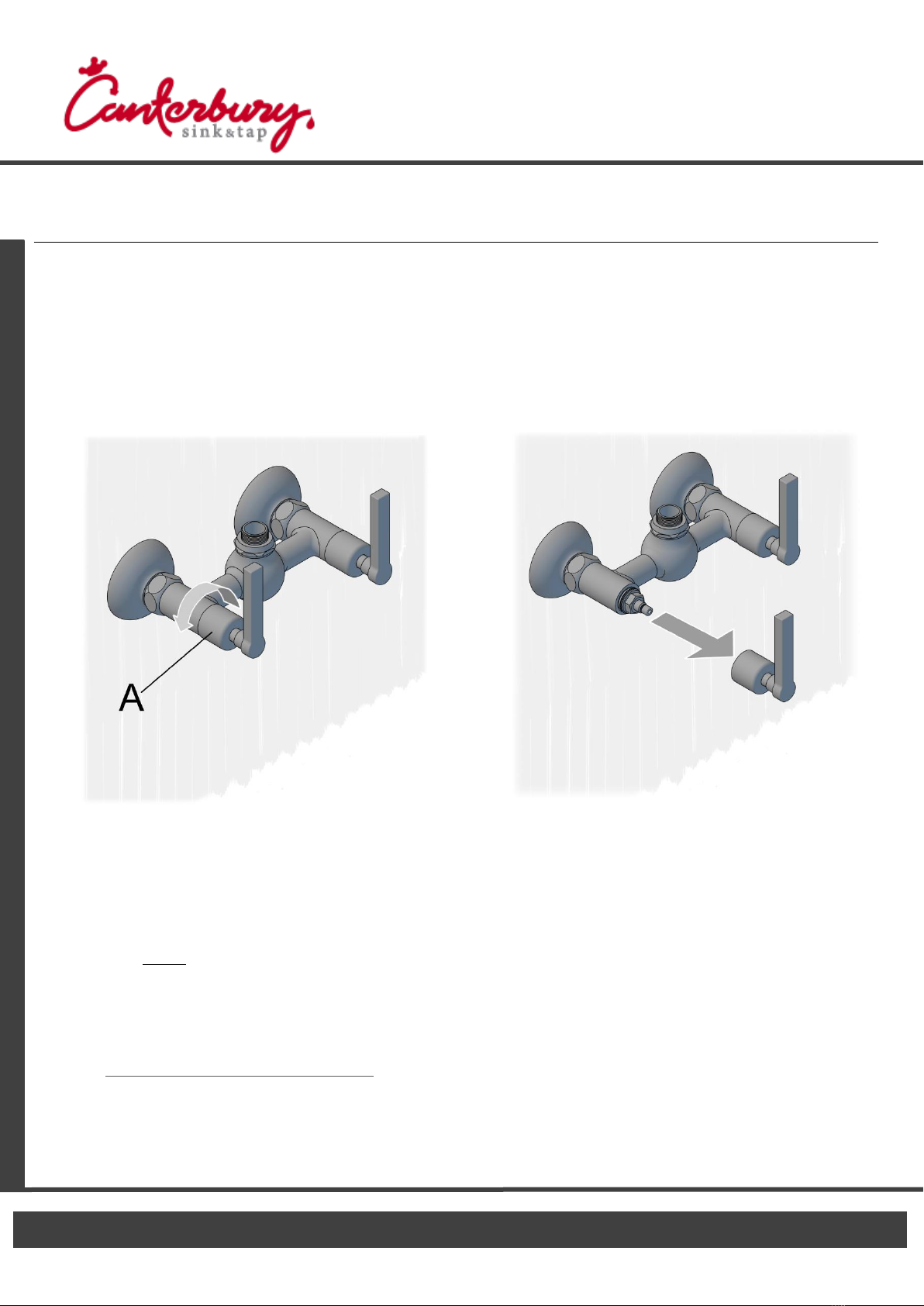

Removing and replacing a handle
MODEL SHOWN :Z2225--29
Once totally loose, simply remove the
handle from cartridge spline.
❶
❷
❸
Loosen and unscrew the retaining flange
A, from the tap body.
To reassemble, reverse the disassembly
procedure, given above.
The retaining flange only needs to be hand
tight.
Note: DO NOT USE A SHIFTER TIGHTEN BY
HAND ONLY ! Do not over tighten as this
could damage the ceramic cartridge!
NOTE: At any time, should the handle feel loose,
retighten the retaining flange by hand.
See our video: https://youby tu.be/PUbD3GHgg58
Available replacement handles:
-27 Monte Carlo Handle
-29 Mac Kinley 05 Handle

LOW FLOW OR NO FLOW TROUBLESHOOTING INSTRUCTIONS
Current bathroom taps have a max flow rate of 7 Litres per minute from the aerator.
If you are experiencing low flow from the spout: Do not change the cartridge
• • Unscrew and clean the filters inside the supply connections- 1
• Check the supply lines for kinks or obstructions-1
• Make sure the supply line stops are fully on. Not shown
Care and Maintenance Instructions Model : Z2225
Further information Phone [phone] [e-mail]
8

Care of external finishes
Nicolazzi products are all authentic finishes that have not been coated with any product. After each use, pat the
fixture down to remove any excess water. This will prevent any water spotting or mineral build-up. Use only soft
liquid soap and water to clean the surface. Use a soft brush to clean any gaps. Avoid any products that have
ammonia or alcohol like Windex, Jif or Ajax. These products can damage the finish leaving black or white spots.
Never use on abrasive products on tap ware or this will devoid the warranty.
Live Finishes DO NOT carry a warranty as they are living finishes and will change over time.
Raw Brass, Brush Brass ( To make the brass lighter again rub the brass tap with lemon juice, this will lighten the dark
colouring).
Shiny Brass, Polished Nickel has an ageing process and will tarnish over time.
Tuscan Brass is a living finish and also carries NO warranty. It will lighten with use. To extend the life of the finish,
apply Bruno’s Wax by patting it on, letting it dry and patting it off. Never rub or buff this finish.
WARNING: The use of cleaning products not recommended might irreparably harm the surfaces of the tap, which in
such cases are not covered by our warranty.
