OLSEN
KITCHEN ISLAND WITH LEAF
MODEL NO. 168-0072-0
ASSEMBLY INSTRUCTIONS
HAVING TROUBLE?
TOLL-FREE:
1-888-670-6684

We believe the power of decor and how
it makes up the fabric of your home.
That's why the CANVAS assortment gets
its inspiration from Canadians and the
way they live.
From on-trend furniture pieces, to
Holiday Decor and Outdoor Living,
CANVAS makes it easy to refresh your
your unique style and
the way you live.
We welcome your thoughtful
comments and feedback so please
visit our website to tell us about
your experience.
We would love to see how you bring
CANVAS to life. Please share your
photos using #mycanvasstyle.
Parts List/Exploded View 4
Step-by-Step Instructions 8

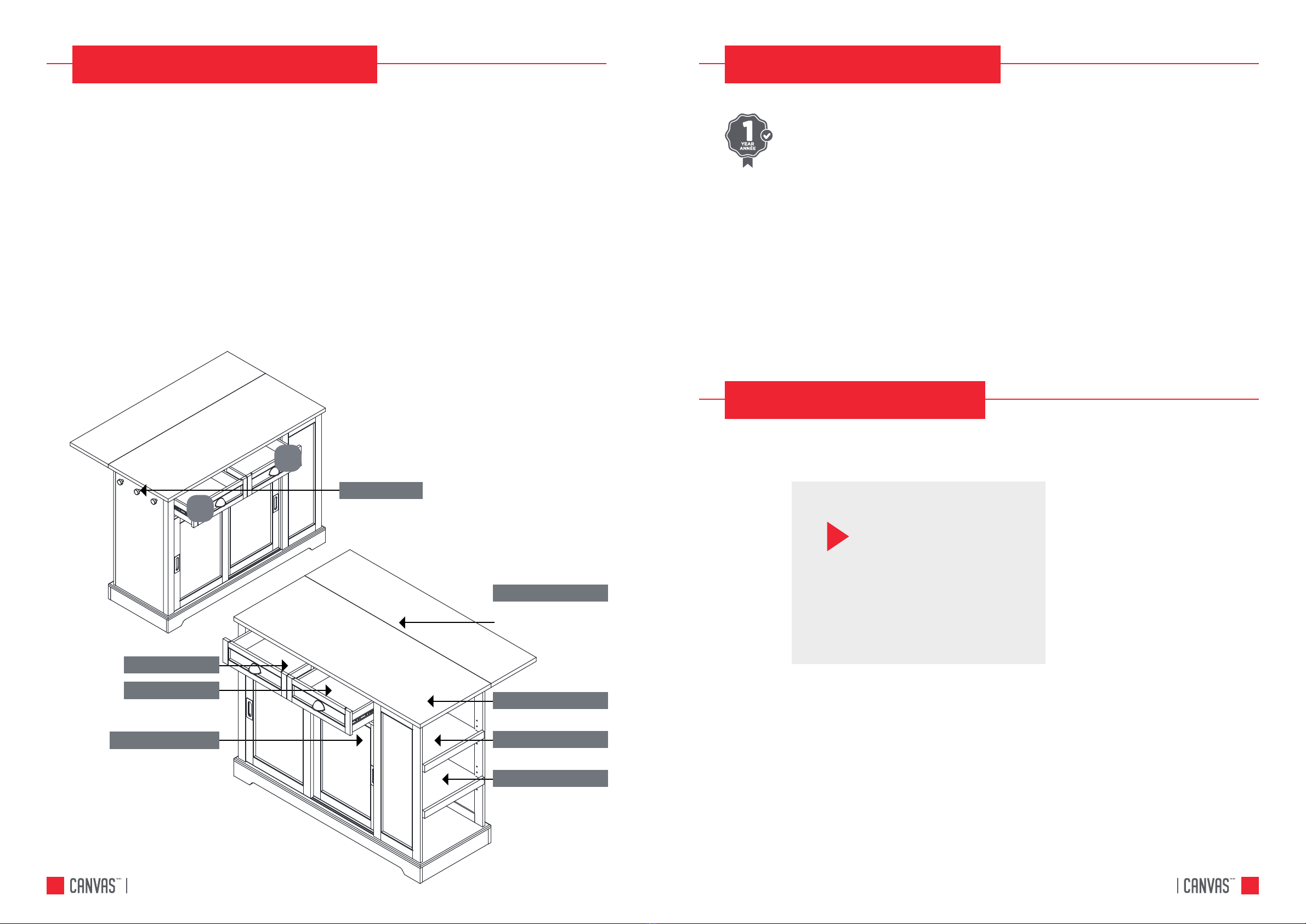

Warranty 37
Caring for your item 37
TABLE OF CONTENTS
TOOLS REQUIRED
• This product is intended for domestic indoor use only.
• Arrange necessary manpower when assembling or moving the product.
•
Do not push furniture, especially on a carpeted floor.Have someone help
you lift heavy items and set it in place.
• Check all screws periodically for tightness. When required, tighten them again.
• For maximum weight capacity of each part, see page 36 of Manual.
WARNING! TO REDUCE THE RISK OF SERIOUS INJURY,
READ THE FOLLOWING SAFETY INSTRUCTIONS BEFORE
ASSEMBLING AND USING THE KITCHEN ISLAND.
OLSEN KITCHEN ISLAND WITH LEAF 3
To avoid damage, ensure screws are hand tightened.
DO NOT USE POWER TOOLS TO ASSEMBLE YOUR UNIT
Screwdriver 2 people
• The product should be placed on a flat horizontal surface.

OLSEN KITCHEN ISLAND WITH LEAF OLSEN KITCHEN ISLAND WITH LEAF4 5
ITEM DESCRIPTION QUANTITY
A Back Top Panel 1
B Front Top Panel 1
C Left Side Panel 1
D Right Side Panel 1
E Brace 1
F Back Panel 1
G Rail Track Strip 1
H Divider 1
I Left Front Trim 1
J Bottom 1
K Support wood 2
L Right Adjustable Shelves 2
M Right Side Trim 2
N
O
P
Left Door Panel 1
Q
Right Door Panel
1
R
Right Front Panel 1
S
Adjustable Shelf 1
T
Left Drawer Sides 2
U
Right Drawer Side 2
V
Drawer Backs 2
W
Drawer Bottoms 2
Left Drawer Face 1
XSupport Foot 1
Right Drawer Face 1

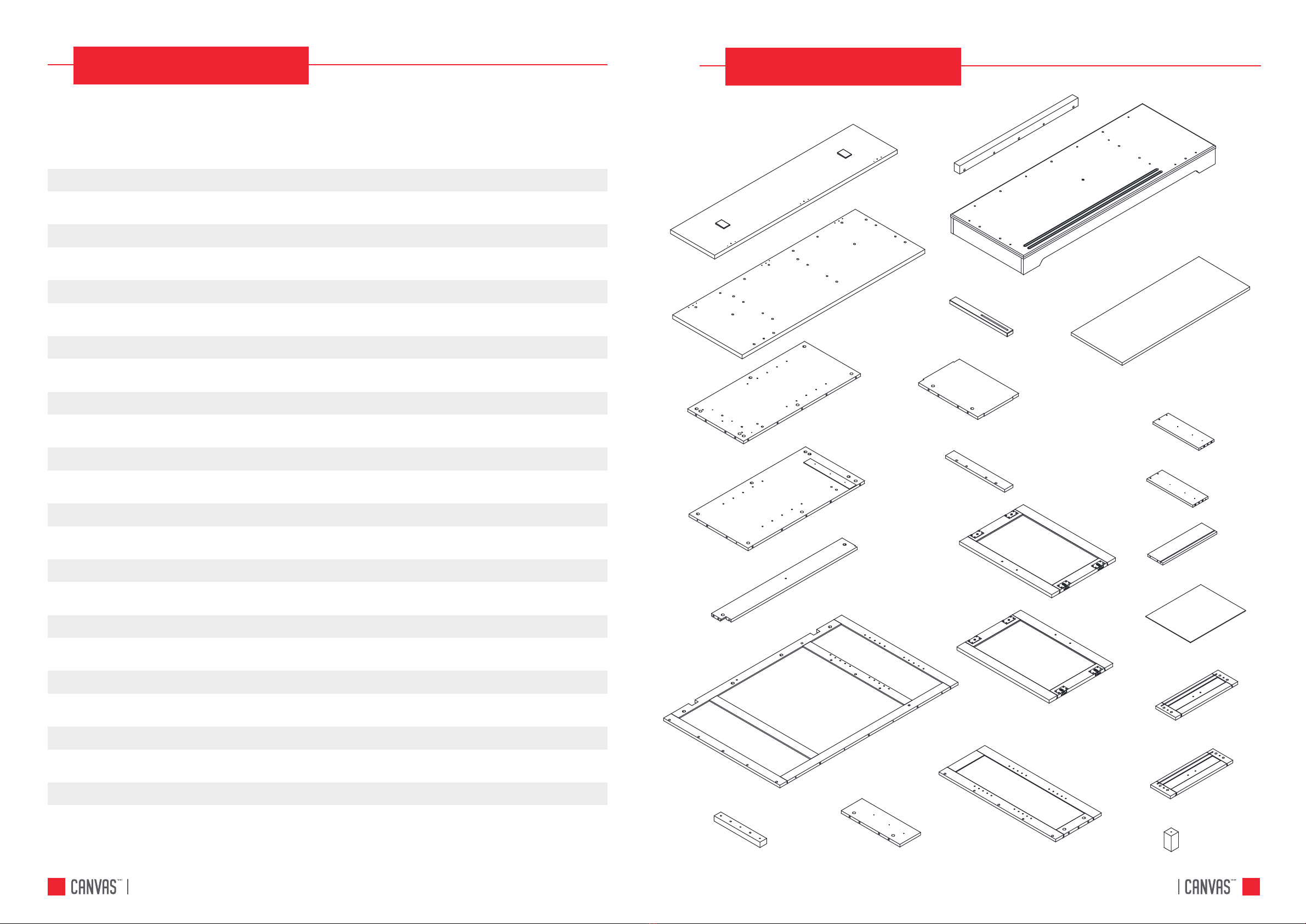

PARTS LIST EXPLODED VIEW
A
I
J
K
O
N
M
L
P
Q
S
V
T
W
X
U
R
B
C
D
F
E
G H

1
2
3
4
5
6
9
10
11
12
13
14
21
22
16
15
17
18
19
20
7
8
OLSEN KITCHEN ISLAND WITH LEAF OLSEN KITCHEN ISLAND WITH LEAF
6 7
ITEM DESCRIPTION QUANTITY
1 Wood Dowels Ø7.8 x 30 mm 34
2 Cam Bolts (big) 30
3 Cams (big)30
4 Wood Dowels Ø5.8 x 30 mm 4
5 Cam Bolts (small) 8
6 Cams (small) 8
7 Extension Slides 4
8 Extension Rails With Stopper 4
9 Handles 2
10 Hinges 3
11 Handles 2
12 Screws Ø3.5 x 12 mm 24
13 Screws Ø4 x 14 mm 18
14 Screws Ø4 x 35 mm 3
22 Bolts M4 x 20 mm 3
23
15 Hexagon wrench 1
16 Screws Ø5 x 50 mm 13
17 Screws Ø3.8 x 35 mm 8
18 Bolts M4 x 12 mm 4
19 Bolts M4 x 4 mm 4
20 Shelf support 12
21 Hooks 3
PARTS LIST EXPLODED VIEW
23
24
25
26
24
25
Pads 4
26 Glue 3
Flat Washer 2
Bolt M630 mm 2

OLSEN KITCHEN ISLAND WITH LEAF OLSEN KITCHEN ISLAND WITH LEAF8 9

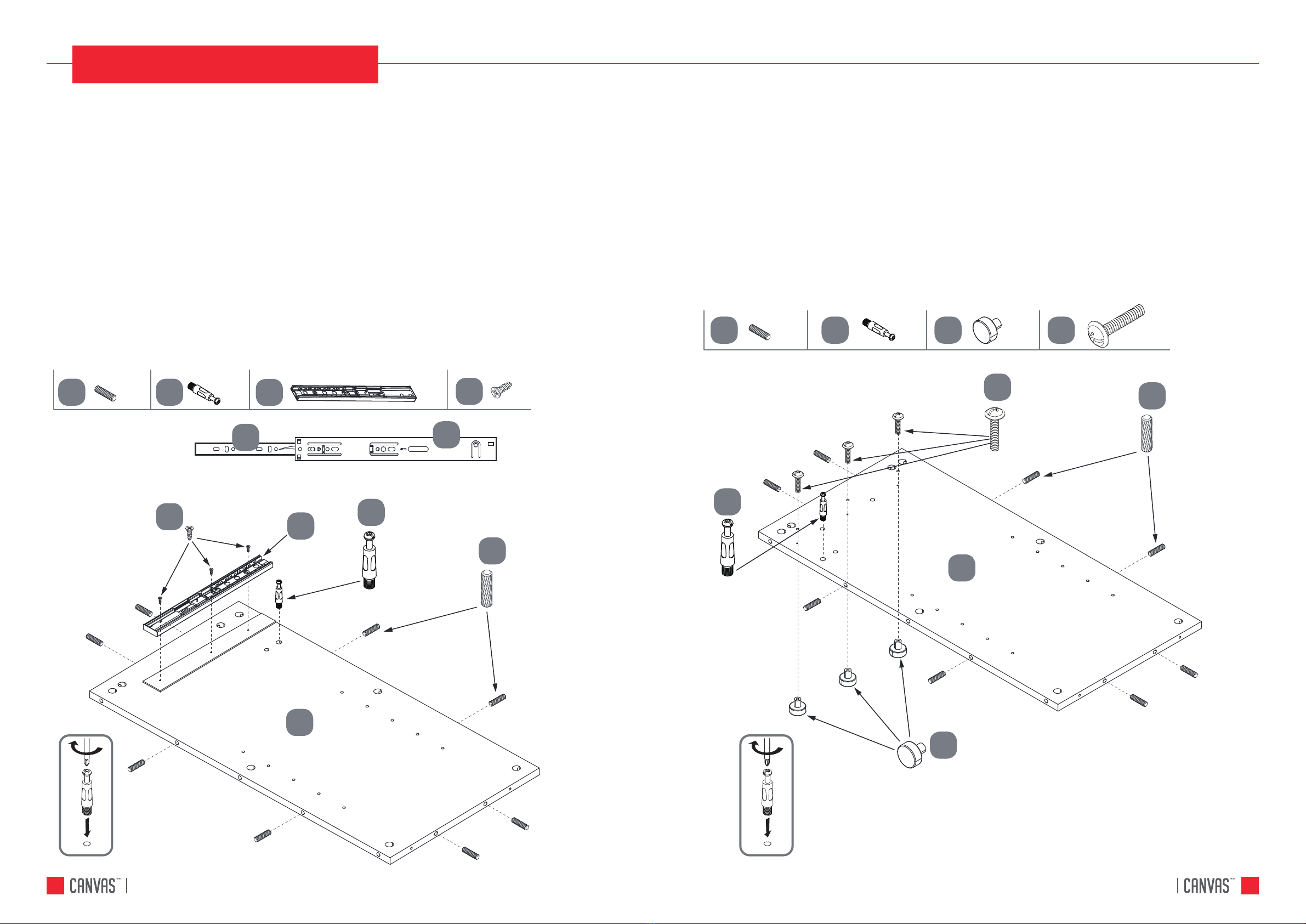

STEP 1
REQUIRES D, 1, 2, 8, 12
NOTE: Two people are needed to build this unit.
NOTE: These come in 2 separate pieces.
Separate the EXTENSION SLIDES (7) from the EXTENSION RAILS WITH STOPPERS
(8) as shown in the diagram.
Fasten EXTENSION RAIL WITH STOPPER (8) to the RIGHT SIDE PANEL (D). Use
three SCREWS Ø3.5 x 12 MM (12).
Turn one CAM BOLT (BIG) (2) and insert eight WOOD DOWELS Ø7.8 x 30 MM (1) into
the exact holes in the RIGHT SIDE PANEL (D).
STEP 2
REQUIRES C, 1, 2, 21, 22
Turn one CAM BOLT (BIG) (2) and insert eight WOOD DOWELS Ø7.8 x 30 MM (1)
into the exact holes in the LEFT SIDE PANEL (C). Fasten three HOOKS (21) to LEFT
SIDE PANEL (C). Use three BOLTS M4 x 20 MM (22).
STEP-BY-STEP INSTRUCTIONS
1
1
2
12 22
22
21
21
2
8
8
12
12
78
2
1
C
D
×8×1
×8×1
×1×3
×3×3
NOTE: Dip a little glue to the wood dowel before insert it to the
hole of panel

OLSEN KITCHEN ISLAND WITH LEAF OLSEN KITCHEN ISLAND WITH LEAF10 11

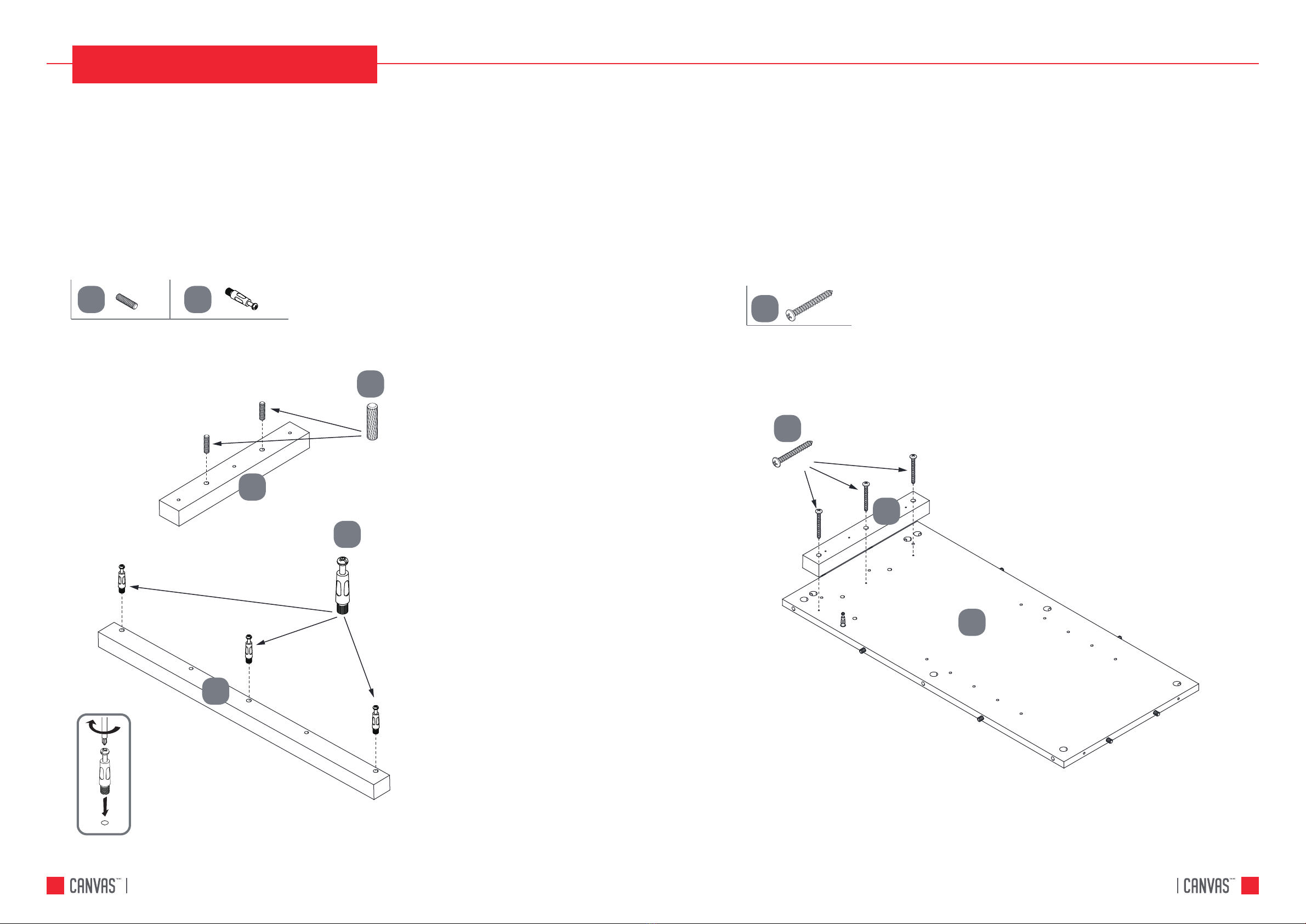

STEP 3
REQUIRES G, I, 1, 2
Insert two WOOD DOWELS Ø7.8 x 30 MM (1) into the exact holes in the RAIL
TRACK STRIP (G) and turn three CAM BOLTS (BIG) (2) into the exact holes in
the LEFT FRONT TRIM (I).
STEP 4
REQUIRES C, G, 14
Fasten RAIL TRACK STRIP (G) to the LEFT SIDE PANEL (C). Use three SCREWS
Ø4 x 35 MM (14).
STEP-BY-STEP INSTRUCTIONS
12
2
1
C
G
G
I
14
14
×2×3×3

OLSEN KITCHEN ISLAND WITH LEAF OLSEN KITCHEN ISLAND WITH LEAF12 13
STEP 5
REQUIRES C, I, 3
Insert three CAMS (BIG) (3) into the LEFT SIDE PANEL (C).
Fasten the LEFT FRONT TRIM (I) to the LEFT SIDE PANEL (C). Hand tighten three
CAMS (BIG) (3).
STEP 6
REQUIRES C, 8, 12
Fasten EXTENSION RAIL WITH STOPPER (8) to the LEFT SIDE PANEL (C). Use three
SCREWS Ø3.5 x 12 MM (12).
STEP-BY-STEP INSTRUCTIONS
C
C
I
3
3
812
8
12
160°~185°
×3×1×3

OLSEN KITCHEN ISLAND WITH LEAF OLSEN KITCHEN ISLAND WITH LEAF14 15
STEP 7
REQUIRES E, 1
Insert two WOOD DOWELS Ø7.8 x 30 MM (1) into the short edges of the BRACE (E).
STEP 8
REQUIRES C, D, E, 3
Insert two CAMS (BIG) (3) into the BRACE (E).
Fasten the LEFT SIDE PANEL (C) and RIGHT SIDE PANEL (D) to the BRACE (E).
Hand tighten two CAMS (BIG) (3).
STEP-BY-STEP INSTRUCTIONS
C
1
1
3
3
E
E
D
×2×2

OLSEN KITCHEN ISLAND WITH LEAF OLSEN KITCHEN ISLAND WITH LEAF16 17

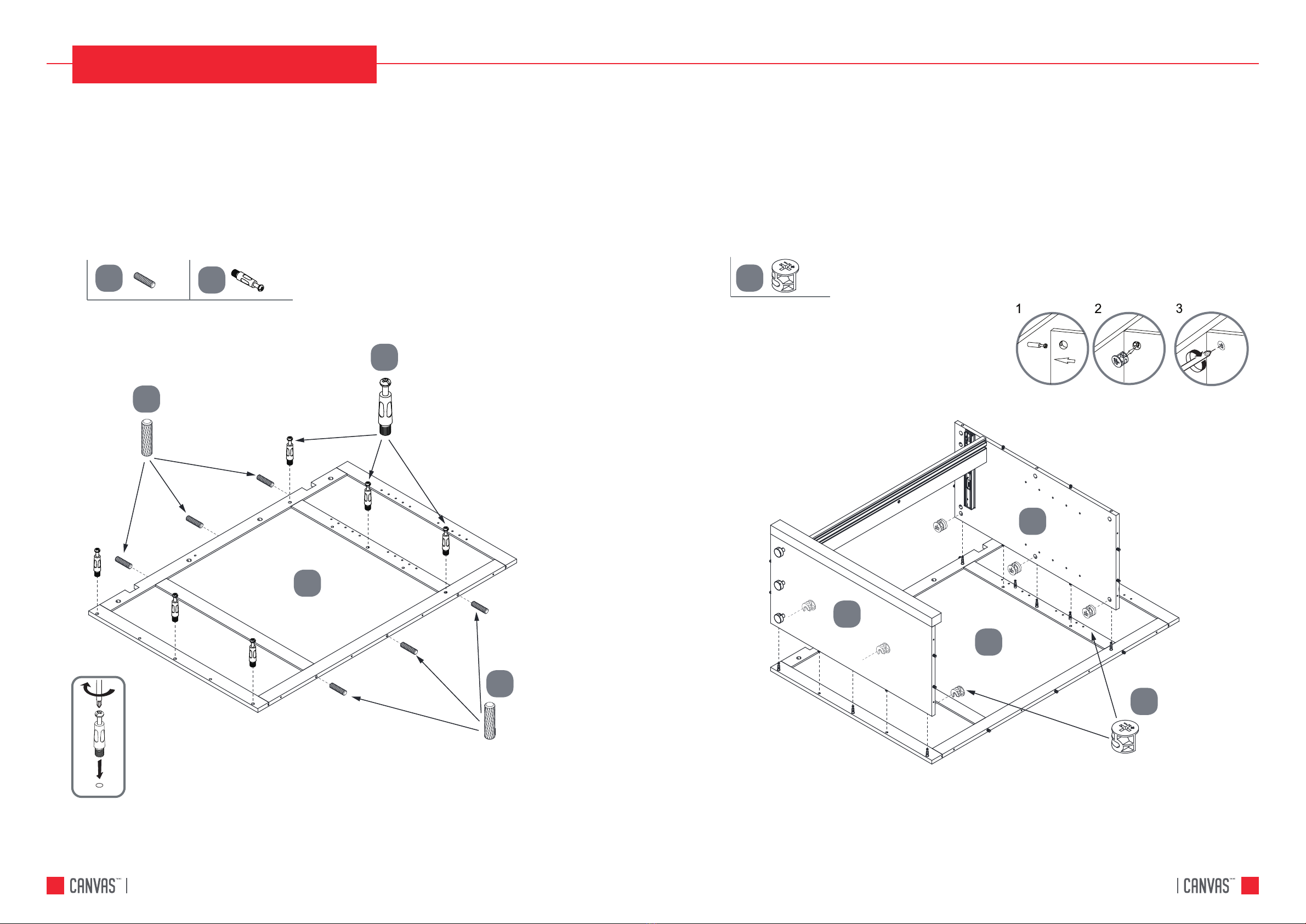

STEP 9
REQUIRES F, 1, 2
Insert six WOOD DOWELS Ø7.8 x 30 MM (1) and six CAM BOLTS (BIG) (2) into the
BACK PANEL (F).
STEP 10
REQUIRES C, D, F, 3
Insert six CAMS (BIG) (3) into LEFT SIDE PANEL (C) and RIGHT SIDE PANEL (D).
Fasten the LEFT SIDE PANEL (C) and RIGHT SIDE PANEL (D) to the BACK PANEL
(F). Hand tighten six CAMS (BIG) (3).
STEP-BY-STEP INSTRUCTIONS
2
3
3
C
D
F
F
1
1
×6
2
1×6×6

OLSEN KITCHEN ISLAND WITH LEAF OLSEN KITCHEN ISLAND WITH LEAF18 19
STEP 11 STEP 12
STEP-BY-STEP INSTRUCTIONS
REQUIRES P, 1, 2
Insert two WOOD DOWELS Ø7.8 x 30 MM (1) and three CAM BOLTS (BIG) (2) to the
RIGHT FRONT PANEL (P).
REQUIRES D, P, 3
Insert three CAM (BIG) (3) into RIGHT SIDE PANEL (D).
Fasten RIGHT FRONT PANEL (P) to RIGHT SIDE PANEL (D)，hand tighten three
CAM (BIG) (3).
3
3
2
2
P
D
P
1
1×3×2
×3

OLSEN KITCHEN ISLAND WITH LEAF OLSEN KITCHEN ISLAND WITH LEAF20 21
STEP 13 STEP 14
STEP-BY-STEP INSTRUCTIONS
REQUIRES C, D, F, J, P, 16
Fasten BOTTOM (J) to LEFT SIDE PANEL (C), RIGHT SIDE PANEL (D), RIGHT
FRONT PANEL (P) and BACK PANEL (F). Use ten SCREWS Ø5 x 50 MM (16).
C
F
P
16
16
J
J
X
16
D
×10
REQUIRES J, X, 16
Connect the SUPPORT FOOT (X) with the BOTTOM (J). Use one SCREW
Ø5 x 50 MM (16).
16 ×1

OLSEN KITCHEN ISLAND WITH LEAF OLSEN KITCHEN ISLAND WITH LEAF22 23
STEP 15 STEP 16
REQUIRES H, 1, 8, 12
Fasten two EXTENSION RAILS WITH STOPPERS (8) to both sides of DIVIDER (H).
Use six SCREWS Ø3.5 x 12 MM (12).
Insert two WOOD DOWELS Ø7.8 x 30 MM (1) into the DIVIDER (H).
STEP-BY-STEP INSTRUCTIONS
081 °
1
1
8
8
8
12
12
12
H
H
(3 used)
REQUIRES E, H, 16
Fasten DIVIDER (H) to BRACE (E). Use one SCREW Ø5 x 50 MM (16).
×2×2×6
H
16
E
16 ×1

OLSEN KITCHEN ISLAND WITH LEAF OLSEN KITCHEN ISLAND WITH LEAF24 25
STEP 17 STEP 18
STEP-BY-STEP INSTRUCTIONS
REQUIRES F, H, 16
Fasten BACK PANEL (F) to DIVIDER (H). Use one SCREW Ø5 x 50 MM (16).
REQUIRES A, B, K, 2, 10, 13, 15, 24, 25
Turn twelve CAM BOLTS (BIG) (2) into the exact holes in the FRONT TOP PANEL (B).
Connect two SUPPORT WOODS (K) with FRONT TOP PANEL (B), use two BOLTS
M630 MM (24) and two FLAT WASHERS (25).
Hand tighten the bolts with HEXAGON WRENCH (15).
Fasten three HINGES (10) to BACK TOP PANEL (A) and FRONT TOP PANEL (B). Use
eighteen SCREWS Ø4 x 14 MM (13).
2
2
F
13
13
16
16
15
A
B
K
K
10
10
×1
×12 ×3×18 ×124
24
25
25
×2×2
H
15

OLSEN KITCHEN ISLAND WITH LEAF OLSEN KITCHEN ISLAND WITH LEAF26 27
STEP 19 STEP 20
STEP-BY-STEP INSTRUCTIONS
REQUIRES A, B, C, D, F, H, P, 3
Insert four CAMS (BIG) (3) into BACK PANEL (F), two CAMS (BIG) (3) into LEFT SIDE
PANEL (C), two CAMS (BIG) (3) into RIGHT SIDE PANEL (D), two CAMS (BIG) (3) into
DIVIDER (H), two CAMS (BIG) (3) into RIGHT FRONT PANEL (P).
Fasten the BACK TOP PANEL (A) and FRONT TOP PANEL (B) to the BACK PANEL
(F), LEFT SIDE PANEL (C), RIGHT SIDE PANEL (D), DIVIDER (H) and RIGHT FRONT
PANEL (P).
Hand tighten twelve CAMS (BIG) (3).
3
REQUIRES L, M, 1, 2
Insert two WOOD DOWELS Ø7.8 x 30 MM (1) into the RIGHT ADJUSTABLE SHELF (L).
Turn two CAM BOLTS (BIG) (2) into the exact holes in the RIGHT SIDE TRIM (M).
Repeat this step two times.
1
1
L
2
M
2
×12
×2×2
C
FP
3
A
B
D
H

OLSEN KITCHEN ISLAND WITH LEAF OLSEN KITCHEN ISLAND WITH LEAF28 29
STEP 21 STEP 22
REQUIRES L, M, 3
Insert two CAMS (BIG) (3) into the RIGHT ADJUSTABLE SHELF (L).
Fasten the RIGHT SIDE TRIM (M) to RIGHT ADJUSTABLE SHELF (L). Hand
tighten two CAMS (BIG) (3).
STEP-BY-STEP INSTRUCTIONS
P
REQUIRES C, D, F, L, P, Q, 20
Insert four SHELF SUPPORT (20) to the LEFT SIDE PANEL (C) and the RIGHT SIDE
PANEL (D). Set the ADJUSTABLE SHELF (Q) onto the SHELF SUPPORT (20).
Insert eight SHELF SUPPORT (20) to the RIGHT FRONT PANEL (P) and the BACK
PANEL (F). Set two RIGHT ADJUSTABLE SHELVES (L) onto the SHELF SUPPORT (20).
C
Q
20
20
D
3
L
L
L
M
3
OR
F
×2
×12
Repeat this step for the second shelf.
NOTE: The right side trim can be connected with right adjustable shelf in two ways
as below small rendering shows. You can choose the way you prefer.

OLSEN KITCHEN ISLAND WITH LEAF OLSEN KITCHEN ISLAND WITH LEAF30 31
STEP 23
REQUIRES N, O, 11, 18, 23
Fasten one HANDLE (11) to LEFT DOOR PANEL (N). Use two BOLTS M4 x 12 MM (18).
Fasten one HANDLE (11) to RIGHT DOOR PANEL (O). Use two BOLTS M4 x 12 MM (18).
Attach two PADS (23) to the side edge of LEFT DOOR PANEL (N) and RIGHT
DOOR PANEL(O).
STEP 24
REQUIRES E, J, N, O
Press down the stopper in the LEFT DOOR PANEL (N) and RIGHT DOOR PANEL (O).
Set the door (the side with small wheel) into the BOTTOM (J), ensure the small wheel
is in the groove of bottom.
Then set the upper door into the BRACE (E). Make sure the stopper is in the groove
of BRACE (E) and push back the stopper.
NOTE: You can adjust the seam of the door by turning the screw in the small wheel.
STEP-BY-STEP INSTRUCTIONS
J
N
N
O
O
11
11
11
18
23
23
18
18
E
×4×2×4
23
23
23

OLSEN KITCHEN ISLAND WITH LEAF OLSEN KITCHEN ISLAND WITH LEAF32 33

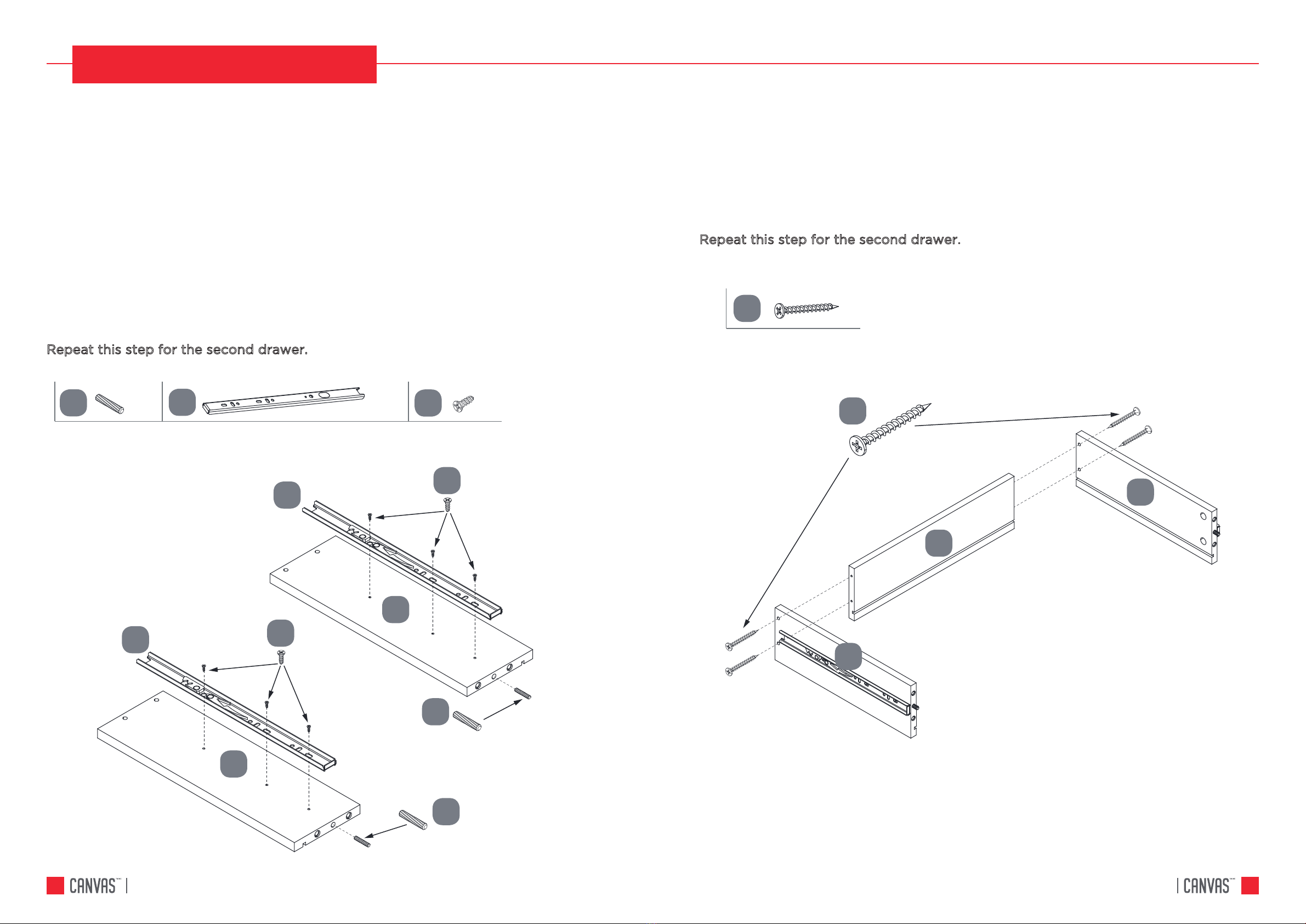

STEP 25
REQUIRES R, S, 4, 7, 12
Fasten one EXTENSION SLIDE (7) to the LEFT DRAWER SIDE (R). Use three SCREWS
Ø3.5 x 12 MM (12).
Insert one WOOD DOWEL Ø5.8 x 30 MM (4) into the exact holes in the LEFT DRAWER
SIDE (R)
Fasten one EXTENSION SLIDE (7) to the RIGHT DRAWER SIDE (S). Use three SCREWS
Ø3.5 x 12 MM (12).
Insert one WOOD DOWEL Ø5.8 x 30 MM (4) into the exact holes in the RIGHT DRAWER
SIDE (S).
Repeat this step for the second drawer.
STEP 26
REQUIRES R, S, T, 17
Fasten DRAWER BACK (T) to LEFT DRAWER SIDE (R) and RIGHT DRAWER SIDE
(S). Use four SCREWS Ø3.8 x 35 MM (17).
STEP-BY-STEP INSTRUCTIONS
12
4
4
7
7
7
12
12
R
R
S
S
17
17
T
4
×2×2×6
×4
Repeat this step for the second drawer.

OLSEN KITCHEN ISLAND WITH LEAF OLSEN KITCHEN ISLAND WITH LEAF34 35
STEP 27
REQUIRES V, W, 5, 9, 19
Turn four CAM BOLTS (SMALL) (5) into the exact holes in the LEFT DRAWER FACE
(V).
Fasten one HANDLE (9) to LEFT DRAWER FACE (V). Use two BOLTS M4 x 4 MM (19).
Turn four CAM BOLTS (SMALL) (5) into the exact holes in the RIGHT DRAWER FACE
(W).
Fasten one HANDLE (9) to RIGHT DRAWER FACE (W). Use two BOLTS M4 x 4 MM (19).
STEP 28
REQUIRES R, S, T, U, V, W, 6
Slide the DRAWER BOTTOM (U) into the grooves in the DRAWER SIDES (R and S)
and DRAWER BACK (T).
Insert four CAMS (SMALL) (6) into DRAWER SIDES (R and S).
Repeat above step for the second drawer.
Fasten DRAWER FRONT (V and W) to the DRAWER SIDES (R and S). Ensure the
DRAWER BOTTOM (U) is in the grooves in the DRAWER FRONT (V and W).
Hand tighten eight CAMS (BIG) (6).
STEP-BY-STEP INSTRUCTIONS
R
TS
U
5
5
5
9
9
9
19
19
19
V
W
6
6
V
W
&
×8×2×4
×4

OLSEN KITCHEN ISLAND WITH LEAF OLSEN KITCHEN ISLAND WITH LEAF36 37
STEP-BY-STEP INSTRUCTIONS
STEP 29
REQUIRES V, W
Insert two drawers one by one into your unit, line up the extension slides on the
drawer with the extension rails on the unit and push the drawer into the unit until
the drawer is fully inserted. The drawer will have to be pushed in all the way
initially, to engage the easy slide and soft-close feature.
NOTE: The two drawers are not interchangeable. Place the LEFT DRAWER FACE
(V) on the left side and the drawer with RIGHT DRAWER FACE (W) on the right.
NOTE: Soft-close drawer rails with stopper is included in the rail.
79 lb 6 oz (36 kg)
132 lb 8 oz (60 kg)
41 lb 14 oz (19 kg)
4 lb 6 oz (2 kg)
22 lb (10 kg)
41 lb 14 oz (19 kg)
WARRANTY
CARING FOR YOUR ITEM
Wipe clean with a damp cloth.
Do not use solvent-type cleaning
agents. Do not use bleach, acid
or other abrasive cleaners.
1
4 lb 6 oz (2 kg)
44 lb 1 oz (20 kg)
1-YEAR LIMITED WARRANTY
This CANVAS™ product carries a one (1 ) year warranty against defects in workmanship
and materials.
This product is not guaranteed against wear or breakage due to misuse and/or abuse.
Trileaf Distribution agrees to replace the defective product free of charge within
the stated warranty period, when returned by the original purchaser with proof of
purchase.
Made in China
Imported by Trileaf Distribution Trifeuil Toronto, Canada M4S 2B8
MODEL NO. 168-0072-0
V
W

Exclusively at Canadian Tire
