Canvas ROBSON 168-0047-2 User manual

ASSEMBLY INSTRUCTIONS
Toll free: 1-888-670-6684
IMPORTANT: Please read this manual carefully before beginning assembly of this
product. Keep this manual for future reference.
ROBSON BOOKCASE
MODEL NO. #168-0047-2

IMPORTED BY TRILEAF DISTRIBUTION TRIFEUIL TORONTO, CANADA M4S 2B8
MADE IN CHINA

3
IMPORTANT: Retain for future reference, and read carefully.
IMPORTANT SAFETY INSTRUCTIONS TABLE OF CONTENTS
Important Safety Instructions 3
Parts List 4
Assembly Preparation 5
Assembly 6-10
Cleaning and Maintenance 11
Technical Data 11
Warranty 12
Warning! To reduce the risk of serious injury, read the following safety
instructions before assembling and using the bookcase.
Death or serious injury may occur when children climb on storage or bookcase
type furniture. A remote control or toys placed on the furniture may encourage a
child to climb on the furniture and as a result may tip over onto the child.
NEVER allow children to climb or play with storage or bookcase type furniture.
NEVER place toys, food, remote, etc. on top of storage or bookcase type
furniture
ALWAYS use either the safety hardware as instructed or other wall anchoring
device.
Placing TVs on furniture that are not designed to support a television is hazardous,
which may result in injury or death.
This product is not designed to support a television.
Overloading shelves may result in furniture that can break or sag, or tip over which
may result in injury.
NEVER exceed the weight limits shown in the instructions.
Place the heavier items on lower shelves as far back from the front as possible.
Load the bottom surfaces first to avoid top-heavy furniture.
Moving furniture that is not designed to be moved or equipped with castors may
result in injury or damage to furniture or personal property.
ALWAYS unload shelves, starting with the top surfaces, before moving.
NEVER push or pull furniture on carpet. Have a friend help lift properly to
move and/or reposition it.
This unit must be positioned against wall.

MODEL NO. 168-0047-2
4

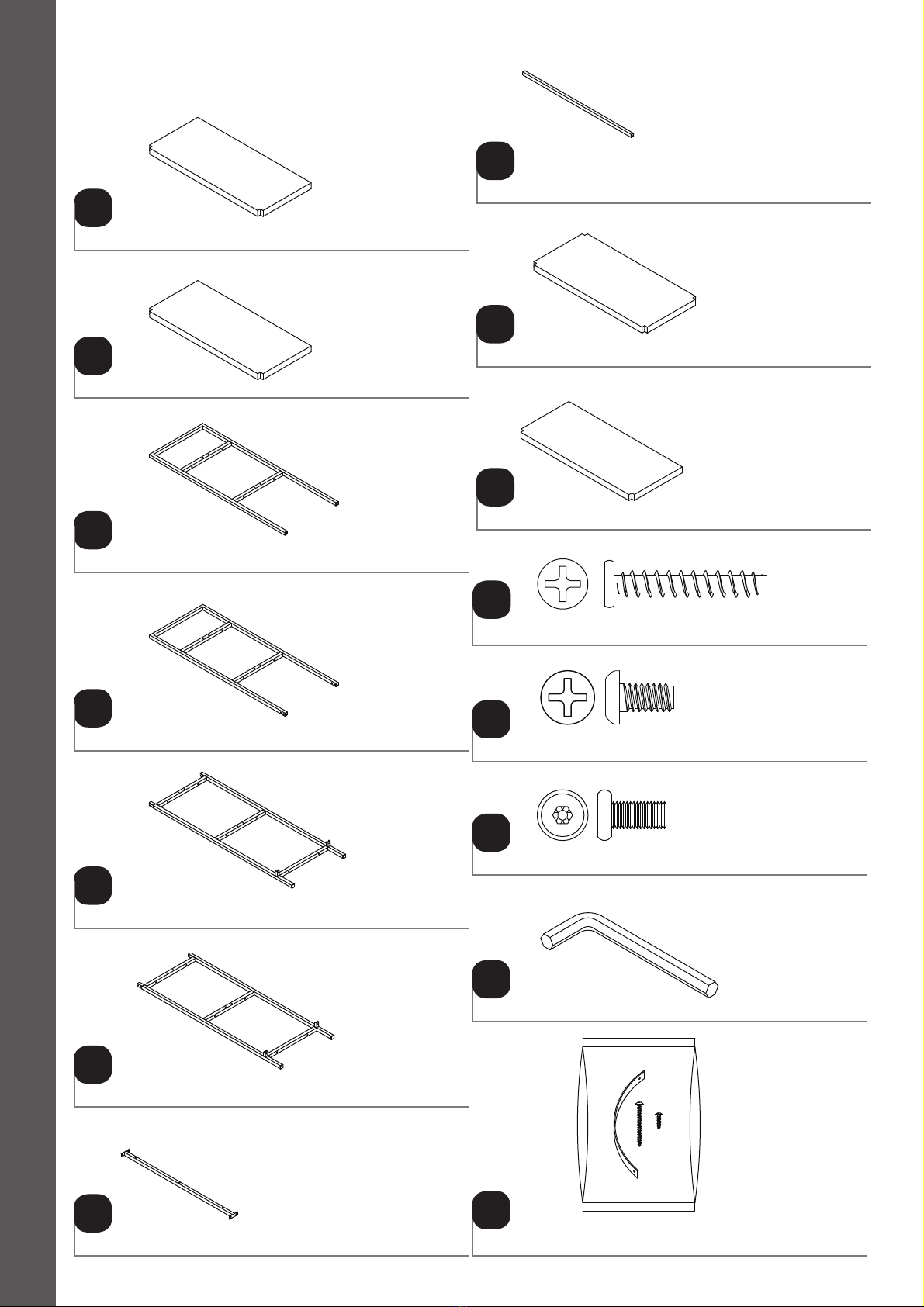

PARTS LIST
MODEL NO. 168-0047-2
A
Top Shelf - 1
Shelf - 2
B
C
Upper Left End - 1
D
Upper Right End - 1
E
Lower Left End - 1
Lower Right End - 1
F
Brace - 4
G
Bottom Brace - 2
H
Bottom Shelf - 1
I
Middle Shelf - 1
J
Black 1-3/8” Flat Head Screw - 32
1
Black 1/2” Machine Screw - 24
2
Furniture Tipping Restraint Kit - 1
98
L-Wrench - 1
4
Black 1/2” Hex Head Screw - 4
3

5
ASSEMBLY PREPARATION
CAUTION!
LET US HELP YOU!
DO NOT RETURN YOUR PRODUCT TO THE STORE. CALL US FIRST!
1-888-670-6684
If you have questions regarding your product, require warranty
assistance, or have damaged or missing parts, please call our customer
service toll-free helpline. Contact us for assistance, we’re here to help.
IMPORTANT: Please read and understand this manual before any assembly. Before beginning
assembly of product, make sure all parts are present. Compare parts with packaging contents
list. If any part is missing, or if you have any questions, contact the service centre at
1-888-670-6684 (toll free).
Place all parts from the box in a cleared area and position them on the floor in front of you.
Remove all packing materials and place them back into the box. Do not dispose of the packing
materials until assembly is complete. Read each step carefully before beginning any assembly
and make sure you understand each step. If you are missing a part, please call our toll-free
number for assistance 1-888-670-6684.
• Proper placement of your bookcase is essential.
• Keep children away during assembly.
This product contains small parts which can be swallowed by children.
• Keep fingers away from the places where they can be pinched or trapped
• Do not attempt to assemble the bookcase if any parts are missing.
Needed for Assembly:
Hammer
No. 2 Phillips Screwdriver
Tip Shown Actual Size 1 person
Electric drill with 1/8" bit
(ONLY in indicated step)

6MODEL NO. 168-0047-2
ASSEMBLY
Step 1
Requires C, D, E, F, 2

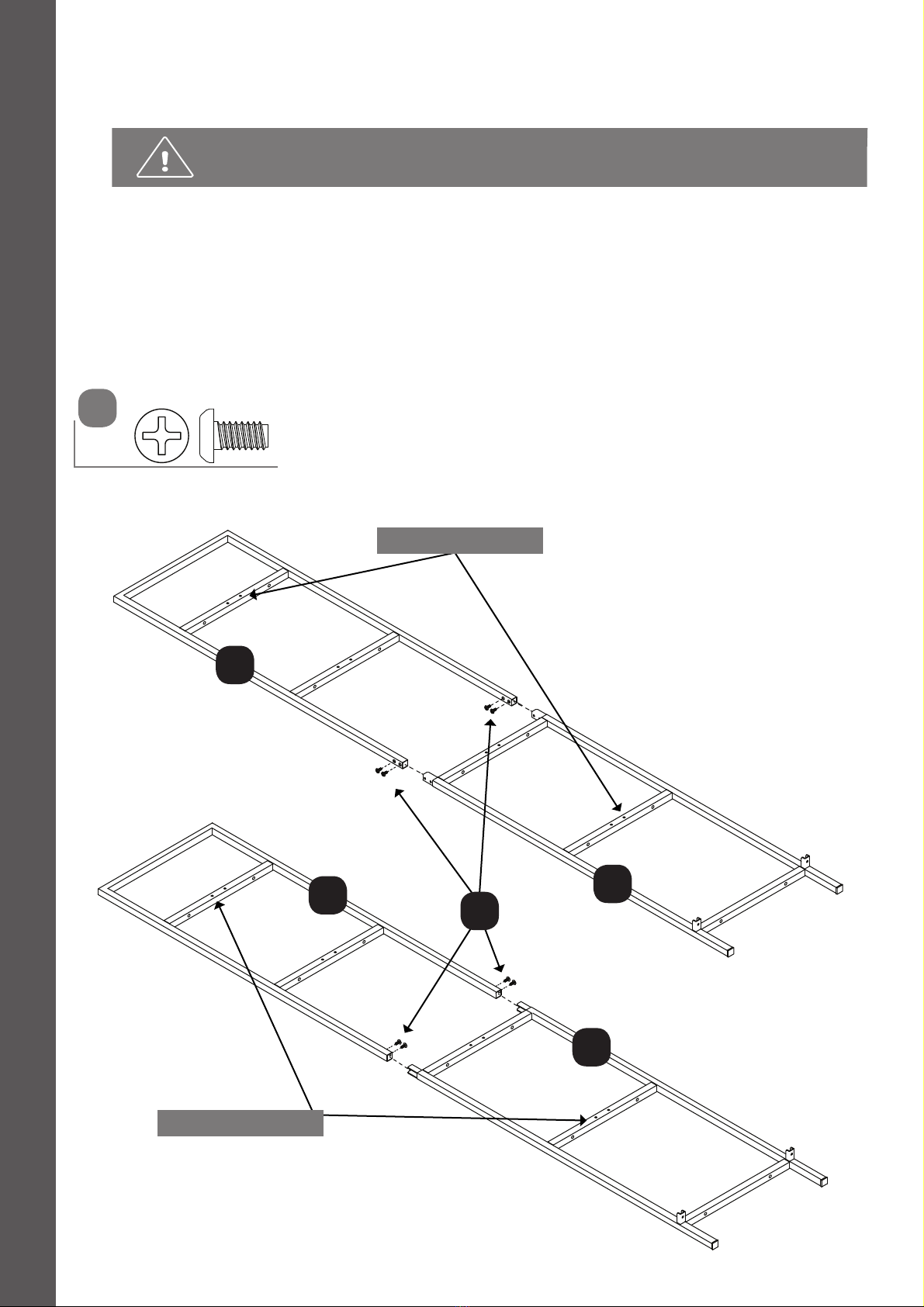

Fasten the UPPER RIGHT END (D) to the LOWER RIGHT END (F). Use four BLACK 1/2”
MACHINE SCREWS (2).
Fasten the UPPER LEFT END (C) to the LOWER LEFT END (E). Use four BLACK 1/2”
MACHINE SCREWS (2).
D
F
2
2
WARNING! Do not tighten screws until you have completed assembly.
C
E
These holes must be here.
These holes must be here.

7
ASSEMBLY
Step 2
Requires 2, 3, 4, D, F, G, H

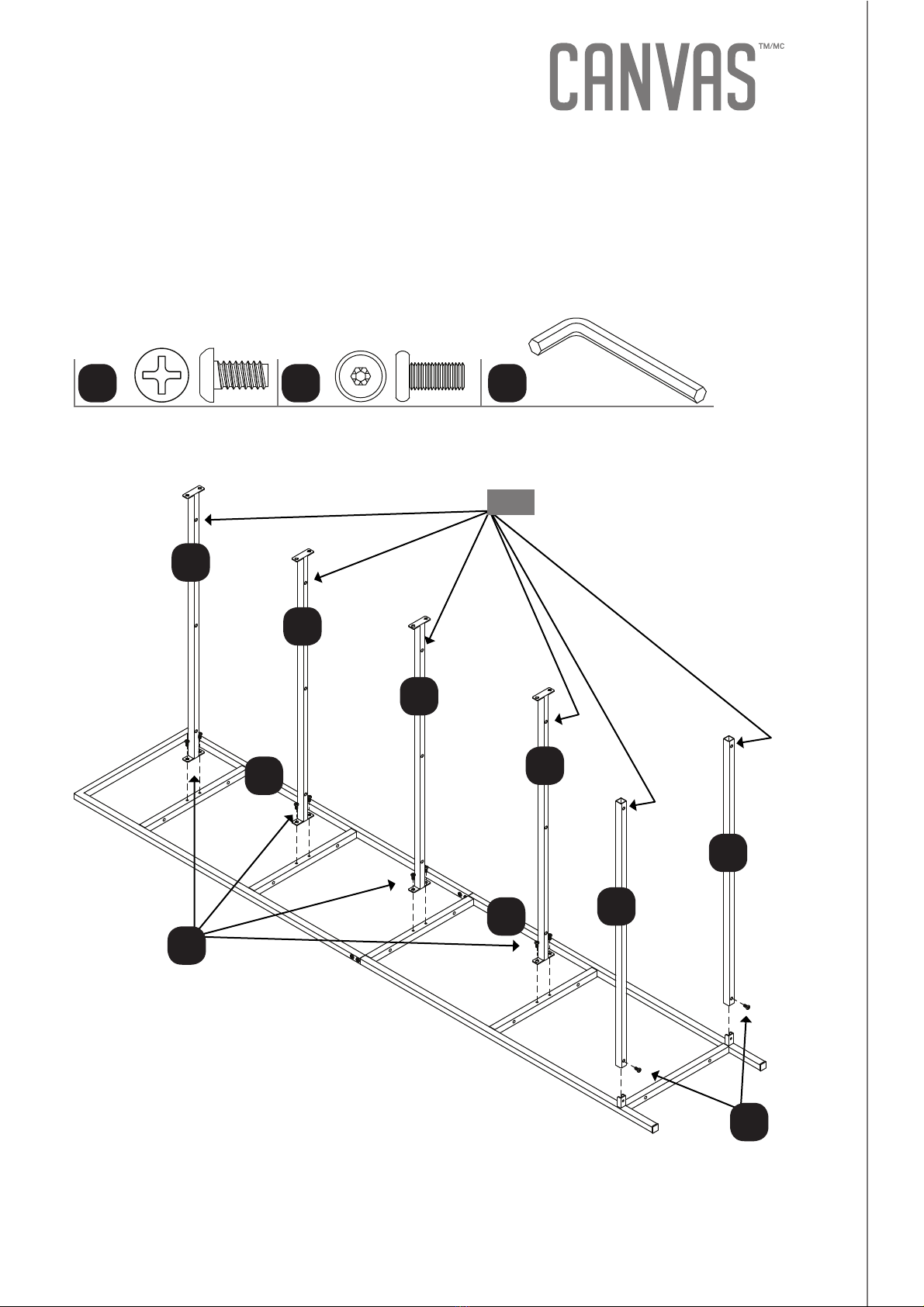

Fasten the BRACES (G) to the RIGHT ENDS (D and F). Use eight BLACK 1/2”
MACHINE SCREWS (2). Do not tighten SCREW (2) at this time.
Fasten the BOTTOM BRACES (H) to the LOWER RIGHT END (F). Tighten two BLACK
1/2” HEX HEAD SCREWS (3) with the L-WRENCH (4).
2 3 4
D
F
H
H
G
G
G
G
3
2
Indented holes

8MODEL NO. 168-0047-2
ASSEMBLY
Step 3
Requires 2, 3, 4, C, E
Fasten the BRACES (G) to the LEFT ENDS (C and E). Use eight BLACK 1/2” MACHINE
SCREWS (2). Do not tighten SCREW (2) at this time.
Fasten the BOTTOM BRACES (H) to the LOWER LEFT END (E). Tighten two BLACK 1/2”
HEX HEAD SCREWS (3) with the L-WRENCH (4).
2 3 4
H
H
C
E
G
G
G
G
2
3

9
ASSEMBLY
Step 4
Requires 1, A, B, I, J
Fasten the SHELVES (A, B, I, and J) to the BRACES (G) and ENDS (C, D, E, and F).
Use thirty-two BLACK 1-3/8” FLAT HEAD SCREWS (1). Tighten all SCREWS.
C
E
D
A
G
G
G
G
B
J
B
I
F
A hole should be on the top
surface of the TOP SHELF.
1
1
Notch
Tighten these screws.
Tighten these
screws.

10 MODEL NO. 168-0047-2
ASSEMBLY
Step 5
Requires 98
Carefully stand your unit upright.
Use the FURNITURE TIPPING RESTRAINT KIT (98) for added stability. Fasten the strap
to the top surface of the TOP SHELF (A) using the short screw as shown.
Place your unit in its final location against a wall. Locate the centre of a stud in your wall
near your unit and mark it with a pencil. Next, drill a 1/8” hole on the mark and into the
stud in your wall.
Fasten the unit to the wall. Use the long screw through the other end of the strap and
into the 1/8” hole.
This completes assembly.
98
A
Drill this hole into
a stud in your wall.
Use the short
screw through the
hole in the strap
and into the top
surface of the TOP
SHELF (A).
15 lbs. (6.8 kg)
25 lbs. (11.3 kg)
35 lbs. (15.9)
25 lbs. (11.3 kg)
25 lbs. (11.3 kg)
