Canvas BALA KVS148G User manual

ASSEMBLY INSTRUCTIONS
Toll-free: 1-888-670-6684
IMPORTANT: Please read this manual carefully before beginning assembly of this product.
Keep this manual for future reference.
BALA
PRODUCT NO. KVS148G
MODEL NO. 088-2043-8
LOUNGER

Imported for Trileaf Distribution Trifeuil Toronto, Canada M4S 2B8
Made in Vietnam

3
3
Table of Contents
Important Safety Instructions
Parts List
Assembly
Cleaning and Maintenance
Technical Data
Warranty
4
5-8
9
9
10
3
Warning! To reduce the risk of serious injury, read the following safety
instructions before assembling and using the lounger.
• This product is intended for domestic outdoor use only.
• The product should be placed on flat horizontal ground.
• Any assembly or maintenance of the product must be carried out by adults only.
• Arrange necessary manpower when assembling or moving the product.
• Some parts may contain sharp edges. Wear protective gloves if necessary.
• Keep children and pets away while setting up the lounger.
• Check all of the nuts and bolts periodically for tightness. When required, tighten
them again.
• Repairing and replacing parts should be done by a qualified technician.
• Use the correct bolts as indicated. Do not tighten any of the bolts until the lounger is
completely assembled.
•
Do not discard of any of the packaging until you have checked that you have all of
the parts and fittings required.
• Children should always be under direct adult supervision while using this product.
• Retain these assembly instructions for future reference.
Caution! Always keep children under close supervision while they are using or are
around this product.
Never leave children unattended.
TABLE OF CONTENTS
IMPORTANT SAFETY INSTRUCTIONS
IMPORTANT: Retain for future reference and read carefully.

4

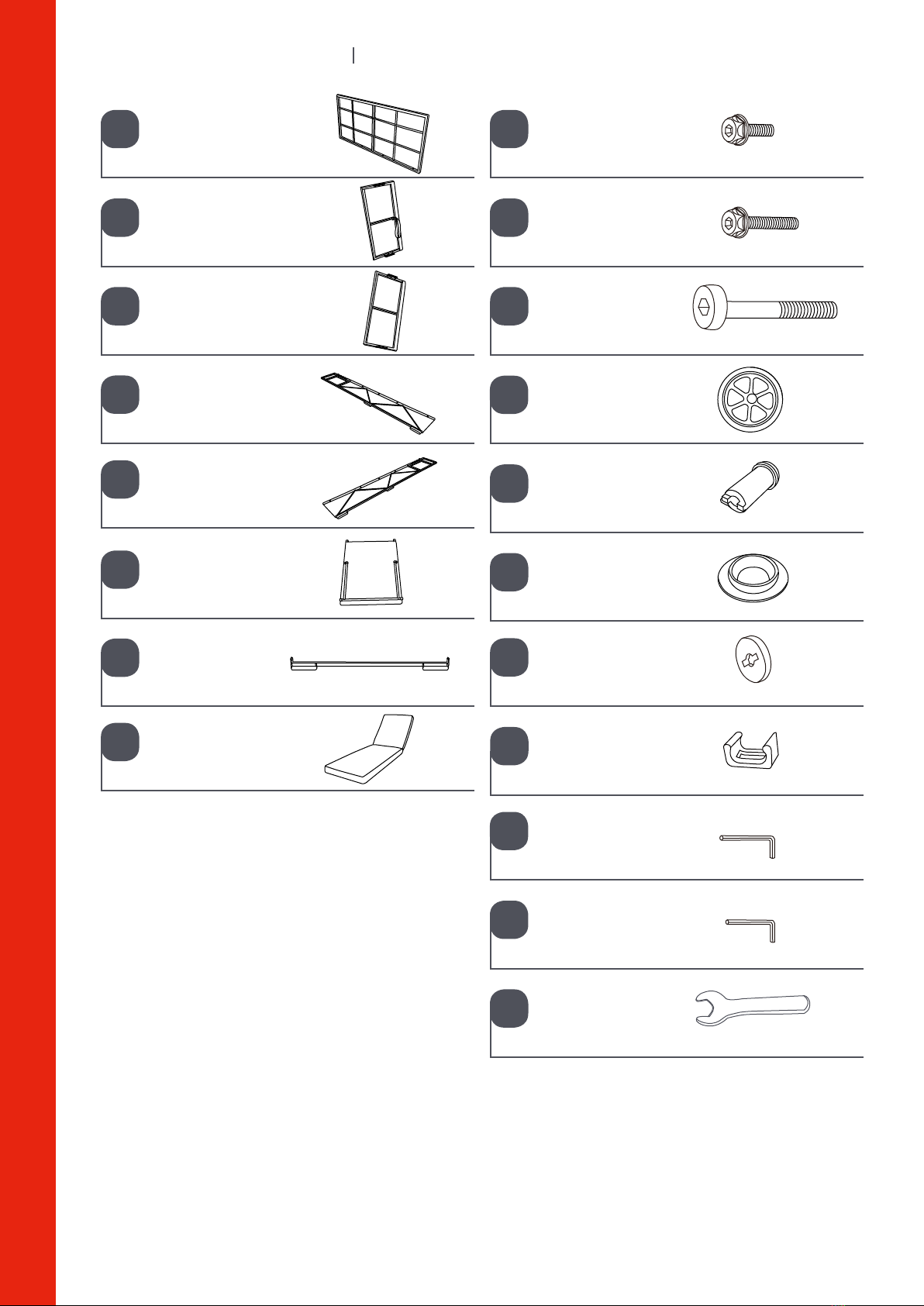

PARTS LIST
PRODUCT NO. KVS148G｜MODEL NO. 088-2043-8
F
Plastic Cap 2
E
D
Wheel - 2
Bushing - 2
C
B
A
M6x15 mm Bolt - 10
M8x54 mm Bolt - 2
M6x35 mm Bolt - 10
3
Base Assembly-B - 1
4
Right Side Frame - 1
6
Back Assembly - 1
5
Left Side Frame - 1
7
Support - 1
8
Cushion - 1
2
Base Assembly-A - 1
1
Seat Assembly - 1
H
G
Plastic Washer - 2
Clasp - 2
K
10MM Wrench - 1
J
I
6MM Hex Key Wrench - 1
4MM Hex Key Wrench - 1

• Proper placement of your lounger is essential.
• Do not place the product underneath electrical lines.
• Keep children away during assembly.
• This product contains small parts which can be swallowed by children.
• Keep fingers away from the places where they can be pinched or trapped.
• Do not attempt to assemble the lounger if any parts are missing.
ASSEMBLY
5
CAUTION!
Let us help you!
DO NOT RETURN YOUR PRODUCT TO THE STORE. CALL US FIRST!
1-888-670-6684
or have damaged or missing parts, please call our customer service
toll-free helpline. Contact us for assistance, we’re here to help.
Please read and understand this manual before any assembly. Before beginning
assembly of product, make sure that all parts are present. Compare parts with the parts list. If
any part is missing, or if you have any questions, contact the service centre at
1-888-670-6684 (toll free).
Place all of the parts from the box in a cleared area and position them on the floor in front of
you. Remove all packing materials and place them back into the box. Do not dispose of the
packing materials until assembly is complete. Read each step carefully before beginning any
assembly and make sure that you understand each step. If you are missing a part, please call
our toll-free number for assistance 1-888-670-6684.
IMPORTANT:
If you have questions regarding your product, require warranty assistance,

6PRODUCT NO. KVS148G｜MODEL NO. 088-2043-8
ASSEMBLY

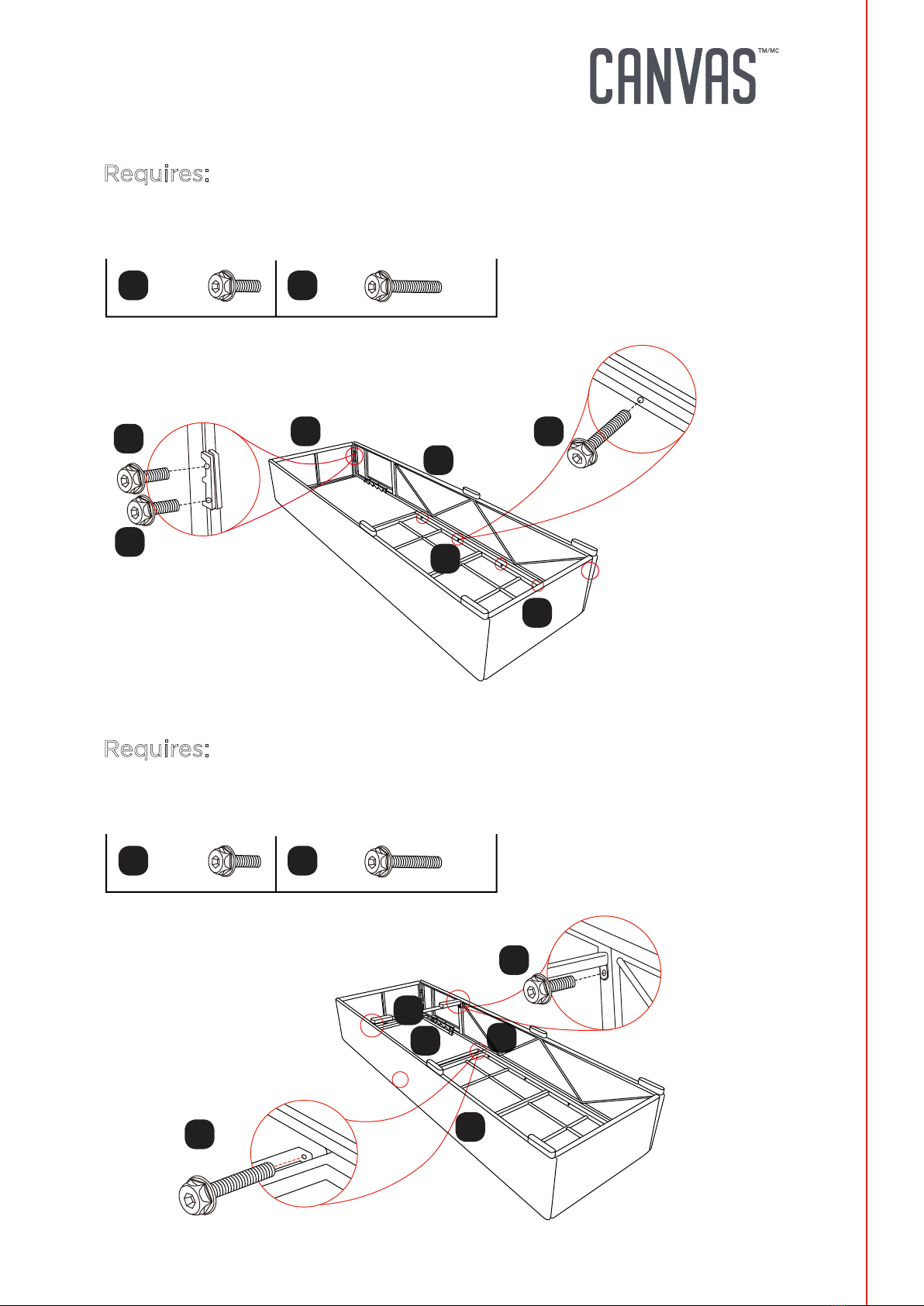

Step 1
Requires: 2, 3, 4, and A
Place the right side frame 4onto a non-abrasive surface, such as a carpet.
Fasten the base assembly-A 2 , base assembly-B 3 to the right side frame 4by
using bolts A. Do not tighten bolts.
B
Step 2
Requires: 1, 4, and B
Fasten the Seat Assembly 1to the right side frame 4by using bolts B.
Do not tighten bolts.
A
B
4
1
A
2
3
3
4
A

7
ASSEMBLY
Step 3
Requires: 1, 2, 3, 5, A, and B
Fasten the left side frame 5to the base assembly-A 2and the base assembly-B 3
by using bolts A. Fasten the left side frame 5 to the seat assembly 1 by using
bolts B. Do not tighten bolts.
A B
A B
B
5
3
2
A
A
1
Step 4
Requires: 4, 5, 6, 7, A, and B
Fasten the back assembly 6to the left side frame 5by using bolts B.
Fasten the support 7to the right side frame 4 and the left side
frame 5 by using bolts A. Do not tighten bolts.
A
B4
5
6
7

8PRODUCT NO. KVS948G｜MODEL NO. 088-2043-8
ASSEMBLY

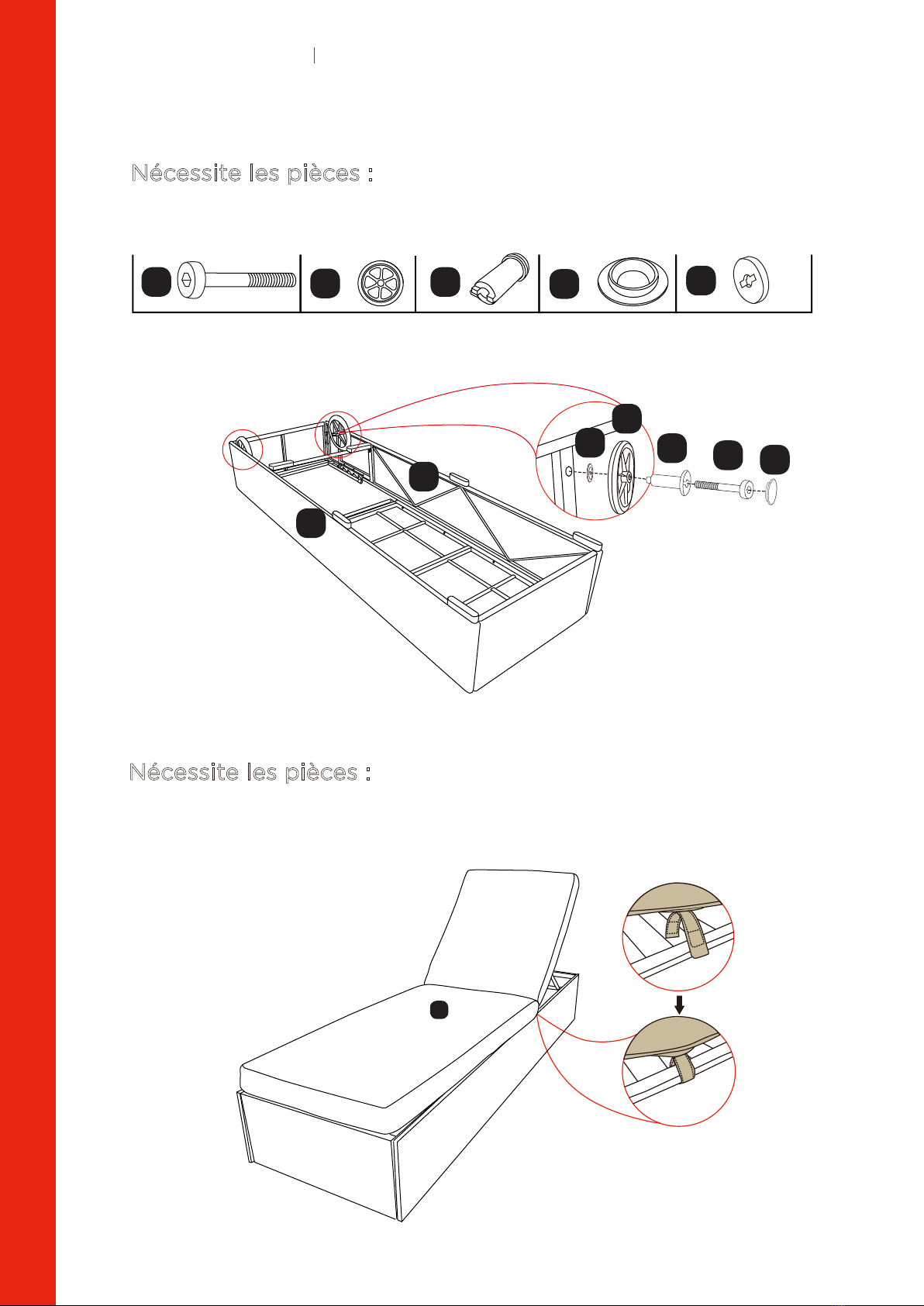

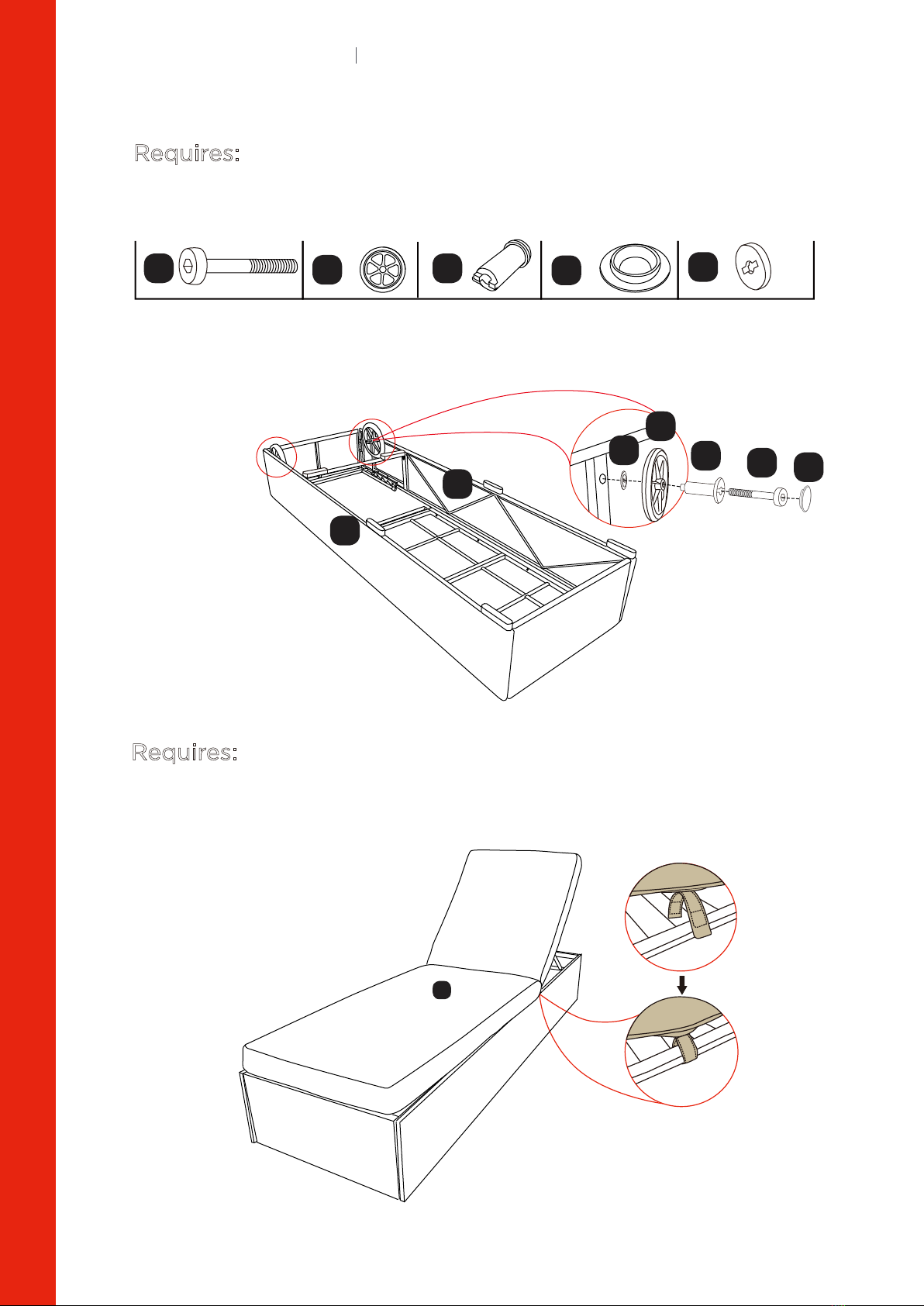

Step 6
Requires: 8
Turn the lounger to an upright position. Place the cushion 8onto the lounger.
Step 4
Requires: 4, 5, C, D, E, F, G, I, J, and K
Fasten the wheels D to the right side frame 4and the left side frame 5using
bolts C, bushings E, plastic washers G. Make sure that all of the bolts have
been tightened completely and then cover them with plastic caps F.
8
DEFG
C
4
5
F
C
E
G
D

CLEANING AND MAINTENANCETECHNICAL DATA
Dimensions (LxWxH)
Product weight
CAUTION!
• Wash frame and wicker parts with mild soap and water, rinse thoroughly, and dry completely.
Do not use bleach, acid, or other solvents on the frame or wicker parts.
• The cushion may be washed on the surface only by using mild soap and water or
commercial foaming upholstery cleaner if necessary. If washed, rinse well and hang to dry.
Do not machine wash or dry.
• We recommend the use of furniture covers when not in use.
• Inspect and tighten all of the bolts and fasteners on a regular basis to ensure proper
performance and safety of your lounger.
• In order to prolong the life and beauty of your lounger, we recommend that it be stored in a dry
and protected area during off season periods.
9
210 x 68.5 x 87-103.5 cm
26.2 kg
82 11/16 x 27 x 34 1/4–40 3/4"
57 lb 12 oz
• Check all of the screws and nuts periodically for tightness, fastening them again as required.
• Disassemble the lounger in the reverse order of the assembly steps. Always disassemble
the lounger completely. A partially disassembled lounger is not stable enough to resist wind
and bad weather, and therefore can be damaged and/or cause damage.
• Clean the lounger with mild soap and water. Rinse thoroughly, and wait until the product
is dry before reassembling it.

10
WARRANTY
This Canvas product carries a five (5) year warranty against defects in
workmanship and materials.Trileaf Distribution agrees to replace the
defective product free of charge within the stated warranty period, when
returned by the original purchaser with proof of purchase.This product is
not guaranteed against breakage due to misuse and/or abuse.
