Canvas SANDBANKS RMS633G User manual

ASSEMBLY INSTRUCTIONS
Toll-free: 1-888-670-6684
IMPORTANT: Please read this manual carefully before beginning assembly of this product.
Keep this manual for future reference.
SANDBANKS
PRODUCT NO. RMS633G
MODEL NO. 088-2217-6
5-PIECE FIRE TABLE SET—STATIONARY ROCKING
CHAIRS WITH CUSHIONS

Imported for Trileaf Distribution Trifeuil Toronto, Canada M4S 2B8
Made in Vietnam

3Important Safety Instructions
Parts List
Assembly
Cleaning and Maintenance
Technical Data
Warranty
4
5
9
9
10
3
Warning! To reduce the risk of serious injury, read the following safety
instructions before assembling and using the chair.
• This product is intended for domestic, outdoor use only.
• The product should be placed on flat, horizontal ground.
• Any assembly or maintenance of the product must be carried out by adults only.
• Arrange necessary manpower when assembling or moving the product.
• Some parts may contain sharp edges. Wear protective gloves if necessary.
• Keep children and pets away while setting up the chair.
• Check all of the nuts and bolts periodically for tightness. When required, tighten
them again.
• Repairing and replacing parts should be done by a qualified technician.
• Use the correct bolts as indicated. Do not tighten any of the bolts until the chair is
completely assembled.
•
Do not discard of any of the packaging until you have checked that you have all of
the parts and fittings required.
• Children should always be under direct adult supervision while using this product.
• Retain these assembly instructions for future reference.
Caution! Always keep children under close supervision while they are using or are
around this product.
Never leave children unattended.
TABLE OF CONTENTS
IMPORTANT SAFETY INSTRUCTIONS
IMPORTANT: Retain for future reference and read carefully.

4

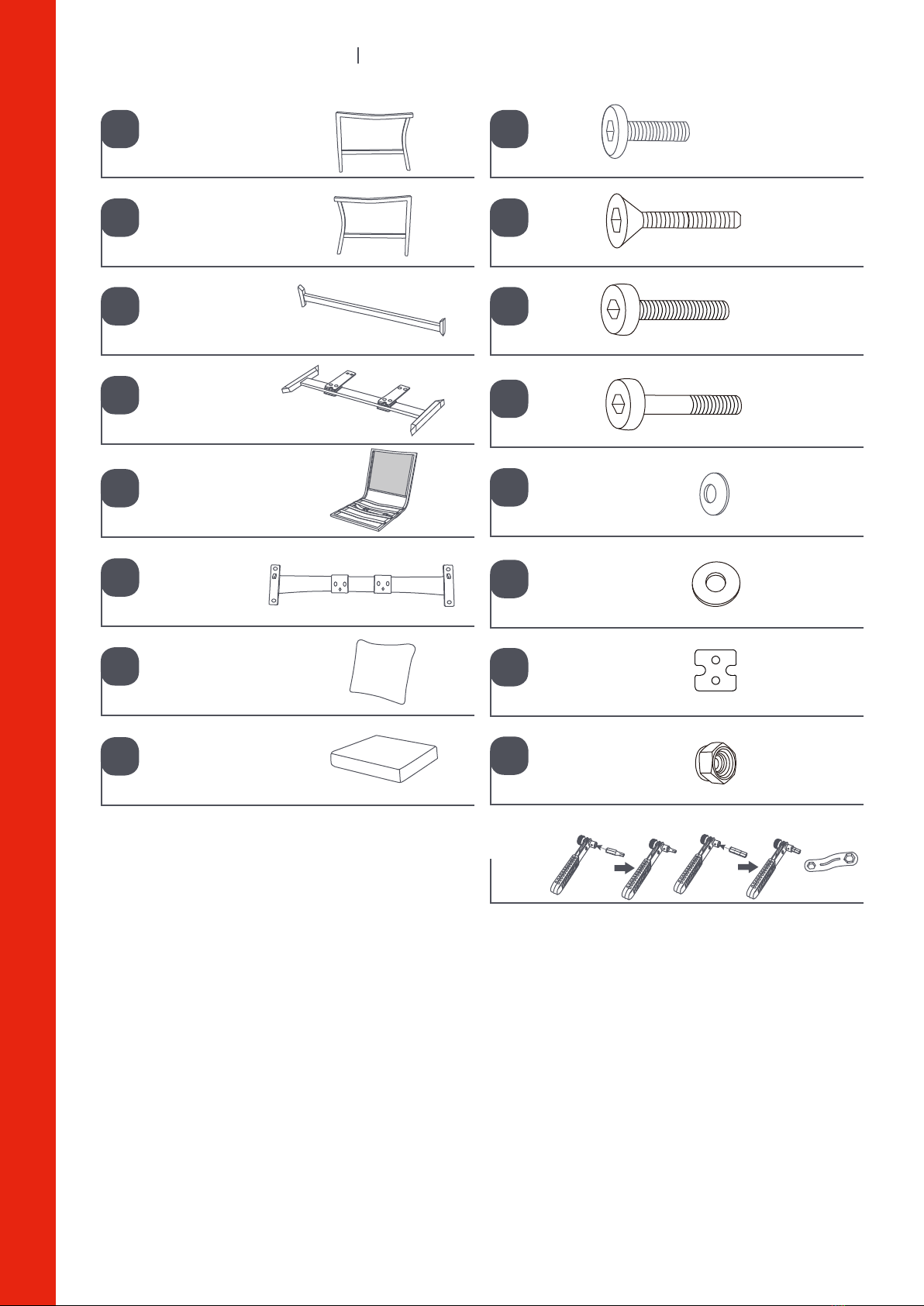

PARTS LIST
PRODUCT NO. RMS633G｜MODEL NO. 088-2217-6
A
M6x15 mm Bolt - 4
1
17C33A0706001YXRMS633G-CS01-3
C
M8x40 mm Bolt - 4
B
M6x30 mm Bolt - 4
4
3
Seat Post - 1
Support - 1
2
Right Arm - 1
Left Arm - 1
17C02A0710002YX
17C01A0814001YX
RMS633G-CS01-2
RMS633G-CS08-1
RMS633G-CS14-1-SV01
Tools
Ⅰ
Ⅱ
Ⅳ
5
Seat Assembly - 1
RMS633G-CS11-1
7
6
Back Cushion - 1
Support Frame - 1
61R633GX00001BA
F
D8.5xD17x1.6 mm Washer - 12
E
D6.5xD13x1.0 mm Washer - 4
D
M8x45 mm Bolt - 4
17C01A0816071YX
17FA05040301-YX
17FA08060601-YX
H
M8x1.25 mm Jam Nut - 4
G
50x50x4.5 mm Washer - 2
17EF1201-----23
17D03A040401-YX
Ⅰ
Ⅲ
8
Seat Cushion - 1
RMS633G-CS14-1-SV02
61R633GY00001BA

• Proper placement of your chair is essential.
• Do not place the product underneath electrical lines.
• Keep children away during assembly.
• This product contains small parts which can be swallowed by children.
• Keep fingers away from the places where they can be pinched or trapped.
• Do not attempt to assemble the chair if any parts are missing.
ASSEMBLY
5
CAUTION!
Let us help you!
DO NOT RETURN YOUR PRODUCT TO THE STORE. CALL US FIRST!
1-888-670-6684
or have damaged or missing parts, please call our customer service
toll-free helpline. Contact us for assistance; we’re here to help.
Please read and understand this manual before any assembly. Before beginning
assembly of product, make sure that all parts are present. Compare parts with the parts list. If
any part is missing, or if you have any questions, contact the service centre at
1-888-670-6684 (toll free).
Place all of the parts from the box in a cleared area and position them on the floor in front of
you. Remove all packing materials and place them back into the box. Do not dispose of the
packing materials until assembly is complete. Read each step carefully before beginning any
assembly and make sure that you understand each step. If you are missing a part, please call
our toll-free number for assistance 1-888-670-6684.
IMPORTANT:
If you have questions regarding your product, require warranty assistance,
Needed for assembly:
2 people
Torque Wrench "Ⅰ" + Hex Screw "Ⅱ"
Ⅰ
Ⅱ
Ⅰ
Ⅲ
Torque Wrench "Ⅰ" + Hex Screw "Ⅲ"

6PRODUCT NO. RMS633G｜MODEL NO. 088-2217-6
ASSEMBLY
Step 2
Requires: 1, 2, 3, and B
Fasten the support 3to right arm 1and left arm 2by using bolts B.
Do not tighten the bolts.

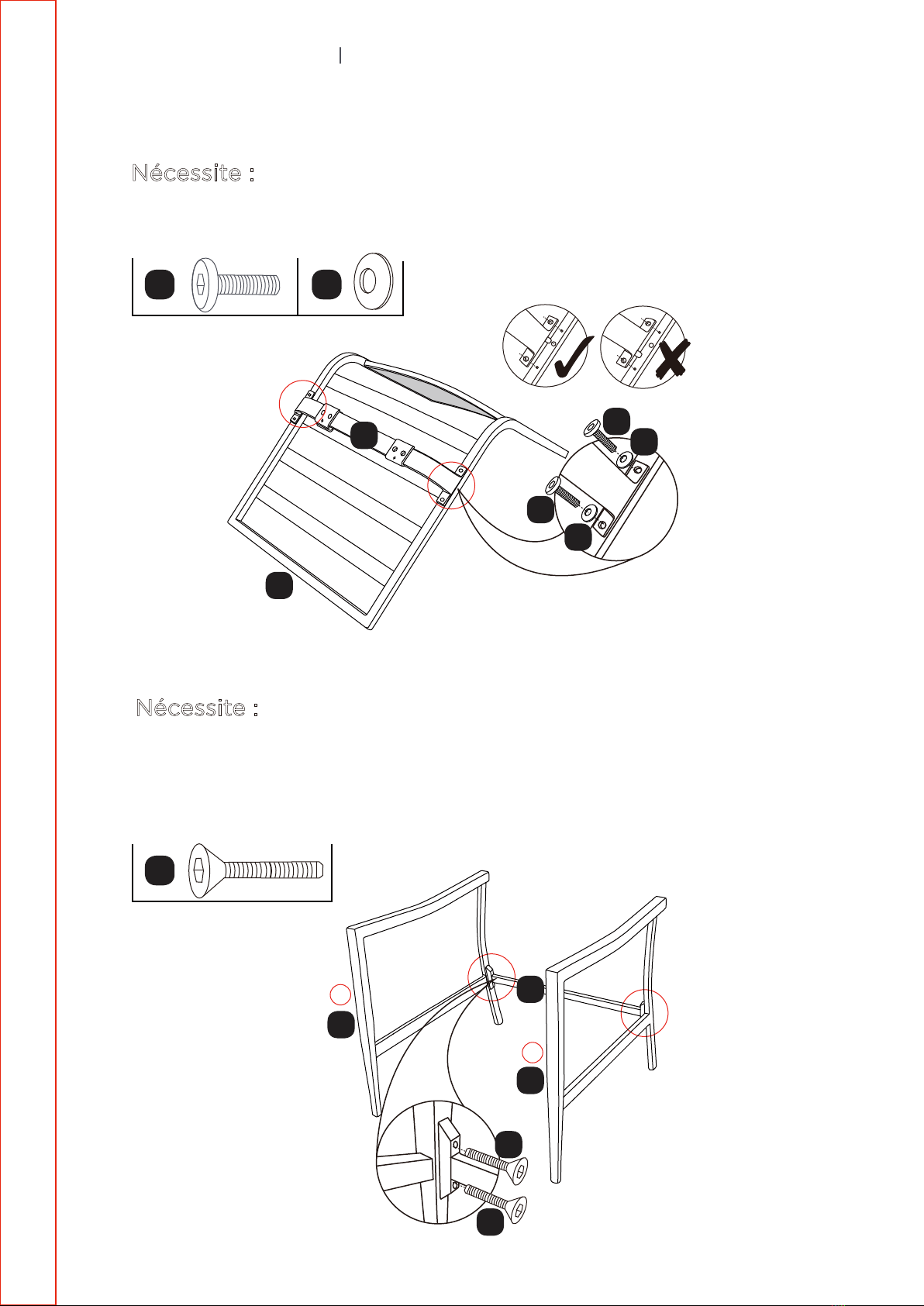

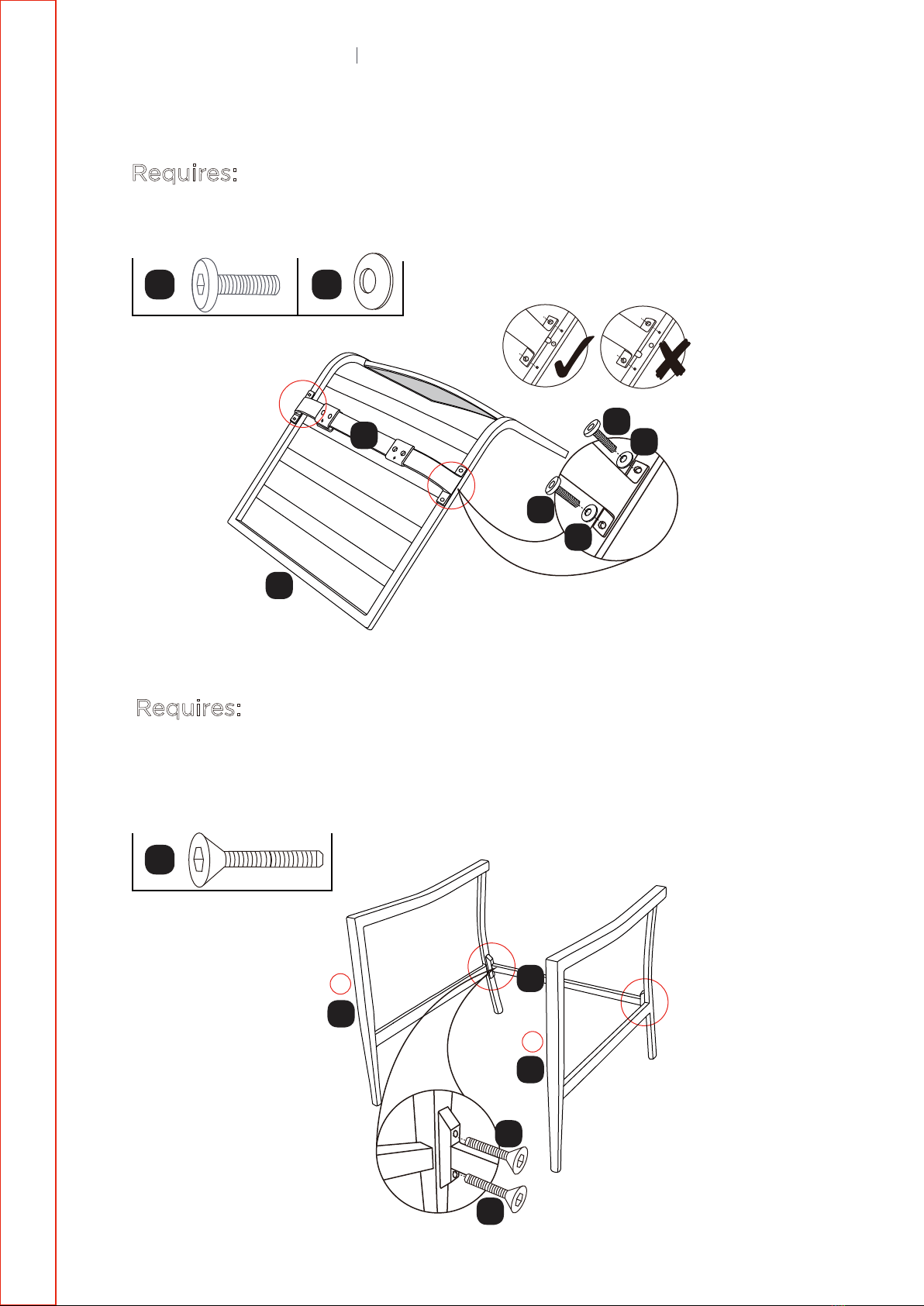

Step 1
Requires: 5, 6, A, and E
Place the seat assembly 5onto a non-abrasive surface, such as a carpet,
with its underside facing upwards. Fasten the support frame 6to the seat
assembly 5by using bolts Aand washers E.
A E
Note:
The labels marked “L” and “R” on arms (1and 2) should coincide with Step 2
to ensure proper assembly.
R
L
5
A
B
B
A
E
E
6
1
2
3
B

7

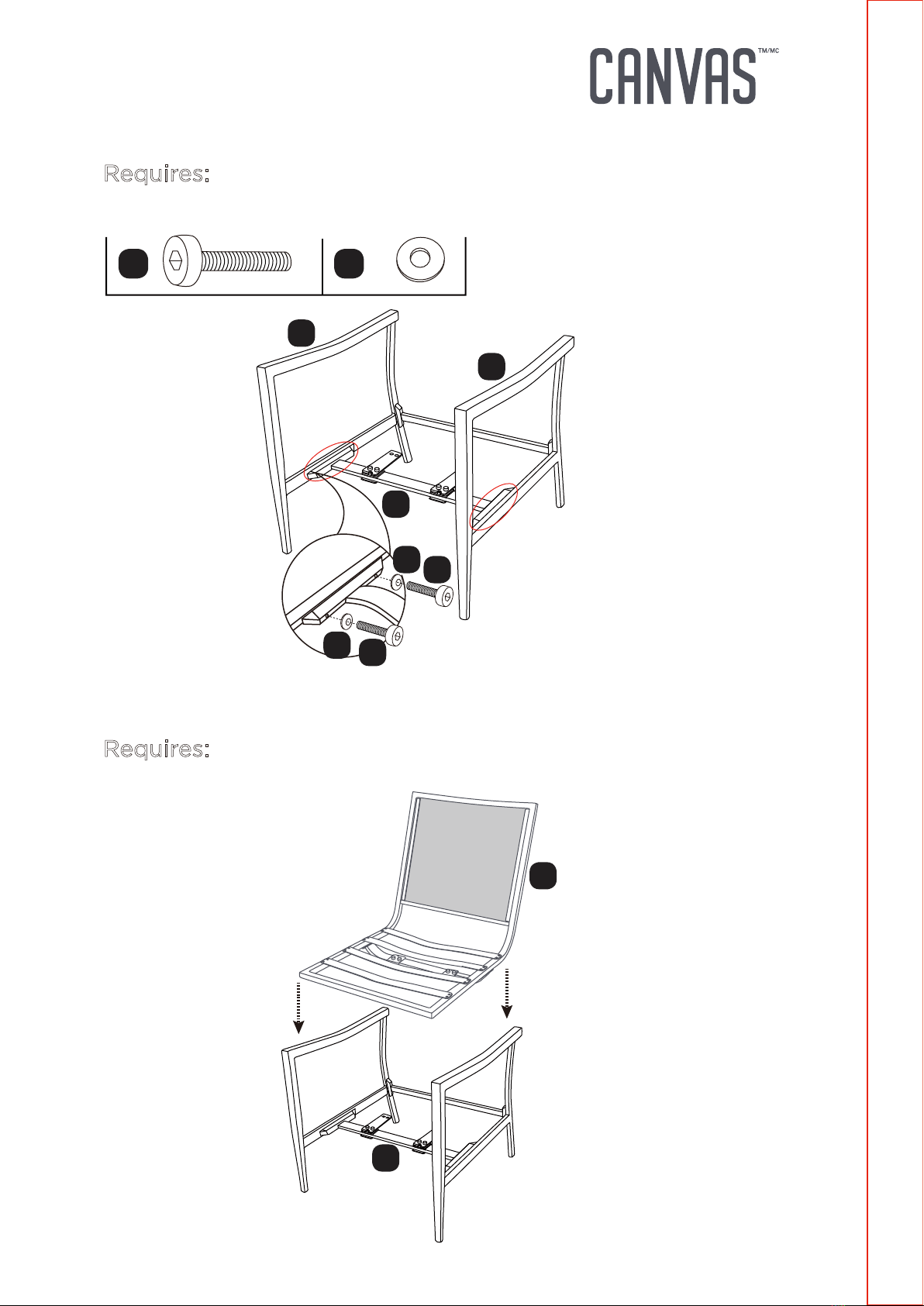

Step 3
Requires: 1, 2, 4, C, and F
Fasten the seat post 4 to the arms 1 and 2 by using bolts C and washers F .
Do not tighten the bolts.
C F
Step 4
Requires: 4 and 5
Position the back assembly 5onto the seat post 4.
ASSEMBLY
F
FC
1
2
4
C
5
4

8PRODUCT NO. RMS633G｜MODEL NO. 088-2217-6
ASSEMBLY

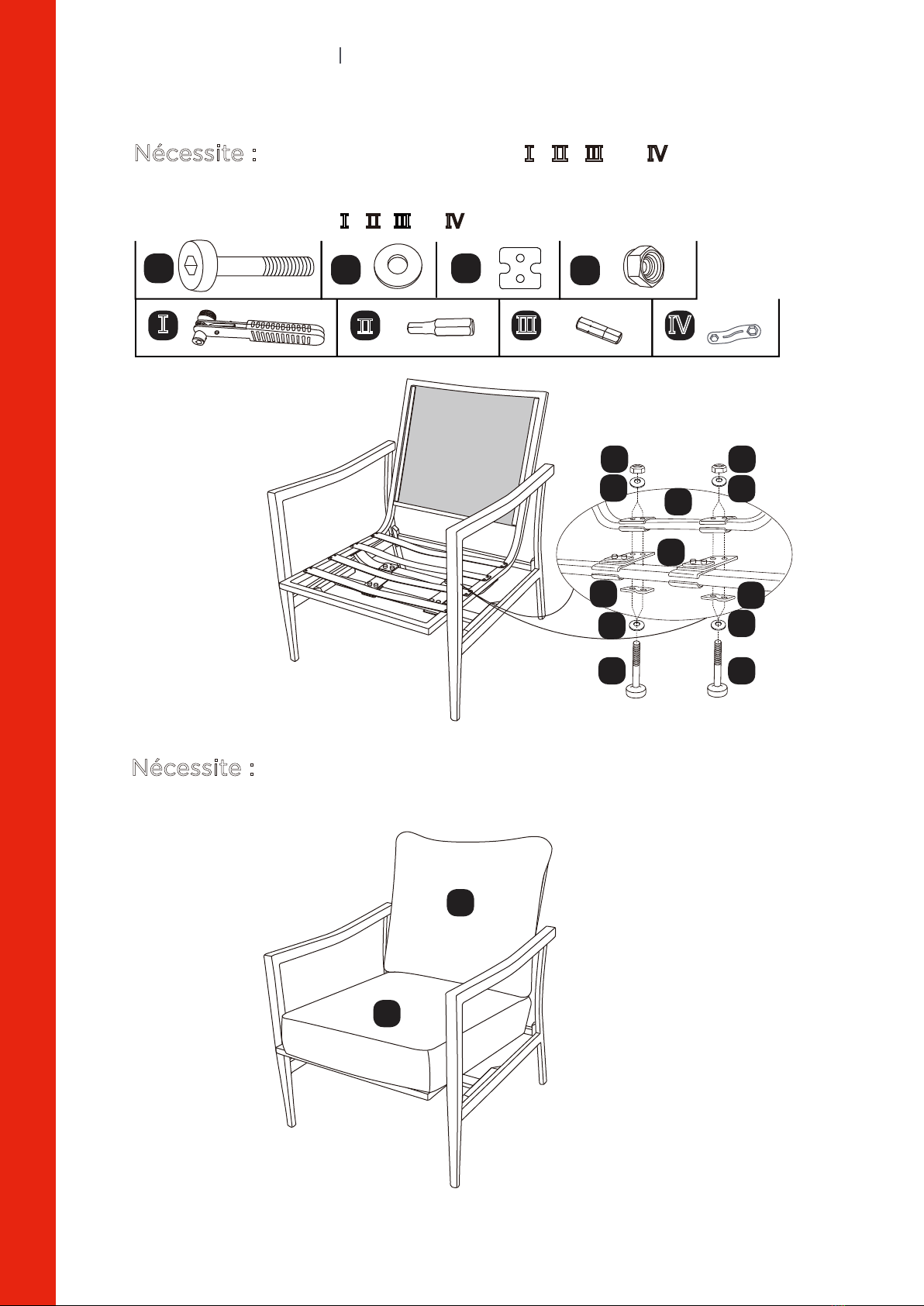

Step 6
Requires: 7 and 8
Place the cushions 7and 8onto the chair. Secure the cushions to the chair
by using the plastic clamps.
Step 5
Requires: 4, 6, D, F, G, H,Ⅰ, Ⅱ, Ⅲ,and Ⅳ
Fasten the support frame 6to the seat post 4by using bolts D, washers (Fand G),
and jam nuts H. Make sure that all of the bolts have been tightened completely.
Secure all of the bolts by using wrenches Ⅰ, Ⅱ, Ⅲ, and Ⅳ.
FGH
D
ⅠⅡⅢ
7
8
Ⅳ
6
D D
F
F
F
GG
F
HH
4

CLEANING AND MAINTENANCETECHNICAL DATA
Dimensions (LxWxH)
Product weight
CAUTION!
• Wash frame and wicker parts with mild soap and water, rinse thoroughly, and dry completely.
Do not use bleach, acid, or other solvents on the frame or wicker parts.
• The cushions may be washed on the surface only by using mild soap and water or
commercial foaming upholstery cleaner if necessary. If washed, rinse well and hang to dry.
Do not machine wash or dry.
• We recommend the use of furniture covers when not in use.
• Inspect and tighten all of the bolts and fasteners on a regular basis to ensure proper
performance and safety of your chair.
• In order to prolong the life and beauty of your chair, we recommend that it be stored in a dry
and protected area during off-season periods.
31 7/8 x 28 9/16 x 33 7/8"
15.7 kg
81 x 72.5 x 86 cm
34 lb 10 oz
• Check all of the bolts and nuts periodically for tightness, tightening them again as required.
• Disassemble the chair in the reverse order of the assembly steps. Always disassemble
the chair completely. A partially disassembled chair is not stable enough to resist wind
and bad weather, and therefore can be damaged and/or cause damage.
• Clean the chair with mild soap and water. Rinse thoroughly, and wait until the product
is dry before reassembling it.
9

WARRANTY
This CANVAS product carries a three (3) year warranty against defects in
workmanship and materials on the frame and 1 year for the remaining parts.
Trileaf Distribution agrees to replace a defective product free of charge
within the stated warranty period, when returned by the original purchaser
with proof of purchase. This product is not guaranteed against wear or
breakage due to misuse and/or abuse.
10 PRODUCT NO. RMS633G｜MODEL NO. 088-2217-6
