Caple Storm st524 User manual

Contact Caple on 0117 938 7420 for spare parts or www.caple.co.uk

Storm Built-Under Hood

Instruction Manual

ST524 / ST854

2Instruction manual ST524 / ST854 Please keep this instruction manual for future reference

CONTENTS

Safety Instructions 3

Environmental Protection 7

Uses 9

Installation 10

Control Panel 13

Timing 14

Lighting 15

Cleaning and Maintenance 16

Caple Contact Details 20

3Instruction manual ST524 / ST854Please keep this instruction manual for future reference

WARNING:

-The appliance is not intended for use by young children

or inﬁrm persons without supervision. Young children

should be supervised to ensure they do not play with

the appliance.

-The cooking surface and the inferior part of the cooker

hood must be at a minimum distance of 65 cm.

-The extracted air can’t be conveyed through or into

a duct used to let out fumes from appliances fed

by energy other than electric power (eg. centralized

heating, radiators, water-heaters, etc.).

-To evacuate the air outlet, please comply with the

pertaining rules given by competent authorities.

-Provide the room with an adequate aeration when a

cooker hood and appliances fed by energy other than

electric power (gas, oil, or coal stoves, etc.) are used

simultaneously. The cooker hood, when evacuating the

extracted air, could generate a negative pressure in

the room which can’t exceed the limit of 0.04 mbar, in

order to avoid the suck of exhausts deriving from the

heat source. Therefore the room should be provided

with air-intakes to allow a constant ﬂow of fresh air.

4Instruction manual ST524 / ST854 Please keep this instruction manual for future reference

-When performing the electrical connections on the

appliance, please make sure that the current tap is

provided with earth connection and that voltage values

correspond to those indicated on the rating label

placed inside the appliance itself.

-Before carrying out any cleaning or maintaining

operations, the appliance needs to be removed from

the electric grid. If the appliance is not provided with a

non-separable ﬂexible cable and plug, or with another

device ensuring omnipolar disconnections from the

grid, with an opening distance between the contacts of

at least 3 mm, then such disconnecting devices must

be supplied within the ﬁxed installation.

-If the ﬁxed appliance is endowed with a supply cord

and a plug, the appliance has to be put in a place

where the plug can be reached easily.

-The use of materials which can burst into ﬂames

should be avoided in close proximity of the appliance.

When frying, please pay particular attention to ﬁre risk

due to oil grease. Being highly inﬂammable, fried oil

is especially dangerous. Do not use uncovered electric

grills.In order to avoid possible ﬁre risk, all instructions

for grease-ﬁlter cleaning and for removing eventual

grease deposits should be strictly followed.

-This appliance complies with all relevant local

and national safety requirements. Inappropriate use

can, however, lead to personal injury and damage

to property.

5Instruction manual ST524 / ST854Please keep this instruction manual for future reference

-The cooker hood is not intended for outdoor use.

-It must only be used as a domestic appliance to extract

vapours and remove odours from cooking. Any other

usage is not supported by the manufacturer and could

be dangerous.

-Where a recirculation cooker hood is ﬁtted above a gas

hob, please ensure that there is an adequate supply of

fresh air into the room in which it is installed. Please

seek the advice of a qualiﬁed gas ﬁtter (e.g. GasSafe in

the UK) if necessary.

-Children under 8 years of age must be kept away from

the cooker hood unless they are constantly supervised.

-Children 8 years and older may only use the

cooker hood unsupervised if they have been shown

how to use it safely and recognise and understand the

consequences of incorrect operation.

-The electrical safety of this appliance can only be

guaranteed when correctly earthed. It is essential

that this standard safety requirement is met. If in any

doubt please have the electrical installation tested by a

qualiﬁed electrician.

-Do not connect the appliance to the mains electricity

supply by a multi-socket unit or an extension lead.

These are a ﬁre hazard and do not guarantee the

required safety of the appliance.

-The cooker hood can get very hot during cooking due

to heat rising from the hob.

6Instruction manual ST524 / ST854 Please keep this instruction manual for future reference

-Do not touch the housing or the grease ﬁlters until the

cooker hood has cooled down.

APPROPRIATE USE:

-This appliance is intended to be used in household and

similar applications such as:

› Staff kitchen areas in shops, ofﬁces and other

working environments.

› Farm Houses.

› By clients in hotels, motels and other residential

type environments.

› Bed and breakfast type environments.

7Instruction manual ST524 / ST854Please keep this instruction manual for future reference

ENVIRONMENTAL PROTECTION

Waste electrical products should not be disposed of with household waste. Please recycle

where facilities exist. Check with your Local Authority or retailer for recycling advice. This

appliance is marked according to the European directive on Waste Electrical and Electronic

Equipment (WEEE).

By ensuring this product is disposed of correctly, you will help prevent potential negative

consequences for the environment and human health, which could otherwise be caused

by inappropriate waste handling of this product. The symbol on the product indicates that

this product may not be treated as household waste. Instead it shall be handed over to the

applicable collection point for the recycling of electrical and electronic equipment. Disposal

must be carried out in accordance with local environmental regulations for waste disposal.

For more detailed information about treatment, recovery and recycling of this product, please

contact your local council, your household waste disposal service or the retailer where you

purchased the product.

WARRANTY

Your new appliance is covered by warranty. The warranty card is enclosed - if it is missing, you

must provide the following information to your retailer in order to receive a replacement: date

of purchase, model and serial number. Registration can also be completed online by visiting

www.caple.co.uk.

Ensure you keep your warranty card safe, you may need to show it to Caple Service together

with proof of purchase. If you fail to show your warranty card you will incur all repair charges.

Spare parts are only available from Caple Service and spare parts authorised centres.

CE DECLARATIONS OF CONFORMITY

This appliance has been manufactured to the strictest standards and complies with all

applicable legislation, Low Voltage Directive (LVD) and Electromagnetic Compatibility (EMC).

UKCA DECLARATIONS OF CONFORMITY

This appliance has been manufactured to the strictest standards and complies with all

applicable legislation.

8Instruction manual ST524 / ST854 Please keep this instruction manual for future reference

TECHNICAL FICHE

This appliance conforms to all current and applicable energy regulations. To view the Technical

Fiche that supports the energy labelling data, please visit the product page on our

website www.caple.co.uk.

9Instruction manual ST524 / ST854Please keep this instruction manual for future reference

USES

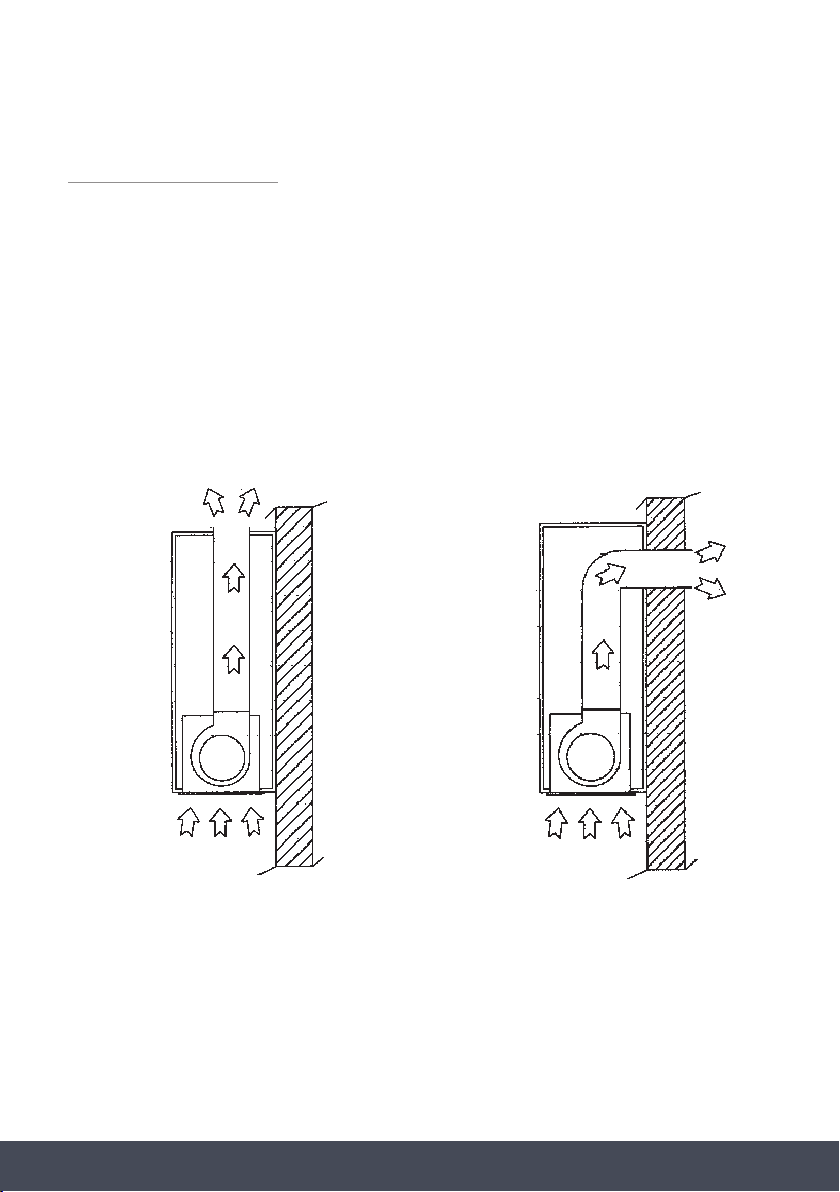

The appliance is already arranged both for re-circulation and ducted installation.

› In Recirculation mode (Fig.1), the air and fumes conveyed by the appliance are cleaned both

by a grease ﬁlter and by an active charcoal ﬁlter, and put again into circulation through the

hole made in the top of the cabinet.

› In ducted mode (Fig.2), fumes are directly conveyed outside, through an evacuation duct

connected from the extractor to the outside. Both charcoal ﬁlter and air deﬂector are not

necessary in this case.

FIG.6

FIG.7

FIG.8

FIG.3

FIG.6

FIG.7

FIG.8

Fig.1.Fig.2.

10 Instruction manual ST524 / ST854 Please keep this instruction manual for future reference

INSTALLATION

Before installing the appliance, make sure that none of the parts are damaged in any way. In

case of damaged parts, contact your retailer and do not proceed with installation.

Read all of the following instructions with care before installing the appliance:

› If venting the hood, use an air outlet pipe of the shortest possible length.

› Limit the number of pipe bends.

› Use a duct of recognised and approved material.

› Avoid any abrupt changes of direction and use a duct with a diameter of 150mm constant

over the entire length.

NOTE:

For more information on venting, please see our ‘Extraction & Ventilation guide’ available at

www.caple.co.uk

ATTENTION: AT LEAST TWO PEOPLE ARE NEEDED TO PERFORM THE INSTALLATION.

Before installing the appliance, in order not to damage the appliance itself, the metal grease

ﬁlter should be removed. This can be removed by pushing the special ﬁlter handle toward the

back side of the cooker hood and pulling it downwards so to unfasten it from its slot (Fig.3).

FIG.6

FIG.7

FIG.8

FIG.3

FIG.6

FIG.7

FIG.8

FIG.3

11Instruction manual ST524 / ST854Please keep this instruction manual for future reference

› Make a cut-out in the bottom of the cabinet

which is suitable to hold the appliance in

position (Fig.4).

› Prepare the power supply.

› Create a hole for air evacuation.

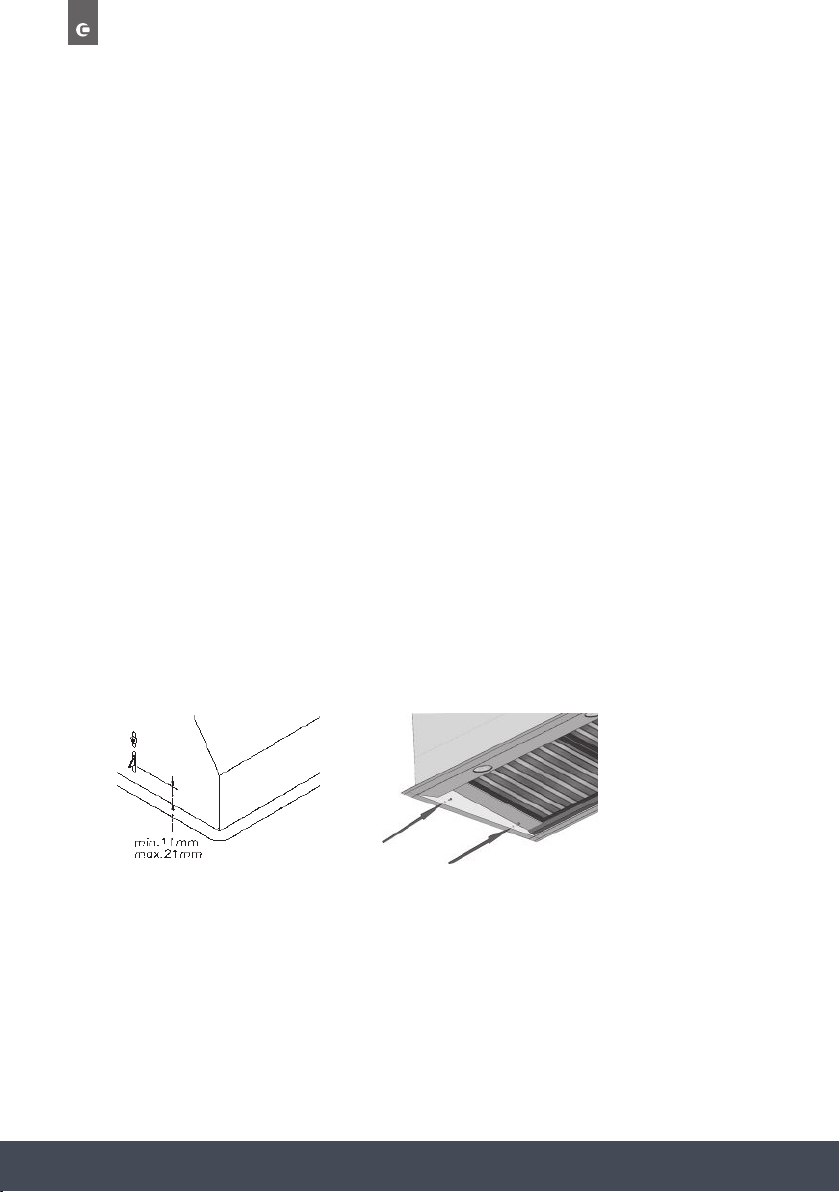

› Adjust the position of the stop side-springs

using the appropriate screws, according to the

thickness of the board the appliance will be

ﬁxed to (Fig.5).

› Insert the appliance into the hole made in the

cabinet until the stop click of the side springs

is heard and the appliance is locked in position.

› Insert the screws provided into the holes inside

the appliance to secure it completely (Fig.6).

FIG.4

FIG.5FIG.6

WARNING:

Before connecting the ﬂexible exhausting pipe to the motor, make sure the stop valve, which is

on the air outlet of the motor, can open and close freely.

The cooker hood should be placed at a minimum distance of 65-76cm above the hob. It is the

manufacturer of the hob who determines the clearance required and the clearance quoted by

the hob manufacturer must be followed. In the absence of any instructions supplied with a gas

hob the minimum distance between the hob and the hood must be at least 760mm.

ST524 = 501mm

ST854 = 835mm

12 Instruction manual ST524 / ST854 Please keep this instruction manual for future reference

DUCTED VERSION

› Connect the ﬂange to the air evacuation hole with appropriate ducting.

› Connect the appliance to the electrical mains through the supply cord.

RECIRCULATING VERSION

› Connect the ﬂange with appropriate ducting to convey the air to the top of the cabinet.

› Connect the appliance to the electrical mains through the supply cord.

REAR DUCTED VERSION

› To duct the appliance to the rear, remove the 18 screws from the motor support.

› Take the metal support and motor out (Fig.11).

› Rotate the motor to have the air outlet on the rear side and then ﬁx the screws previously

removed (Fig.12).

in position.

›Insert the screws provided into the holes inside the appliance to

secure it completely (Fig.6).

FIG.4

FIG.5FIG.6

DUCTED V E R S ION

WARNING:

Before connecting the flexible exhaustingpipe to the motor, make sure the stop valve, which is on the air outlet of the motor,

can open and close freely.

13Instruction manual ST524 / ST854Please keep this instruction manual for future reference

CONTROL PANEL

A. Light switch on/off

B. Motor switch - speed 1 / OFF

C. Motor switch - speed 2

D. Motor switch - speed 3

E. Motor switch - speed 4

F. 10-minute timer

A B C D E

CONTROL PANELA: Light switch on/off B: Motor switch - speed 1 / OFF C: Motor switch - speed 2 D: Motor switch - speed 3 E: Motor switch - speed 4F: 10-minute timerREAR DUCTEDTo duct the appliance to the rear, remove the 18 screws from the motor support.Take the metal support and motor out (Fig.11).Rotate the motor to have the air outlet on the rear side and then fix the screws previously removed (Fig.12).1112

AUTOMATIC TURN OFF

After 4 hours of continuous working from the last function selection, the appliance

automatically turns off.

14 Instruction manual ST524 / ST854 Please keep this instruction manual for future reference

TIMING

› This product is equipped with intelligent electronics which include a timer device for speed

controls when the air capacity exceeds 650m³/h. Internal motor models, with maximum air

capacity higher than 650m³/h, are equipped with a timer device that automatically switches

the speed from 4th to 3rd speed, after 5 minutes operation.

› External motor models are equipped with remote motors that, as for internal motor

versions, include a timer device that switches down the speed when it exceeds 650 m³/h.

(See External Motors Instructions). Remote motors, whose air capacity exceeds 650m³/h

at both 4th and 3rd speed, will have the following by default timer control functions: The

speed is automatically switched from 4th to 2nd speed, after 6 minutes operation.

› If the appliance is working at 3rd speed, it is automatically switched to 2nd speed, after

7 minutes operation. Operation speeds can also be changed during operation. The energy

consumption of the appliance in standby mode is lower than 0.5W.

15Instruction manual ST524 / ST854Please keep this instruction manual for future reference

LIGHTING

DIMMABLE LIGHTS FUNCTION

This function provides for lights dimmability, ranging from 20% to 100%, by continuously

pressing the light key on the remote control.

Functions are the following:

› Hood light off - press the light key - light on at 100%.

› Light on at 100% - press the light key - light off.

› Light on at 100% - continuously press the light key - brightness reduction.

› Releasing the key during reduction or increase - light keeps the luminous intensity reached.

› Light on - dimmed - continuously press the light key - brightness is inverted if compared to

the previous function.

COLOUR TEMPERATURE SETTING

Make sure that the lights and the fan are Off.

Holding down the TIMER key will turn on the light at the previously set colour temperature.

Press and hold the Light key to change the colour temperature.

As long as the key is continuously pressed, the colour temperature is changed from warm to

cold. Stop pressing the Light key to select the desired colour.

Exit the colour temperature selection function by pressing the ON/OFF key.

16 Instruction manual ST524 / ST854 Please keep this instruction manual for future reference

CLEANING AND MAINTENANCE

› Accurate maintenance guarantees good functioning and long lasting performance.

› Particular care must be made when handling the grease ﬁlter panel. It can be removed

by pushing its handle toward the back-side of the cooker hood and turning the ﬁlter

downwards so to unfasten it from its slot (Fig.3). To insert the ﬁlter just perform the

opposite operation.

› After 30 hours of use, the control panel will signal the saturation of the grease ﬁlter by

illuminating all the buttons. Press the timer button

After 30 hours of use, the control panel will signal the saturation of the grease filter by illuminating all the buttons. Press the timer button to reset.The grease filter needs cleaning regularly by hand or in the dishwasher, at least every two months or more depending on use.NOTE:If washing the grease filter in the dishwasher, wash separately to prevent food particles becoming trapped in the filter mesh.

to reset.

› The grease ﬁlter needs cleaning regularly by hand or in the dishwasher, at least every two

months or more depending on use.

NOTE:

If washing the grease ﬁlter in the dishwasher, wash separately to prevent food particles

becoming trapped in the ﬁlter mesh.

› When the appliance is used in recirculating mode, the active charcoal ﬁlter (Fig.7) needs to

be periodically replaced. The charcoal ﬁlter can be removed by removing the grease ﬁlter

ﬁrst (Fig.3), and by pulling its special plastic tongue until it is unfastened from its slot.

Reinsert the charcoal ﬁlter by performing the opposite operation.

› The active charcoal ﬁlter will need replacing depending on the use, but at least every six

months. To purchase replacement charcoal ﬁlters (ST524: 2 x CAP54CF,

ST854: 2 x CAP65CF) please visit www.caple.co.uk.

17Instruction manual ST524 / ST854Please keep this instruction manual for future reference

REPLACING LED LIGHTING

LIGHT SOURCE ENERGY CLASS

This product contains a light source of energy efﬁciency class F.

The LED light must be replaced by an authorised engineer or similar only. For more

information, please contact Caple service - 0117 938 7420 or service@caple.co.uk

Unplug the unit from the power supply before starting the process.

1. Carefully insert a ﬂat screw driver into the edge of the LED light.

2. Remove the LED light from its housing.

3. Disconnect the connector and change the LED light.

4. Implement the steps in reverse order.

5. After waiting 5 minutes, plug in the unit.

1. Carefully remove the 2 screws that secure the light.2.Remove the LED light from its housing.3.Disconnect the connector and change the LED light.4.Implement the steps in reverse order.5.After waiting 5 minutes, plug the unit.,Unplug the unit from the power supply before starting the process.LIGHT SOURCE ENERGY CLASSThis product containsalightsourceofenergy efficiency class F.LED strip

LED light4.5.in

LED light4.5.in t.

Unplug the unit from the power supply before starting the process

LED light4.5.in

1. Carefully insert a flat screw driver into the edge of the cover and lift cover off.2.Remove the LED light from its housing.3.Disconnect the connector and change the LED light.4.Implement the steps in reverse order.5.After waiting 5 minutes, plug the unit.,Unplug the unit from the power supply before starting the process.LIGHT SOURCE ENERGY CLASSThisproductcontainsalightsourceofenergy efficiency class F.1. Carefully insert a flat screw driver into the edge of the cover and lift cover off.2.Remove the LED light from its housing.3.Disconnect the connector and change the LED light.4.Implement the steps in reverse order.5.After waiting 5 minutes, plug the unit.,Unplug the unit from the power supply before starting the process.LIGHT SOURCE ENERGY CLASSThisproductcontainsalightsourceofenergy efficiency class F.LED strip

18 Instruction manual ST524 / ST854 Please keep this instruction manual for future reference

› To clean the appliance itself, tepid water and neutral detergent are recommended, while

abrasive products should be avoided. For steel appliances specialised detergents are

recommended (please follow the instructions indicated on the product itself to obtain the

desired results).

› If the supply cord is damaged, it must be replaced by the manufacturer or its service agent

or a similarly qualiﬁed person in order to avoid a hazard.

WARNING:

To uninstall the appliance from the cabinet, remove the ﬁxing screws using a screwdriver,

remove the grease ﬁlters and the active charcoal ﬁlter if they have been ﬁtted. Press on the

small handle of the springs (inside the appliance) with the necessary force to unhook the

appliance from the cabinet.

FIG.3

FIG.7

FIG.8

FIG.3

FIG.6

FIG.8

FIG.3 FIG.7

19Instruction manual ST524 / ST854Please keep this instruction manual for future reference

REMOVING THE OIL CATCHER: After having removed the grease filters and the charcoal filters, please hold the oil tank up by one hand and loosen the three handles by the other hand (Fig.8). Then let the tank slide downwards taking care to avoid spilling any oil.

FIG.8REMOVING THE OIL CATCHER:
