Caple FSCHSS9 User manual

Conventional Hood
Instruction manual
FSCHSS9
Contact Caple on 0117 938 7420 for spare parts or www.caple.co.uk

Instruction manual FSCHSS9 Instruction manual FSCHSS9
2 3
Please keep this instruction manual for future reference Please keep this instruction manual for future reference
CONTENTS
Introduction 3
Safety Instructions 5
Environmental Protection 8
Installation 9
Installing the Charcoal Filter 13
Operation 14
Care and Maintenance 15
Troubleshooting 17
Guarantee 19
Caple Contact Details 20
INTRODUCTION
Thank you for choosing this Caple extractor hood.
To ensure that you get the best results from your new extractor, we strongly suggest that
you read this instruction manual thoroughly before use. If treated with care, your Caple
extractor should give you years of trouble-free use.
To register ownership, please ensure you complete and return the guarantee card supplied
with the appliance or visit www.caple.co.uk and register here.
This instruction manual is designed to provide you with all the required information related
to the installation, use and maintenance of the appliance.
This hood is designed to extract unpleasant odours from the kitchen; it is not intended to
extract steam. In order to operate the unit correctly and safely, please read this instruction
manual carefully before installation and use.
The cooker hood uses high quality materials and is made with a streamlined design.
Equipped with an electric motor and centrifugal fan, it provides strong extraction with low
noise. It also features non-stick grease filters and an easy installation.

Instruction manual FSCHSS9 Instruction manual FSCHSS9
4 5
Please keep this instruction manual for future reference Please keep this instruction manual for future reference
IMPORTANT
This appliance must only be used for the purpose it is
intended. Other types of use are not permitted and may prove
dangerous. Caple will not be held liable for any damage
caused by the incorrect use of the appliance.
Do not use any accessories or attachments not recommended
by Caple as this may result in fire, electric shock or injury.
To protect against fire, electrical shock and injury to persons,
do not immerse cords or plugs in water or any other liquid.
Never touch the appliance with wet or damp hands.
Never pull the power cable as you could damage it. If the
appliance is faulty, do not attempt to repair it. Isolate it from
the mains electric supply and contact Caple Service either by
phone [phone] or email [e-mail].
Keep all packaging (including plastic bags, polystyrene foam
etc) out of the reach and away from children.
Do not rest large or unstable objects on any part of
the appliance.
IMPORTANT
Caple cannot be held responsible for injuries or losses caused
by incorrect use or installation of this product. Please note
that Caple reserve the right to invalidate the guarantee
supplied with this product following incorrect installation
or misuse of the appliance. Under no circumstances should
any external covers be removed for servicing or maintenance
except by suitably qualified personnel.
SAFETY INSTRUCTIONS
-Never let children operate the machine.
-The cooker hood is for home use only, not suitable for
barbecuing, restaurants or other commercial purposes.
-The cooker hood and its filter should be cleaned regularly
in order to keep in good working condition.
-Clean the cooker hood according to the instruction
manual to reduce the risk of fire.
-When using a gas hob, do not leave naked flames under
the extractor.
-Before connecting this appliance check that the power
supply cord is not damaged.
-If the room where the hood is to be used contains a fuel
burning appliance such as a central heating boiler then
its flue must be of the sealed or balanced flue type. If
other types of flue or appliances are fitted ensure that
there is an adequate supply of air to the room.
-The air must not be discharged into a flue that is used
for exhausting fumes from appliances burning gas or
other fuels.
-Regulations concerning the discharge of air have to be
conformed to.
-Do not flambé under the cooker hood.
-Never leave frying pans unattended during use as over-
heated fats and oils may catch fire.
-To ensure the best performance, we recommend
switching on the extractor 15 minutes before cooking
and leave it running 15 minutes after. This will ensure

Instruction manual FSCHSS9 Instruction manual FSCHSS9
6 7
Please keep this instruction manual for future reference Please keep this instruction manual for future reference
that the air in the kitchen is being circulated before
cooking commences and the air is being cleaned after
cooking has finished.
-The performance of your extractor will vary depending
on a number of factors. These include type of extraction,
room volume, length of ducting, ventilation available and
the cleanliness of the filters.
-This appliance is not intended for use by persons
(including children) with reduced physical, sensory or
mental capabilities, or lack of experience and knowledge,
unless they have been given supervision or instruction
concerning use of the appliance by a person responsible
for their safety.
-Children should be supervised to ensure that they do not
play with the appliance.
-Cleaning and user maintenance must not be made by
children without supervision.
-Never immerse the appliance in water.
-This product is not designed for commercial use, it is a
household appliance only. It is not intended to be used
in:
-Staff kitchen areas in shops, offices and other working
environments.
-Bed and breakfast type environments.
-By clients in hotels, motels and other residential
type environments.
-To avoid all risk, if the power cable is damaged, it must
only be replaced by a Caple appointed engineer.
-Appliances can be used by persons with reduced
physical, sensory or mental capabilities or lack of
experience and knowledge if they have been given
supervision or instruction concerning use of the
appliance in a safe way and understand the
hazards involved.
-Children must not play with this appliance.
-When not in use and before cleaning, always isolate the
appliance from the electrical supply.
ELECTRICAL SHOCK HAZARD
-Only plug this unit into a properly earthed outlet. If in
doubt seek advice from a suitably qualified engineer.
-Failure to follow these instructions can result in death,
fire, or electrical shock.
-This appliance must be connected to the mains by a
competent person. We recommend that the appliance is
connected by a qualified electrician who is a member of
the N.I.C.E.I.C who will comply with the I.E.E and local
regulations. Electrical information can be found on the
rating plate.

Instruction manual FSCHSS9 Instruction manual FSCHSS9
8 9
Please keep this instruction manual for future reference Please keep this instruction manual for future reference
ENVIRONMENTAL PROTECTION
Waste electrical products should not be disposed of with household waste. Please recycle where
facilities exist. Check with your Local Authority or retailer for recycling advice. This appliance is
marked according to the European directive on Waste Electrical and Electronic Equipment (WEEE).
By ensuring this product is disposed of correctly, you will help prevent potential negative
consequences for the environment and human health, which could otherwise be caused by
inappropriate waste handling of this product. The symbol on the product indicates that this
product may not be treated as household waste. Instead it shall be handed over to the applicable
collection point for the recycling of electrical and electronic equipment. Disposal must be carried
out in accordance with local environmental regulations for waste disposal.
For more detailed information about treatment, recovery and recycling of this product, please
contact your local council, your household waste disposal service or the retailer where you
purchased the product.
CE DECLARATIONS OF CONFORMITY
This appliance has been manufactured to the strictest standards and complies with all applicable
legislation, Low Voltage Directive (LVD) and Electromagnetic Compatibility (EMC).
INSTALLATION
Prepare for the installation:
If you have an outlet to the outside, your cooker hood can be
connected as per the below picture by means of an extraction duct
with an interior diameter of 120mm.
Before installation, turn the unit off and unplug it from the outlet.
The cooker hood should be placed at a minimum distance of 65~76cm
above the hob. It is the manufacturer of the hob who determines the
clearance required and the clearance quoted by the hob manufacturer
must be followed. In the absence of any instructions supplied with a
gas hob the minimum distance between the hob and the hood must be
at least 760mm.
4

 
 
 

 
 
            
          
            




Earthed Outlet Box
Earthed Plug
Earthed Outlet
4

 
 
 

 
 
            
          
            





Instruction manual FSCHSS9 Instruction manual FSCHSS9
10 11
Please keep this instruction manual for future reference Please keep this instruction manual for future reference
INSTALLATION – DUCTED
ATTENTION. OBSERVE THE WARNING CONCERNING THE OPERATION OF THE
APPLIANCE WHEN AIR IS DISCHARGED FROM THE ROOM.

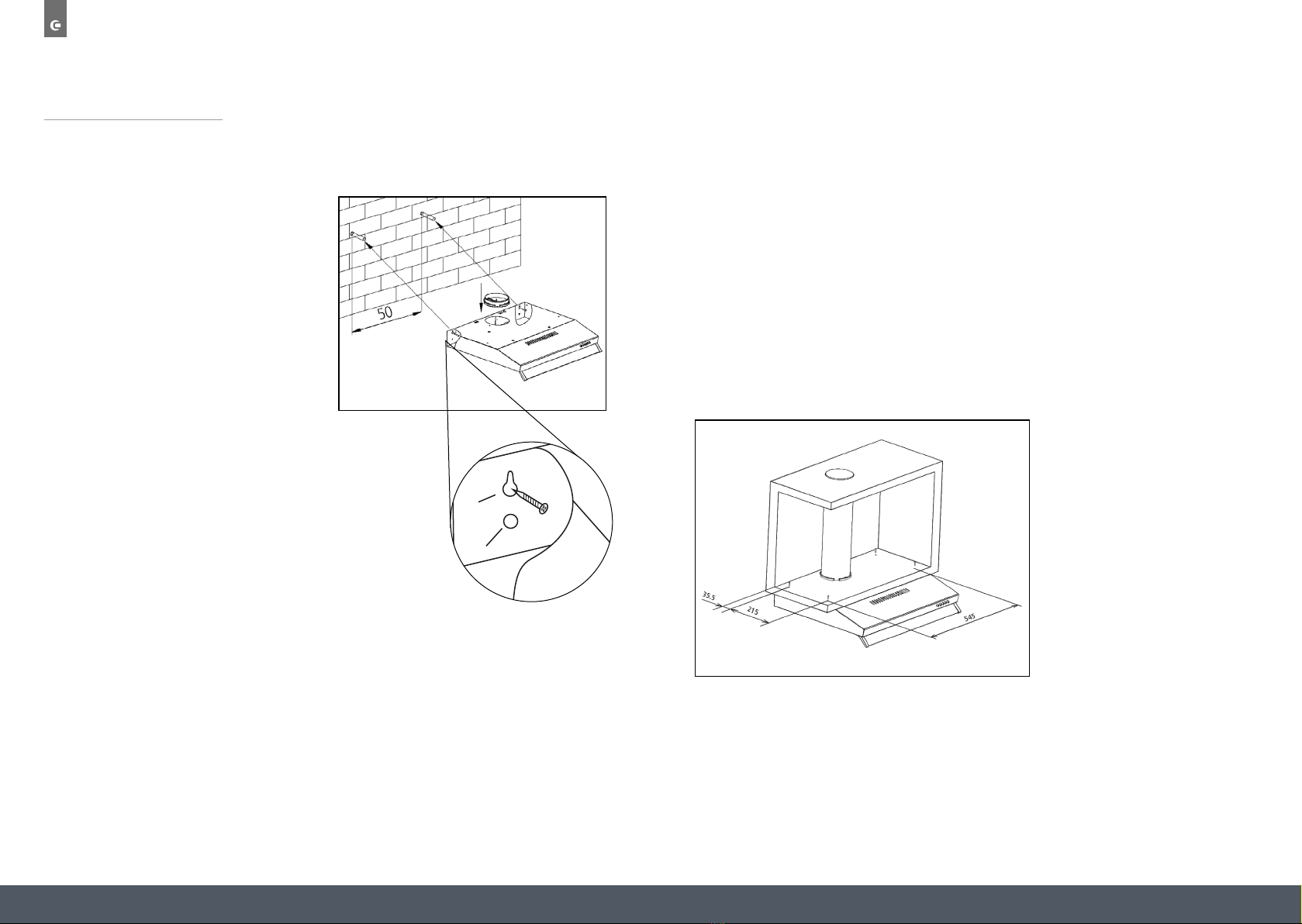

INSTALLATION METHOD 1:
1. To install onto the wall, drill 2 holes of
Ø8mm in a suitable place according with
the centre distance of hole in the back of
the cooker hood.
2. Insert the wall plugs into the holes.
3. Insert the screws into the wall plugs and
tighten. Put the cooker hood onto the
tightened screws.
4. Mark position for the safety screw holes
onto the wall and remove the cooker hood.
5. Drill 2 holes of Ø8mm and insert wall plugs into holes.
6. Place the cooker hood onto the tightened screws (see A.).
7. Fix the cooker hood with the safety screws. The two holes are
positioned on the back casing, with diameter of 6mm (see B.)
8. Attach the one-way valve to the cooker hood.
INSTALLATION METHOD 2:
-Drill 4 holes of 6mm diameter at the bottom of the hanging cupboard.
-Attach the one way valve to the cooker hood, then install the cooker hood onto the bottom of
the cupboard, tighten the hood with the 4
screws supplied.
NOTE:
-The ducting tube is not supplied with the extractor.
-Take off the protective film before installation.
AA
B

Instruction manual FSCHSS9 Instruction manual FSCHSS9
12 13
Please keep this instruction manual for future reference Please keep this instruction manual for future reference
AIR EXTRACTION SETTING
DUCTED INSTALLATION:
Turn the adjuster to the ducted position, install the outlet, turn on the cooker hood. The air will be
extracted to the outside outlet.
RECIRCULATION:
The recirculation mode uses a CAP80CF charcoal filter. Turn the adjuster to the indoor position,
install the outlet cover onto the round ducting spigot, turn on the cooker hood, then the air can be
vented from the front outlet.
NOTE:
We recommend the ducting does not exceed 2.5 metres in length, to ensure maximum efficiency.
7



 

 


 

            




          The recirculation mode uses a CCAAPP6622CCFF
charcoal


Note: The charcoal filter is mounted on the back of the grill and must
be changed once every 6 months. Replacement CAP62CF charcoal
filters can be purchased directly from www.caple.co.uk.
Warning: the charcoal filter cannot be washed or recycled. It should
be changed at most after 120 hours of use. The charcoal filter
shouldn’t be exposed to heat.
To install the filters, simply line up the lugs and push onto the
motor. Then twist to lock and secure to the filters.

INSTALLING THE CHARCOAL FILTER (CAP80CF)
The charcoal filter is mounted on the back of the grill and must be changed once every 6 months.
Replacement CAP80CF charcoal filters can be purchased directly from www.caple.co.uk.
WARNING:
the charcoal filter cannot be washed or recycled. It should be changed at most after 120 hours of
use (approximately 6 months). The charcoal filter shouldn’t be exposed to heat.
To install the filters, simply line up the lugs and push onto the motor. Then twist to lock and secure
to the filters.

Instruction manual FSCHSS9 Instruction manual FSCHSS9
14 15
Please keep this instruction manual for future reference Please keep this instruction manual for future reference
OPERATION - PUSH BUTTON CONTROLS
OFF BUTTON
Press the Off button to turn off the extractor.
LOW SPEED BUTTON
Press this button to turn the extractor on at the low fan speed. It is suitable for simmering
and cooking which does not produce much steam or odour.
MEDIUM SPEED BUTTON
Press this button to select the medium fan speed. The airflow speed is ideal for extracting
with standard cooking.
HIGH SPEED BUTTON
Press this button to select the high fan speed. When a high amount of steam or odours are
produced, use the high speed setting for the most effective extraction.
LIGHT BUTTON
Switches the light on and off.
CARE AND MAINTENANCE
IMPORTANT:
Before cleaning or maintenance please switch off the electricity supply and remove the plug from
the wall.
REGULAR CLEANING
Use a soft damp cloth with lukewarm mildly soapy water or household cleaning detergent. Never
use metal pads, chemicals, abrasive material, abrasive cleaning creams or stiff brushes to clean the
appliance.
CLEANING THE GREASE FILTER
Clean the filter every month to help minimise the risk of fire. The filter collects grease, smoke and
dust, therefore the filter is directly affecting the efficiency of the cooker hood. If not cleaned, the
grease residue (which is potentially flammable) will saturate the filter. It can be easily cleaned with
warm water and washing up liquid, alternatively the filters can be cleaned in your dishwasher.
Please ensure no other items are washed with the filters, they must be washed separately to
prevent food becoming trapped in the gauze. Cleaning the grease filters in the dishwasher may
lead to discolouration, this is normal and is a not a fault with the product.
REPLACING YOUR CHARCOAL FILTER
This only applies if you are using the hood in recirculation mode (not vented to the outside). The
charcoal filter traps your cooking odours and they need to be replaced, this can vary depending on
how frequently the cooker hood is used. We recommend replacing them at least every 6 months.
This extractor uses CAP80CF charcoal filters. Filters can be purchased directly from
www.caple.co.uk.

Instruction manual FSCHSS9 Instruction manual FSCHSS9
16 17
Please keep this instruction manual for future reference Please keep this instruction manual for future reference
REPLACING THE BULB
1. Switch the unit off and unplug the appliance.
2. Remove the aluminium grease filters.
3. Remove the lamp cover by unscrewing the 2 screws.
4. Unclip the light and remove by pressing the metal retaining clips and pushing down.
5. Open clip box (a) and unplug light.
6. Replace with the same type and rated bulb (2W) by following these instructions in reverse.
Clip box
Lamp cover
Retaining Clips
Aluminium
Grease Filters
Light
a
FA U LT CAUSE SOLUTION
The lights on, but the fan does
not work
The fan blade is jammed Switch off the unit and contact Caple
Service. To be repaired by qualified service
personnel only.
The motor is damaged
The lights and fan do not work A blown fuse Replace the fuse
The power cord is loose Plug in to the power supply again
Serious vibration of the unit
The fan blade is damaged
Switch off the unit and contact Caple
Service. To be repaired by qualified service
personnel only
The fan motor is not fixed tightly.
Switch off the unit and contact Caple
Service. To be repaired by qualified service
personnel only
The unit is not hung correctly on the
bracket
Take down the unit and check whether the
bracket is in the correct location.
The extraction performance is
not good The filter requires cleaning
Clean the grease filter as directed in the
‘Care and maintenance’ section. Replace
the charcoal filter (if in recirculation mode)
If the above table has not solved the problem please contact Caple Service by phone on
0117 938 7420 or by email [e-mail]
TROUBLESHOOTING

Instruction manual FSCHSS9 Instruction manual FSCHSS9
18 19
Please keep this instruction manual for future reference Please keep this instruction manual for future reference
PRODUCT DIMENSIONS
DIMENSIONS
140mm
600mm
340mm
500mm
120mm
GUARANTEE
Caple undertake that if within 2 years from the date of the purchase, this appliance or any part
thereof that is proved to be defective by reason only of faulty workmanship or materials, we will at
our option repair or replace the same free of any charge for labour or materials on condition that:
-Documentation must be provided before a guarantee repair commences to confirm that the
extractor is within the guarantee period.
-The appliance has been correctly installed and used only on the electrical supply stated on the
rating plate.
-The appliance has been used for normal domestic purposes only, and in accordance with the
operating and maintenance instructions.
-The appliance has not been serviced, maintained, repaired, taken apart or tampered with by any
person not authorised by us.
-All service work under this guarantee must be undertaken by Caple Service Centre.
-Any appliance or defective part replaced shall become the property of this company.
-If a service call is made and it is found that the installation has not been carried out correctly
or customer misuse/abuse is involved the cost of the service call has to be paid for by the user
before any service work is carried out.
EXCLUSIONS
This Guarantee does not cover:
-Damage or calls resulting from transportation, improper use or neglect, the replacement of any
light bulbs or removable parts of glass or plastic.
-Costs incurred for calls to put right appliances improperly installed or calls to appliances outside
the United Kingdom.
-Appliances found to be in use within a commercial environment, plus those which are the subject
of rental agreements.
-This guarantee is in addition to and does not affect your statutory and legal rights.

Caple Service
Fourth Way
Avonmouth
Bristol
BS11 8DW
T: 0117 938 1900
E: [e-mail]
www.caple.co.uk
