1.1 Features
3
- More convenience to install with plug & play (LVDS cable offered)
- Able to move the displayed position of DVD, Navi
- Able to choose NAVI model
- S-Class(W221 8”), C-Class(W204 4”, 7”), E-Class(W212 5.8”, 7”)
www.car-solutions.com

1.2 System diagram
4
DISPLAY
(CAR MAIN BOARD)
A/V 1
NAVIGATION Input
(Analog RGB)
CVBS
(Rear camera)
Car Screen Input
A/V 2
A/V 3
VIDEO
CIRCUIT
VIDEO MUX
MCU
Power Input
(+8VDC ~ +18VDC)
POWER
CIRCUIT
Dip S/W
A/V OUT
HEADREST
MONITOR
Remote control Switch for source toggle
OEM Navi Button (CAN Signal)
Car Installation
OEM LCD
Sub-Board
www.car-solutions.com

5
1.3 Components
IR cable * 1ea
AV cable * 1ea
RGB cable * 1ea
MODE cable * 1ea
POWER cable (7P) * 1EA
REMOTE CONTROL * 1ea
LVDS cable * 1ea LCD-OUT cable * 1ea
(REMOTE0001)
(HPOWER0002) (HARETC0001)
(HIRCAB0001)
(HNAVIC0002) (HAVCAB0002)
(HLCDCA0010)
(HLVDSC0002)
(QCPASS0022)
Sub board* 1ea
www.car-solutions.com

1.4 Exterior
6
Dimension
Horizontal length 153mm
Vertical length 90mm
Height 21mm
- SUB BOARD -
④
⑤⑥
①②③
⑦⑧
①POWER
②MODE
③RGB(IN)
④A/V (IN/OUT)
⑤LED
⑥DIP switch
⑦IR
⑧LCD-OUt
www.car-solutions.com

2.1 DIP switch
7
※ON : DOWN / OFF : UP
<Dip S/W setting by car models and Monitor Size>
NEW E, S-Class(W212, W221) –7”, 8”
(FACTORY-UTIL-CAR MODEL-select W212(NEW-E)
(FACTORY-UTIL-CAR MODEL-select W221
E-Class(W212) –5.8”
C-Class(W204) –5”
C-Class(W204) –7”
#PIN FUNCTION DIP S/W Selection
1 RGB INPUT MUTE ON : Skipping RGB Mode
OFF : RGB Display
2 A/V 1 MUTE ON : Skipping A/V 1
OFF : A/V1 Display
3 A/V 2 MUTE ON : Skipping A/V 2
OFF : A/V2 Display
4 A/V 3 MUTE ON : Skipping A/V 3
OFF : A/V3 Display
5 Car Models
ON : NEW C-Class(W204,200,230,GLK)
OFF : NEW S-Class(W221)
New E-Class(W212)
6 Monitor size
(NEW C-Class)
ON : 7”, NEW E-Class 5,8”
OFF : 5”, NEW E-Class 7”, NEW S-Class 8”
7 Rear Mode ON : External Rear Camera
OFF : OEM Rear Camera
8 OEM Navi Mute ON : In case of OEM Navi installed
OFF : In case of OEM Navi not installed
www.car-solutions.com

2.2 Remote control usage
8
Key Function
POWER & PIP Unavailable
MENU Activating OSD menu
OK Making a selection, changing image display
▲Moving upward
▼Moving downward
◀
Moving leftward
(If you press this button 5 seconds long, you can get access to
the factory mode.)
▶
Moving rightward
(If you press this button 2 seconds long, you can reset all the
data about user environment.)
*FACTORY MODE (Interface setting for installer)
: Operated by pressing ▲→ ▼→ ▲→MENU button or press ◀more than 5seconds long on the remote control.
www.car-solutions.com

2.3 POWER CABLE
9
CAN(H)
FILTER
& FUSE BOX
1m
F-CAM-DET (Not for use)
CAN(L)
ACC : 8v~18V
GND
SAFE
REAR-C
www.car-solutions.com

2.4 Setup for car model & navigation
10
FACTORY mode –Press ◀button 5 seconds long on the remote control.
Adjust the position of navigation
* H-POSITION
: moving in horizontal direction
* V-POSITION
: moving in vertical direction
UTIL - NAVI MODEL
Definition of the navigation
DEFAULT : 480 x 234
MD-270A1
MD-7000(WVGA) : Mercury (800 x 480)
KD-900(WVGA) : 800 x 480
MYVI(WVGA) : 800 x 480
PONTUS(WVGA)
UTIL -CAR MODEL
Select the model of the car
W221 –S-Class(8”), C-Class(4”, 7”), E-Class(5.8”)
W212 (NEW-E) - NEW E-Class(7”)
W221-SPLITVIEW
UTIL-JOG SHUTTLE
: Control of DVD, DTV, OSD menu ON/OFF setting.
UTIL-AVOUT SELECT
Selecting background sound while
navigation is displayed on the screen
DEFAULT : default, the sound of
previous image before displaying
navigation
DTV : sound of DTV
A/V : sound of A/V source
UTIL- FACTORY RESET
: Initializing of all values of OSD setting.
(Impossible to reset of screen position,
only possible for functions in OSD)
www.car-solutions.com

2.5 Parking guide line setting
11
PARK
* PARK ENABLE : Select whether to
display the parking guide line or not
on rear gear (default : OFF)
* PARK SETUP : Adjust the position of
the parking guide line
(available in PARK SETUP -> V-POSITION,
H-POSITION)
* SAFE ENABLE : Setting for displays
when driving.
ENABLE –OEM Picture displays
DISABLE –No displays
PARK - ENABLE
A. If you set ‘PARK ENABLE’ as
“ON” state, there will be the rear
view parking guide line.
(as shown above)
B. Press the OK button of remote
control, ‘’H_POS’’ will be shown
on the right and control moving
in horizontal direction.
PARK - ENABLE
A. Press the OK button of remote
control again, ‘’V_POS’’ will be
shown on the right and control
moving in vertical direction.
FACTORY mode –Press ◀button 5 seconds long on the remote control.
www.car-solutions.com

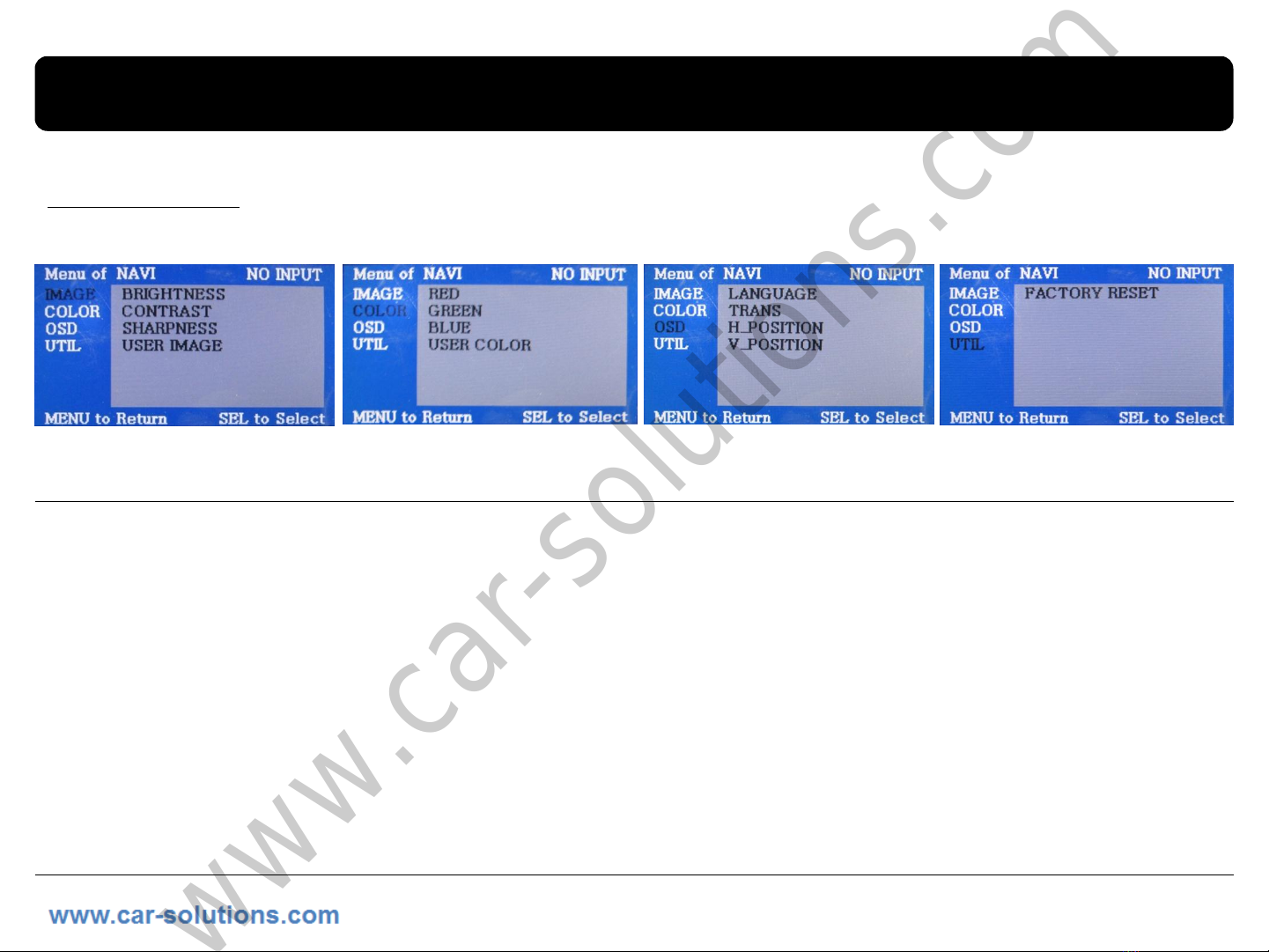

2.6.1 OSD (on screen display)
12
Analog RGB Mode
OSD
* LANGUAGE : Choosing
OSD language while using
Touch OSD
(English, Chinese only)
* TRANS : Adjusting
transparency of OSD
* H_POSITION, V_POSITION :
Positioning OSD menu
* BRIGHTNESS
* CONTRAST
* SHARPNESS
* USER IMAGE
: Selecting one among
4 color options.
COLOR
* RED : Adjusting red
* GREEN : Adjusting green
* BLUE : Adjusting blue
* USER COLOR
: Selecting a color option
among set color options
UTIL
* FACTORY RESET :
Resetting all the data
about the relevant mode
that applicable to
navigation, DVD mode
respectively.
(Impossible to reset of
screen position, only
available for color, OSD
setting)
www.car-solutions.com

2.6.2 OSD (on screen display)
13
Video mode
* BRIGHTNESS
* CONTRAST
* SATURATION
* HUE
* SHARPNESS
* USER IMAGE
: Selecting one among 4 color
options.
OSD
* LANGUAGE : Choosing OSD
language while using Touch OSD
(English, Chinese only)
* TRANS : Adjusting transparency
of OSD
* H-POSITION
: moving in horizontal direction
* V-POSITION
: moving in vertical direction
UTIL
* FACTORY RESET : Resetting all
the data about the relevant
mode that applicable to
navigation, DVD mode
respectively.
(Impossible to reset of screen
position, only available for color,
OSD setting)
www.car-solutions.com

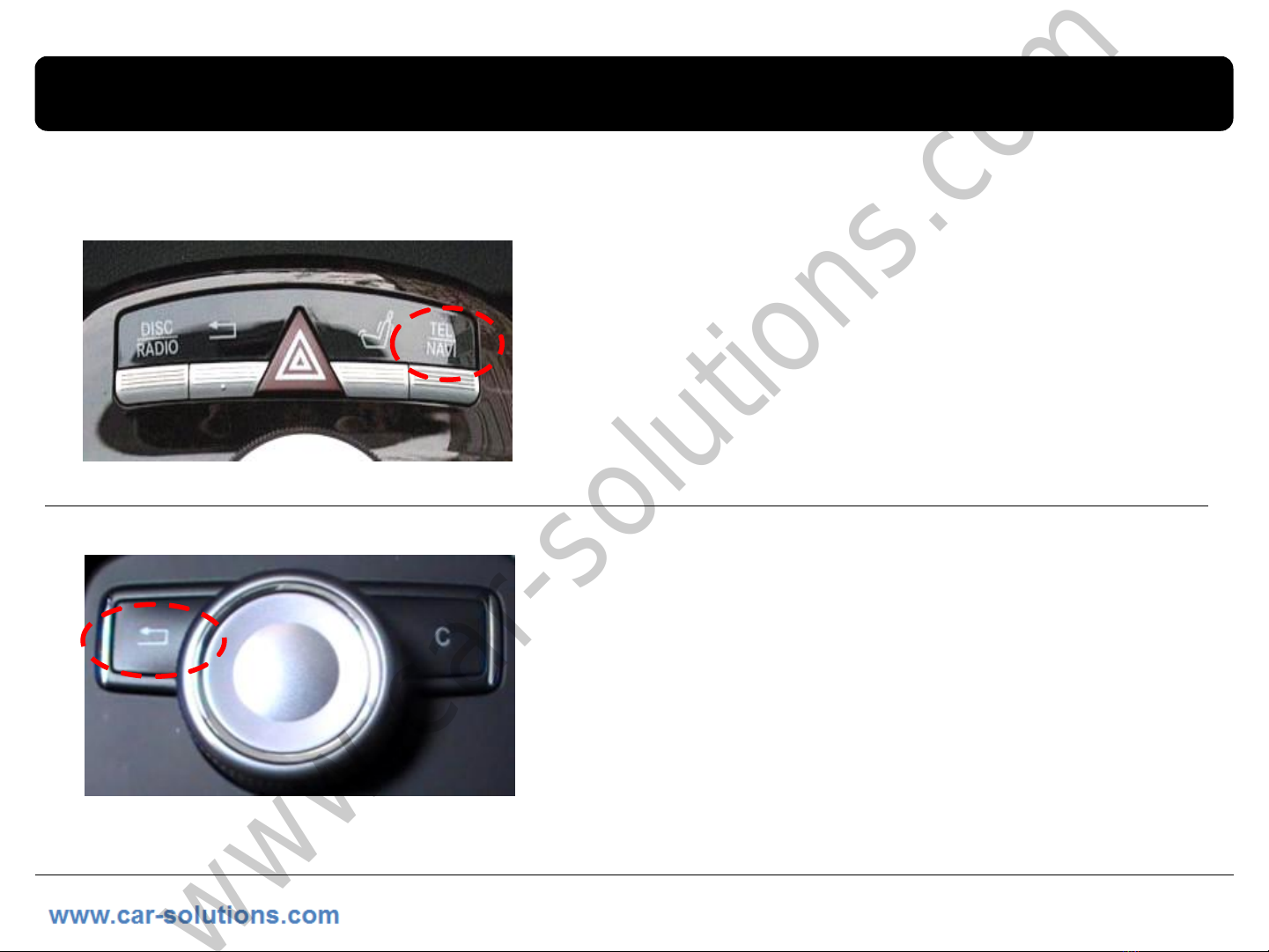

2.7 Switching mode via CAN wire
14
W221 8”(NEW S-Class) :
Switching Mode by “Navi/Tel” Button as shown left.
W204 7”, 5”(C-Class), W212 5.8”, 7” (E-Class) :
Switching Mode by Return Button of jog shuttle as shown
left.
※In W204(7 inch), the button is written “Return”
After wiring CAN of the car with offered CAN cable, you can switch A/V mode by the OEM button
as below.
www.car-solutions.com

3.1 Installation diagram
15
MODE
IR
RGB(IN) A/V(IN/OUT)
VIDEO INTERFACE (W221/W204)
LCD-OUT
DIP S/W
LED
POWER/CAN
LCD OUT
DATA INPUT
OEM-IN
Monitor
REAR-C
SAFE
F-CAM-DET
CAN-L
CAN-H
ACC (12V ~24V)
GND
R DATA (red) G DATA (green) B DATA (blue)
NAVI
SYNC (white)
GND (black)
DVD
AV1 AV2 AV3
REAR C
Audio L
Audio R
AV/OUT Video
Connect original cable
CAN High
CAN Low
command
CAN
* Connect the white wire of CAN
cable offered to black+white wire
of the car, the yellow wire to black
wire of the car like the above
picture.
www.car-solutions.com

3.2 Cautions on installation
16
Ignition key should be taken off before starting installation, interface power connection must
be the last step in installation.
Power cable should be separated when connecting interface.
Should be no any electronic devices or magnetic pole around installation place.
All steps of installation should be done by well-trained specialist.
Dismantling without manufacturer’s permission can not be guaranteed, (No permission to
break attached label on the board.)
Kindly check all parts are in the box, when receiving the product, if anything missing, inform to
the supplier or manufacturer.
According to our sales policy, any problems caused by user’s mistake, careless can not be
guaranteed.
www.car-solutions.com

3.3 Installation(New C-Class)
17
①After Disassembling Air-Con Box ,Take
the monitor out from the car after
removing the screws. Be careful with the
cable connected to the monitor.
3.3.1 Monitor Disassembly, CAN Wiring & LCD In/Out Connection
②Wire offered CAN wires with CAN wires of the car.
(White+Black : CAN HIGH Black : CAN LOW)
③Connect LCD Out cable coming from the car with offered LCD-In
cable with right position as shown above.
④Connect LCD-Out cable to the connector of the monitor.
www.car-solutions.com

3.3 Installation(New S-Class)
18
①Remove the screws of driver’s seat
ward, passenger's seat ward on the
glove box with proper tools.
3.3.2 Glove Box Disassembly
②After detaching the air-con
cover, remove the inside screw
with a tool as shown above.
③Get the glove box
separated from the car by
pulling it.
www.car-solutions.com

3.3 Installation(New S-Class)
19
①Remove the protection cover at the
monitor’s top with a tool.
3.3.3 Monitor Disassembly
②Remove the screw marked on the left picture, pull the left part out
from the monitor as shown right picture.
③Disassemble the monitor with removing screws as shown above.
www.car-solutions.com

3.3 Installation(New S-Class)
20
①Remove the cup holder with screws.
3.3.4 Cup Holder Disassembly
②Removed the parts marked on the above picture from the car.
