Car Solutions QHI.LVTX.5CH-ES300H User manual

HDMI INTERFACE FOR NEW LEXUS
MODEL: QHI-LVTX-5CH-ES300H
[email protected]
car-solutions.com
car-solutions.com

1. Compatible vehicles: LEXUS 2013~
2. Product configuration: Interface 1EA
Sub board 1EA
3. Interface Input / Output Specifications
Input: HDMI 2EA
Analog RGB 1EA
A/V 2EA
CVBS(Rear camera) 1EA
CVBS(Front Camera) 1EA
Output: LCD 1EA
4. Power Specifications
Input power: 8VDC ~ 18VDC
Power consumption: 5WATT
5. Mode switching function
Control each external video input with DIP switch
Switch mode with remote control, button switch, OEM
button
Detect rear camera with CAN or rear lamp wire
2
[email protected]
car-solutions.com
car-solutions.com

3
1. High-resolution display through HDMI input
2. Control EXT devices(DVD/DTV) via Multi Media Touch GUI
3. Adjustable screen position of external device
4. Improved Screen Display(user-oriented interface)
5. Mode switching with OEM button
6. Power output for rear camera drive
7. Dynamic PAS parking assistance system)
8. Convenient parking environment with PAS and PDC
[email protected]
car-solutions.com
car-solutions.com

4
LX15 CAN J BY J
HARETC0128
J BY J POWER
HPOWER0209
LCD Cable
HLCDCA0030
ADC Cable
HARETC0267
QHI-LVTX-5CH
QCPASS1239
SUB BOARD
QCPASS1240
AV Cable
HAVCAB0056
MULTI Cable
HARETC0240
Remote Control
REMOTE0001
RGB Cable
HRGBCA0013
EX Cable
HARETC0249
Touch Cable
HTOUCH0007
RES TOUCH
HTOUCH0029
CAP BOARD
QCPASS0821
CAP TOUCH
HTOUCH0036
BUTTON Cable
HARETC0001
IR Cable
HIRCAB0002
REAR Cable
HARETC0002
HDMI Cable
HARETC0067
2013~2017 (ES 7”/8”)
2013~2017 (NX 7”)
2013~2018 (IS 7”)
2015~ (CT 7”)
2017~ (RX 8”)
[email protected]
car-solutions.com
car-solutions.com

5
NEW LEXUS NX LCD
HLCDCA0051
NEW NX J BY J
HARETC0280
NEW LX POWER
HPOWER0211
QHI-LVTX-5CH
QCPASS1239
SUB BOARD
QCPASS1240
AV Cable
HAVCAB0056
MULTI Cable
HARETC0240
Remote Control
REMOTE0001
RGB Cable
HRGBCA0013
EX Cable
HARETC0249
Touch Cable
HTOUCH0007
RES TOUCH
HTOUCH0029
CAP BOARD
QCPASS0821
CAP TOUCH
HTOUCH0036
BUTTON Cable
HARETC0001
IR Cable
HIRCAB0002
REAR Cable
HARETC0002
HDMI Cable
HARETC0067
2018~ (ES 8”/12”)
2018~ (LS 8”/12”)
2018~ (NX 8”/10”)
2018~ (UX 8”/10”)
[email protected]
car-solutions.com
car-solutions.com

6

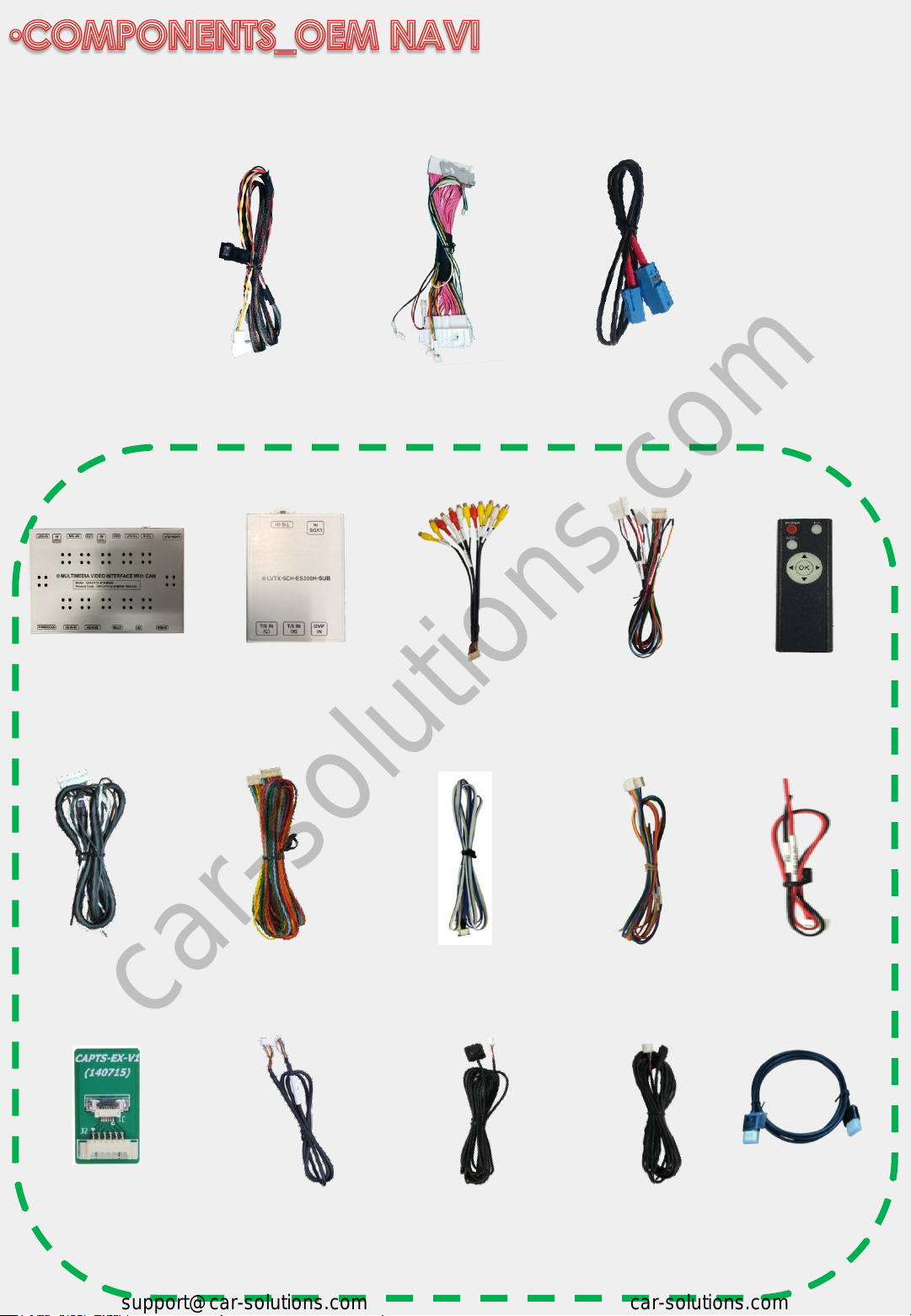

LCD Cable
HLCDCA0030
NEW LX POWER
HPOWER0211
NEW LX NAVI J BY J
HARETC0279
QHI-LVTX-5CH
QCPASS1239
SUB BOARD
QCPASS1240
AV Cable
HAVCAB0056
MULTI Cable
HARETC0240
Remote Control
REMOTE0001
RGB Cable
HRGBCA0013
EX Cable
HARETC0249
Touch Cable
HTOUCH0007
RES TOUCH
HTOUCH0029
CAP BOARD
QCPASS0821
CAP TOUCH
HTOUCH0036
BUTTON Cable
HARETC0001
IR Cable
HIRCAB0002
REAR Cable
HARETC0002
HDMI Cable
HARETC0067
2010~2016 (RX 8”)
2012~ (GS 8"/12")
2012~ (CT200 7")
2013~2017 (ES 8”)
2013~2016 (IS 7”)
2013~2017 (LS 12")
2013~2017 (NX 7")
2016~ (LX570 12")
2017~ (IS 10”)
2017~ (RX 12”)
[email protected]
car-solutions.com
car-solutions.com

7
NEW LX POWER
HPOWER0211
NEW LX NAVI J BY J
HARETC0279
QHI-LVTX-5CH
QCPASS1239
SUB BOARD
QCPASS1240
AV Cable
HAVCAB0056
MULTI Cable
HARETC0240
Remote Control
REMOTE0001
RGB Cable
HRGBCA0013
EX Cable
HARETC0249
Touch Cable
HTOUCH0007
RES TOUCH
HTOUCH0029
CAP BOARD
QCPASS0821
CAP TOUCH
HTOUCH0036
BUTTON Cable
HARETC0001
IR Cable
HIRCAB0002
REAR Cable
HARETC0002
HDMI Cable
HARETC0067
2017~ (IS 10”)
2017~ (RC 10”)
NEW NX LCD IN/OUT
HLCDCA0055
[email protected]
car-solutions.com
car-solutions.com

PIN FUNCTION DIP S/W SELECT
1 RGB OFF : RGB MODE
ON : RGB MODE SKIP
2 HDMI1 OFF : HDMI1 MODE
ON : HDMI1 MODE SKIP
3 AV1 OFF : AV1 MODE
ON : AV1 MODE SKIP
4 AV2 OFF : AV2 MODE
ON : AV2 MODE SKIP
5 CAR MODEL SELECT ON : NX200T
OFF : Others
6 CAR MODEL SELECT ON : RX200T(12 inch monitor)
OFF : Others
7 REAR CAMERA SELECT OFF : OEM REAR CAMERA MODE
ON : EXT REAR CAMERA MODE
8 N/C
※ON : DOWN / OFF : UP
※Please make sure to disconnect the power cable of the interface and reconnect
the power cable again to apply the dip switch setting whenever changing DIP switch.
8
[email protected]
car-solutions.com
car-solutions.com

9
Key FUNCTION
POWER & PIP N/C
MENU Activating OSD menu
OK Making a selection, changing image display
▲Moving upward
▼Moving downward
◀
Moving leftward
(If you press this button 2 seconds long, you can
access the factory mode)
▶
Moving rightward
(If you press this button 2 seconds long, you can reset
all the data about user environment)
[email protected]
car-solutions.com
car-solutions.com

10
PAS TYPE : Select parking line type.
- NOT USED: Do not use parking line
- PAS ON: Use Flexible Parking Lines
- PAS OFF: Use fixed parking line
PAS SETUP : You can move the position of parking line.
REAR TYPE : Choose rear camera recognition.
- CAN : By connecting to “CAN” cable of the car gear, changing to rear camera
mode when shifting into reverse. (Connect “CAN” cable of the power cable to the
“CAN” cable of the car gear.)
- LAMP : By connecting to the rear lamp of the car, switch to rear camera mode
when shifting into rear. (Connect “Rear-C” cable of the power cable to the rear
lamp of the car.)
SAFE ENABLE : If it is enable, HDMI, RGB, and A/V mode doesn’t show up while
driving. (Default : OFF)
RADAR ENABLE : Set the parking distance alarm sensor to ON/OFF.
Change the settings of the rear camera.
Adjust the screen position of the current mode.
H-POSITION: Moves the screen left and right.
V-POSITION: Moves the screen up and down.
H-SIZE (NAVI): Adjust the size of the left and right
navigation
PARK
UTIL
INFO
H-POSITION
V-POSITION
H-SIZE(NAVI)

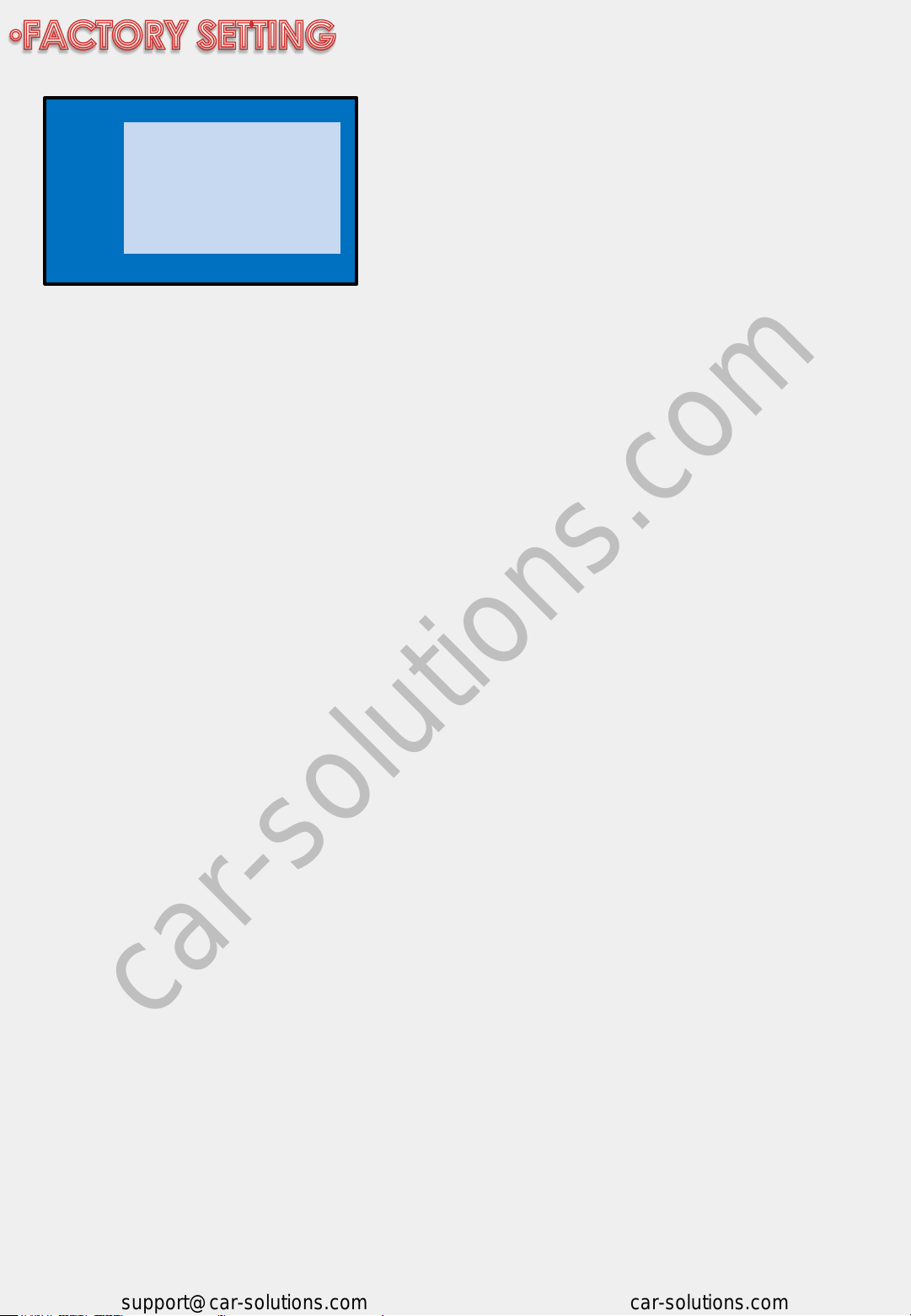

Menu of FACTORY
MENU to Return SEL to Select/Save
PARK
UTIL1
UTIL2
INFO
PAS TYPE
PAS SETUP
REAR TYPE
SAFE ENABLE
RADAR ENABLE
Menu of FACTORY
MENU to Return SEL to Select/Save
[email protected]
car-solutions.com
car-solutions.com

11
Navigation & Car model setting
NAVI MODEL:
RGB Navigation Setting (Default, Q-roi RGB, WP9230, HDMI(WVGA))
HDMI MODEL:
HDMI Navigation Setting (Q-roi RGB, WP9320, HDMI, PAPAGO)
CAR MODEL:
Car Model Setting (IS250, GX460, NX300H, RX270, LX570, ES300H)
AVOUT SELECT:
Select audio channel transmitted through AUX (HDMI1, HDMI2, AV)
HDMI SKIP:
Skipping HDMI mode when switching modes
FACTORY RESET:
Factory mode reset
PARK
UTIL1
UTIL2
INFO
NAVI MODEL
CAR MODEL
AVOUT SELECT
HDMI SKIP
FACTORY RESET
Menu of FACTORY
MENU to Return SEL to Select/Save
[email protected]
car-solutions.com
car-solutions.com

12
Other options setting
I-DRV REMOTE:
Select the model to control the DVD and DTV device through the remote control
image that appears on the screen
TOUCH ENABLE: Select touch method
No, 4PIN
XWC3941
XWC1784
XWC2131
OEM KEY: Select handle DISP KEY ON/OFF
IR MEMORY: Register remote memory of DTV, DVD
CALIBRATE: Able to calibrate touch screen
F-CAM TIME: Front camera operation time adjustment:
OFF, 3s, 5s, 10s, 15s, 20s
PARK
UTIL1
UTIL2
INFO
I-DRV REMOTE
TOUCH ENABLE
OEM KEY
IR MEMORY
CALIBRATE
FCAM TIME
Menu of FACTORY
MENU to Return SEL to Select/Save
[email protected]
car-solutions.com
car-solutions.com

13
※DISP button –Short press : Back to OEM
Long press : Mode switch
※NOTICE: If use the DISP button, the instrument panel trip information switched as well.
(Enable / Disable DIPS button - FACTORY → UTIL2 → OEM KEY)
※Handle button
※End call button - Short press: Back to OEM
Long press: Mode switch
※Handle button
[email protected]
car-solutions.com
car-solutions.com

14
A
U
D
I
O
(R)
O
U
T
A
U
D
I
O
(L)
O
U
T
F
C
A
M
A
U
D
I
O
(R)
IN
1
A
U
D
I
O
(L)
IN
1
R
C
A
M
V
I
D
E
O
IN
1
V
I
D
E
O
O
U
T
1
V
I
D
E
O
O
U
T
2
A
U
D
I
O
(R)
IN
2
A
U
D
I
O
(L)
IN
2
V
I
D
E
O
IN
2
A/V CABLE
RGB
NAVI BOX
HDMI
Device
HDMI
NAVI BOX
ADC PIN MAP
TX+
GND
GND
ADC-IN 1
TX-
ADC-IN 2
R
C
A
M
S
A
F
E
R
E
A
R
V
1
I
R
V
2
I
R
R
E
M
O
T
E
T
O
G
G
L
E
12
V
S
E
L
F
C
A
M
12
V
MULTI CABLE
[email protected]
car-solutions.com
car-solutions.com

15
①Disconnect OEM LCD cable from the monitor and connect to supplied
“LCD-IN” cable.
②Connect supplied “LCD-OUT” cable to the monitor.
1
2
[email protected]
car-solutions.com
car-solutions.com

16

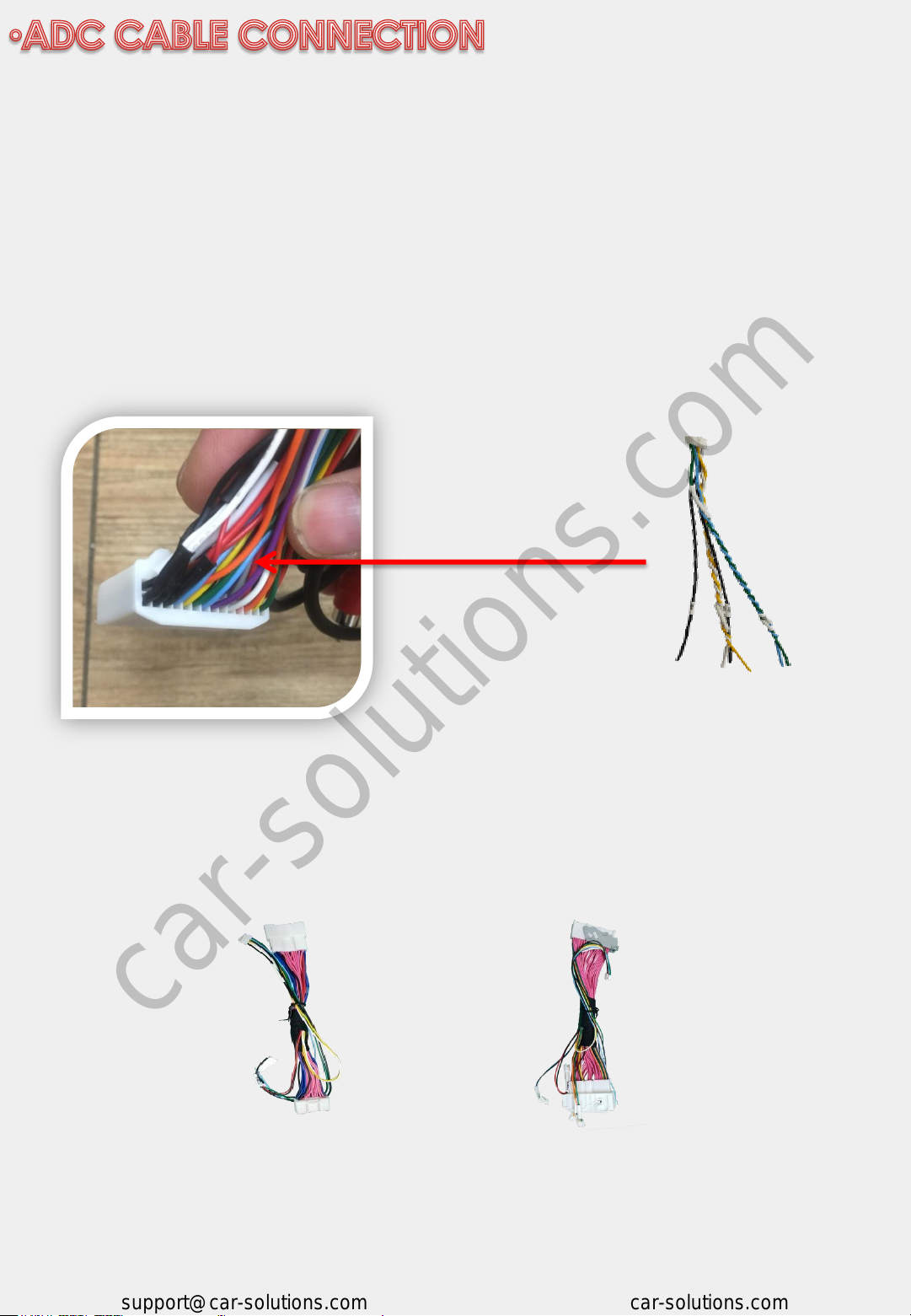

1. Below cars need ADC wire connection. Please connect provided ADC IN-2 wire to the
red cable(21 pin) of OEM cable for the use of ADC.
2013~2017 (ES 7”/8”)
2013~2017 (NX 7”)
2013~2018 (IS 7”)
2015~ (CT 7”)
2017~ (RX 8”)
ADC Cable
HARETC0267
NEW NX J BY J
HARETC0280
NEW LX NAVI J BY J
HARETC0279
2. Below two CAN JACK BY JACK has included ADC cable, wire connection not needed.
[email protected]
car-solutions.com
car-solutions.com

17

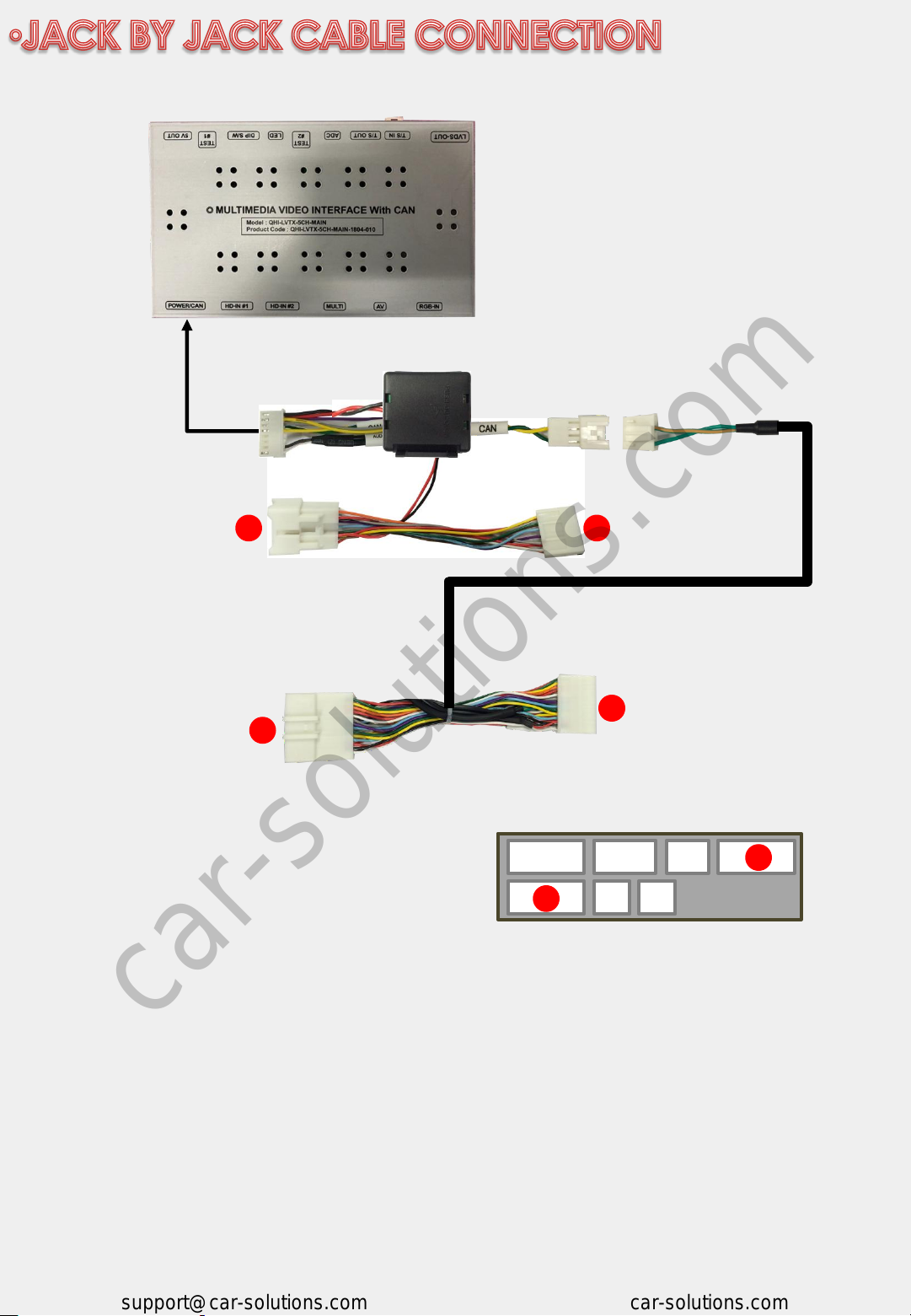

CONNECT
※NOTICE: Connector ①→ Connect Behind Command ①
Connector ②→ Connect Behind Command ②
Connector ③→ Connect OEM cable which was connected from
behind command ①
Connector ④→ Connect OEM cable which was connected from
behind command ②
<POWER CABLE>
<BEHIND COMMAND>
<CAN IN/OUT CABLE>
1
2
1
2
3
4
[email protected]
car-solutions.com
car-solutions.com

18
In case of flickering external image, please follow as below:
1. Please find the OEM cable and cut the blue cable (PIN #2)
2. Instead, below cars need to cut pink cable (PIN #6)
2018~ (ES 8”)
2018~ (LS 8”)
2018~ (NX 8”)
2018~ (UX 8”)
※The color of the cable can be different.
[email protected]
car-solutions.com
car-solutions.com

Q. I cannot change mode
A. Check connection of Ground cable and IR Cable. Check LED lamp is on, if not
check connection of POWER cable.
Q. All I got on the screen is black.
A. Check second LED lamp of the interface is on, if not, check A/V sources
connected are working well.
(Second lamp indicates AV sources connected works well)
Check interface connection has been done well.
Q. Displayed image color is not proper (too dark or unsuitable color)
A. Press ▶button on the remote control for 2 seconds and check how it goes, if it
does not work, inform to manufacturer.
Q. I cannot watch the rear camera on the screen
A. Set the DIP switch #7 as state “ON”.
Q. Set mode not appear
A. Check DIP Switch.
Q. OEM image is not displayed.
A. Check interface’s LCD In/Out cable connection. If the status keeps on, inform to
manufacturer.
Q. Screen only displays white color.
A. Check LCD out cable is connected well, if this status keeps, inform to
manufacturer.
Q. If no image is shown on screen after connecting CAN wire with Park gear.
A. Go on the “FACTORY MODE”, check “UTIL-Rear Select”. If “LAMP”, change the
setting as “CAN” with the remote control. (※when connecting Rear-C wire of
LAMP power cable to Backup lights, Setting should be like this / CAN : if
controlling rear camera with CAN wire)
19
[email protected]
car-solutions.com
car-solutions.com
