Caraudio-Systems v.LOGiC Intelligent Solution V5-CCC User manual

Version 01.12.2015 V5-CCC
v.LOGiC Intelligent Solution
Interface
V5-CCC
compatible with the E-series BMW and Mini with
navigation system or radio and 6.5” or 8.8”
monitor with 10pin BMW LVDS connector

Version 01.12.2015 V5-CCC
Page1
Product features
Own on-screen display and setup
Rear-view camera input
Automatic switching to rear-view camera input on engagement of reverse gear from
all operation modes
Front camera input
Manual switching to rear-view camera (only for vehicles with PDC button)
Manual return from rear-view and front camera (cancellation of automatic switching)
2 trigger outputs (+12V max. 1A), separately adjustable switching events (CAN, ACC,
camera, reverse gear)
Picture-in-picture mode combining after-market rear-view and front camera
picture(s) with factory parking sensor graphics
Compatible with all factory video accessories (e.g. rear-view camera, Top-View,
nightvison, DVD-changer, TV-tuner)
USB update-port for software-updates by consumer

Version 01.12.2015 V5-CCC
Page2
Contents
1. Prior to Installation
1.1. Delivery contents
1.2. Check compatibility of vehicle and accessories
1.3. Setting the dip switches of the interface-box V5C-M631
1.4. LED’s of the interface-box V5C-M631
2. Connection schema
3. Installation
3.1. Connecting interface-box and harnesses
3.2. LVDS connection
3.2.1. After-market front camera
3.2.1.1. Connection to the after-market front camera
3.2.1.2. Settings for connecting an after-market front camera
3.2.2. After-market rear-view camera
3.2.2.1. Connection to the after-market rear-view camera
3.2.2.2. Settings for connecting an after-market rear-view camera
3.2.3. After-market navigation
3.2.4. Configurable trigger outputs
3.3. Picture settings
4. Operation
4.1. OSD –On-screen display
4.1.1. OSD –Operation
4.1.1.1. 1- and 2-button iDrive
4.1.1.2. 2-button iDrive in Mini
4.1.2. OSD –Additional setting options
4.2. Video-in-motion function
4.3. Selecting the interface as current video source
5. Specifications
6. Connections (interface-box)
7. Technical support

Version 01.12.2015 V5-CCC
Page3
Legal Information
By law, watching moving pictures while driving is prohibited, the driver must not be
distracted. We do not accept any liability for material damage or personal injury resulting,
directly or indirectly, from installation or operation of this product. This product should only
be used while standing or to display fixed menus or rear-view-camera video when the
vehicle is moving, for example the MP3 menu for DVD upgrades.
Changes/updates of the vehicle’s software can cause malfunctions of the interface. We
offer free software-updates for our interfaces for one year after purchase. To receive a free
update, the interface must be sent in at own cost. Labor cost for and other expenses
involved with the software-updates will not be refunded.

Version 01.12.2015 V5-CCC
Page4
1. Prior to installation
Read the manual prior to installation. Technical knowledge is necessary for installation. The
place of installation must be free of moisture and away from heat sources.
1.1. Delivery contents
1.1. Check compatibility of vehicle and accessories
Interface-box
V5C-M631
HW_____ SW_____
Take down the SW-version and HW-version of the interface boxes, and store this
manual for support purposes.
Requirements
Navigation E-series and Mini with navigation system or radio with 6.5” or
8.8”monitor with 10pin BMW LVDS connector
V5C-UNI01
harness
LVDS cable
V4C-LVDS10

Version 01.12.2015 V5-CCC
Page5
1.2. Setting the dip switches of the interface-box V5C-M631
Dip 1 and 2 on the back of the interface-box V5C-M631 are used to set the monitor type. The
default setting is:
Vehicle/ navigation
Dip 1
Dip 2
Dip 3
M-ASK
OFF
No function
No function
CCC
ON
No function
No function
After each change of the dip switch settings you have to execute a power reset of the
interface-box!
1.3. LED‘s of the interface-box V5C-M631
Validinput source
CAN ok
Power

Version 01.12.2015 V5-CCC
Page6

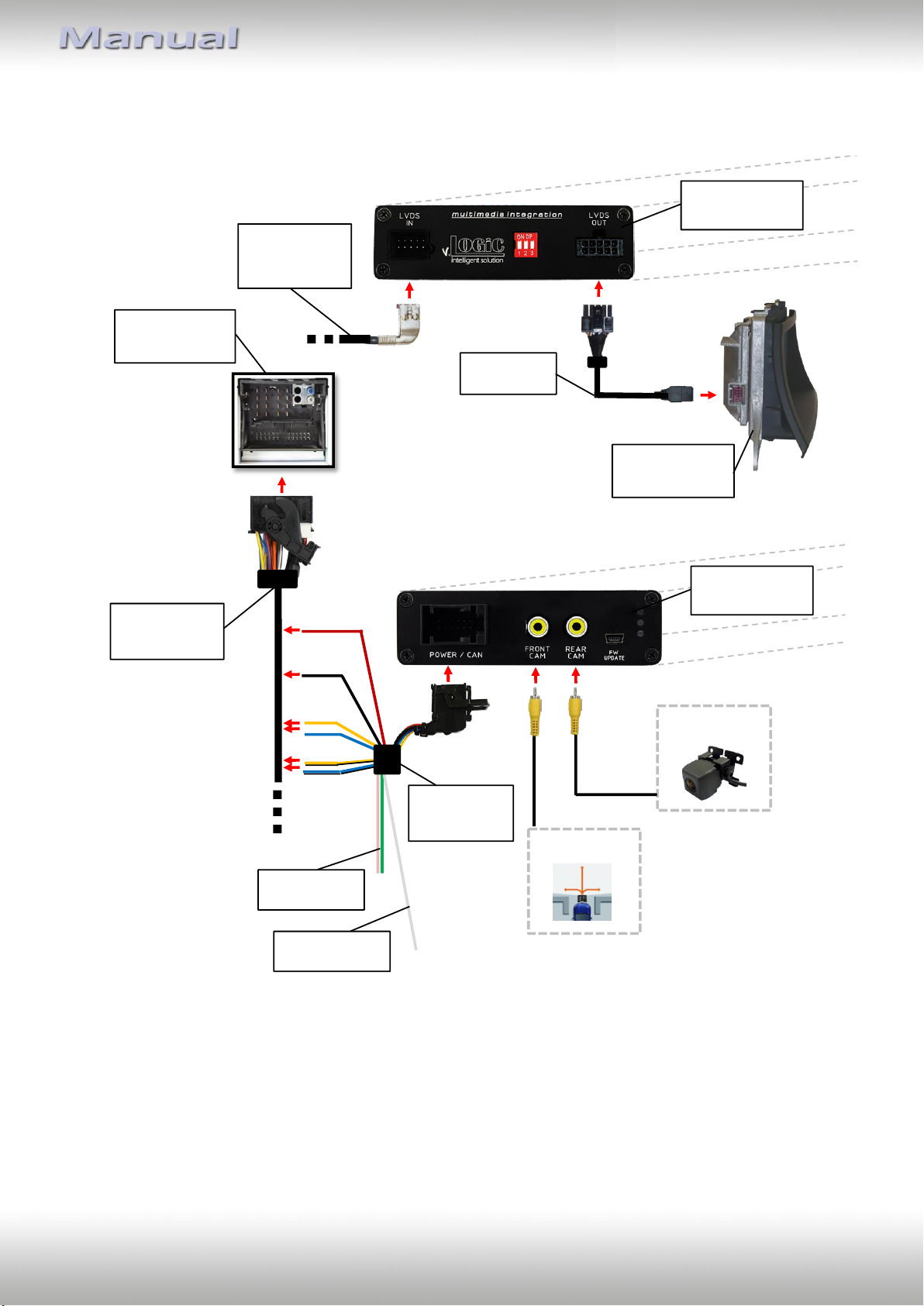

2. Connection schema
Rear-view
camera
Interface-box
V5C-M631
REAR
Quadlock maleon
rear side of the
HeadUnit
Interface-box
V5C-M631
FRONT
Frontcamera
10pinBMW
LVDSfemale
vehicle harness
Sideview of the
factory monitor
LVDScable
V4C-LVDS10
Quadlock female
vehicle harness
Ground
+12V
+12Vswitching
outputs
Rear gear signal
input (+12V)
V5C-UNI01
harness
CAN(2)
CAN(1)

Version 01.12.2015 V5-CCC
Page7
3. Installation
Switch off ignition and disconnect the vehicle’s battery! The interface needs a permanent
12V source. If according to factory rules disconnecting the battery is to be avoided, it is
usually sufficient to put the vehicle is sleep-mode. In case the sleep-mode does not show
success, disconnect the battery with a resistor lead.
If power source is not taken directly from the battery, the connection has to be checked
for being start-up proven and permanent.
Prior to wire and device installation we suggest to connect and test correct function of all
after-market and factory infotainment equipment!
The interface is installed on the backside of the head unit.
3.1. Connecting interface-box and harnesses
CAN-LOW(2)
Interface-box
V5C-M631
FRONT
Quadlock female
vehicle harness
Ground
+12V
CAN-HI(2)
V5C-UNI01
harness
CAN-HI(1)
CAN-LOW(1)
1
2
3
4
Quadlock maleon
rear side of the
HeadUnit
Cut off the 8 pin Molex connector from V5C-UNI01
harness (is not needed).

Version 01.12.2015 V5-CCC
Page8
Cut the CAN bus wires of the vehicle harness and connect them in series according to
the pin assignment (see below) with the CAN bus wires from the V5C-UNI01 harness.
Connect red wire with +12V (pin 15) and black wire with ground (pin 12).
Connect female 12pin AMP connector of the harness V5C-UNI01 to the
front site of the V5C-M631 interface box.
Connect the female Quadlock connector of the vehicle harness on the rear side of the
head unit.
Pin assignment:
Cable colour
Assignment
●Red
+12V permanent input - Pin15
●Black
Ground - Pin 12
●●Yellow/Black
CAN HIGH Pin 11 - to the vehicle side
●●Blue/Black
CAN LOW Pin 9 - to the vehicle side
● Yellow
CAN HIGH Pin 11 - to the head-unit side
●Blue
CAN LOW Pin 9 - to the head-unit side
●Green
+12V power output
●Pink
+12V power output
●White
Rear gear signal input (+12V)
1
2
3
Quadlock
4

Version 01.12.2015 V5-CCC
Page9
3.2. LVDS connection

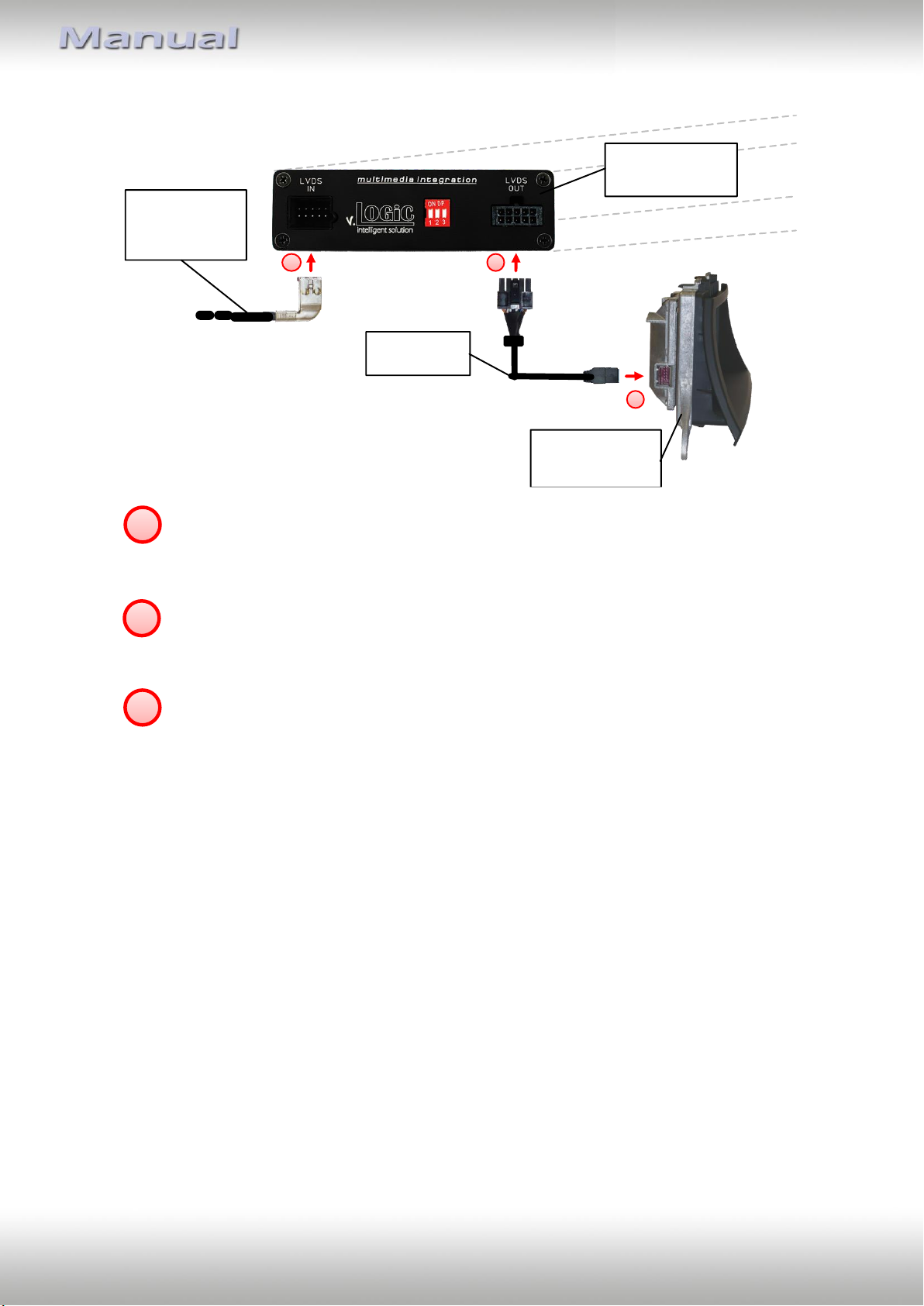

Connect the female 10pin Micro-Fit connector of the LVDS cable V4C-LVDS10 to the
male 10pin Micro-Fit connector (LVDS-OUT) on the rear of the interface-box
V5C-M631.
Remove the female 10pin BMW LVDS connector of the vehicle harness at the side of
the factory monitor and connect it to the male 10pin BMW LVDS connector (LVDS-IN)
on the front of the interface-box V5C-M631.
Connect the female 10pin BMW LVDS connector of the LVDS cable V4C-LVDS10 to
the male 10pin BMW LVDS connector of the factory monitor.
1
2
3
1
3
2
Interface-box
V5C-M631
REAR
10pinBMW
LVDSfemale
vehicle harness
Sideview of the
factory monitor
LVDScable
V4C-LVDS10

Version 01.12.2015 V5-CCC
Page10
3.2.1. After-market front camera
3.2.1.1. Connection to the after-market front camera

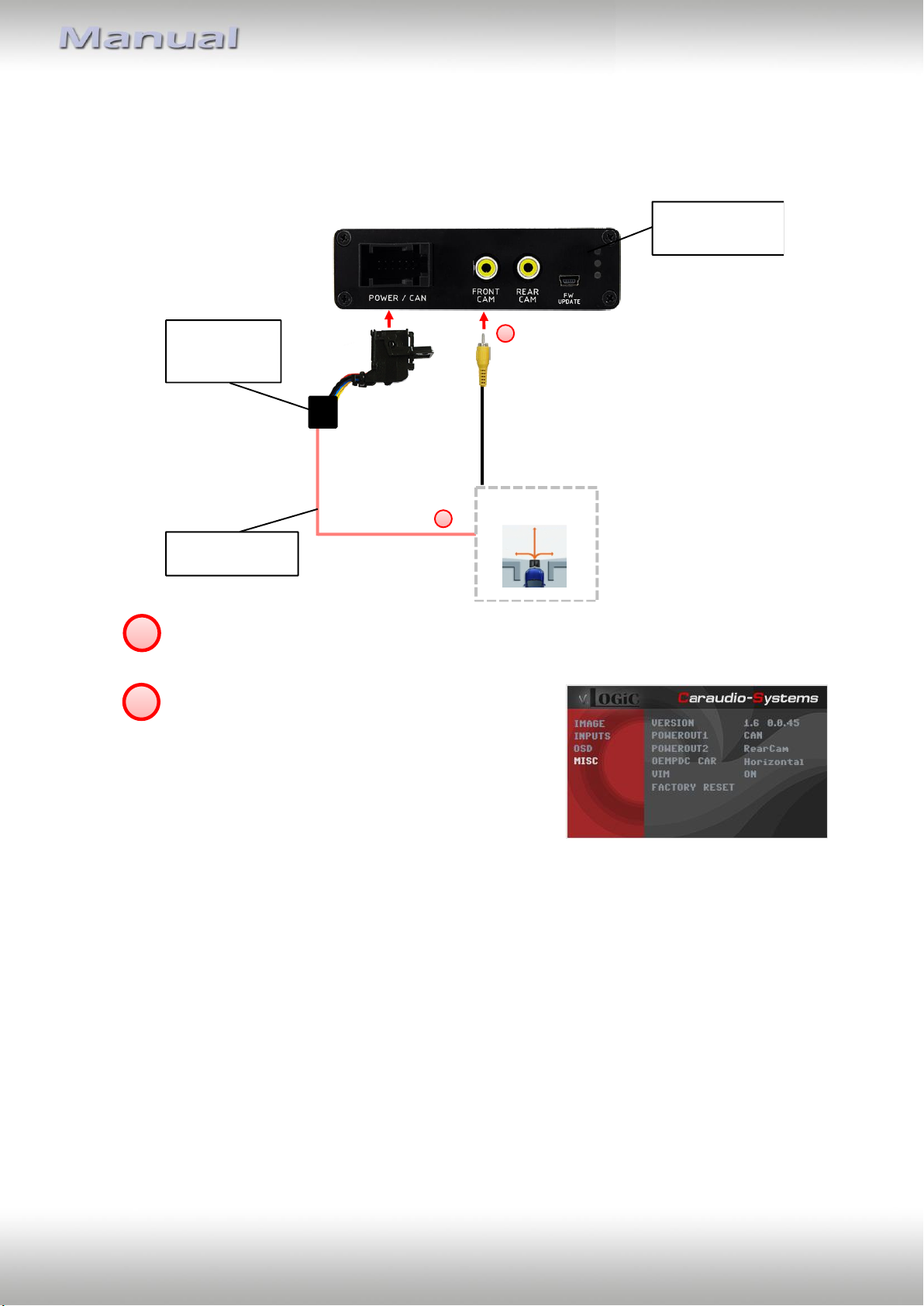

Connect the video RCA of the after-market front camera to the female RCA connector
“FRONT CAM” of the interface box V5C-M631.
-The pink wire of harness V5C-UNI01 can be used
for +12V electric power supply (max. 1A) of the
after-market front camera. Configure in the OSD-
menu “MISC”, menu item “POWER OUT 2” the
designated electric power supply (see chapter
“Configurable switching outputs”).
-
Interface-Box
V5C-M631
VORDERSEITE
Frontkamera
+12VKamera
Stromversorgung
Anschlusskabel
V5C-UNI01
PowerOut1(max.1A)
1
2
1
2

Version 01.12.2015 V5-CCC
Page11
3.2.1.2. Settings for connecting an after-market front camera
You have to configure some settings in the OSD-menus INPUTS and MISC if you want to
connect an after-market front camera (Operation of the OSD: see chapter “OSD-Operation”).
OSD-menu
Menu item
Setting
Explication
INPUTS
FRONT CAM
OFF
No front camera connected
ON
Switches to front camera if parking process is
enabled and reverse gear is released
ReverseLogic
Intelligent
For vehicles with PDC button. Enabled while
parking process and up to 20 km/h or
together with PDC if existing
Gear only
For vehicles without PDC button. Enabled
while parking process and up to 20 km/h.
MISC
OEM PDC CAR
Horizontal
PDC-display of the vehicle is horizontal
Vertical
PDC-display of the vehicle is vertical
-
Note: You can deactivate the enabled parking process by pressing the iDrive or by enabling
other modes (e.g. radio). After deactivation you can’t enable the parking process again until
the vehicle is diving faster than 20km/h, the ignition is switched off and on or the PDC will be
disabled and enabled again, if existing.

Version 01.12.2015 V5-CCC
Page12
3.2.2. After-market rear-view camera
3.2.2.1. Connection to the after-market rear-view camera
Connect the video RCA of the after-market rear-view camera to the female RCA
connector “REAR CAM” of the interface box V5C-M631.
-The green wire of harness V5C-UNI01 can be used
for +12V electric power supply (max. 1A) of the
after-market rear-view camera. Configure in the
OSD-menu “MISC”, menu item “POWER OUT 2” the
designated electric power supply (see chapter
“Configurable switching outputs”).
On some vehicles the reverse light signal doesn’t exist on the CAN-bus. Connect the
white wire of harness V5C-UNI01 to reverse light signal (+12V of reverse light) if the
system doesn’t switch to the rear-view camera automatically after the described
OSD-setup (see next chapter).
Interface-box
V5C-M631
FRONT
+12Vcamera
power
V5C-UNI01
harness
PowerOut2(max.1A)
1
2
Rear-viewcamera
Rear gear signal
input (+12V)
+12Vreverse gear analogue (exception) 3
1
2
3

Version 01.12.2015 V5-CCC
Page13
3.2.2.2. Settings for connecting an after-market rear-view camera

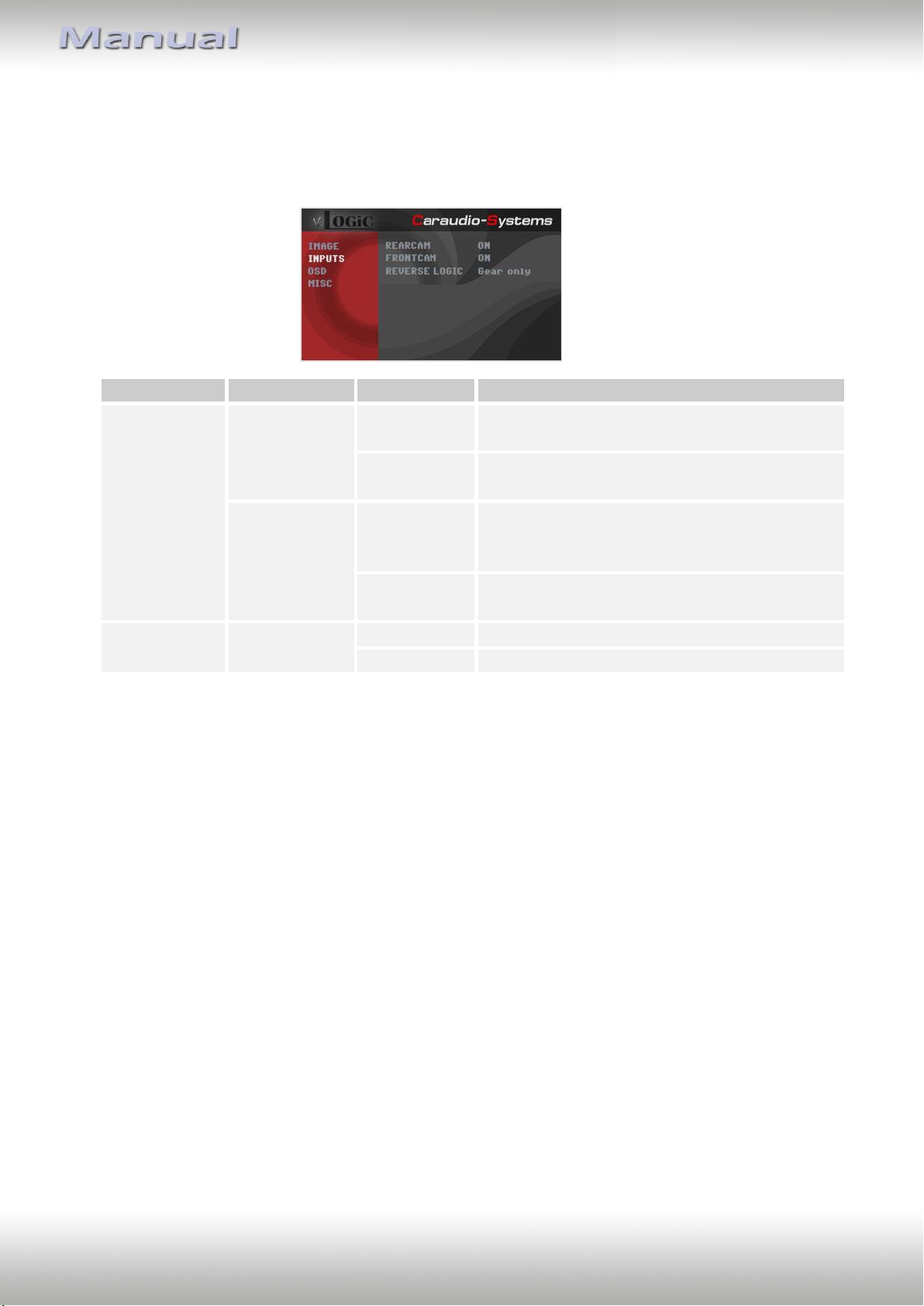

You have to configure some settings in the OSD-menus INPUTS and MISC if you want to
connect an after-market rear-view camera (Operation of the OSD: see chapter “OSD-
Operation”).
OSD-menu
Menu item
Setting
Explication
INPUTS
REAR CAM
OFF
No rear-view camera connected
ON
Switches to rear-view camera if reverse gear
is engaged and/or PDC-display is displayed
OEM
If a factory rear-view camera is existing!
Interface turns off, if PDC or reverse gear is
enabled and it displays factory rear-view
camera and/or PDC-display
ReverseLogic
Intelligent
For vehicles with PDC button. Enabled while
parking process and up to 20 km/h or
together with PDC if existing
Gear only
For vehicles without PDC button. Enabled
while parking process and up to 20 km/h.
MISC
OEM PDC CAR
Horizontal
PDC-display of the vehicle is horizontal
Vertical
PDC-display of the vehicle is vertical
-
Note: You can deactivate the enabled parking process by pressing the iDrive or by enabling
other modes (e.g. radio). After deactivation you can’t enable the parking process again until
the vehicle is diving faster than 20km/h, the ignition is switched off and on or the PDC will be
disabled and enabled again, if existing.

Version 01.12.2015 V5-CCC
Page14
3.2.3. Configurable trigger outputs

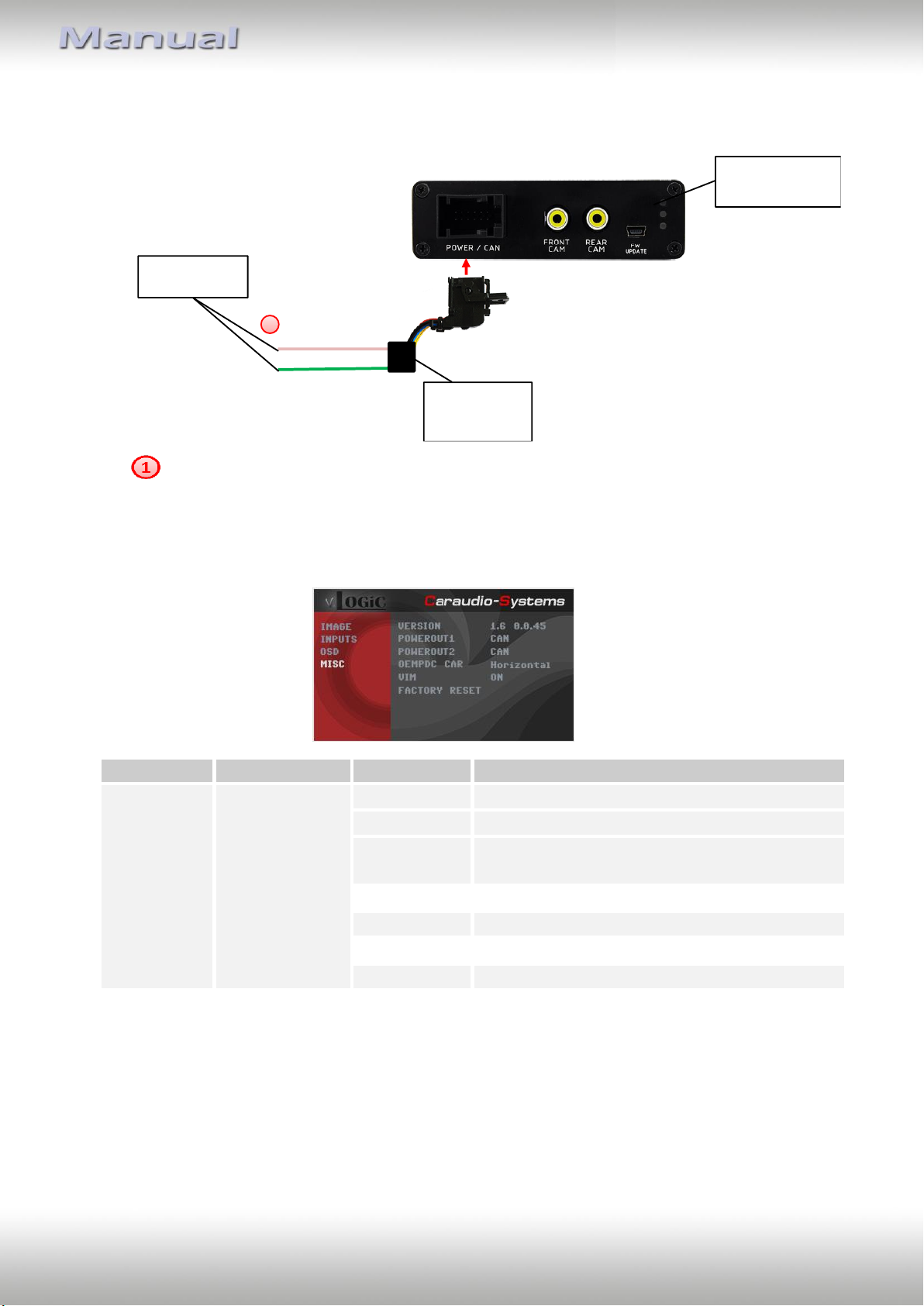

You can configure the both +12V trigger outputs separately. The pink wire is POWER
OUT 1 and the green wire is POWER OUT 2.
Note: You can configure the both trigger outputs in the OSD-menu MISC separately
(Operation of the OSD: see chapter “OSD-Operation”).
OSD-menu
Menu item
Setting
Explication
MISC
POWER OUT1
(pink)
POWER OUT2
(green)
CAN
+12V when the interface is on (red LED on)
Ignition
+12V when ignition is on
RearCam
+12V when the rear-view camera input is
activated
Reverse Gear
+12V when reverse gear is engaged
OFF
Trigger putput deactivated
Interface-box
V5C-M631
FRONT
+12Vswitching
outputs
V5C-UNI01
harness
PowerOut1(max.1A)
PowerOut2(max.1A)
1

Version 01.12.2015 V5-CCC
Page15
3.3. Picture settings

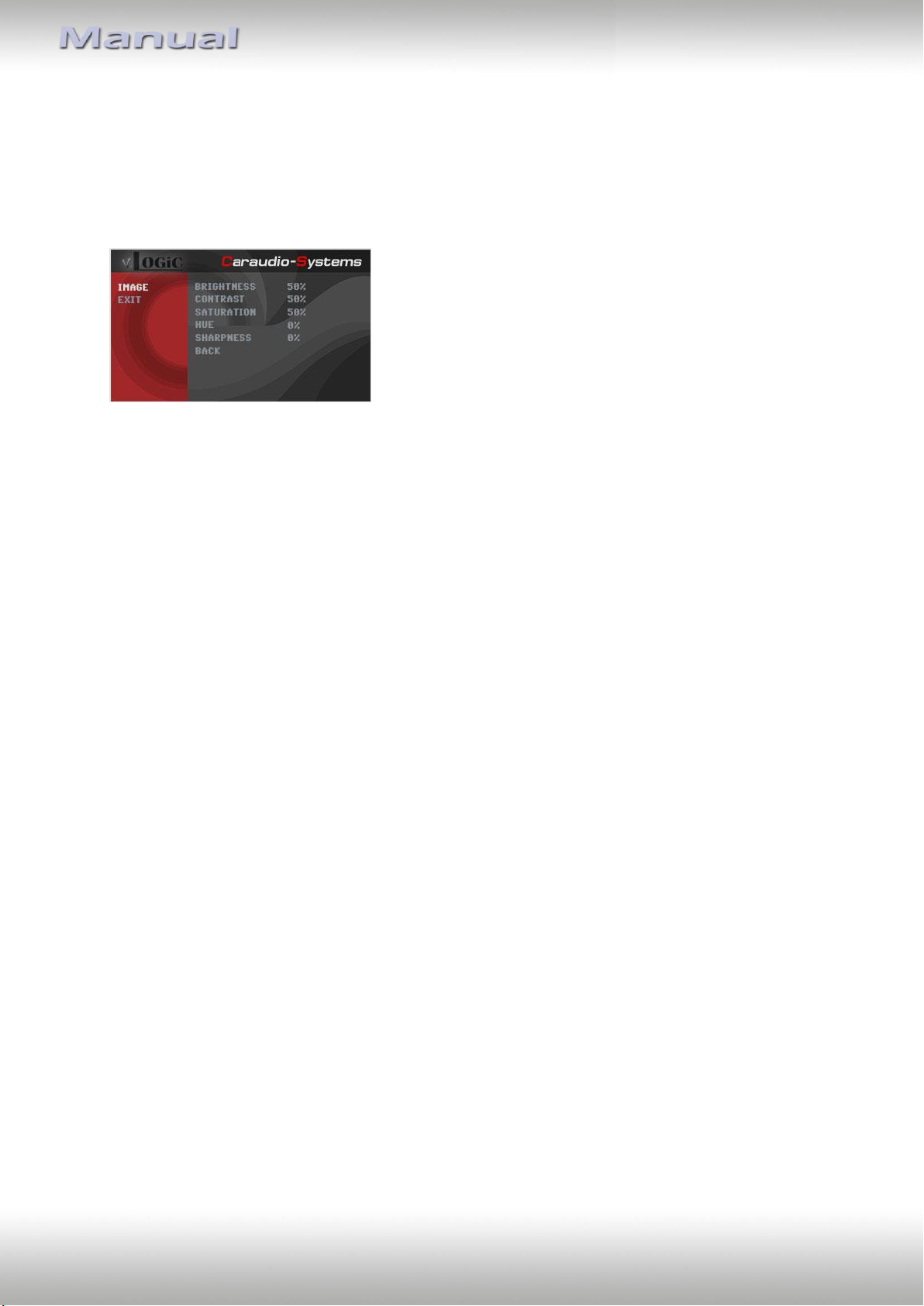

You can change the picture settings in the OSD-menu IMAGE (Operation of the OSD: see
chapter “OSD-Operation”).
◦ Brightness
◦ Contrast
◦ Saturation
◦ Hue
◦ Sharpness
Note: The picture settings will be retained for each video source separately.

Version 01.12.2015 V5-CCC
Page16
4. Operation
4.1. OSD –On-screen display
You can change the basic configurations of the interface in the OSD (on screen display).
4.1.1. OSD –Operation
You can control the OSD by iDrive.

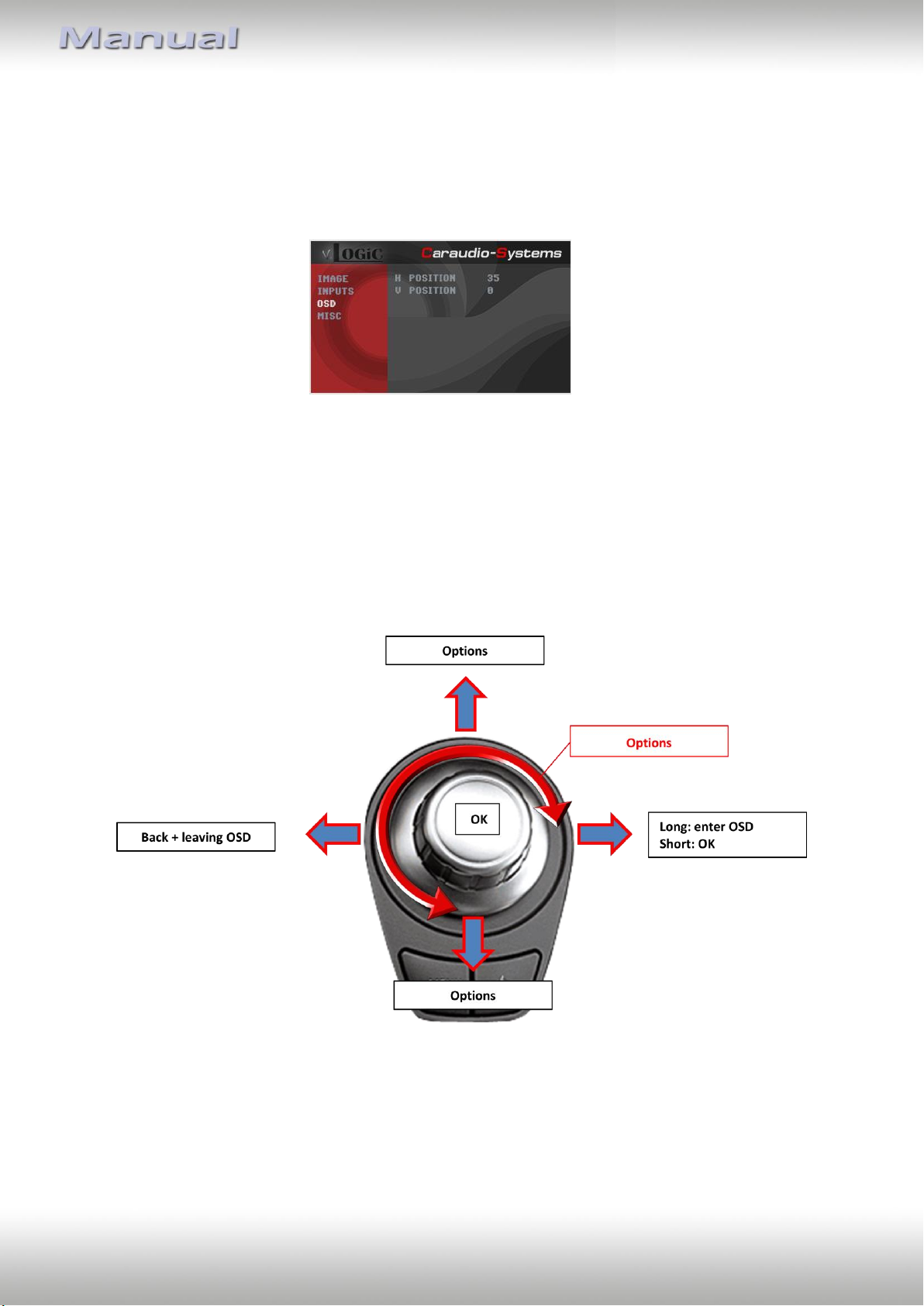

4.1.1.1. 1- and 2-button iDrive
Note: If the interface is selected as active video source then the OSD menu is activated via
iDrive button "OK" (press and hold) +"iDrive-right". In this OSD menu only image
adjustments can be made.

Version 01.12.2015 V5-CCC
Page17
4.1.1.2. 2-button iDrive in Mini

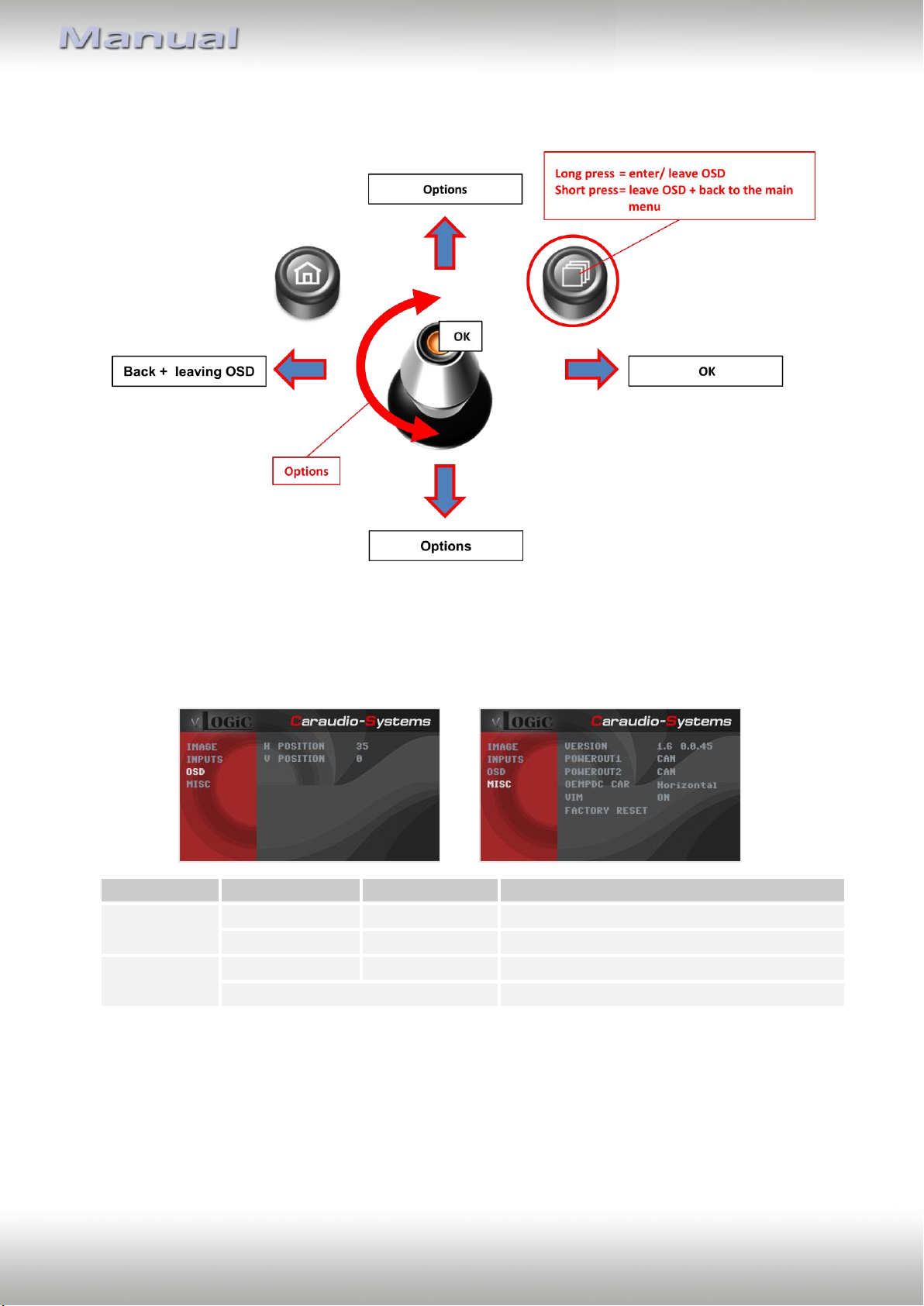

4.1.2. OSD –Additional setting options
The following settings in the OSD-menus OSD and MISC can be configured over and above
the described settings in this manual (Operation of the OSD: see chapter “OSD-Operation”):
OSD-menu
Menu item
Setting
Explication
H POSITION
0-xxx
Horizontal position of the OSD
V POSITION
0-xxx
Vertical position of the OSD
MISC
VERSION
X.XX.XX
Displays the current SW-version
FACTORY RESET
Resetting to factory settings

Version 01.12.2015 V5-CCC
Page18
4.2. Video-in-motion function
It is possible to activate and deactivate the video-in-motion in the OSD menu “MISC”
(Operation of the OSD: see chapter “OSD-Operation”).
OSD-menu
Menu item
Setting
Explication
MISC
VIM
ON
Video-in-motion activated
OFF
Video-in-motion deactivated
For the V5-CIC-E-PNP the video-in-motion function is permanently active without disturbing
the navigation performance.
4.3. Selecting the interface as current AV-source
Long press Menu-button to choose the interface as current video source.
Short press MENU button to switch the video sources (cameras). Each short press will switch
to the next enabled input. If all inputs are enabled the order is:
FRONT CAM  REAR CAM  …
Inputs which are not enabled are skipped.

Version 01.12.2015 V5-CCC
Page19
5. Specifications
Operation voltage 10.5 –14.8V DC
Stand-by power drain <0,1mA
Operation power drain 190mA
Power consumption 2,6W
Temperature range -20°C to +80°C
Weight (box only) 285g
Measurements (box only) B x H x T 141 x 30 x 105 mm
6. Connections (interface-box)
7. Technical Support
Caraudio-Systems Vertriebs GmbH
manufacturer/distribution
In den Fuchslöchern 3
D-67240 Bobenheim-Roxheim
email [email protected]
Legal disclaimer: Mentioned company and trademarks, as well as product names/codes are registered
trademarks ® of their corresponding legal owners.
Interface-box
V5C-M631
REAR
Male10pinBMW
LVDSconnector
Male12pinAMP
connector
Rear-view
camera input
Female
update-connector
MiniUSB
Interface-box
V5C-M631
FRONT
Male10pin
Micro-Fit
connector
Frontcamera
input
