Caraudio-Systems V5-NBT User manual

Version 21.12.2016 V5-NBT
v.LOGiC Intelligent Solution
Interface
V5-NBT
compatible with the F-series BMW with
navigation system or radio and 6.5”, 7”, 8.8” or
10.25” monitor with 4+2pin HSD2 LVDS
connector

Version 21.12.2016 V5-NBT
Page1
Product features
Own on-screen display and setup
Rear-view camera input
Automatic switching to rear-view camera input on engagement of reverse gear from
all operation modes
Front camera input
Manual switching to rear-view camera (only for vehicles with PDC button)
Manual return from rear-view and front camera (cancellation of automatic switching)
2 trigger outputs (+12V max. 1A), separately adjustable switching events (CAN, ACC,
camera, reverse gear)
Picture-in-picture mode combining after-market rear-view and front camera
picture(s) with factory parking sensor graphics
Interactive lane lines
Compatible with all factory video accessories (e.g. rear-view camera, Top-View,
nightvison, DVD-changer, TV-tuner)
USB update-port for software-updates by consumer

Version 21.12.2016 V5-NBT
Page2
Contents
1. Prior to Installation
1.1. Delivery contents
1.2. Check compatibility of vehicle and accessories
1.3. Setting the dip switches of the interface-box V5C-M637
1.4. LED’s of the interface-box V5C-M637
2. Connection schema
3. Installation
3.1. Connecting interface-box and harnesses
3.2. LVDS connection
3.2.1. After-market front camera
3.2.1.1. Connection to the after-market front camera
3.2.1.2. Settings for connecting an after-market front camera
3.2.2. After-market rear-view camera
3.2.2.1. Connection to the after-market rear-view camera
3.2.2.2. Settings for connecting an after-market rear-view camera
3.2.2.3. Settings for OEM rear-view camera
3.2.3. After-market navigation
3.2.4. Configurable trigger outputs
3.3. Interactive lane lines
3.4. Picture settings
4. Operation
4.1. OSD –On-screen display
4.1.1. OSD –Operation
4.1.1.1. iDrive High
4.1.1.2. iDrive Low
4.1.2. iDrive selection
4.1.3. OSD –Additional setting options
4.2. Video-in-motion function
4.3. Selecting the interface as current video source
5. Specifications
6. Connections (interface-box)
7. Technical support

Version 21.12.2016 V5-NBT
Page3
Legal Information
By law, watching moving pictures while driving is prohibited, the driver must not be
distracted. We do not accept any liability for material damage or personal injury resulting,
directly or indirectly, from installation or operation of this product. This product should only
be used while standing or to display fixed menus or rear-view-camera video when the
vehicle is moving, for example the MP3 menu for DVD upgrades.
Changes/updates of the vehicle’s software can cause malfunctions of the interface. We
offer free software-updates for our interfaces for one year after purchase. To receive a free
update, the interface must be sent in at own cost. Labor cost for and other expenses
involved with the software-updates will not be refunded.

Version 21.12.2016 V5-NBT
Page4
1. Prior to installation
Read the manual prior to installation. Technical knowledge is necessary for installation. The
place of installation must be free of moisture and away from heat sources.

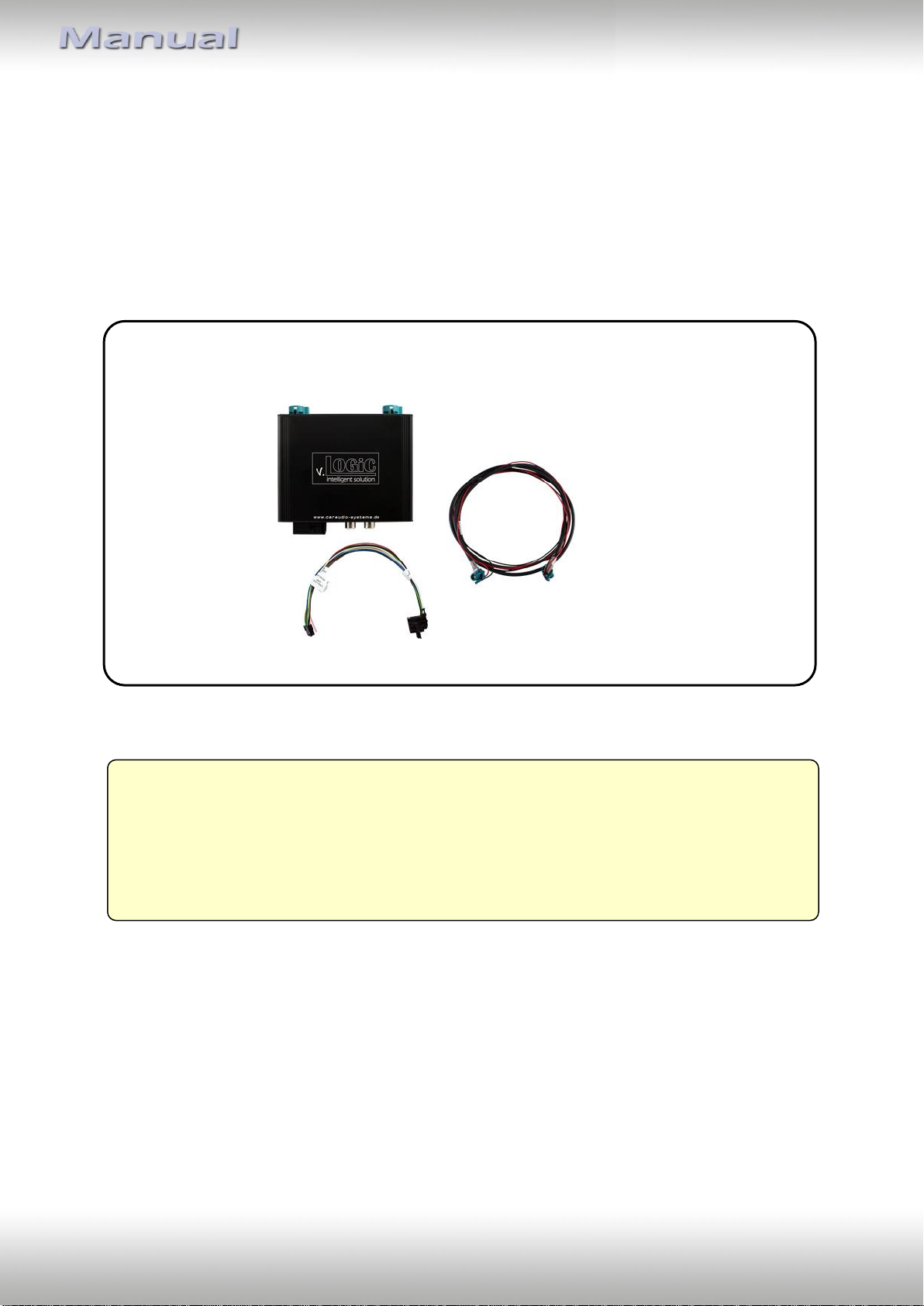

1.1. Delivery contents
1.1. Check compatibility of vehicle and accessories
Interface-box
V5C-M637
HW_____ SW_____
Take down the SW-version and HW-version of the interface boxes, and store this
manual for support purposes.
Requirements
Navigation F-series with navigation system or radio with 6.5”, 7”, 8.8“ or
10.25“ monitor with 4+2pin HSD2 LVDS connector
Note ”PDC – picture in picture” and “interactive lane lines” function is
not simultaneously usable
V5C-UNI01
harness
LVDS cable
CAB-HSD2-RR148

Version 21.12.2016 V5-NBT
Page5
1.2. Setting the dip switches of the interface-box V5C-M637
Dip 1 and 2 on the back of the interface-box V5C-M637 are used to set the monitor type. The
default setting is:
Vehicle/ navigation
Dip 1
Dip 2
Dip 3
6.5“ monitor.
OFF
OFF
No function
7“ monitor
OFF
OFF
No function
8.8“ monitor
ON
OFF
No function
10.25“ monitor (ver.1)
ON
OFF
No function
10.25“ monitor (ver.2)
ON
ON
No function
After each change of the dip switch settings you have to execute a power reset of the
interface-box!
1.3. LED‘s of the interface-box V5C-M637
Validinput source
CAN ok
Power

Version 21.12.2016 V5-NBT
Page6

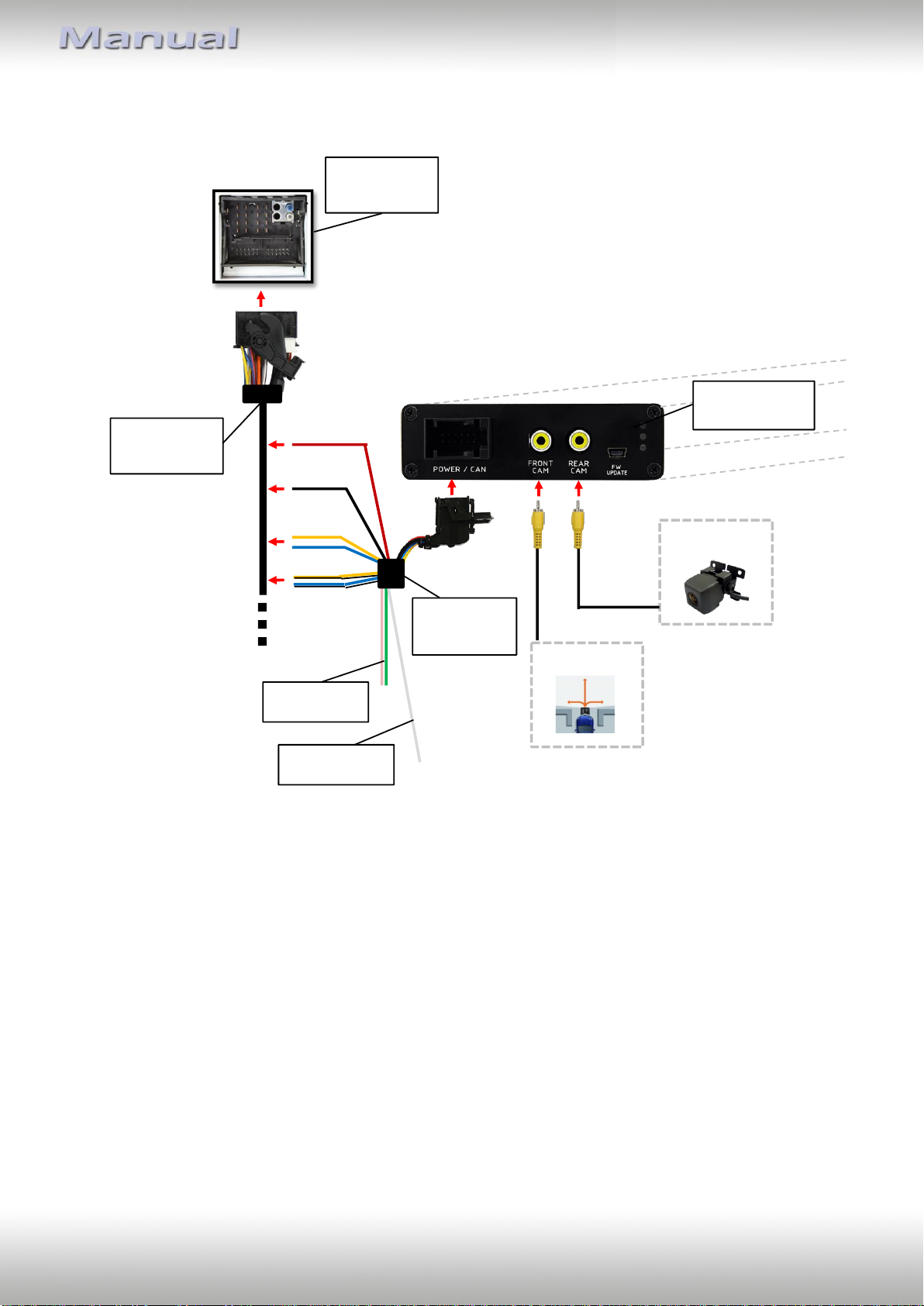

2. Connection schema
Rear-view
camera
Interface-box
V5C-M637
FRONT
Frontcamera
Quadlock female
vehicle harness
Masse
+12V
CAN(2)
+12Vswitching
outputs
Rear gear signal
input (+12V)
V5C-UNI01
harness
CAN(1)
Quadlock male
onrear site of
the NBTunit

Version 21.12.2016 V5-NBT
Page7
Interface-box
V5C-M637
FRONT
4+2PinHSD2
LVDSfemale
vehicle harness
Backof factory
monitor
LVDScable
CAB-HSD2-RR148

Version 21.12.2016 V5-NBT
Page8
3. Installation
Switch off ignition and disconnect the vehicle’s battery! The interface needs a permanent
12V source. If according to factory rules disconnecting the battery is to be avoided, it is
usually sufficient to put the vehicle is sleep-mode. In case the sleep-mode does not show
success, disconnect the battery with a resistor lead.
If power source is not taken directly from the battery, the connection has to be checked
for being start-up proven and permanent.
Prior to wire and device installation we suggest to connect and test correct function of all
after-market and factory infotainment equipment!
The interface is installed on the backside of the head unit.
3.1. Connecting interface-box and harnesses
CAN-LOW(2)
Interface-box
V5C-M637
FRONT
Quadlock female
vehicle harness
Ground
+12V
CAN-HI(2)
V5C-UNI01
harness
CAN-HI(1)
CAN-LOW(1)
1
2
3
4
Quadlock maleon
rear side of the
HeadUnit
Cut off the 8 pin Molex connector from V5C-UNI01
harness (is not needed).

Version 21.12.2016 V5-NBT
Page9
Cut the CAN bus wires of the vehicle harness and connect them in series according to
the pin assignment (see below) with the CAN bus wires from the V5C-UNI01 harness.
Connect red wire with +12V (pin 15) and black wire with ground (pin 12).
Connect female 12pin AMP connector of the harness V5C-UNI01 to the
front site of the V5C-M637 interface box.
Connect the female Quadlock connector of the vehicle harness on the rear side of the
head unit.
Pin assignment:
Cable colour
Assignment
●Red
+12V permanent input - Pin15
●Black
Ground - Pin 12
●●Yellow/Black
CAN HIGH Pin 11 - to the vehicle side
●●Blue/Black
CAN LOW Pin 9 - to the vehicle side
● Yellow
CAN HIGH Pin 11 - to the head-unit side
●Blue
CAN LOW Pin 9 - to the head-unit side
●Green
+12V power output
●Pink
+12V power output
●White
Rear gear signal input (+12V)
1
2
3
Quadlock
4

Version 21.12.2016 V5-NBT
Page10

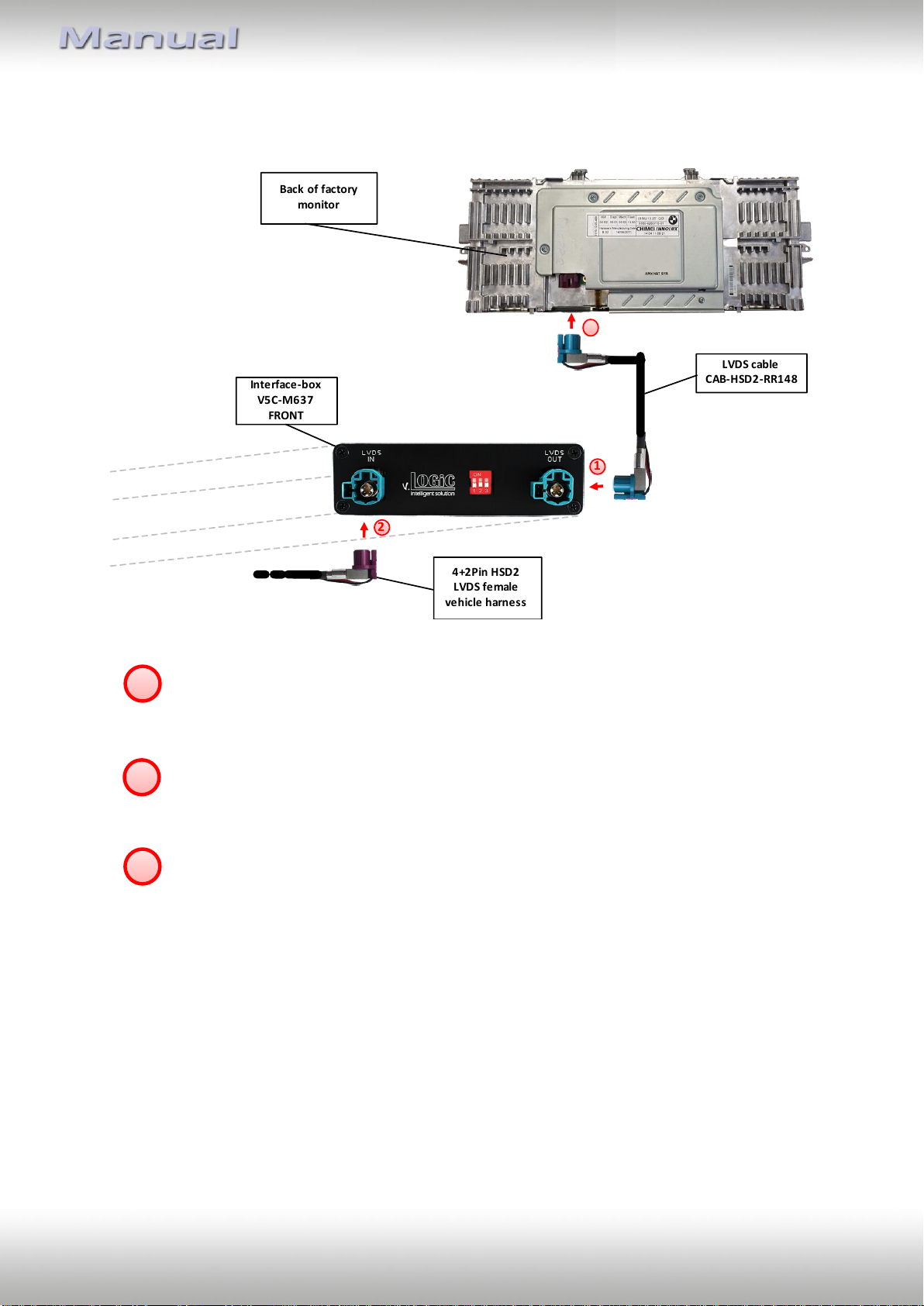

3.2. LVDS connection
Connect the female 4+2pin HSD2 LVDS connector of the LVDS cable
CAB-HSD2-RR148 to the male 4+2pin HSD2 LVDS connector (LVDS-OUT) on the front
of the interface-box V5C-M637.
Remove the female 4+2pin HSD2 LVDS connector of the vehicle harness of the
factory monitor and connect it to the male 4+2pin HSD2 LVDS connector (LVDS-IN)
on the front of the interface-box V5C-M637.
Connect the second female 4+2pin HSD2 LVDS connector of the LVDS cable
CAB-HSD2-RR148 to the male 4+2pin HSD2 LVDS connector of the factory monitor.
1
2
3
Interface-box
V5C-M637
FRONT
4+2PinHSD2
LVDSfemale
vehicle harness
Backof factory
monitor
LVDScable
CAB-HSD2-RR148
1
2
3

Version 21.12.2016 V5-NBT
Page11

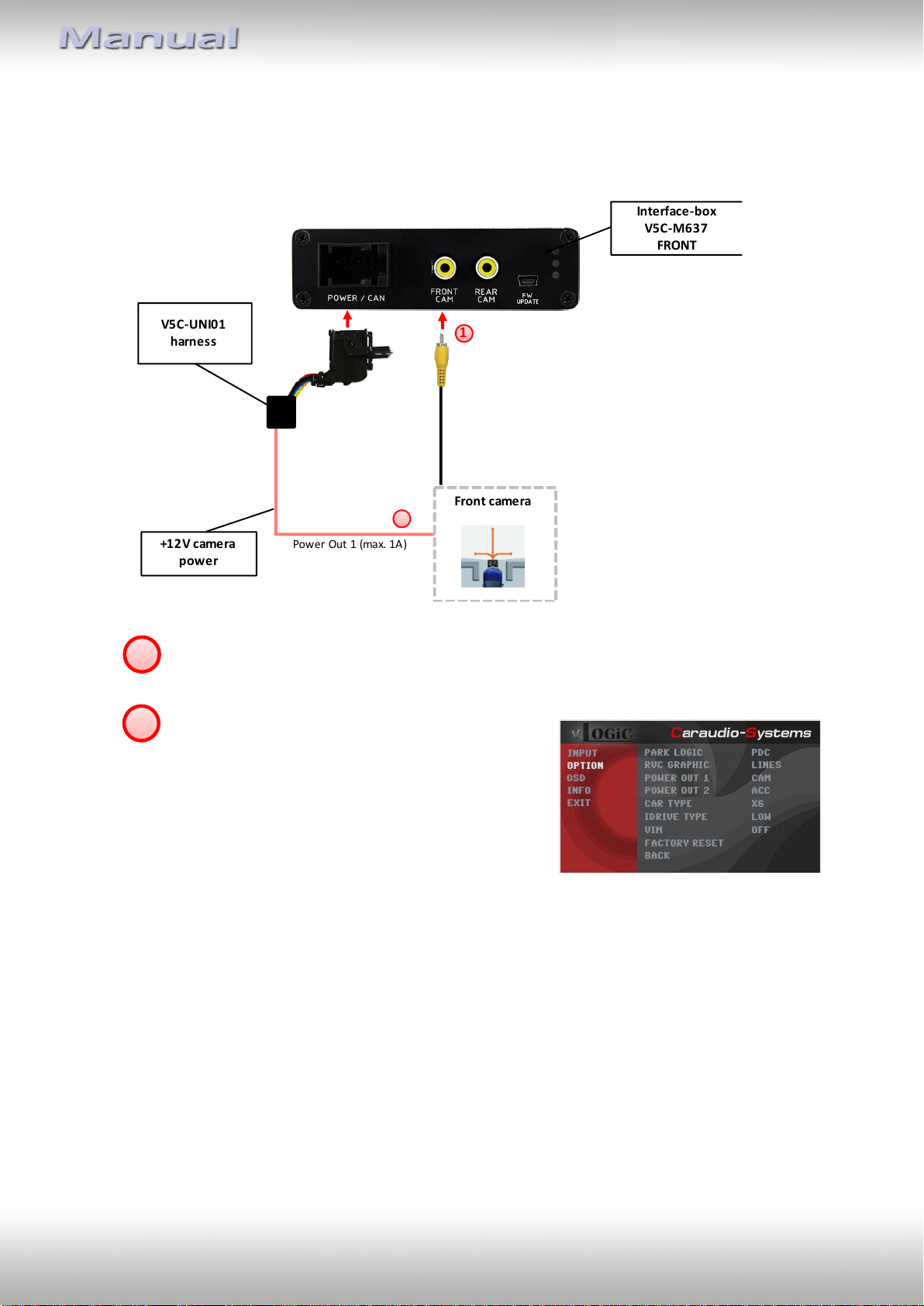

3.2.1. After-market front camera
3.2.1.1. Connection to the after-market front camera
Connect the video RCA of the after-market front camera to the female RCA connector
“FRONT CAM” of the interface box V5C-M637.
-The pink wire of harness V5C-UNI01 can be used
for +12V electric power supply (max. 1A) of the
after-market front camera. Configure in the OSD-
menu “OPTION”, menu item “POWER OUT 2” the
designated electric power supply (see chapter
“Configurable switching outputs”).
-
Interface-box
V5C-M637
FRONT
Frontcamera
+12Vcamera
power
V5C-UNI01
harness
PowerOut1(max.1A)
1
2
1
2

Version 21.12.2016 V5-NBT
Page12

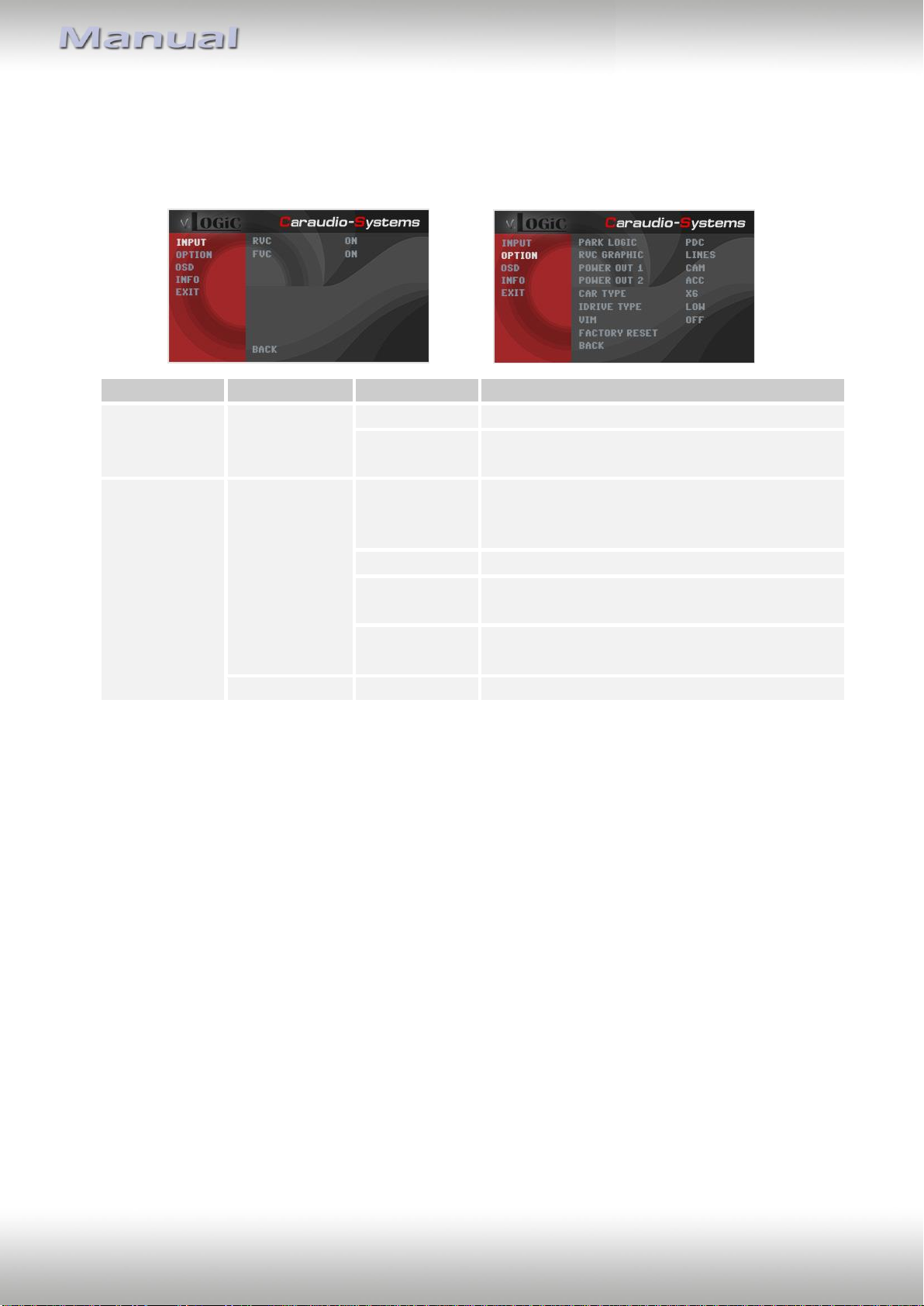

3.2.1.2. Settings for connecting an after-market front camera
You have to configure some settings in the OSD-menus INPUT and OPTION if you want to
connect an after-market front camera (Operation of the OSD: see chapter “OSD-Operation”).
OSD-menu
Menu item
Setting
Explication
INPUT
FVC
OFF
Keine Frontkamera angeschlossen
ON
Switches to front camera if parking process is
enabled and reverse gear is released
OPTION
PARK LOGIC
PDC
For vehicles with PDC button. Enabled while
parking process and up to 20 km/h or
together with PDC if existing
RGearOnly
Enabled while parking process
RGearSpeep
Enabled while parking process and up to
20 km/h
RGearTime
Enabled while parking process and up to
20 second
RVC GRAPHIC
PIP1
OEM PDC display of the vehicle
Note: You can deactivate the enabled parking process by pressing the iDrive or by enabling
other modes (e.g. radio). After deactivation you can’t enable the parking process again until
the vehicle is diving faster than 20km/h, the ignition is switched off and on or the PDC will be
disabled and enabled again, if existing.

Version 21.12.2016 V5-NBT
Page13
3.2.2. After-market rear-view camera
3.2.2.1. Connection to the after-market rear-view camera
Connect the video RCA of the after-market rear-view camera to the female RCA
connector “REAR CAM” of the interface box V5C-M637.
-The green wire of harness V5C-UNI01 can be used
for +12V electric power supply (max. 1A) of the
after-market rear-view camera. Configure in the
OSD-menu “OPTION”, menu item “POWER OUT 2”
the designated electric power supply (see chapter
“Configurable switching outputs”).
Interface-box
V5C-M637
FRONT
+12Vcamera
power
V5C-UNI01
harness
PowerOut2(max.1A)
1
2
Rear-viewcamera
Rear gear signal
input (+12V)
1
2

Version 21.12.2016 V5-NBT
Page14

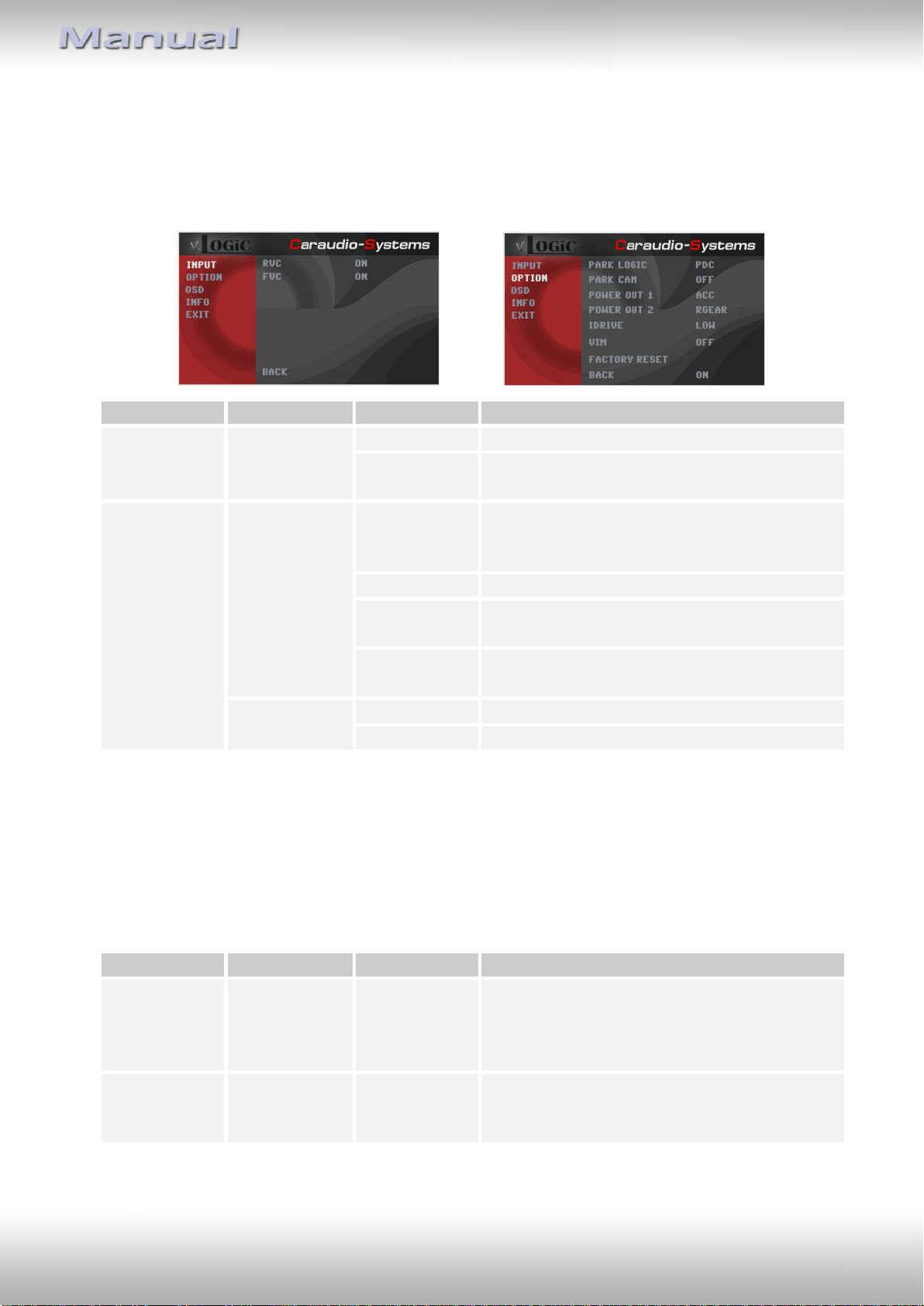

3.2.2.2. Settings for connecting an after-market rear-view camera
You have to configure some settings in the OSD-menus INPUT and OPTION if you want to
connect an after-market rear-view camera (Operation of the OSD: see chapter “OSD-
Operation”).
OSD-menu
Menu item
Setting
Explication
INPUT
RVC
OFF
No rear-view camera connected
ON
Switches to rear-view camera if reverse gear
is engaged and/or PDC-display is displayed
OPTION
PARK LOGIC
PDC
For vehicles with PDC button. Enabled while
parking process and up to 20 km/h or
together with PDC if existing
RGearOnly
Enabled while parking process
RGearSpeep
Enabled while parking process and up to
20 km/h
RGearTime
Enabled while parking process and up to
20 second
RVC GRAPHIC
PIP1
OEM PDC display of the vehicle
LINES
Interactive lane lines activated
Note: You can deactivate the enabled parking process by pressing the iDrive or by enabling
other modes (e.g. radio). After deactivation you can’t enable the parking process again until
the vehicle is diving faster than 20km/h, the ignition is switched off and on or the PDC will be
disabled and enabled again, if existing.
3.2.2.3. Settings for OEM rear-view camera
OSD-menu
Menu item
Setting
Explication
INPUT
RVC
OEM
If a factory rear-view camera is existing!
The interface turns off, if PDC or reverse gear
is enabled and it displays factory rear-view
camera and/or PDC-display
OPTION
PARK LOGIC
PDC
For vehicles with PDC button. Enabled while
parking process and up to 20 km/h or
together with PDC if existing

Version 21.12.2016 V5-NBT
Page15

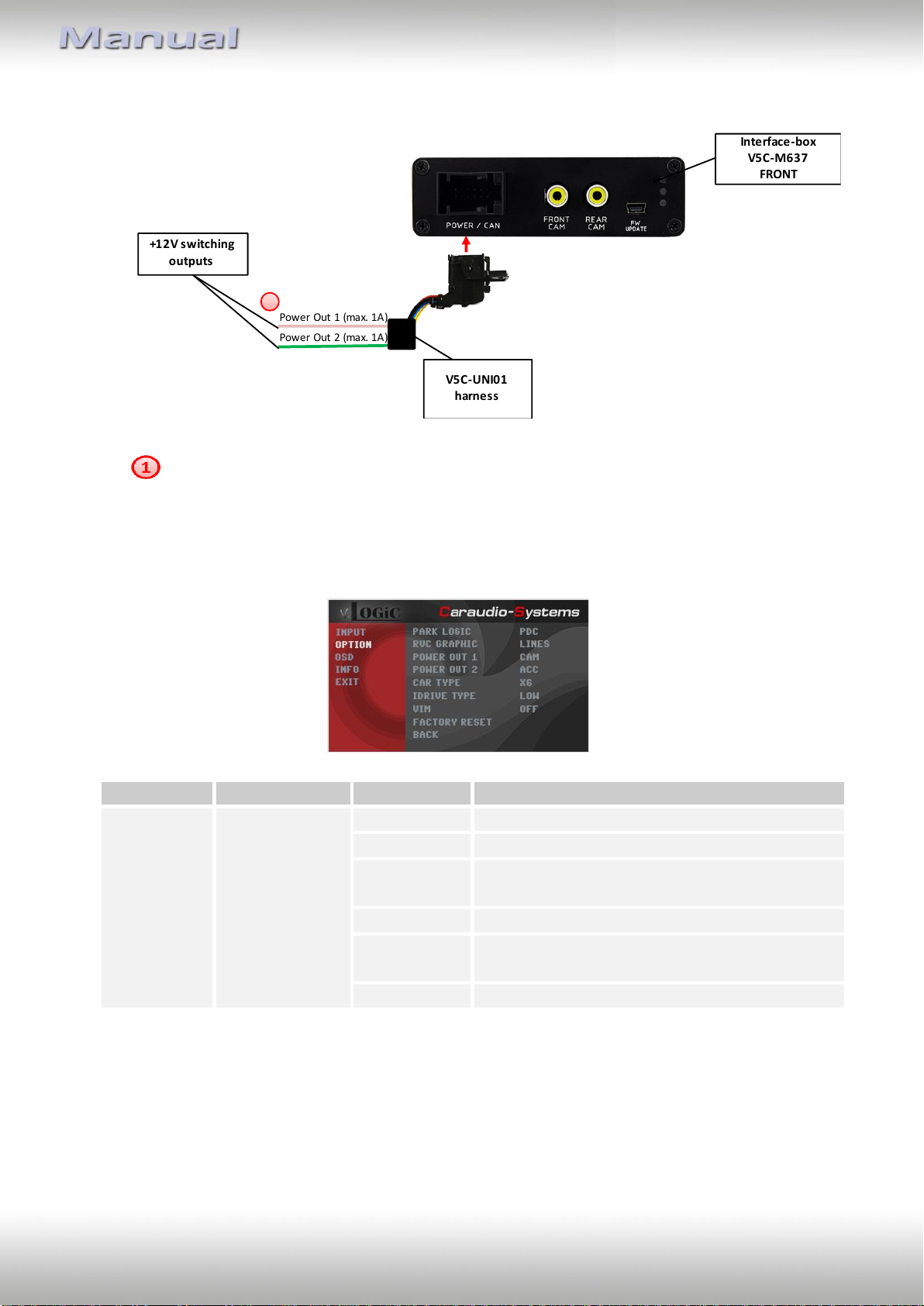

3.2.3. Configurable trigger outputs
You can configure the both +12V trigger outputs separately. The pink wire is POWER
OUT 1 and the green wire is POWER OUT 2.
Note: You can configure the both trigger outputs in the OSD-menu OPTION separately
(Operation of the OSD: see chapter “OSD-Operation”).
OSD-menu
Menu item
Setting
Explication
OPTION
POWER OUT1
(pink)
POWER OUT2
(green)
CAN
+12V when the interface is on (red LED on)
ACC
+12V when ignition is on
CAM
+12V when the rear-view camera input is
activated
RGEAR
+12V when reverse gear is engaged
AVS
+12V when interface video-source is active
(for external audio switch)
OFF
Trigger putput deactivated
Interface-box
V5C-M637
FRONT
+12Vswitching
outputs
V5C-UNI01
harness
PowerOut1(max.1A)
PowerOut2(max.1A)
1

Version 21.12.2016 V5-NBT
Page16

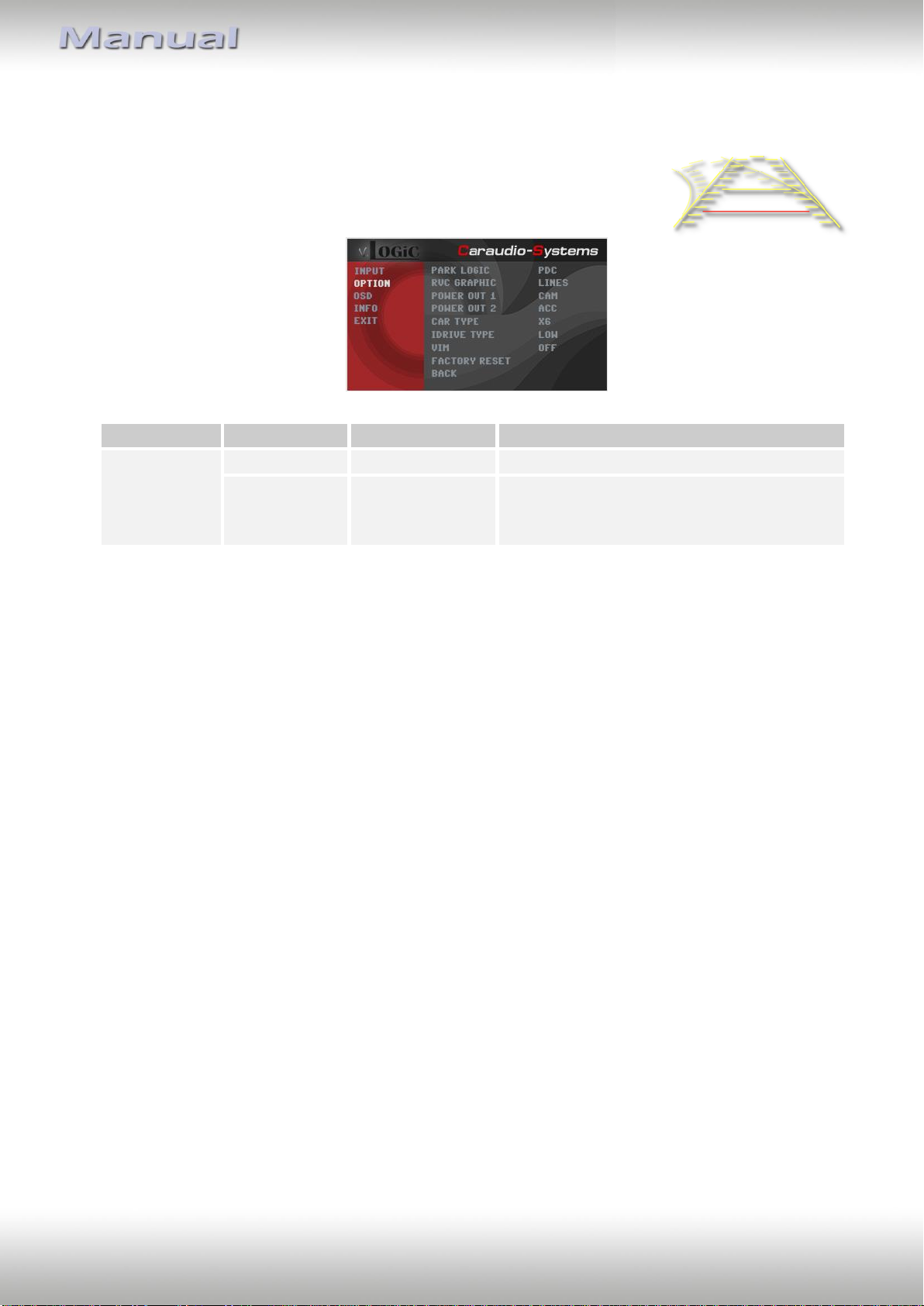

3.3. Interactive lane lines
You have to configure some settings in the OSD-menu
OPTION if you want to activate interactive lane lines
(Operation of the OSD: see chapter “OSD-Operation”).
OSD-menu
Menu item
Setting
Explication
OPTION
RVC LINES
LINES
Interactive lane lines activated
CAR TYPE
1/2/3/4/5/6/7/
X1/X3/X4/X5/X6/
Z4/i3
Vehicle type selection
Note: ”PDC – picture in picture” and “interactive lane lines” function is not simultaneously
usable.
3.4. Picture settings
You can change the picture settings in the OSD-menu IMAGE (activation only from interface
video level possible).
◦ Brightness
◦ Contrast
◦ Saturation
◦ Hue
◦ Sharpness
Note: The picture settings will be retained for each AV-source separately.

Version 21.12.2016 V5-NBT
Page17
4. Operation

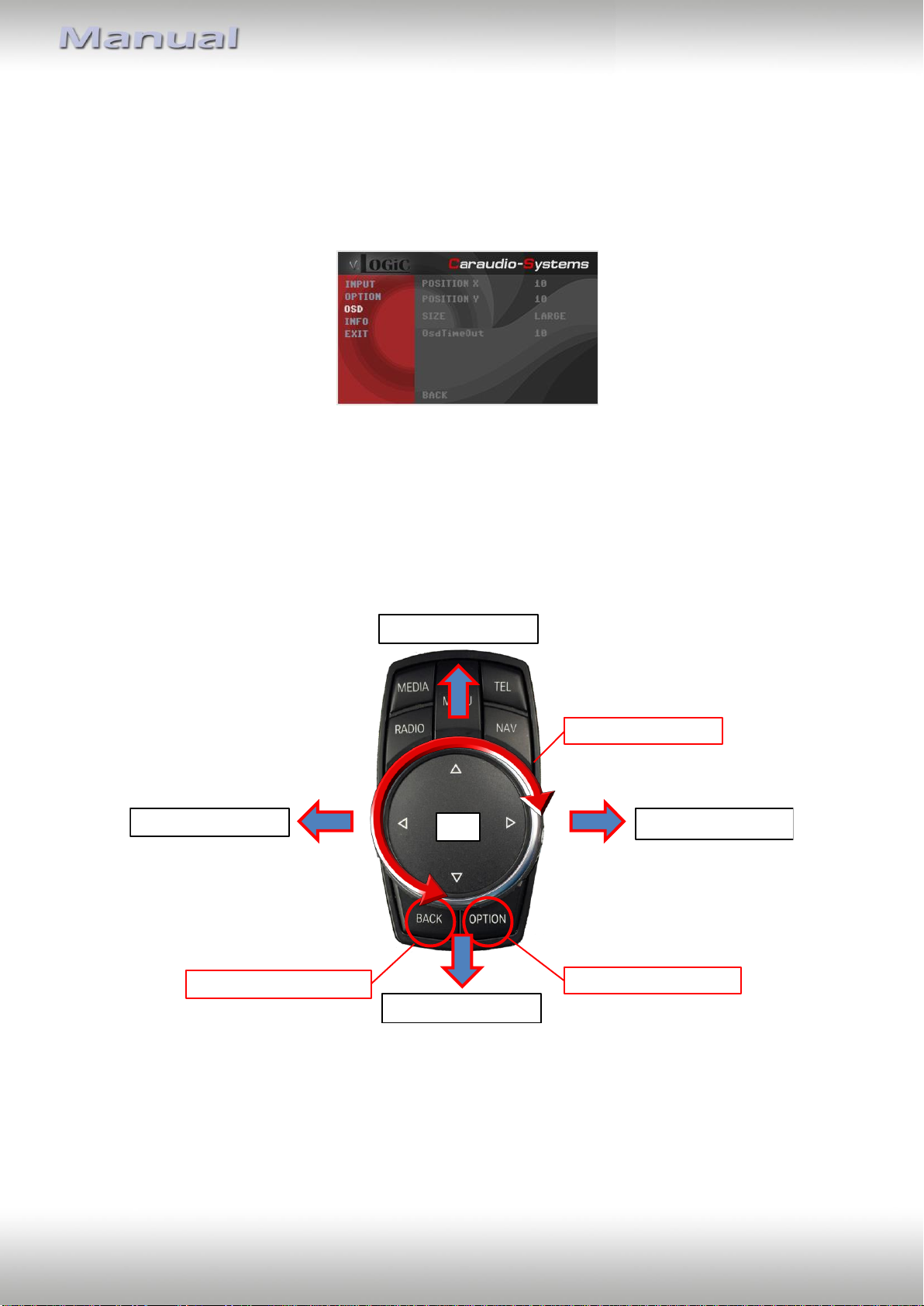

4.1. OSD –On-screen display
You can change the b asic configurations of the interface in the OSD (on screen display).
4.1.1. OSD –Operation
You can control the OSD by iDrive.
4.1.1.1. iDrive High
Back
Shortpress=leave OSD Longpress=enter OSD
OK
OK
Options
Options
Options

Version 21.12.2016 V5-NBT
Page18
4.1.1.2. iDrive Low
4.1.2. iDrive selection
OSD menu „OPTION“ – „IDRIVE“ is for setting the right iDrive control knob.
OSD-menu
Menu item
Setting
Explication
OPTION
IDRIVE
LOW
Vehicles with iDrive Low control knob
HIGH
Vehicles with iDrive High control knob
iDrive High iDrive Low
Back
Shortpress=leave OSD Longpress=enter OSD
OK
OK
Options

Version 21.12.2016 V5-NBT
Page19

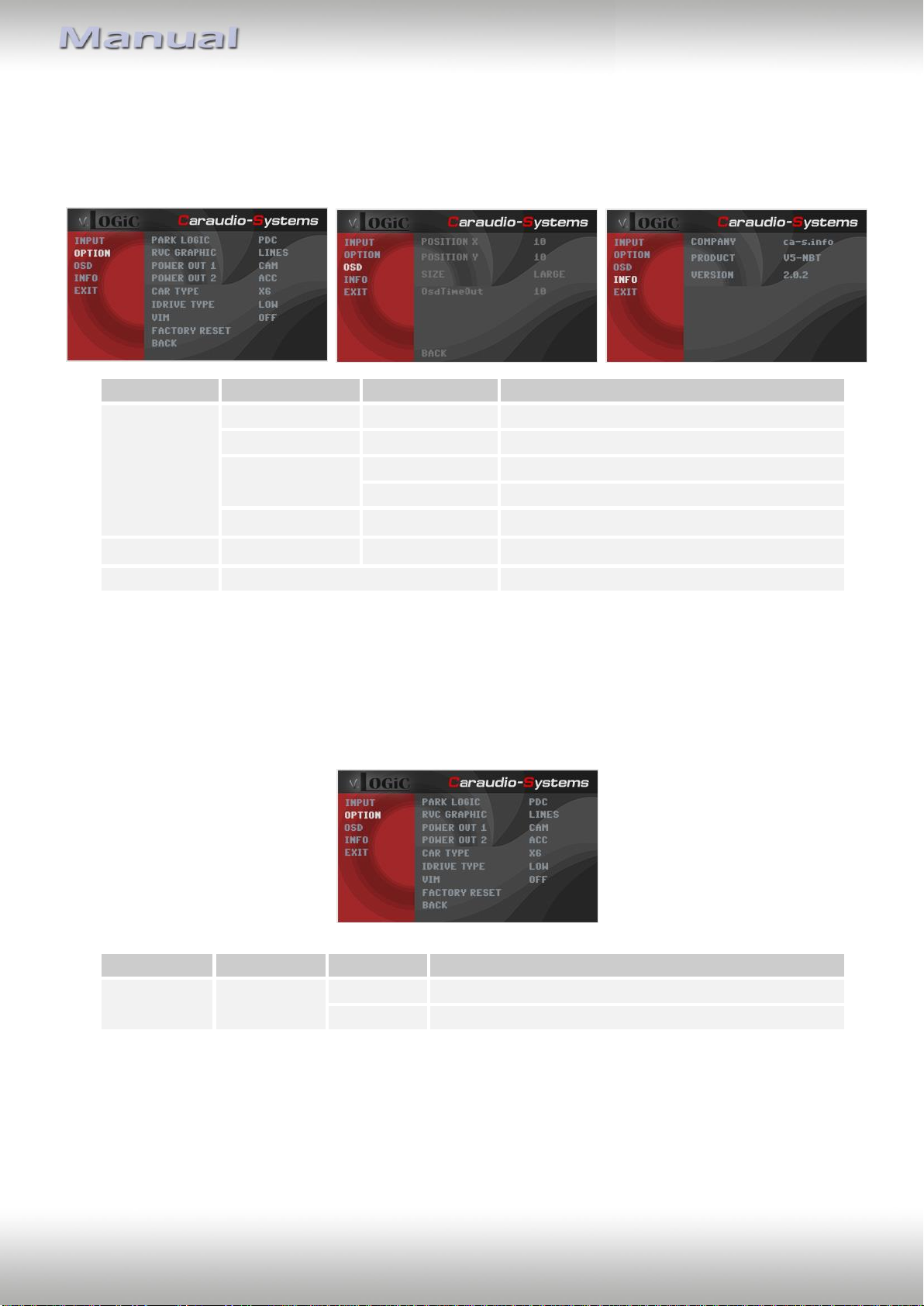

4.1.3. OSD –Additional setting options
The following settings in the OSD-menus OPTION and OSD can be configured over and above
the described settings in this manual (Operation of the OSD: see chapter “OSD-Operation”):
OSD-menu
Menu item
Setting
Explication
OSD
POS. X
0-xxx
Horizontal position of the OSD
POS. Y
0-xxx
Vertical position of the OSD
SIZE
SMALL
Small OSD menu windows
LARGE
Large OSD menu windows
OsdTimeOut
01-20
OSD menu timeout
INFO
VERSION
X.XX.XX
Displays the current SW-version
OPTION
FACTORY RESET
Resetting to factory settings
4.2. Video-in-motion function
It is possible to activate and deactivate the video-in-motion in the OSD menu “OPTION”
(Operation of the OSD: see chapter “OSD-Operation”).
OSD-menu
Menu item
Setting
Explication
OPTION
VIM
ON
Video-in-motion activated
OFF
Video-in-motion deactivated
