QUICK REFERENCE GUIDE
POWERHEART® AED
G3 PLUS 9390A AND 9390E
70-02005-02 A

Information in this document is subject to change without notice. Names and data
used in the examples are fictitious unless otherwise noted.
Trademark Information
Cardiac Science, the Shielded Heart logo, Powerheart, FirstSave, Mastertrak,
MDLink, STAR, Intellisense, Rescue Ready, RescueCoach, Rescuelink,
RHYTHMx and Survivalink are trademarks of Cardiac Science Corporation. All
other product and company names are trademarks or registered trademarks of their
respective companies.
Copyright © 2019Cardiac Science Corporation. All Rights Reserved.
Patents
This device is covered by the following U.S. and foreign patents:
5,792,190; 5,999,493; 5,402,884; 5,579,919; 5,749,902; 5,645,571; 6,029,085; 5,984,102;
5,919,212; 5,700,281; 5,891,173; 5,968,080; 6,263,239; 5,797,969; D402,758; D405,754;
6,088,616; 5,897,576; 5,955,956; 6,083,246; 6,038,473; 5,868,794; 6,366,809; 5,474,574;
6,246,907; 6,289,243; 6,411,846; 6,480,734; 6,658,290; 5,850,920; 6,125,298;
EP0725751; EP0757912; EP00756878
Other U.S. and foreign patents pending.
Powerheart® AED G3 PLUS 9390A AND 9390E
ii
Cardiac Science Corporation
500 Burdick Parkway
Deerfield, WI 53531 USA
[phone]
[phone]
[email protected]
www.cardiacscience.com
®
®
70-02005-02 A

70-02005-02 AContents iii
Contents
Contents
Chapter 1: Product Information and Safety
Contact information ................................................................................ 1-2
Product models........................................................................................ 1-3
Product references.................................................................................... 1-3
Warranty information.............................................................................. 1-3
Safety terms and definitions ..................................................................... 1-4
Chapter 2: Getting Started
Unpacking and inspecting........................................................................ 2-1
AED parts................................................................................................ 2-1
AED modes ............................................................................................. 2-3
Operating mode ............................................................................... 2-3
Standby mode................................................................................... 2-3
Storage mode.................................................................................... 2-3
Environmental operating and standby conditions .................................... 2-3
Shipping and transport conditions.................................................... 2-3
Intellisense battery ................................................................................... 2-4
Battery operating life......................................................................... 2-5
Battery shelf life ................................................................................ 2-6
Battery installation............................................................................ 2-7
Defibrillation pads ................................................................................... 2-8
Pad installation ................................................................................. 2-9
Directions for use ........................................................................... 2-10
Chapter 3: How to Perform a Rescue
Warnings and cautions............................................................................. 3-2
Step 1: Assess the patient.......................................................................... 3-4
Step 2: Prepare the patient ....................................................................... 3-4
Step 3: Place pads..................................................................................... 3-5
Step 4: Analyse the heart rhythm ............................................................. 3-6
Step 5: Deliver a shock............................................................................. 3-7
Step 6: Administer CPR........................................................................... 3-8
Step 7: Prepare the AED for the next rescue........................................... 3-10

Contents 70-02005-02 A
iv
Contents

Powerheart® AED G3 PLUS 9390A AND 9390E 70-02005-02 A1-1
1Product Information
and Safety
Contents
◆Contact information 1-2
◆Product models 1-3
◆Product references 1-3
◆Safety terms and definitions 1-4
Before Operating the Powerheart G3 AED:
◆Become familiar with the various safety alerts listed in the Safety
chapter of the Operator and Service Manual.
◆Safety alerts identify potential hazards using symbols and words to
explain what could potentially harm you, the patient, or the
Powerheart G3 AED.

Powerheart® AED G3 PLUS 9390A AND 9390E
1-2
Product Information and Safety
Contact information
Inside the United States:
To order additional Powerheart G3 AEDs or accessories, contact
Cardiac Science Customer Care:
◆Toll Free (USA): 1.800.426.0337 (option 2)
◆Telephone: [phone] (option 2)
◆Fax: [phone]
◆Email: [e-mail]
Cardiac Science provides 24-hour telephone technical support. You can
also contact Technical Support though fax, email, or live web chat.
There is no charge to the customer for a technical support call. Please
have the serial and model numbers available when contacting Technical
Support. (The serial and model numbers are located on the underside
of the AED.)
◆Toll Free (USA): 1.800.426.0337 (option 1)
◆Telephone: [phone] (option 1)
◆Fax: [phone]
◆Email: [email protected]
◆Web site: http://www.cardiacscience.com
Outside the United States:
Contact your local Cardiac Science representative to order devices or
accessories and to receive technical support for your AED products.
70-02005-02 A

Powerheart® AED G3 PLUS 9390A AND 9390E 70-02005-02 A1-3
Product models
Product models
This guide is for Powerheart G3 Plus model 9390E and Powerheart G3
Plus Automatic 9390A AED models. They share a basic set of features
and differences are noted throughout the manual.
Product references
For purposes of retaining simple, clear instructions in this manual, note
the product references used. Features, specifications, operating
instructions and maintenance common to product models will be
referred to as:
“Powerheart G3 AED”, “AED”, or “device” refers to both Powerheart
G3 model 9390E and Powerheart G3 Automatic model 9390A AEDs
unless otherwise noted.
Warranty information
The Powerheart G3 AED customer documentation and any and all
information contained herein do not constitute any warranty as to the
Powerheart G3, Powerheart G3 Automatic or any related products in
any manner whatsoever. The Limited Warranty chapter in the Operator
and Service Manual serves as the sole and exclusive warranty provided
by Cardiac Science regarding Powerheart G3 AED products.

Powerheart® AED G3 PLUS 9390A AND 9390E
1-4
Product Information and Safety
Safety terms and definitions
The symbols shown below identify potential hazard categories. The
definition of each category is as follows:
!
DANGER
This alert identifies hazards that will cause serious personal injury or
death.
!
WARNING
This alert identifies hazards that may cause serious personal injury or
death.
!
Caution
This alert identifies hazards that may cause minor personal injury,
product damage, or property damage.
70-02005-02 A

Powerheart® AED G3 PLUS 9390A AND 9390E 70-02005-02 A2-1
2Getting Started
Contents
◆Unpacking and inspecting 2-1
◆AED parts 2-1
◆AED modes 2-3
◆Intellisense battery 2-4
◆Defibrillation pads 2-8
This section presents information on unpacking and setting up the
AED.
Unpacking and inspecting
Every attempt is made to ensure your order is accurate and complete.
However, to be sure that your order is correct, verify the contents of the
box against your packing slip.
If you have any questions about your order, contact Customer Care (see
Contact information on page 1-2).
AED parts
The following drawings show the AED parts and their locations.

Powerheart® AED G3 PLUS 9390A AND 9390E
2-2
Getting Started
Rescue Ready
status indicator
Battery compartment
Lid
Pad expiration
window
Latch
(Push in to open)
Serial communication port
(Behind blue rubber data access cover)
Pad holders
Speaker
Defibrillation pads
Text display
SHOCK button
(9390E only)
Diagnostic panel
connector
70-02005-02 A

Powerheart® AED G3 PLUS 9390A AND 9390E 70-02005-02 A2-3
AED modes
AED modes
Operating mode
Defined as having the battery installed and the lid open. This is the
mode the AED would be in during an actual rescue situation.
Standby mode
When the battery is installed, but the lid is closed. In this mode the
AED is not being used in a rescue. The device will conduct its routine
self-tests to ensure proper operation.
Storage mode
When the battery is removed, such as during shipping or transport.
With the battery removed, the AED is unable to perform self-tests or
rescues.
Environmental operating and standby conditions
See the Te c h n i c a l D a t a chapter in the Operator and Service Manual.
!
Caution: Temperature Extremes.
Exposing the AED to extreme environmental conditions outside of its
operating parameters may compromise the ability of the AED to
function properly. The Rescue Ready®daily self-test verifies the
impact of extreme environmental conditions on the AED. If the daily
self-test determines environmental conditions outside of the AED’s
operating parameters, the Rescue Ready indicator could change to
red (not Rescue Ready) and the AED may issue a “SERVICE REQUIRED”
alert to prompt the user to move the AED to environmental
conditions within the acceptable operating parameters at once.
Shipping and transport conditions
For up to 1 week. See the Te c h n i c a l D a t a chapter in the Operator and
Service Manual.

Powerheart® AED G3 PLUS 9390A AND 9390E
2-4
Getting Started
Intellisense battery
Intellisense batteries contain an integrated memory chip that
automatically stores important usage information, enabling the battery
to maintain a complete history of its operating life. The actual battery
history can be reviewed using the Rescuelink software.
This history includes:
◆Battery identification
◆Battery type
◆Original date of installation in an AED
◆Number of charges completed
◆Time in operation (hours:minutes)
◆Days of standby operation
◆Battery capacity remaining
!
WARNING! Battery is Not Rechargeable.
Do not attempt to recharge the battery. Any attempt to recharge the
battery may result in an explosion or fire hazard.
!
Caution: Lithium Sulfur Dioxide Battery.
Pressurized contents: never recharge, short circuit, puncture, deform,
or expose to temperatures above 65°C (149°F). Remove the battery
when discharged.
!
Caution: Battery Disposal.
Recycle or dispose of the lithium battery in accordance with all
federal, state and local laws. To avoid fire and explosion hazard, do not
burn or incinerate the battery.
70-02005-02 A

Powerheart® AED G3 PLUS 9390A AND 9390E 70-02005-02 A2-5
Intellisense battery
!
Caution: Use only Cardiac Science Approved Equipment.
Using batteries, pads, cables, or optional equipment other than those
approved by Cardiac Science may cause the AED to function
improperly during a rescue.
Battery operating life
The battery operating life depends on the type of battery, actual usage
and environmental factors.
A new battery provides:
◆A minimum of 14 hours (18 hours typical) of device operating
time at 20°C to 30°C ambient temperature with no shocks
delivered, OR
◆A minimum of 9 hours of device operating time at 0°C ambient
temperature with no shocks delivered, OR
◆A minimum of 9 hours of device operating time at 50°C ambient
temperature with no shocks delivered, OR
◆up to 290 shocks (typical)
Note: The battery operating life depends on the type of battery,
device settings, actual usage, and environmental factors. Battery was
tested with G3 Plus device with Standard prompt set and CPR set to
60 seconds.
Table 2-1: Normal battery life
Model
Estimated Shelf
Life (from date of
manufacture)
Full Operational
Replacement Guarantee
(from date of
installation) Typical Shocks
9146 Lithium 5 Years 4 Years up to 290

Powerheart® AED G3 PLUS 9390A AND 9390E
2-6
Getting Started
Battery shelf life
The batteries have a shelf life of five years from the date of
manufacture. Shelf life is defined as the length of time a battery can be
stored at room temperature, prior to installation into AED, and still
meet the specifications under battery operating life.
Note: Storing the battery outside its specific range (0-50°C) will
decrease battery life.
70-02005-02 A

Powerheart® AED G3 PLUS 9390A AND 9390E 70-02005-02 A2-7
Intellisense battery
Battery installation
To install the battery:
1. With the label on the
battery facing the AED
battery compartment,
insert the battery as shown
in the drawing.
2. Push the latched end of the
battery firmly into the
AED, as shown in the
drawing, until the battery
snaps into place. The
exposed side of the battery
should be flush with the
outside of the AED case.
3. Wait a few seconds and
then open the lid for 5
seconds to initiate a self-
test.
If the battery is installed
properly:
•The Smartgauge
battery indicator LEDs
illuminate
•The Rescue Ready
status indicator turns green.
If service is required, the Service indicator illuminates instead.
Contact Cardiac Science Technical Support (see Contact
information on page 1-2) or outside the U.S., your local Cardiac
Science representative.
0% 100%

Powerheart® AED G3 PLUS 9390A AND 9390E
2-8
Getting Started
Defibrillation pads
The defibrillation pads come in a ready-to-use, sealed package
containing one pair of self-adhesive pads with an attached cable and
connector. The pads are disposable and should be discarded after each
rescue.
The pads have a limited shelf life and should not be used beyond the
expiration date. Keep a fresh, unopened pair of pads plugged into the
AED at all times. Refer to the pad package label for operation
temperatures.
An audible and visual alert will indicate after the self-test if the pads are
missing, unplugged, or damaged.
Note: Store pads at room temperature.
!
Caution: Use only Cardiac Science Approved Equipment.
Using batteries, pads, cables, or optional equipment other than those
approved by Cardiac Science may cause the AED to function
improperly during a rescue.
!
Caution: Possible Improper AED Performance.
Using pads that are damaged or expired may result in improper AED
performance.
70-02005-02 A

Powerheart® AED G3 PLUS 9390A AND 9390E 70-02005-02 A2-9
Defibrillation pads
Pad installation
To install the pads:
1. Open the lid of the AED.
2. Place the pad package into the lid so that the expiration label is
visible through the clear window on the lid. The expiration date of
the pads will then be readable without opening the lid of the AED.
3. Match the color of the connectors (red to red), then plug the pad
connector into the AED case as shown in the photograph.
Once the pad connector is plugged into AED, the PAD indicator
should extinguish.
4. Tuck the excess cable length in the bottom holder. With the pad
package completely secured to the AED lid, close the lid.
5. Make sure the expiration date is visible through the clear window
of the lid and check to make sure that the STATUS INDICATOR
is GREEN. If the pads are not installed properly, the STATUS
INDICATOR will be RED. Contact Cardiac Science Technical
Support (see Contact information on page 1-2) or outside the U.S.,
your local Cardiac Science representative.
White Red

Powerheart® AED G3 PLUS 9390A AND 9390E
2-10
Getting Started

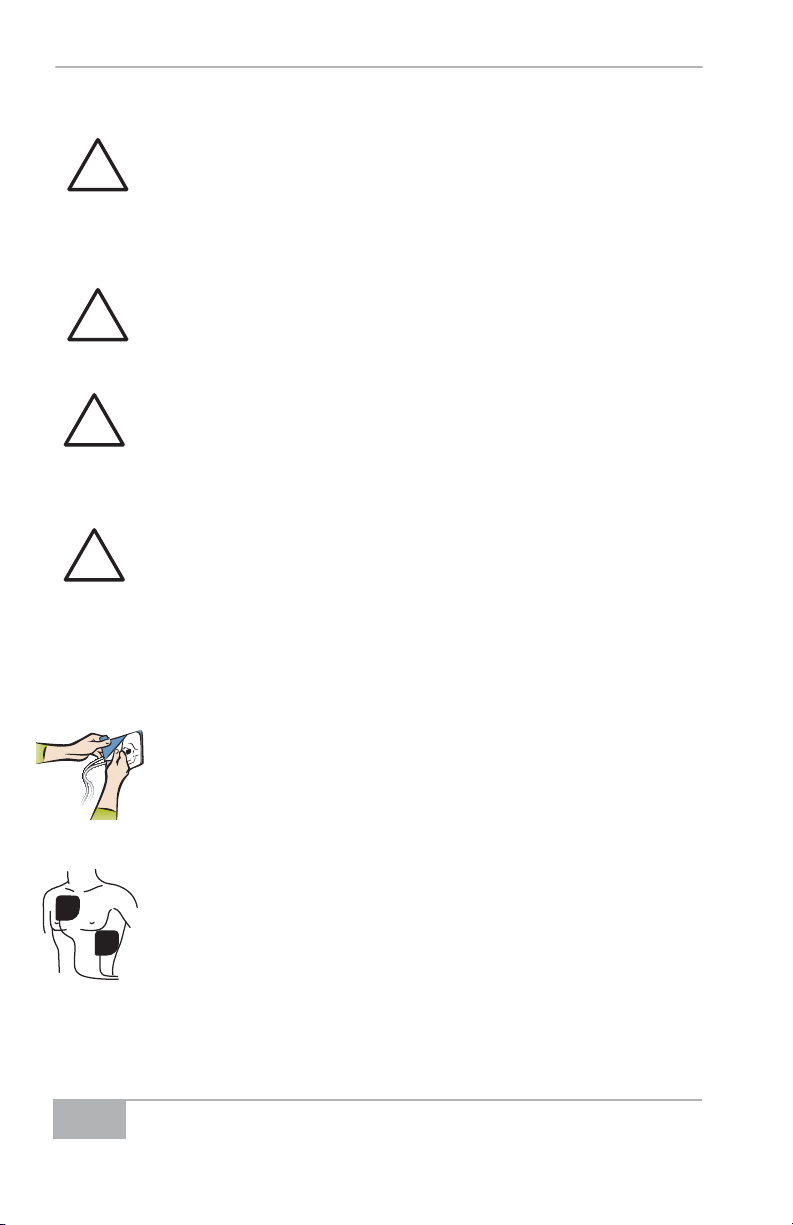

Directions for use
!
WARNING! Do not reuse pads.
Used pads may not adhere properly to the patient. Improper pad
adhesion may result in skin burns. Improper pad adhesion may result
in improper AED performance. Used pads may cause patient-to-
patient contamination.
!
WARNING! Reduced therapy delivery.
Failure to remove blue liner completely could impact therapy
delivery.
!
Caution. Short-term use only. Not for pacing.
DO NOT open defibrillation pads package until ready to use. Short
term use only.
Pads are not intended for use in pacing.
!
Caution. Equipment Damage.
Do not pull on the lead wire to separate the pads from the blue liner.
Note: Store pads at room temperature.
Note: Pads are intended for adult use.
1. Ensure skin site is clean and dry.
2. Tear open the foil package and remove pads.
3. Separate one pad from the blue liner by peeling from the tabbed
corner.
Note: DO NOT pull on the lead wires.
4. Place pad on skin in either location shown.
5. Separate the second pad from blue liner by peeling from the
tabbed corner.
Note: DO NOT pull on the lead wires.
6. Place the second pad on the opposite location as shown.
70-02005-02 A

Powerheart® AED G3 PLUS 9390A AND 9390E 70-02005-02 A3-1
3How to Perform a
Rescue
Contents
◆Warnings and cautions 3-2
◆Step 1: Assess the patient 3-4
◆Step 2: Prepare the patient 3-4
◆Step 3: Place pads 3-5
◆Step 4: Analyse the heart rhythm 3-6
◆Step 5: Deliver a shock 3-7
◆Step 6: Administer CPR 3-8
◆Step 7: Prepare the AED for the next rescue 3-10
Read the Operator and Service Manual before using this device. Follow
the instructions provided in this chapter in the order given.
This section presents information about how to use the AED to
perform a rescue.
These are the general steps in performing a rescue:
1. Assess the patient.
2. Prepare the patient.
3. Place the defibrillation pads.
4. Analyse the patient’s ECG.
5. Deliver a defibrillation shock.
6. Administer CPR.

Powerheart® AED G3 PLUS 9390A AND 9390E
3-2
How to Perform a Rescue
Warnings and cautions
The following cautions must be observed to prevent problems during
the rescue.
!
DANGER! Fire and Explosion Hazard
To avoid possible fire or explosion hazard, do not operate the AED:
•In the presence of flammable gases
•In the presence of concentrated oxygen
•In a hyperbaric chamber
!
WARNING! Shock Hazard and Possible Equipment Damage
Defibrillation shock current flowing through unwanted pathways
is potentially a serious electrical shock hazard and potential
damage to the equipment. To avoid this hazard during
defibrillation abide by all of the following:
•Do not touch the patient, unless performance of CPR is
indicated
•Do not touch metal objects in contact with the patient
•Keep defibrillation pads clear of other pads or metal parts
in contact with patient
•Disconnect all non-defibrillator proof equipment from
the patient before defibrillation
!
WARNING! Electric Shock and Fire Hazard
Do not connect any telephones or unauthorised connectors to the
socket on this equipment.
!
WARNING! Do not reuse pads.
Used pads may not adhere properly to the patient. Improper pad
adhesion may result in skin burns. Improper pad adhesion may result
in improper AED performance. Used pads may cause patient-to-
patient contamination.
!
Caution: Use only Cardiac Science Approved Equipment
Using batteries, pads, cables, or optional equipment other than those
approved by Cardiac Science may cause the AED to function
improperly during a rescue.
70-02005-02 A
