Cardiac Science POWERHEART G3 PRO 9300P User manual

®
®
QUICK REFERENCE GUIDE
POWERHEART® AED
G3 PRO 9300P
70-00969-01 F

®
®
Information in this document is subject to change without notice. Names and data
used in the examples are fictitious unless otherwise noted.
Trademark Information
Cardiac Science, the Shielded Heart logo, Powerheart, FirstSave, Mastertrak,
MDLink, STAR, Intellisense, Rescue Ready, RescueCoach, Rescuelink,
RHYTHMx and Survivalink are trademarks of Cardiac Science Corporation. All
other product and company names are trademarks or registered trademarks of their
respective companies.
Copyright © 2014 Cardiac Science Corporation. All Rights Reserved.
Patents
This device is covered by the following U.S. and foreign patents:
5,792,190; 5,999,493; 5,402,884; 5,579,919; 5,749,902; 5,645,571; 6,029,085; 5,984,102;
5,919,212; 5,700,281; 5,891,173; 5,968,080; 6,263,239; 5,797,969; D402,758; D405,754;
6,088,616; 5,897,576; 5,955,956; 6,083,246; 6,038,473; 5,868,794; 6,366,809; 5,474,574;
6,246,907; 6,289,243; 6,411,846; 6,480,734; 6,658,290; 5,850,920; 6,125,298;
EP0725751; EP0757912; EP00756878
Other U.S. and foreign patents pending.
70-00969-01 F Powerheart® AED G3 Pro 9300P
ii
Cardiac Science Corporation
N7 W22025 Johnson Drive
Waukesha, WI 53186 USA
(800)-426-0337
(262)-953-3500
[email protected]
www.cardiacscience.com

70-00969-01 F iii
Contents
Product Information and Safety 1
Contact information ............................................................................... 1-2
Product models ....................................................................................... 1-3
Warranty information ............................................................................. 1-3
Safety terms and definitions .................................................................... 1-4
Getting Started 2
Unpacking and inspecting ....................................................................... 2-1
AED parts ............................................................................................... 2-1
AED modes ............................................................................................ 2-3
Environmental operating and standby conditions ................................... 2-3
Batteries .................................................................................................. 2-4
Defibrillation pads .................................................................................. 2-9
How to Perform a Rescue 3
AED operating modes ............................................................................. 3-2
Warnings and cautions ............................................................................ 3-3
Step 1: Assess the patient ......................................................................... 3-5
Step 2: Prepare the patient ...................................................................... 3-5
Step 3: Place pads .................................................................................... 3-6
Step 4: Analyze the heart rhythm ............................................................ 3-7
Step 5: Deliver a shock ............................................................................ 3-8
Step 6: Administer CPR .......................................................................... 3-8
Step 7: Prepare the AED for the next rescue .......................................... 3-10
Using manual override (Manual mode) ................................................. 3-11
ECG Monitoring Mode ........................................................................ 3-13

70-00969-01 F
iv

Powerheart® AED G3 Pro 9300P 70-00969-01 F 1-1
1Product Information
and Safety
Contents
◆Contact information 1-2
◆Product models 1-3
◆Warranty information 1-3
◆Safety terms and definitions 1-4
Before Operating the Powerheart G3 AED:
◆Become familiar with the various safety alerts listed in the Safety
chapter of the Operator and Service Manual.
◆Safety alerts identify potential hazards using symbols and words to
explain what could potentially harm you, the patient, or the
Powerheart G3 AED.

70-00969-01 F Powerheart® AED G3 Pro 9300P
1-2
Product Information and Safety
Contact information
Inside the United States:
To order additional Powerheart G3 AEDs or accessories, contact
Cardiac Science Customer Care:
◆Toll Free (USA): 1.800.426.0337 (option 2)
◆Telephone: [phone] (option 2)
◆Fax: [phone]
◆Email: [e-mail]
Cardiac Science provides 24-hour telephone technical support. You can
also contact Technical Support though fax or email.
There is no charge to the customer for a technical support call. Please
have the serial and model numbers available when contacting Technical
Support. (The serial and model numbers are located on the underside
of the AED.)
◆Toll Free (USA): 1.800.426.0337 (option 1)
◆Telephone: [phone] (option 1)
◆Fax: [phone]
◆Email: [email protected]
◆Web site: http://www.cardiacscience.com
Outside the United States:
Contact your local Cardiac Science representative to order devices or
accessories and to receive technical support for your AED products.

Powerheart® AED G3 Pro 9300P 70-00969-01 F 1-3
Product models
This guide is for Powerheart G3 Pro model 9300P.
Warranty information
The Powerheart G3 Pro AED customer documentation and any and all
information contained herein do not constitute any warranty as to the
Powerheart G3Pro or any related products in any manner whatsoever.
The Limited Warranty chapter in the Operator and Service Manual
serves as the sole and exclusive warranty provided by Cardiac Science
regarding Powerheart G3 Pro AED products.
Product models

70-00969-01 F Powerheart® AED G3 Pro 9300P
1-4
Product Information and Safety
Safety terms and definitions
The symbols shown below identify potential hazard categories. The
definition of each category is as follows:
!
DANGER
This alert identifies hazards that will cause serious personal injury or
death.
!
WARNING
This alert identifies hazards that may cause serious personal injury or
death.
!
Caution
This alert identifies hazards that may cause minor personal injury,
product damage, or property damage.

Powerheart® AED G3 Pro 9300P 70-00969-01 F 2-1
2Getting Started
Contents
◆Unpacking and inspecting 2-1
◆AED parts 2-1
◆AED modes 2-3
◆Batteries 2-4
◆Defibrillation pads 2-9
This section presents information on unpacking and setting up the
AED.
Unpacking and inspecting
Every attempt is made to ensure your order is accurate and complete.
However, to be sure that your order is correct, verify the contents of the
box against your packing slip.
If you have any questions about your order, contact Customer Care (see
Contact information on page 1-2).
AED parts
The following drawings show the AED parts and their locations.

70-00969-01 F Powerheart® AED G3 Pro 9300P
2-2
Getting Started
Rescue Ready
status indicator
Battery compartment
Lid
Pad expiration
window
Latch
(Push in to open)
Manual override button
(Behind blue cover)
Pad holders
Speaker
Pad/electrode socket
Shock buttonColor display
IR port

Powerheart® AED G3 Pro 9300P 70-00969-01 F 2-3
AED modes
Operating mode
Defined as having the battery installed and the lid open. This is the
mode the AED would be in during an actual rescue situation.
Standby mode
When the battery is installed, but the lid is closed. In this mode the
AED is not being used in a rescue. The device will conduct its routine
self-tests to ensure proper operation.
Storage mode
When the battery is removed, such as during shipping or transport.
With the battery removed, the AED is unable to perform self-tests or
rescues.
Environmental operating and standby conditions
See the Te c h n i c a l D a t a chapter in the Operator and Service Manual.
!
Caution: Temperature Extremes.
Exposing the AED to extreme environmental conditions outside of its
operating parameters may compromise the ability of the AED to
function properly. The Rescue Ready® daily self-test verifies the
impact of extreme environmental conditions on the AED. If the daily
self-test determines environmental conditions outside of the AED’s
operating parameters, the Rescue Ready indicator could change to
red (not Rescue Ready) and the AED may issue a “SERVICE REQUIRED”
alert to prompt the user to move the AED to environmental
conditions within the acceptable operating parameters at once.
Shipping and transport conditions
For up to 1 week. See the Te c h n i c a l D a t a chapter in the Operator and
Service Manual.
AED modes

70-00969-01 F Powerheart® AED G3 Pro 9300P
2-4
Getting Started
Batteries
The 9300P is shipped with either an Intellisense battery (model 9145)
or a rechargeable battery (model 9144). Confirm which battery is
included with the AED and see the applicable instructions below.
Intellisense battery
Intellisense batteries contain an integrated memory chip that
automatically stores important usage information, enabling the battery
to maintain a complete history of its operating life. The battery history
can be reviewed using the RescueLink® software.
This history includes:
◆Battery identification
◆Battery type
◆Original date of installation in an AED
◆Number of charges completed
◆Time in operation (hours:minutes)
◆Days of standby operation
◆Battery capacity remaining
!
Warning! Battery is Not Rechargeable (model 9145).
Do not attempt to recharge the battery. Any attempt to recharge the
battery may result in an explosion or fire hazard.
!
Caution: Lithium Sulfur Dioxide Battery (model 9145).
Pressurized contents: never recharge, short circuit, puncture, deform,
or expose to temperatures above 65°C (149°F). Remove the battery
when discharged.

Powerheart® AED G3 Pro 9300P 70-00969-01 F 2-5
!
Caution: Battery Disposal.
Recycle or dispose of the lithium battery in accordance with all
federal, state and local laws. To avoid fire and explosion hazard, do not
burn or incinerate the battery.
!
Caution: Use only Cardiac Science Approved Equipment.
Using batteries, pads, cables, or optional equipment other than those
approved by Cardiac Science may cause the AED to function
improperly during a rescue.
Rechargeable battery
The rechargeable battery meets all respective IEC standards. All
configurations comply with system standard, IEC 60601-1-1.
1Charger connection
2Charge LED
3Battery capacity
4Test button
1
234
Intellisense battery

70-00969-01 F Powerheart® AED G3 Pro 9300P
2-6
Getting Started
Directions for use
The rechargeable battery is shipped half-charged. Charge battery fully
before using.
Note: The battery charger (model 9044) is sold separately.
To charge the battery:

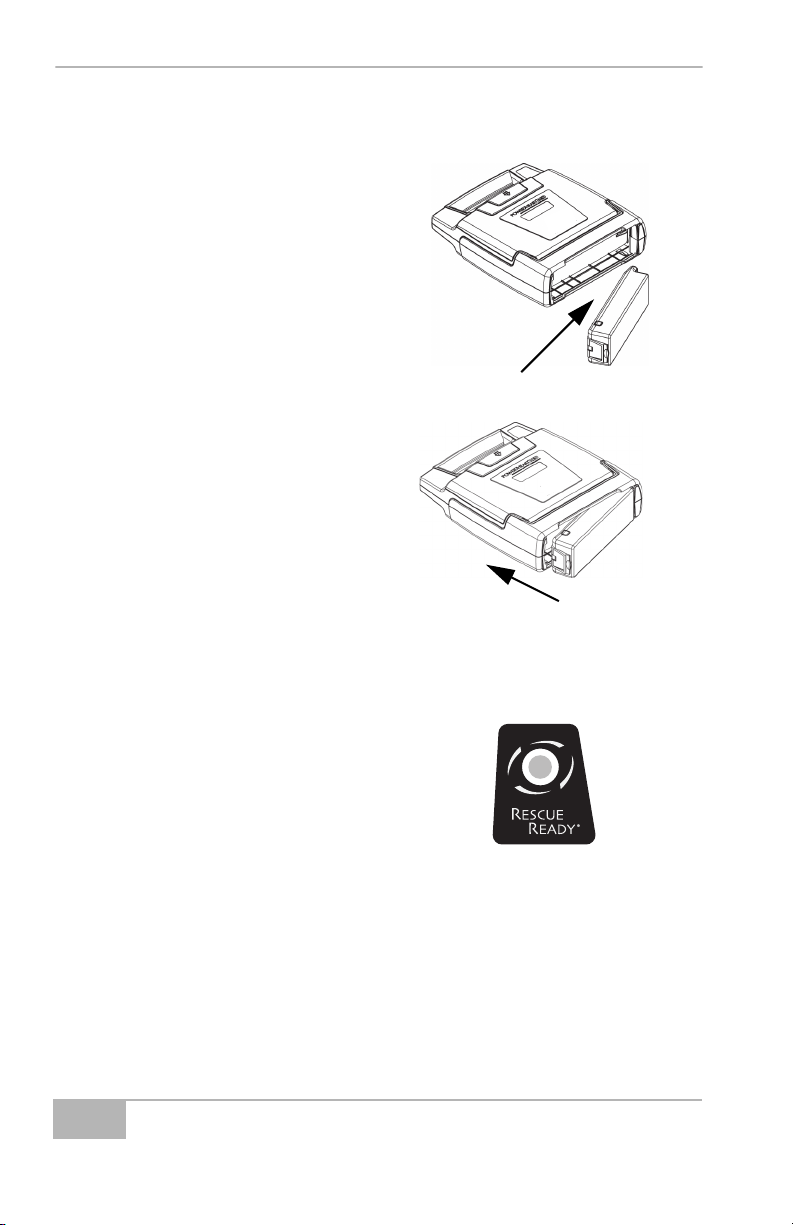

1. Remove the rechargeable battery from the AED. The rechargeable
battery can be recharged only when removed from the Powerheart
AED G3 Pro.
2. Plug the charger into an appropriate electrical outlet.
3. Insert the charger cable into the rechargeable battery and ensure
the yellow LED above the rechargeable battery symbol is on.
Charging is complete when the yellow Charge LED goes out, and
the four green Fuel Gauge LEDs are continuously lit.
4. Remove the charger cable from the battery when done charging.
Charging may be terminated early by removing the charger cable
from the battery. If the battery is charged for a minimum of 3
hours, the stated capacities will be met.
!
Caution: Incorrectly charged battery (model 9144).
If the yellow Charge LED blinks continuously, a charging error
occurred. Contact customer service in the event of a charging error.
Note: It is recommended that you keep a spare, non-rechargeable
battery nearby. For longest battery life, when storing battery,
discharge half-way. Do not store for extended periods at high
temperature.
The Powerheart AED G3 Pro will first indicate Low Battery while
there is still sufficient charge remaining to perform at least one rescue.
It is recommended to recharge the battery as soon as practical after the
Low Battery indication. It is considered normal operation for the
battery capacity gauge to show some remaining capacity when the Low
Battery indication first occurs.

Powerheart® AED G3 Pro 9300P 70-00969-01 F 2-7
Battery operating life
The battery operating life depends on the type of battery, actual usage
and environmental factors.
A new model 9145 battery provides:
◆A minimum of 12 hours (14 hours typical) of device operating
time at 20°C to 30°C ambient temperature with no shocks
delivered, OR
◆A minimum of 9 hours of device operating time at 0°C ambient
temperature with no shocks delivered, OR
◆A minimum of 9 hours of device operating time at 50°C ambient
temperature with no shocks delivered, OR
◆up to 290 shocks (typical)
Battery shelf life
The batteries have a shelf life of five years from the date of
manufacture. Shelf life is defined as the length of time a battery can be
stored at room temperature, prior to installation into AED, and still
meet the specifications under battery operating life.
Note: Storing the battery outside its specific range (0-50°C) will
decrease battery life.
Table 2-1: Normal battery life
Model
Estimated Shelf
Life (from date of
manufacture)
Full Operational
Replacement Guarantee
(from date of installation)
Typical
Shocks
9145 lithium
sulphur dioxide
5 years 1 year from date of
installation or 12 hours of use,
whichever occurs first
up to 290
9144 lithium ion 5 years 2.5 years or 300 battery
charge/discharge cycles,
whichever comes first
Per charge:
60 shocks
minimum
(100 shocks
typical)
Batteries

70-00969-01 F Powerheart® AED G3 Pro 9300P
2-8
Getting Started
Battery installation
To install the battery:
1. With the label on the
battery facing the AED
battery compartment,
insert the battery as shown
in the drawing.
2. Push the latched end of the
battery firmly into the
AED, as shown in the
drawing, until the battery
snaps into place. The
exposed side of the battery
should be flush with the
outside of the AED case.
3. Wait a few seconds and
then open the lid for 5
seconds to initiate a self-
test.
If the battery is installed
properly:
•The Rescue Ready
status indicator turns
green.
If service is required, the Service indicator illuminates instead.
Contact Cardiac Science Technical Support (see Contact
information on page 1-2) or outside the U.S., your local Cardiac
Science representative.
4. Close the lid.

Powerheart® AED G3 Pro 9300P 70-00969-01 F 2-9
Defibrillation pads
The defibrillation pads come in a ready-to-use, sealed package
containing one pair of self-adhesive pads with an attached cable and
connector. The pads are disposable and should be discarded after each
rescue.
The pads have a limited shelf life and should not be used beyond the
expiration date. Keep a fresh, unopened pair of 9131 pads plugged into
the AED at all times. Refer to the pad package label for operation
temperatures.
An audible and visual alert will indicate after the self-test if the pads are
missing, unplugged, or damaged.
Note: Store pads at room temperature.
!
Caution. Use only Cardiac Science Approved Equipment.
Using batteries, pads, cables, or optional equipment other than those
approved by Cardiac Science may cause the AED to function
improperly during a rescue.
!
Caution. Possible Improper AED Performance.
Using pads that are damaged or expired may result in improper AED
performance.
Defibrillation pads

70-00969-01 F Powerheart® AED G3 Pro 9300P
2-10
Getting Started
Pad installation
To install the pads:
1. Open the lid of the AED.
2. Place the pad package into the lid so that the expiration label is
visible through the clear window on the lid. The expiration date of
the pads will then be readable without opening the lid of the AED.
3. Match the color of the connectors (red to red and white to white),
then plug the pad connector into the AED case as shown in the
photograph.
4. Tuck the excess cable length in the bottom holder. With the pad
package completely secured to the AED lid, close the lid.
5. Make sure the expiration date is visible through the clear window
of the lid and check to make sure that the STATUS INDICATOR
is GREEN. If the pads are not installed properly, the STATUS
INDICATOR will be RED. Contact Cardiac Science Technical
Support (see Contact information on page 1-2) or outside the U.S.,
your local Cardiac Science representative.
White Red

Powerheart® AED G3 Pro 9300P 70-00969-01 F 2-11
Directions for use
!
WARNING! Do not reuse pads.
Used pads may not adhere properly to the patient. Improper pad
adhesion may result in skin burns. Improper pad adhesion may result
in improper AED performance. Used pads may cause patient-to-
patient contamination.
!
WARNING! Reduced therapy delivery.
Failure to remove blue liner completely could impact therapy
delivery.
!
Caution. Short-term use only. Not for pacing.
DO NOT open defibrillation pads package until ready to use. Short
term use only.
Pads are not intended for use in pacing.
!
Caution. Equipment Damage.
Do not pull on the lead wire to separate the pads from the blue liner.
Note: Store pads at room temperature.
Note: Pads are intended for adult use.
1. Ensure skin site is clean and dry.
2. Tear open foil package and remove pads.
3. Separate one pad from blue liner by peeling from the tabbed
corner.
Note: DO NOT pull on the lead wires.
4. Place pad on skin.
•9131 non-polarized pads: Place pad on skin in either location
shown.
•9660 polarized pads: Place pad on skin exactly as shown on
pouch.
5. Separate second pad from blue liner by peeling from the tabbed
corner.
Note: DO NOT pull on the lead wires.
6. Place second pad on opposite location as shown.
Defibrillation Pads

70-00969-01 F Powerheart® AED G3 Pro 9300P
2-12
Getting Started
